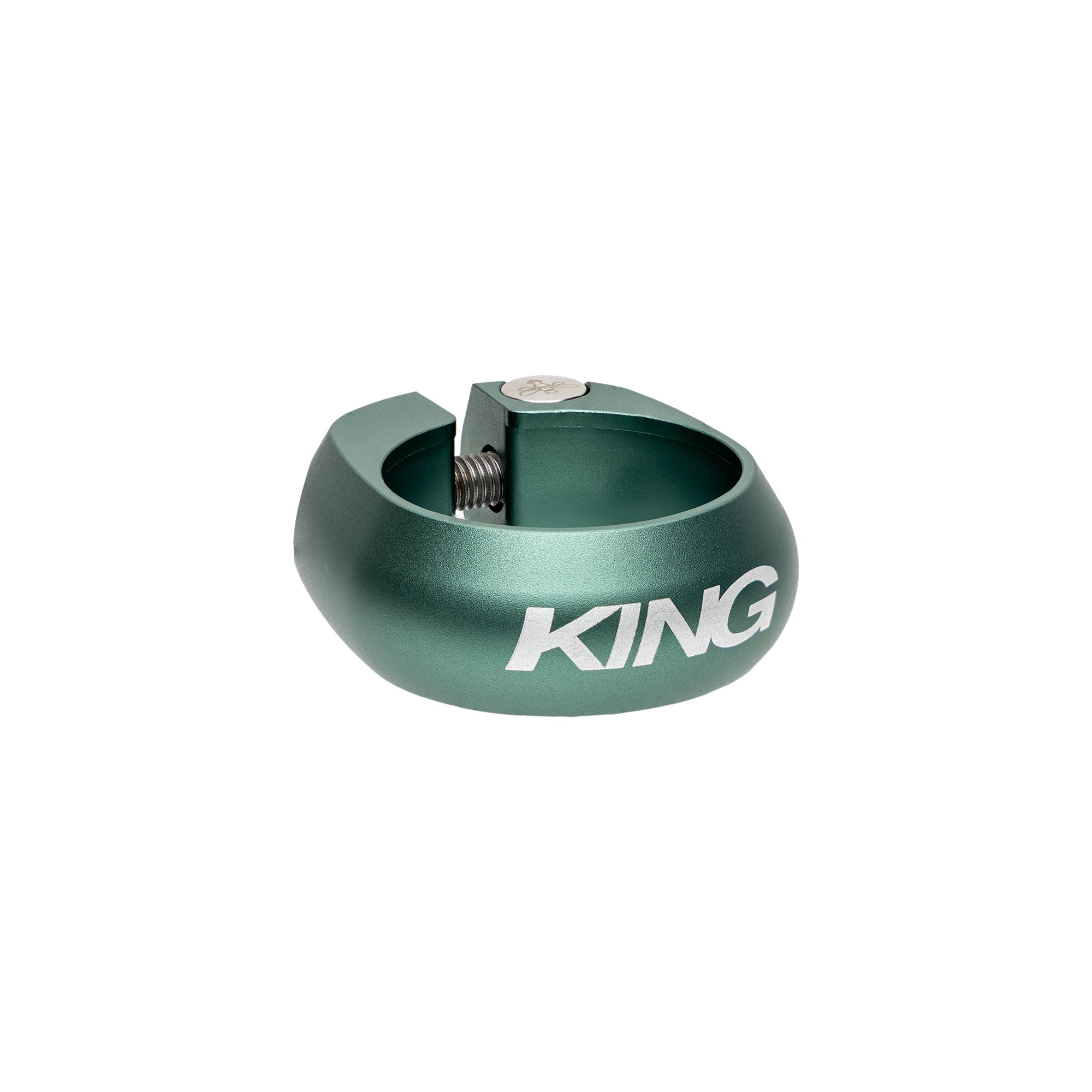

The aluminum clamps feature the same "KING" laser markings as the headset and are paired with barrel nuts that are stamped with the "King Bee" logo. The barrel nut seat clamp is designed to provide uniform tightness to stabilize the seat post position and protect the frame from excessive force. The distributed load on the bolt also improves durability, making it resistant to rust and wear and suitable for long-term use.

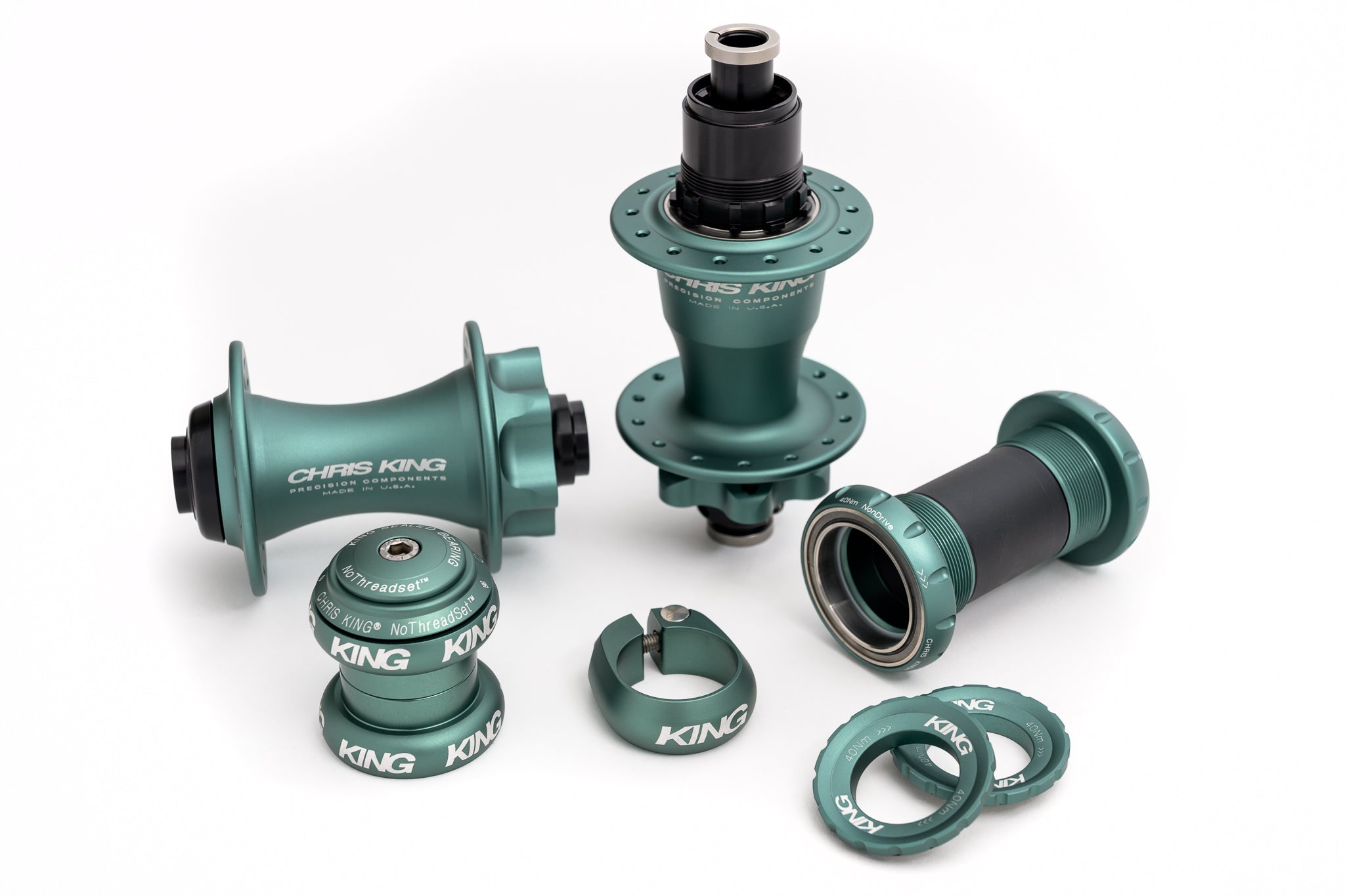

Symmetry is an important element in the design. Over the years, many Chris King users have added subtle, elegant color accents to their bikes by combining bottom brackets and hubs around the headset.

However, there is no item on the top of the bike that balances the color, and Chris King has sometimes felt a little underwhelmed by the lack of such an item. This may seem like a small detail, but in response to that "detail", and the demand from many cyclists for a high quality seat post color, we have now created the Chris King Original.

[SPEC].

Clamp Diameter :.	30.0, 31.8, 34.9, 36.4mm Fits seat tube outer diameter ±0.5mm
Contents : Aluminum clamp, stainless steel bolts	Aluminum clamp, Stainless steel bolt, Washer, Barrel nut
	Made in USA. / Lifetime Warranty.

[How to install]

Measure the seat tube of your frame to confirm the proper size. Each nominal size fits the seat tube outer diameter of ±0.5mm.
For example, size 30.0mm fits seat tube O.D. from 29.5mm to 30.5mm.
When installing on aluminum, steel, or titanium frames, it is recommended that a small amount of anti-seize agent be applied to the inside of the seat post collar.
Maximum tightening torque is 6 Nm.
Height of seat collar 15.88mm, height from clamp to inner lip 14.35mm.
A small amount of anti-seize agent is applied to the threads of each post collar bolt and barrel nut. After cleaning or disassembling the seat post collar, it is recommended to reapply anti-seize agent to these threads.

[Fitting Guide]

Year	Brand	Model	Size mm
-Size mm	Many Steel Frames	Size - mm - Many Steel Frames	30.0
Size mm - Many Steel Frames - 30.0	Many Ti Frames	Many Steel Frames - 30.0 - Many Ti Frames	31.8
Santa Cruz	Santa Cruz	Stigmata	31.8
2023 Santa Cruz Stigmata	Canyon	Gravel	31.8
2023 Canyon Gravel	Transition	Alloy	34.9
2023 Transition Alloy 34.9	Pivot	Switchblade	34.9
2022	IBIS	most or all models	34.9
2023	ENVE	MOG	34.9
2023	Evil	Wreckoning LS	34.9
2023	Evil	Following LS	34.9
2023	Canyon	Mtn	Canyon Mtn 34.9
2022	Cannondale	Moterra	34.9
2022	Cannondale	Jekyll	34.9
2023 Polygon	Polygon	Siskiu	34.9
2023	Commencal	Meta Power Sx	34.9
2023	Evil	Chamois Hanger	34.9
2023	YETI	Most	36.4
Pivot	Pivot	Mach and Mach 4	36.4
2023	Pivot	Shadowcat	36.4
2023	Pivot	Shuttle LT	36.4
2022	Trek	Fuel EX 9.9	36.4
2021	Trek	Rail 7	36.4

*Sizes may vary by year.
*Correctly measure the seat tube O.D.
