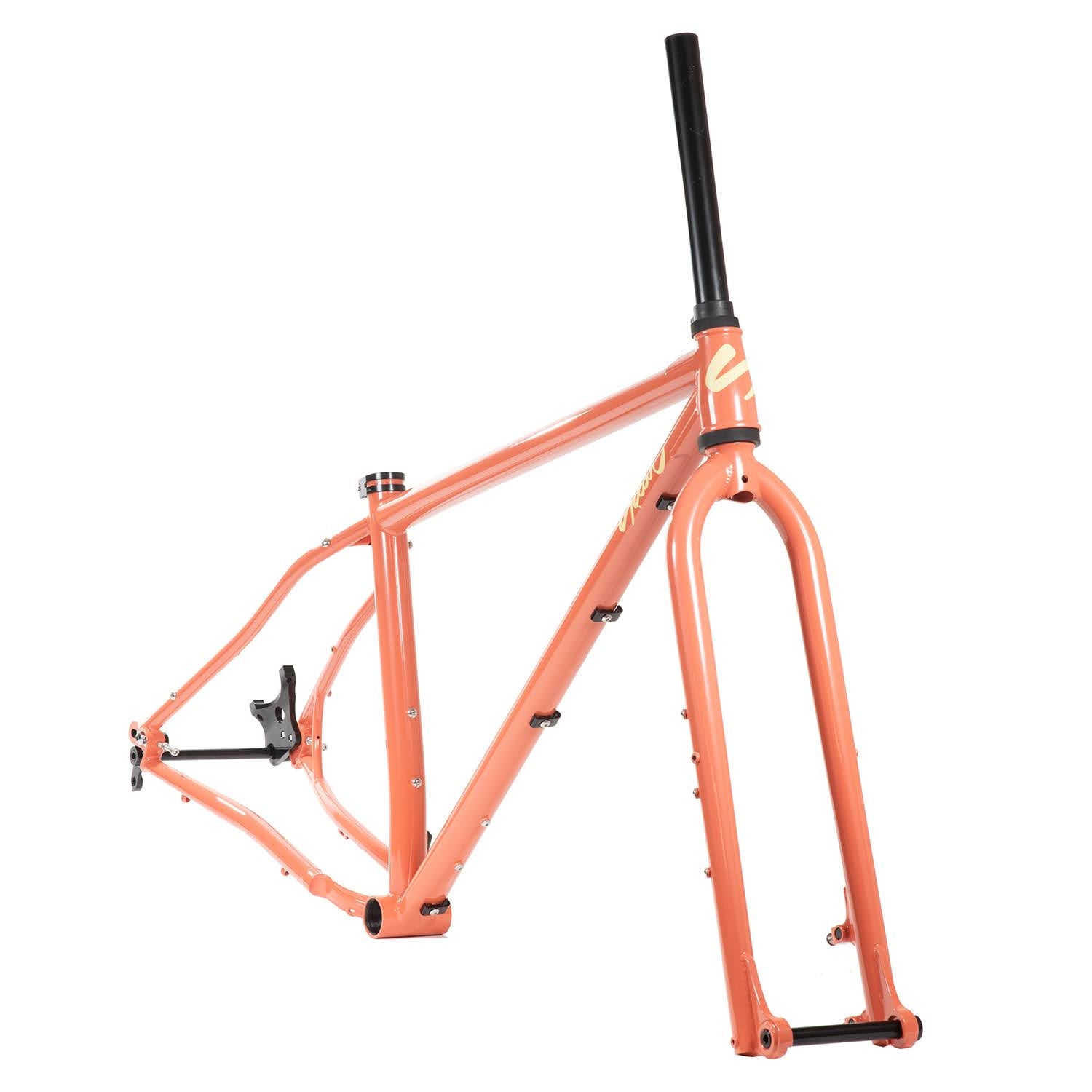

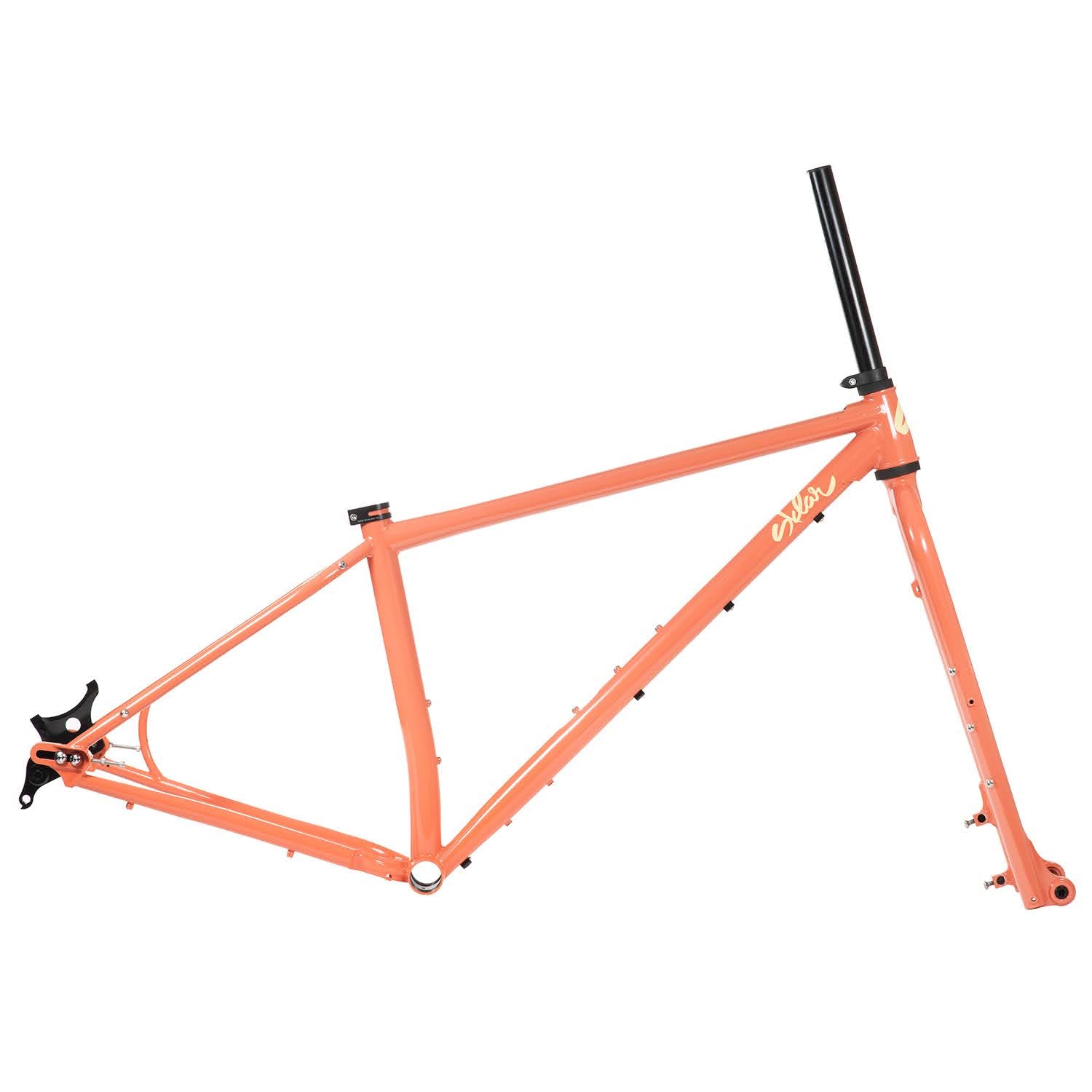

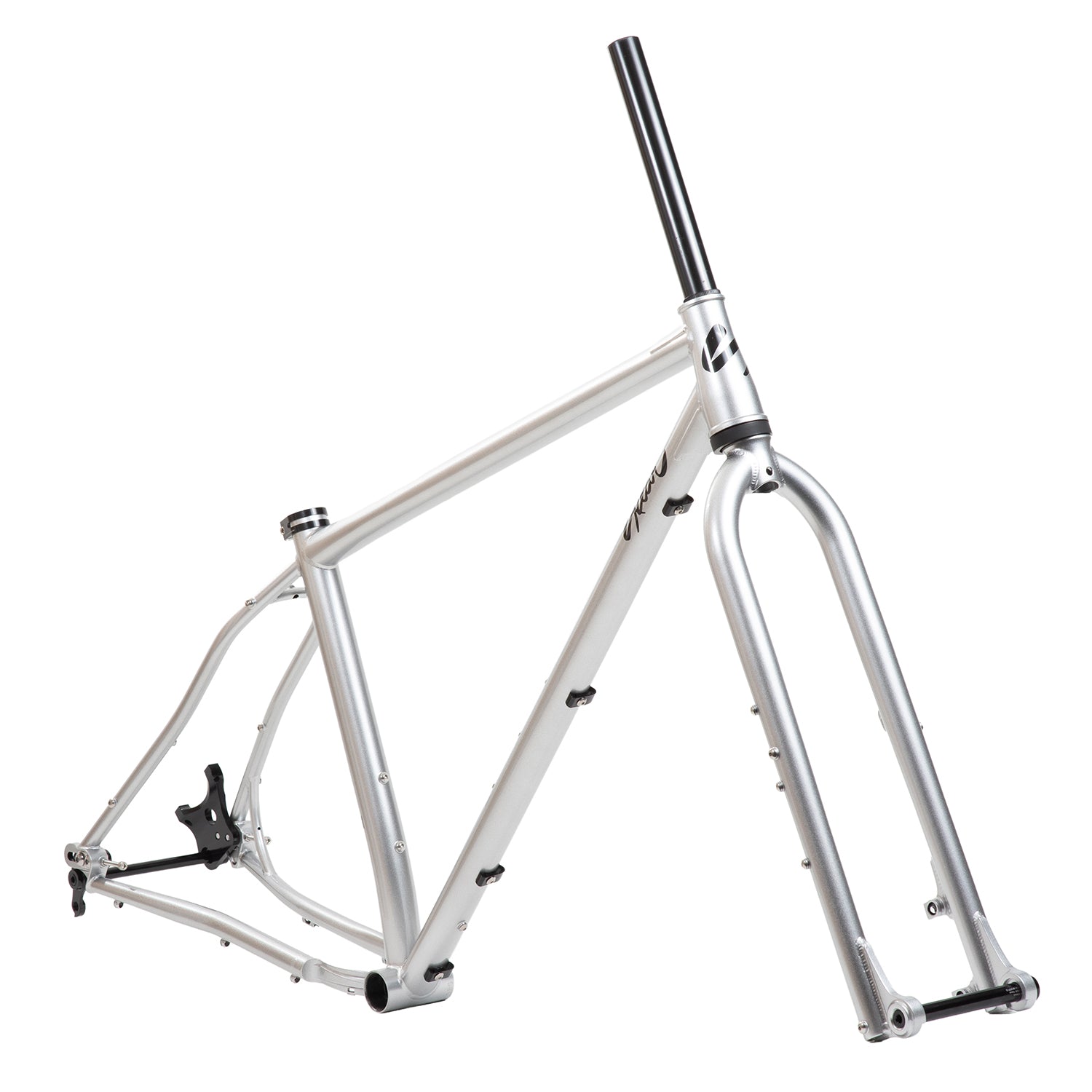

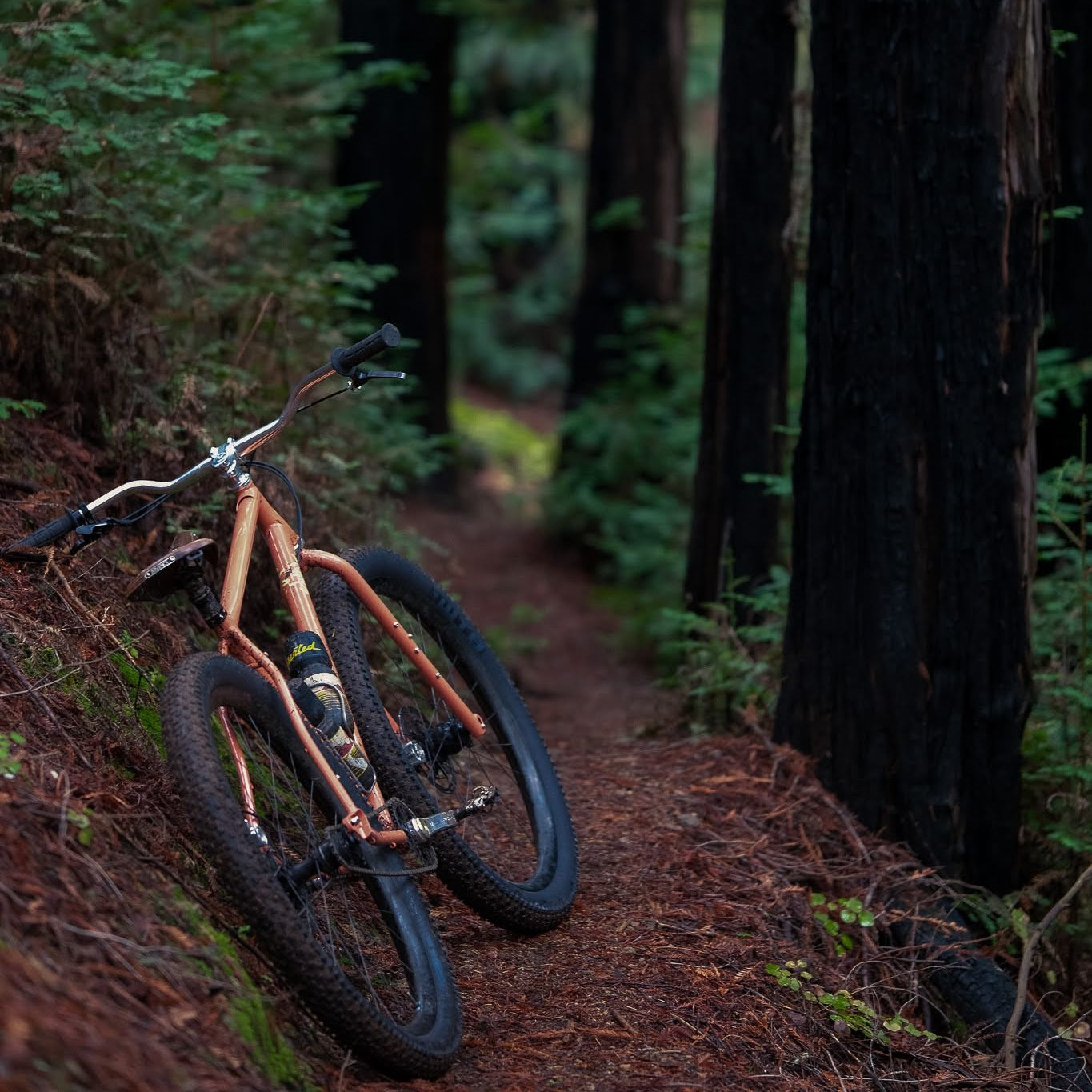

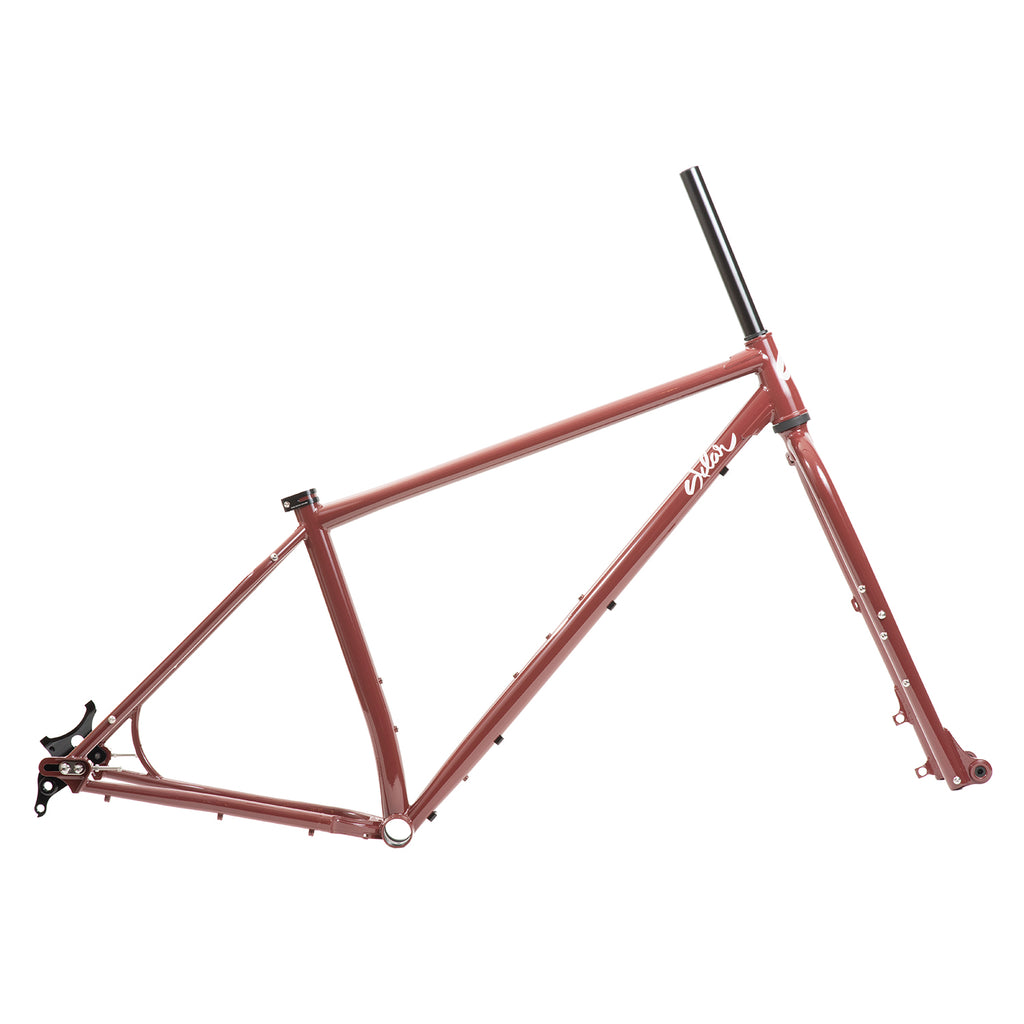

SKLAR BIKES PBJ Frame Set

PBJ - Performance Basket Jammer All Terrain

This PBJ stands for "Performance Basket Jammer," but it reminds us in many ways of our favorite PB&J sandwich. It may look simple, but you can always count on it to power you through the day. It is truly a bike that is like a reliable partner. Even if you don't have a plan, you can get anywhere on this thing.

After building several of his own touring and bikepacking bikes, Adam realized that the best bikes are the ones that are fun to ride all day long, which led him to the PBJ design. While the freedom to choose any tire size is appealing, this bike is for people who won't throw off pushing a slightly larger tire all day long. Because the reward for all that hard work is an accomplishment-filled downhill ride.

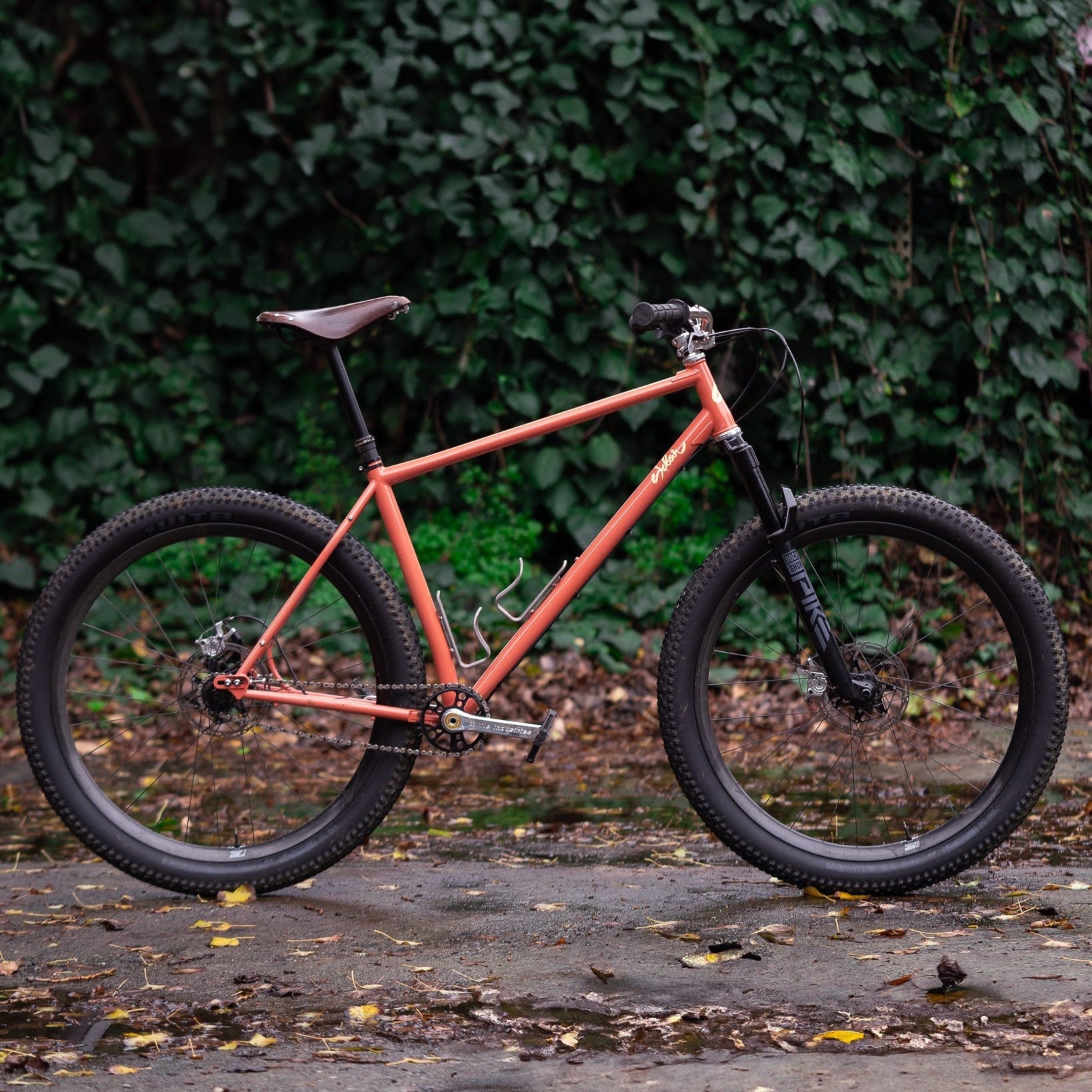

The bike can be set up for geared or singlespeed thanks to the sliding dropouts, and it can accommodate rigid to 100-120mm travel suspension for a variety of fun setups. Handling is familiar and playful enough to take you anywhere. But don't forget your PB&J sandwich.

[DESIGN PHILOSOPHY]

PBJ is the result of many attempts to create the "perfect" touring bike. Of course, there is no such thing as the perfect bike, but this bike is still pretty well finished in almost every way.

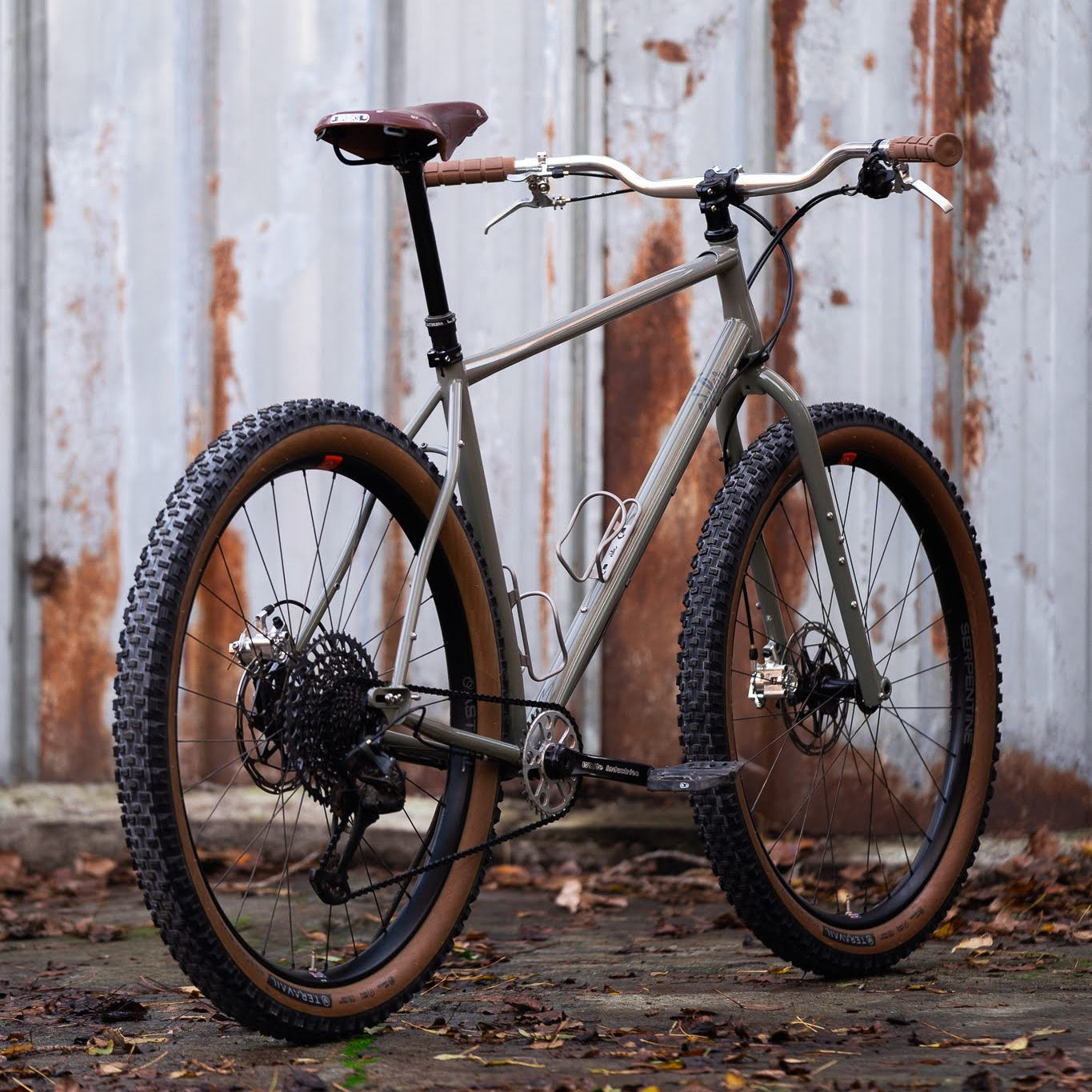

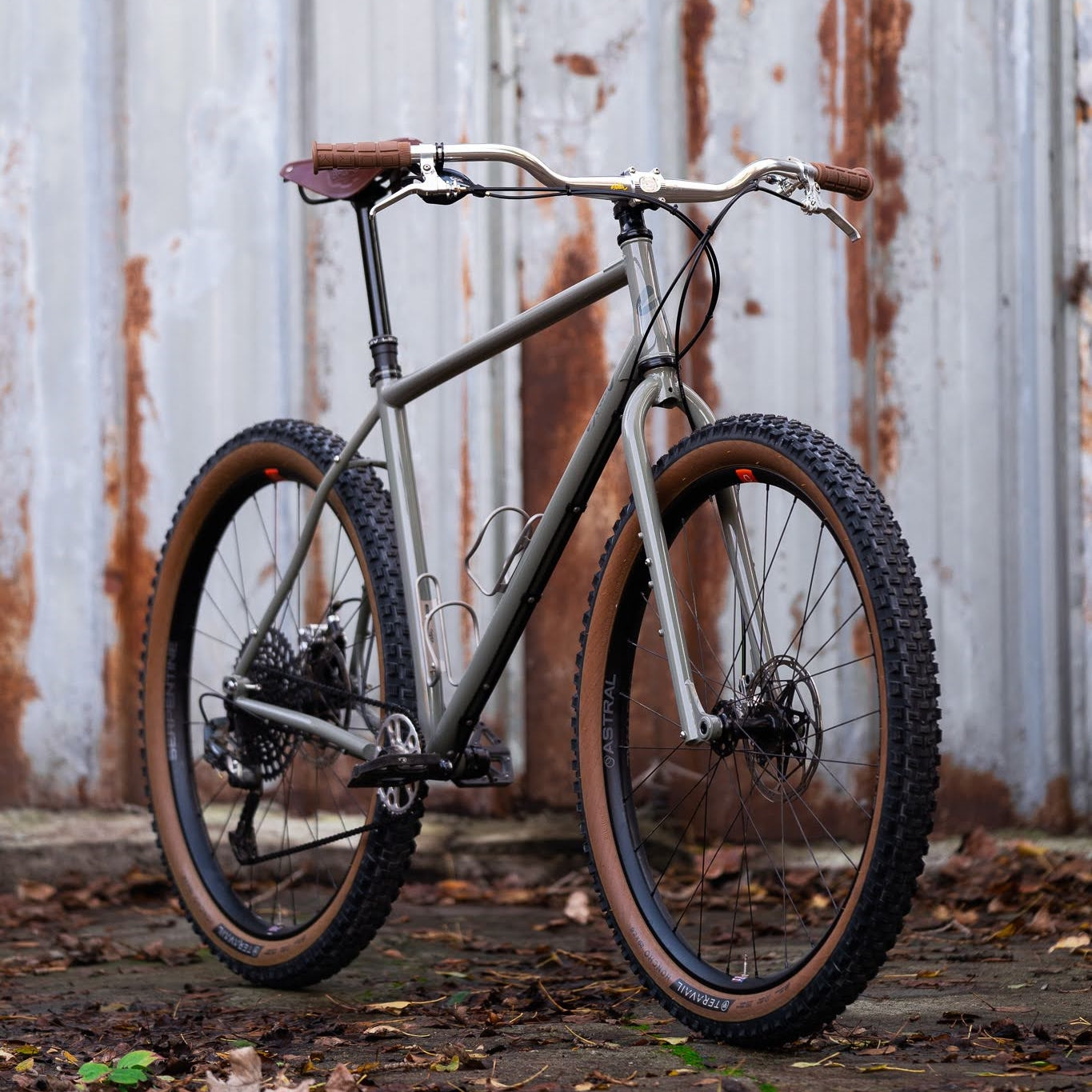

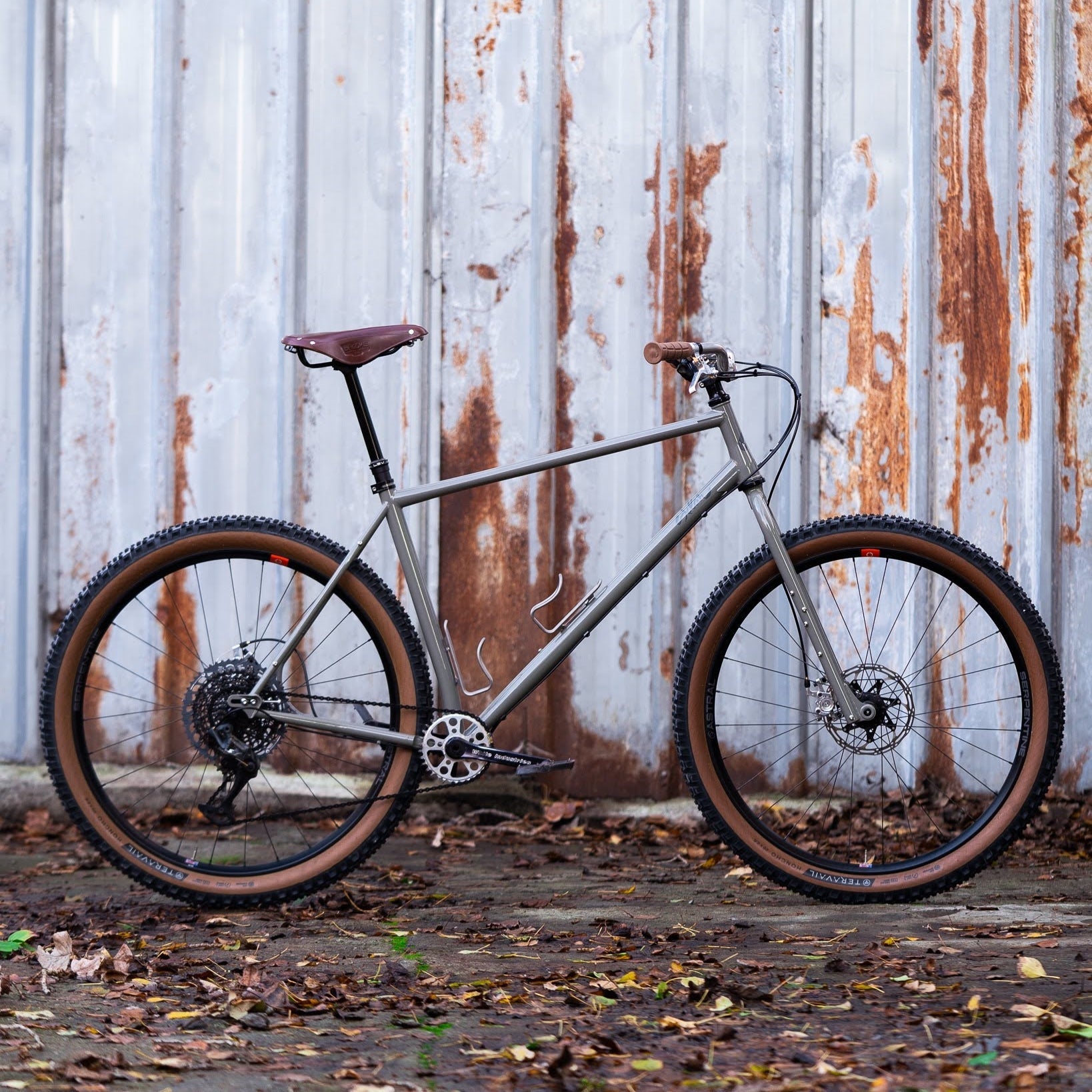

Equipped with a rigid fork and 2.4-2.6" wide tires, it can be enjoyed as a very capable and comfortable bikepacking or touring bike. Remove the bags and it is perfect for speedy trails or city cruising. Combine it with a suspension fork and dropper post to make it a highly rideable XC mountain bike, or use it in a variety of different setups depending on the assembly.

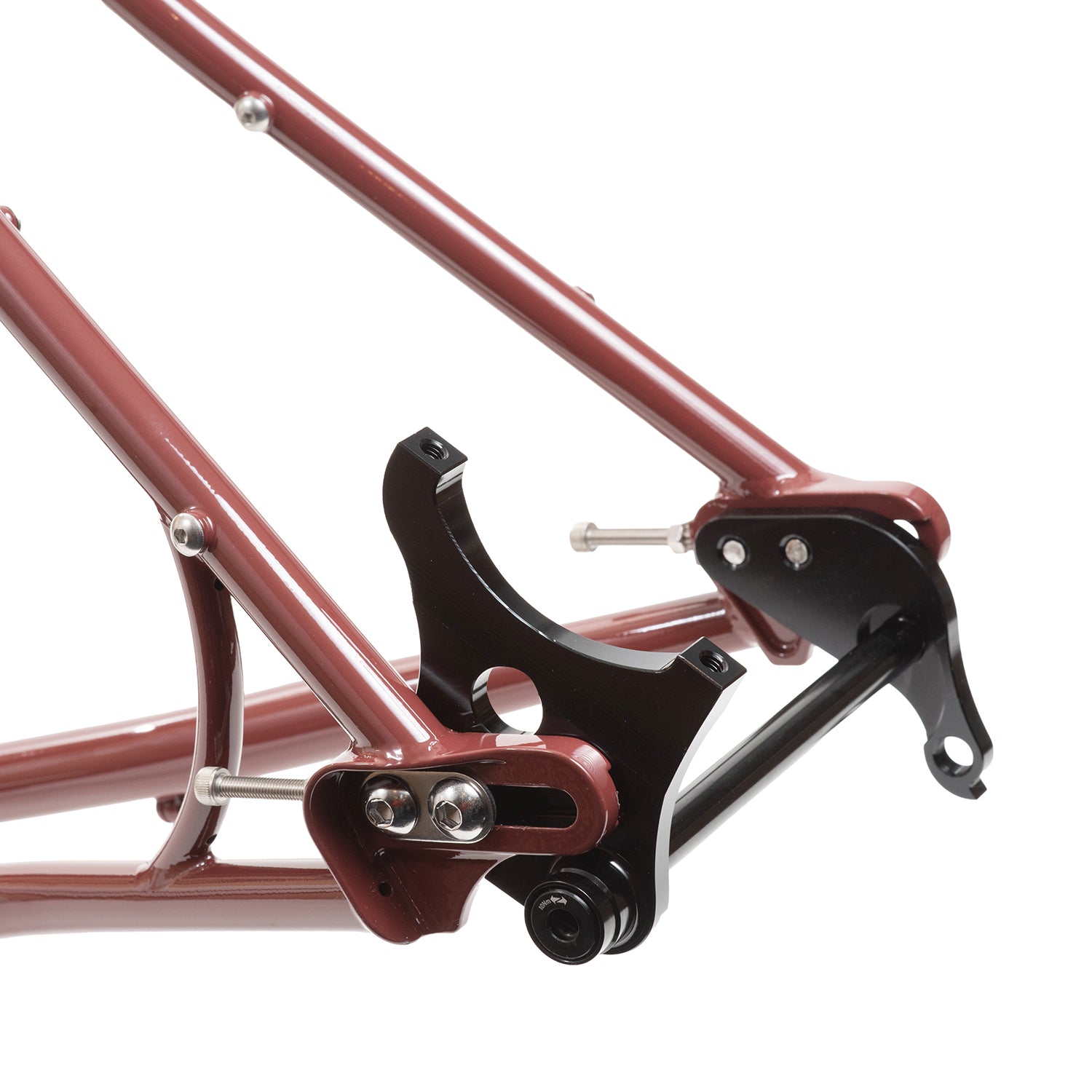

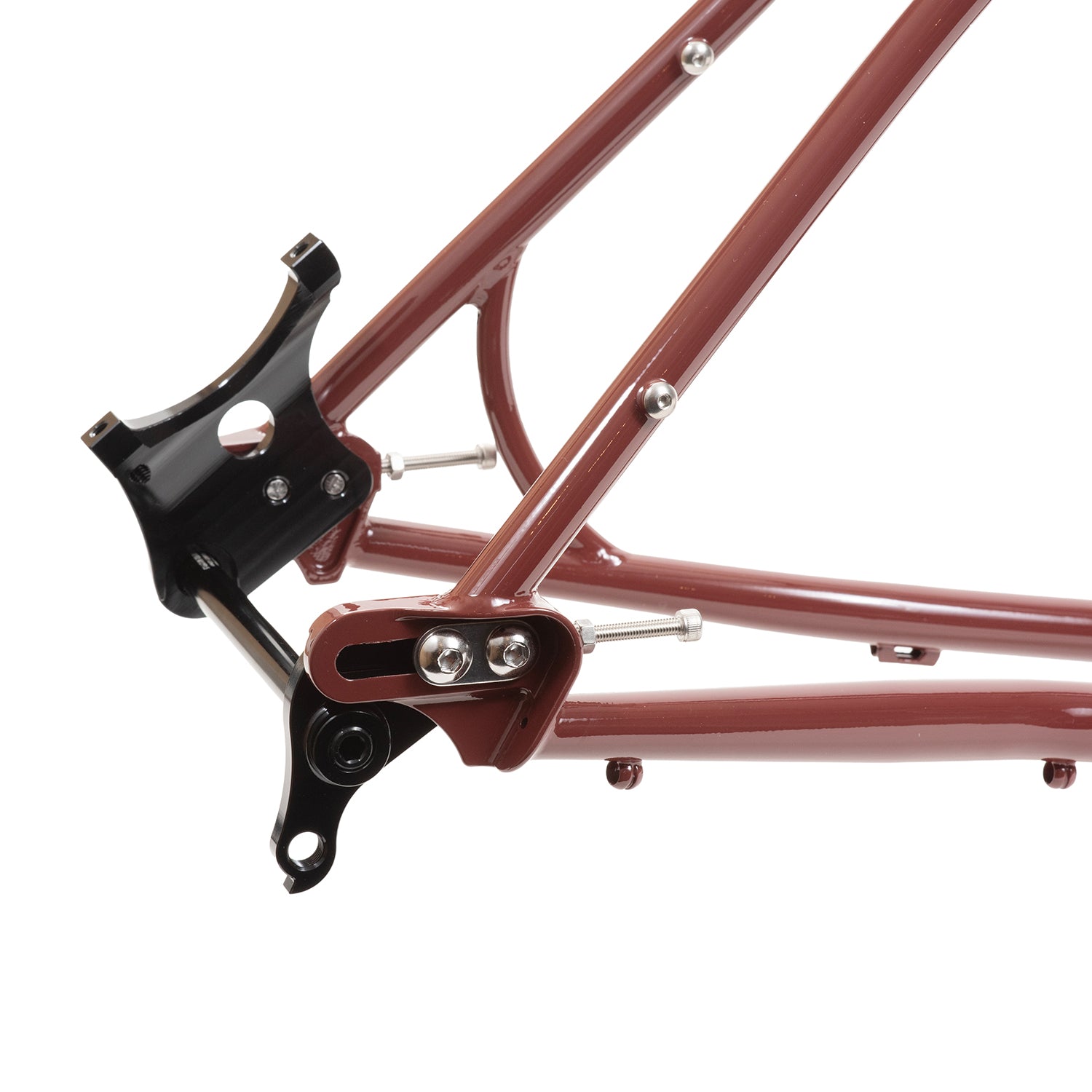

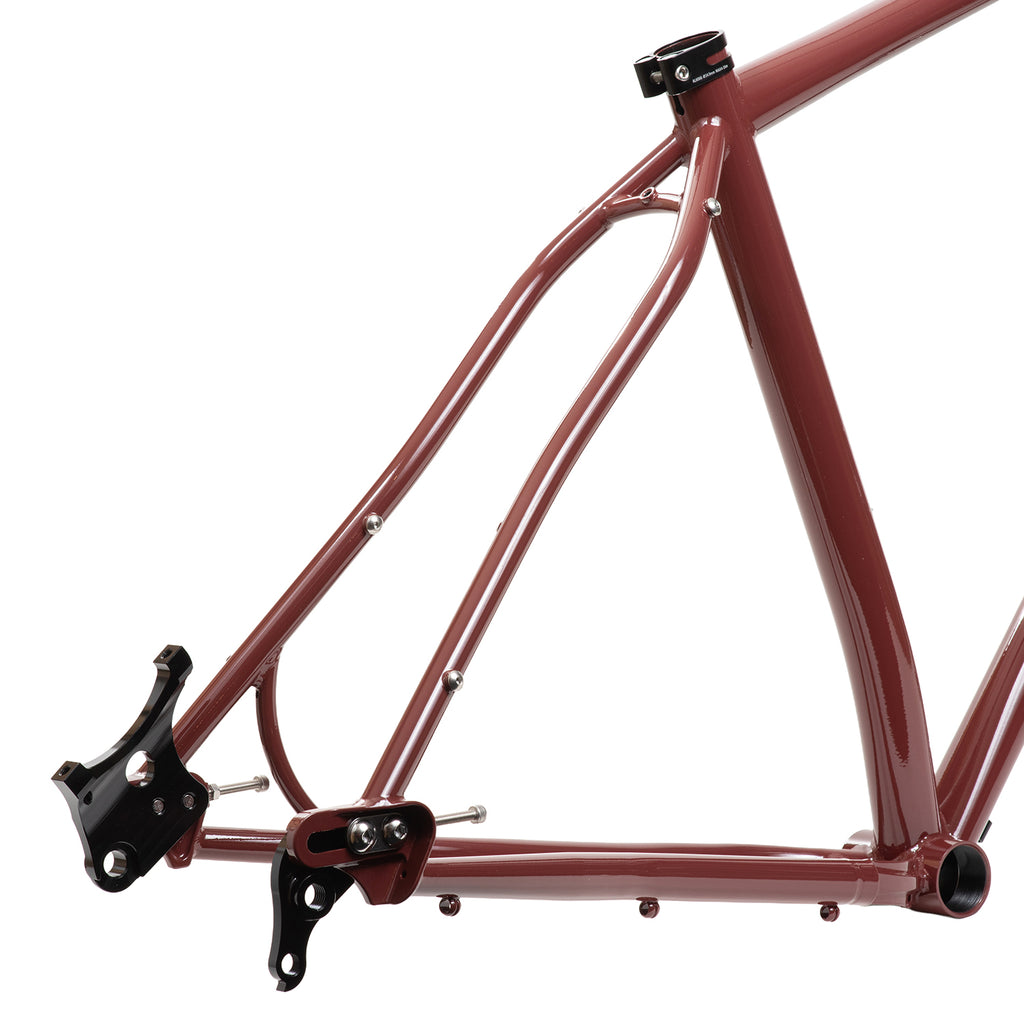

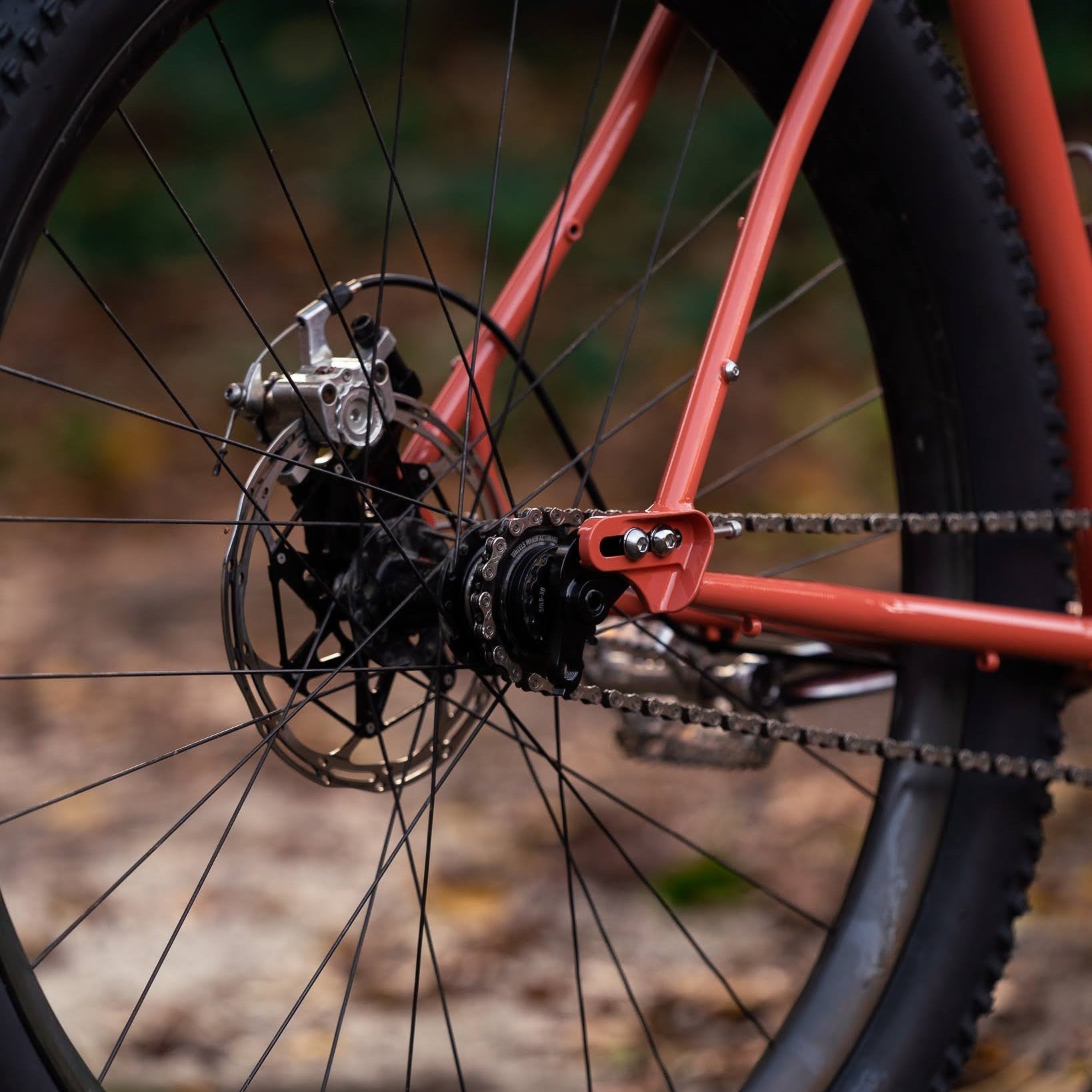

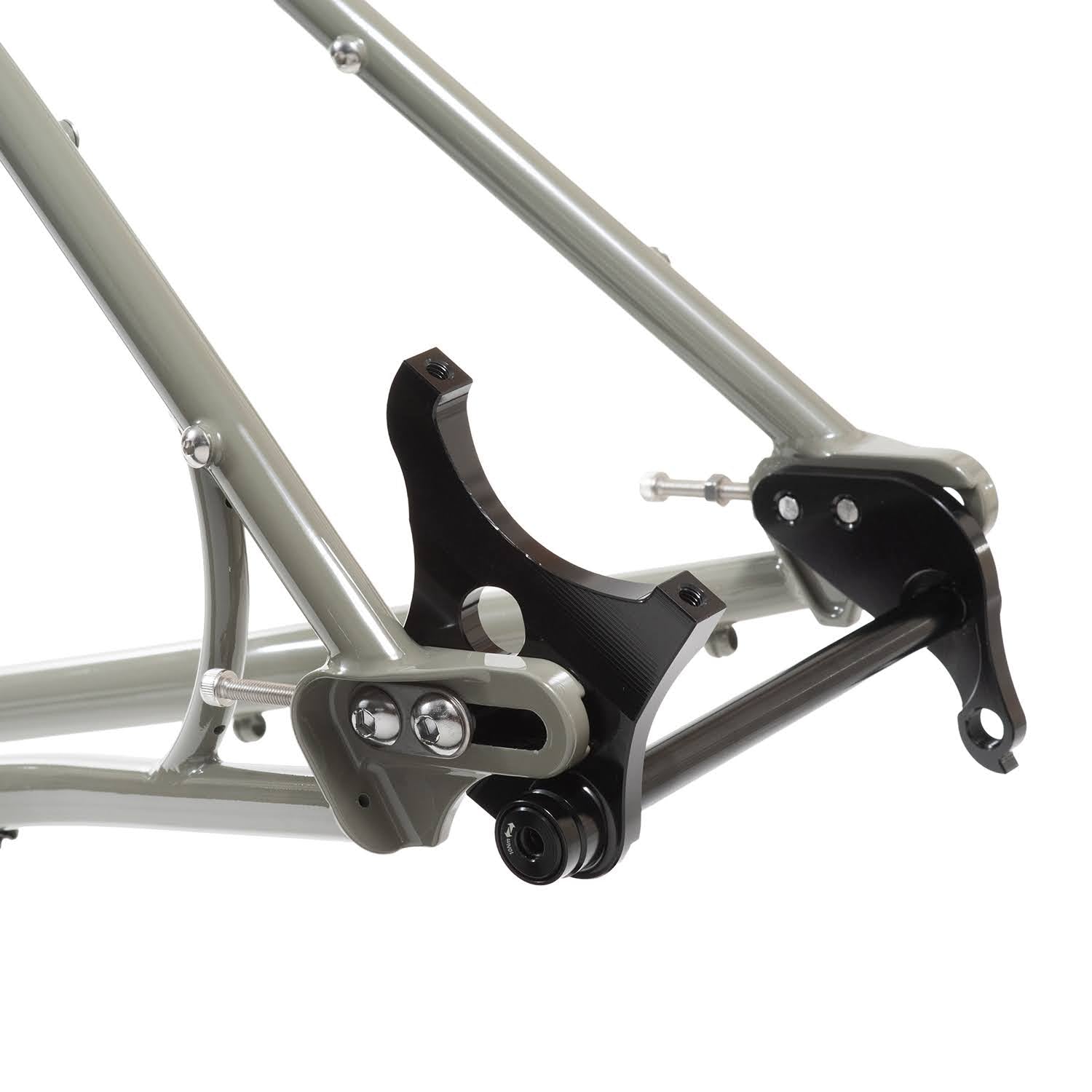

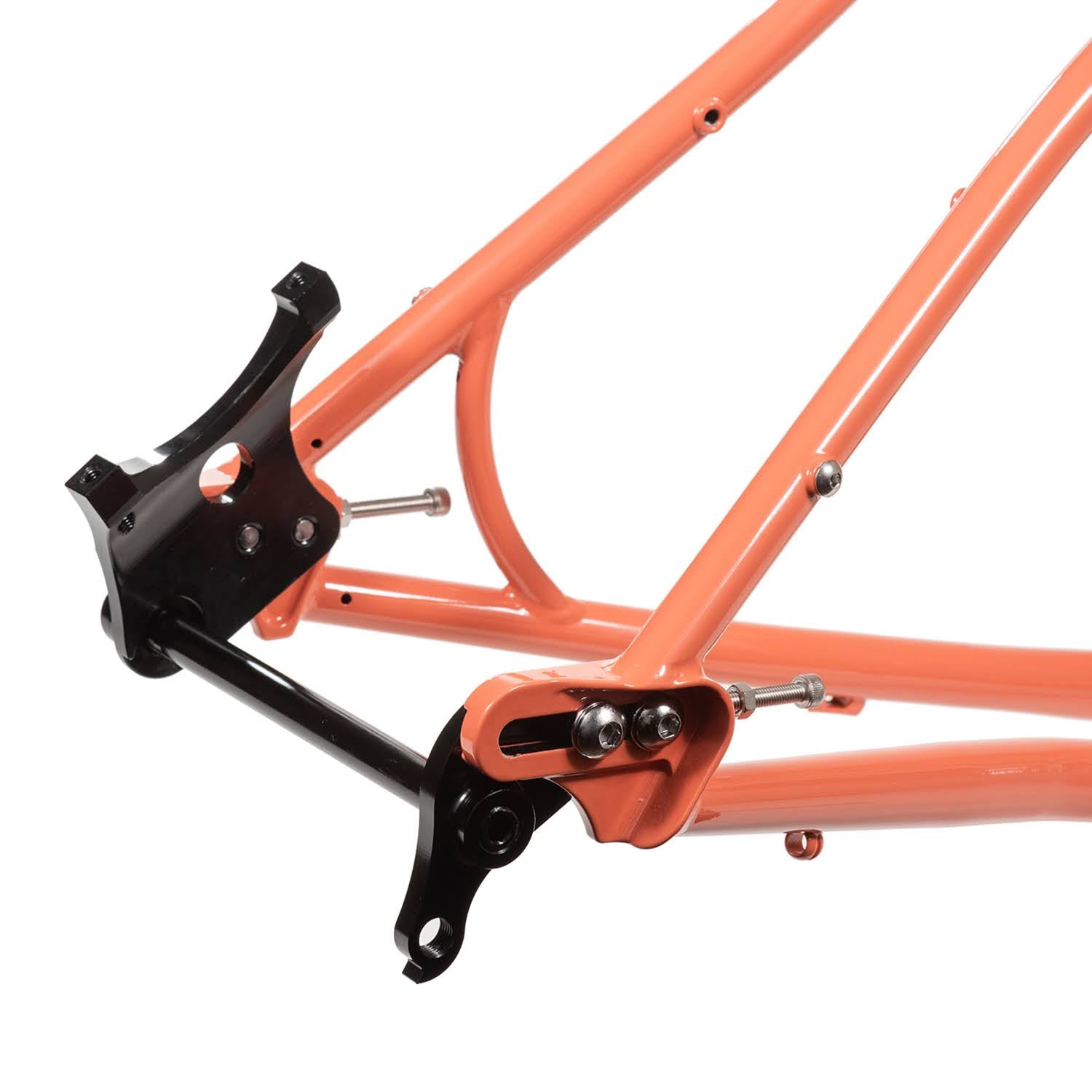

Adjustable sliding dropouts allow for single speed and geared conversions or pursuit of chainstay lengths to suit your preferred riding style.

The design and design follows modern MTB geometry, with a slightly longer front center and shorter stem, with the intention of maintaining a playful and quick handling performance. PBJ is a bike for fun.

[FEATURE]

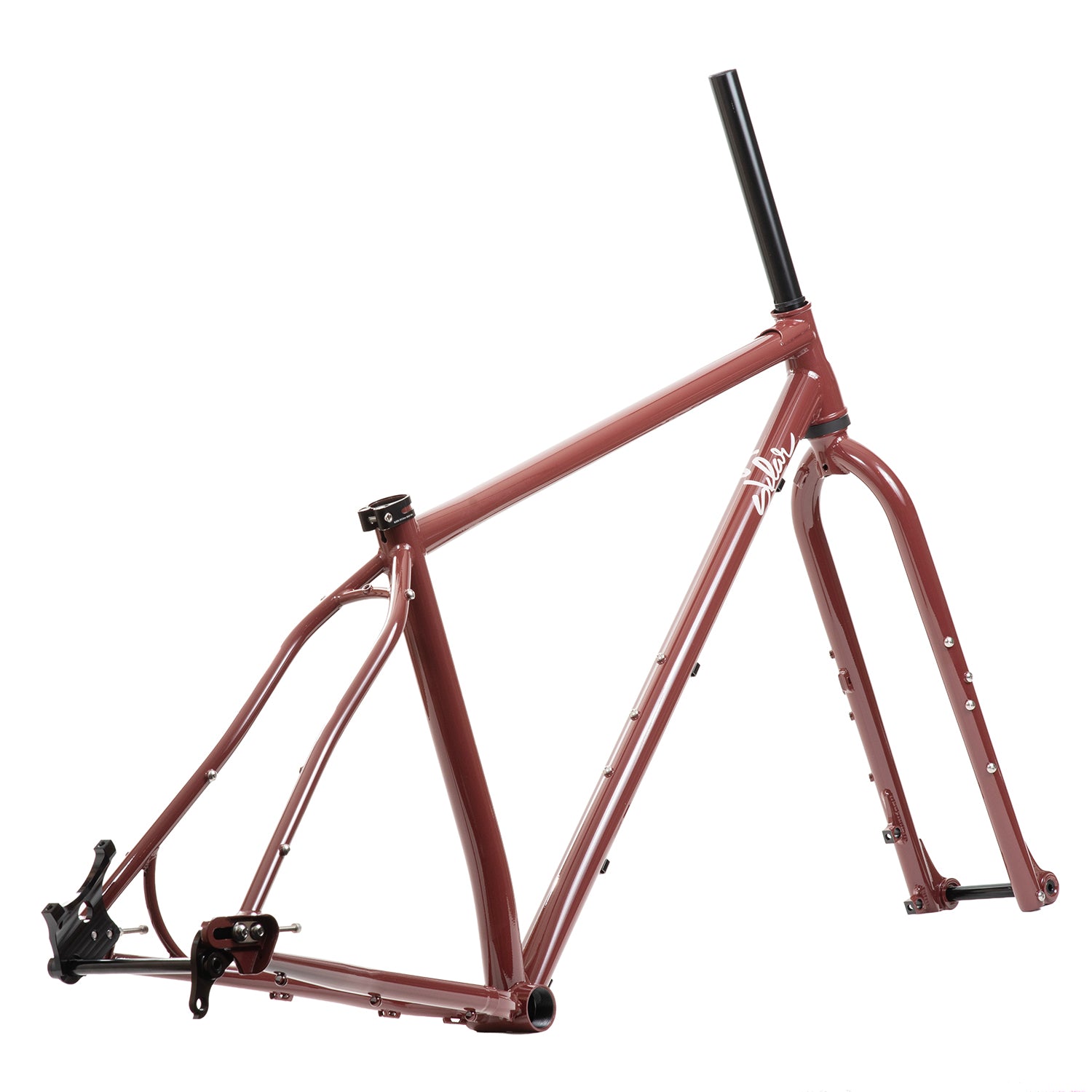

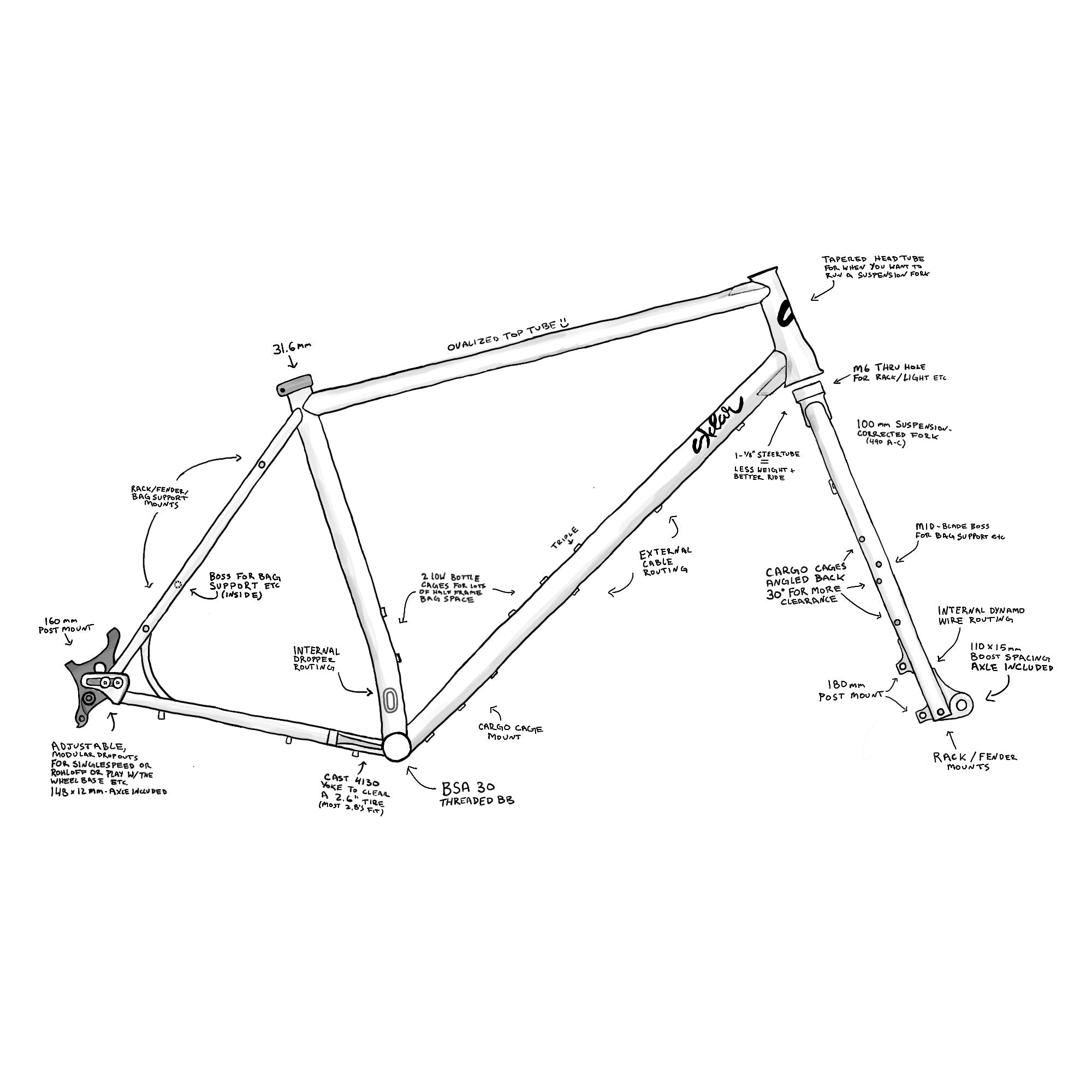

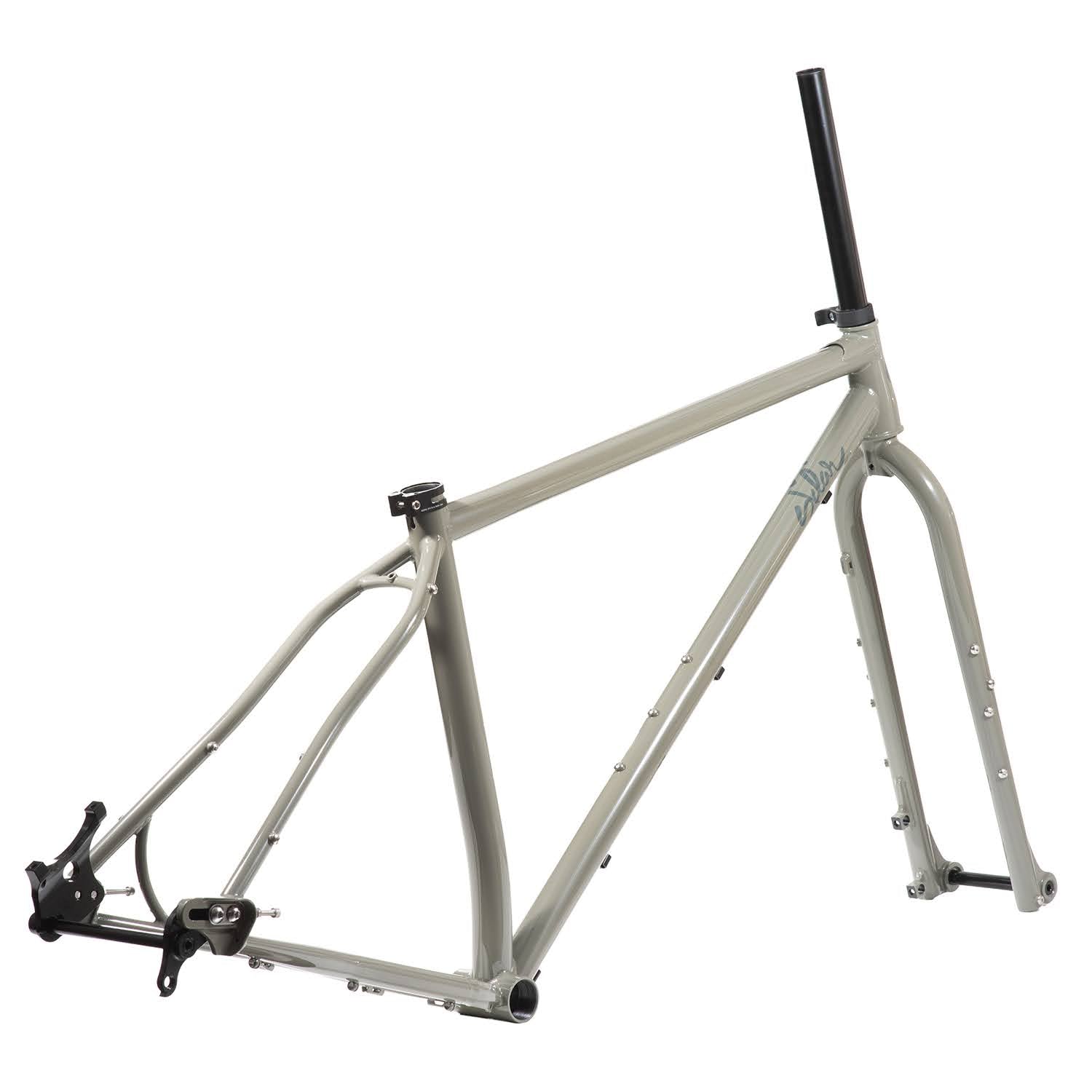

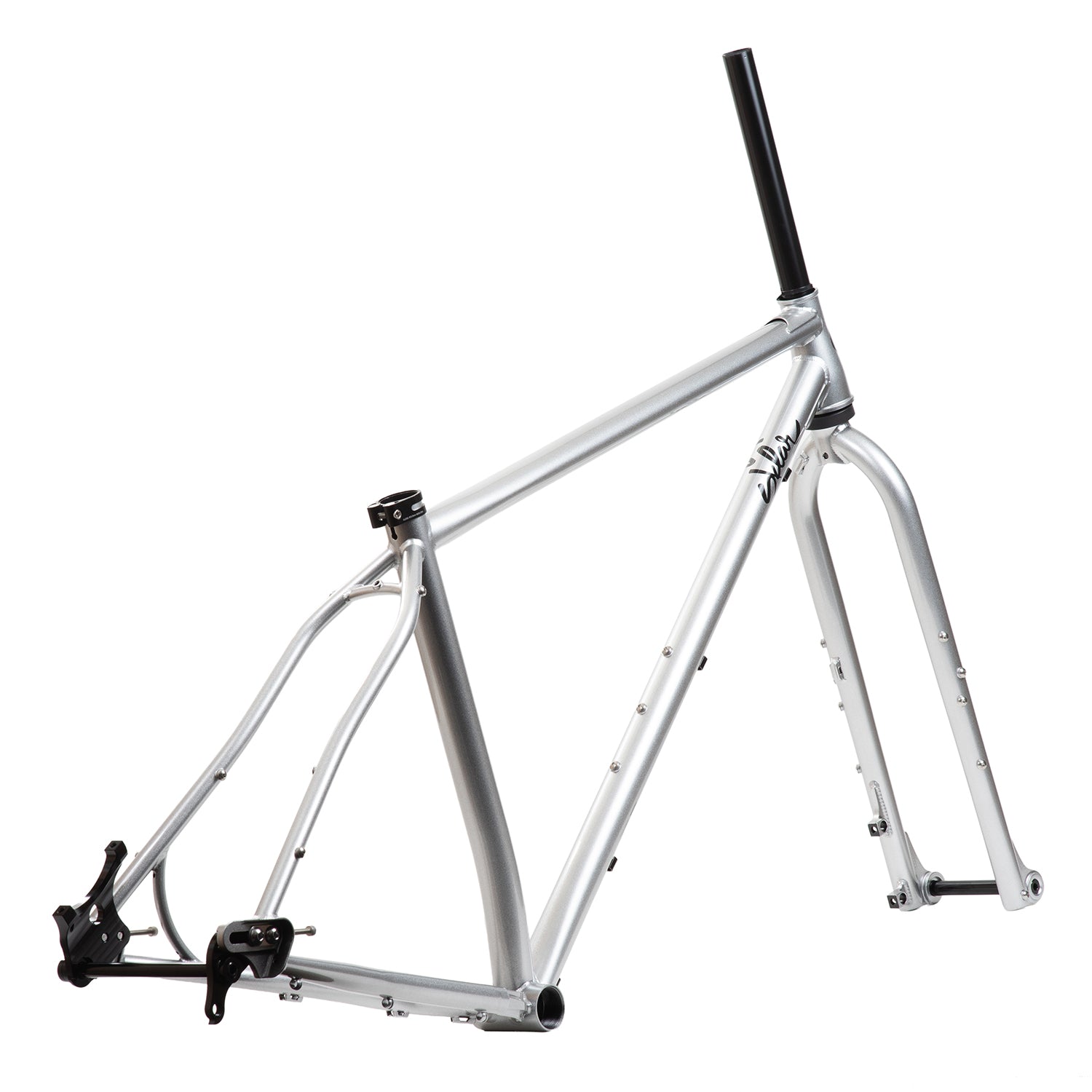

FRAME FEATURE

• Maximum tire clearance is 29" x 2.6" (27.5" wheel design for XS size only)

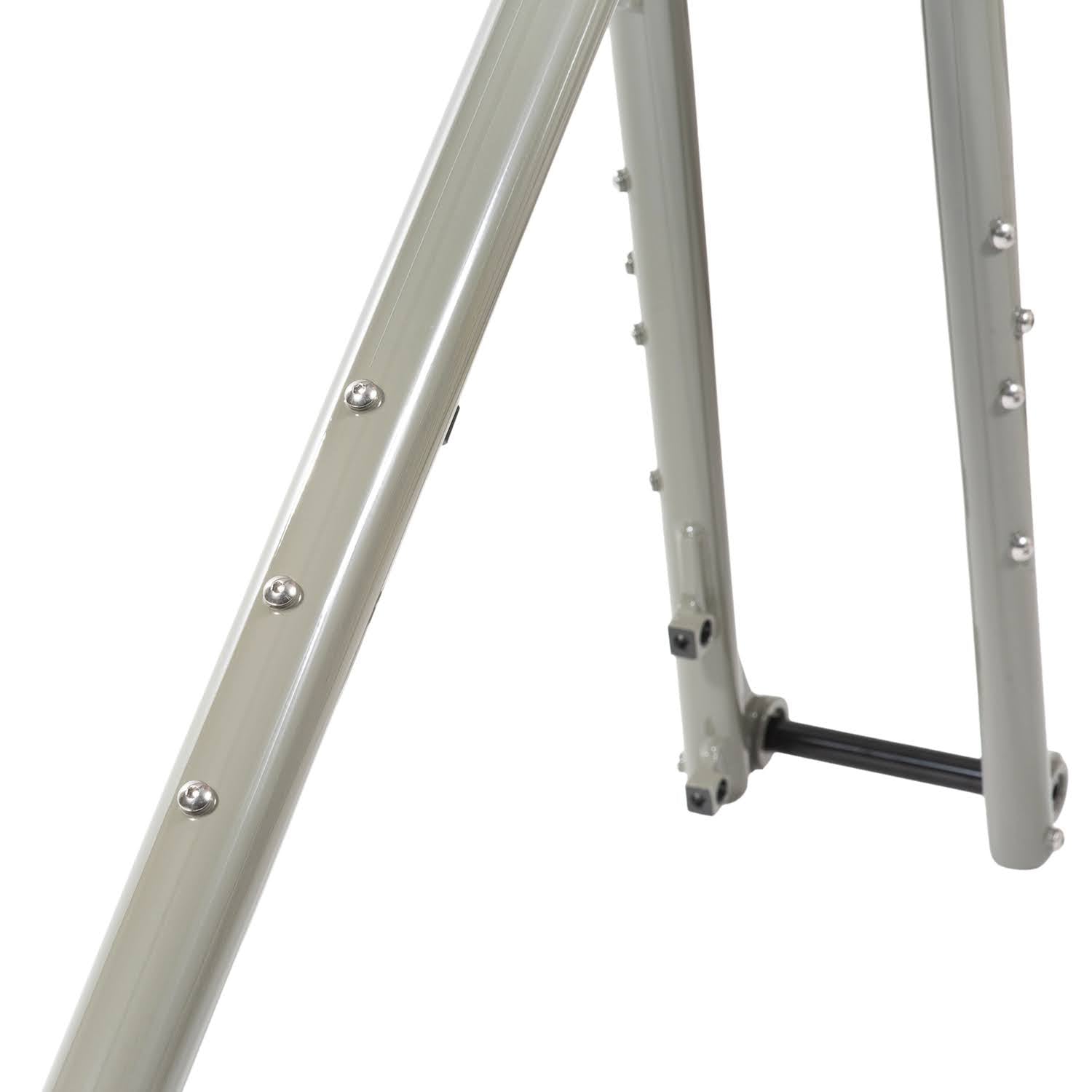

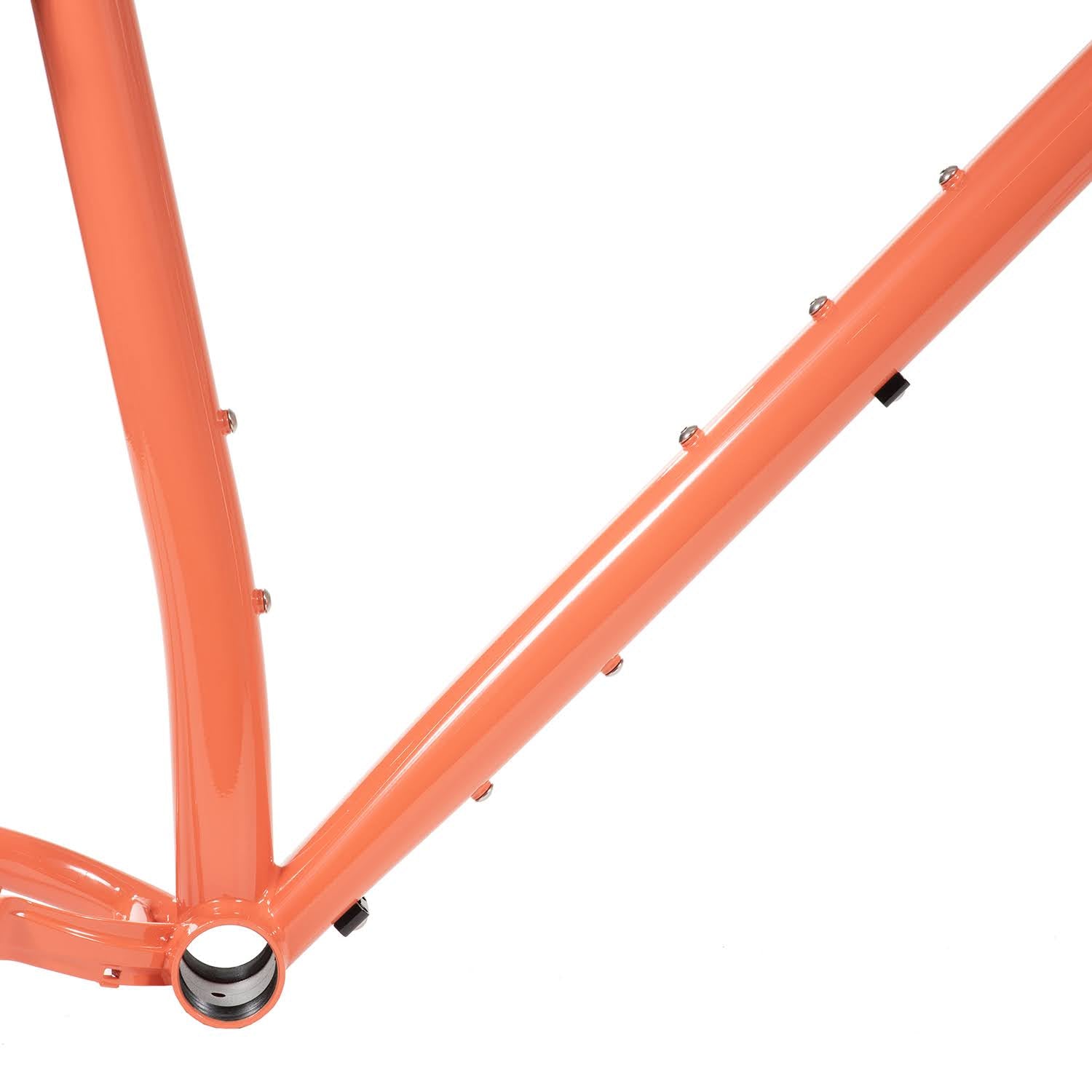

• 3-pack mount on back side of downtube
• Two bottle cage mounts on front triangle
• Fender mount and rack mount
• Exterior cable guides for easy maneuvering
• Sliding dropouts for single gears

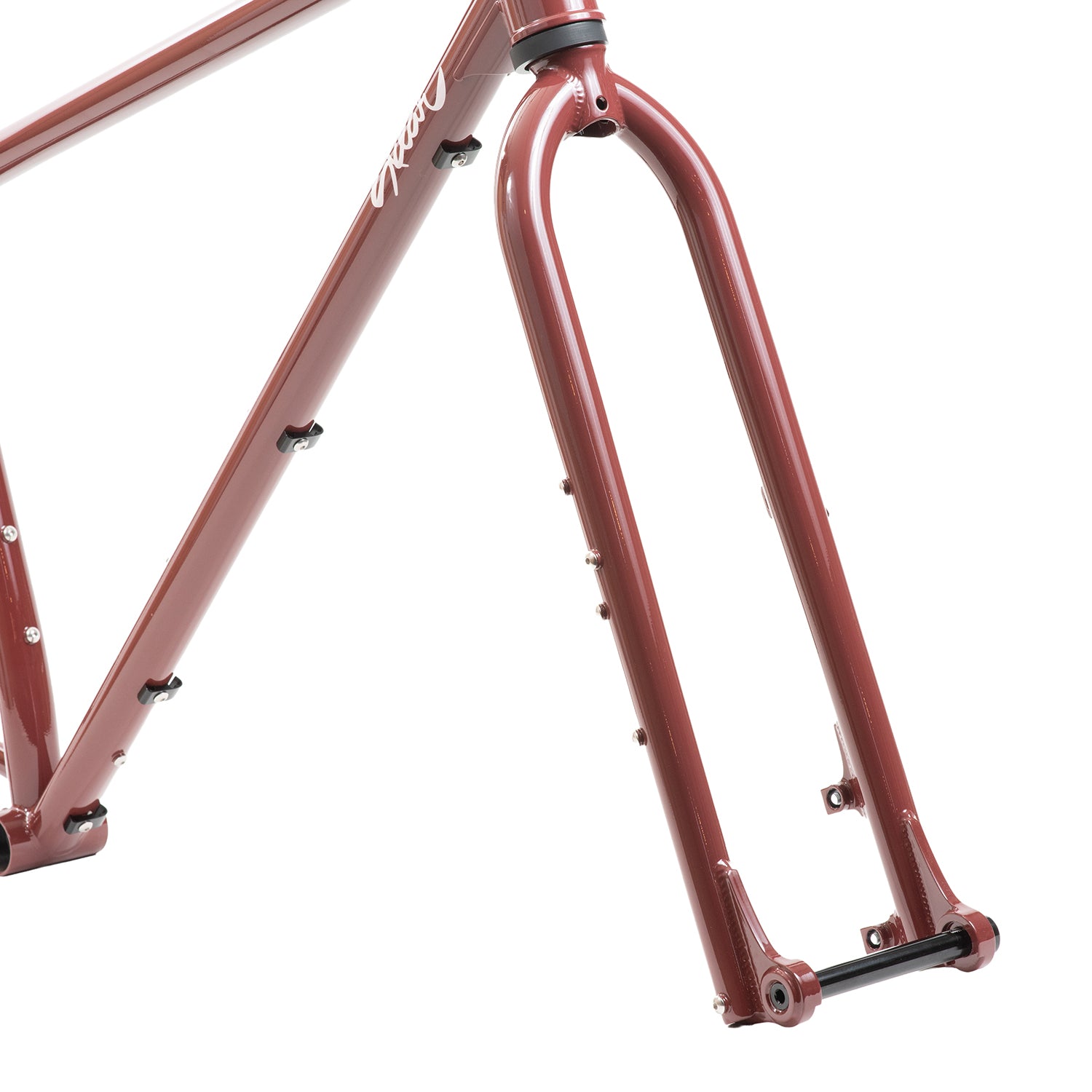

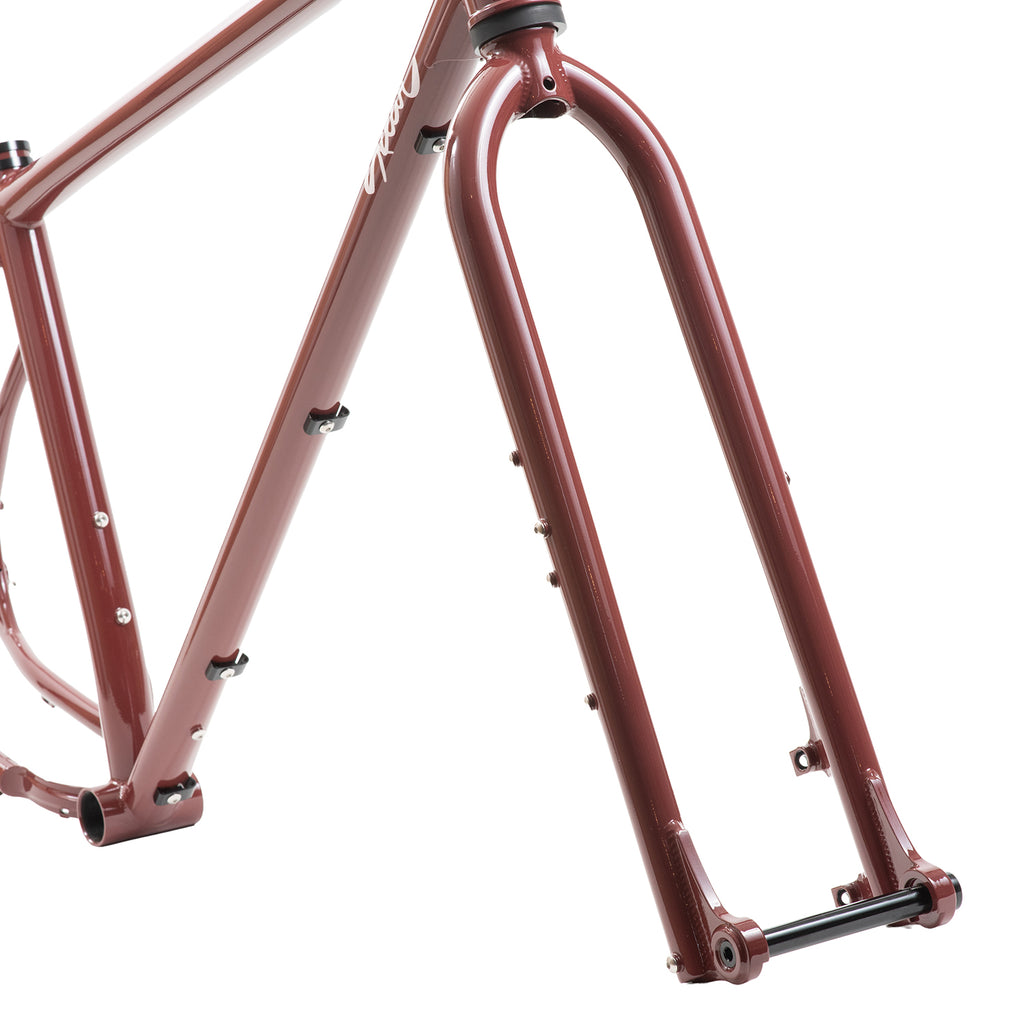

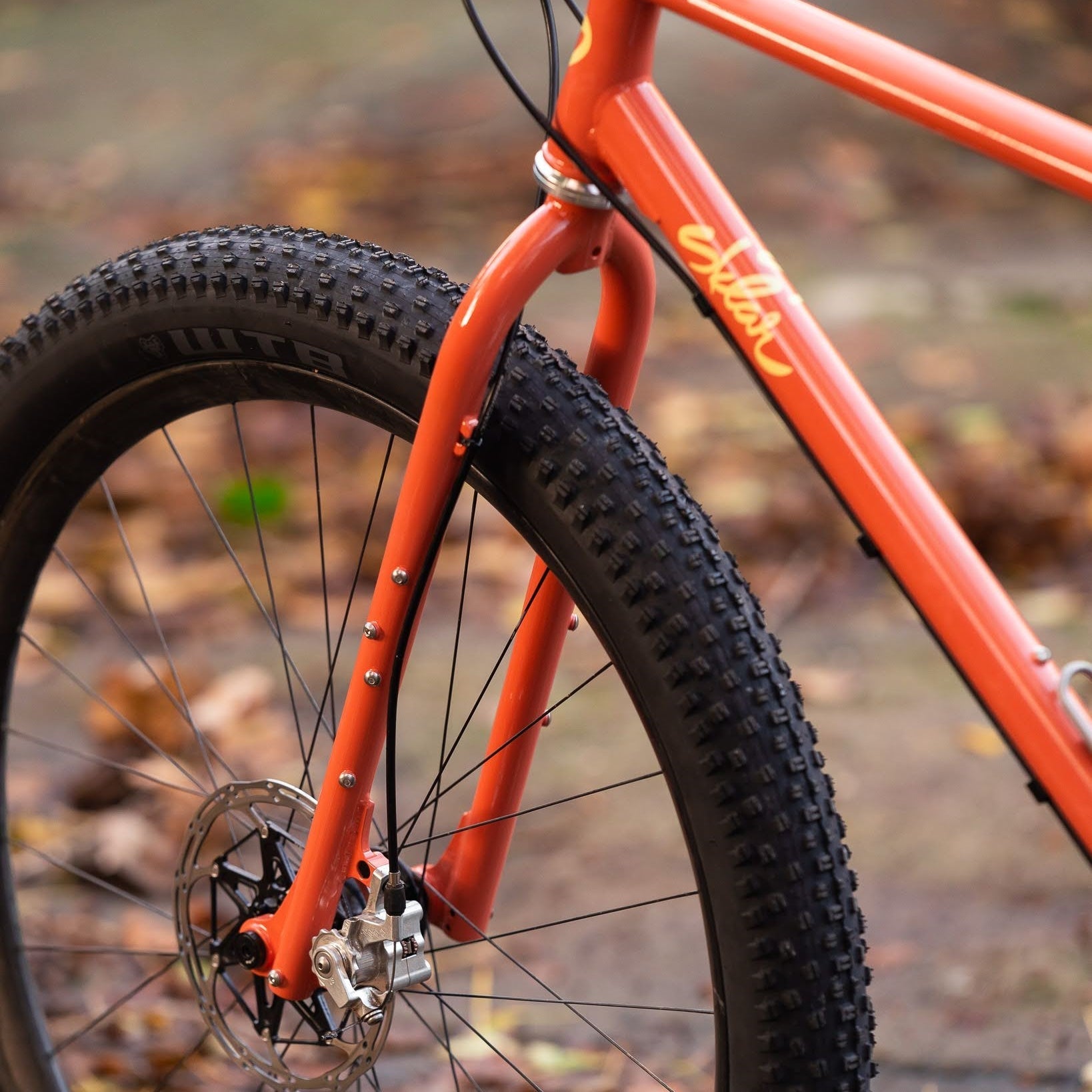

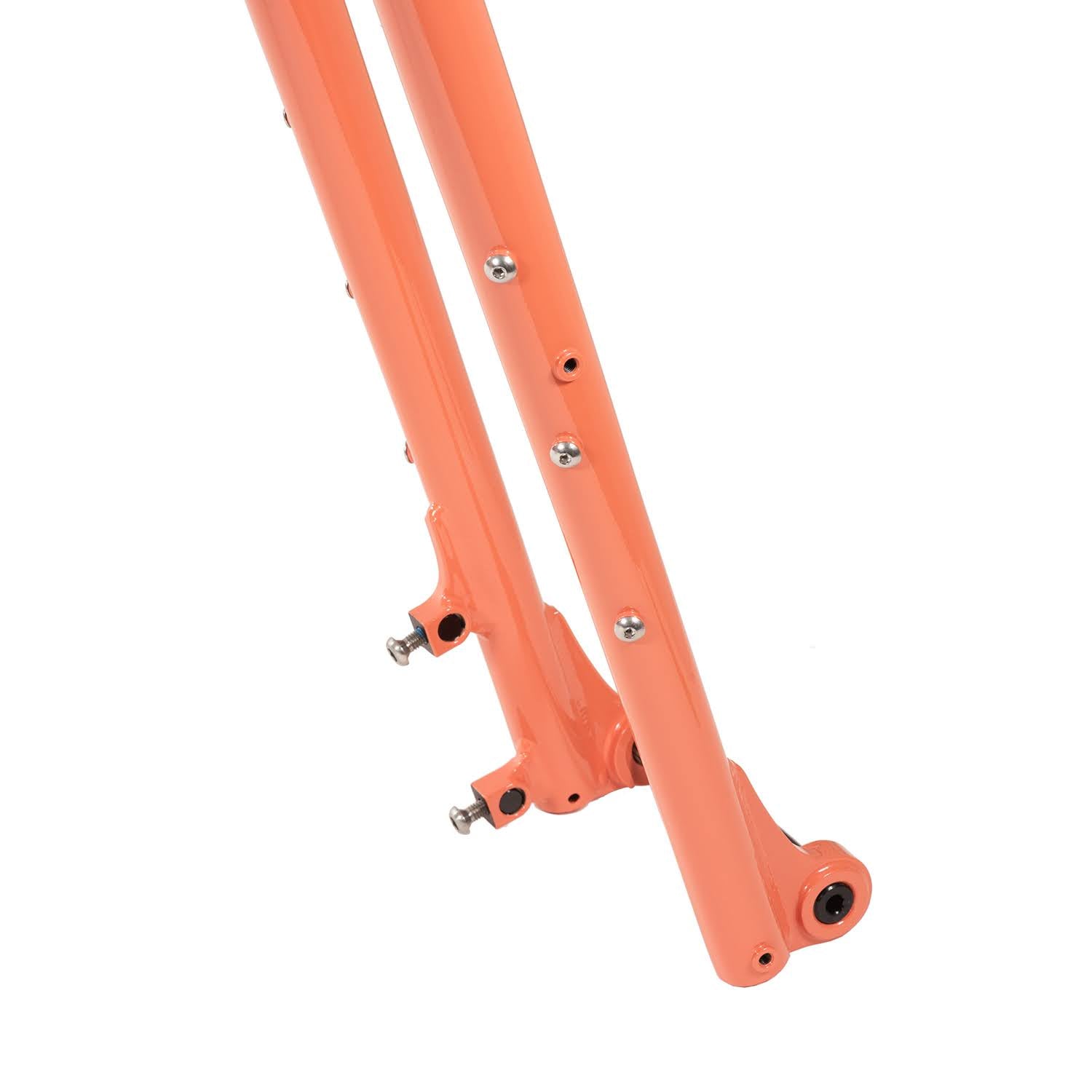

FORK FEATURE

• SKLAR Original Fork
• Fender mount
• Double eyelet fork ends
• 3-pack mount

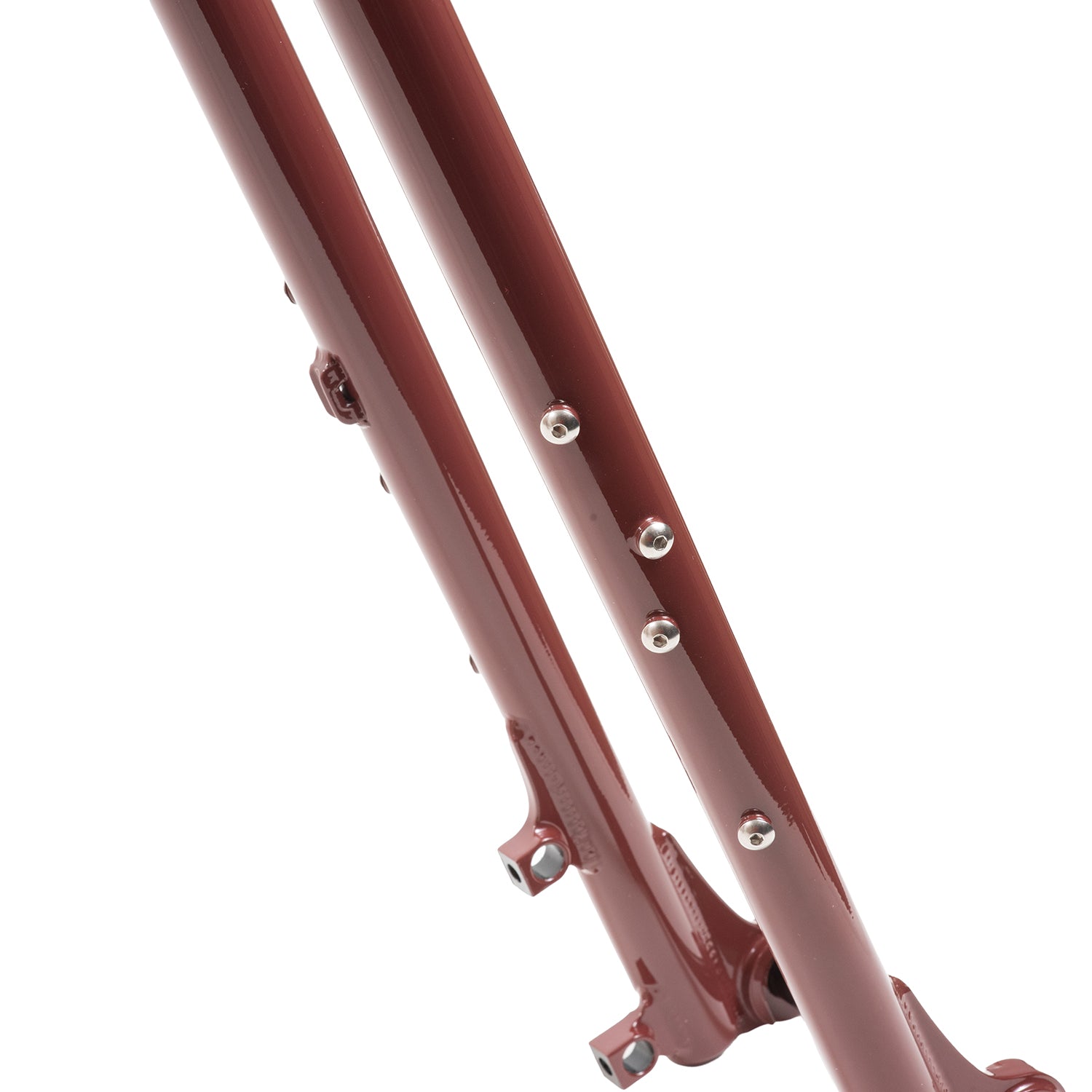

• Mid blade rack mount
• Compatible with internal dynamo routing



[SPEC]

Frame Material :	Double butted Heat Treated Chromoly Steel
Fork Material : Chromoly Steel	Chromoly Steel

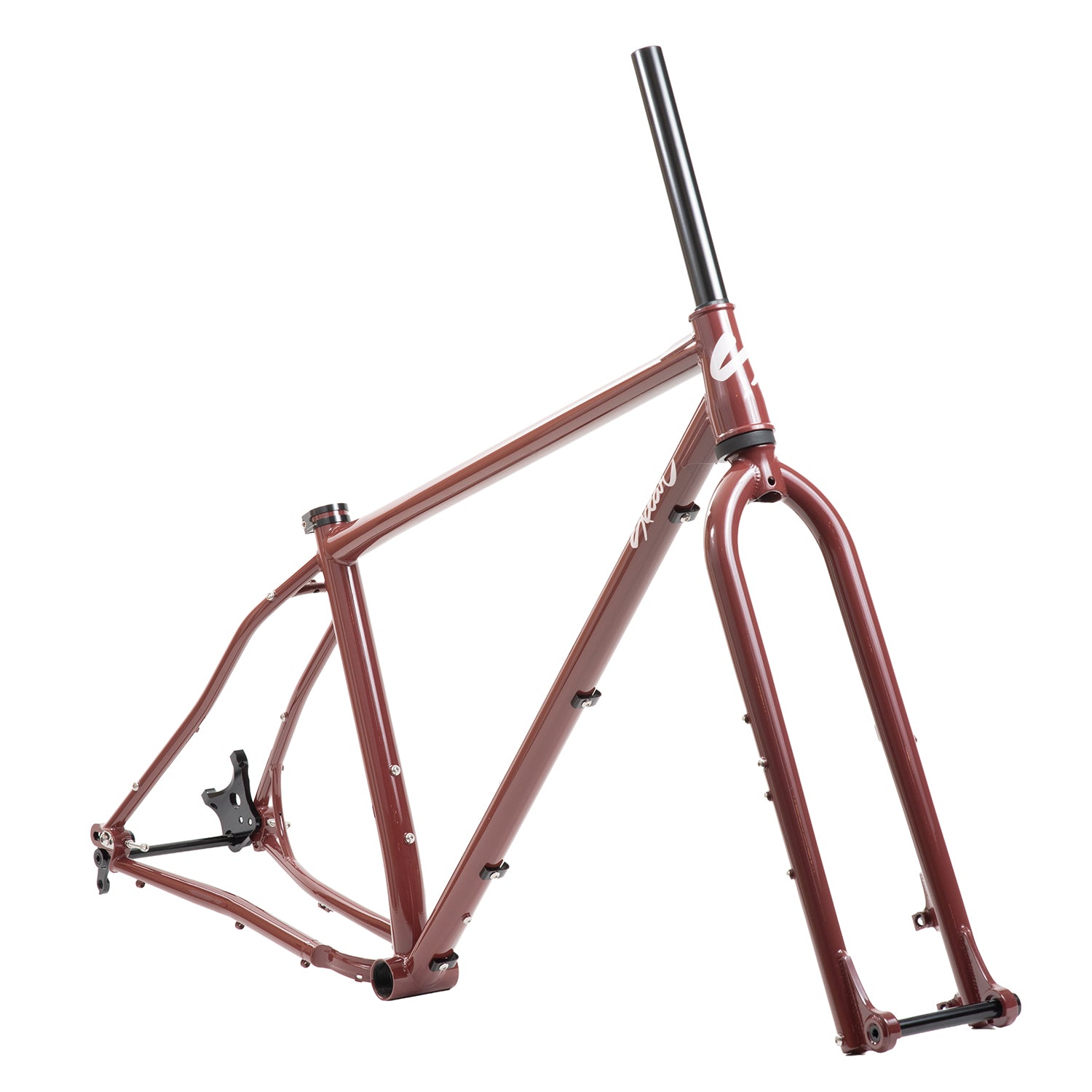

Color : Moss Grey, Salmon	Moss Grey, Salmon

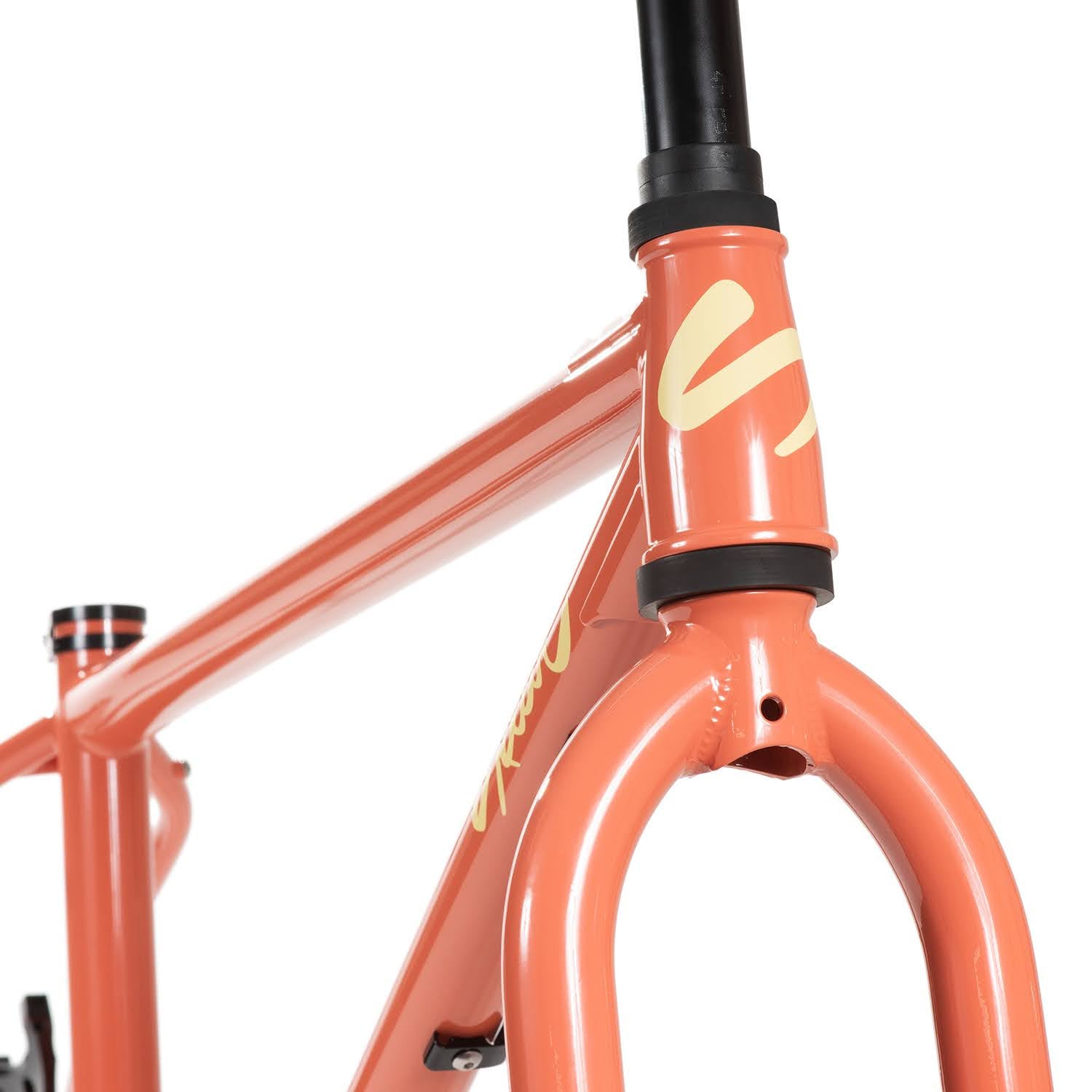

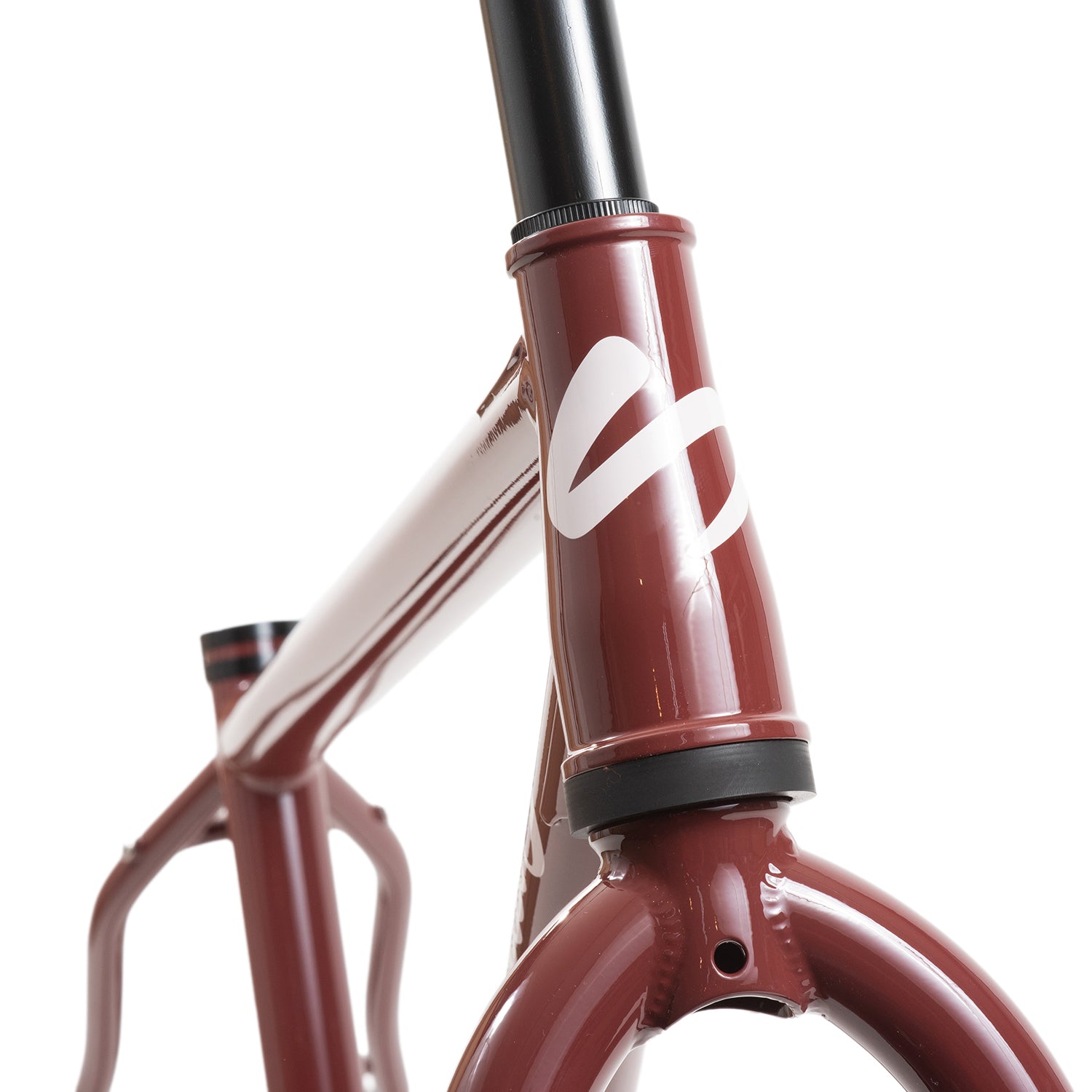

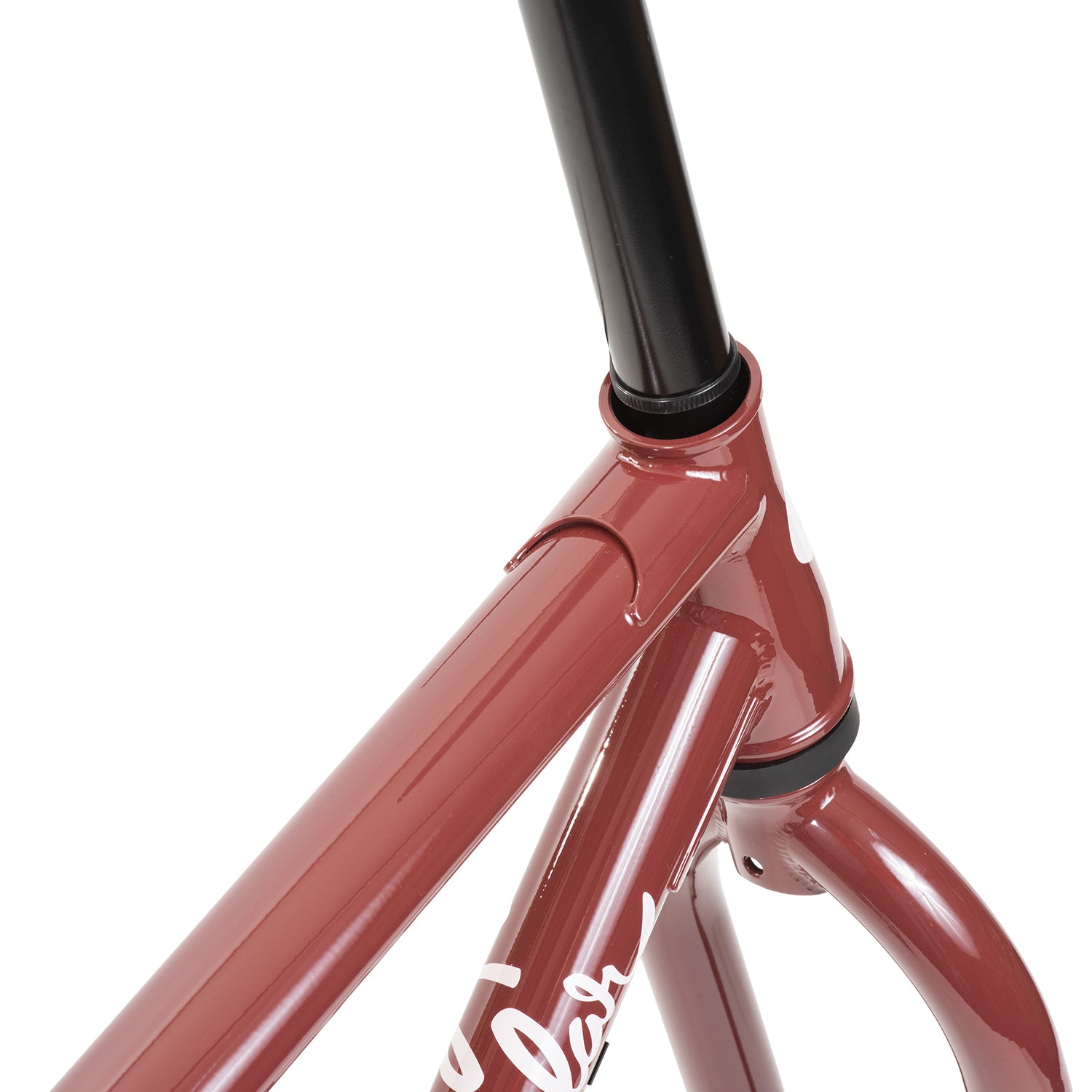

Head tube : 1-1/8" to 1.5" Tapered	1-1/8" to 1.5" Tapered
Compatible head part standards : EC34/44	EC34/44
Fork Column : 1-1/8" Straight Steerer	1-1/8" Straight Steerer

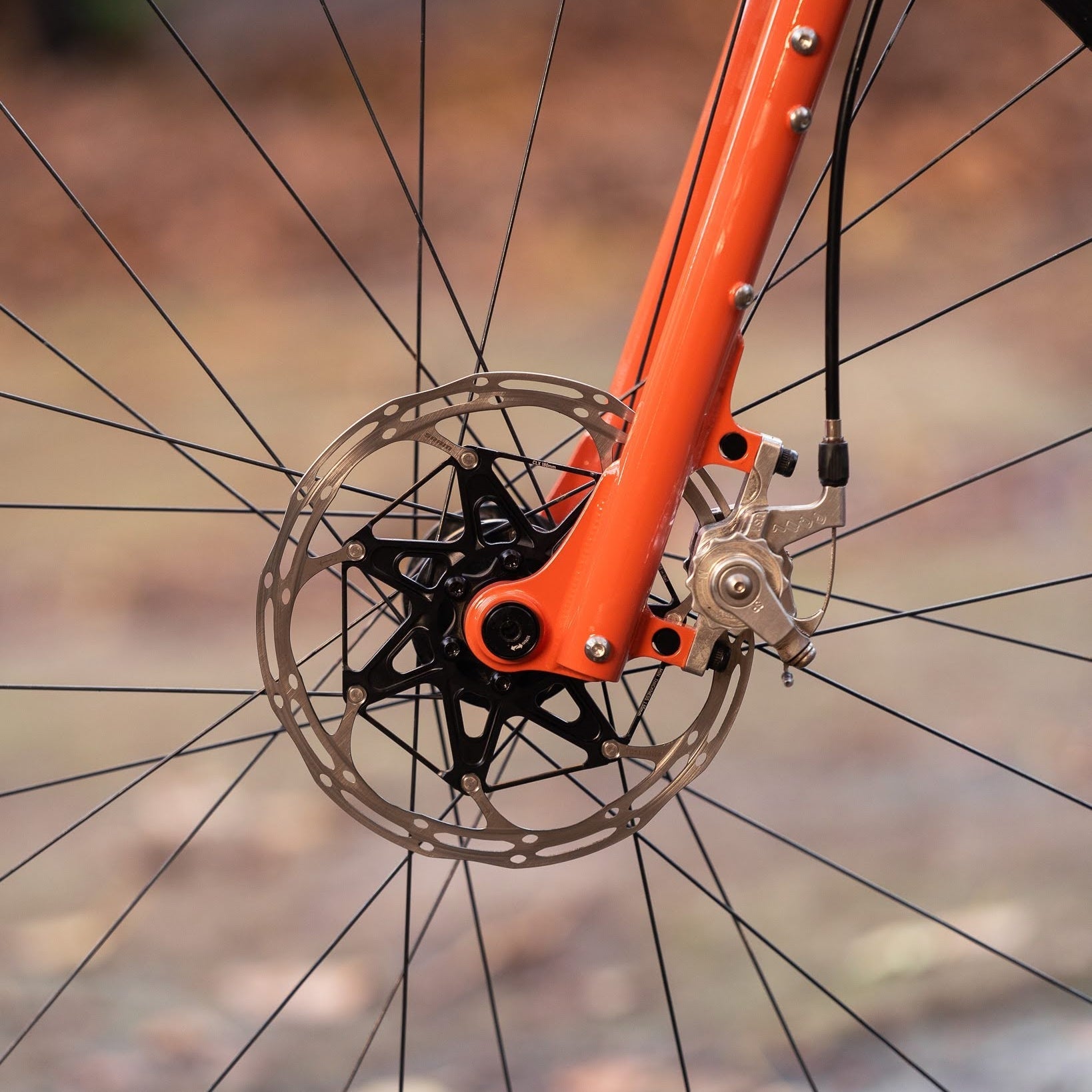

Brake Mount : Front / 180mm Post Mount	Front / 180mm Post Mount Reat / 160mm Post Mount

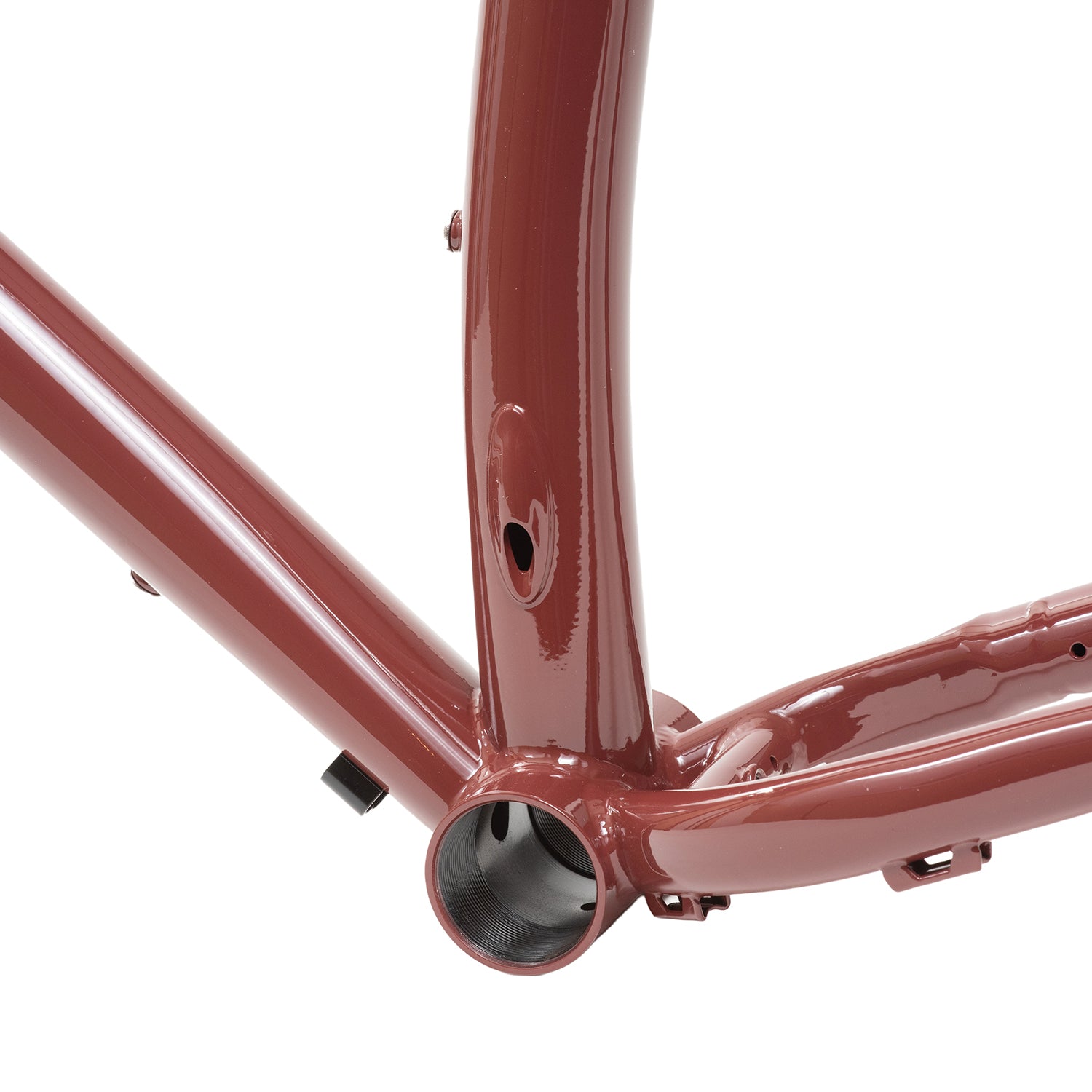

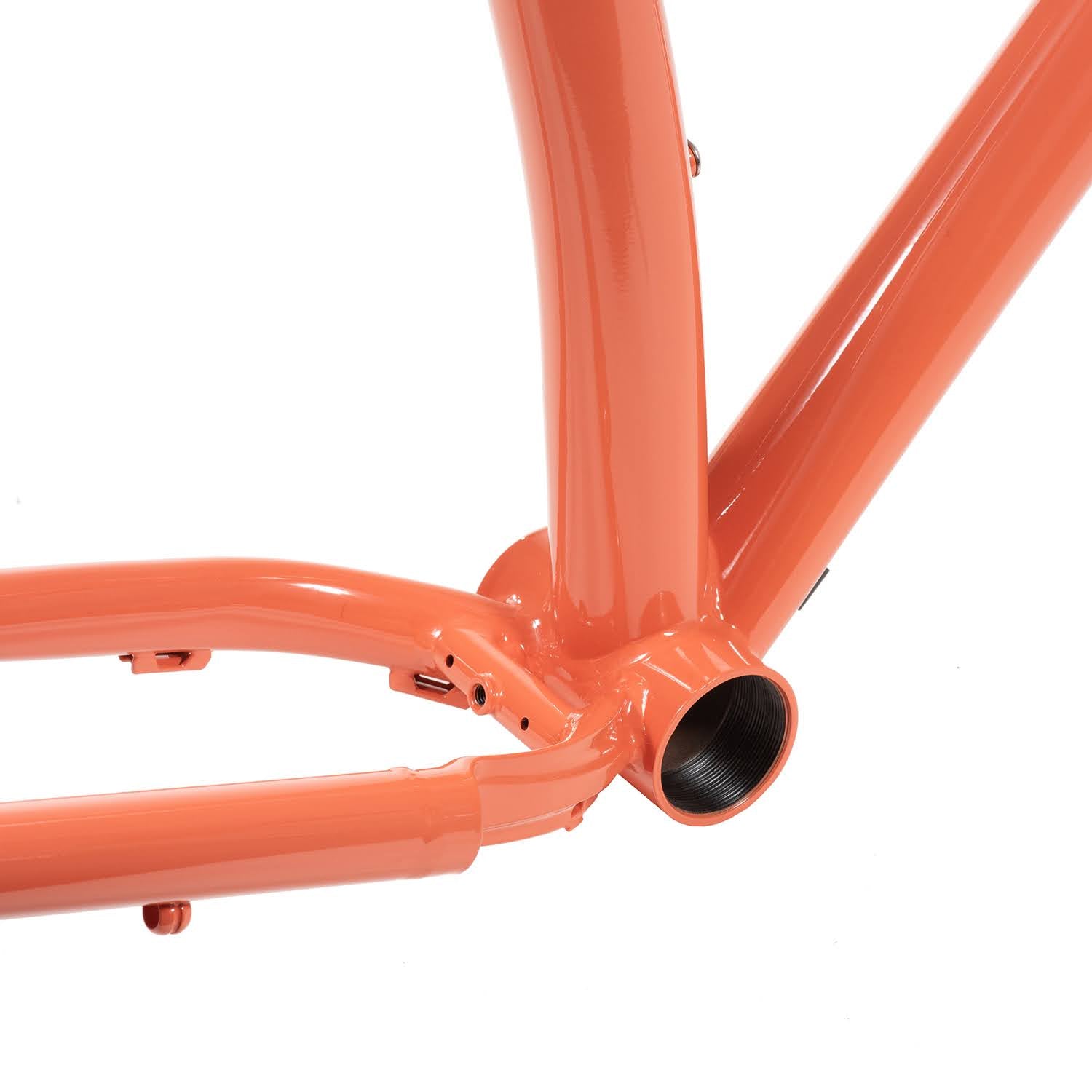

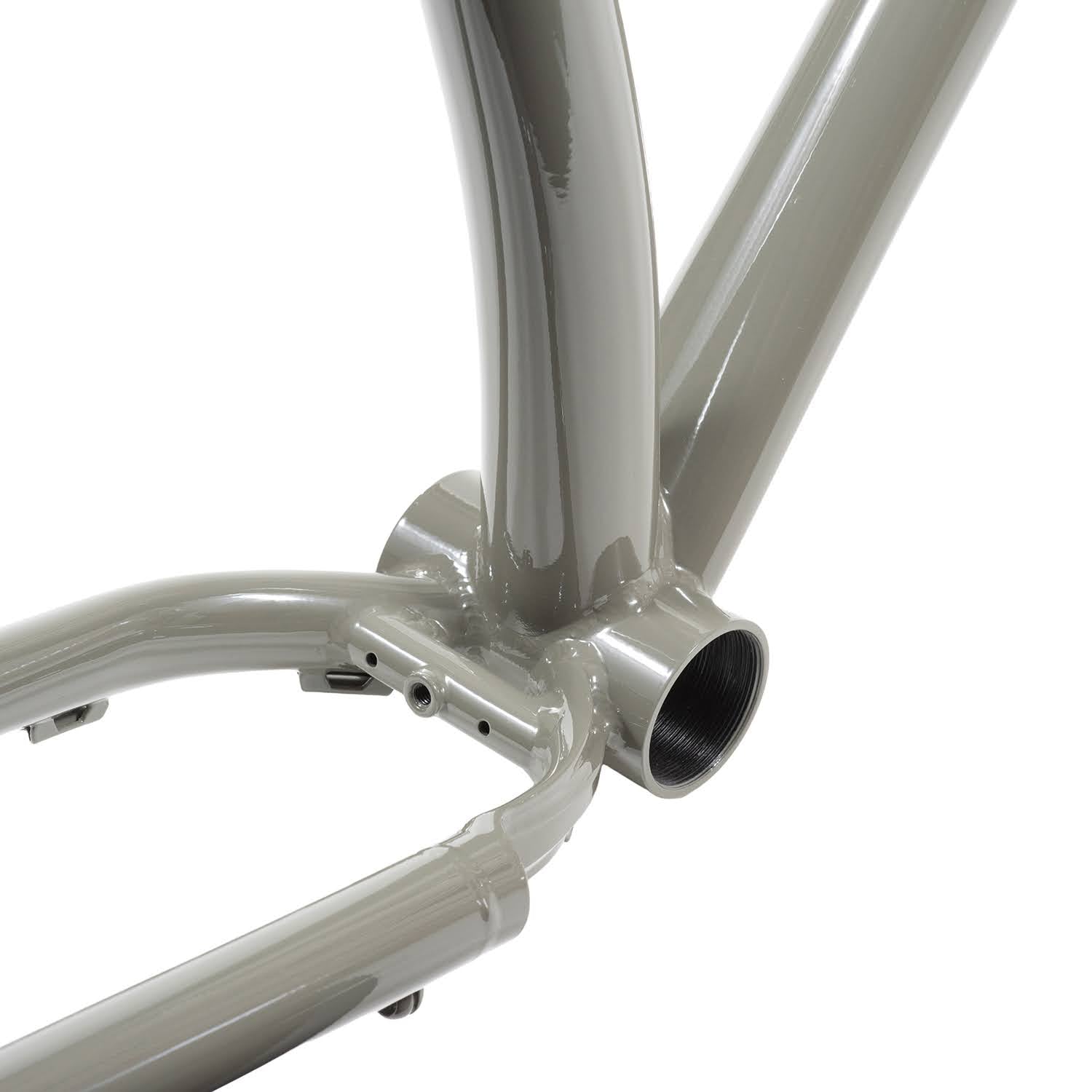

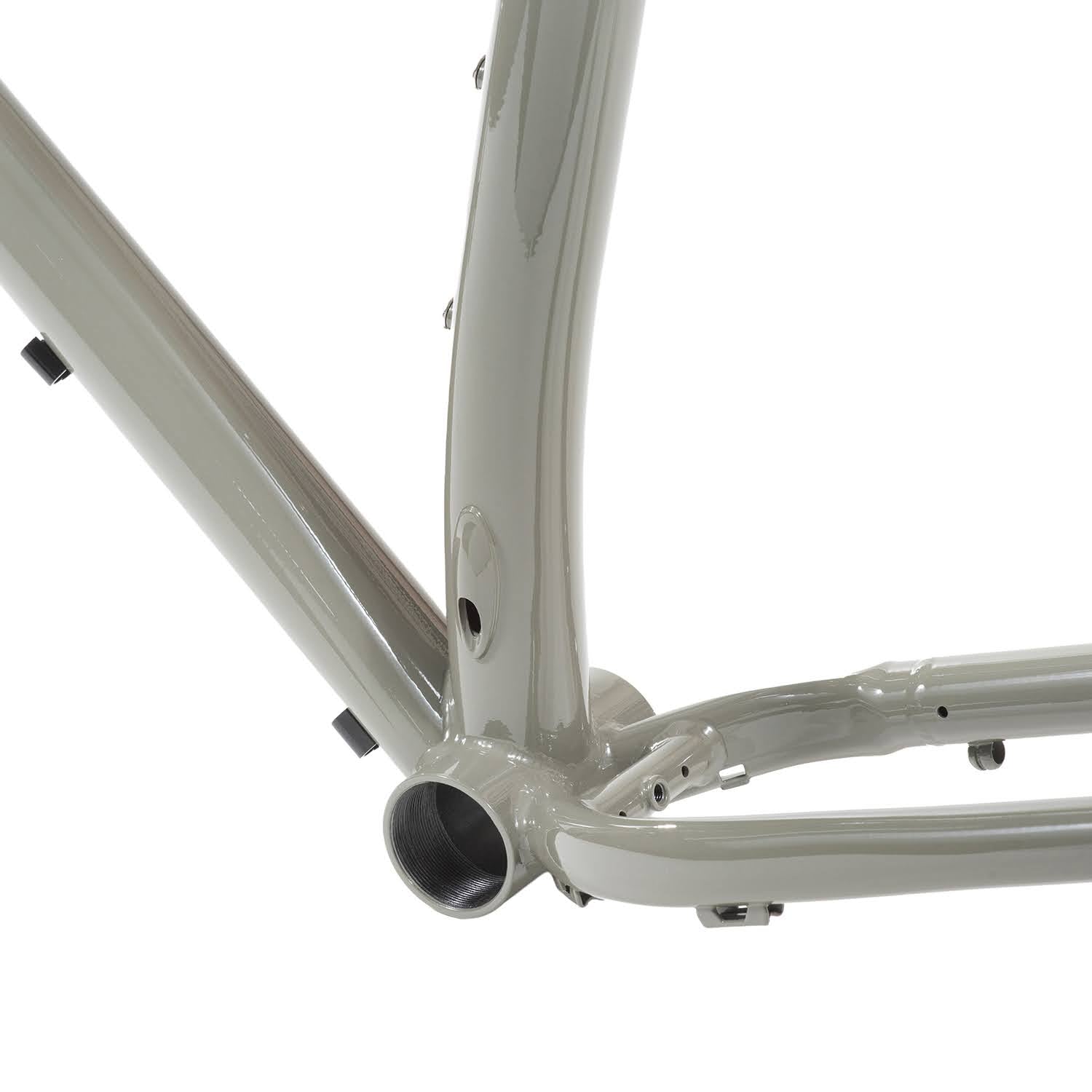

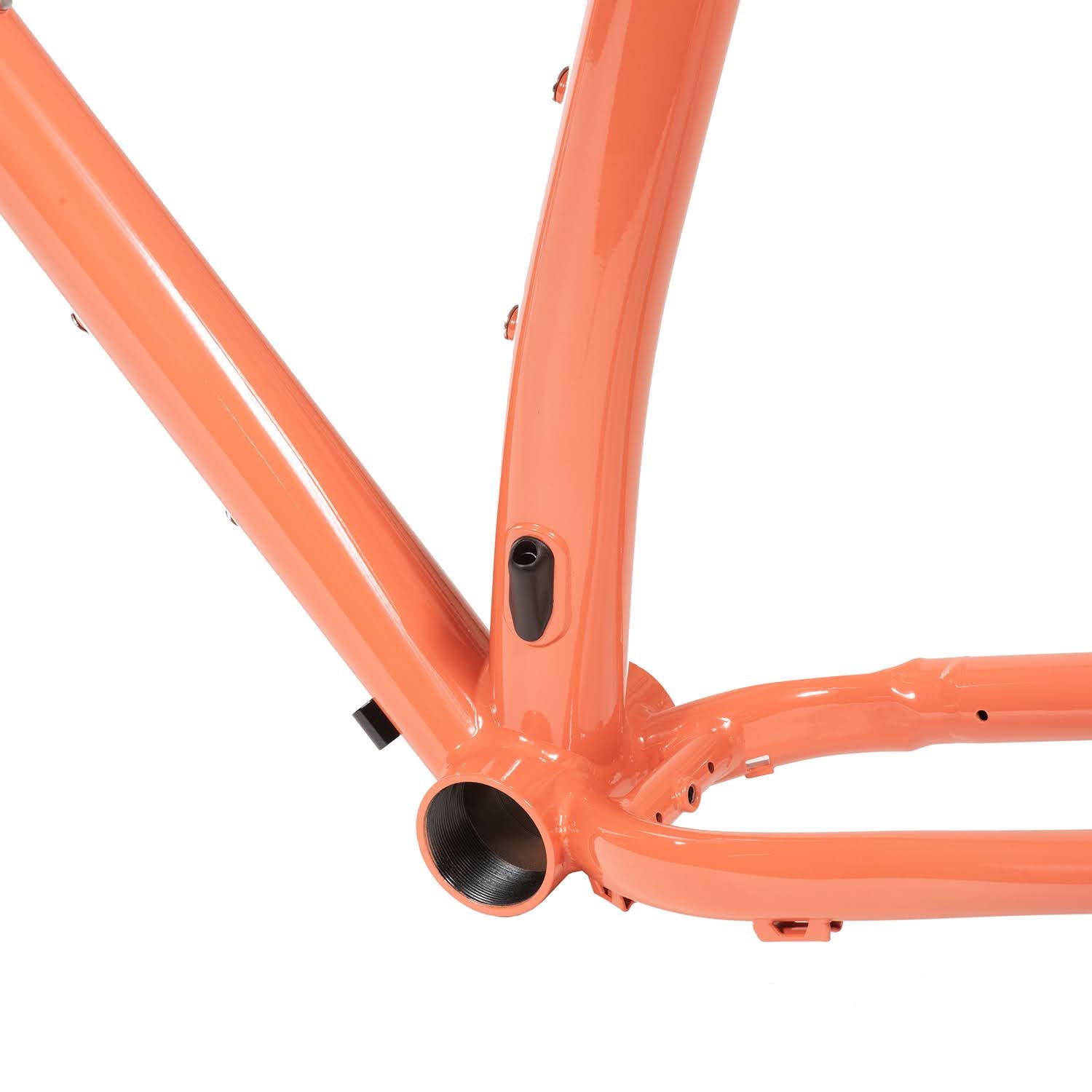

Bottom Bracket : BSA / JIS 73mm Threaded	BSA / JIS 73mm Threaded
Fork End : 110x15mm Thru Axle	110x15mm Thru Axle
Rear end : 148x12mm Thru Axle	148x12mm Thru Axle / Sliding Dropout
Tire Clearance : 29x2.6" (XS size)	29x2.6" (27.5" design for XS size only)

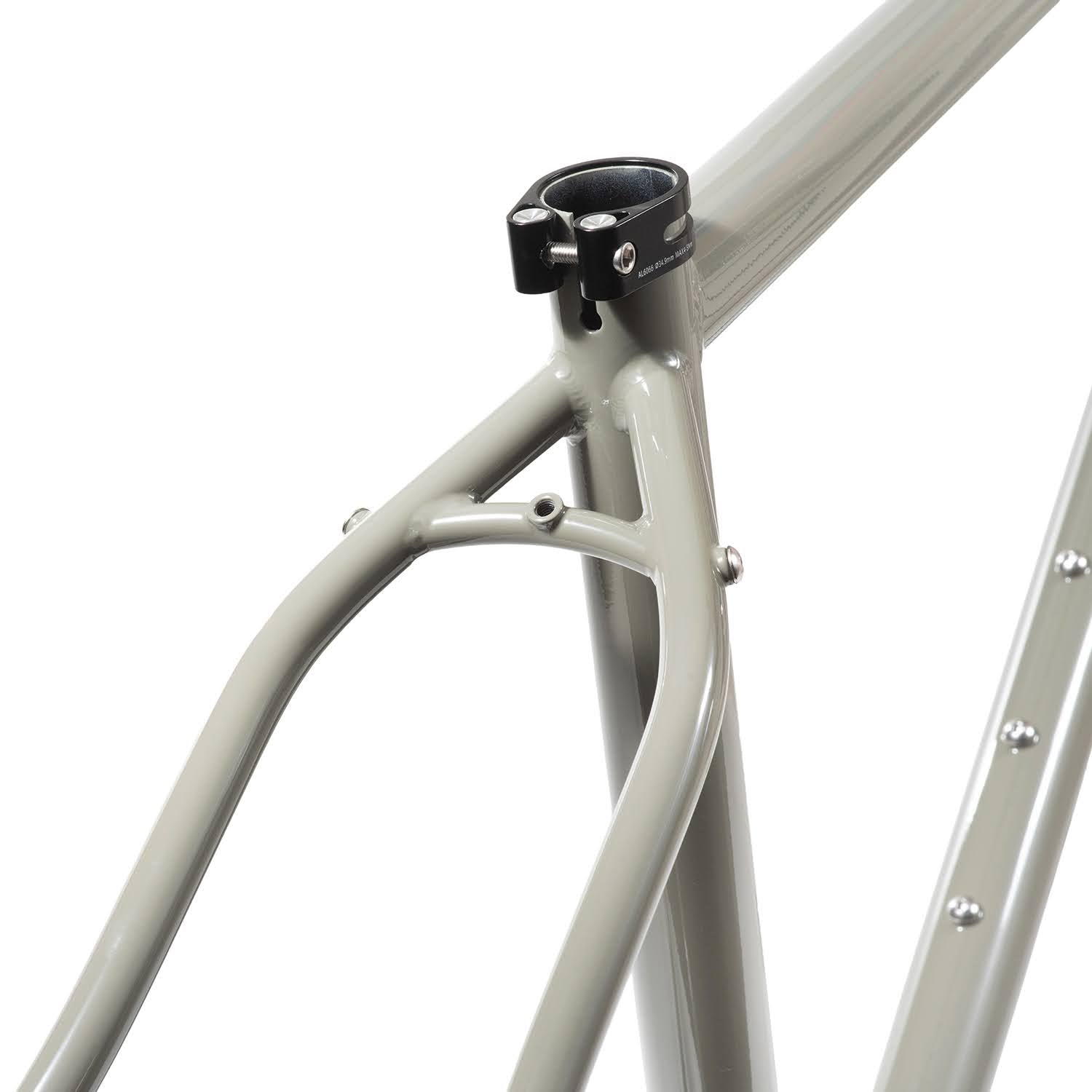

Seat Post : 31.6mm / Stealth	31.6mm / Stealth dropper post routine
Chainring : Max 36T	Max 36T
Estimated fork travel : 100mm	100mm

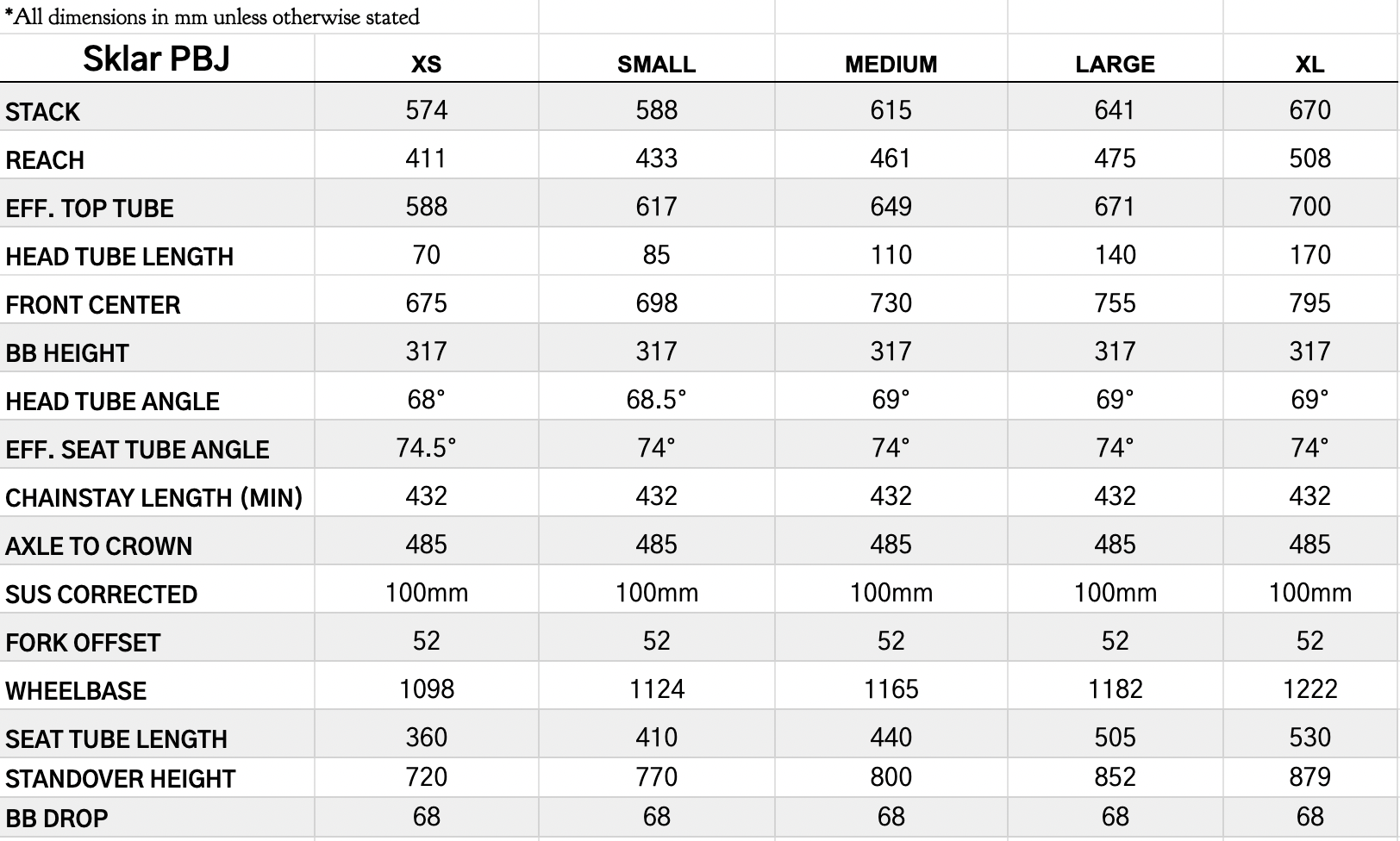

[SIZE / GEOMETRY]

	XS	S	M	L	XL
Stack	574	588	615	641	670
Reach	411	433	461	475	508
Effective Top Tube	588	617	649	671	700
Head tube length	70	85	110	140	170
Front Center	675	698	730	755	795
BB Height	317	317	317	317	317
Head tube angle	68° (1.5°)	68.5° Head Tube Angle	69° 69.5°	69° 69° 69° 69°	69° 69° 69° 69° 69° 69° 69° 69° 69° 69° 69° 69°
Effective Seat Tube Angle	74.5° 74.5° 74.5° 74.5° 74.5° 74.5° 74.5	74° 74°	74° 74°	74° 74°	74° 74° 74° 74°
Chainstay (min.)	432	432	432 432	432 432	432 432 432
Fork (Axle to Crown)	485	485	485	485 485	485 485 485
Assumed fork travel	100	100	100 100	100	100
Fork offset	52	52	52	52 52	52
Wheelbase	1,098	1,124	1,165	1,182	1,222
Seat Tube	360	410	440	505	530
Standover Height	720	770	800	852	879
BB Drop	68	68	68	68	68 68

All figures are in millimeters (mm) unless otherwise noted.

[FIT GUIDE].

The PBJ is designed to closely resemble a standard mountain bike fit. The "base setup" for this bike assumes the use of 29x2.6" tires, a 35-50mm long stem, and a comfortable swept-back handlebar such as SKLAR BIKES' PBJ handlebar. Each size also takes into account a range of saddle heights, but of course, some riders size down for more agile handling or up for stability in a mountain bike fit.

Based on the saddle heights assumed for each size of PBJ, please measure the saddle height of your current bike and check the frame sizing.

Frame Size	Assumed Saddle Height
X-Small	590- 650mm
Small	640 - 685mm
Medium	675 - 740mm
Large	730 - 790 mm
X-Large	780 - 810 mm

Measured from the center of the BB to the top of the center of the saddle.
