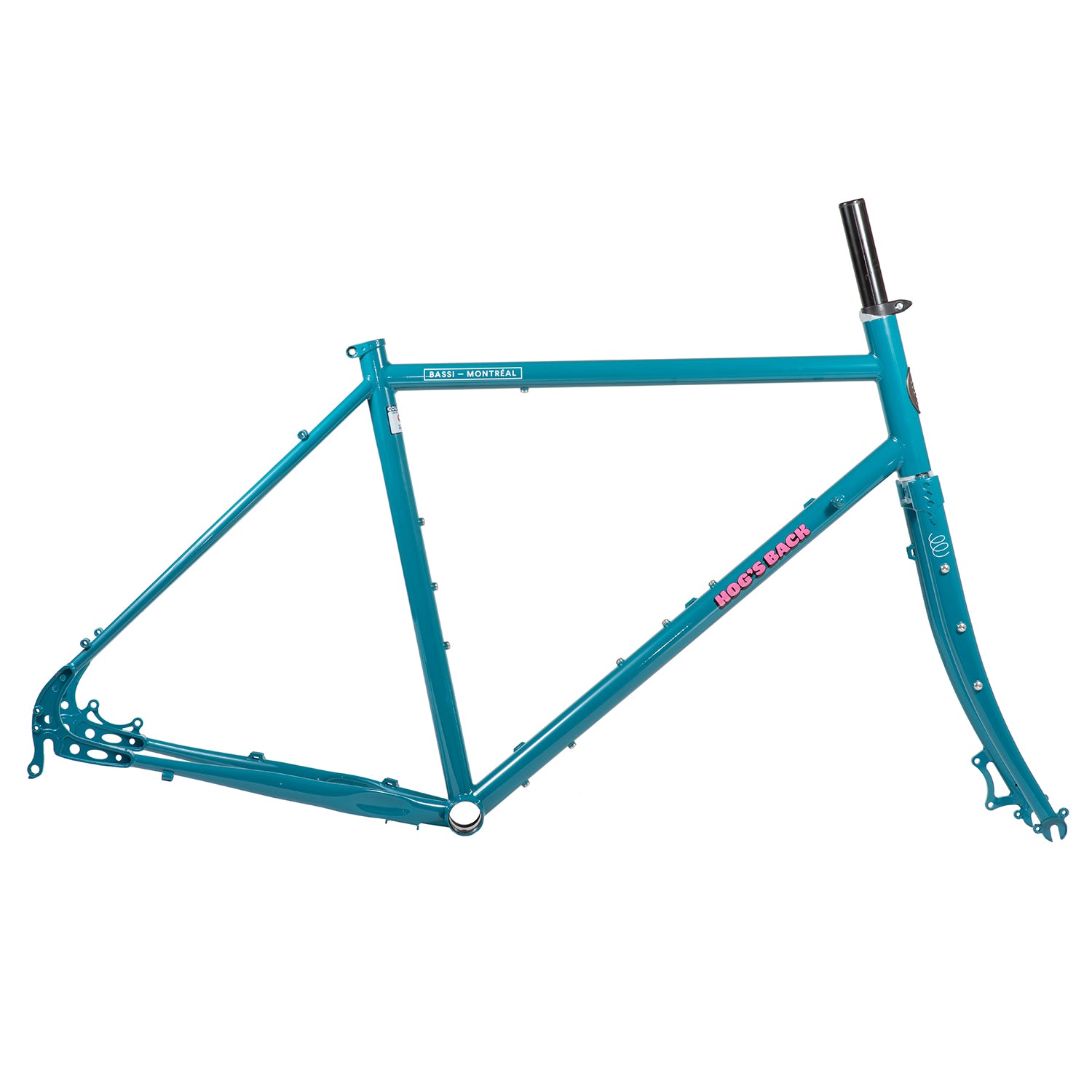

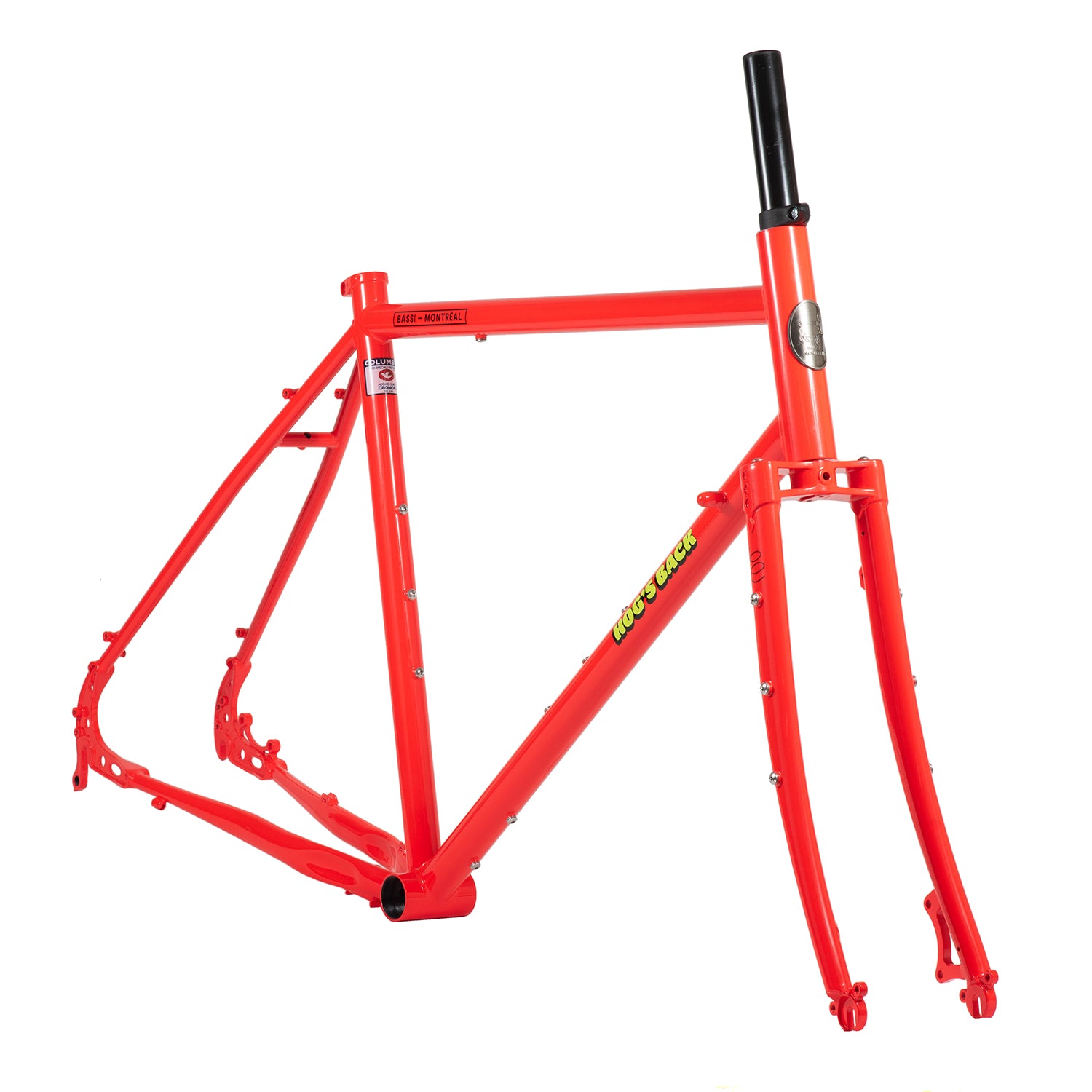

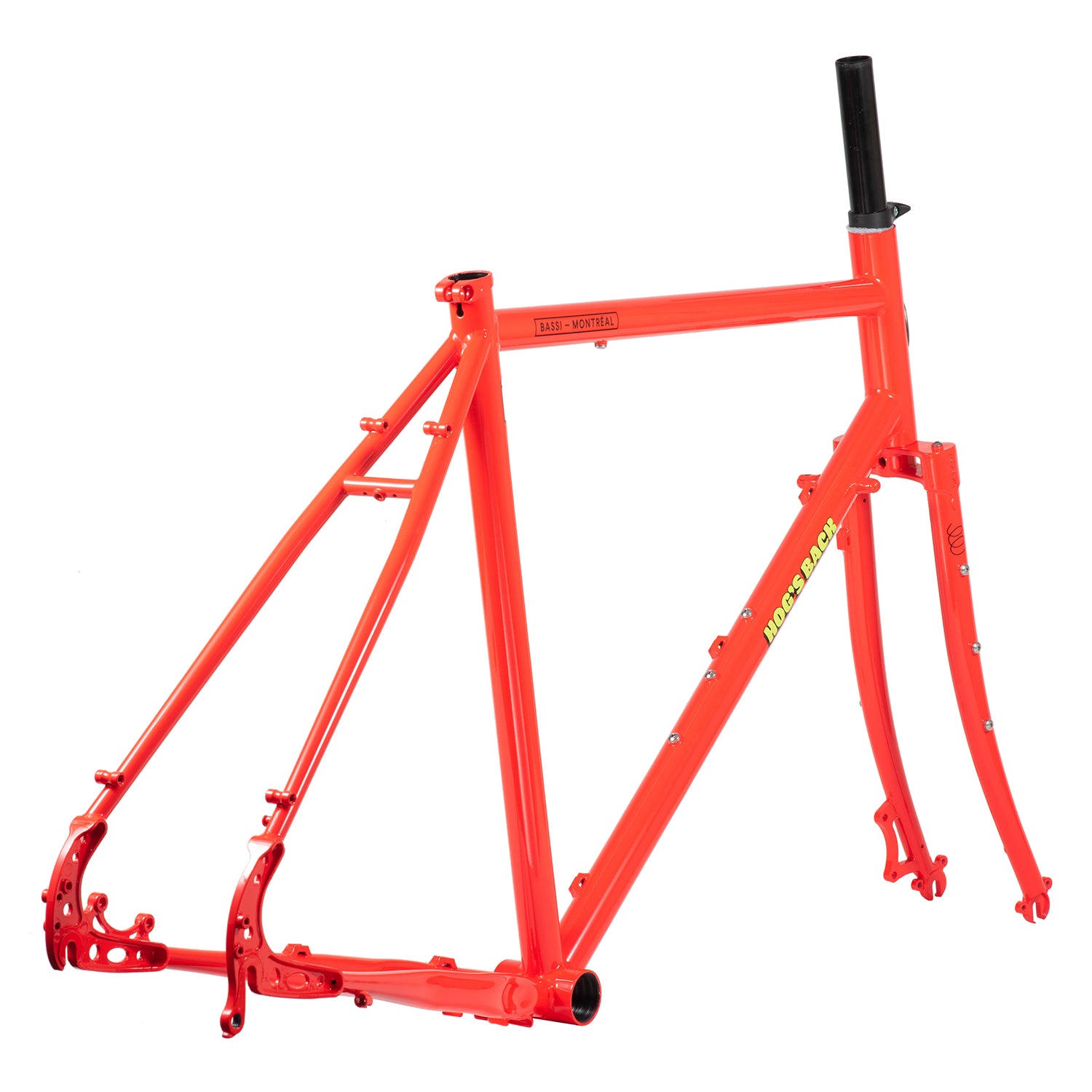

BASSI BIKES Hog's Back

All-road touring/commuter bike with a big pocketbook

Located in Montreal, Quebec, Canada, C&L CYCLES was founded in 2009 by BASSI has been producing track bikes and classic touring frames since its founding in 2009.

Hog's Back is an all-road touring/commuter frame designed and engineered by Julian Gammon, founder of BASSI and owner of C&L CYCLES, based on his years of riding experience.

From the streets of their hometown of Montreal to the highways of Vermont to the dirt roads of Peru, this bike frame is the result of riding with loads big and small.

A bike that combines practicality, functionality, and beauty.

BASSI's most off-road capable and versatile build, the Hog's Back features disc brakes, wide tire clearance, and many mounting options.

It is very standard with a 1-1/8" head tube, BSA/JIS 68mm shell threaded bottom bracket, and front and rear quick release, so it adapts to many parts used around the world.

The bike is also equipped with a kickstand plate as standard so that it can be used as a commuter bike, making it fully capable of performing not only as an adventure touring bike, but also as a daily shopping bike.

The Miso can also be used with either 26" or 650b wheels.
With so many options without sacrificing the classic look, the Hog's Back is the perfect bike for the greedy.

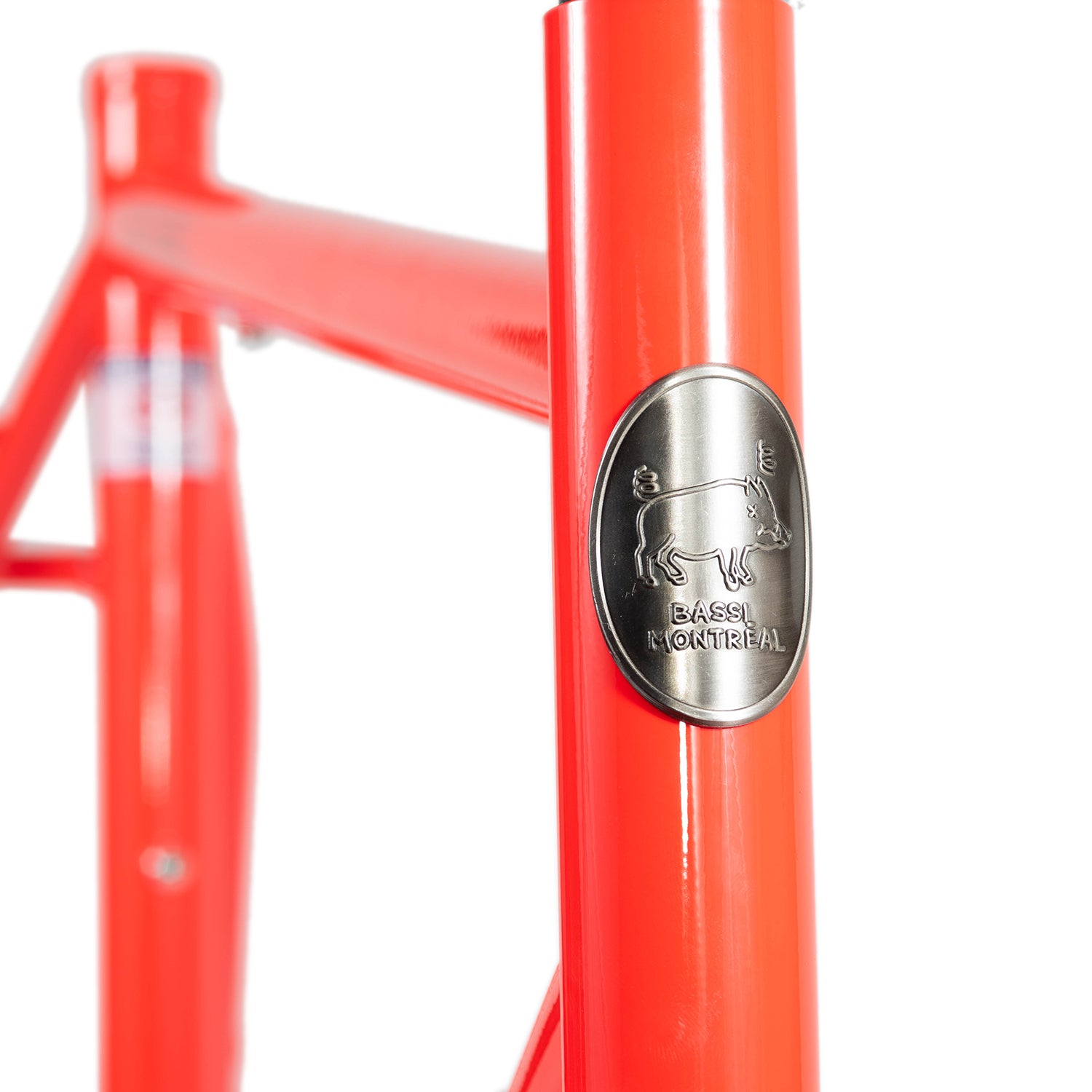

The head badge is cute, too.

[FEATURE

• Columbus Crmo Tubes
• Relatively lying head angle and longer chainstays for stability
• Optimized geometry for front load
• Higher BB height than other touring bikes reduces the chance of the chainring hitting the ground
• Kickstand plate

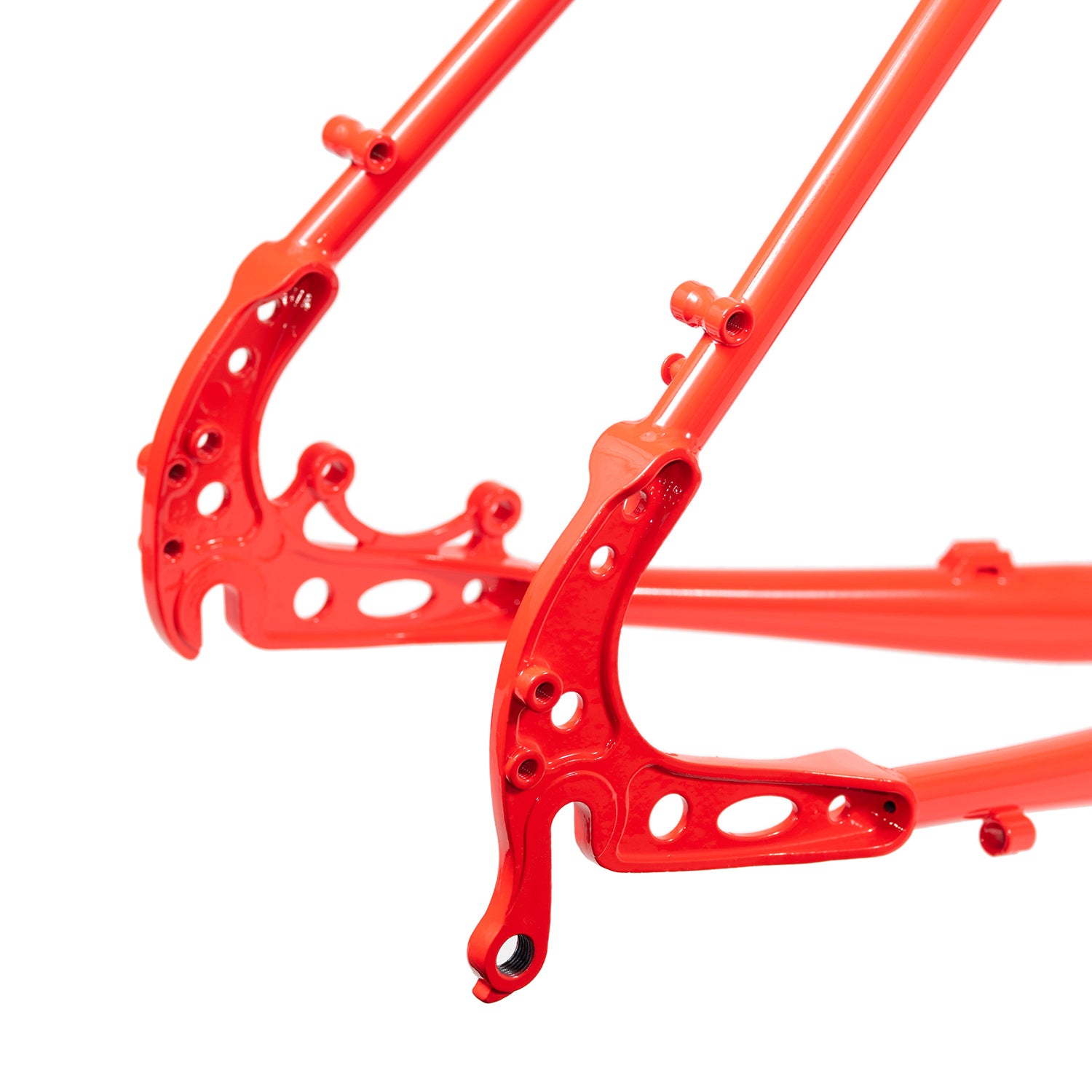

• Too many eyelets to count (check out the pictures)
• Give this bike whatever you want - racks, cages, fenders, etc.
• ED coating to protect the inside from rust



【SPEC】.

Color: Cool Ade, Pink, Loch Ness
Size: S (47cm), M (51cm), L (54cm)
Material (F/F): Columbus Crmo tubes
Headset: EC34 headset (1-1/8" standard type)
Seatpost diameter:27.2mm (seat collar included )
Brake standard: ISO mounted disc brake(160mm rotor recommended)
BB: 68mm thread (BSA/JIS/BSC)
End width: front / QR100mm, rear / QR135mm vertical dropout
Tire clearance:26x2.2" or 650bx47mm( S,M),27.5x2.2" or 700bx45mm(L)
Weight:3.8kg(F/F M size)

FRAME GEOMETRY

Size	S(47cm)	M(51cm)	L(54cm)
Seat tube (c-t)	470	510	540
Effective top tube	530	560	590
Head tube angle	70.5	71	72
Seat tube angle	73	73	73
Chainstay	440	440	440
Headtube	130	170	150
BB drop	40	40	60
Stack	519	559	583
Reach	371	389	412
Wheelbase	1032	1059	1070
Rake	50	50	50
Tire clearance	26x2.2" or 650Bx47	26x2.2" or 650Bx47	27.5x2.2" or 700Cx45

Due to the long top tube, we recommend using a handlebar with backsweep or a drop handlebar with a shorter stem than you normally use.
