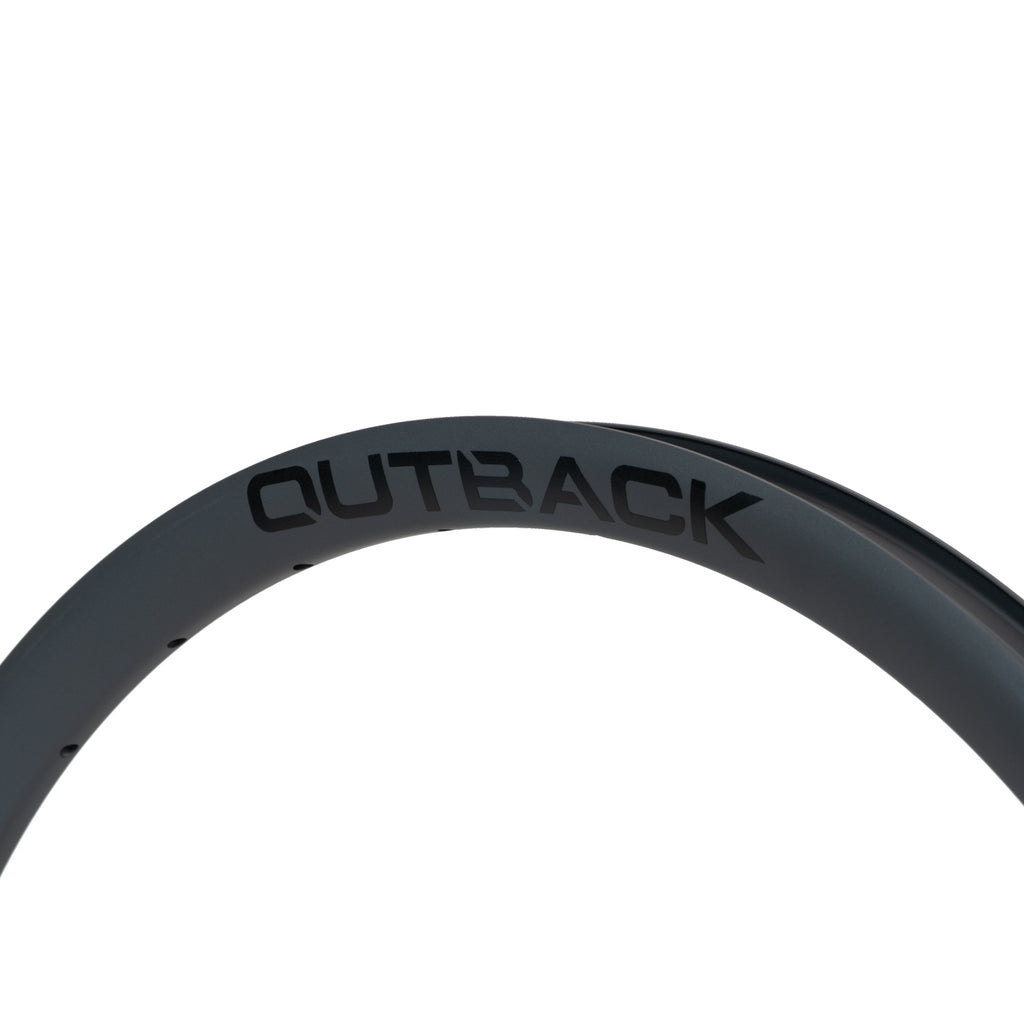

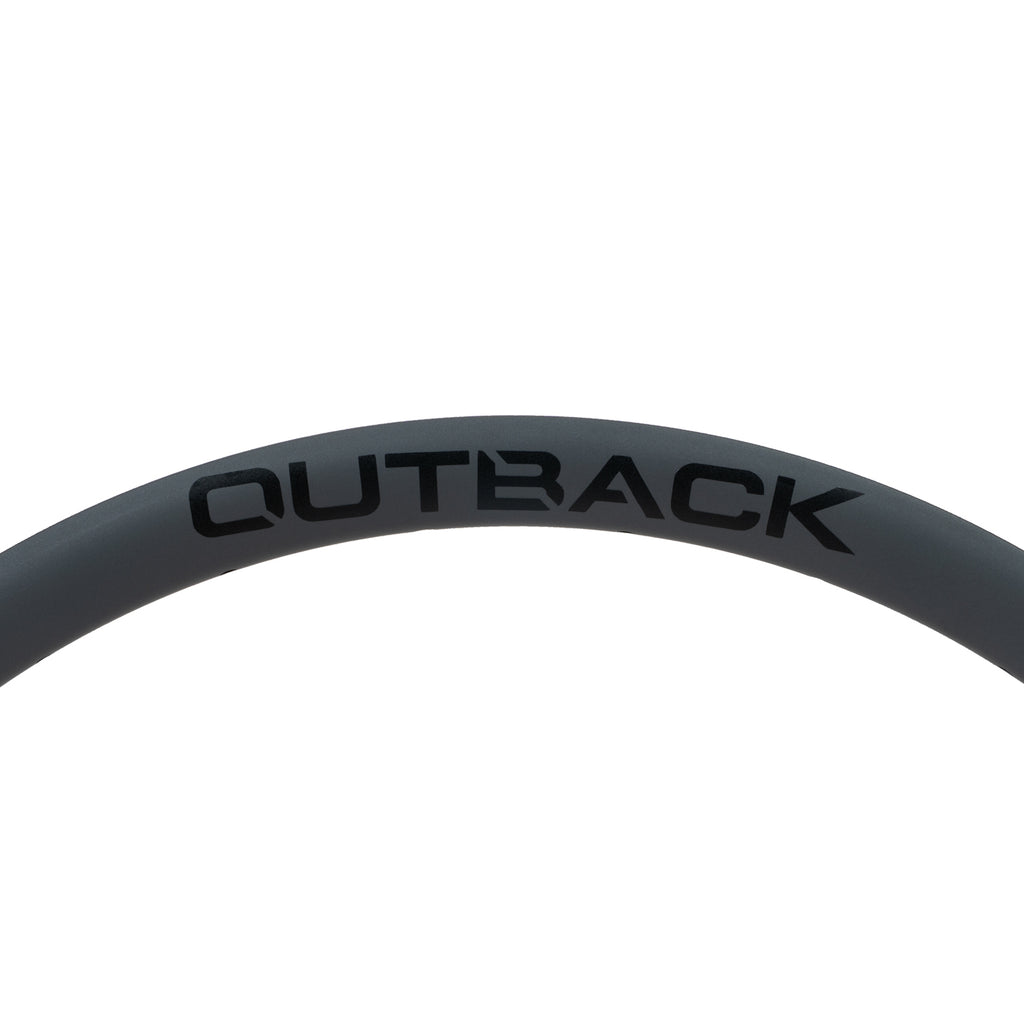

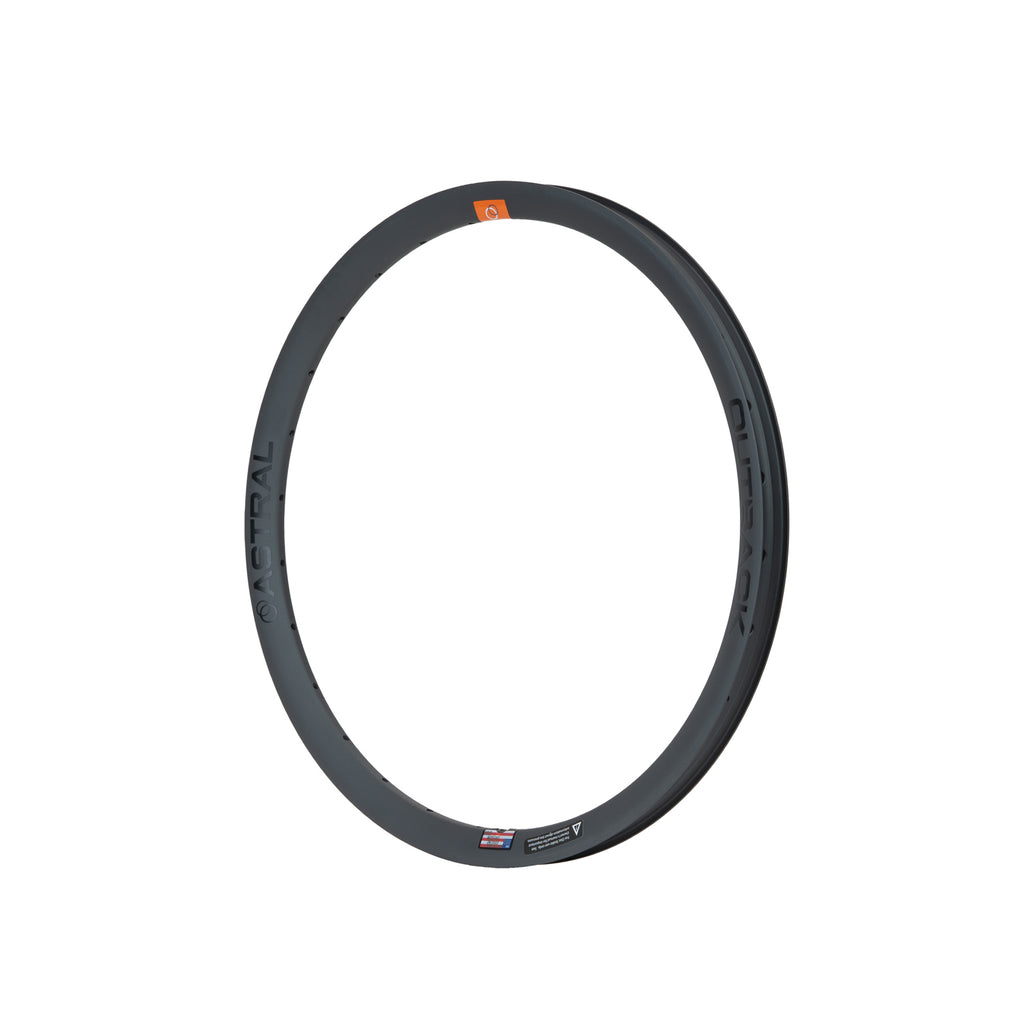

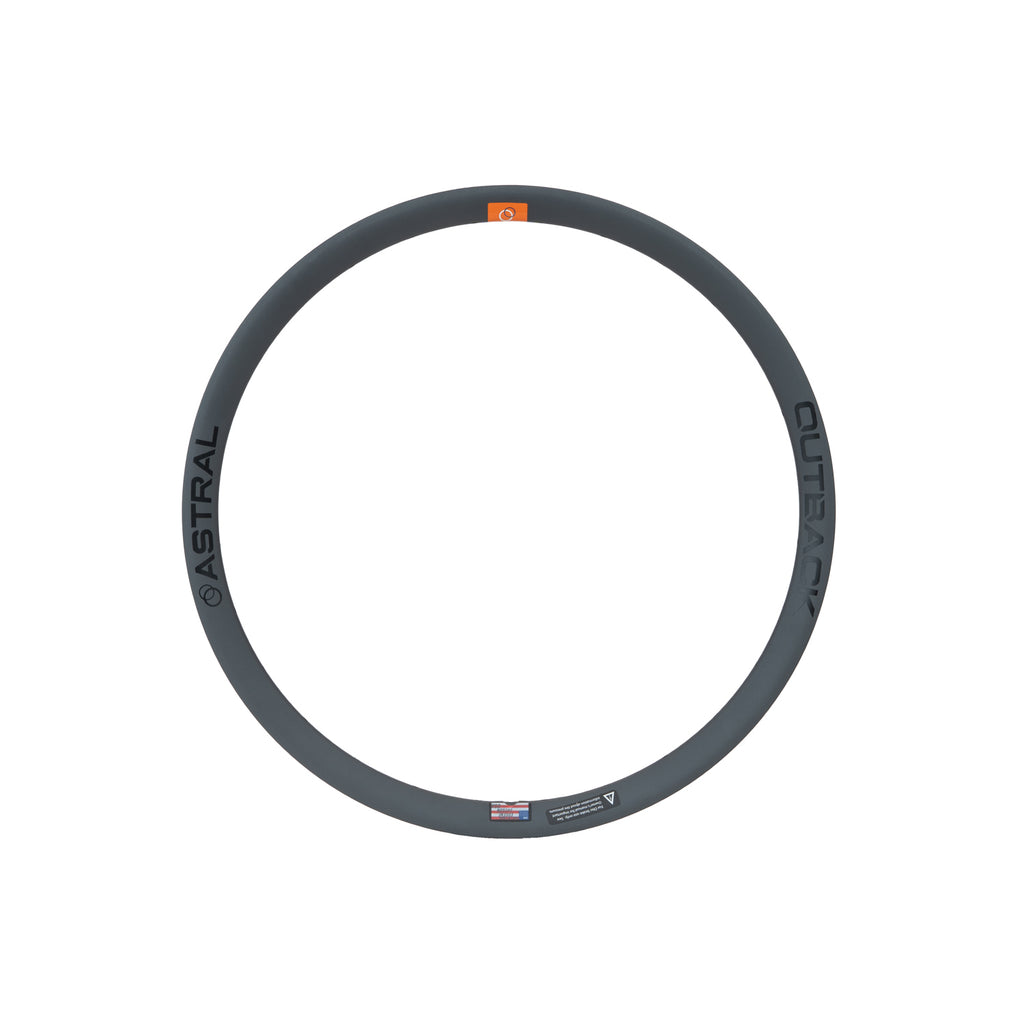

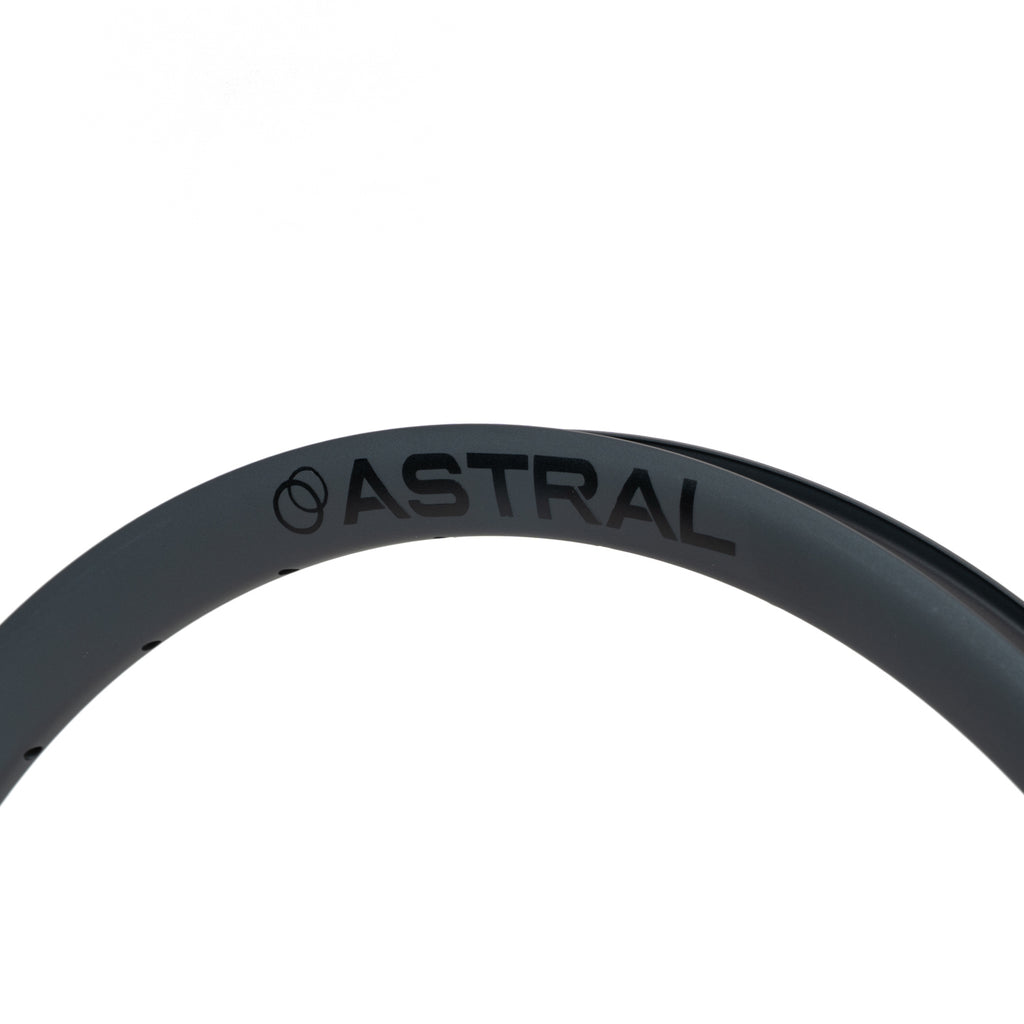

ASTRAL CYCLING Outback Rim 20" - Stealth Grey

ASTRAL CYCLING Outback Rim 20" - Stealth Grey

20" (406) / 28H
¥35,200
Skip to product information
ASTRAL CYCLING Outback Rim 20" - Stealth Grey

ASTRAL CYCLING Outback Rim 20" - Stealth Grey

ASTRAL CYCLING
SKU: 48020SG-28H
¥35,200
Taxes included. Shipping calculated at checkout.
Size20" (406)
Hole

This item is out of stock and will be ordered in for you. Delivery will take longer than usual.

GORILLA SPUN — HAND BUILT WHEELS

Gorilla Spun can build a wheel with this rim, and help you choose the parts to go with it. Build fee ¥5,000 per wheel, about 2 weeks with parts in stock.

Ask about building with this rim →About Gorilla Spun →See stock wheels →

Outback is a tough and reliable rim designed for gravel rides, MTB trail rides, and cross-country races.

The Stealth Grey series, a limited-production model from ASTRAL CYCLING , features ceramic coating technology from the American brand Cerakote. This high-performance coating, which offers excellent wear and corrosion resistance, is hard, crack-resistant, and highly resistant to abrasions and other damage, making it widely recognized as a military-spec (Mil-Spec) coating.

The matte-finish rims with ceramic coating deliver exceptional durability even under harsh conditions, such as rough off-road terrain, allowing you to build wheels that withstand long-term use.

The asymmetrical (offset) design improves the balance of spoke tension between the left and right sides by up to 30%, enabling the assembly of wheels with high rigidity, durability, and stability.Compatible with tire widths ranging from 35 mm to 67 mm (1.35 inches to 2.6 inches), this 20-inch rim is a reliable choice for cargo bikes loaded to the brim and tough mini-velos tackling rough terrain.

The name “Outback” refers to Australia’s vast, untamed wilderness and symbolizes a spirit of adventure and the challenge of exploring uncharted territory. Its outstanding reliability and stability have earned high praise from handmade bike builders and many gravel riders alike.

[FEATURE]

All ASTRAL CYCLING rims are designed to maximize tubeless compatibility. A deep groove called the “Drop Channel” is located in the center of the rim, allowing for smooth installation of tubeless tires.They also incorporate the “Tubeless Easy” system, which precisely adjusts the diameter of the bead seat where the tire contacts the rim, allowing for easy and safe tire installation and removal. This system also reduces the risk of damaging the tire bead.Furthermore, the design allows the bead to be easily seated even with a floor pump, making it simple to change tires in your home garage to suit your ride.

[SPEC]

Material: Aluminum
Color: Stealth Grey
Coating: Ballistic Armor Coating
Size: 20" (406)
Hole: 28H, 32H
Height: 23.0 mm
Width: Inner 25.0mm, Outer 28.0mm
Brake Type: Disc Brake Only
Nipple Type: External
Optimal Tire Width: 35mm - 67mm / 1.35" - 2.6"
Tire Interface: Clincher / Tubeless Ready

[SIZE]

Size: 20"
ETRTO: 406
Weight: 208g
Spoke Bed Diameter: 374.5 mm
ERD: 377 mm
Max Spoke Tension: 130 kgf
Spoke Bed Offset: 2.5 mm

[Wheel Building Tips]

Wheel Building Specifications from ASTRAL (※Brand’s official website)

*Since these are products imported directly from overseas, they may have minor scratches or paint imperfections caused during manufacturing or shipping. We select and ship items that do not affect their usability, so we would appreciate your understanding.
*Decal specifications may vary depending on the shipment batch.

Build this rim into a wheel.

Circles' wheel shop, Gorilla Spun, hand-builds wheels one at a time. Pick a hub with the same number of spoke holes, and we'll work out the spokes and build it.

This rim ASTRAL CYCLING Outback Rim 20" - Stealth Grey ¥35,200
Hub Same hole count
Spokes and nipples One per hole Length calculated from your rim and hub
Build fee ¥5,000 per wheel

About 2 weeks when all parts are in stock. Shipping ¥2,000 within Japan (excluding remote islands). We also take orders from overseas.

Running tubeless?

You'll also need rim tape that matches the rim's inner width and tubeless valves. We can set them up when we build the wheel.

Rim tape and tubeless kits
