WHITE INDUSTRIES is a California-based component manufacturer. The manufacturer, which produces high quality machined aluminum parts in beautifully crafted shapes, has been involved with the California builder community for a long time and has a long history of fans.

The CLD (Center Lock Disc) hubs are designed based on the center-lock splined rotor mount interface, rather than the 6-bolt mounting standard used in the XMR hubs.
The center-lock system allows for a smaller flange diameter, resulting in a slightly lighter hub that is suitable for road bike builds while still providing the durability needed for mountain bike applications.
Made in the U.S.A. from 6061-T6 aluminum and manufactured in our own factory. A wide range of hole counts, colors, and axle standards are available.

[SPEC]

Weight: 146g

Spoke hole diameter: 2.6mm
Flange diameter (left): 45mm
Flange diameter (right): 45mm
Center to left flange: 20.5mm
Center to right flange: 34.5mm

Bearings
Hub shell: 17287 bearings x 2

Compatibility
Axle Options (Compatible between 3 types. However, only one type is included with the hub)

9mm x 100mm quick release (can be converted to 15mm thru by removing the plug)
12mm x 100mm through axle
15mm x 100mm through axle (can be converted to QR by installing part # QRPLUGS)

Rotor Specifications
For center-locking rotors only (rotors not included)

Lock Ring Compatibility
9mm QR and 15mm thru: White Industries or Shimano SM-HB20 / HB-M8010 etc. external splined lock ring

12mm through: White Industries or Shimano SM-RT81 or other inner-spline lockring, or White Industries or Shimano SM-HB20 / HB-M8010 or other outer-spline lockring

Rotors and lockrings that do not strictly conform to Shimano specifications may not work properly with our hubs.
Whisky No. 9 MCX forks require inner-spline lockrings for clearance regardless of axle type.
Radial assembly (radial assembly) is not supported.

Made in USA

Hub

Filters

Active filters:

SHIMANO Hub HB-M8000 QR

DIA COMPE Gran Compe Small Track Hub

SHIMANO Hub FH-M8000 10 / 11s QR

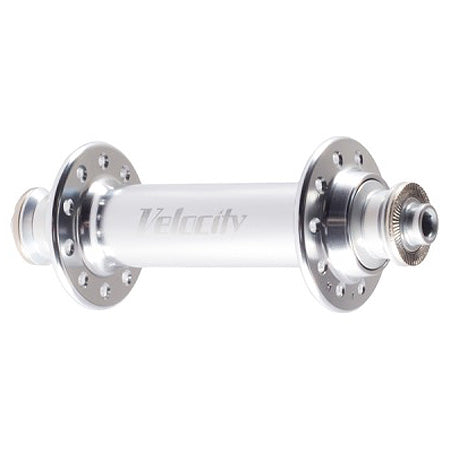

VELOCITY Race Disc Front Hub

VELOCITY Race Disc Rear Hub

VELOCITY Track Hub Rear

DIA COMPE Ene Ciclo Touring Disc Hub

VELOCITY Track Hub Front

VELOCITY Road Front Hub

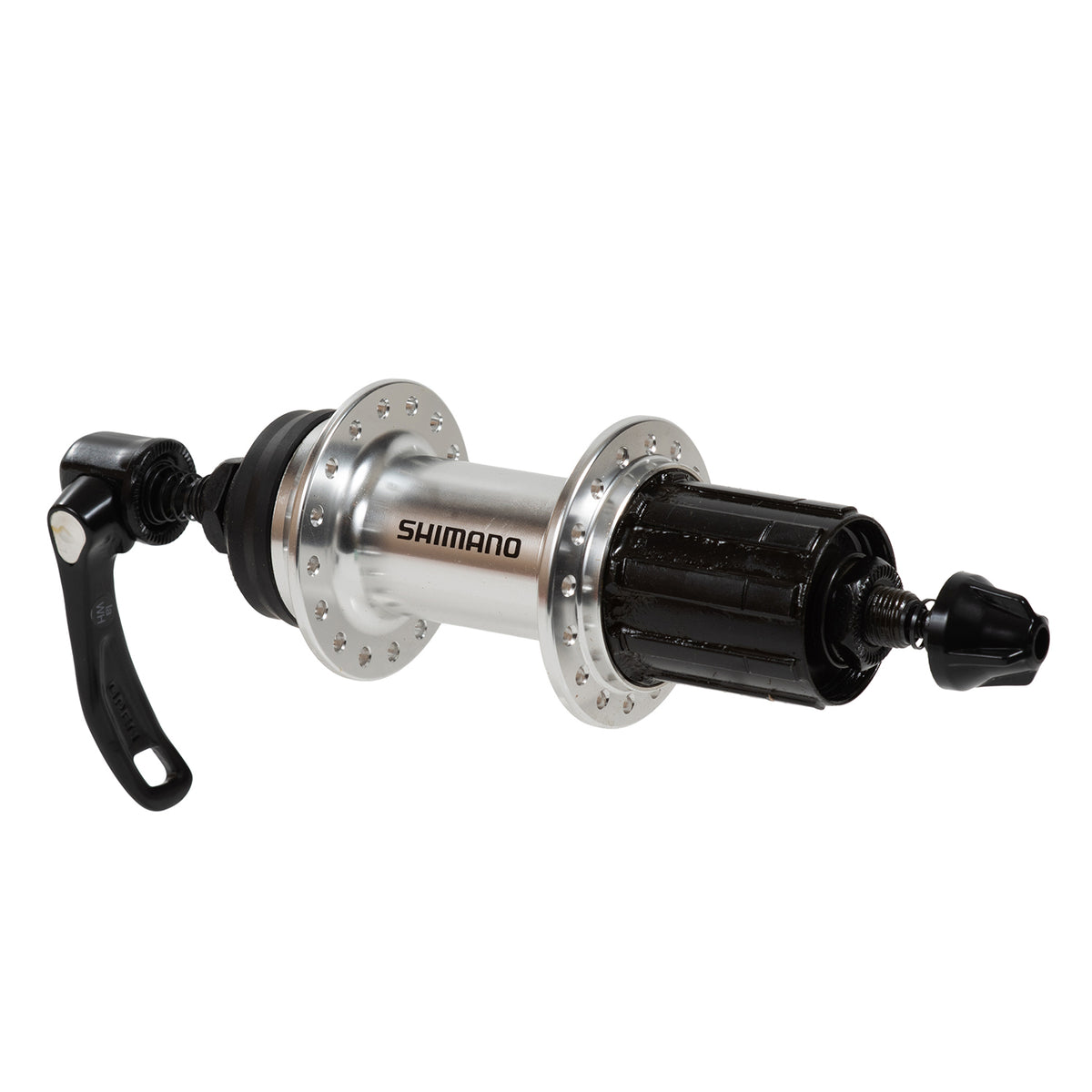

SHIMANO Cues FH-QC400-HM

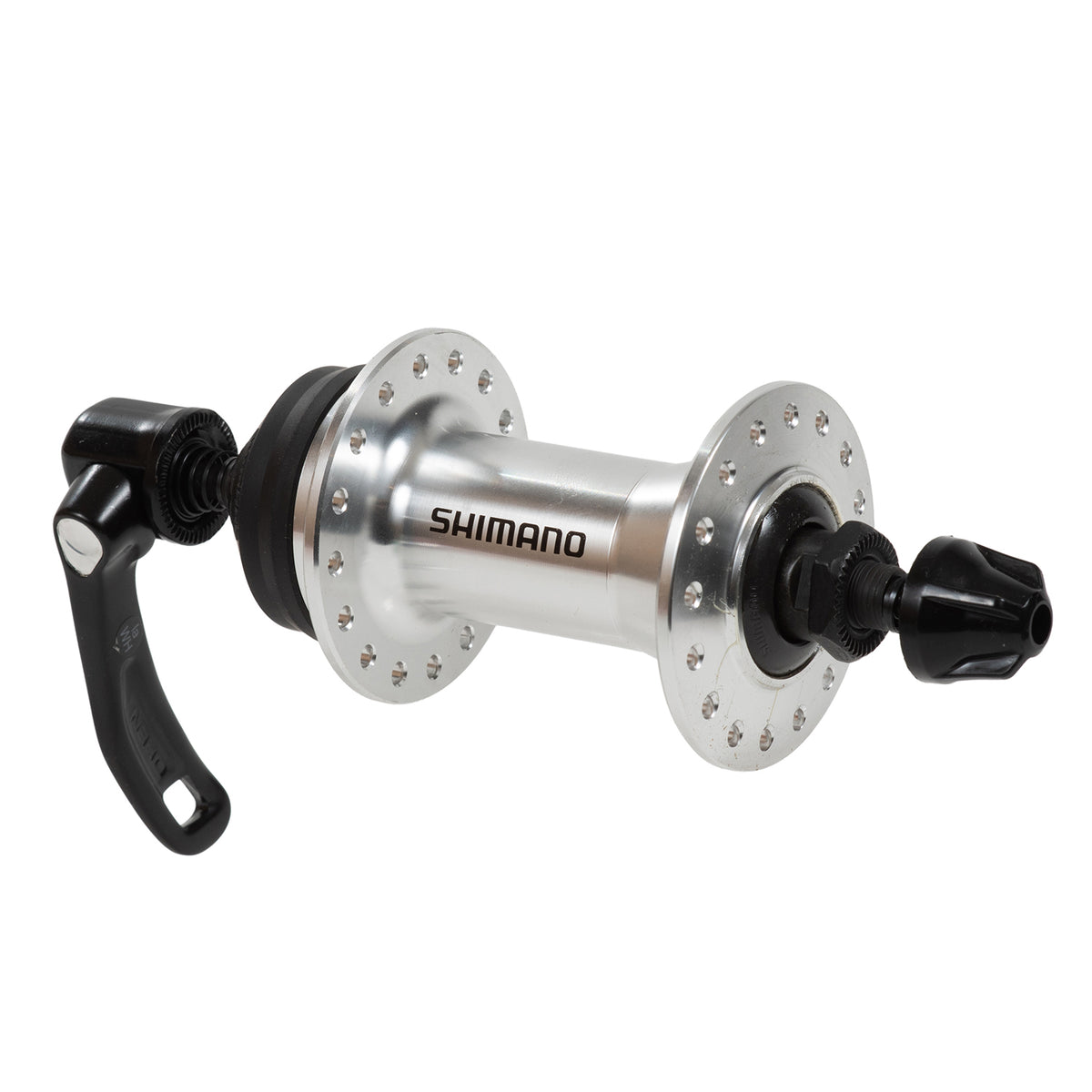

SHIMANO Cues HB-QC400

VELOCITY ATB Disc Front Hub

SHIMANO HB-R7070 105 Front Disc Hub 12mm Thru

VELOCITY ATB Disc Rear Hub

VELOCITY Road Rear Hub

WHITE INDUSTRIES CLD Front Hub

PHIL WOOD Low Flange Track Hub 32H

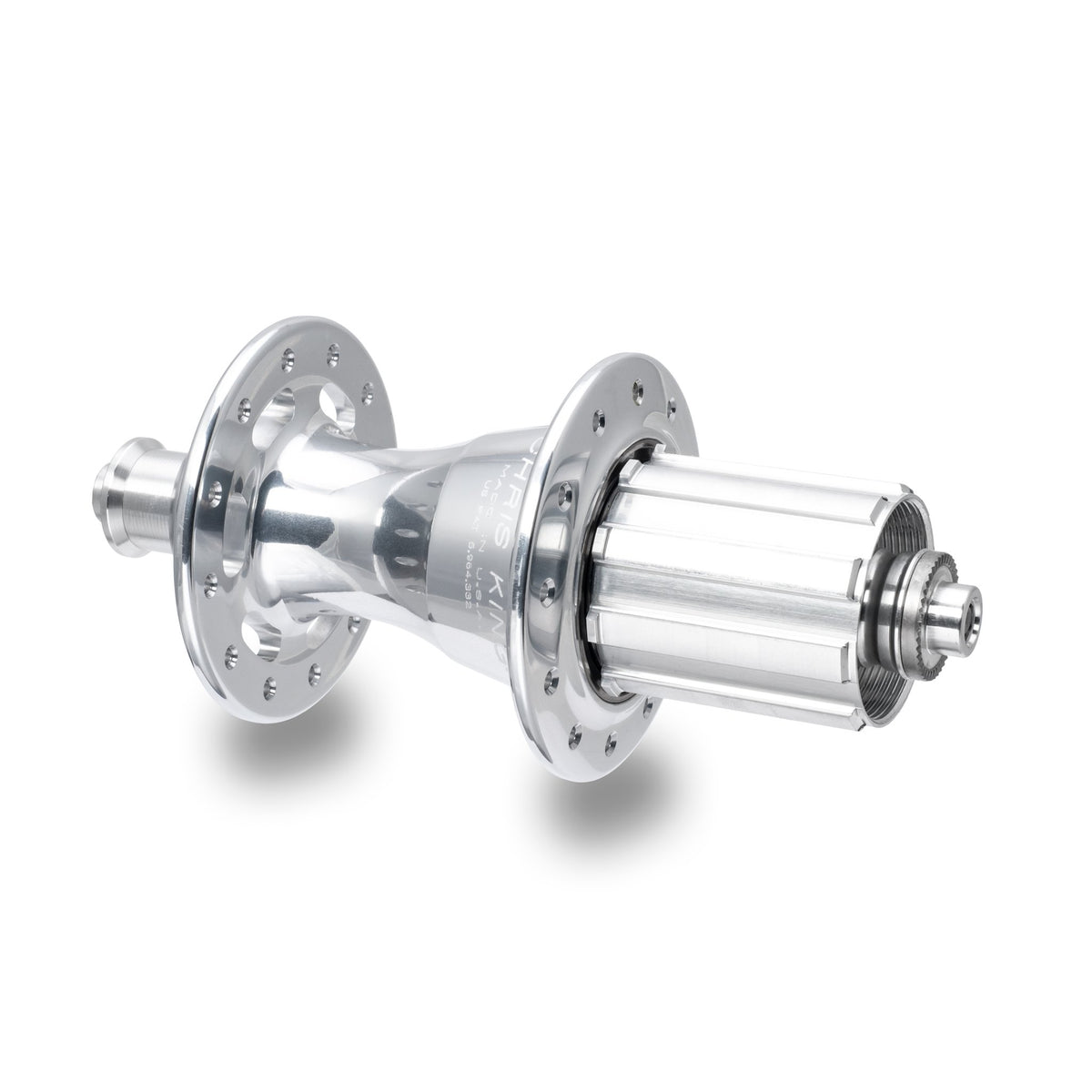

CHRIS KING R45 Silver

WHITE INDUSTRIES MI5 Hub

CHRIS KING R45D Centerlock Black

CHRIS KING R45D Centerlock Matte Gold 50th

CHRIS KING R45D Centerlock Midnight

SON NABENDYNAMO SON28 12mm Thru Axle Disc Center Lock Hub

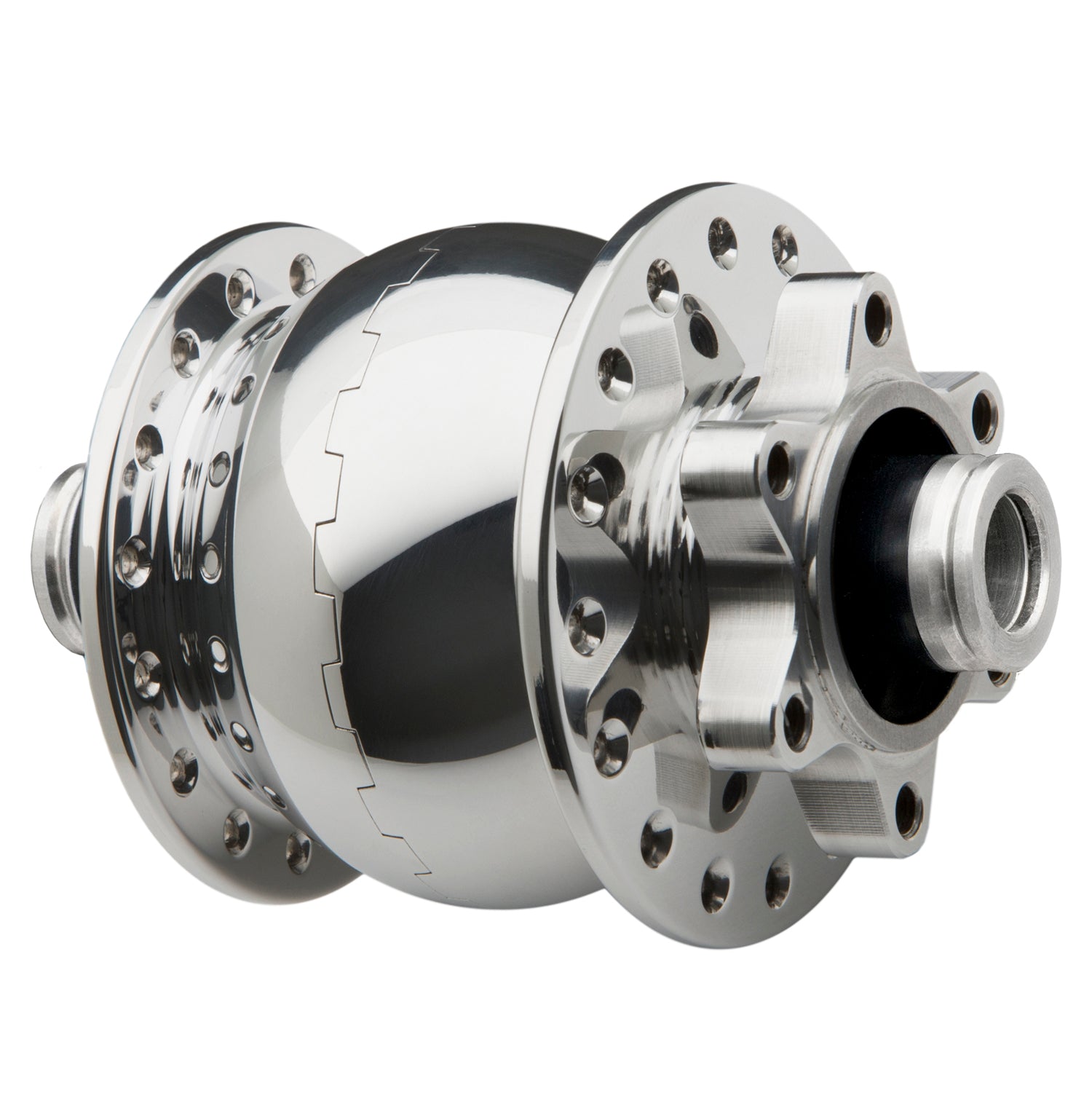

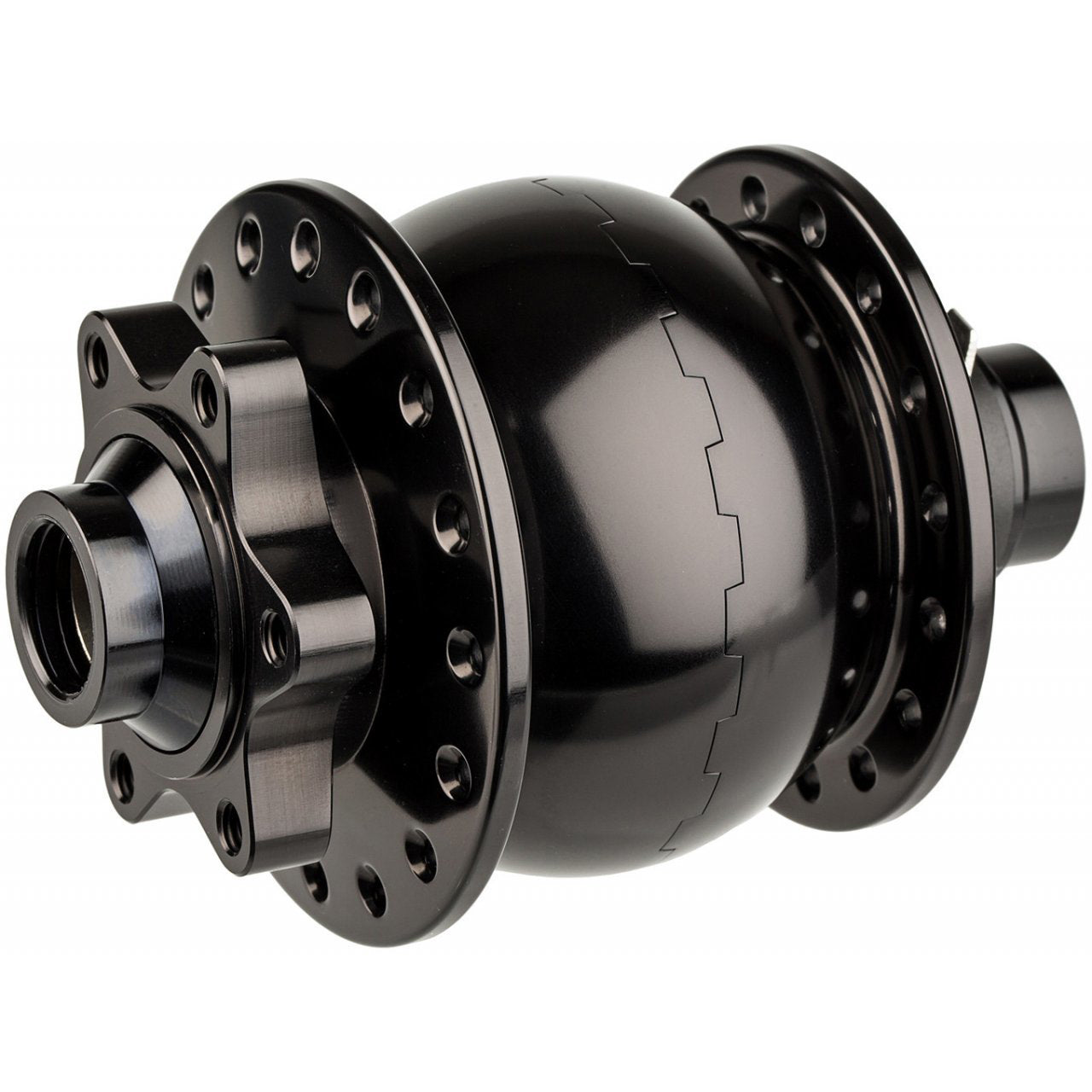

SON NABENDYNAMO Son28 Disc 6 Bolt Hub Thru Axle
