Description
WHITE INDUSTRIES is a California-based component manufacturer. The manufacturer, which produces high quality machined aluminum parts in beautifully crafted shapes, has been involved with the California builder community for a long time and has a long history of fans.

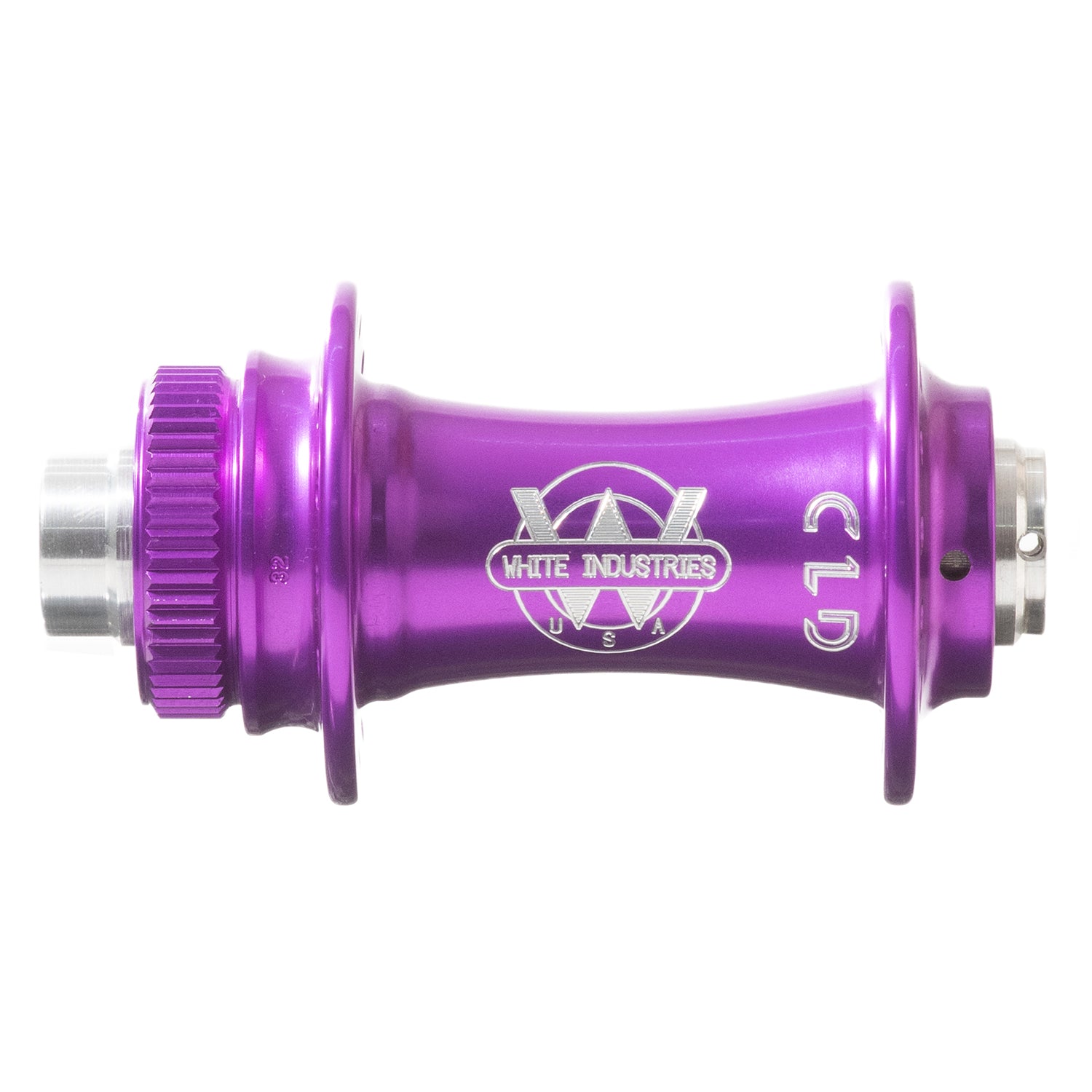

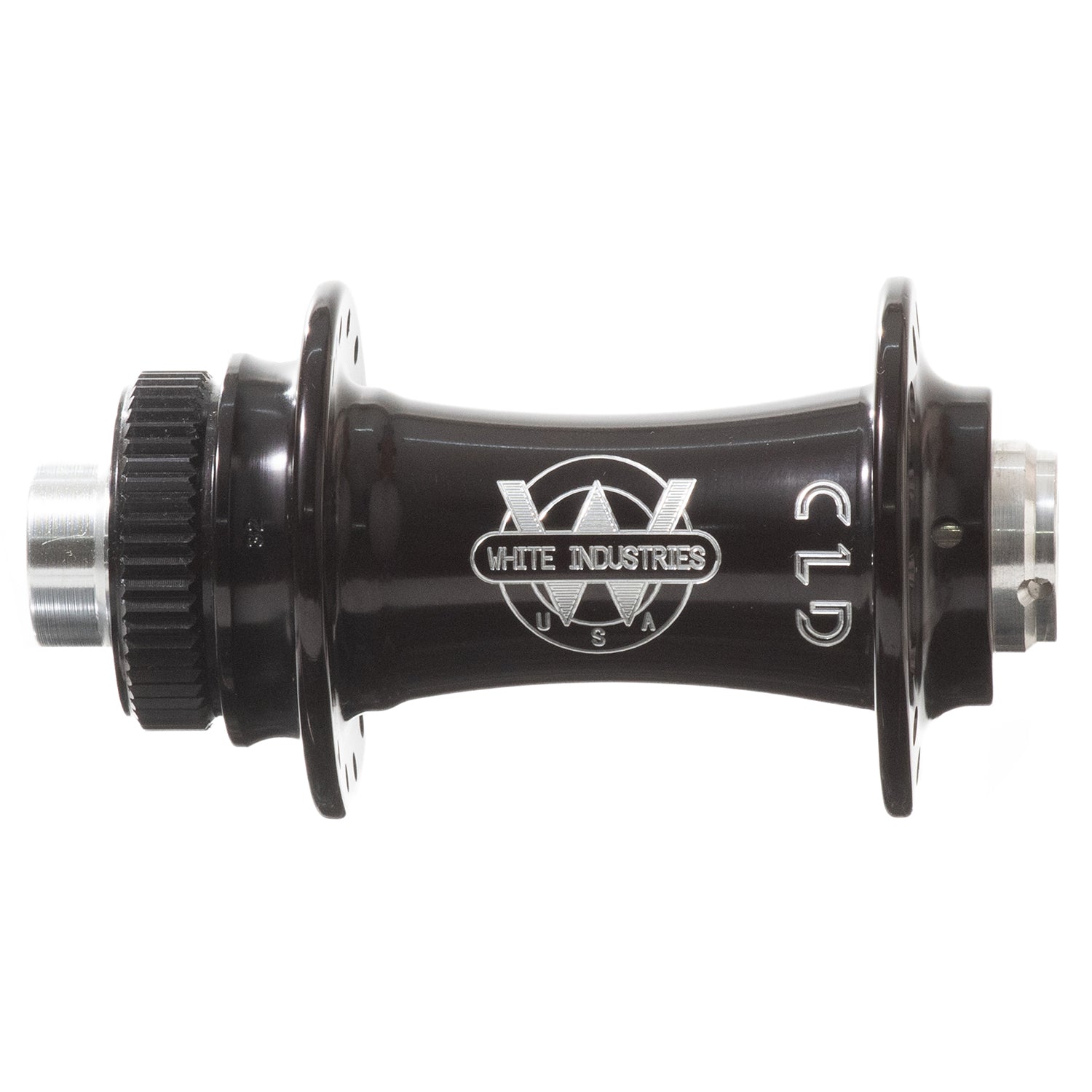

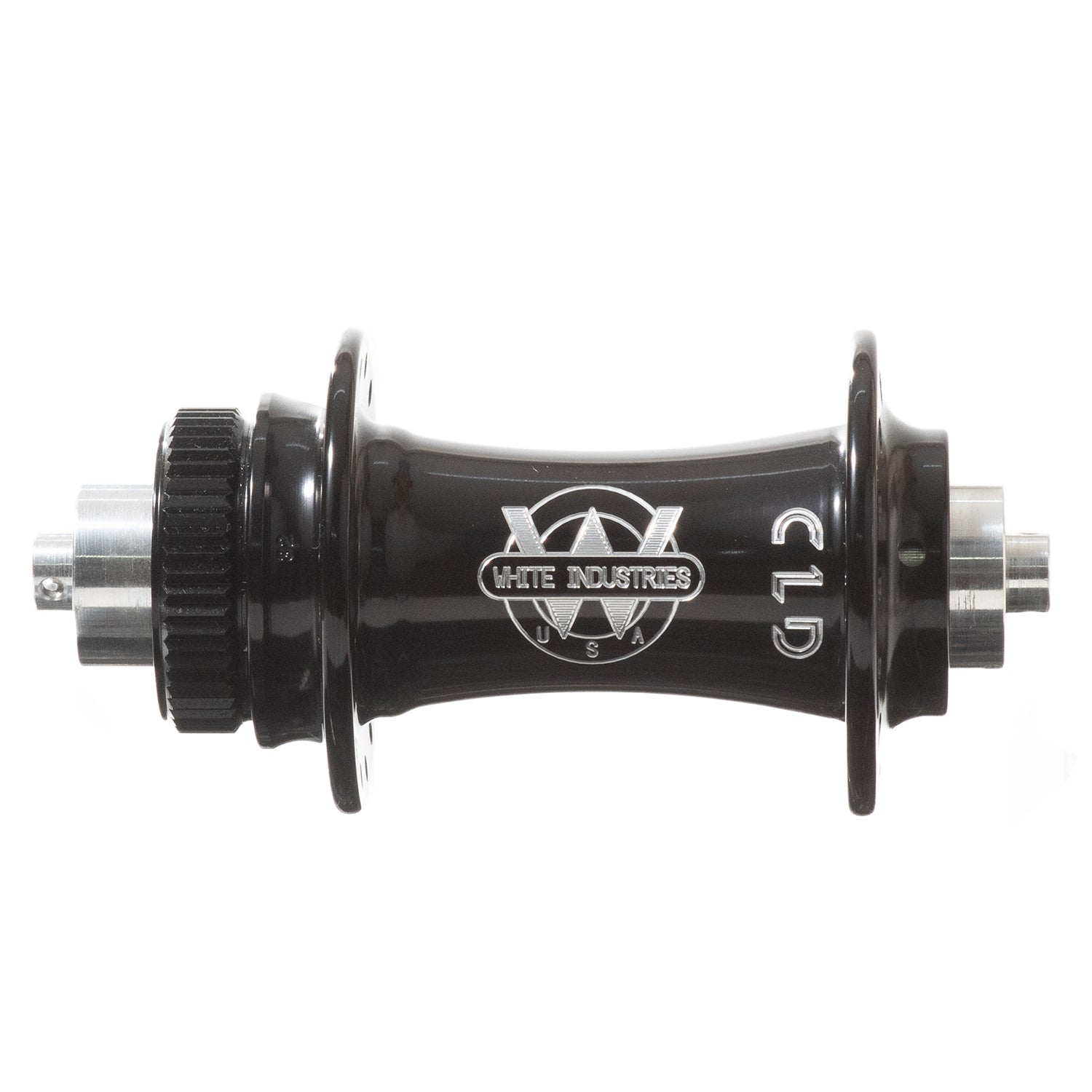

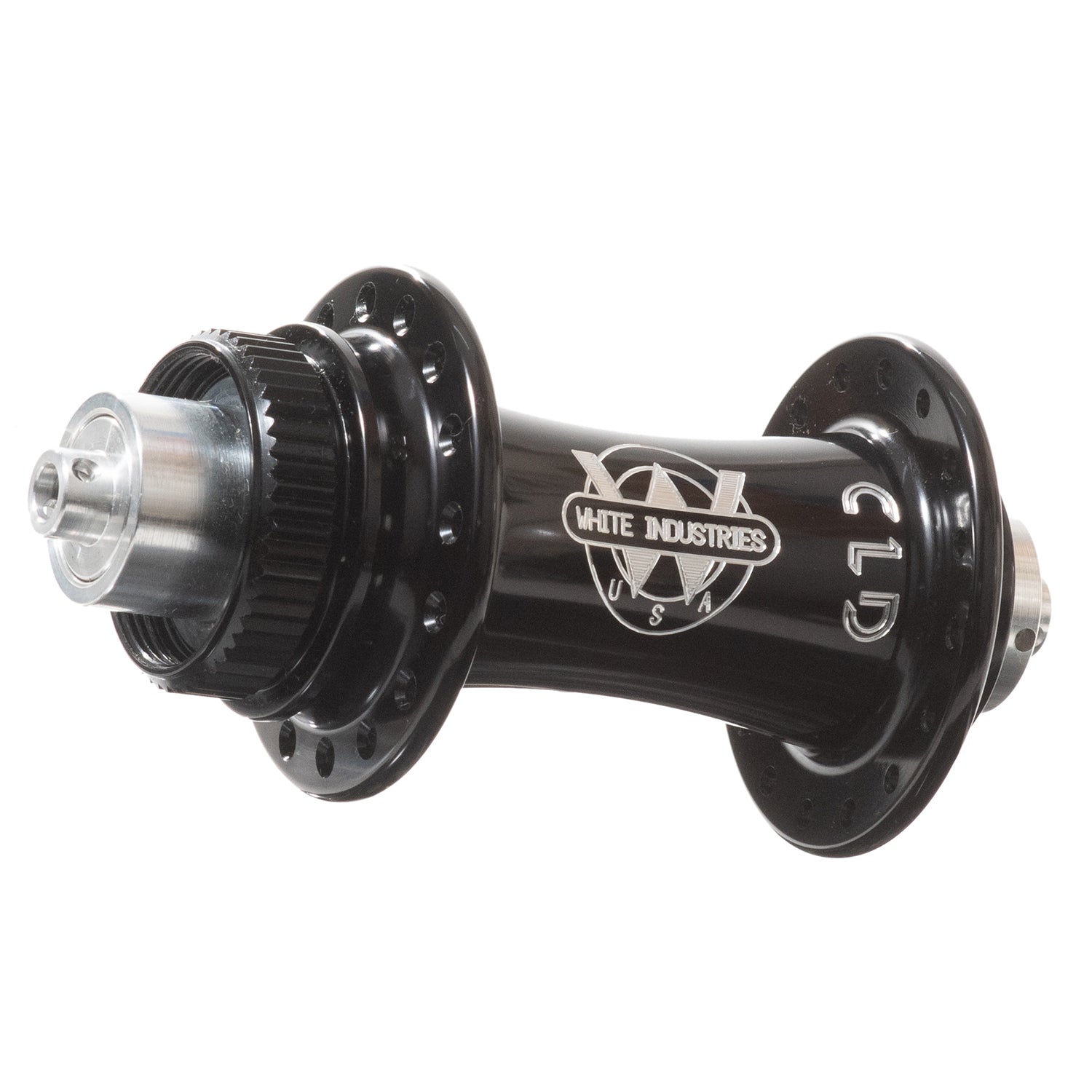

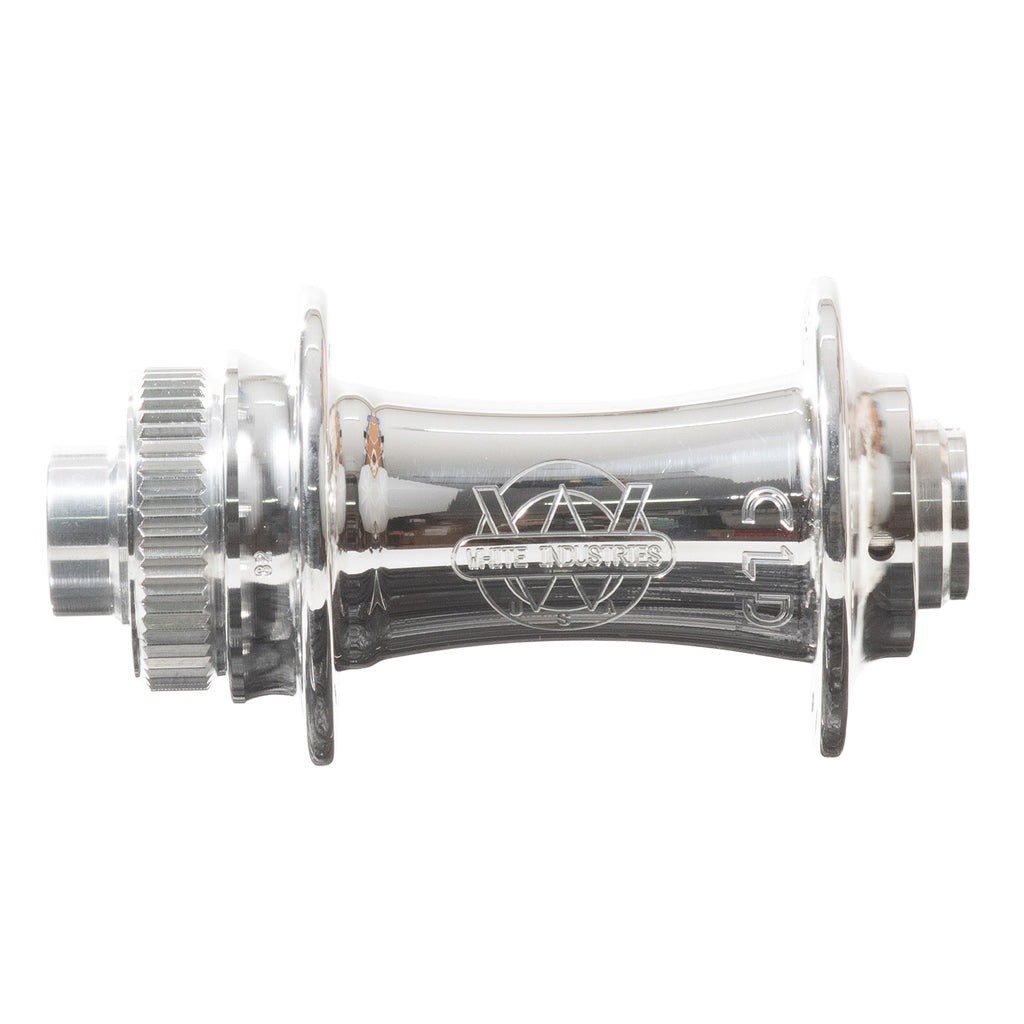

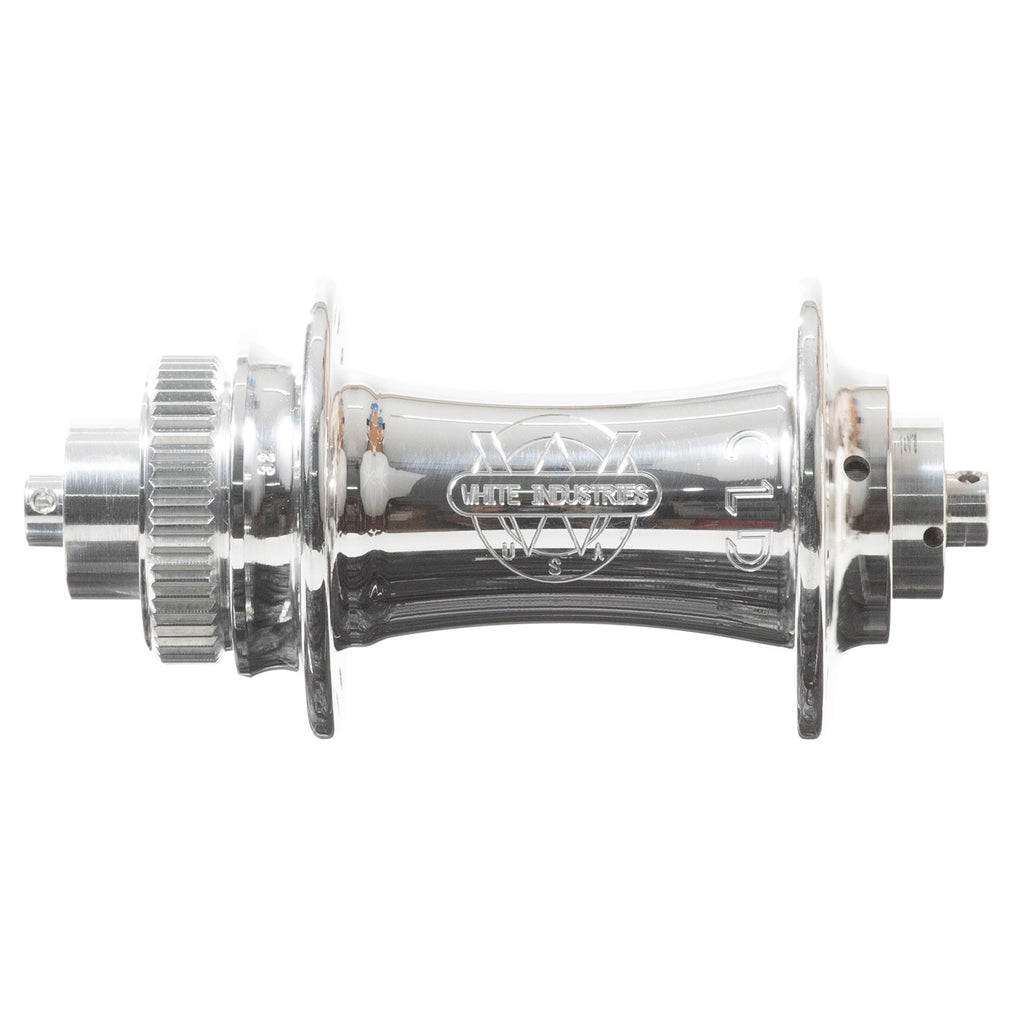

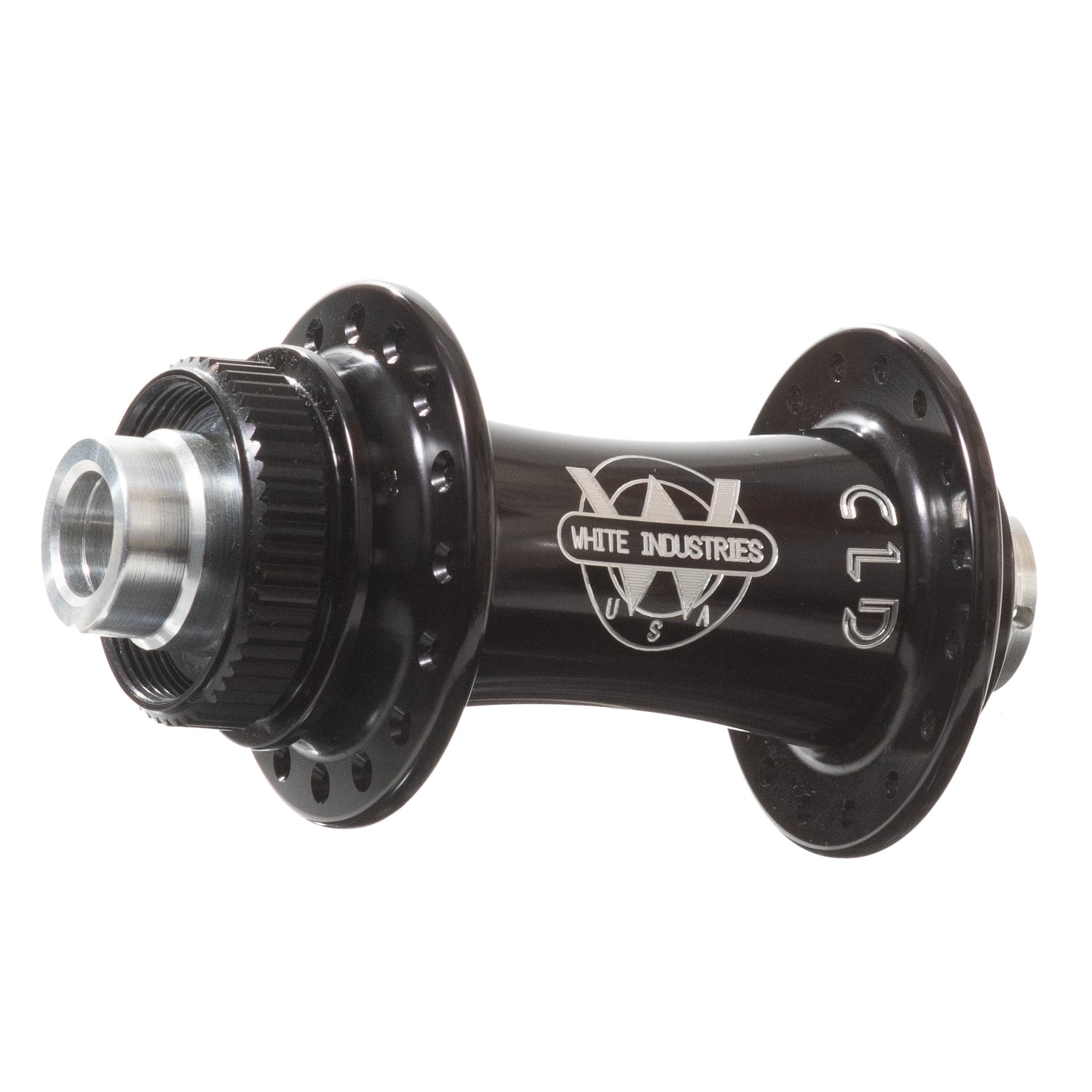

The CLD (Center Lock Disc) hubs are designed based on the center-lock splined rotor mount interface, rather than the 6-bolt mounting standard used in the XMR hubs.
The center-lock system allows for a smaller flange diameter, resulting in a slightly lighter hub that is suitable for road bike builds while still providing the durability needed for mountain bike applications.
Made in the U.S.A. from 6061-T6 aluminum and manufactured in our own factory. A wide range of hole counts, colors, and axle standards are available.
[SPEC]
Weight: 146g
Spoke hole diameter: 2.6mm
Flange diameter (left): 45mm
Flange diameter (right): 45mm
Center to left flange: 20.5mm
Center to right flange: 34.5mm
Bearings
Hub shell: 17287 bearings x 2
Compatibility
Axle Options (Compatible between 3 types. However, only one type is included with the hub)
- 9mm x 100mm quick release (can be converted to 15mm thru by removing the plug)
- 12mm x 100mm through axle
- 15mm x 100mm through axle (can be converted to QR by installing part # QRPLUGS)
Rotor Specifications
For center-locking rotors only (rotors not included)
Lock Ring Compatibility
9mm QR and 15mm thru: White Industries or Shimano SM-HB20 / HB-M8010 etc. external splined lock ring
12mm through: White Industries or Shimano SM-RT81 or other inner-spline lockring, or White Industries or Shimano SM-HB20 / HB-M8010 or other outer-spline lockring
Rotors and lockrings that do not strictly conform to Shimano specifications may not work properly with our hubs.
Whisky No. 9 MCX forks require inner-spline lockrings for clearance regardless of axle type.
Radial assembly (radial assembly) is not supported.
Made in USA
