WILDE BICYCLE Moto-Cruiser Frame Set - Purple Pizazz

WILDE BICYCLE Moto-Cruiser Frame Set - Purple Pizazz

WILDE BICYCLE
SKU: MTC-PURP-CHROME-MD
¥157,300
Taxes included. Shipping calculated at checkout.
Size
Check your size based on your height

Check your size based on your height

Shows size options that fit your height. Fit can vary with proportions, riding style, and position, so please use this as a general guide.

Size options —

Sizing can change with riding style and position. If you are near a boundary, please contact Circles.

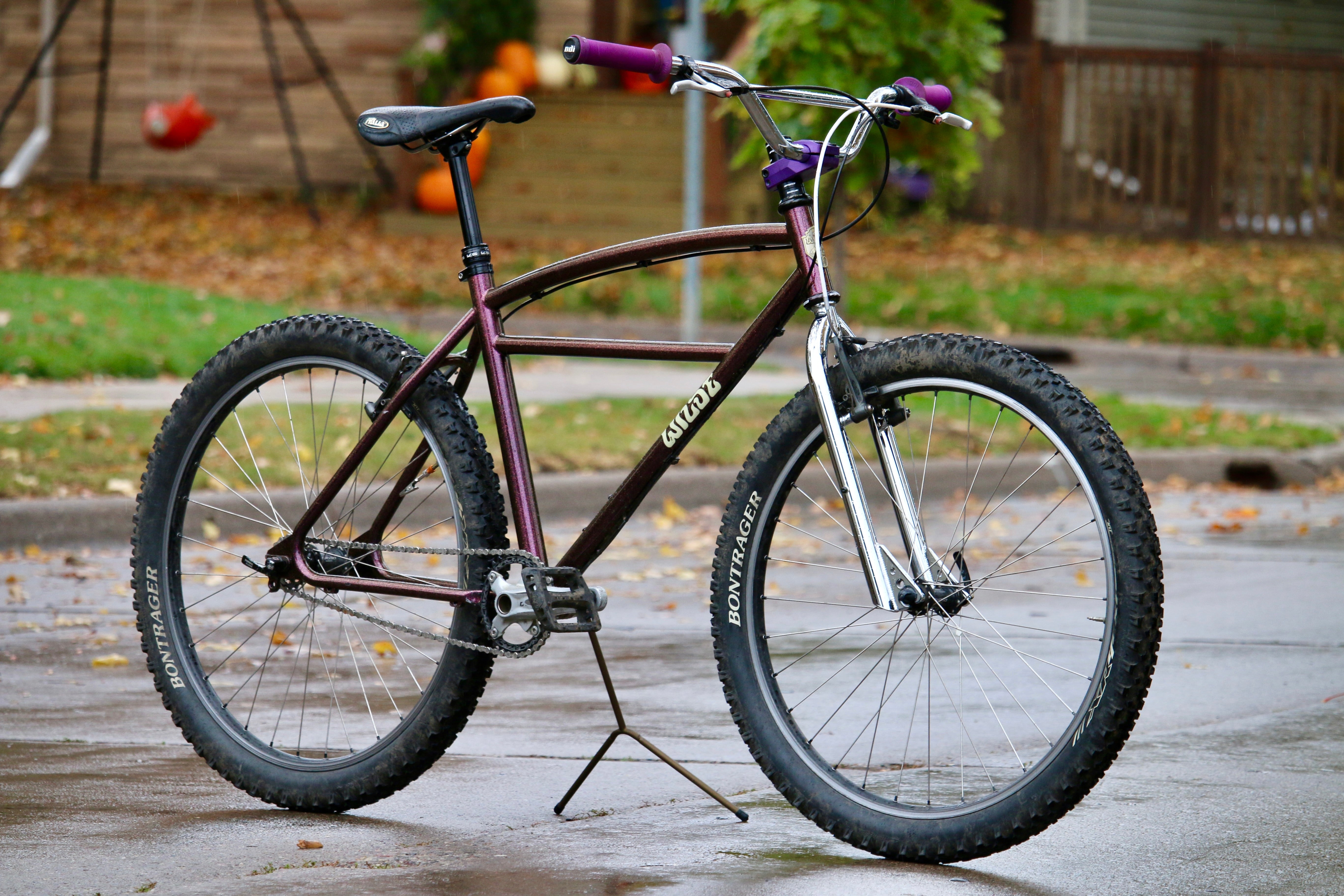

A 26-inch MTB designed by Jeff, packed with the kind of fun that brings back the thrill of riding a bike for the first time

Created with the idea of “a bike that’s just plain fun,” WILDE BICYCLE Moto-Cruiser draws inspiration from the classic 26-inch rim-brake MTBs that Jeff himself loves. It’s a bike he created by reinterpreting, in his own way, the essence of something that’s gradually being lost in today’s world.

It’s a bike that offers the freedom to cruise through the city, tear down local singletrack, or even take a shortcut on a dirt road without a second thought. Its defining features are its simplicity—whether you’re just cruising or using it for any purpose.

Kenny, Jeff’s close friend and a WILDE rider, said, “When you ride this bike, you feel like you have to get home in time for dinner.” The Moto-Cruiser is a bike that gives you that same sense of excitement you felt as a child when you first rode a bike and your world opened up, and it’s the kind of bike that makes you lose track of time and ride with total immersion.

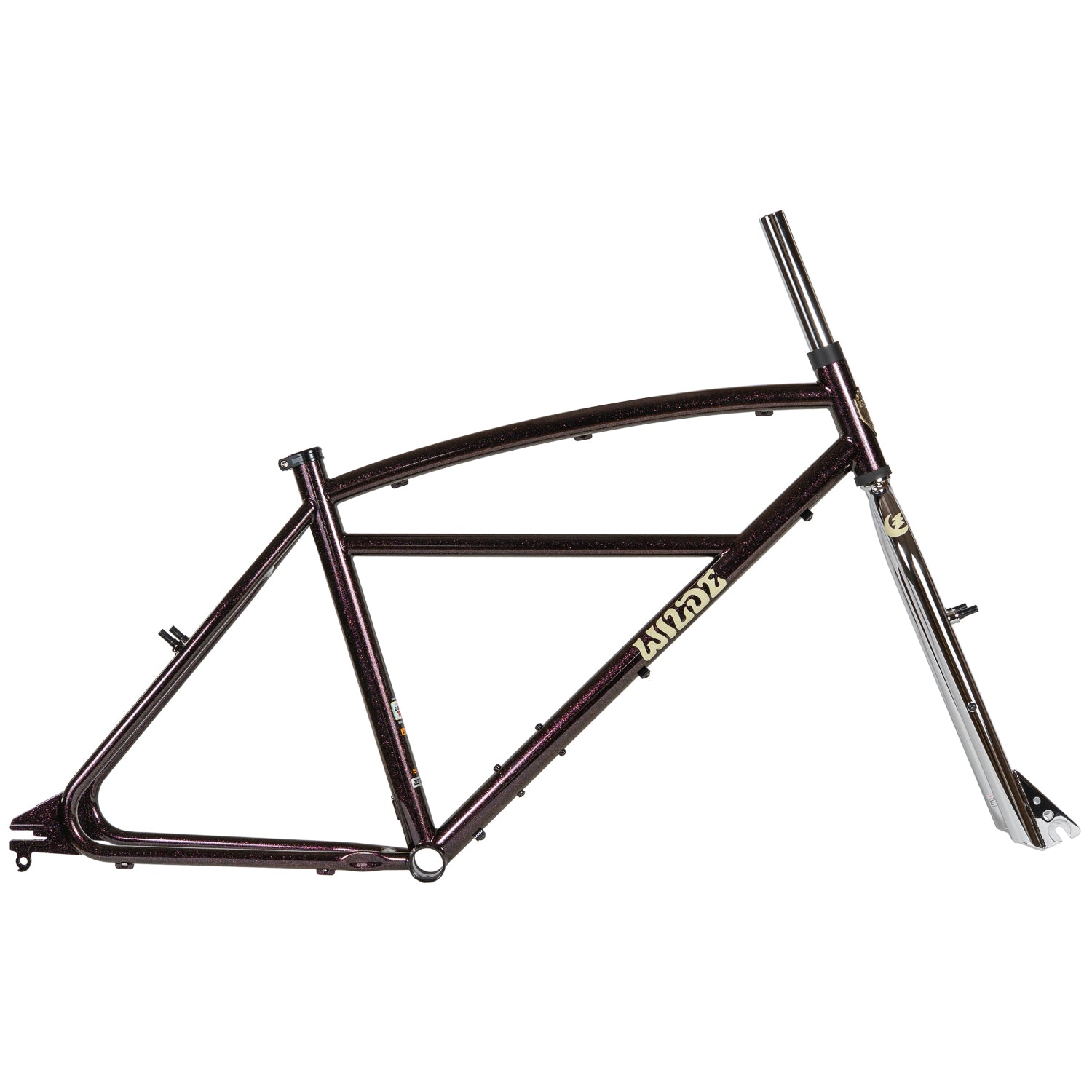

Designed to be assembled as easily as possible using parts you already have—such as 26-inch quick-release wheels—it can be built as a single-speed or a geared bike. In addition to the frame and fork, it comes with the original CrMo handlebars, the Moto-Cruiser Bar.


[FEATURE]

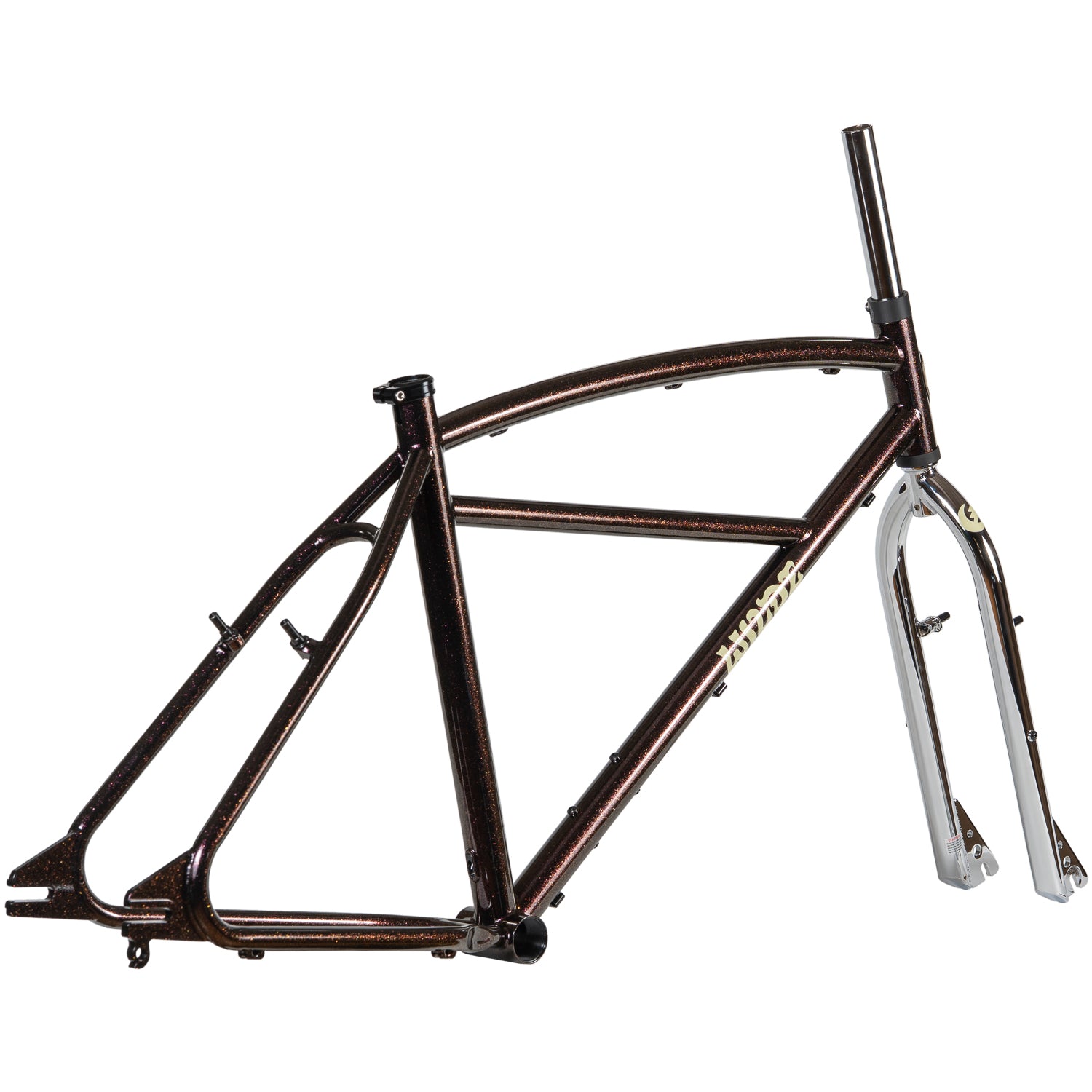

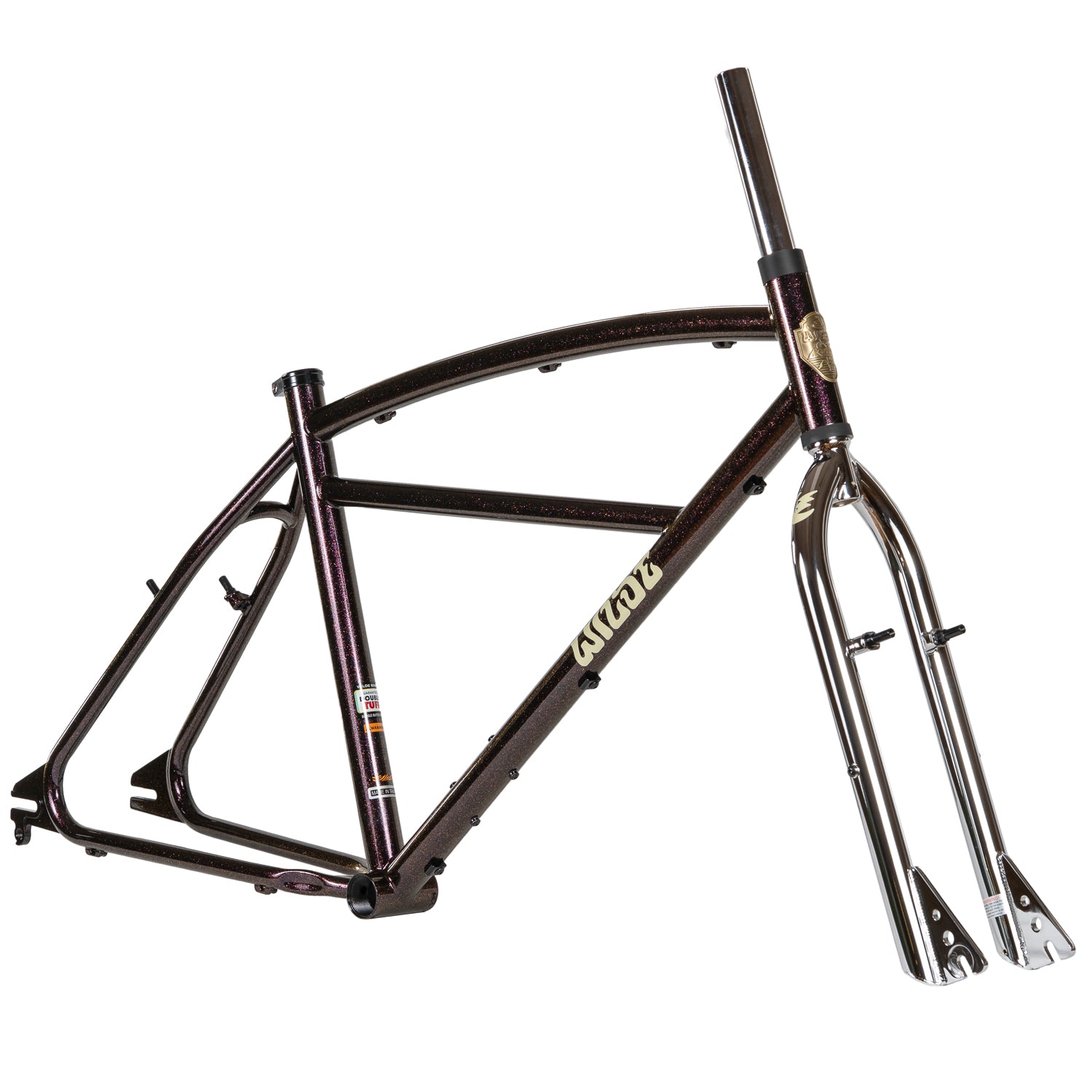

FRAME FEATURE

  • Classic "3-bar" frame silhouette
  • Loop-tail design
  • Cantilever brake mounts
  • Equipped with a bottle cage mount on the main triangle and a three-pack mount on the underside of the downtube

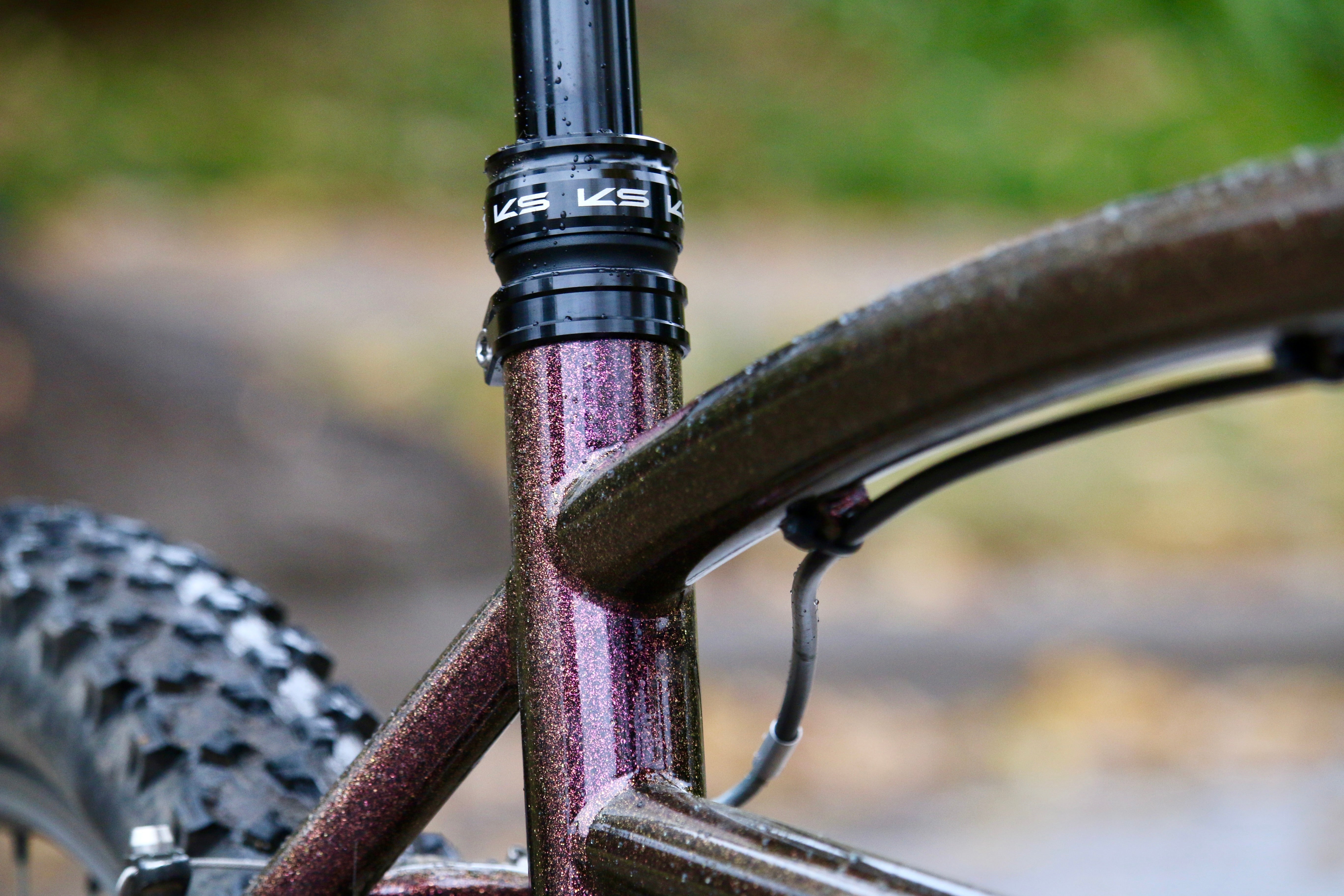

  • Stealth dropper post routing
  • Modular cable guides
  • Tire clearance: 26x2.5"

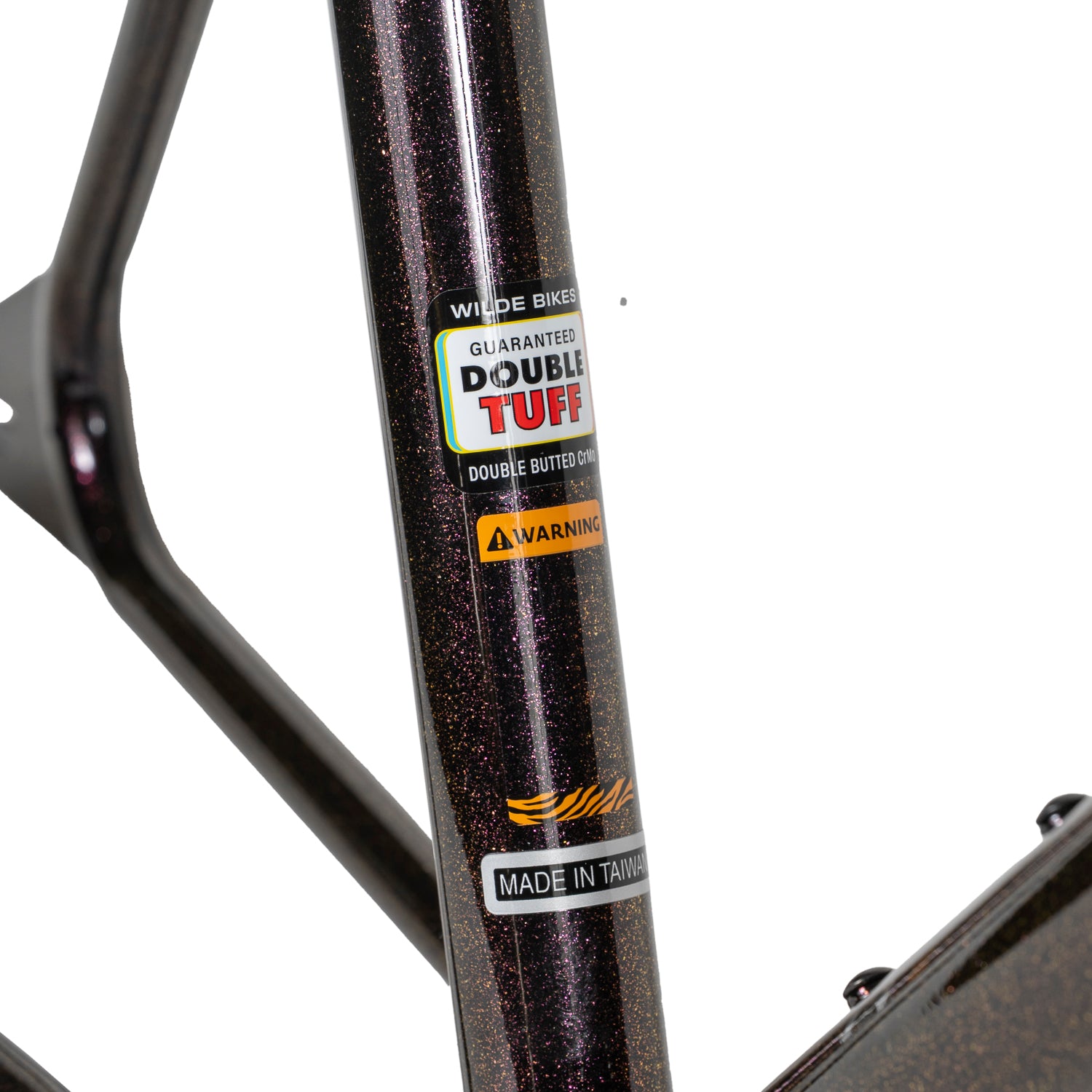

  • WILDE’s proprietary “Double Tuff” tubing—stronger and stiffer than standard TLC tubing

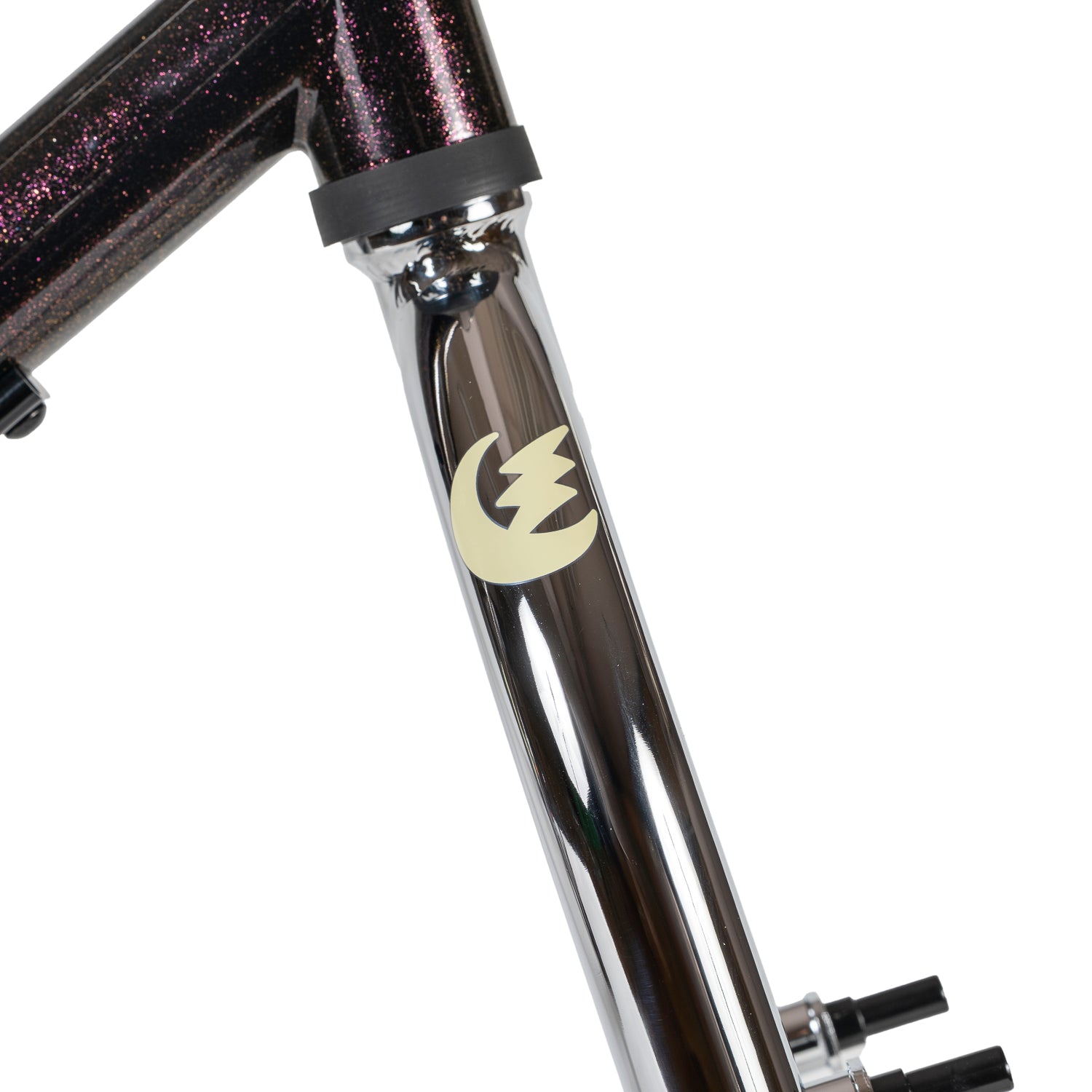

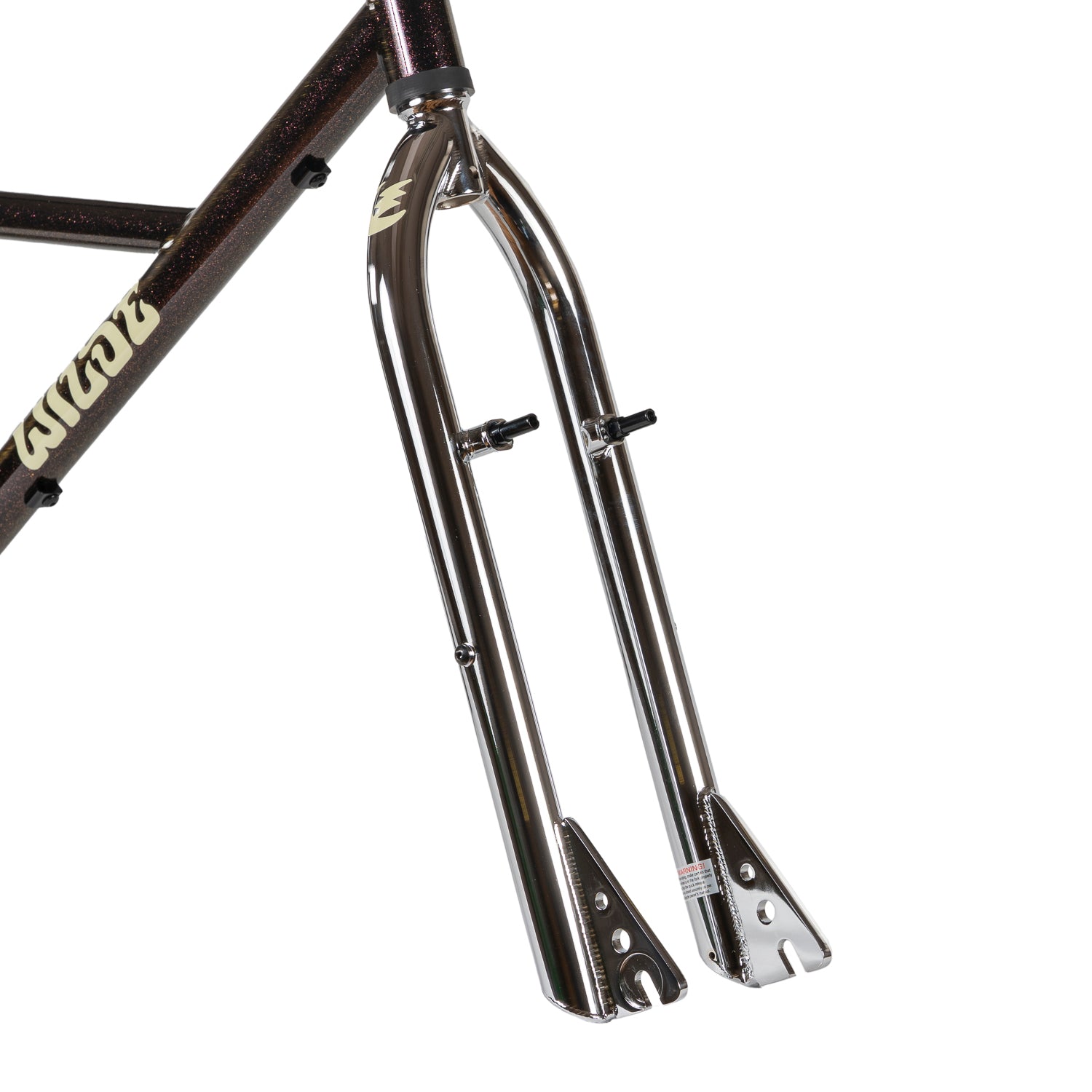

FORK FEATURES

  • 420mm below the crown / Suspension fork compatible

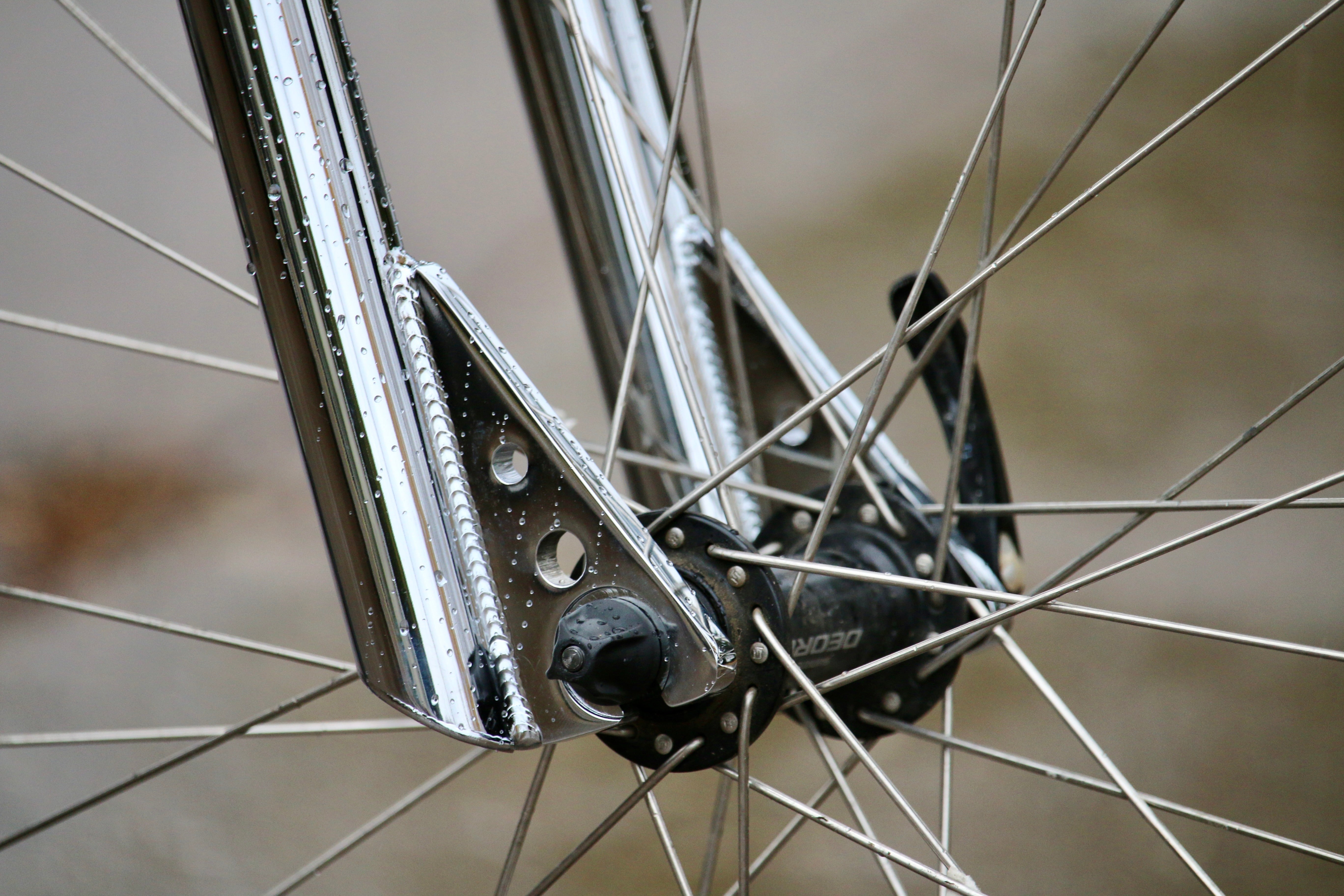

  • Mid-blade eyelets included
  • Tire clearance: 26x2.5"

HANDLE FEATURE

  • 4130 Butted CrMo Tubing
  • Rise: 90mm
  • Backsweep: 15°
  • Upsweep: 7°


[SPEC]

Frame Material: WILDE Double Tuff Chromoly Steel
Frame Color: Purple Pizazz
Fork Color: Chrome

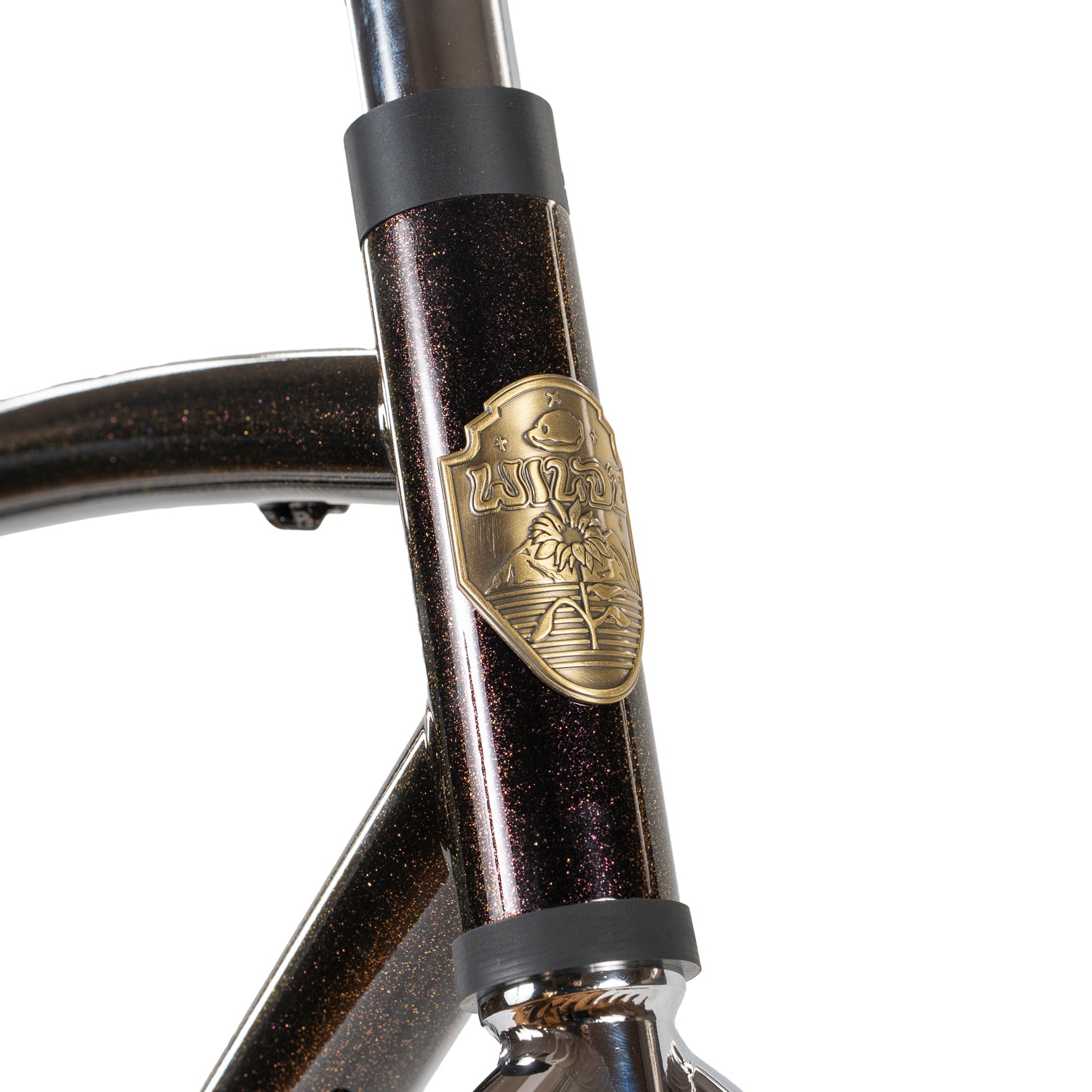

Head Tube: 1-1/8" Straight
Headset: EC34/EC34
Brake Mount: V-brakes/Cantilever brakes
BB: BSA (JIS) 73mm Threaded
Fork End: 100mm

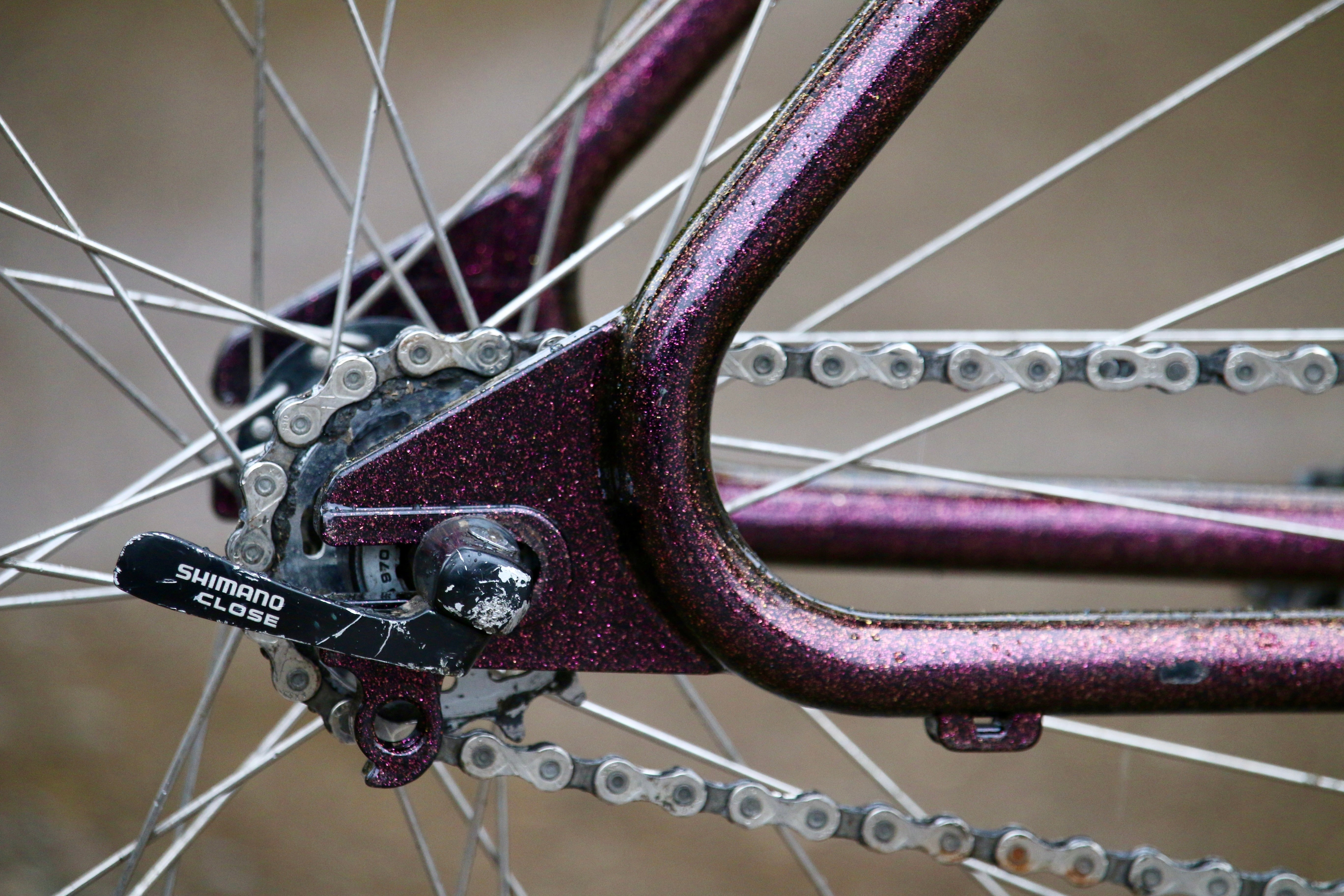

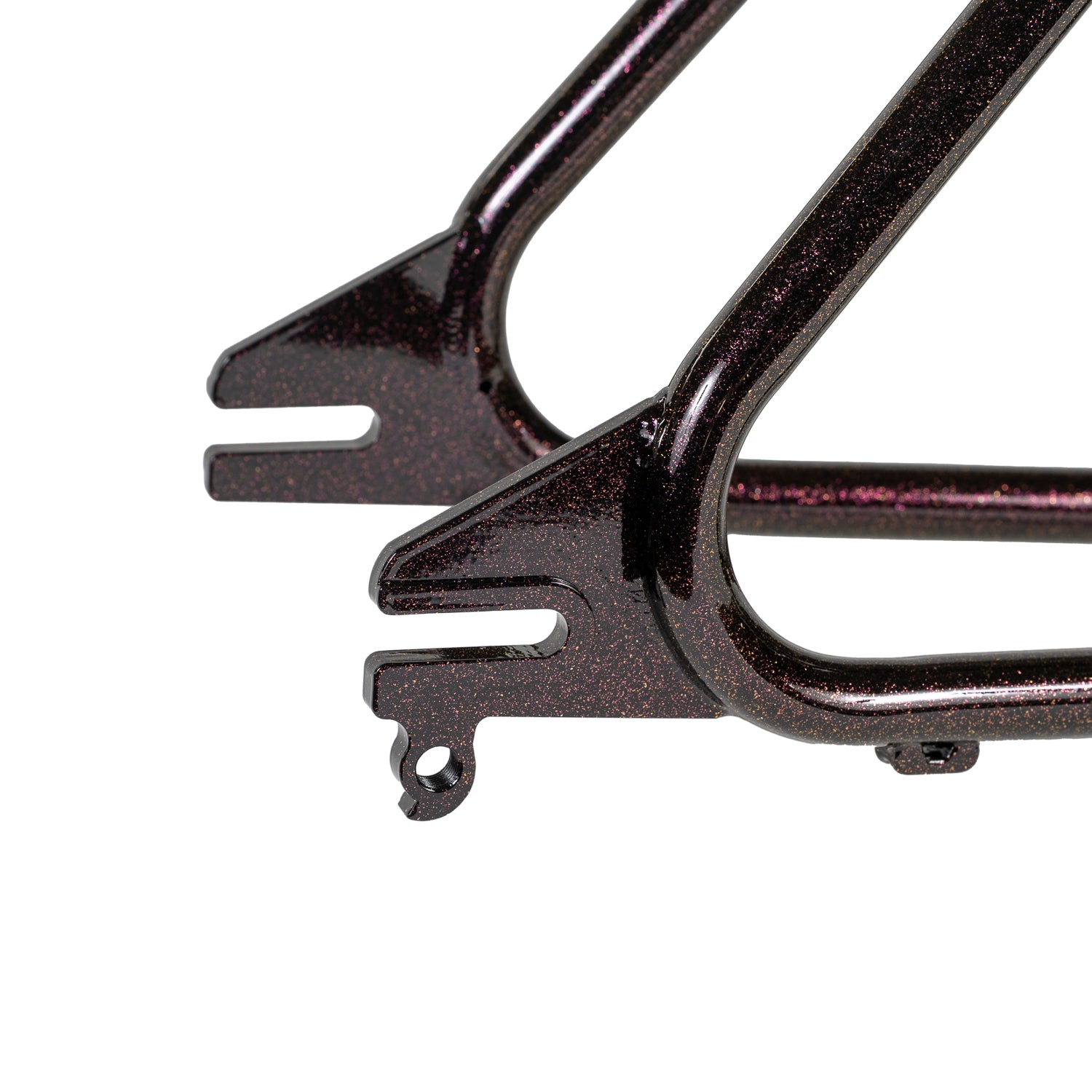

Rear End: 135mm Track End + Derailleur Hanger
Seatpost Diameter: 31.6mm
Seat clamp diameter: 35.0mm
Tire clearance: 26x2.5"
Included: WILDE Moto-Cruiser Bar (Chrome)
Seat Clamp

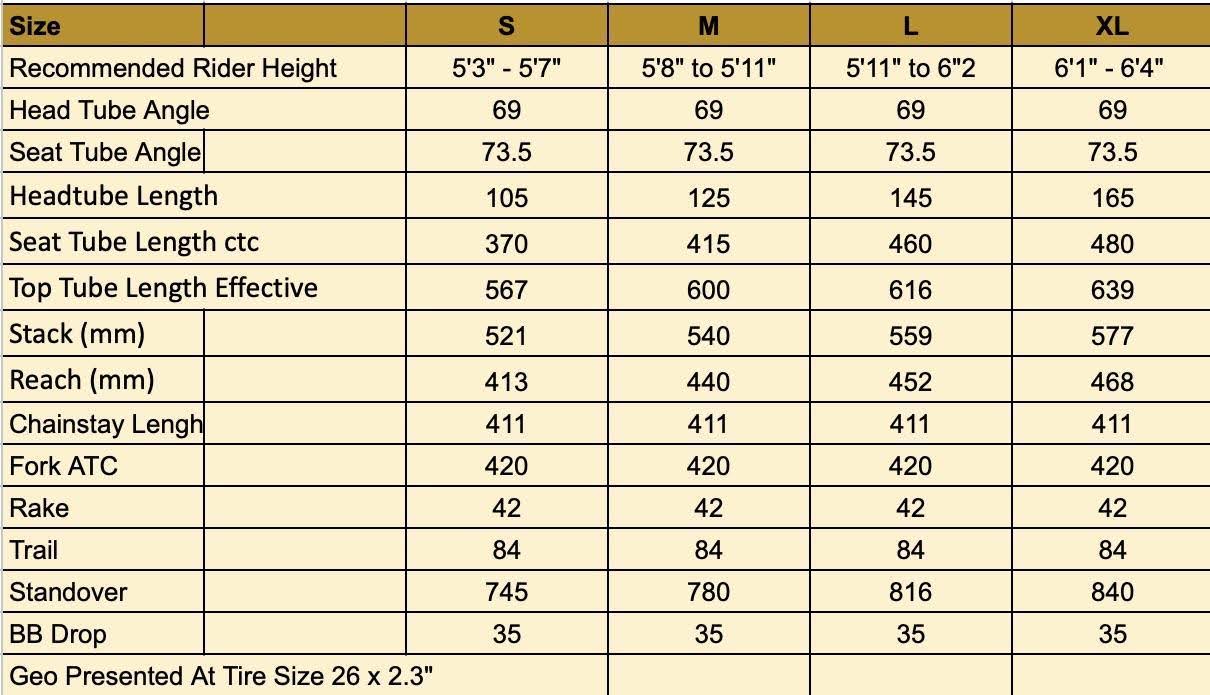

[SIZE / GEOMETRY]

Frame Size S M L XL
Head Tube Angle (deg.) 69 69 69 69
Seat Tube Angle (deg.) 73.5 73.5 73.5 73.5
Head tube length (mm) 105 125 145 165
Seat Tube Length (Center to Top) (mm) 370 415 460 480
Effective Top Tube Length (mm) 567 600 616 639
Stack height (mm) 521 540 559 577
Reach (mm) 413 440 452 468
Chainstay length (mm) 411 411 411 411
Fork (Axle to Crown) (mm) 420 420 420 420
Rake (mm) 42 42 42 42
Trail (mm) 84 84 84 84
Standover (mm) 745 780 816 840
BB Drop (mm) 35 35 35 35

*Values based on 26x2.3" tires

Recommended Height (Approximate)

  • Small: 160–170 cm
  • Medium: 172–180 cm
  • Large: 180–188 cm
  • X-Large: 185–193 cm
