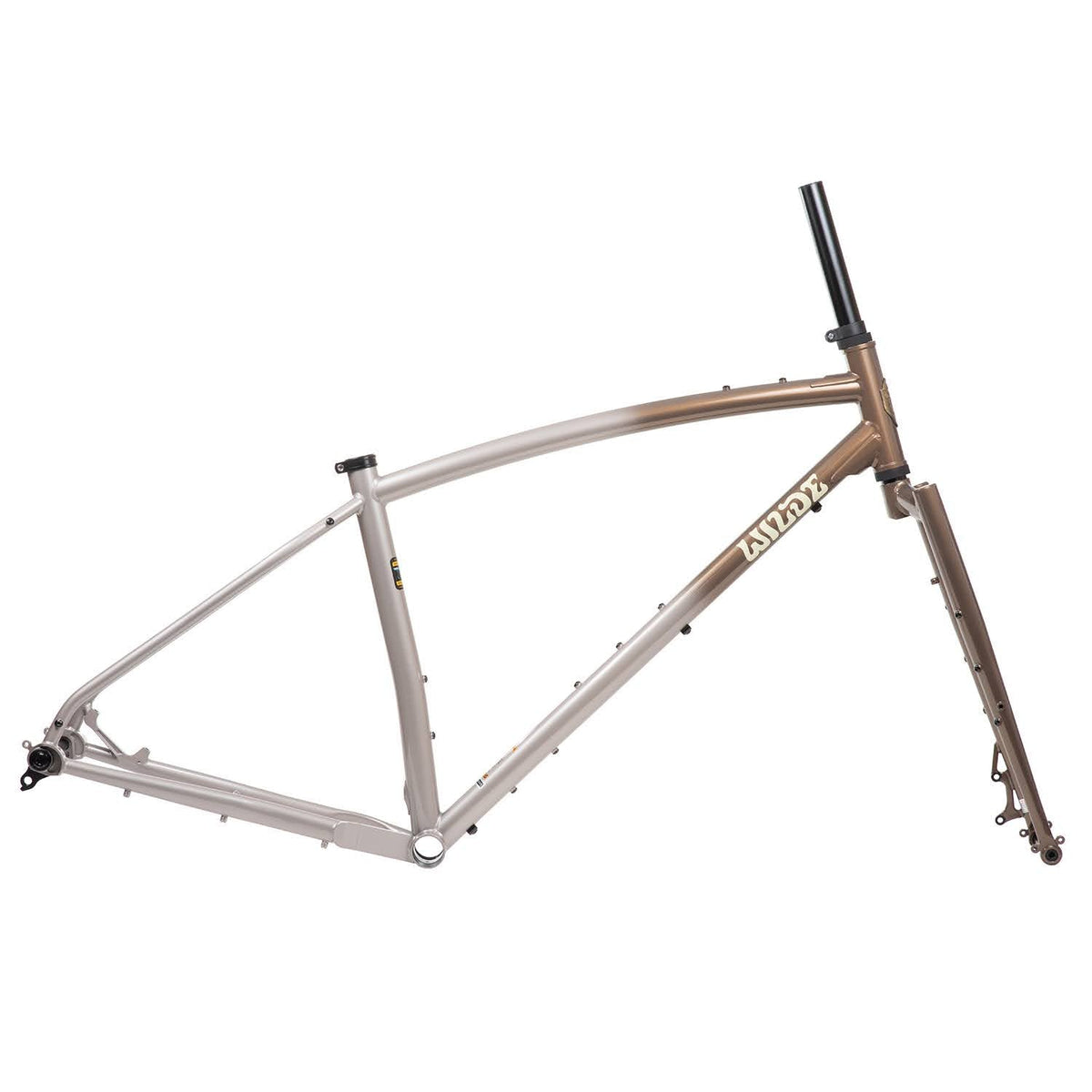

WILDE BICYCLE Supertramp Frame Set - Dirt Champagne
SKU:
SUPERTRAMP-SM-DC
¥214,500
Taxes included.
Shipping calculated at checkout.
Check your size based on your height
Check your size based on your height
Shows size options that fit your height. Fit can vary with proportions, riding style, and position, so please use this as a general guide.
Size options
—
Sizing can change with riding style and position. If you are near a boundary, please contact Circles.

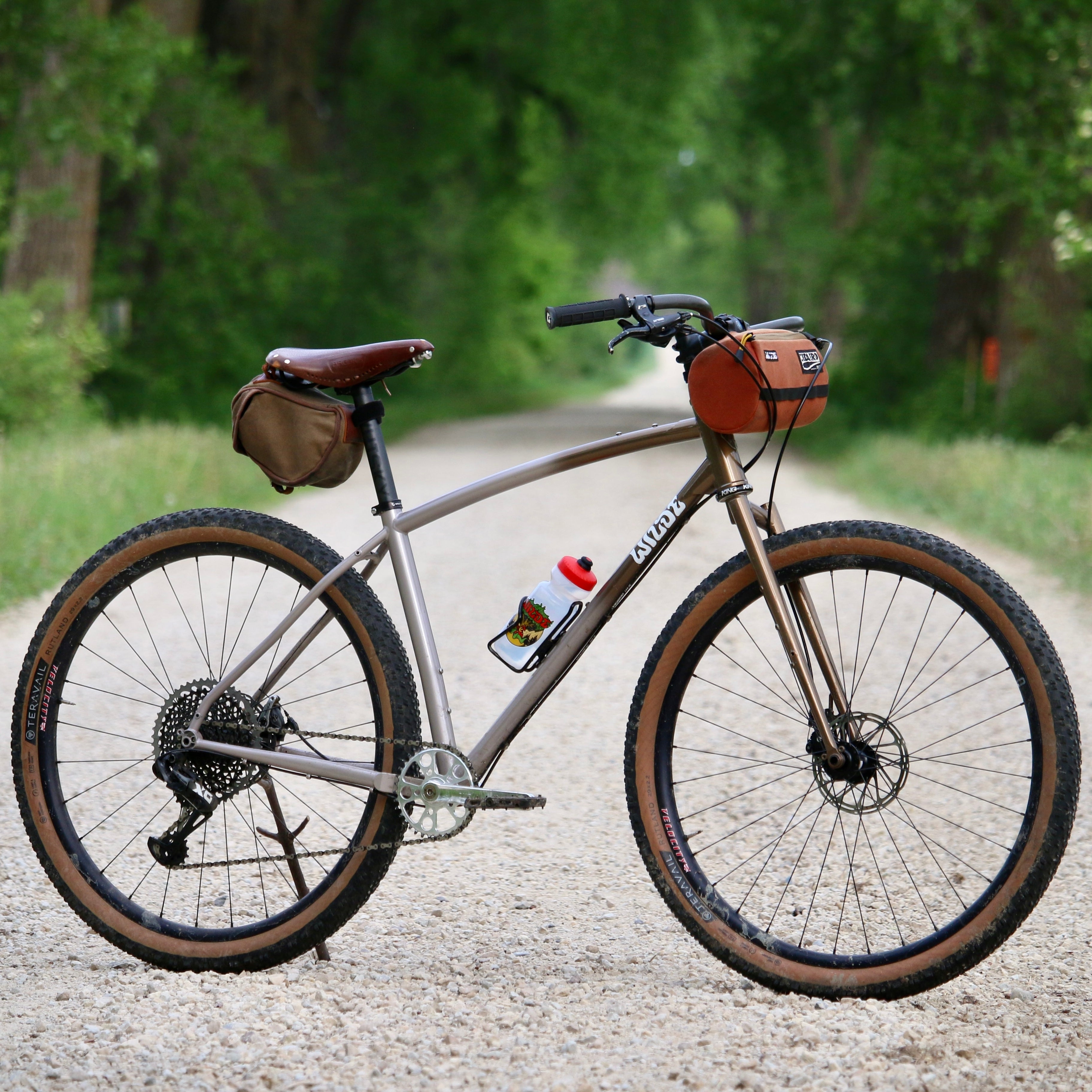

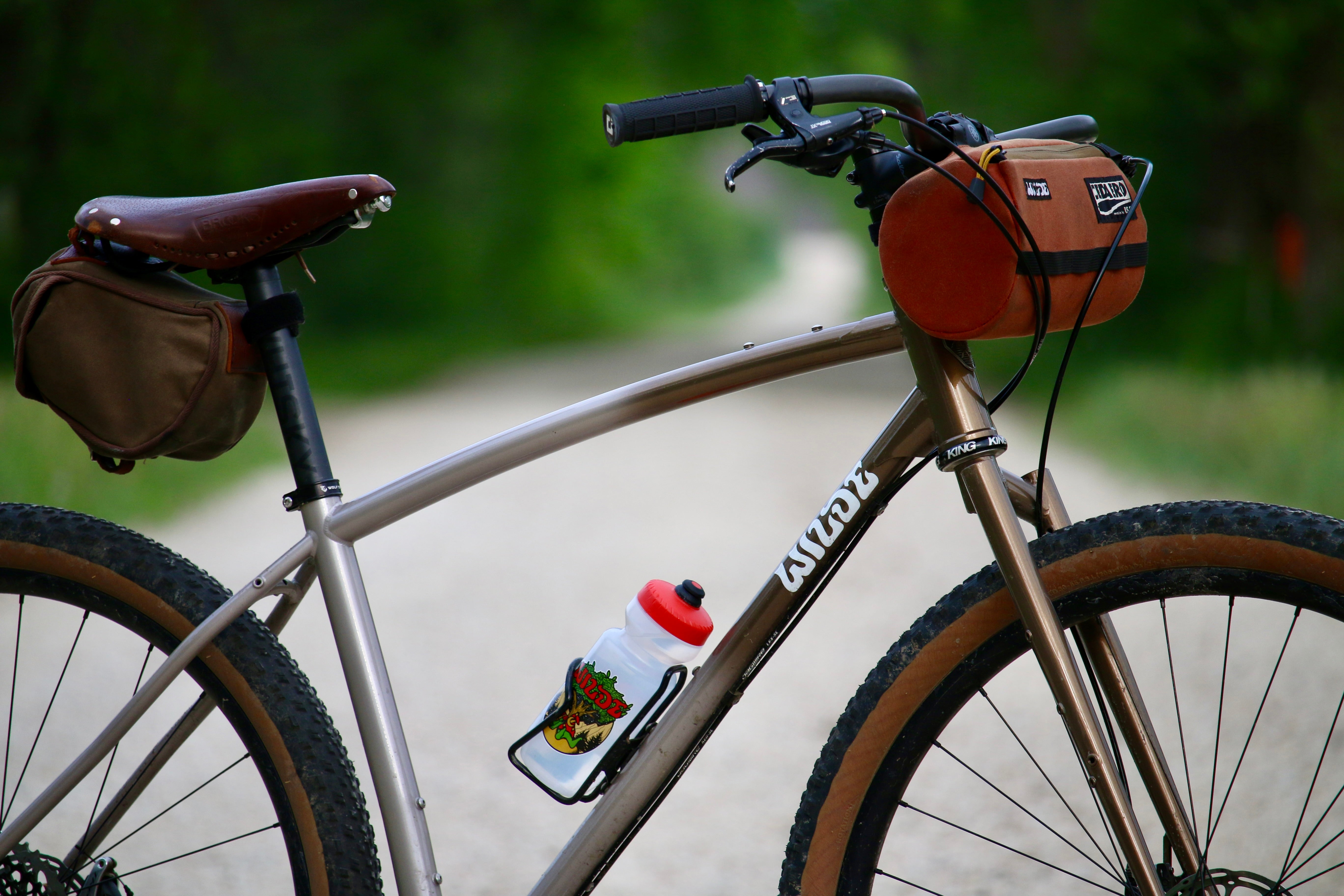

Go anywhere with this one bike. Supertramp All-Terrain Bike
The Supertramp / Supertramp is a bikepacking, trekking, and all-terrain platform. It is a versatile platform for a comfortable biking lifestyle, from month-long backcountry tours to everyday grocery shopping, and with mounts for every rack, accessory, and bag, the possibilities are endless. If you have only one bike in your life and want one that allows you to explore the possibilities of cycling, the Supertramp is the best choice.

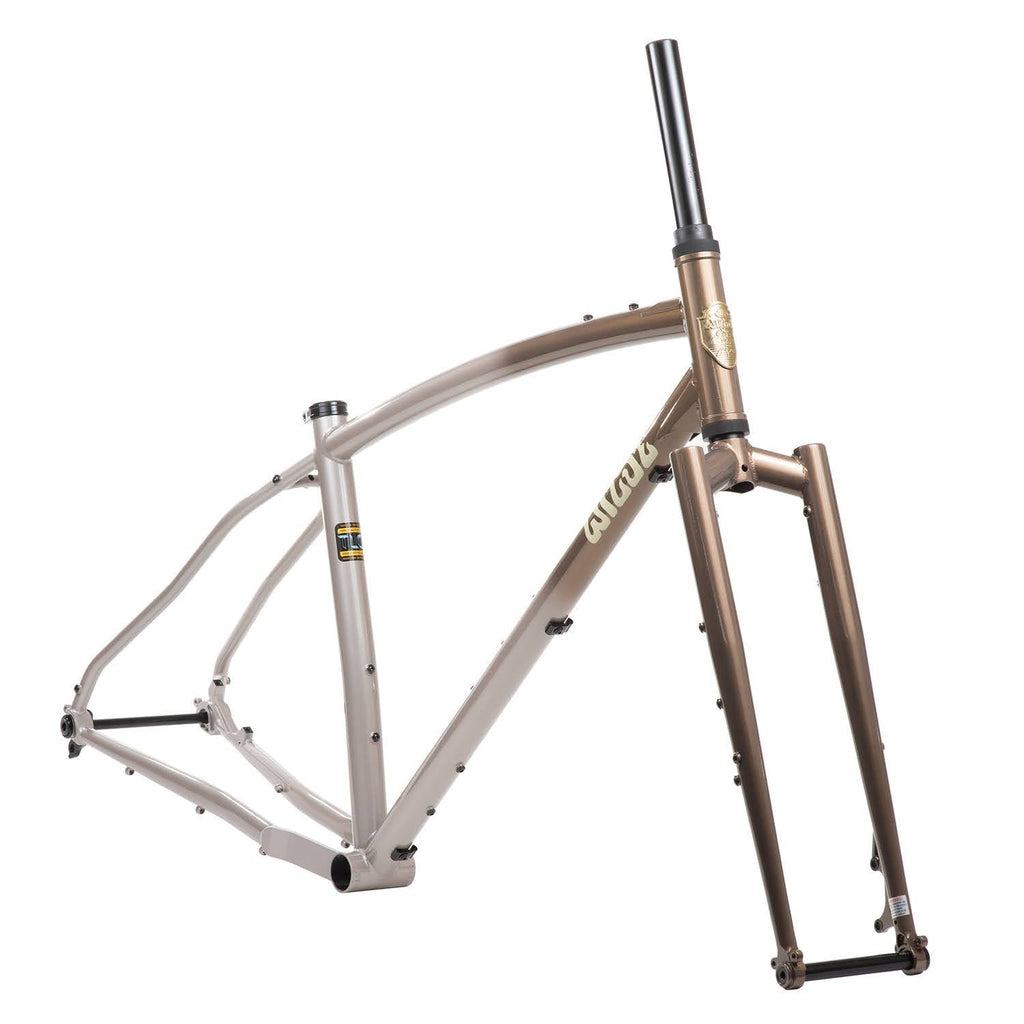

Supertramp is handmade by our affiliated factory in Taiwan, which boasts the skilled skills, high reliability, and solid quality that have supported the bicycle industry for many years. It is combined with WILDE's original steel segmented fork. Equipped with all the necessary mounts for bikepacking and rack installation, stealth dropper routing, and fits 2.6" wide tires, this bike truly lives up to its name as an all-rounder.

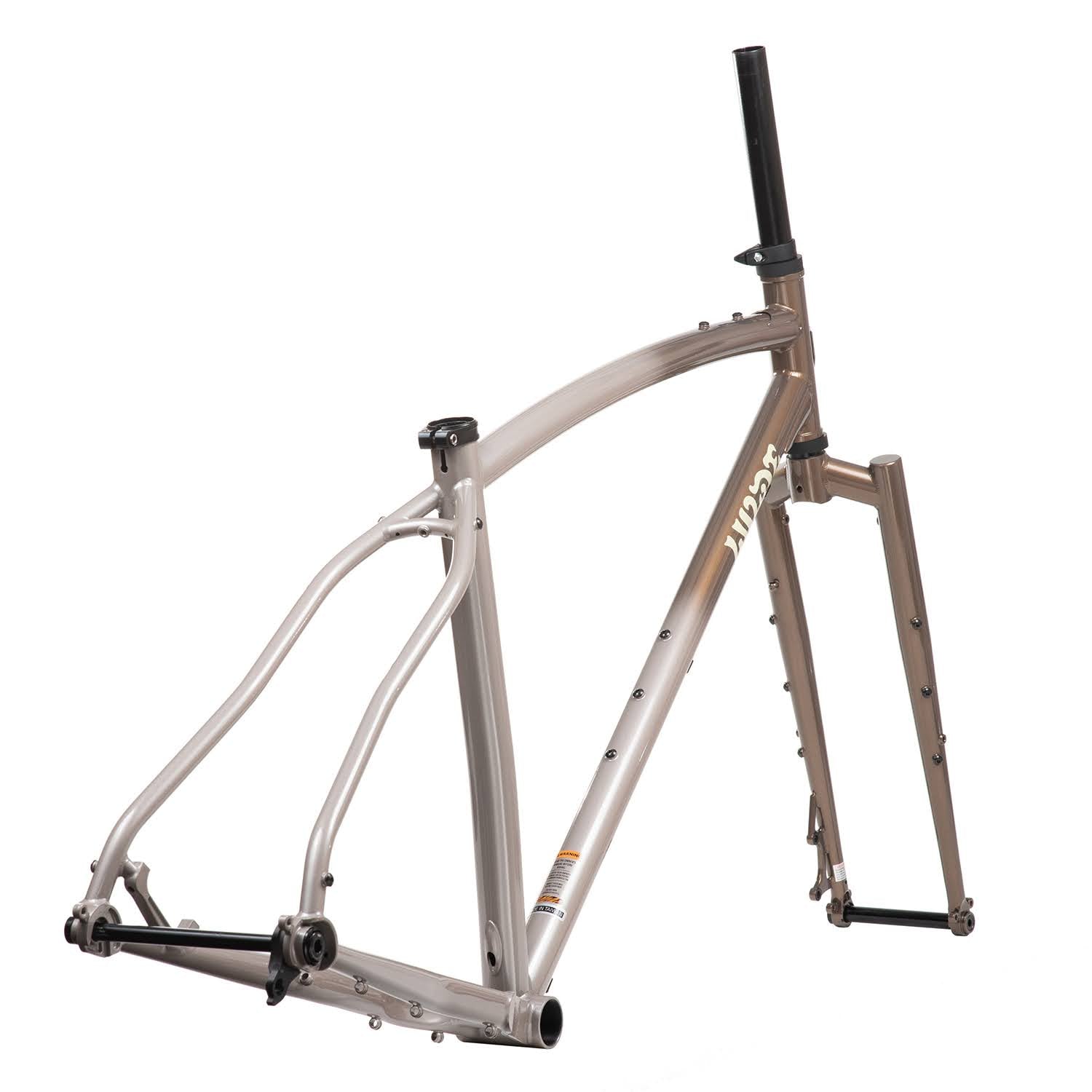

[FRAME FEATURE]
- Fully equipped with 3-pack mounts on the front and back of the downtube
- Feed bag mount on top tube
- Fender mounts
- Stealth dropper post routing
- Front triangle optimized for large frame bags
- Modular cable management system allows for a clean look and customizable routing for AXS, 1X, and dropper post routing

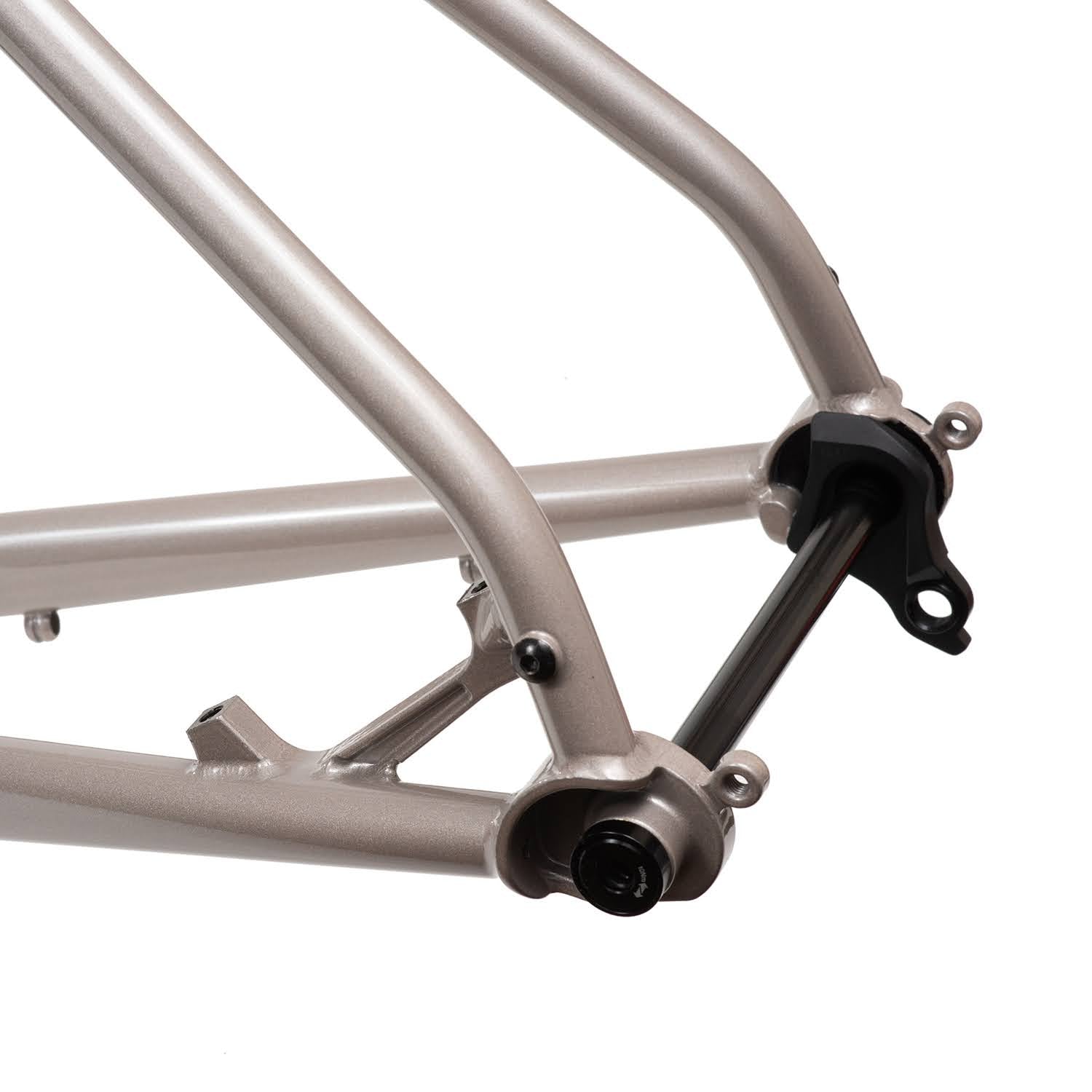

- SRAM UDH-compatible rear end
- Full-loop cable guides on chainstays
- Maximum tire clearance is 29x2.6"
- Maximum chainring size is 36T

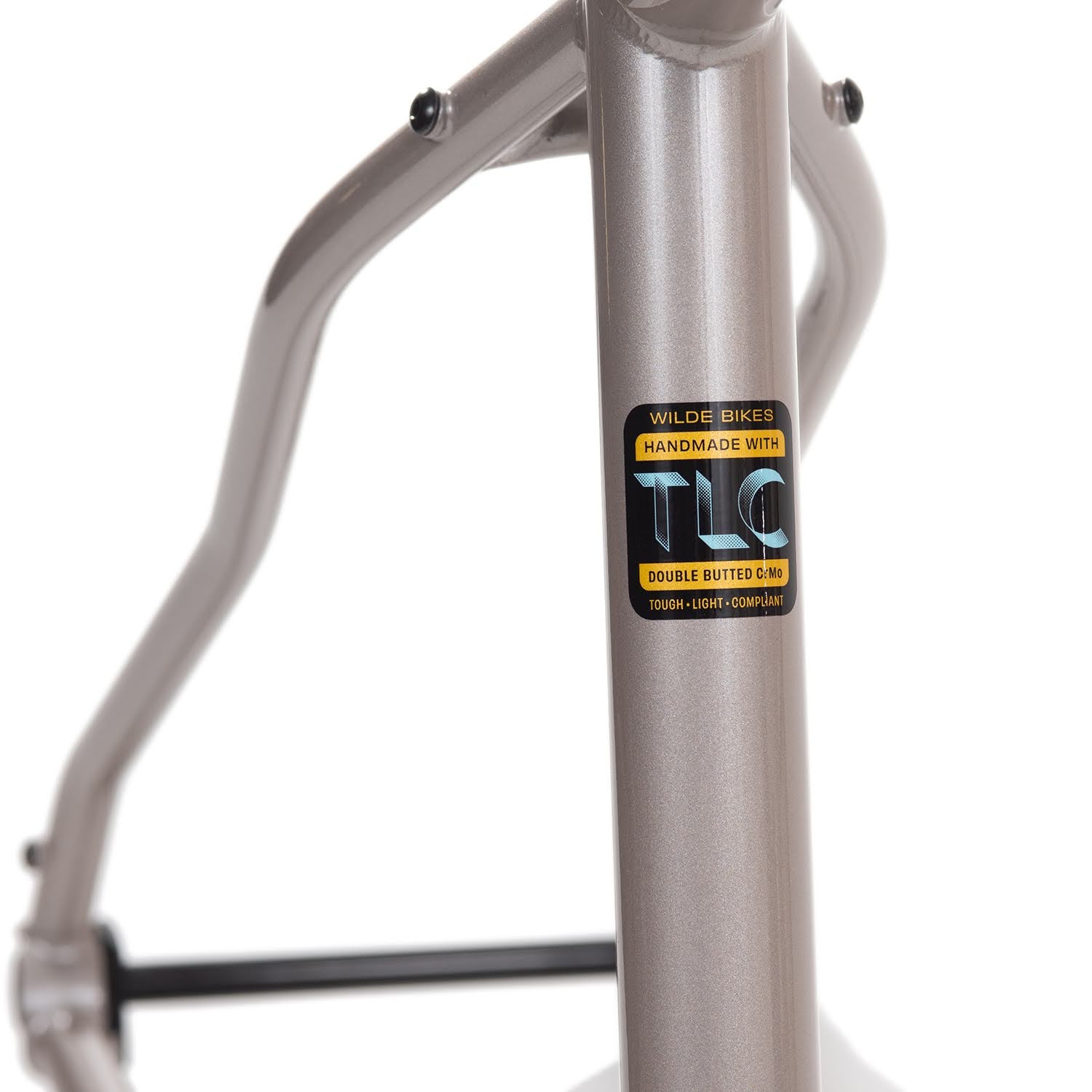

- Tough, light, and maneuverable WILDE-exclusive TLC tubing

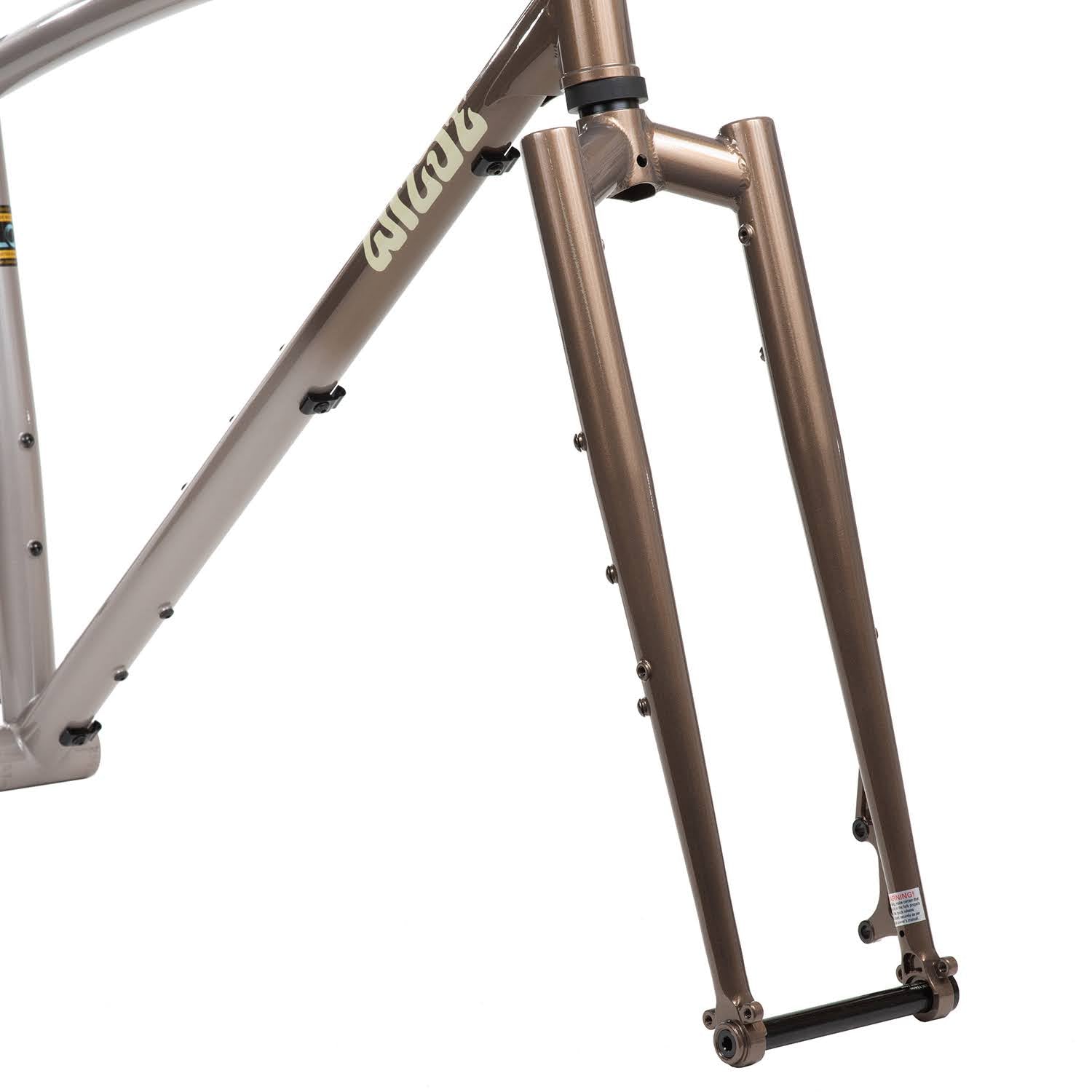

[FORK FEATURE]

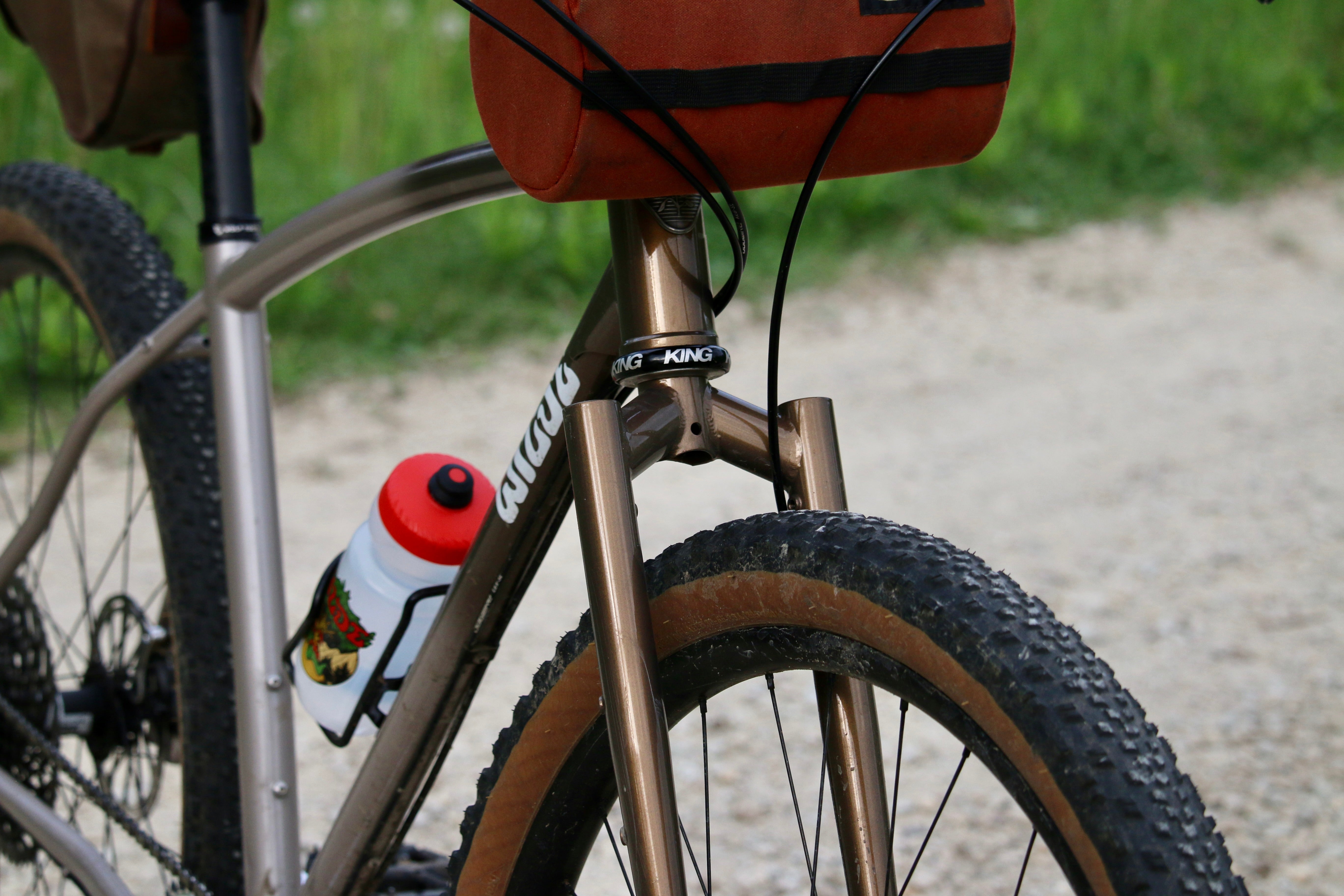

- WILDE BICYCLE CO original segment style steel fork
- Fender mount
- Double eyelet fork ends
- 3-pack mount
- Mid blade rack mount
- Internal Dynamo Routine
- Mounts compatible with SURLY 8-Pack & 24-Pack Rack
- Fork maximum tie clearance is 29x2.8"
[SPEC]
| Frame Material | WILDE TLC Chromoly steel |

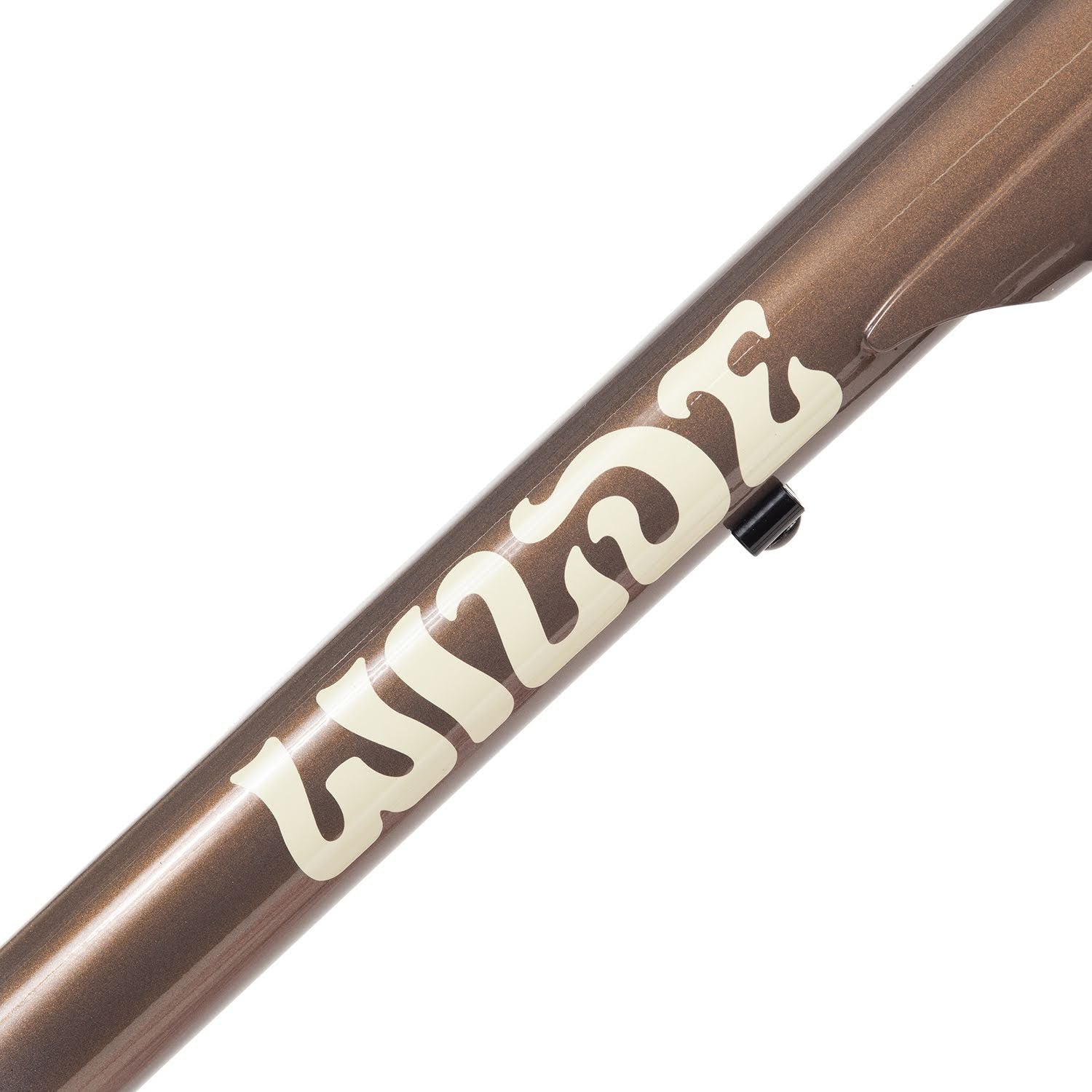

| Frame Color | Dirt Champagne |

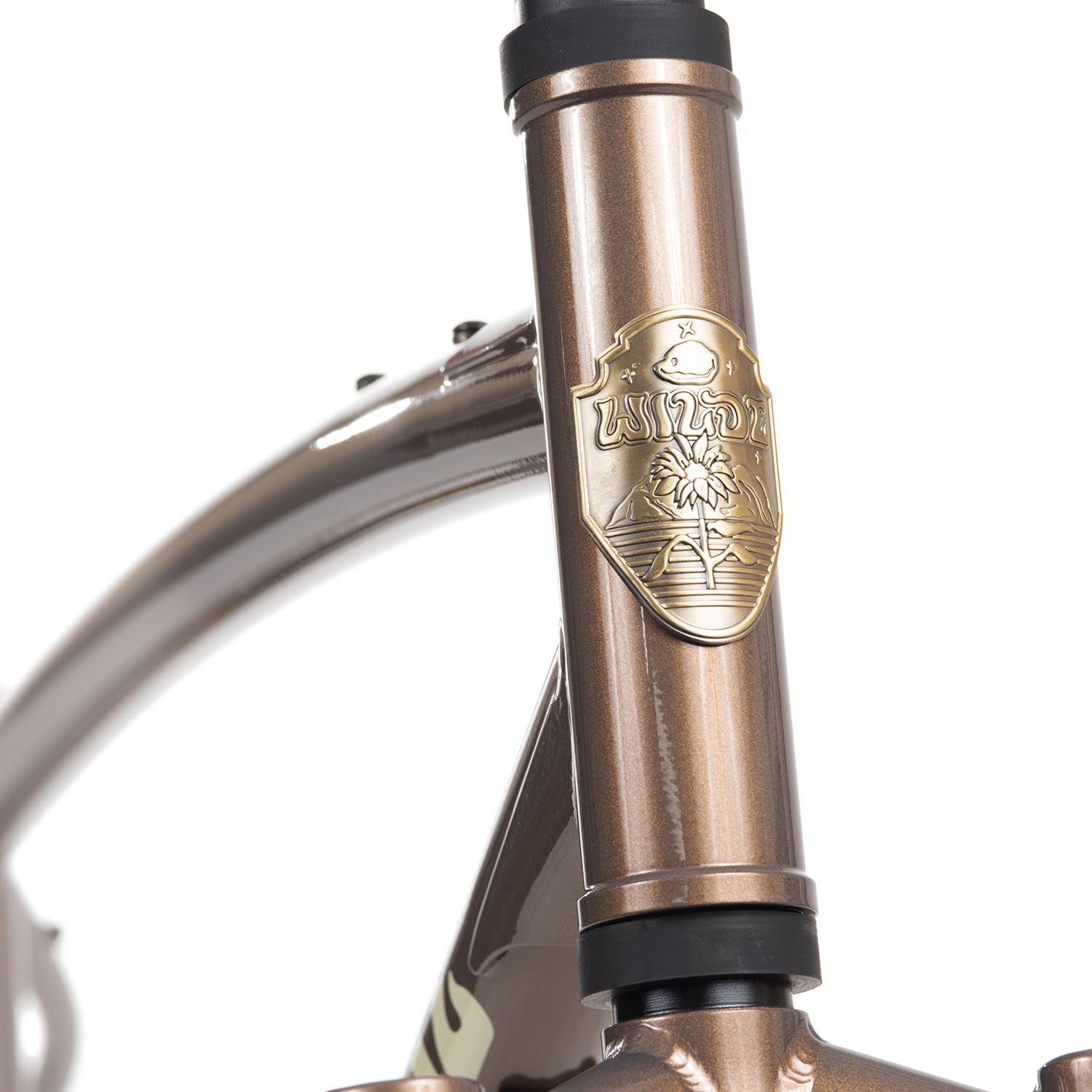

| Head tube | 38mm Straight Steerer EC34/EC34 head parts compatible |
| Brake mount | ISO(Fork), Post(Frame) |
| Rotor diameter | 160mm |

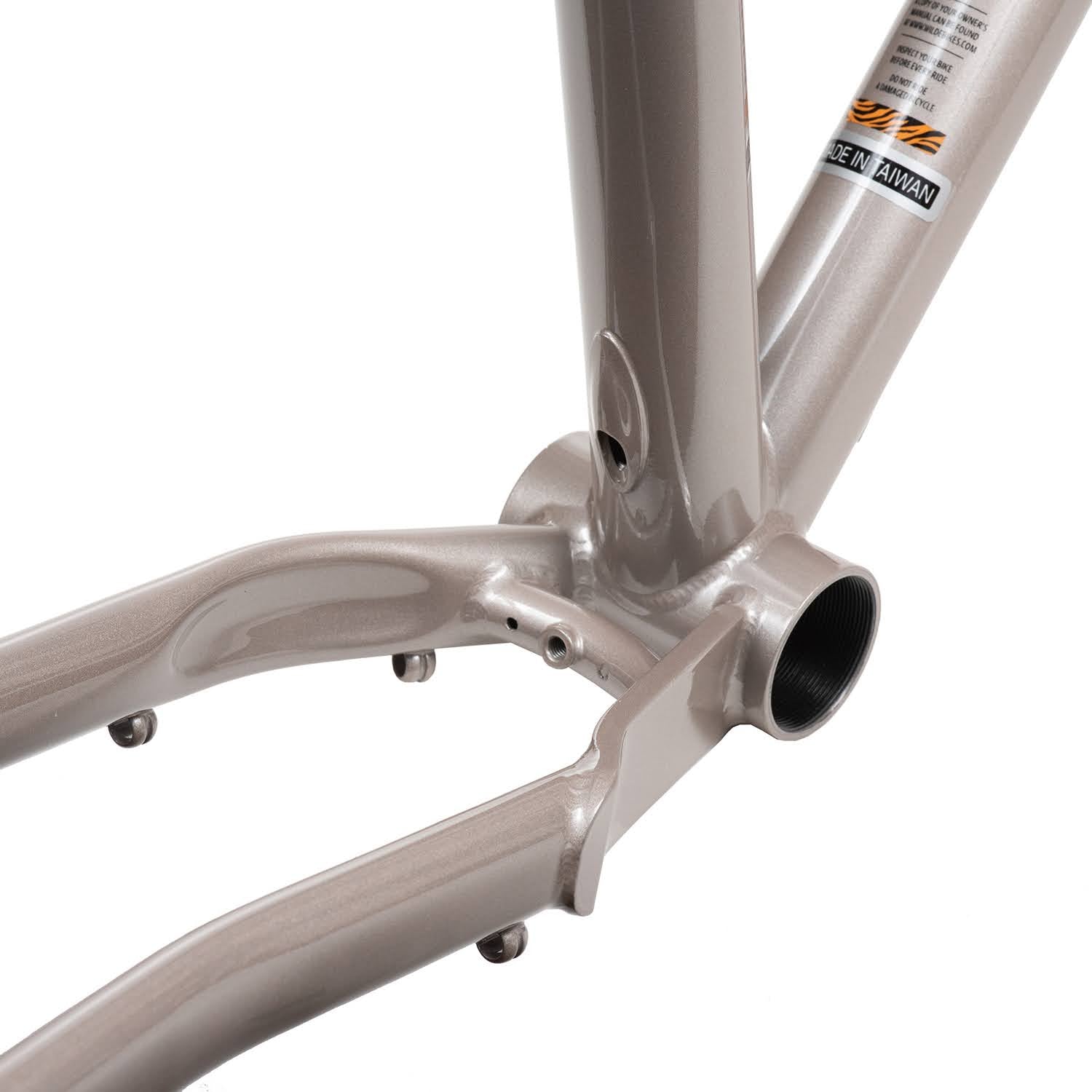

| BB | BSA/JIS, 73mm threaded |
| Fork end | 110x15mm Thru Axle |
| Rear end | 148x12mm Thru Axle / SRAM UDH compatible |
| Seat Post Diameter | 31.6mm |
| Seat collar | 35.0mm |
| Tire clearance | 29x2.6" (*Assumed 27.5" wheel size for XS size only) |
| Suitable height | XS (152 - 162cm) S (around 162 - 172cm) M (around 172 - 180cm) L (around 180 - 188cm) |
| Accessories | Seat collar 12mm through axle - 1.5 x 178mm 15mm through axle - 1.5 x 135mm |
[SIZE/GEOMETRY]
| Frame Size | XS | S | M | L | XL |
| Wheel Size | 27.5" | 29" | 29" | 29" | 29" |
| Head Tube Angle (deg.) | 68.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| Seat Tube Angle (deg.) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Length (mm) | 125 | 130 | 145 | 155 | 175 |
| Seat Tube Length (C-C) (mm) | 360 | 375 | 405 | 425 | 455 |
| Effective Top Tube Length (mm) | 564 | 591 | 610 | 631 | 651 |
| Stack (mm) | 588 | 604 | 618 | 628 | 646 |
| Reach (mm) | 388 | 412 | 427 | 445 | 459.5 |
| Chainstay Length (mm) | 430 | 440 | 440 | 440 | 440 |
| Fork Length (Axle to Crown) (mm) | 450 | 450 | 450 | 450 | 450 |
| Rake (mm) | 50 | 50 | 50 | 50 | 50 |
| Trail (mm) | 84 | 84 | 84 | 84 | 84 |
| Standover (mm) | 750 | 782 | 806 | 823 | 850 |
| Head Tube Extension (mm) | 49 | 49 | 50 | 51 | 52 |
| BB Drop (mm) | 63 | 66 | 66 | 66 | 66 |
Standover figures assume 2.25" tires.
