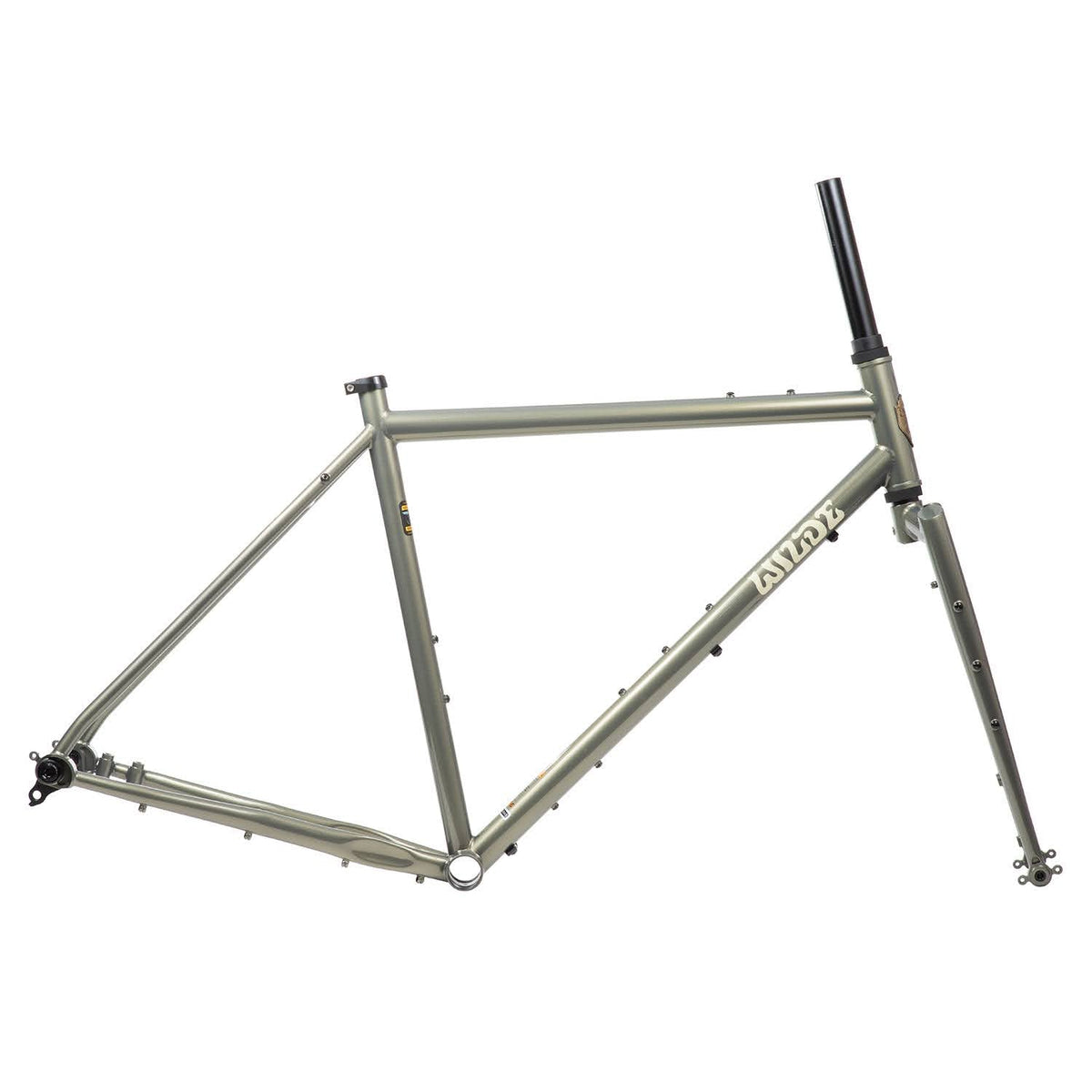

WILDE BICYCLE Rambler Frame Set - Sage Green Shimmer

WILDE BICYCLE

SKU: RAMBLER-XS-SG

¥203,500

Taxes included. Shipping calculated at checkout.

Size XS S M L XL

Check your size based on your height

Your height

Size options —

Sizing can change with riding style and position. If you are near a boundary, please contact Circles.

ランブラーで、一台を組んでみませんか？
ハンドルもホイールも、自分らしい組み合わせで。サイズ選びからお手伝いします。

完成車の組み立て・サイズを相談する → 上のカートはフレームセット単体のご購入です。完成車の組み立ては別途お見積もりします。

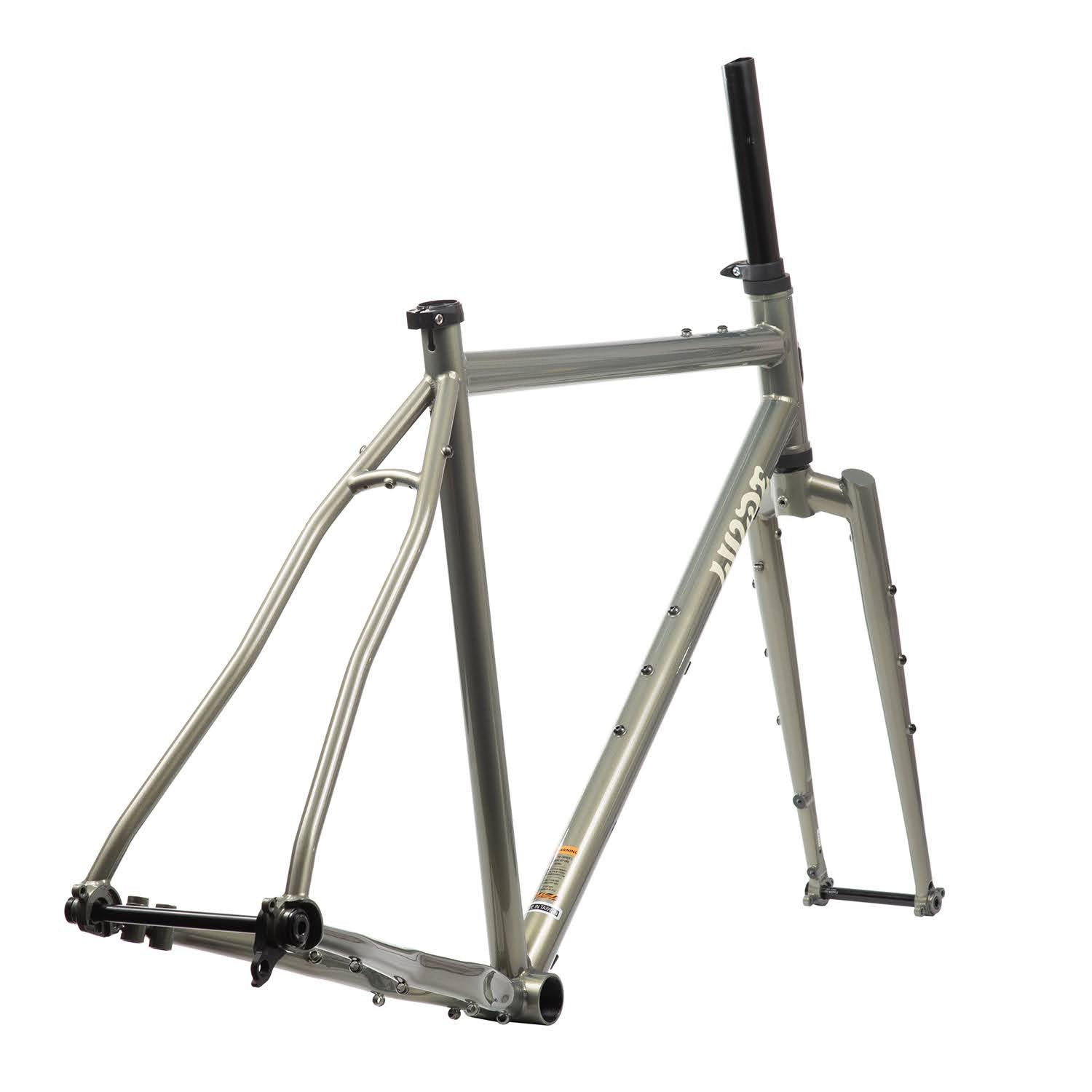

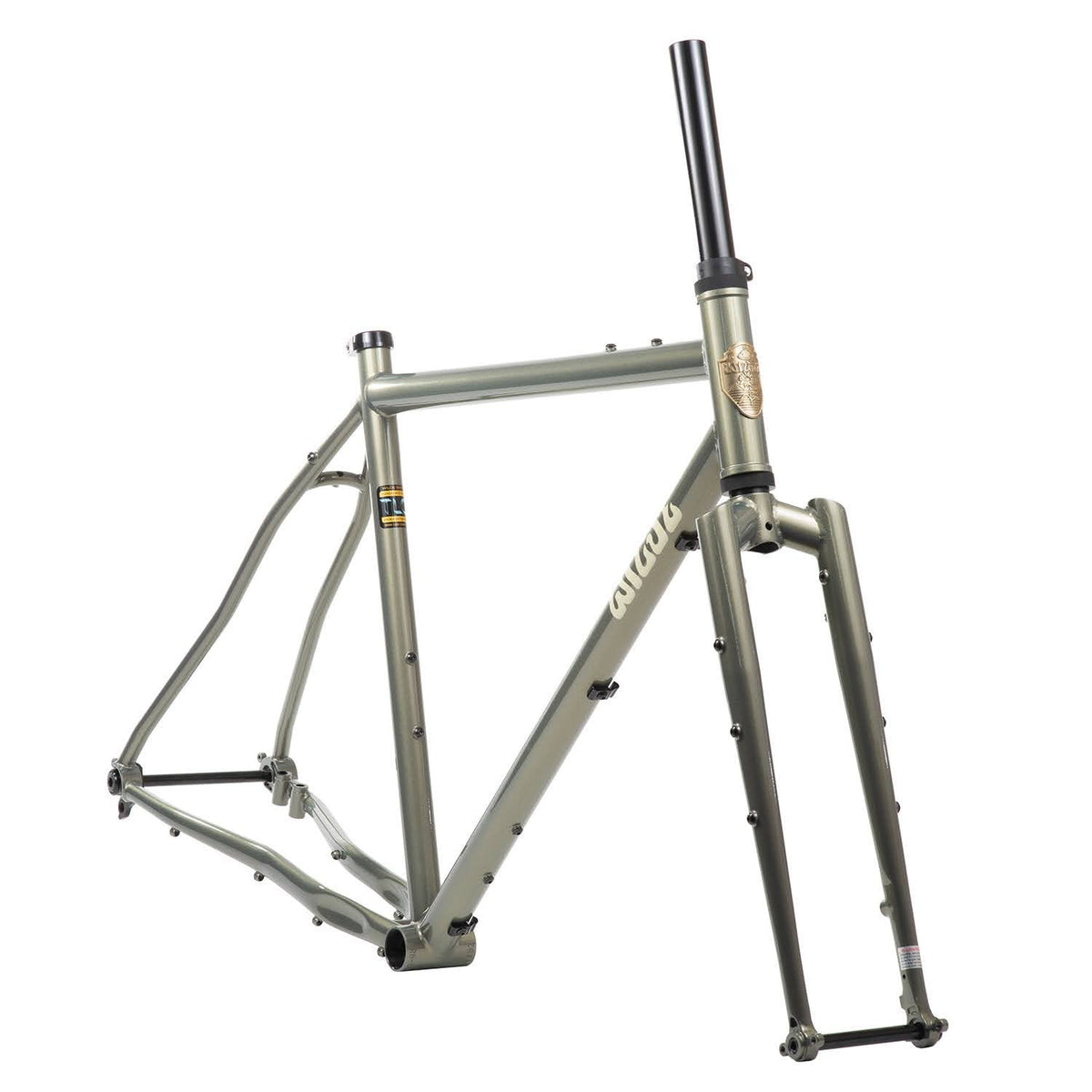

The Rambler is the frame of choice for riding in the mountains and fields

Wilde Bicycle Co.'s memorable first Rambler series inherits the genes of the Earth Ship, the optimal solution for gravel bikes, but by manufacturing in Taiwan, costs are reduced and the Rambler is more accessible to a wider range of people.

Unlike the SL model with a carbon fork, the Rambler is set up with a segmental steel fork. The segmented steel fork makes for a slightly longer trail and higher BB height than the Rambler SL, making it more suitable for off-road touring use.
The fork has been machined for dynamo routing, and the touring-oriented attention to detail shows the maker's love for the bike.

The wheel size is convertible between 700c and 650b. Whether you want to ride the 650b on rough roads and gravel or the 700c as an all-rounder touring bike, this is a bike that can be used in a variety of situations depending on your assembly needs. The frame is also equipped with plenty of eyelets, so it can be used as an all-weather bike with full fenders.

[FRAME FEATURE].

Maximum tire clearance is 700c x 50mm or 650b x 2.2"
Fully equipped with 3-pack mounts on the front side of the downtube
Feed bag mount on top tube
Fender mounts and rack mounts on top tube

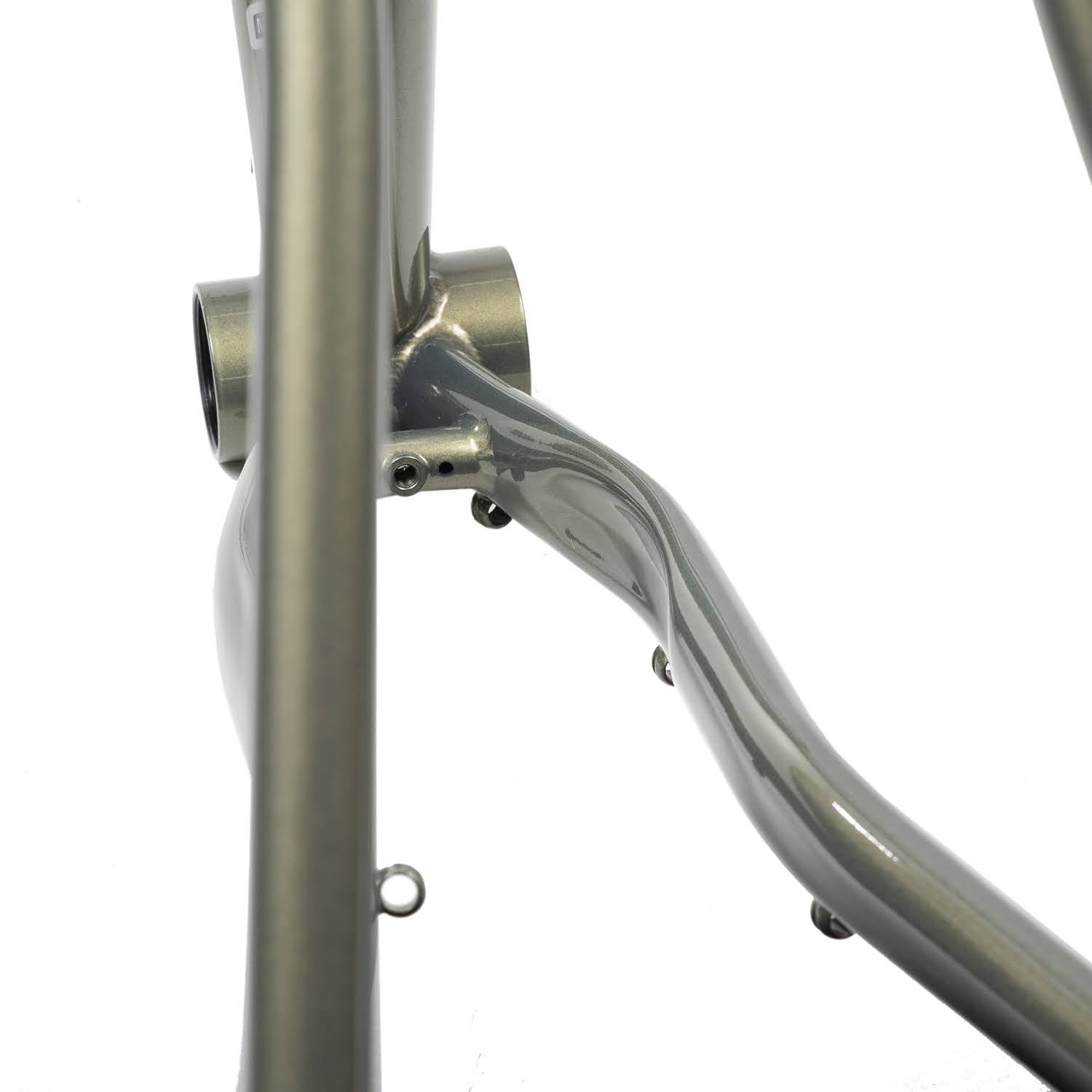

Full-loop cable guides on chainstays
Compatible with either double or single front drivetrain
SRAM UDH compatible rear end
Long trail value for straight line stability and small BB drop for quick handling and a well-balanced ride

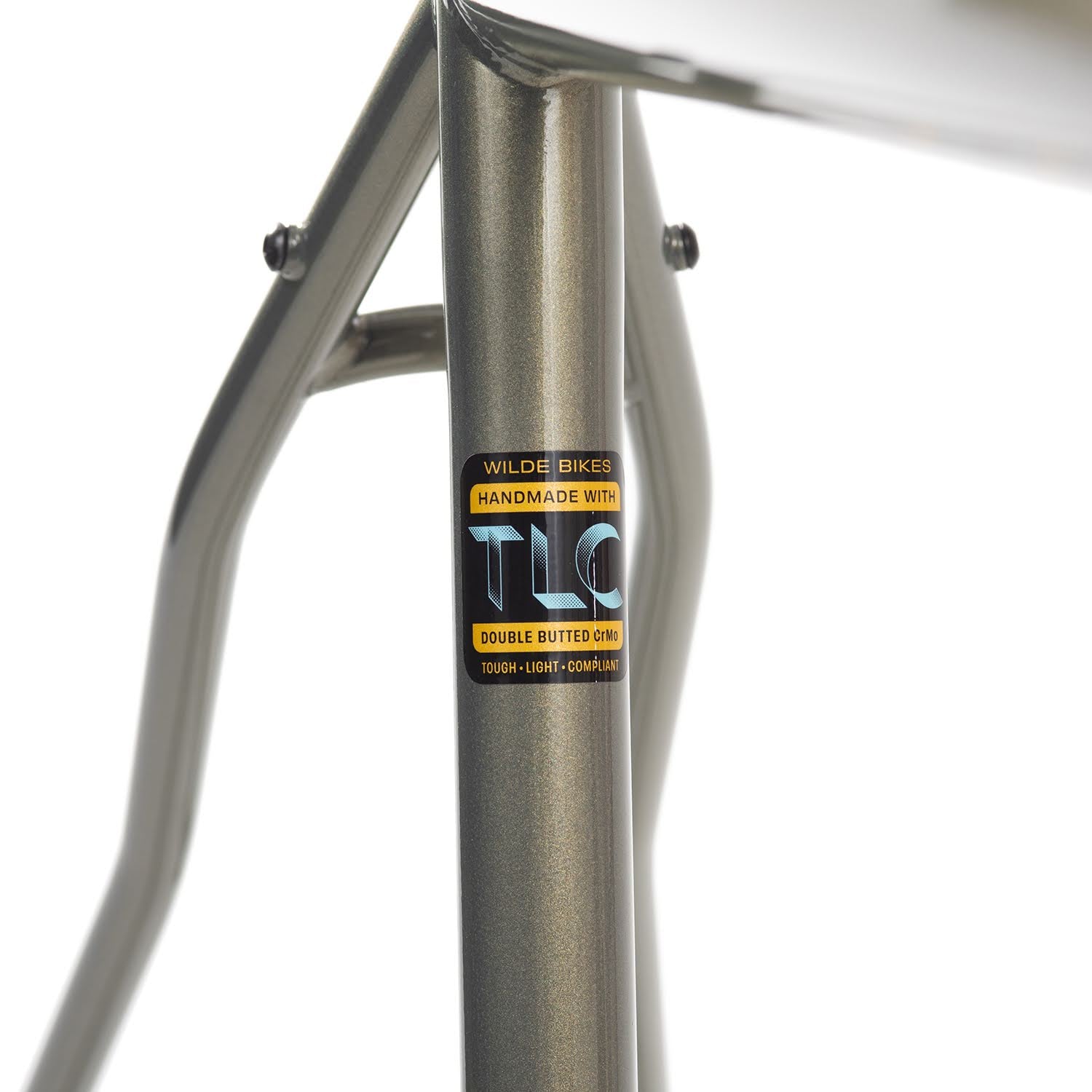

Tough, light and maneuverable, with WILDE's proprietary TLC tubing

[FORK FEATURE]

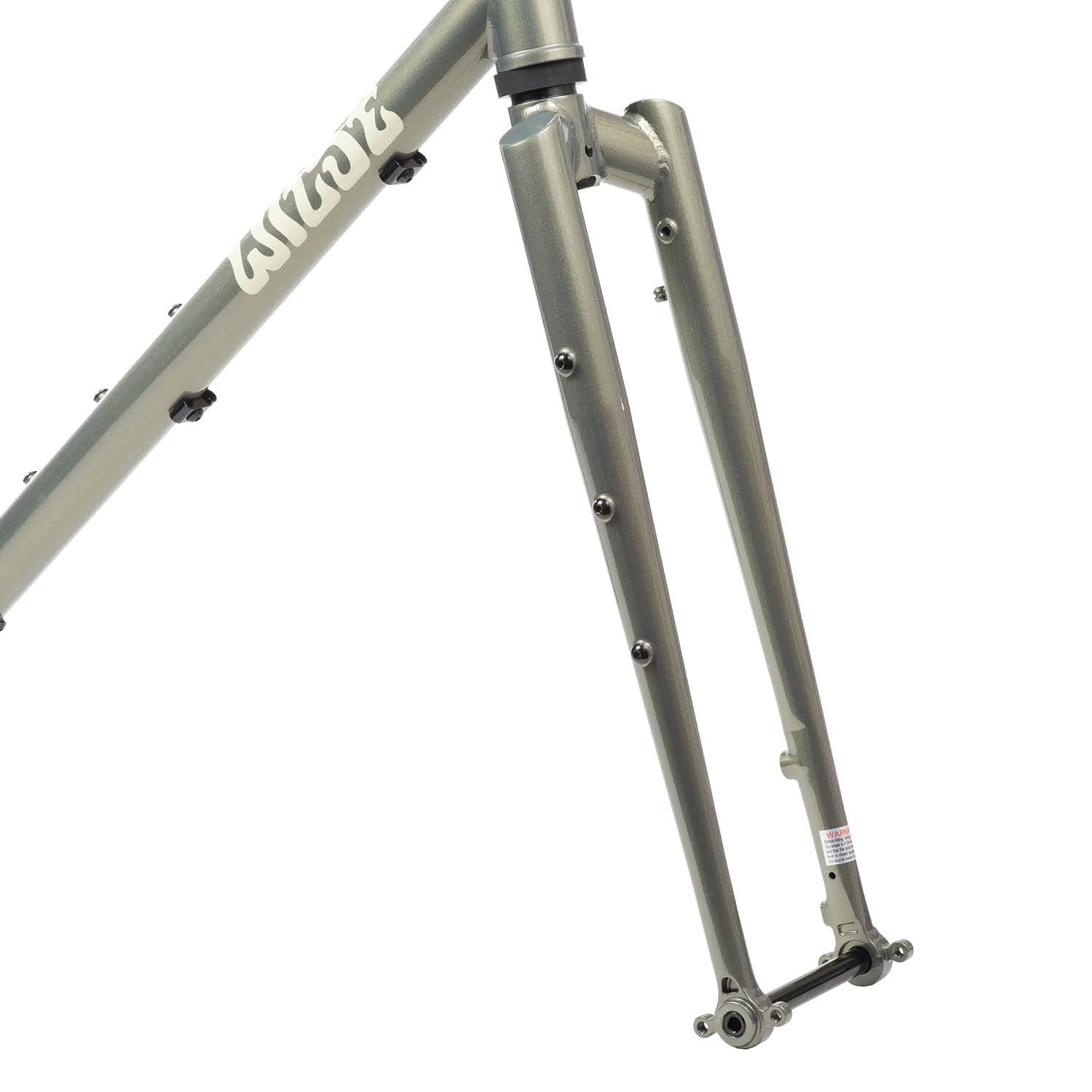

WILDE original segment style steel fork
Fender mount
Double eyelet fork ends
3-pack mount
Mid blade rack mount
Internal Dynamo Routing
Mounts compatible with SURLY 8-Pack & 24-Pack Rack
Fork maximum tie clearance is 700c x 50mm or 650b x 2.2"

[SPEC]

Frame Material	WILDE TLC Chromoly steel
Frame Color	Sage Green Shimmer
Fork Weight	1.26kg (with uncut steerer)
Frame Weight	avg. 2.3kg (size M)
Head tube	38mm Straight EC34/EC34 head parts compatible
Fork Column	1-1/8" Straight Steere
Brake mount	Flat mount
BB	BSA/JIS, 68mm threaded
Fork End	100x12mm Thru Axle
Rear end	142x12mm Thru Axle
Seat Post Diameter	27.2mm
Seat Collar Diameter	30.0mm
Tire Clearance	700c x 50mm or 650b x 2.2" (*Assumes 650b wheel for XS size only)
Suitable height	XS (152cm-162cm) S (162cm-170cm) M (170cm-175cm) L (175cm-182cm) XL (182cm-190cm)
Accessories	Seat Collar 12mm Through Axle - 1.5 x 124mm 12mm Through Axle - 1.5 x 175mm

[SIZE / GEOMETRY]

FRAME SIZE	XS	S	M	L	XL
Wheel Size	650b	700c	700c	700c	700c
Head tube angle (deg.)	70.5	70.5	71	72	72
Seat Tube Angle (deg.)	74	74	73.5	73.5	73.5
Head tube length (mm)	105	130	140	160	180
Seat tube length (Center to Center) (mm)	425	450	475	505	525
Effective top tube length (mm)	524	538	549	559	580
Stack height (mm)	533	565	576	599	618
Reach (mm)	370	376	378	382	396
Chainstay length (mm)	425	438	438	438	438 438
Fork (Axle to Crown) (mm)	407	407	407 407	407 407	407 407
Lake (mm)	49	49	49	49	49
Trail (mm)	72	76	73	66	66
Standover (mm)	746	772	790	817	835
Head tube extension (mm)	45	47	47	47	47
BB Drop (mm)	63	68	68 68	68 68	68 68

WILDE BICYCLE ランブラー / BUILT TO BE YOURS

フレームから、
あなたの一台へ。

From daily commutes to questionable unpaved roads and long-distance touring. The Rambler is a steel all-rounder that can be built to suit your riding style. You can purchase it as a frame set or build a complete bike with Circles.

このフレームで完成車を相談する →組み立て実例を見る ↓

※ページ上部の販売価格はフレームセット単体の価格です。写真は完成車の参考例です。
