Description
Ride around the fields and mountains with ease! WILDE's Thinking MTB

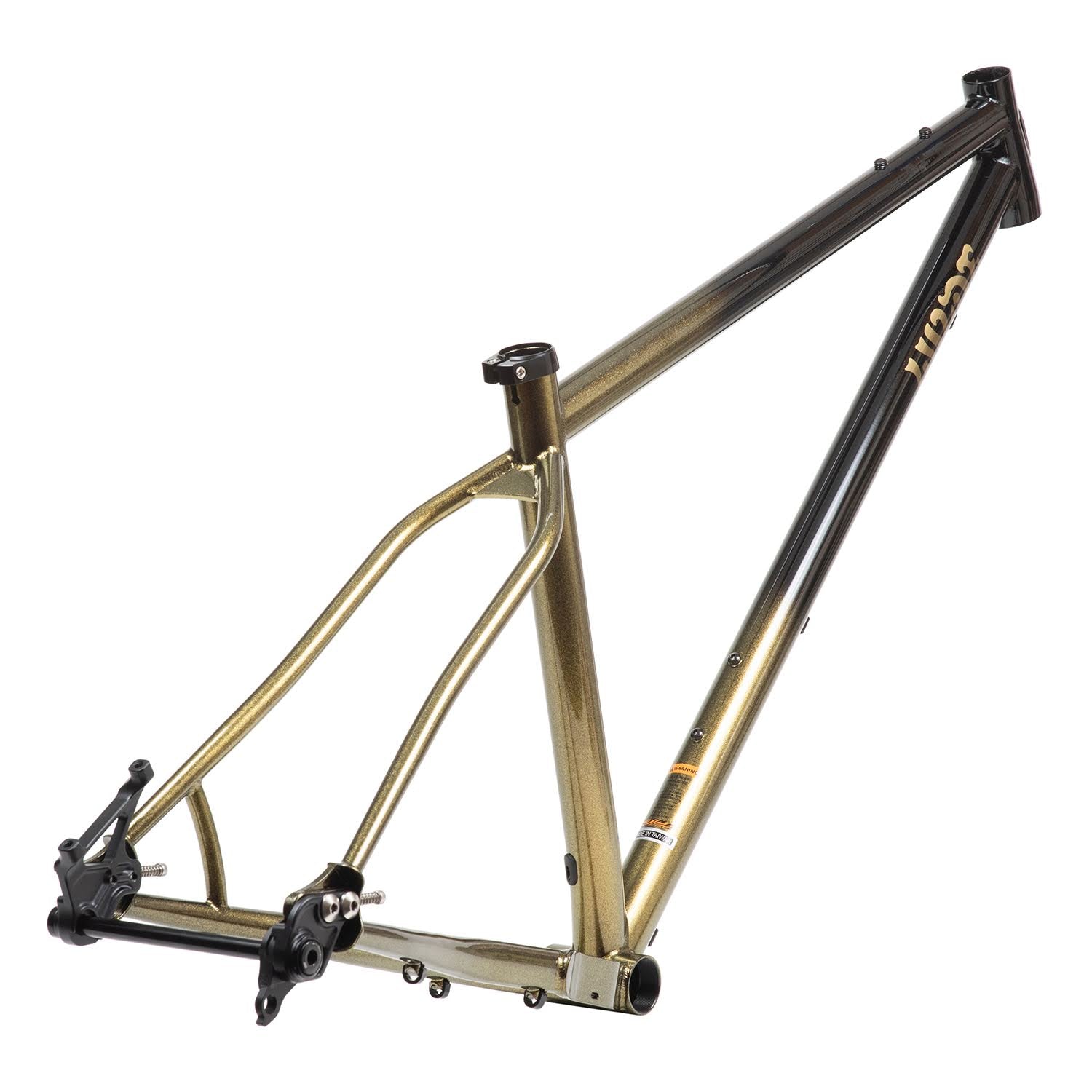

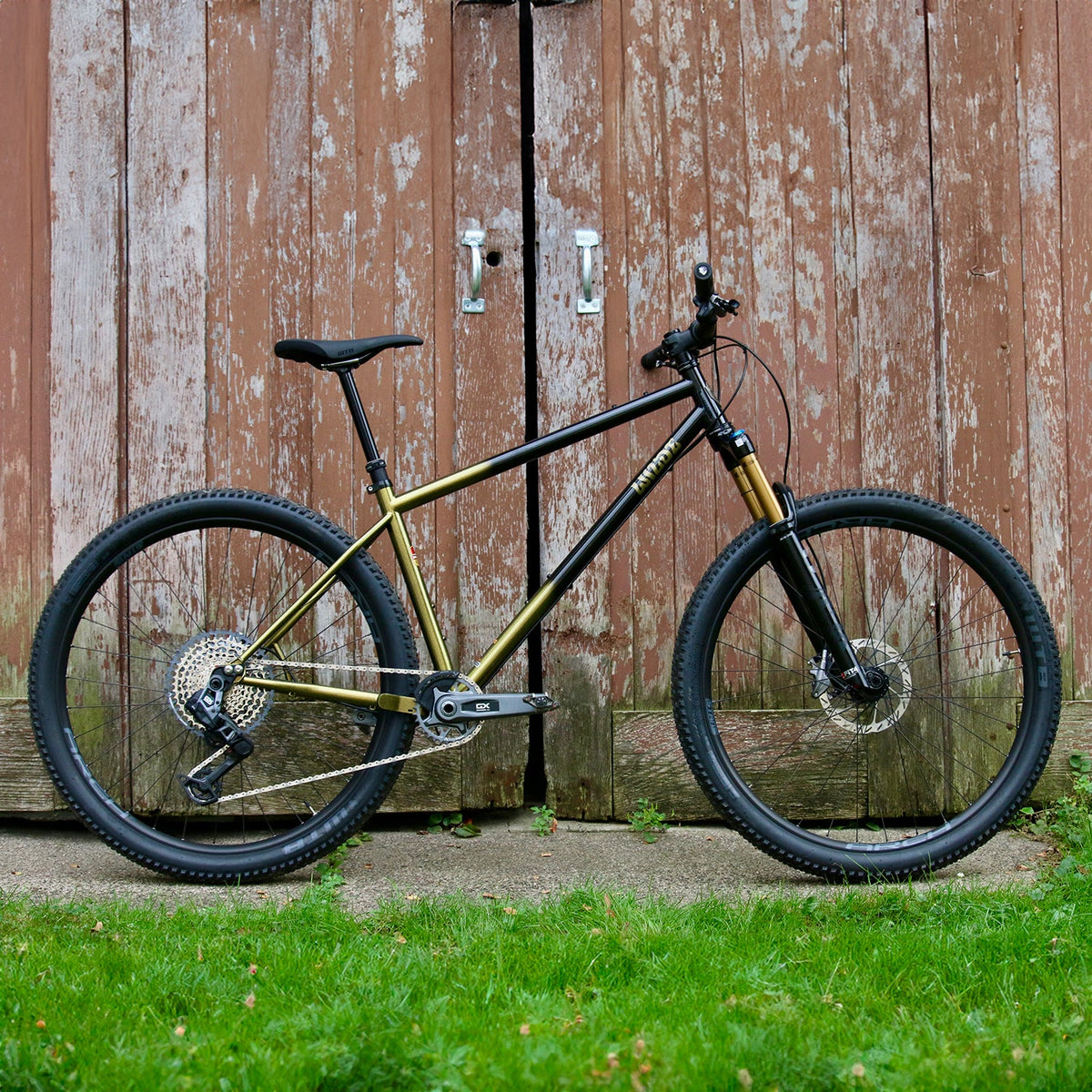

Dark Star / Dark Star is a premium steel trail-oriented hardtail bike with sliding dropouts. The geometry is playful yet fast and fun, and is compatible with 120mm or 130mm travel suspension forks.
The aggressive trail geometry combines speed and playfulness for comfortable pedaling and aggressive riding.
WILDE BICYCLE CO. / Wilde Bicycle's ideal is to have everyone who buys a Dark Star or other hardtail frame also get a Future Proof Fork. It would solve the consumption-oriented idea that MTB standards change so quickly that new MTBs will be "obsolete" in 5 years.

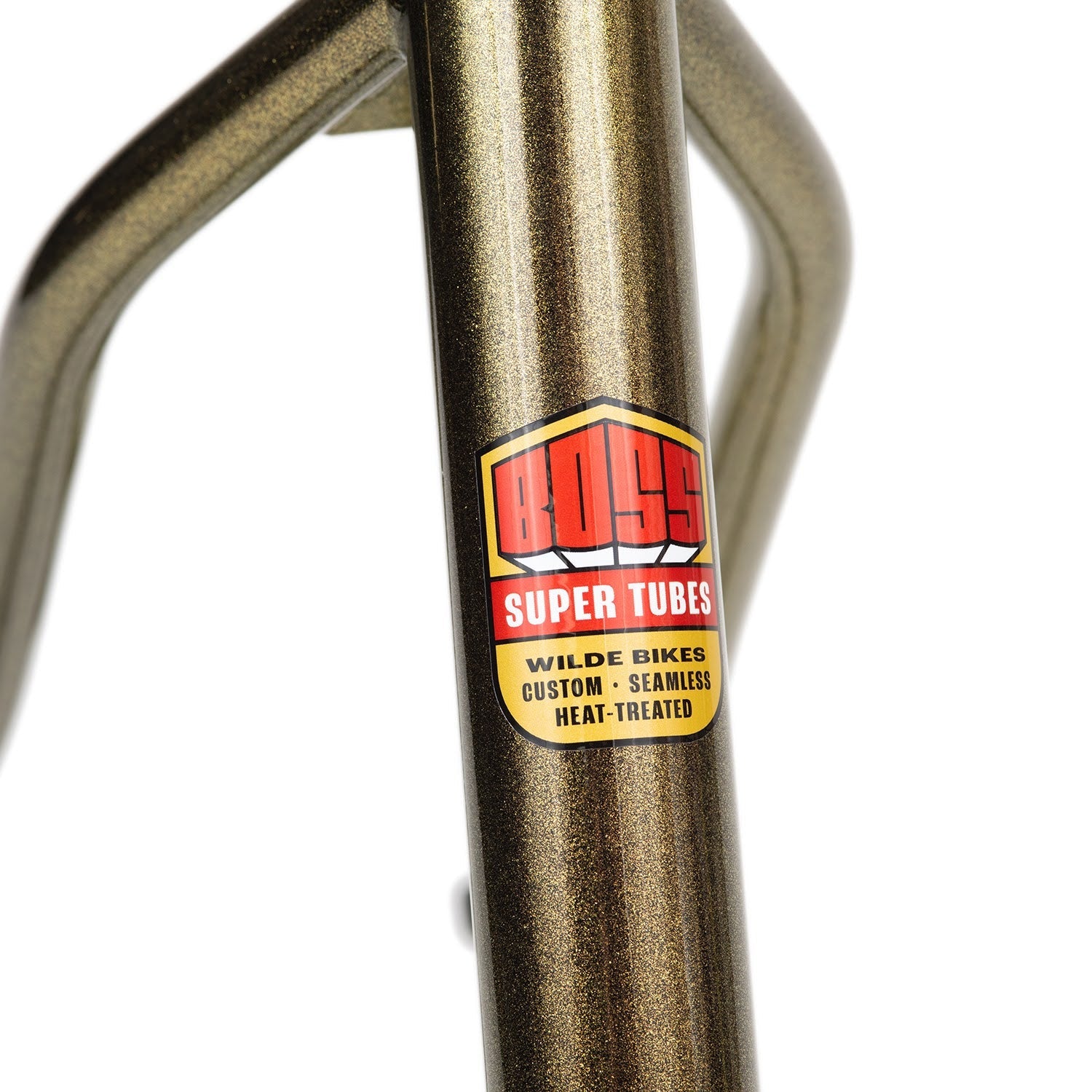

[BOSS Super Tubes]

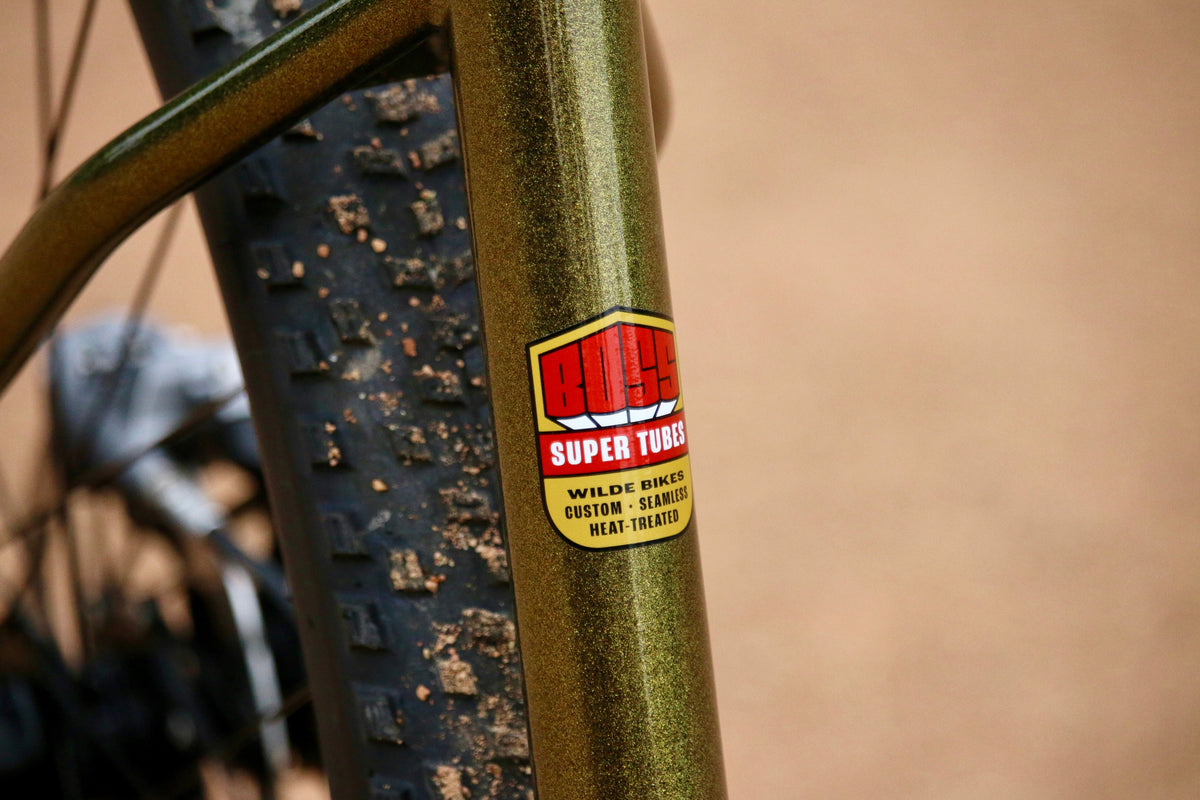

BOSS Super Tubes are very high quality extruded seamless steel tubes with air hardening technology developed exclusively for WILDE.
There are many levels of tubing, but this is the next step in building a great steel bike. By not being bound to off-the-shelf tubing, we have the freedom to design and manufacture the best tubing size, thickness, and butted profiles for each application, allowing us to maximize strength and light weight, as well as innovative and technically superior frame design.

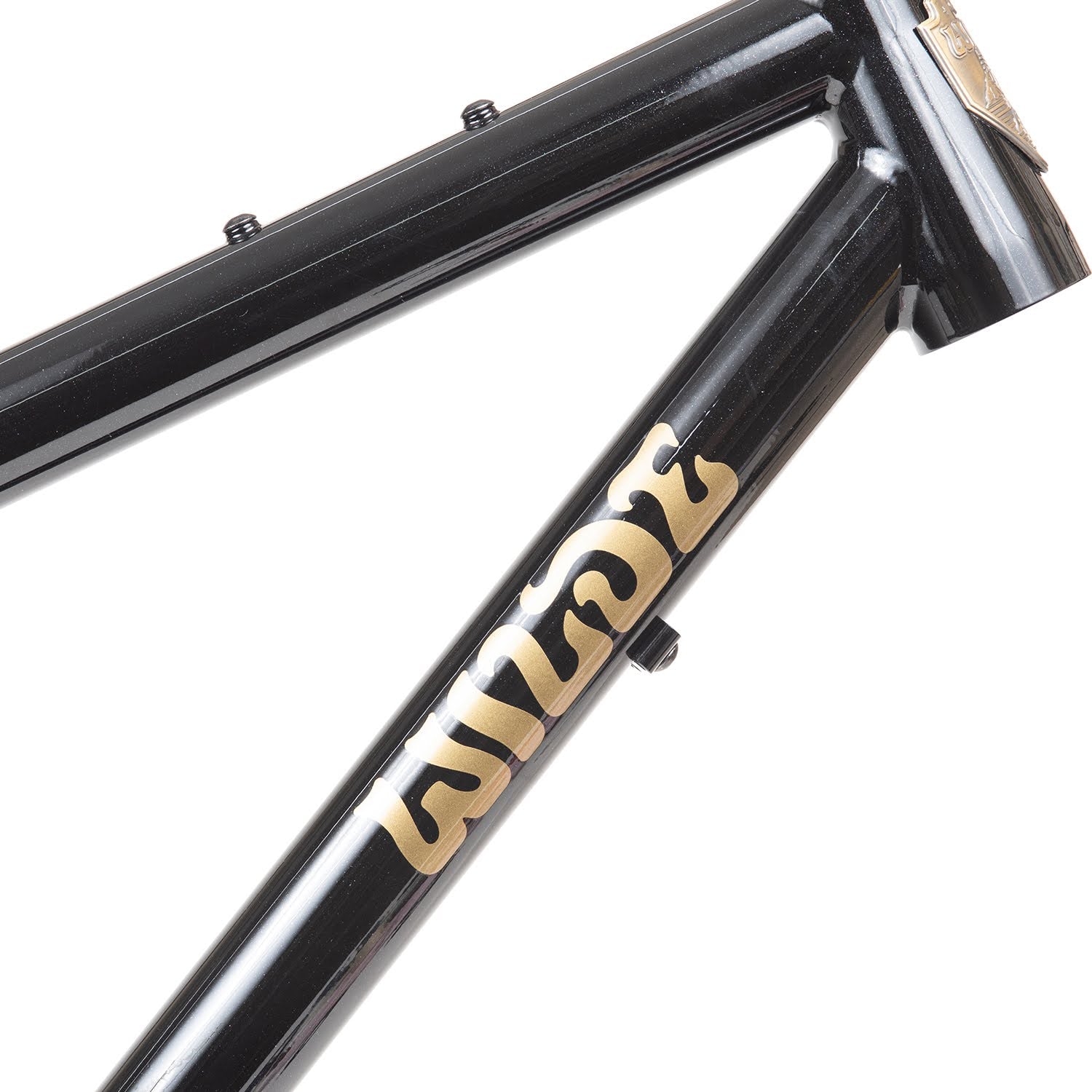

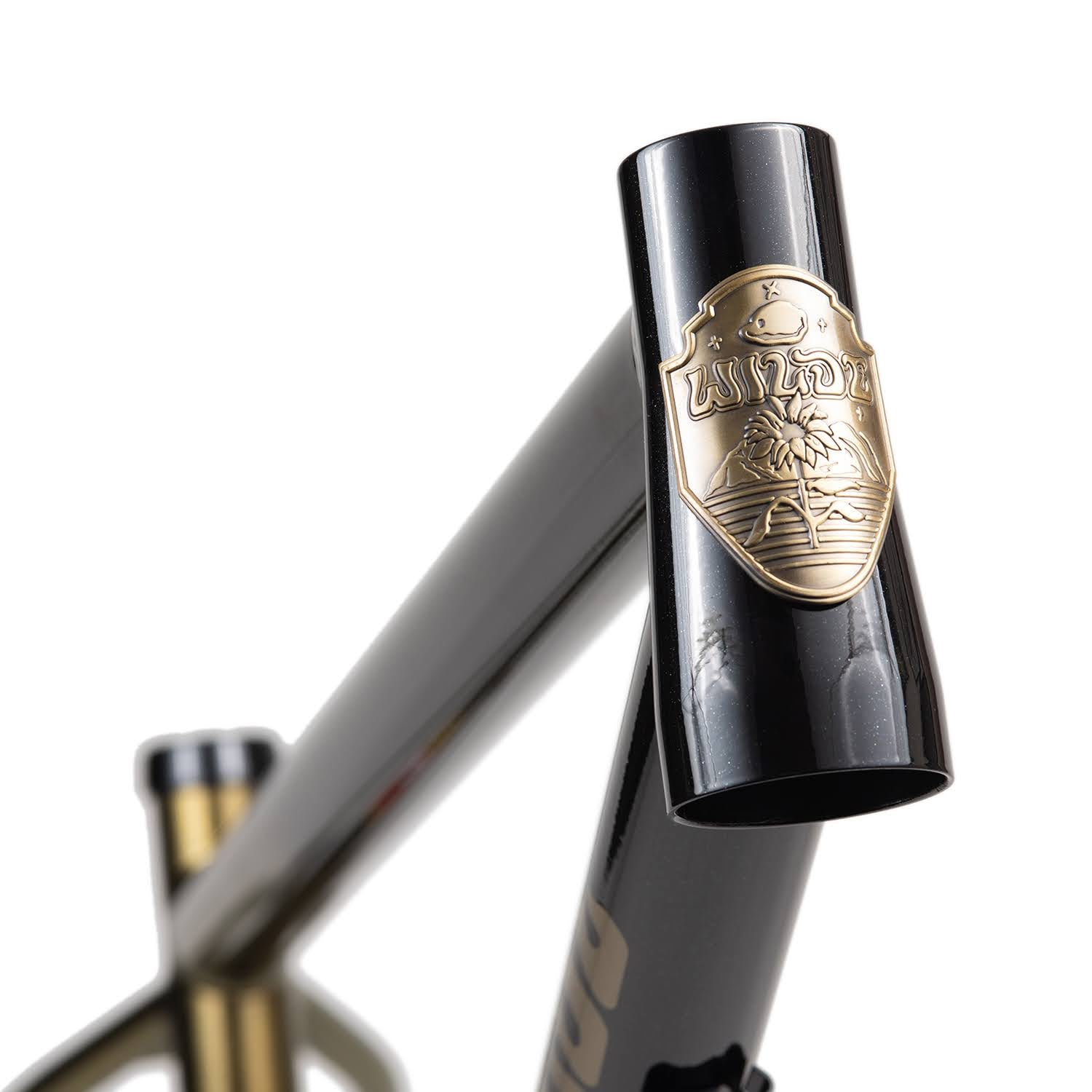

On the Dark Star, the bottom of each of the top and down tubes where they meet the head tube is thicker, eliminating the gussets at the joints. This reduces the overall weight of the frame.
[FEATURE]

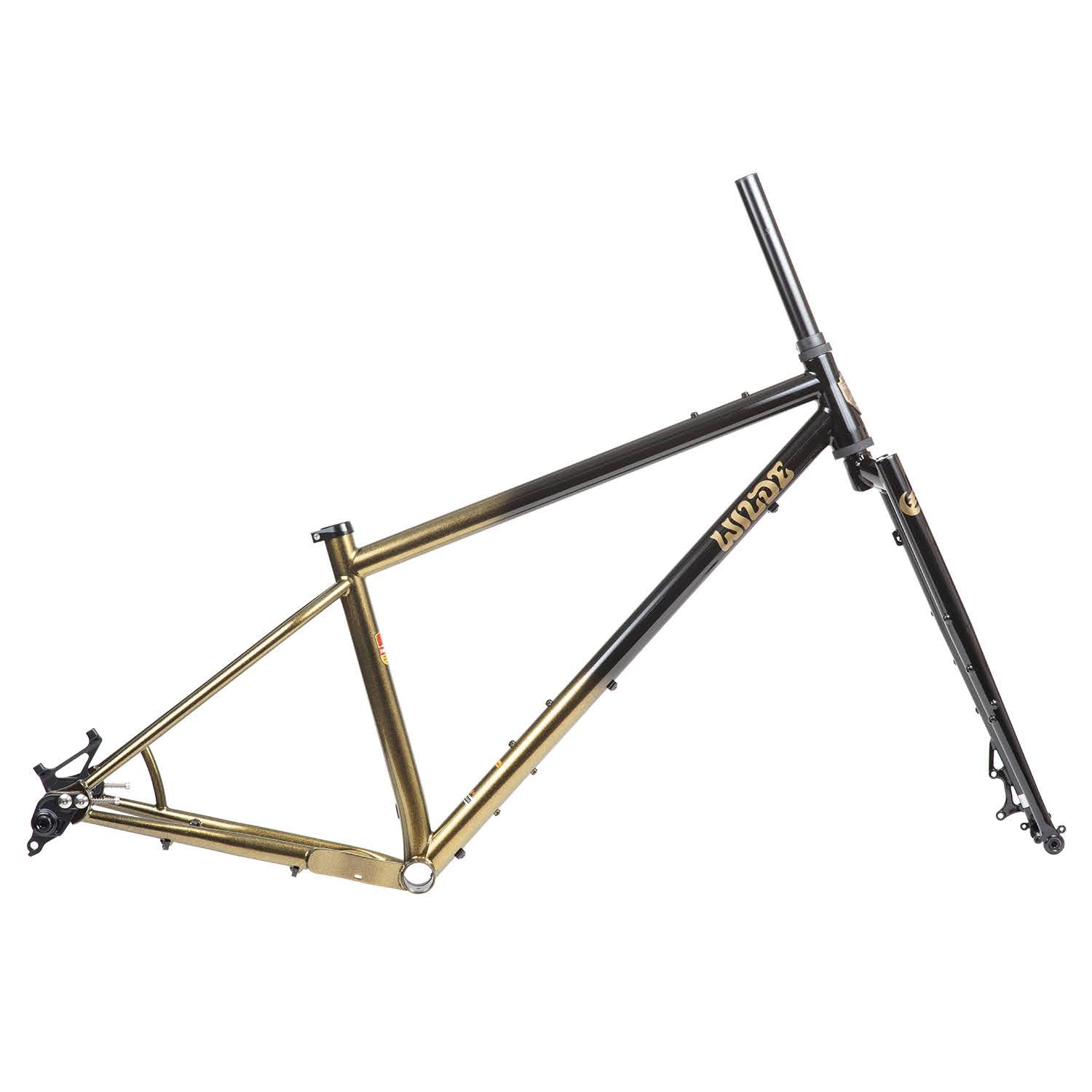

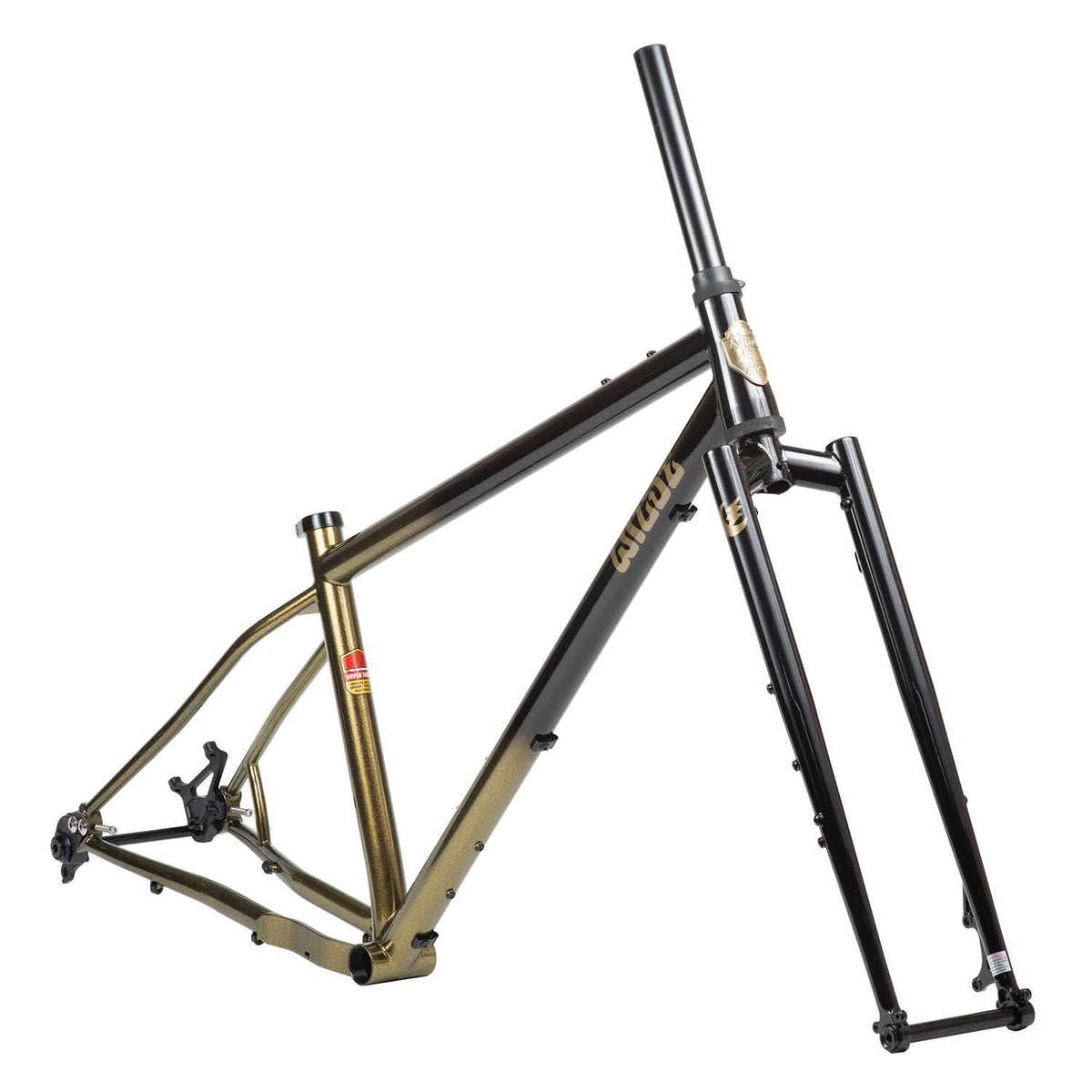

- Geometry designed for WILDE Future Proof Fork
- Compatible with 120mm or 130mm travel suspension forks
- One S bottle cage mount on the down tube for sizes S and M, and one on the seat tube for L and XL
- Complete with 3-pack mount on the underside of the downtube
- Feed bag mount on top tube
- Stealth dropper post routing

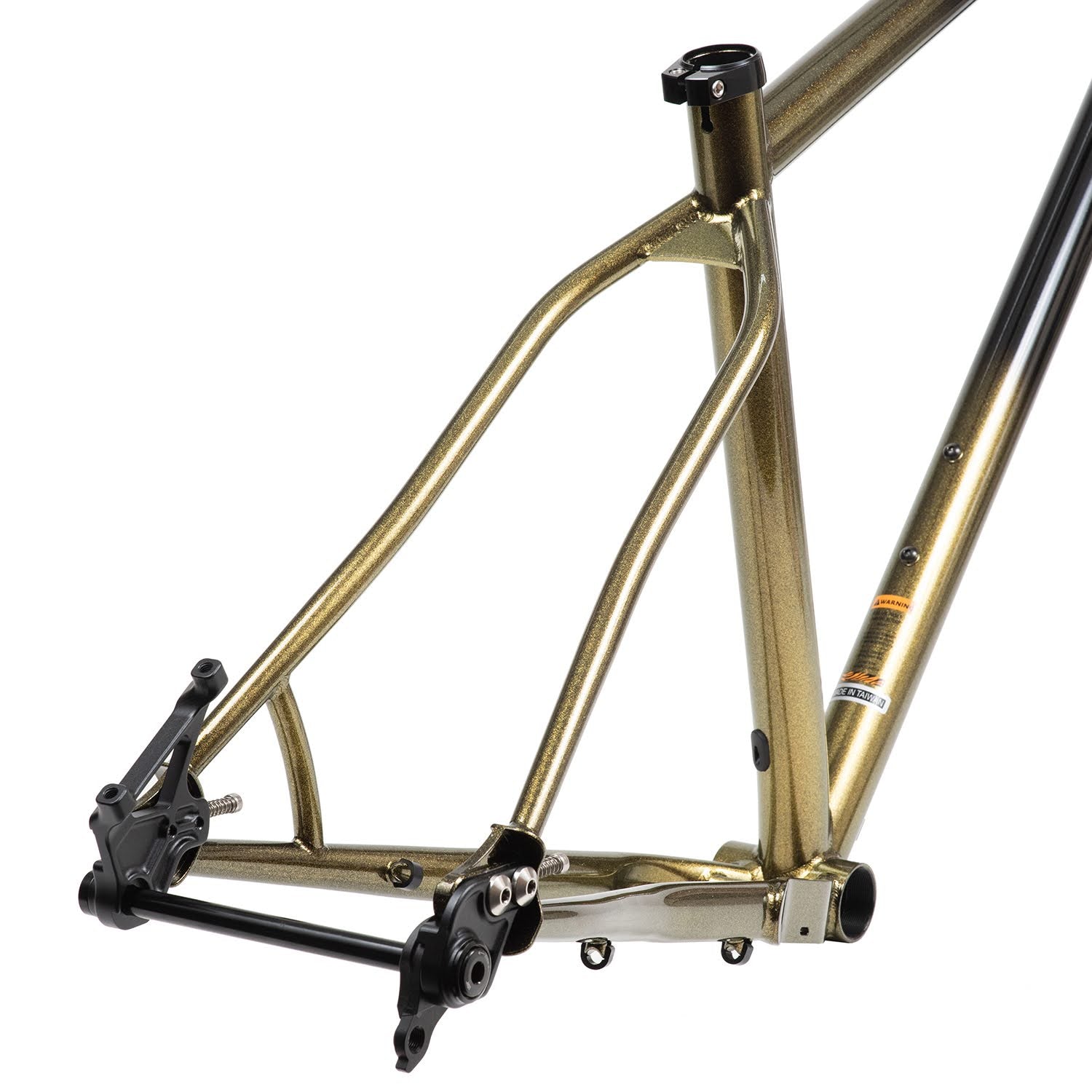

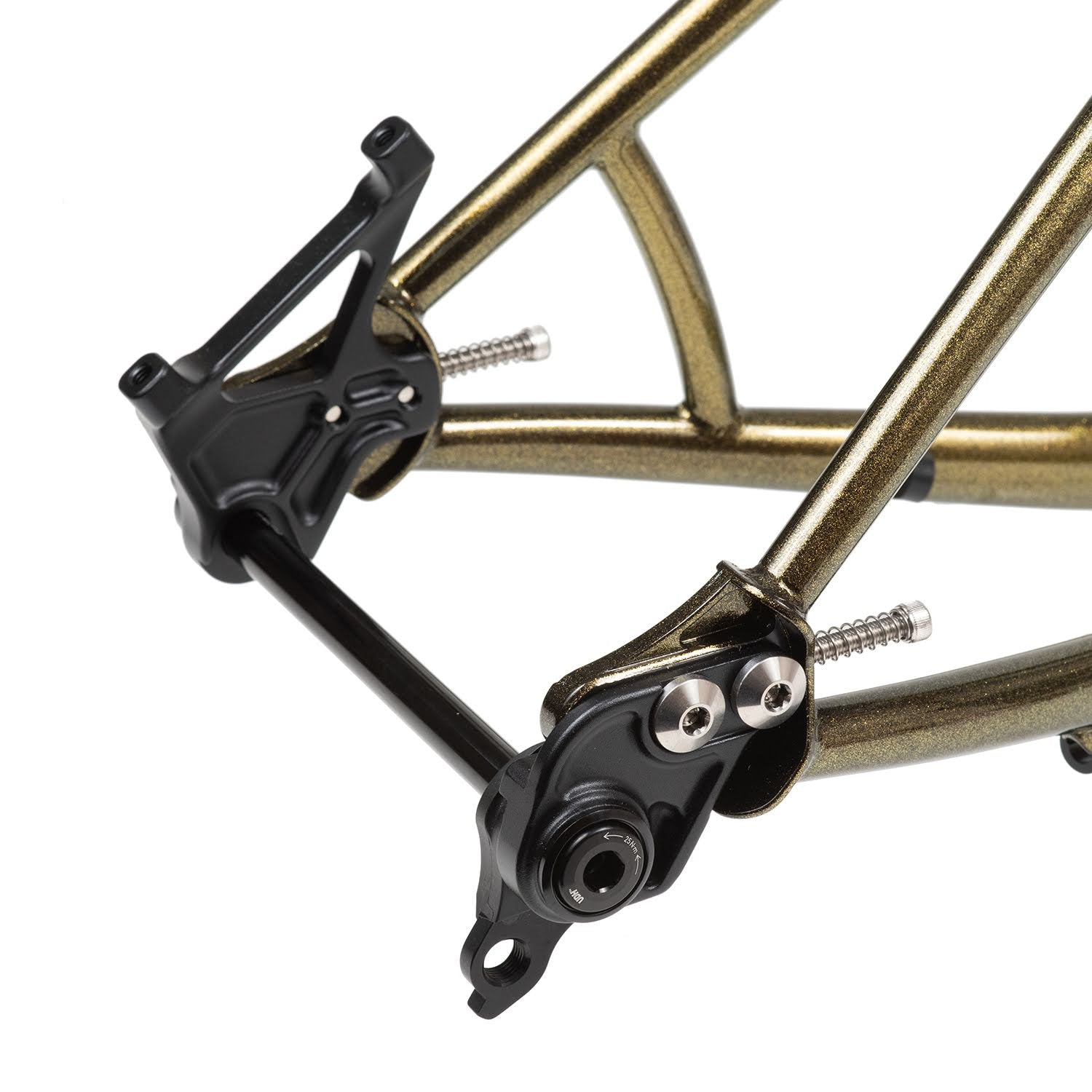

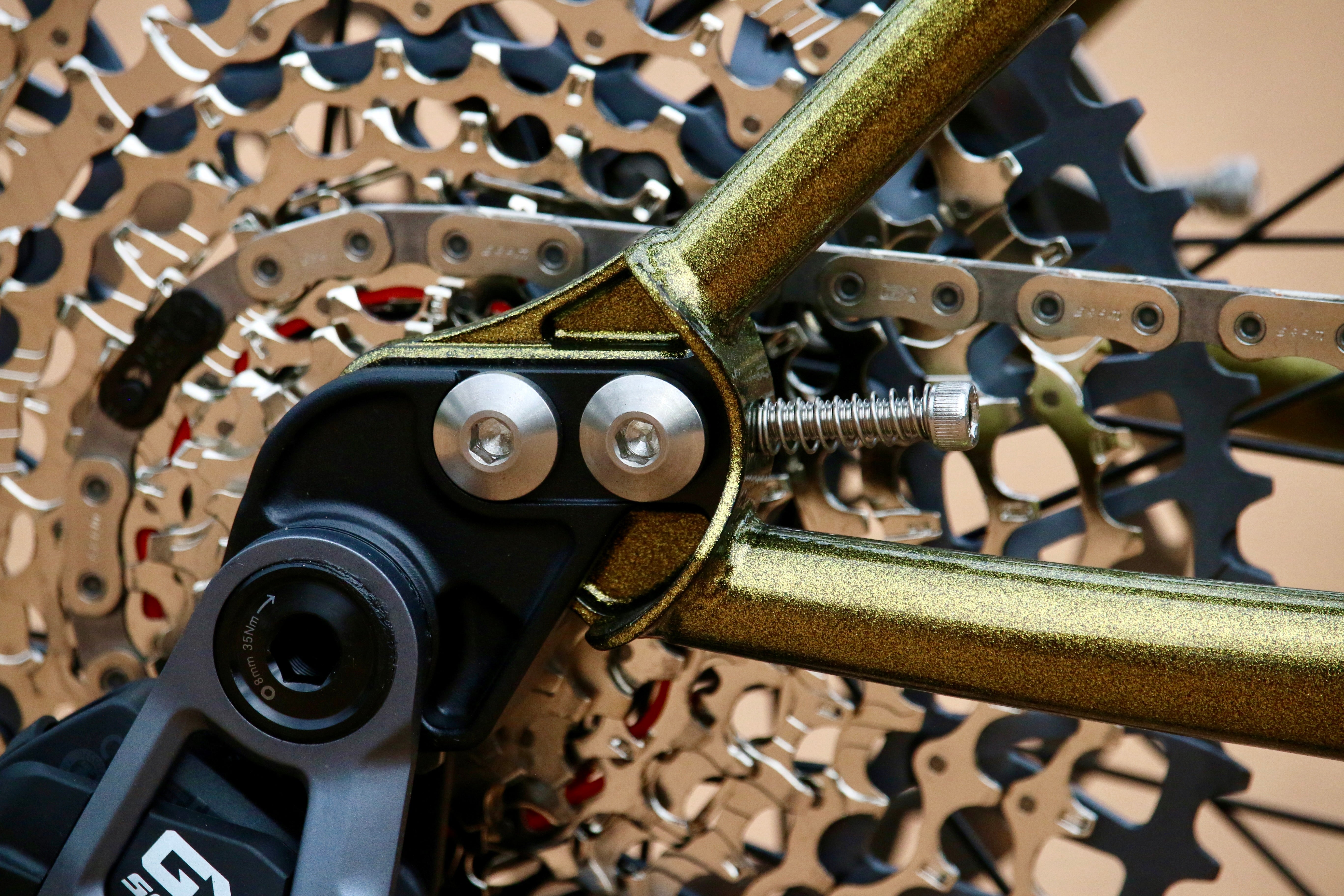

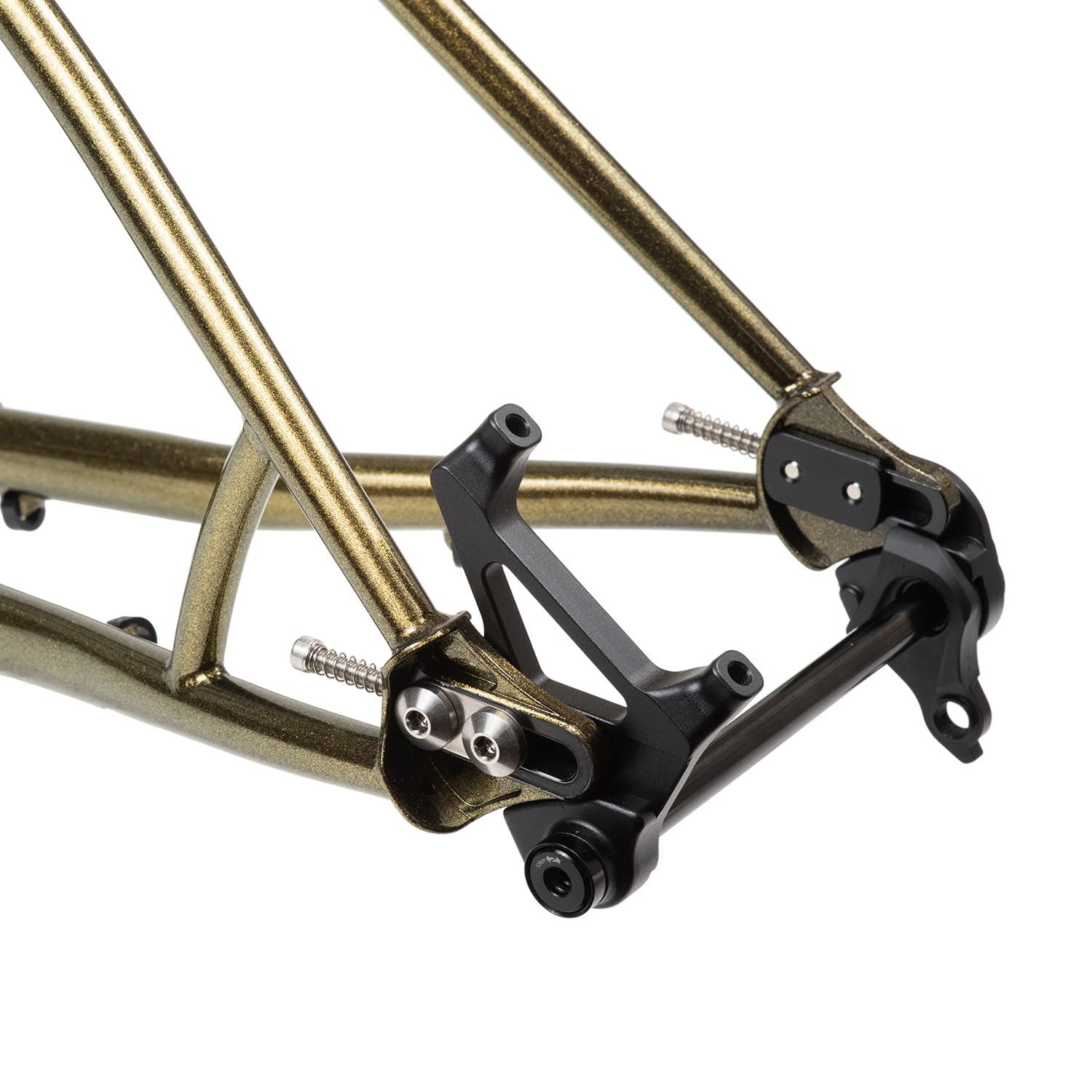

- Sliding dropouts for SRAM UDH compatibility
- Maximum tire clearance is 29x2.6"
- Maximum chainring size is 40T
[SPEC]
| Frame Material | WILDE BOSS Premium Steel Super Tubes |
| Frame Color | Sparkle Black |
| Head Tube | 1-1/8" to 1.5" Tapered |
| Compatible Head Parts | EC34/44 |
| Brake Mount | Post Mount |
| BB | BSA/JIS, 73mm threaded |
| Rear end | 148x12mm Thru Axle / Sliding Dropout |
| Tire Clearance | 29x2.6" |
| Suitable height | S (around 157-167cm) M (around 165-180cm) L (around 177-185cm) XL (around 182-193cm) |

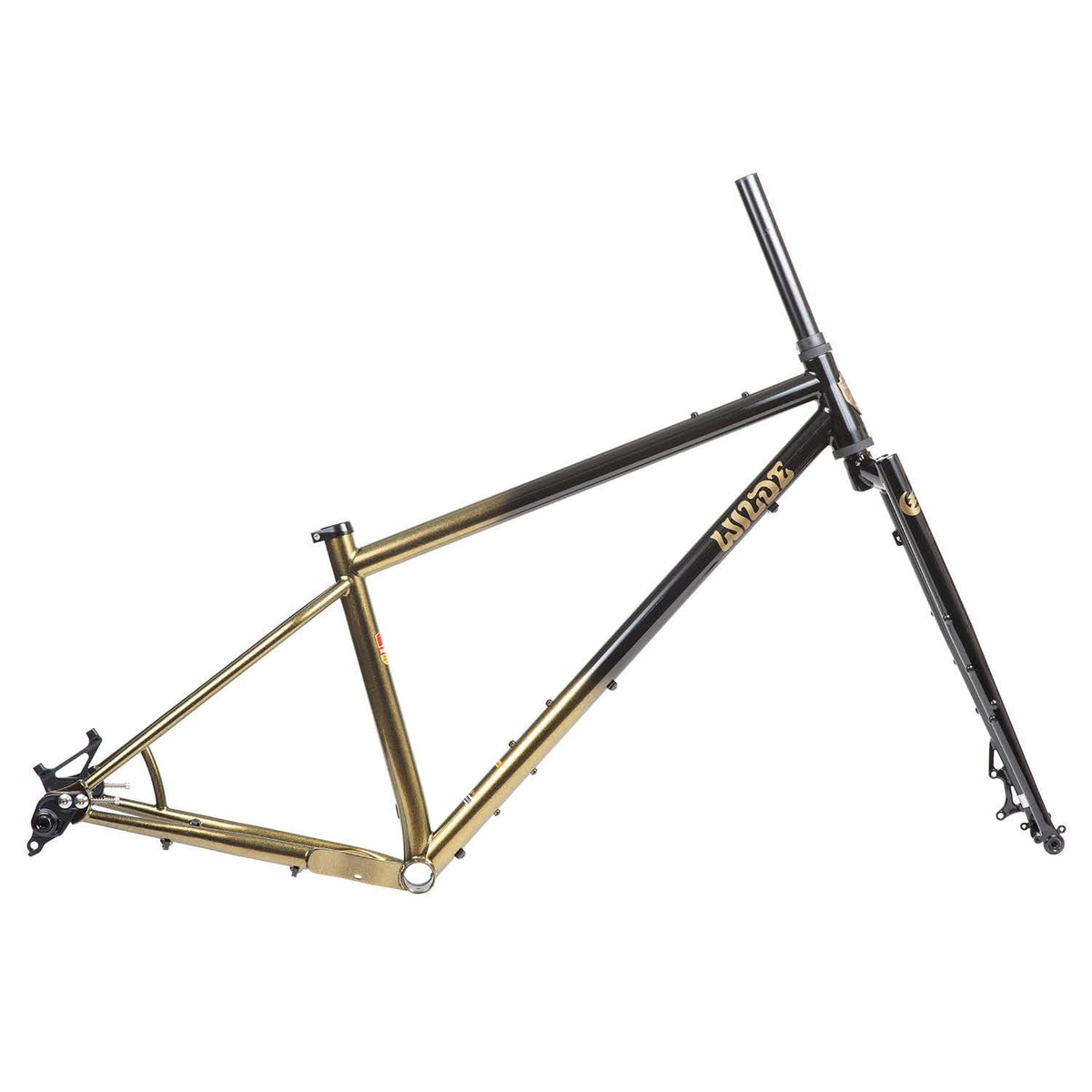

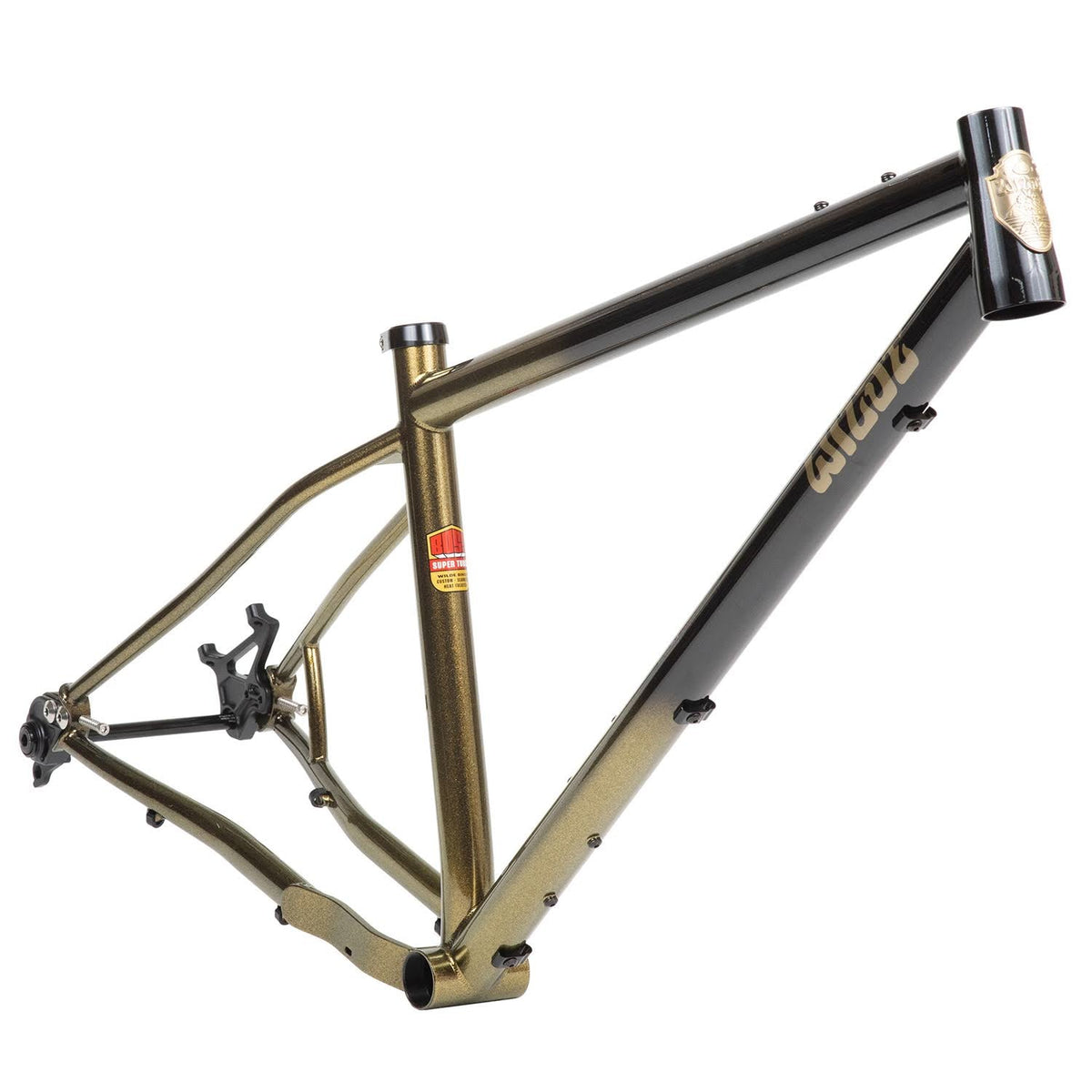

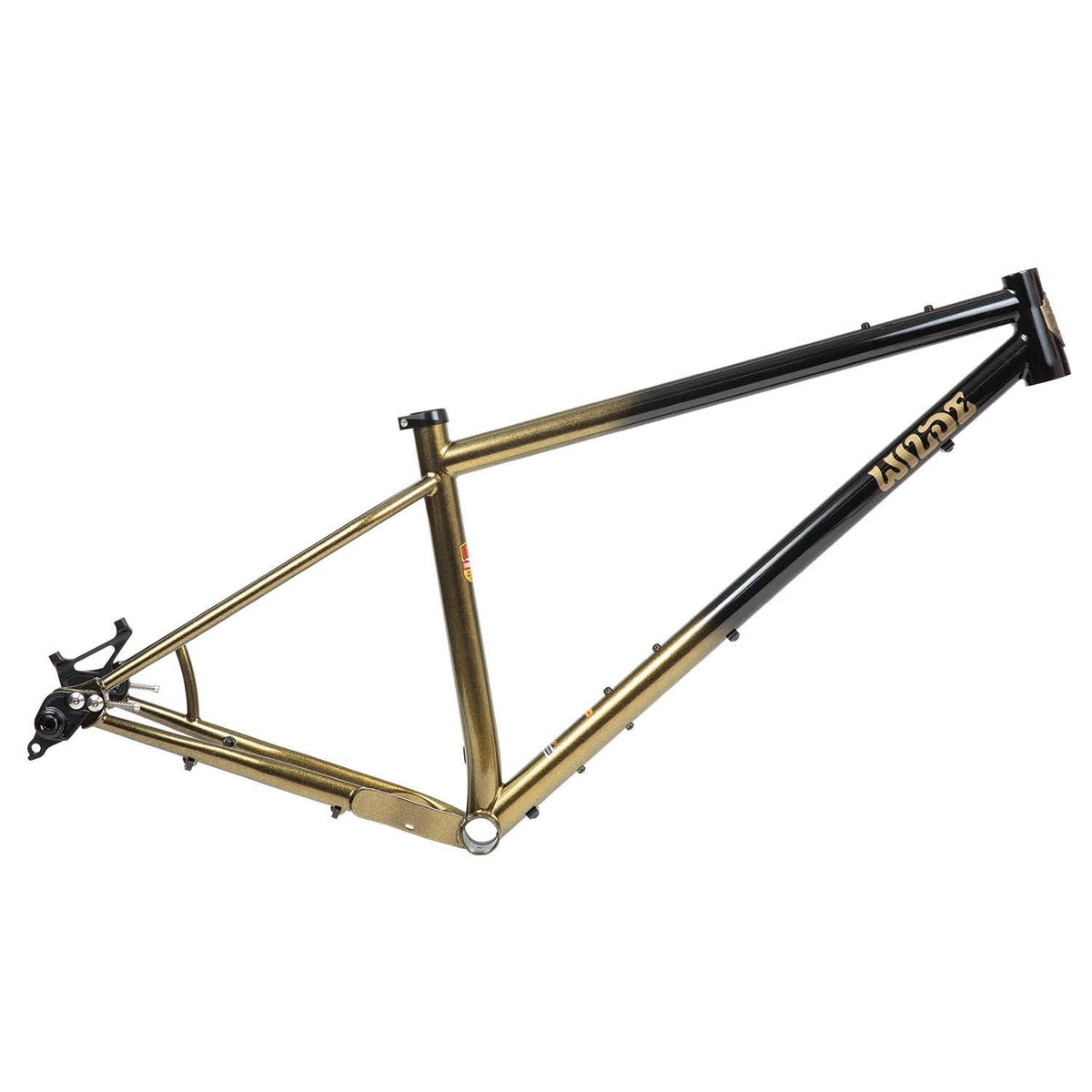

This product is a frame only and requires a separate fork.
[SIZE / GEOMETRY]
| Frame Size | S | M | L | XL |
| Wheel Size | 29" | 29" | 29" | 29" |
| Head tube angle (deg.) | 66.5 | 66.5 | 66.5 | 66.5 |
| Seat tube angle (deg.) | 74.5 | 74.5 | 74.5 | 74.5 |
| Head tube length (mm) | 100 | 110 | 120 | 130 |
| Seat tube length (Center to Center) (mm) | 407 | 427 | 443 | 463 |
| Effective top tube length (mm) | 591.5 | 619 | 642 | 660.8 |
| Stack (mm) | 603 | 612 | 621 | 630 |
| Reach (mm) | 425 | 450 | 470 | 486 |
| Chainstay length (mm) | 425 | 425 | 425 425 | 425 425 |
| Wheelbase (mm) | 1,130 | 1,161 | 1,186 | 1,205 |
| BB drop (mm) | 60 | 60 | 60 60 | 60 60 |
| Fork length (Axle to Crown) (mm) | 501 | 501 | 501 | 501 501 |
| Standover | 753 | 771 | 788 | 804 |
Assuming tire size 29x2.6".
- We ship within 1-2 business days after receiving your order (payment). (Basically, orders placed before 12:00 p.m. are shipped the same day.)
- Messenger delivery is available within Nagoya City only.
- We ship every day from Monday to Sunday, except on temporary holidays.
- Available delivery areas: All over Japan and the world.
- Please note that delivery may be delayed due to credit card processing status. If you would like to specify the delivery date and time, please fill in your request in the additional information in the shopping cart.
- The product will be shipped from Circles.
- Please contact the shipping company in case of damage or loss during shipping.
Regarding the delivery of complete bikes
- Please note that a separate shipping fee of 9,900 yen (tax included) will be charged for shipping complete bikes. (However, an additional fee will be charged for delivery to Okinawa and remote islands.)
- After receiving your order, we will do a final check and ship complete bikes, but it may take 1-2 weeks. Please understand.
- We will send the bike with some parts removed for packing. We strongly recommend that you have your bicycle assembled at your nearest bicycle store.
- We will inform you of the delivery date and other details by e-mail.
- We apologize for any sales discrepancies at the store.
Regarding the delivery of frame sets
- Nationwide flat-rate shipping: 5,500 yen (tax included) (However, an additional fee will be charged for delivery to Okinawa and remote islands.)
- We will inform you of the delivery date and other details by e-mail.
- We will provide the pre-treatment of facing and tapping for the frame sets purchased at our store as a service. We will inform you separately after purchase.
- We can also install a headset and BB for a fee, so please feel free to contact us.
