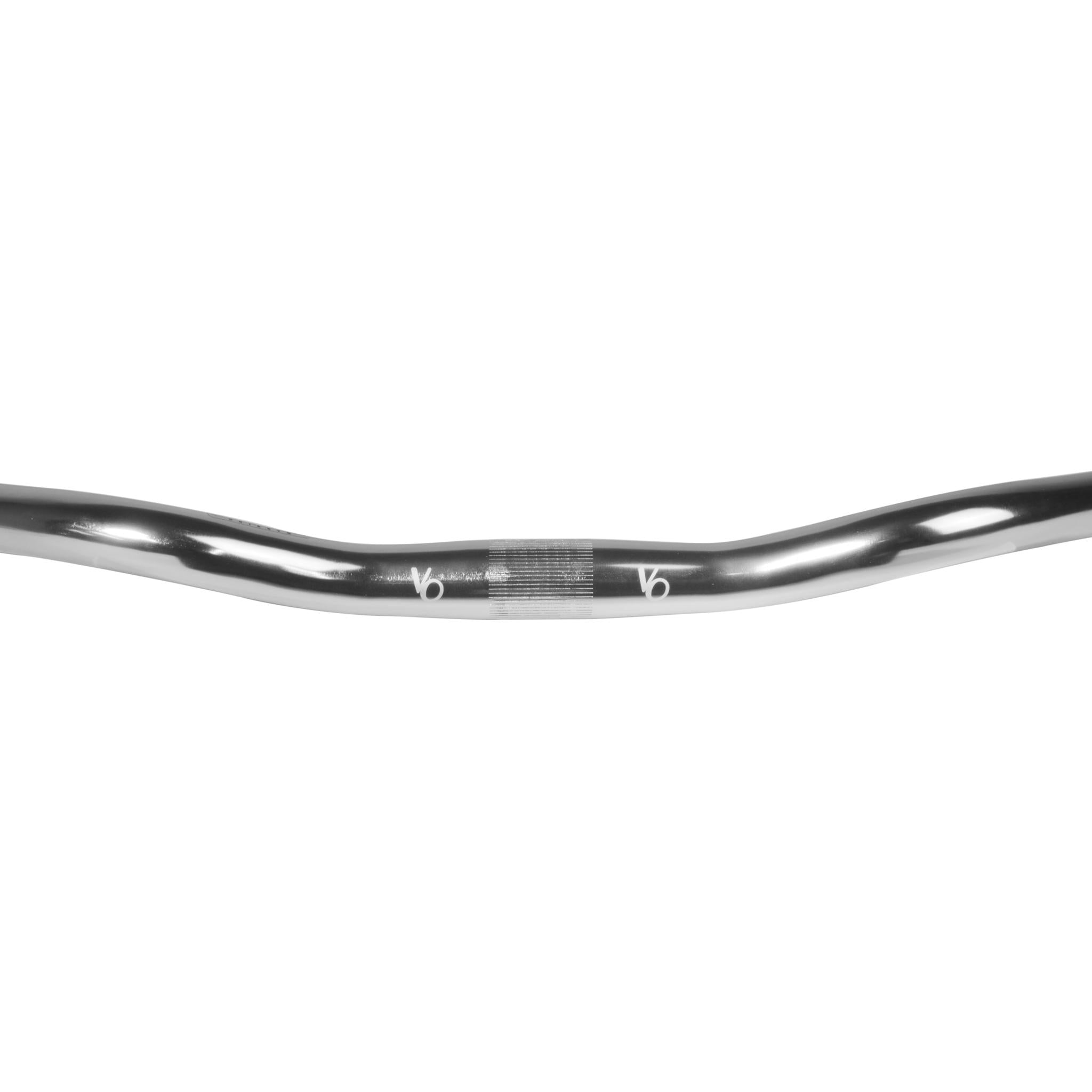

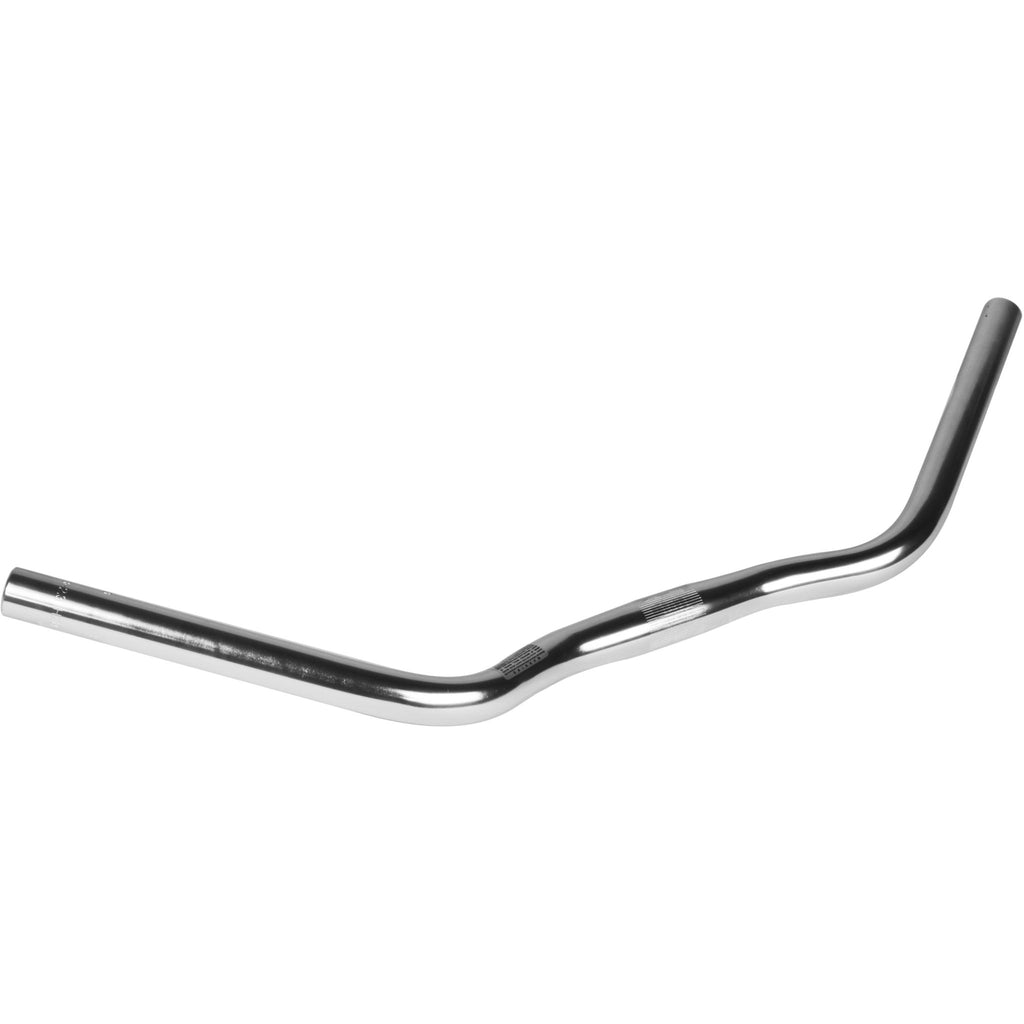

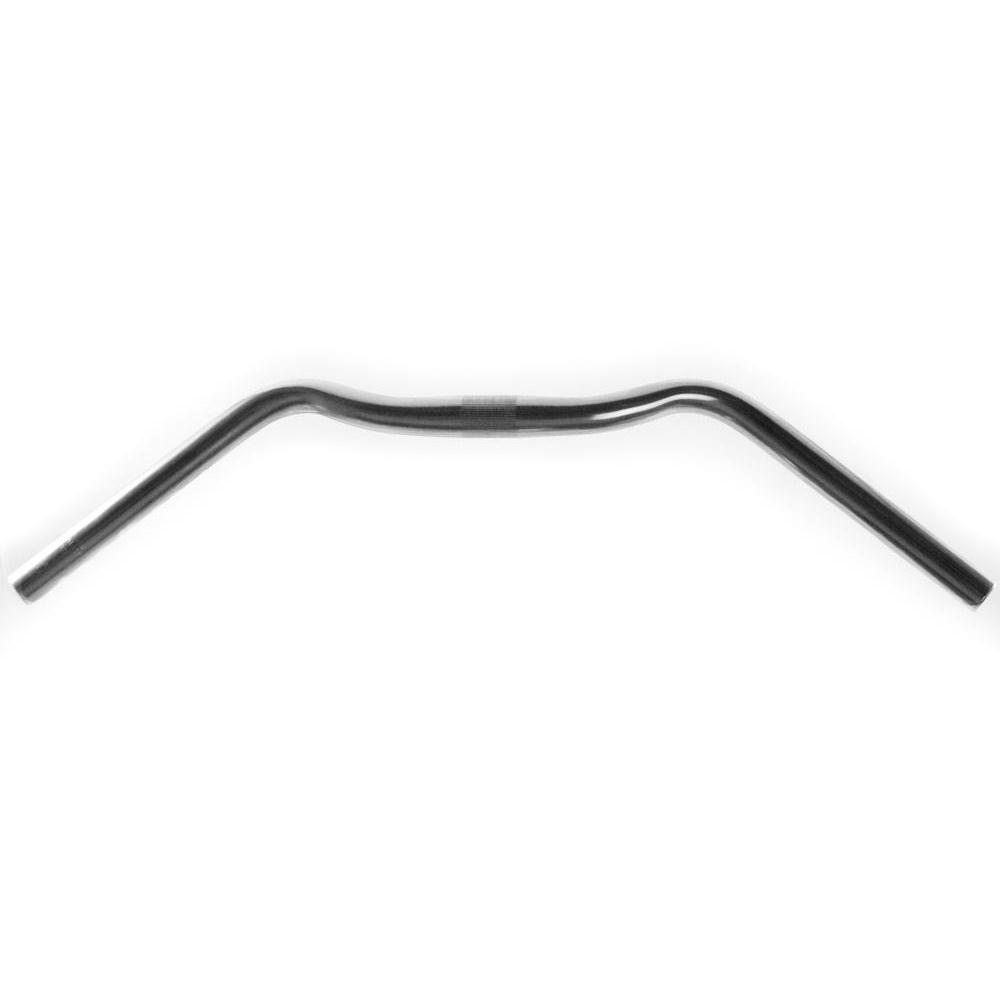

VELO ORANGE Milan Handlebar 22.2

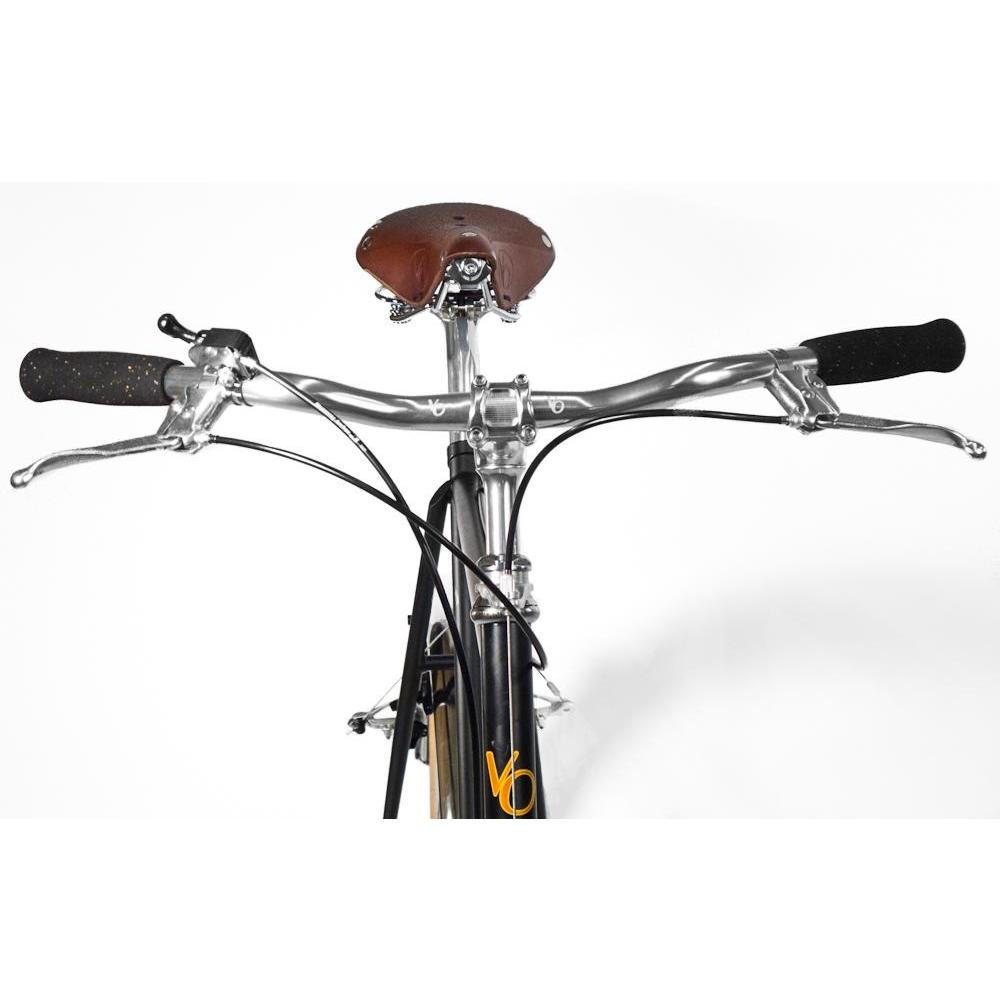

Vero Orange calls this bar the Milano Bar. This is because it is the perfect handle to transform an old Italian racing frame with a short top tube into the fastest commuter bike in town.

The width is about 57 cm (6.5 in.) and the reach is 11 cm (2.5 in.). It has a rise of about 25 mm (1 inch). The sweep is about 35° and the length of the grip is about 17 cm. The stem clamp formed by bulging is 25.4 mm. The material is polished aluminum.

Milano bars can be fitted with normal MTB (22.2mm) grips, brakes, shifters, and reverse brake levers for 22.2mm, but not bar ends.

• Stem Clamp: 25.4mm
• Grip: 22.2mm
• Rise: 25mm
• Reach: 110mm
• Sweep: 35deg
• Grip Length : 170mm
• Width: 570mm 570mm
