Description

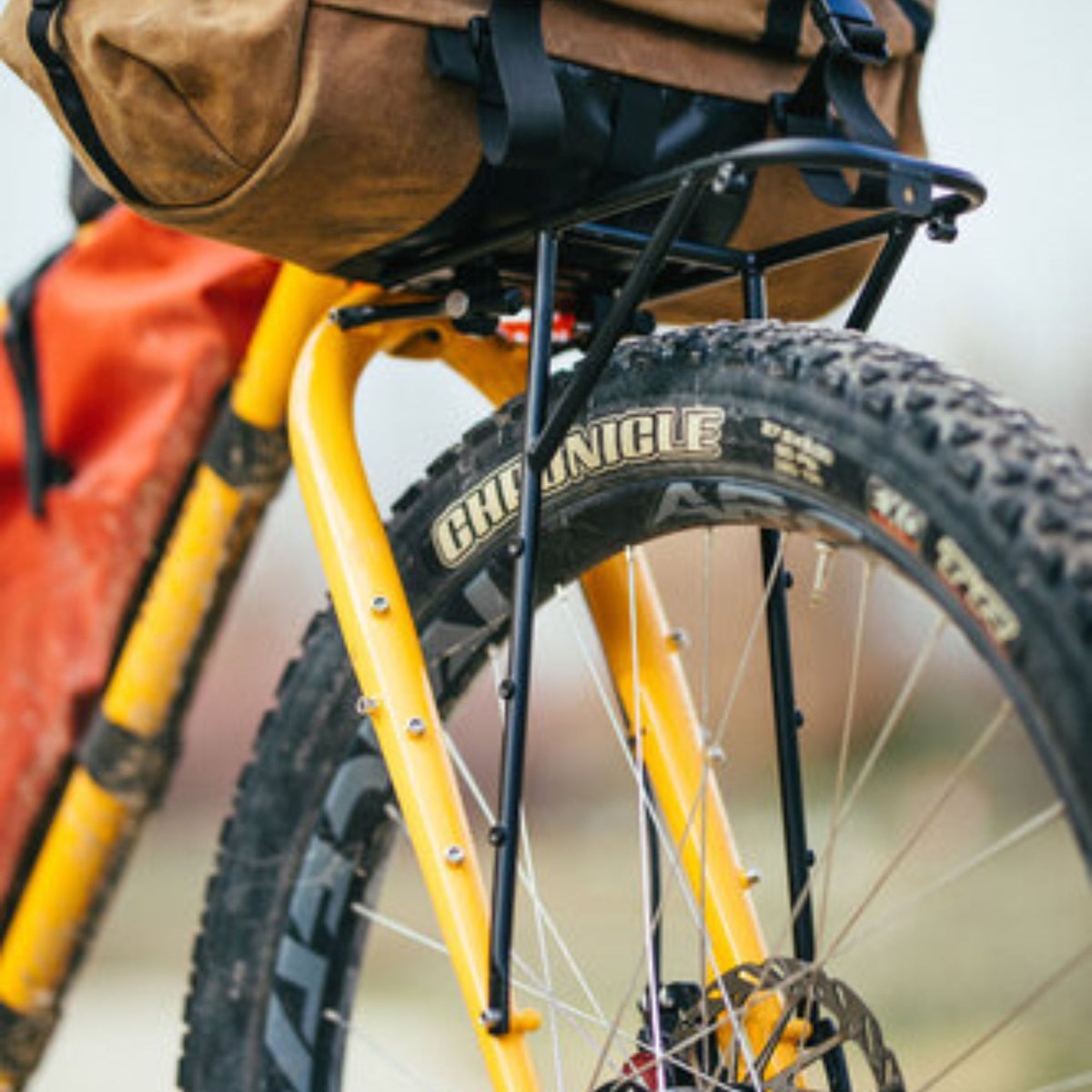

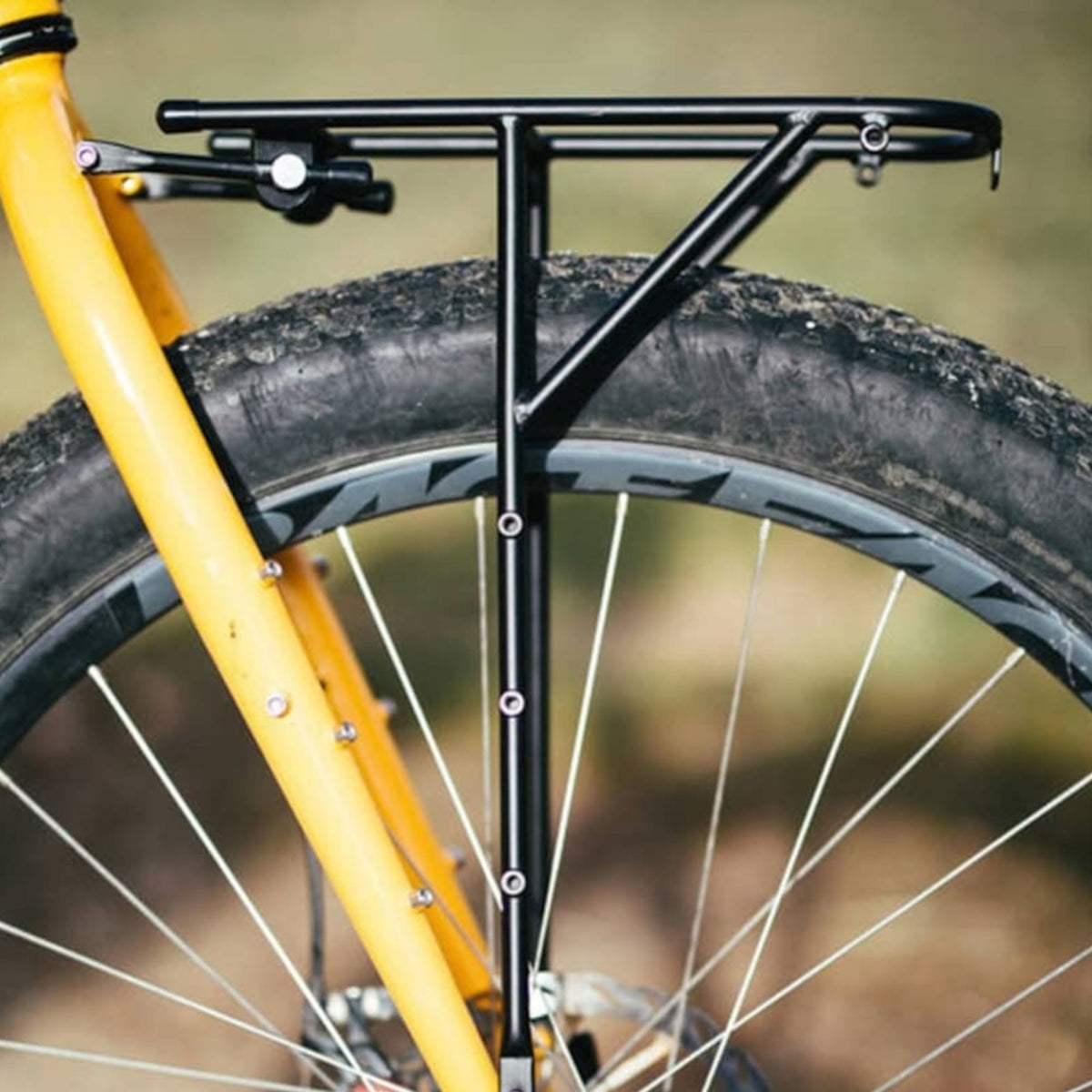

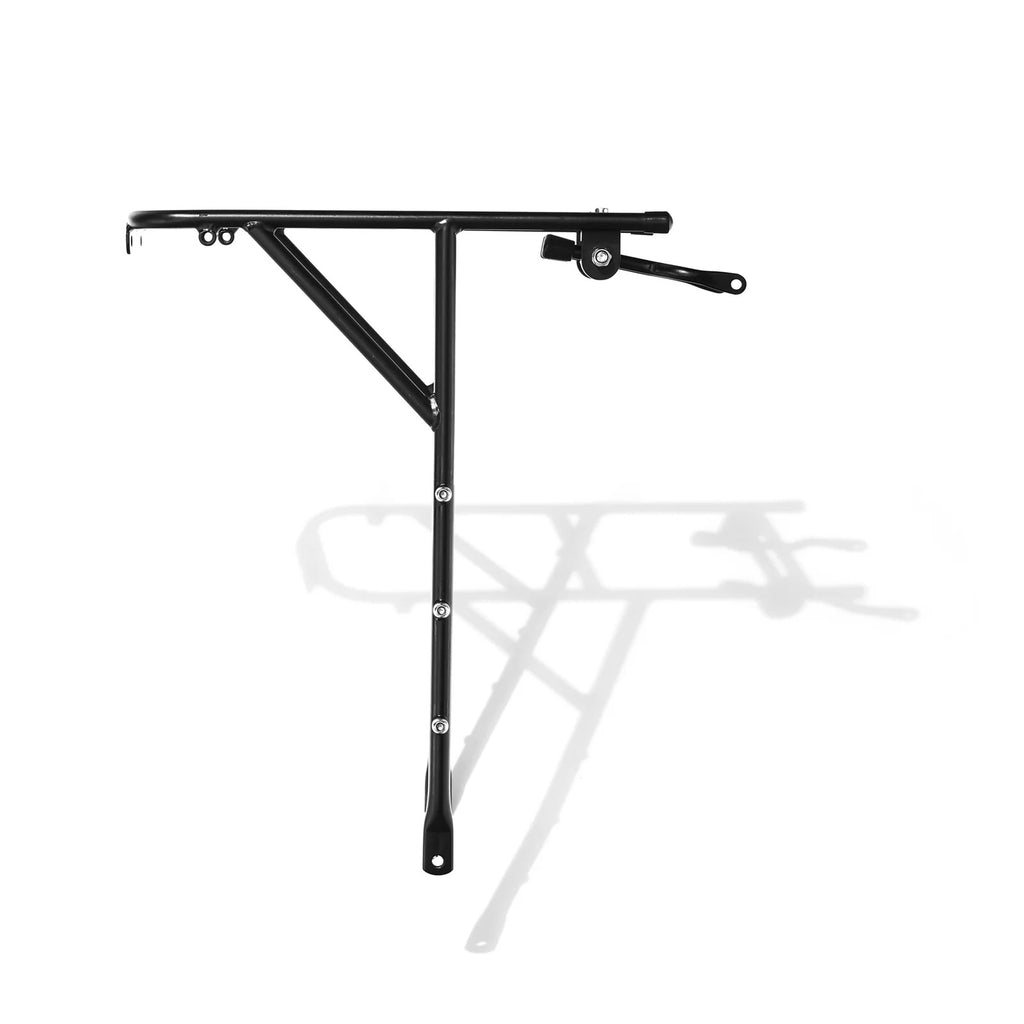

TUMBLEWEED BICYCLE' s T Rack is a lightweight, minimalist bag support rack.

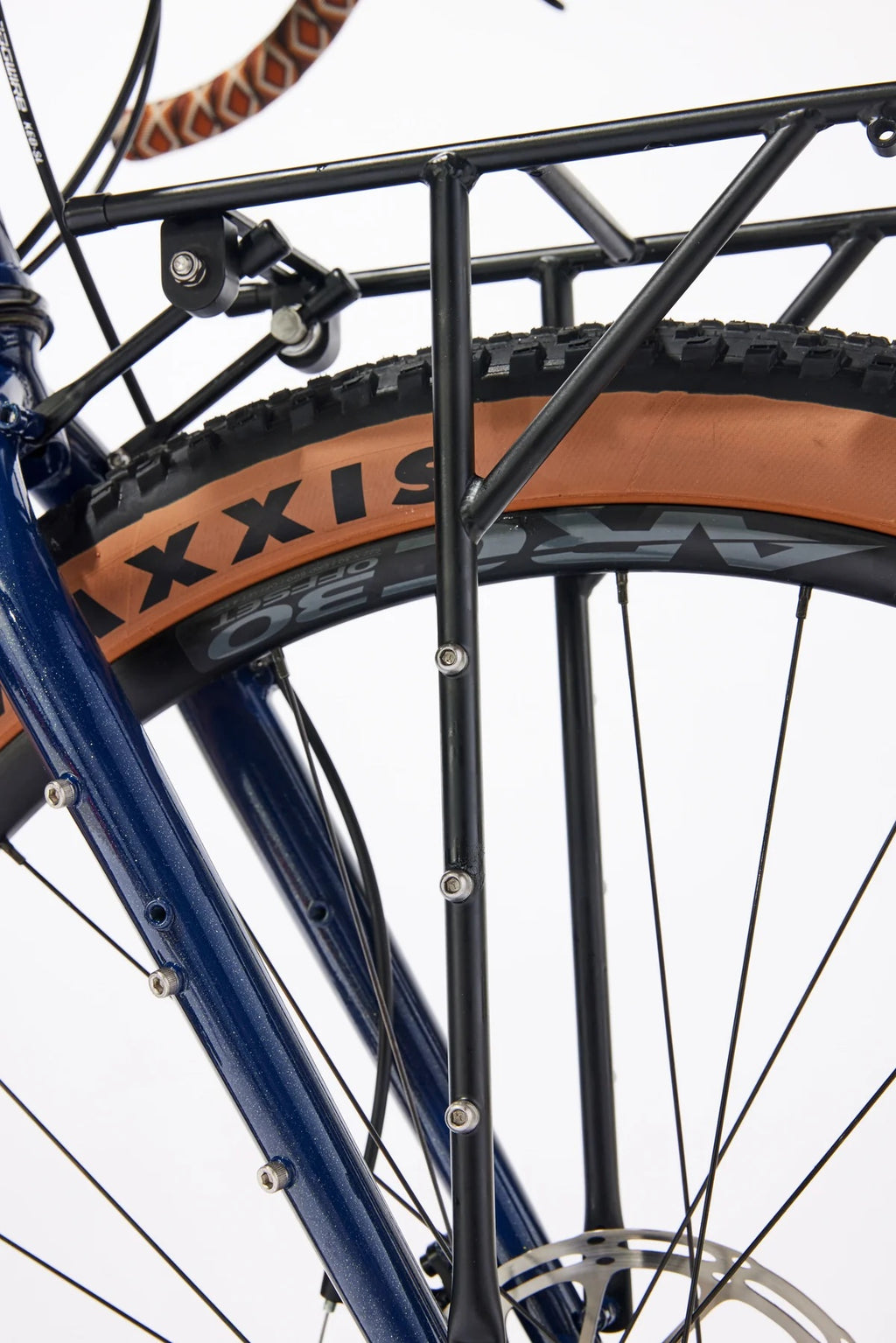

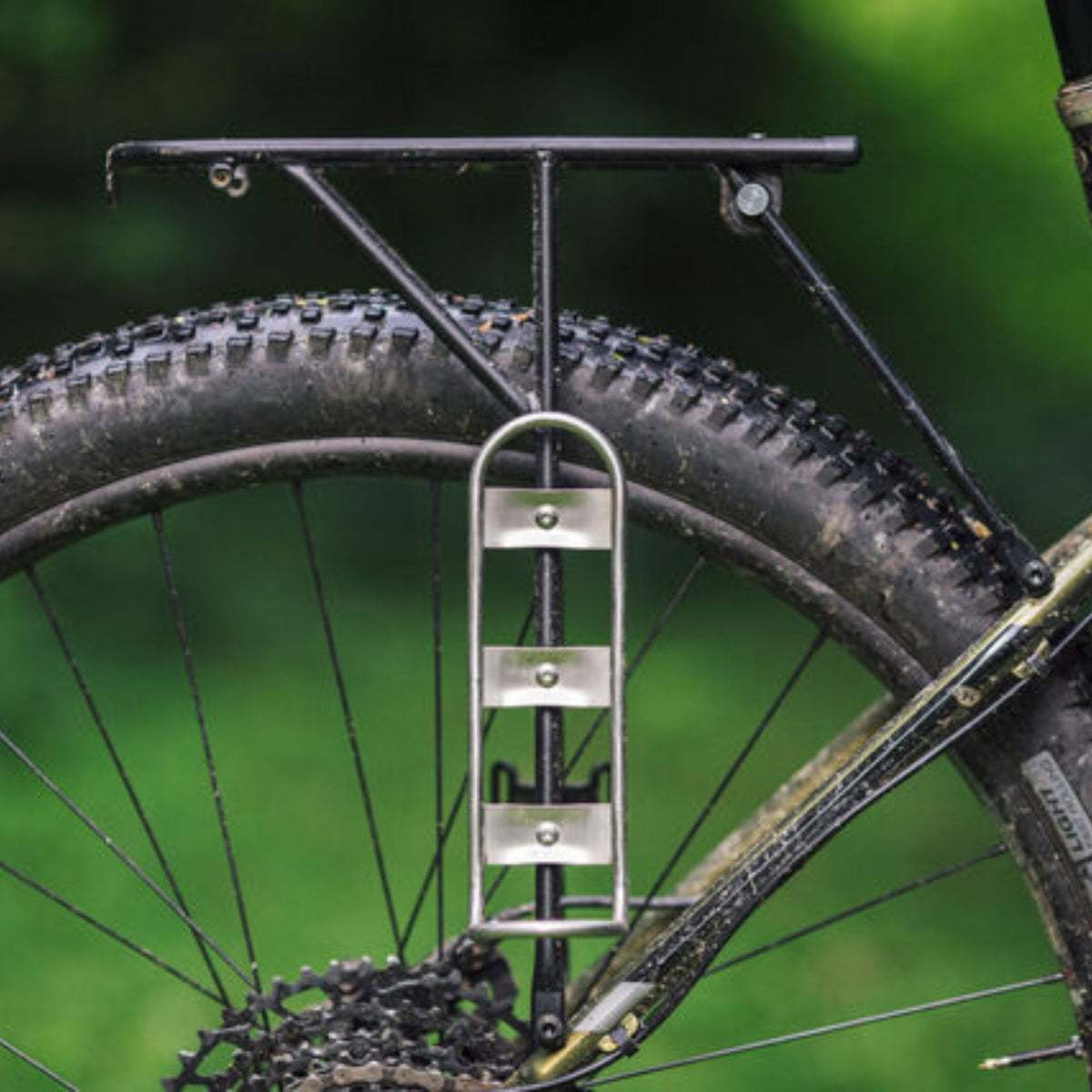

The spacious platform and triple bottle cage mounts located on the rack legs allow for mounting additional water bottles or dry bags.

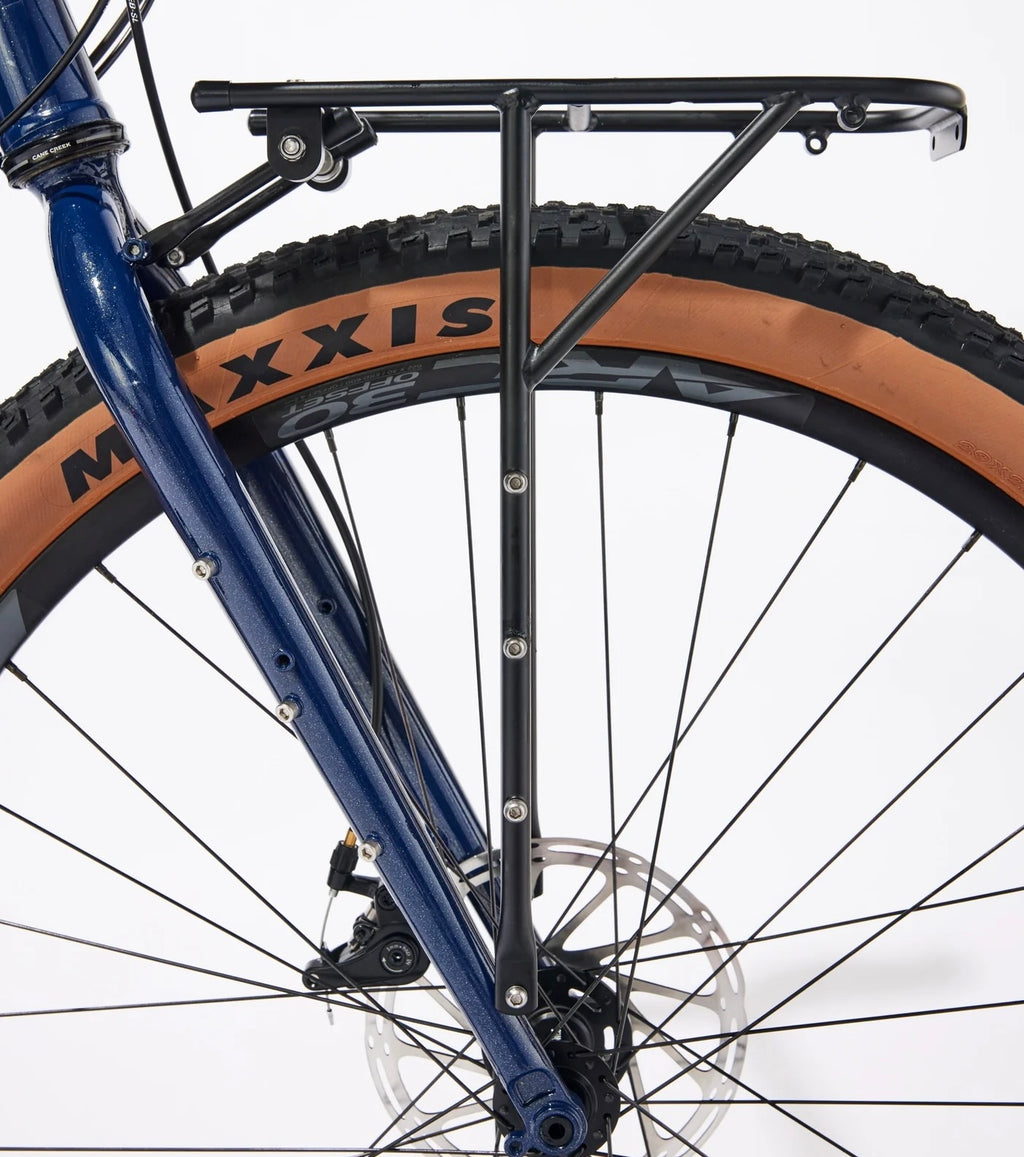

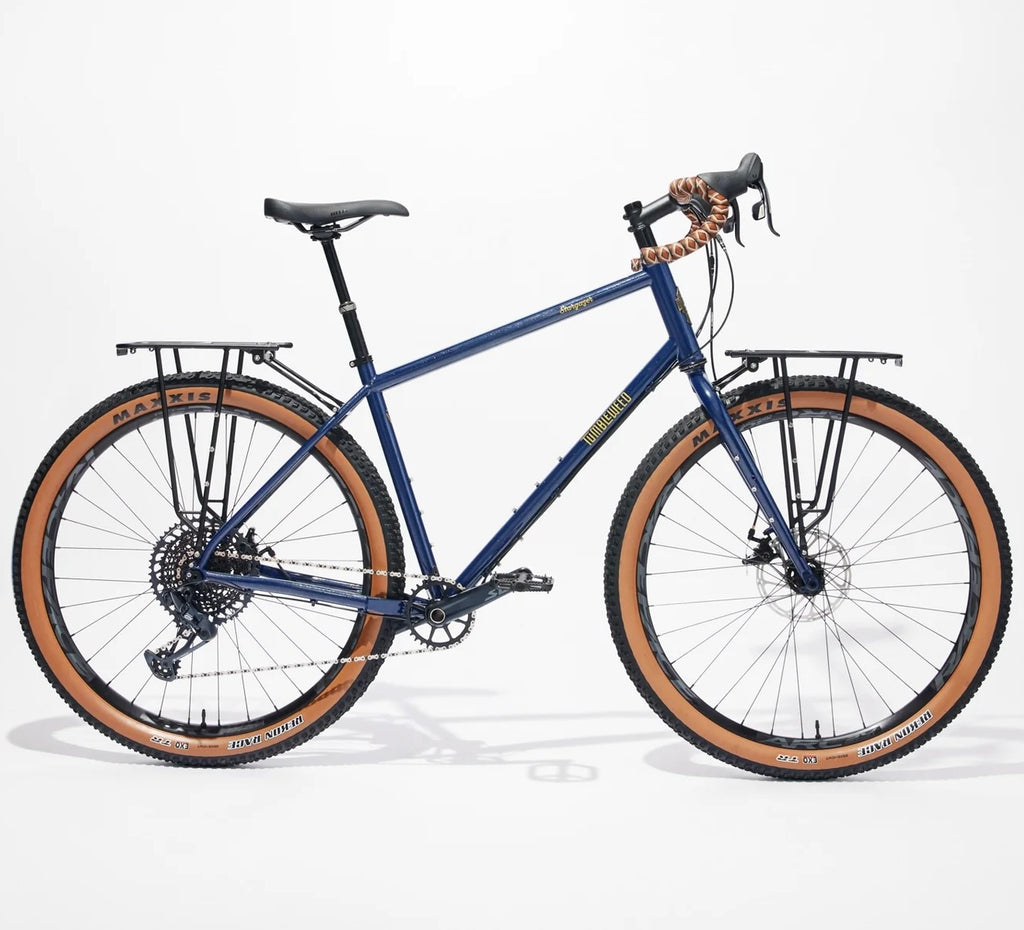

Designed to work equally well on the front or rear of most bikes, it is available in two leg lengths to accommodate bikes with standard upper and lower rack mounts.
Weight is 470 grams without mounting hardware and 649 grams with all mounting hardware, bolts, and uncut 350mm struts. The total load limit is 30 lbs. including 5 lbs. per set of triple bosses. Loads on the rack platform should be centered on the rack and should not overhang or cantilever off the platform edge.
To properly mount the T Rack on your bike, the appropriate threaded load support mounts on the dropouts, seat stays, or fork crown points are required. If the upper rack boss is not available, a seat clamp with integrated rack mount is available.
[FEATURE]
Redesigned mounting hardware reduces the likelihood of loose bolts (but as with all racks, periodic tightening of hardware should be checked).

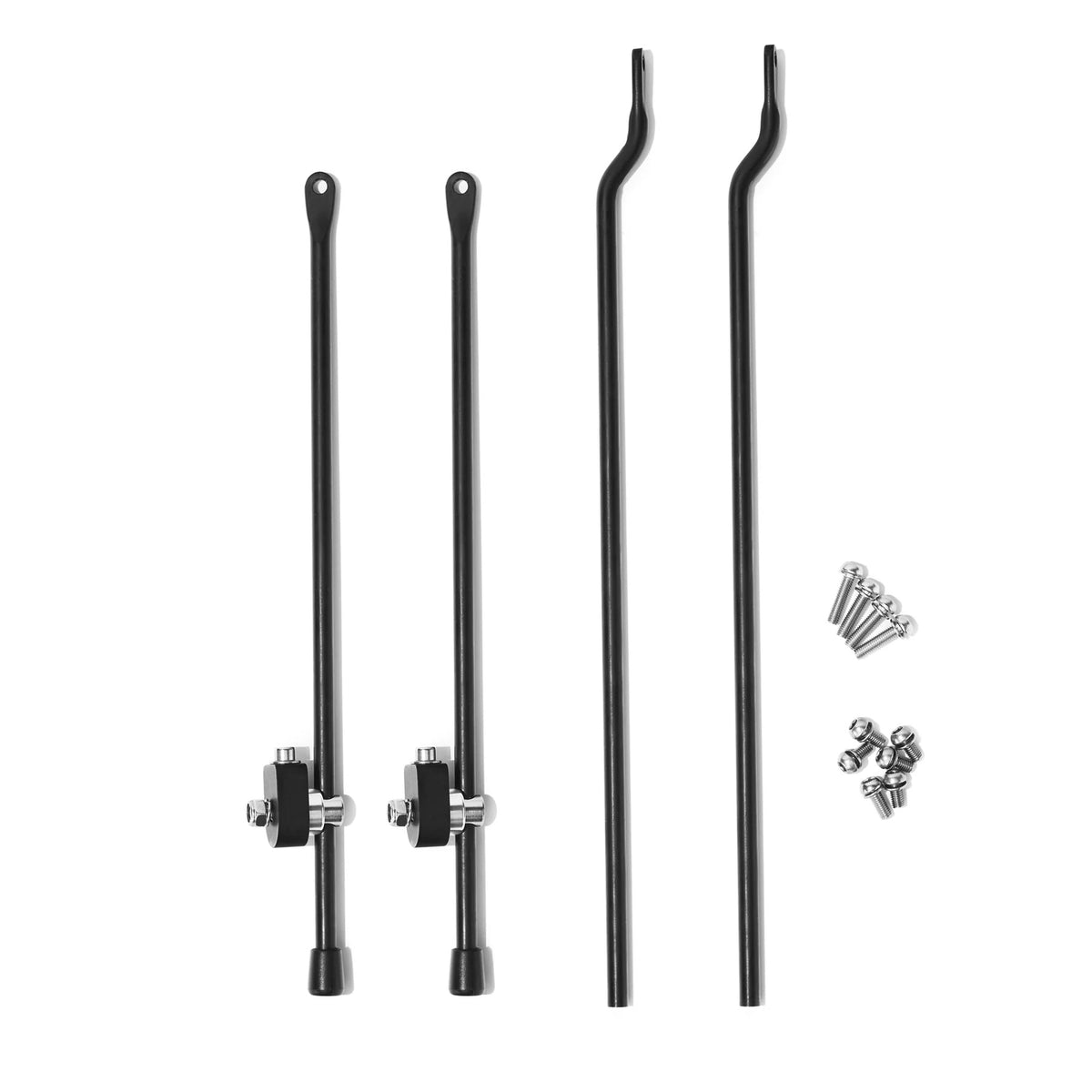

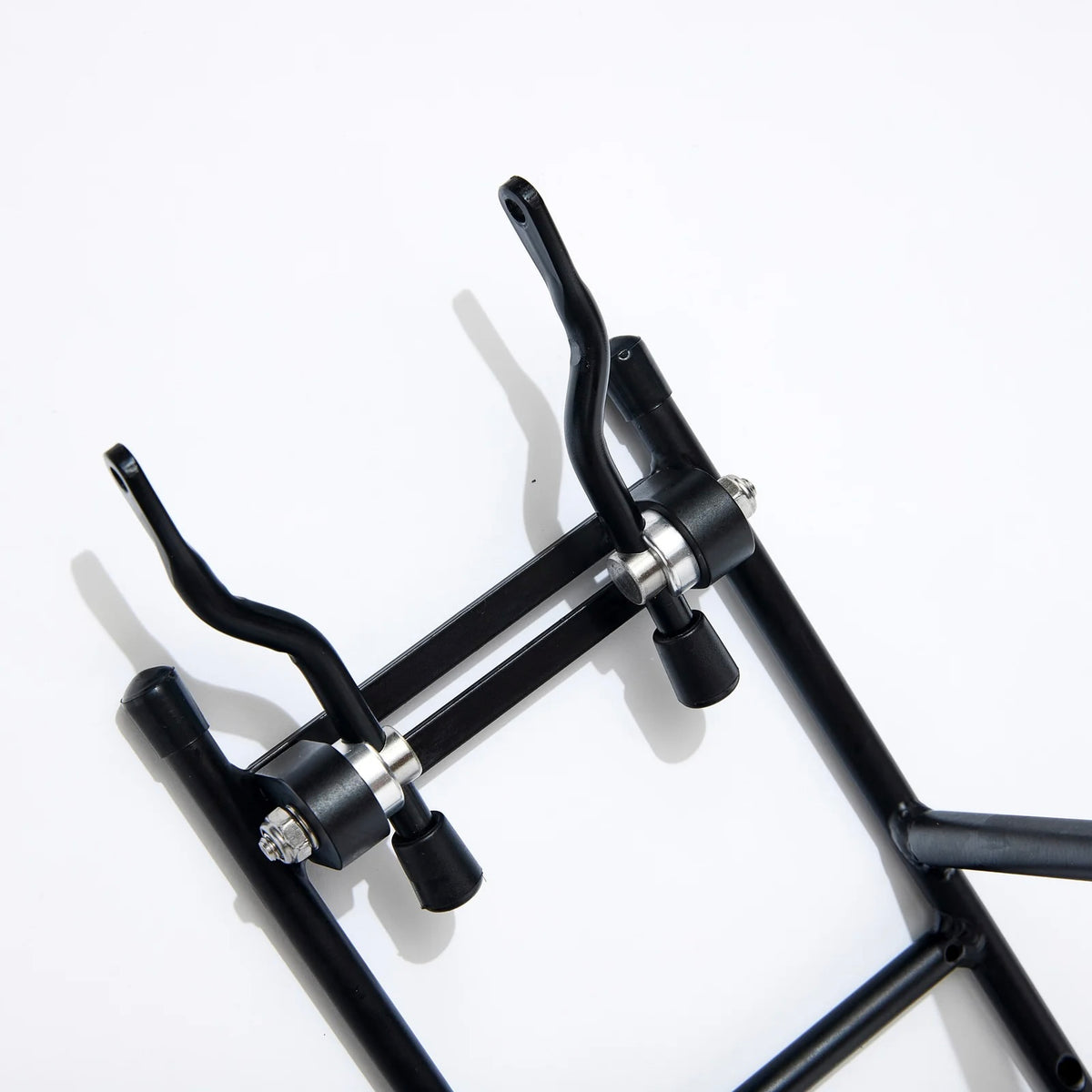

・Two sets of 350mm mounting struts are included (one set is straight, one set is offset) to accommodate a wider variety of bike types. Two sets of 350mm mounting struts are included (one set is straight and the other is offset) to accommodate a wider variety of bicycles
・Built-in dynamo wiring port for headlight or taillight on platform
・Vertical leg tube diameter is 12mm larger and wall thickness is thinner than previous model to increase rigidity and reduce weight gain (load capacity at center of platform is30lbs / approx 13kg) (while maintaining the same load capacity at the center of the platform)
[SPEC]
Height (leg length): 355mm, 380mm

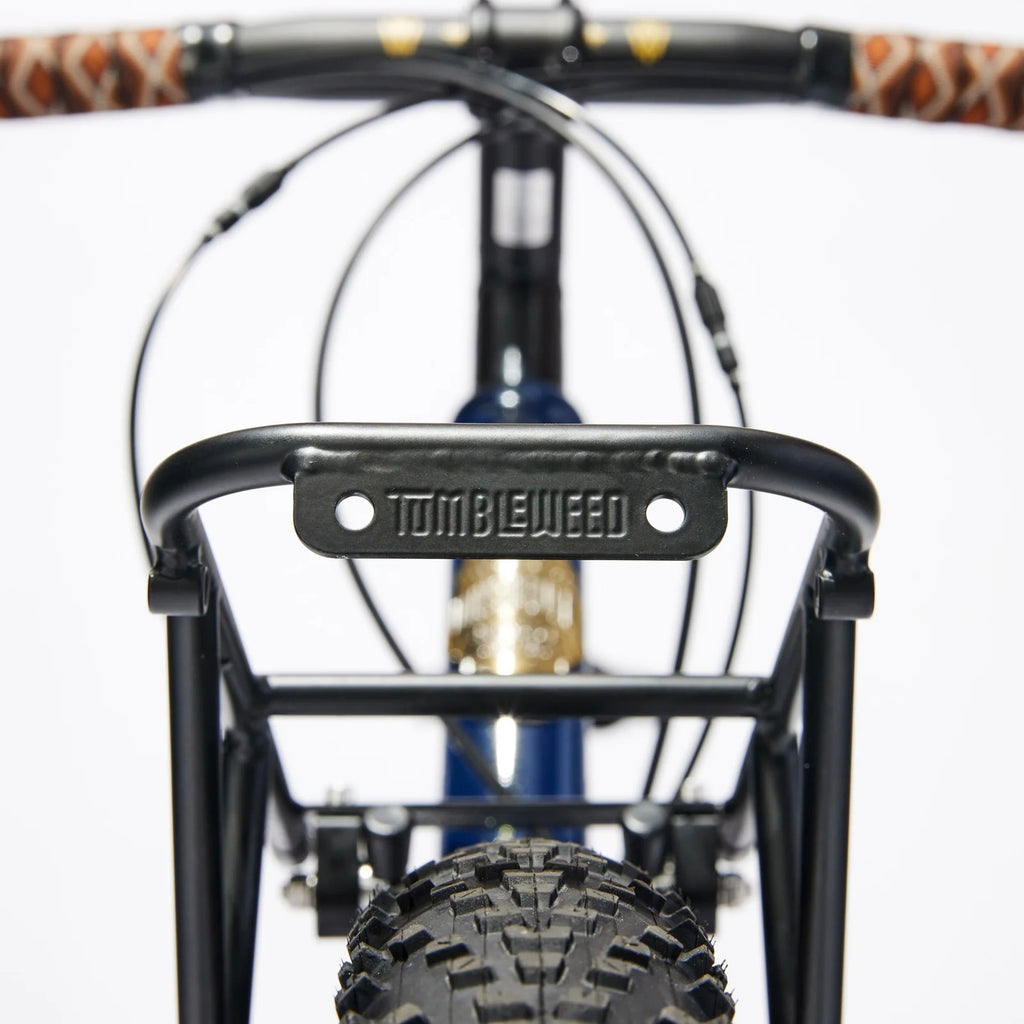

Top panel size: W130mm x L300mm
Weight: 470g (without hardware) / 649g (with all hardware)
Material: Chromoly
Maximum load: 30lbs / approx. 13kg
Accessories: stays, bolts
*About size selection: In order to accommodate various frames and forks, there are two height choices, 355mm and 380mm. To determine the length, measure the distance from the lower rack mount to the top of the tire, and add 25-50mm to the measurement. We recommend
