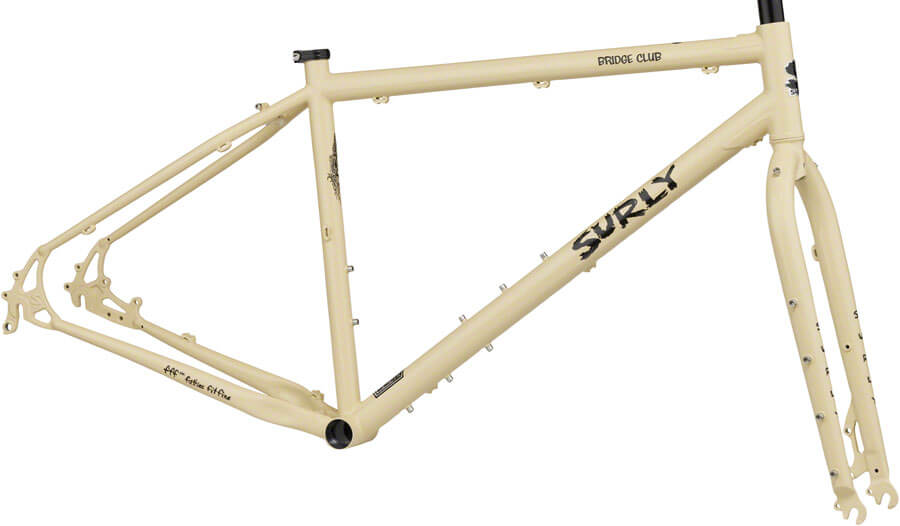

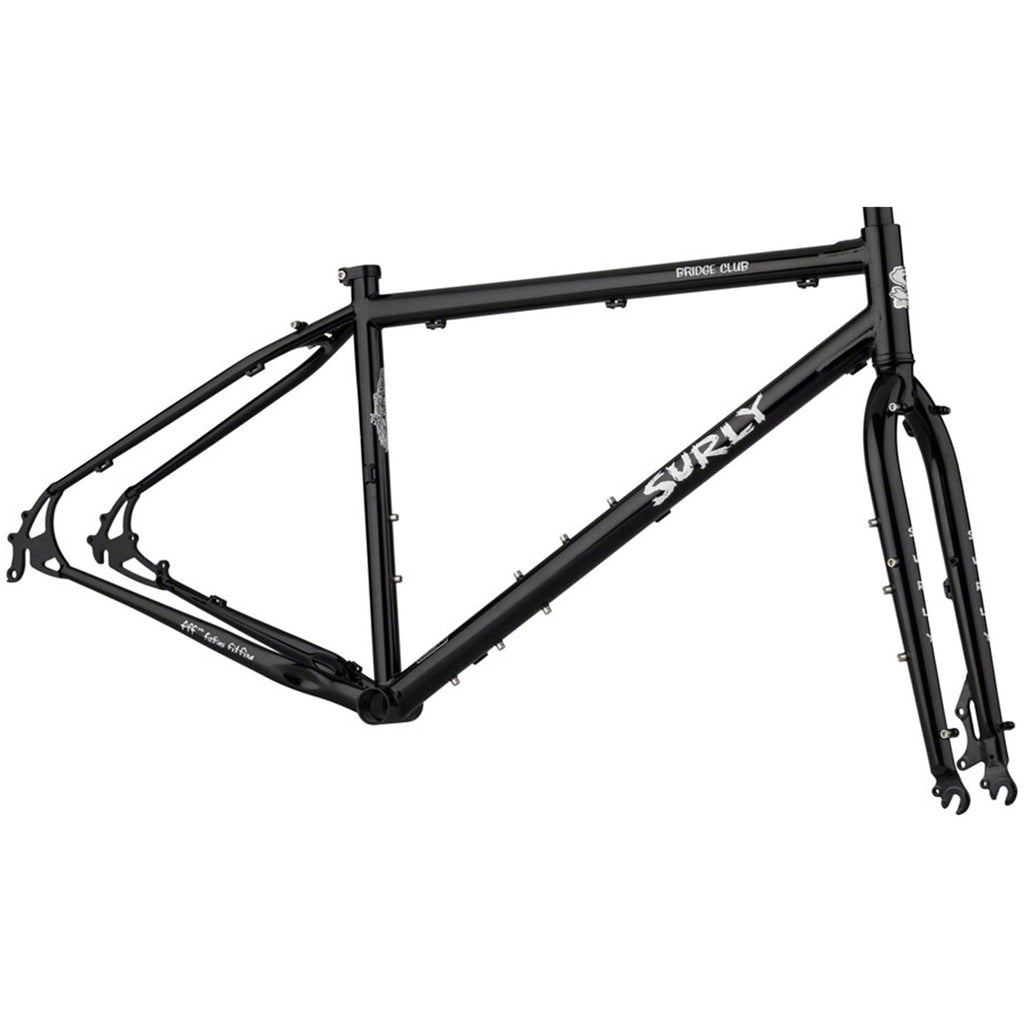

SURLY Bridge Club Frame Set
Check your size based on your height
Check your size based on your height
Shows size options that fit your height. Fit can vary with proportions, riding style, and position, so please use this as a general guide.
Sizing can change with riding style and position. If you are near a boundary, please contact Circles.
From City to Trail, Frames that Transcend Boundaries
In Minneapolis, Minnesota, a group of young people who love bicycles have been trying to figure out how to make bicycles that can be used for everything from everyday use to weekend rides without being wasted. They have continued to make tough, long-lasting, and fun bicycles with frames suited to each rider, and with the ability to install a variety of parts.Surlyis a well-known manufacturer of bicycles made by such unparalleled bicycle enthusiasts.
The Bridge Club is named after the natural riding style of the Surly staff, who come from all walks of life, some from urban paved roads, some from unpaved roads over distant mountains, and many others who often rest and chat under bridges over rivers.

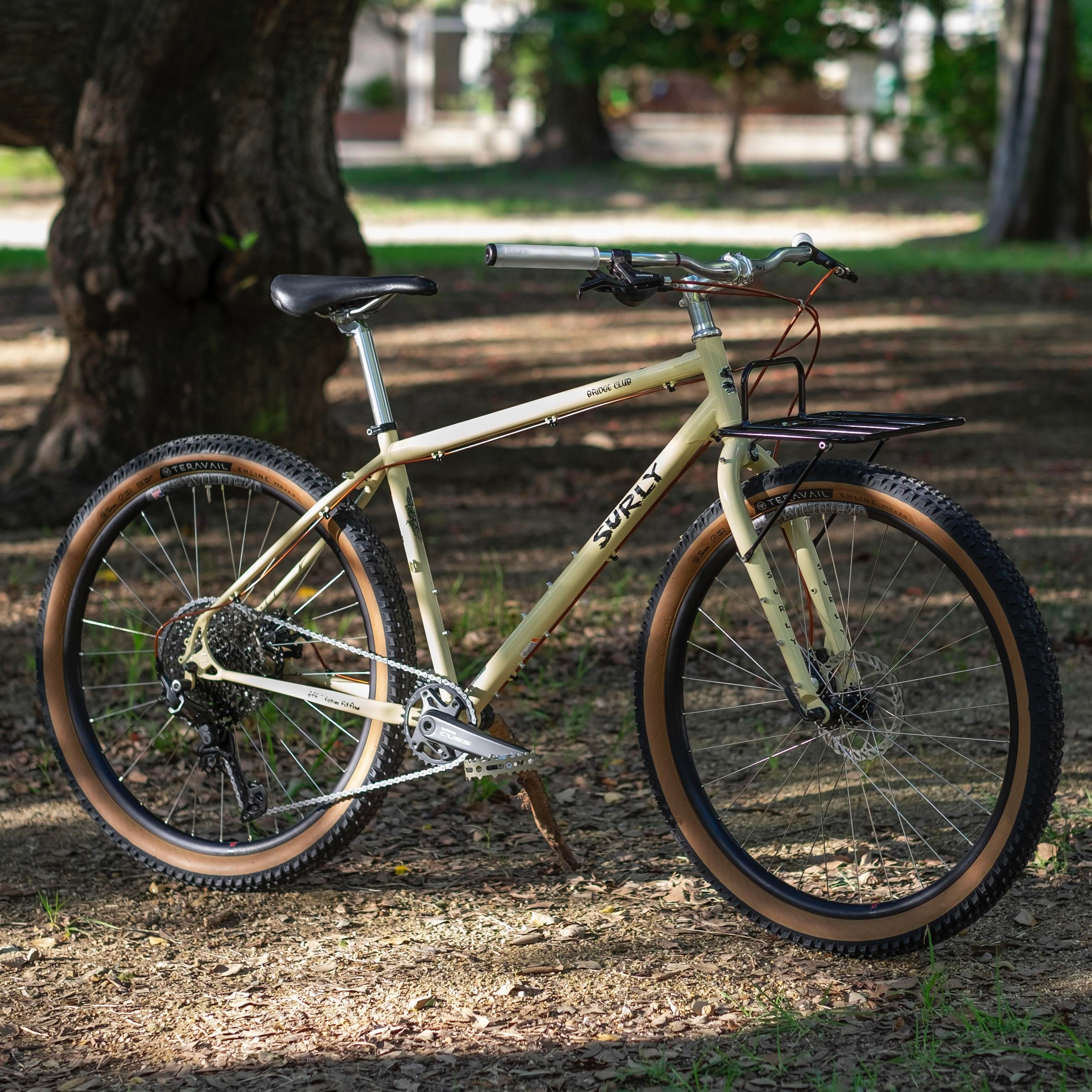

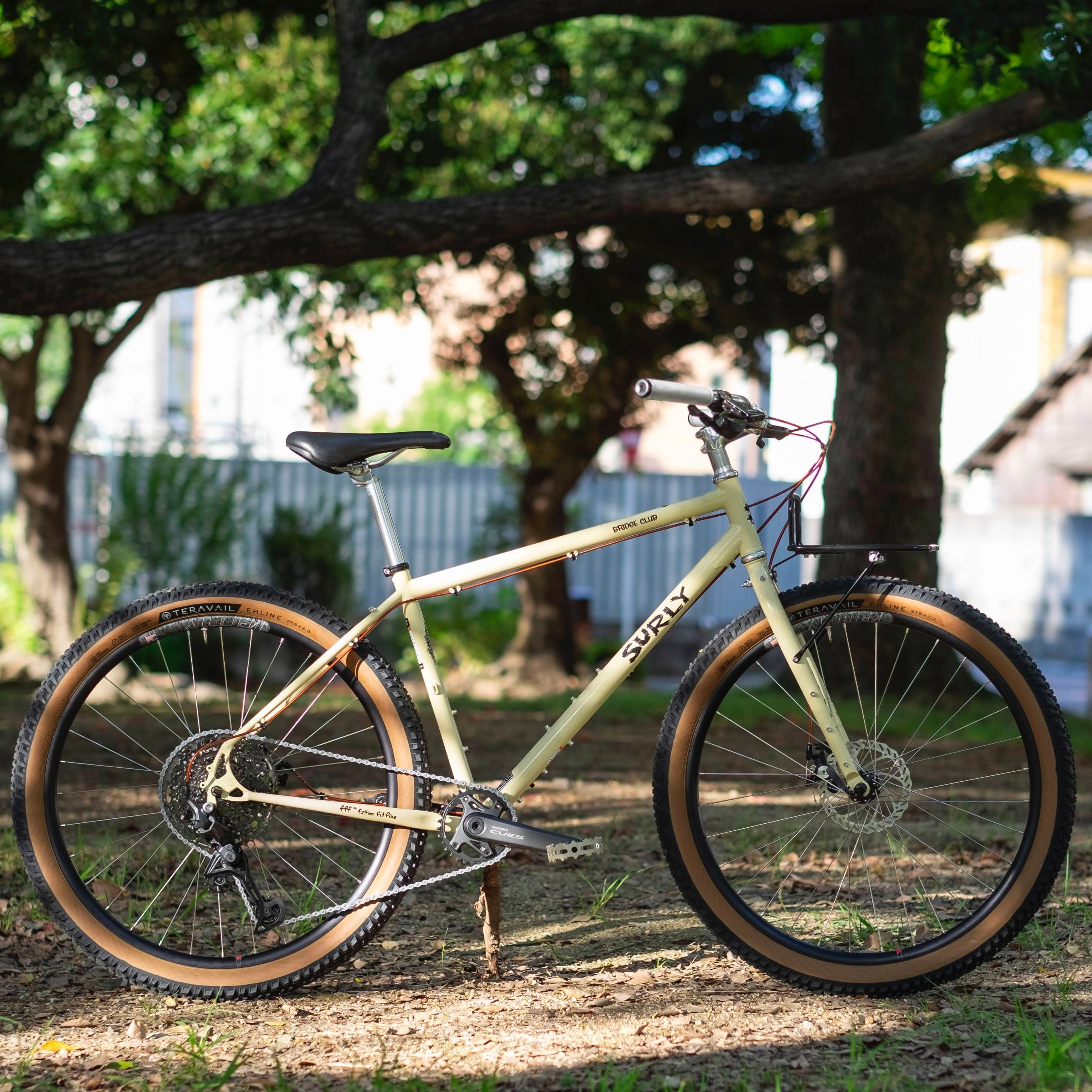

An all-road touring bike for all purposes, theBridge Club is designed to be customizable with a variety of tire sizes.
700c up to 47c for paved roads, 27.5 x 2.8" for those who want to stop and ride on unexpected dirt roads, and 26 x 3" for those who want to have a lot of fun on dirt roads.
The rear end width is 138mm and is compatible with either 10x135mm hubs or 10x141mm hubs.
Numerous eyelet mounts can accommodate your choice of touring style, from classic style touring with panniers and racks to simple bikepacking style touring.
Another appealing point is that you can easily start with the minimum required specs for bags and other options for touring, keeping the price of the vehicle to a minimum.
The Bridge Club is a bike that will help you discover that "the best adventures are hidden in the ordinary roads of everyday life.
The Bridge Club is the first bike for those who want to experience the profound charm of chromoly frames.
[SPEC]
|
Frame Construction |

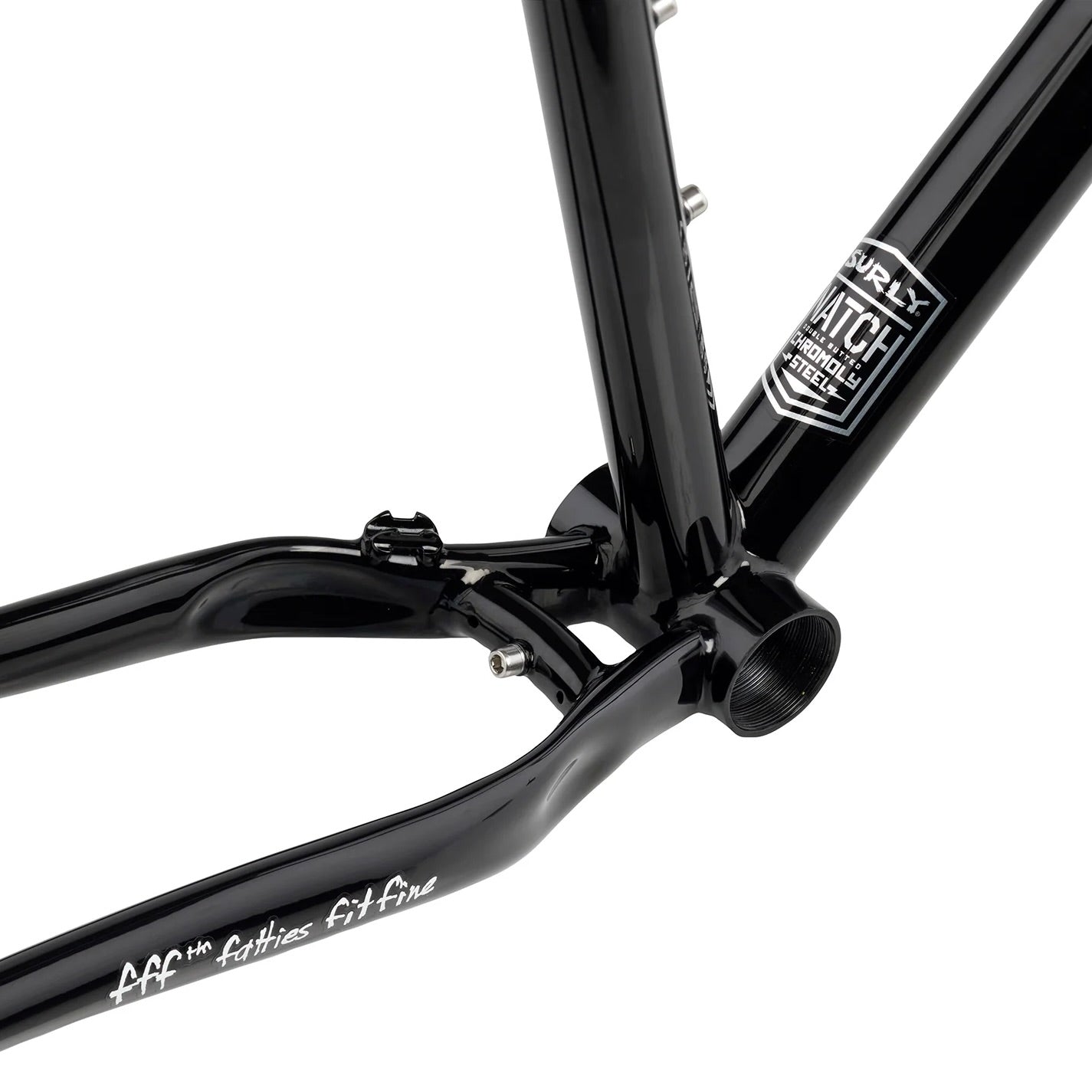

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
| Fork Construction | 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated |

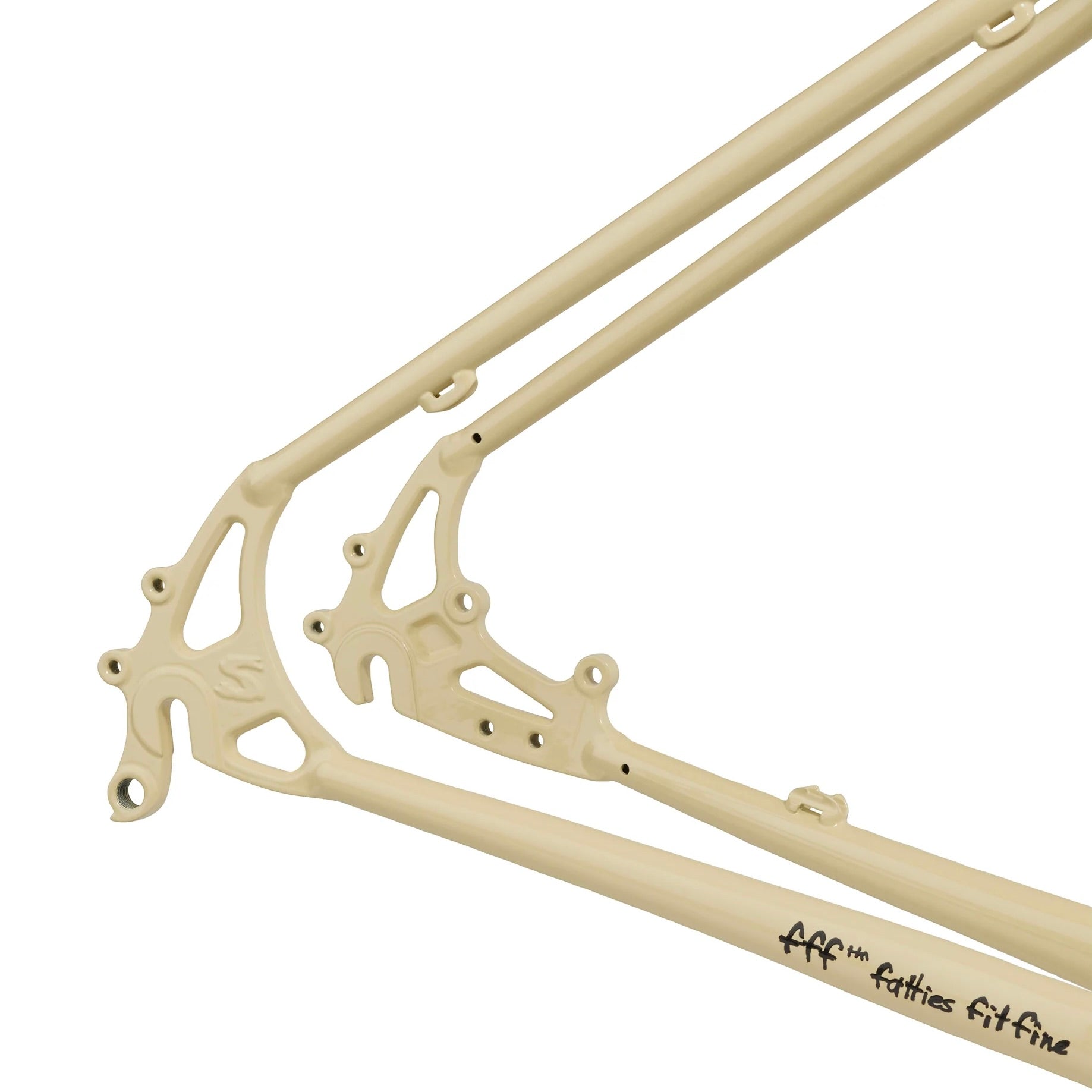

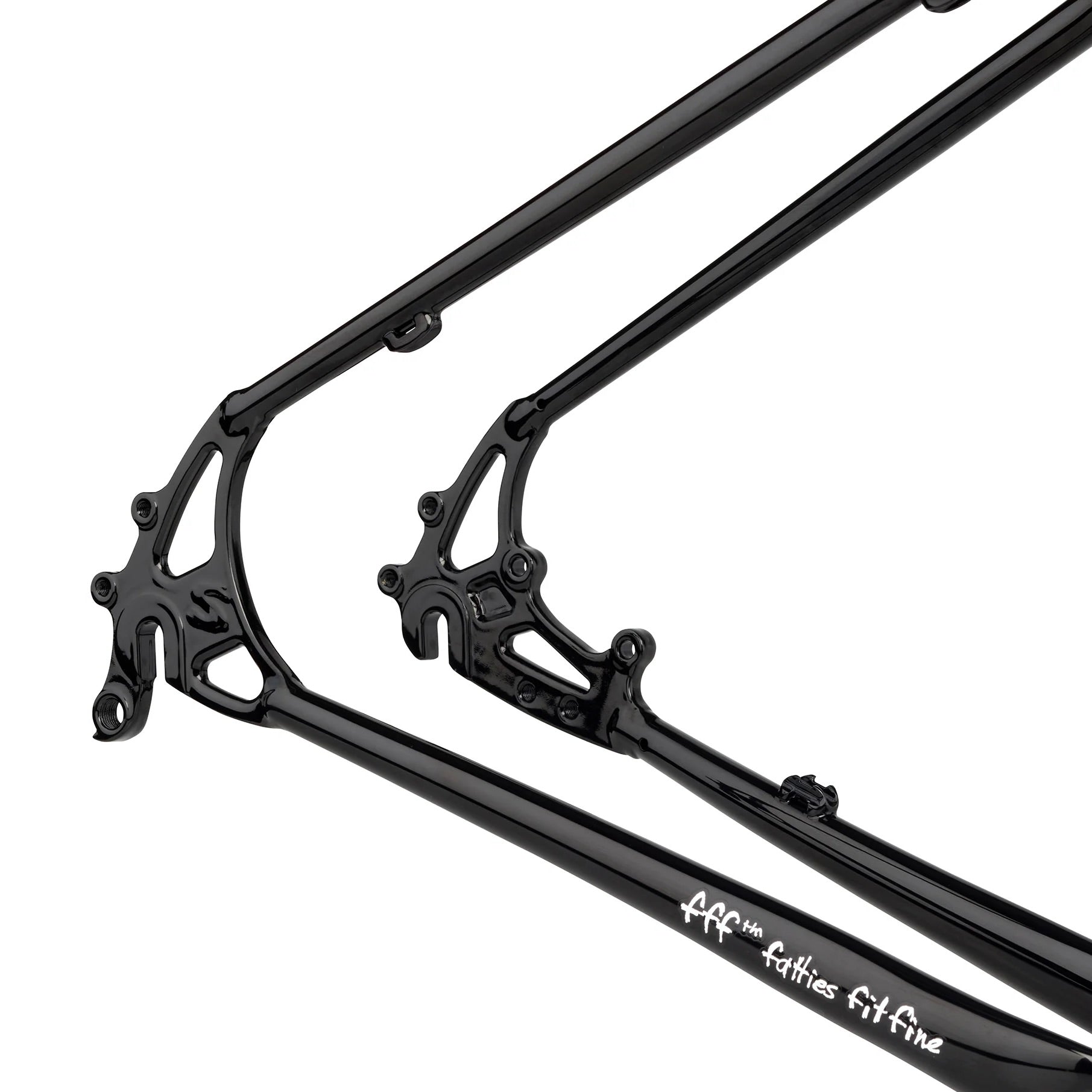

| Rear Dropout Configuration | Vertical ,"Gnot-Boost" 138mm |
| Rear Hub Spacing |
10 x 135mm or 10 x 141mm |
| Front Hub Spacing | 10 x 100mm |
| Rear Brake | 51mm IS (180max) |
| Front Brake | 51mm IS (203max) |
| Headtube | Ø34mm |
| Steerer Tube | Ø28 .6mm (1-1/8″) |
| Crown Race | Ø30mm (1-1/8″ ) |
| Stock Headset Upper (S.H.I.S) | EC34/28.6 |
| Stock Headset Lower (S.H.I.S) | EC34/30 |
| Seat Collar | Ø30.0mm |
| Seatpost | Ø27.2mm |
| Front Derailleur (Clamp) | Top Pull (Ø28.6) |
| Max Chainring (CL) [3] | 1x(Mtn): 42t |
| 2x(Mtn): 26/40T | |
| 3x(Mtn): 22/36/44T | |
| 1x(Boost): 40t | |
| 2x(Boost): 32/42T | |

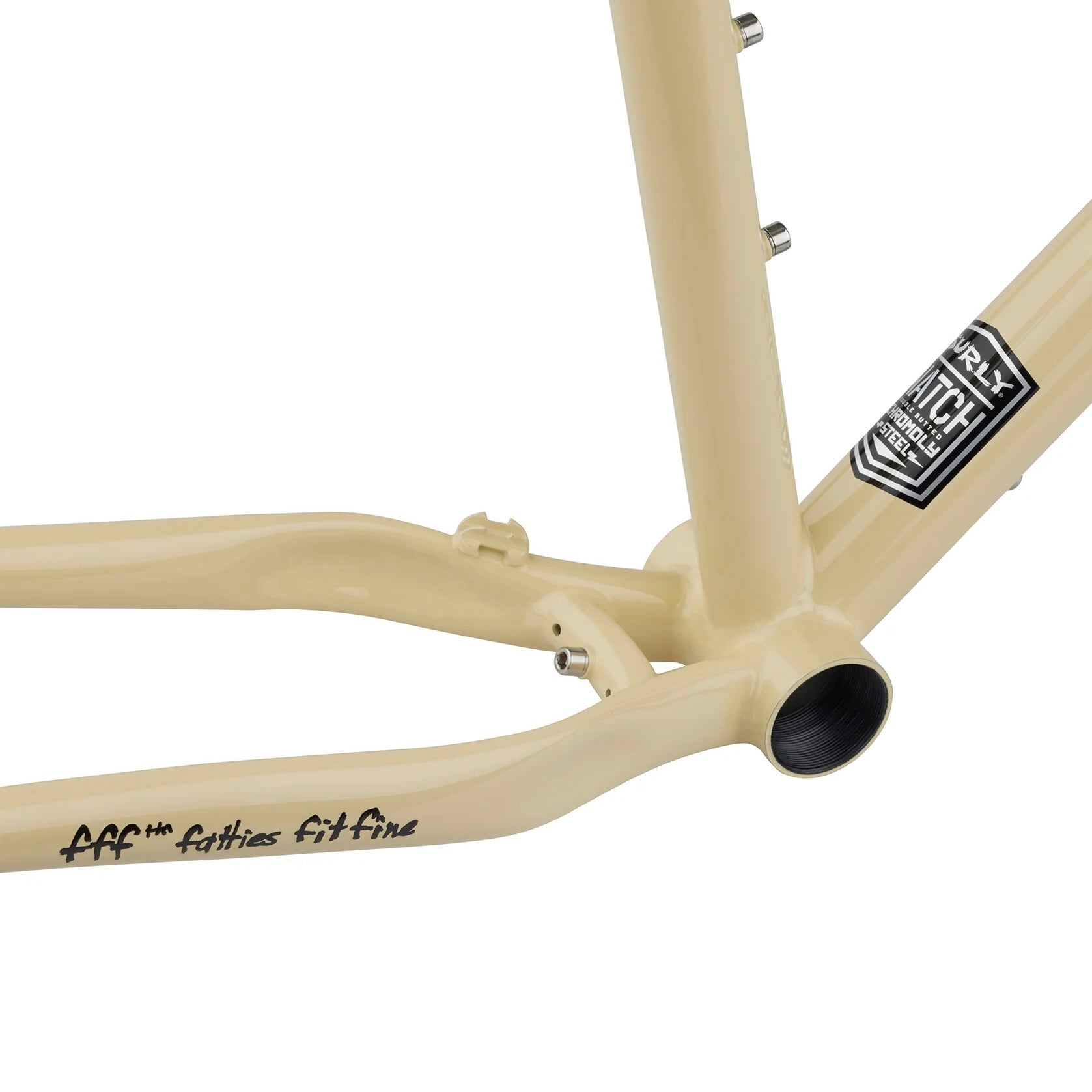

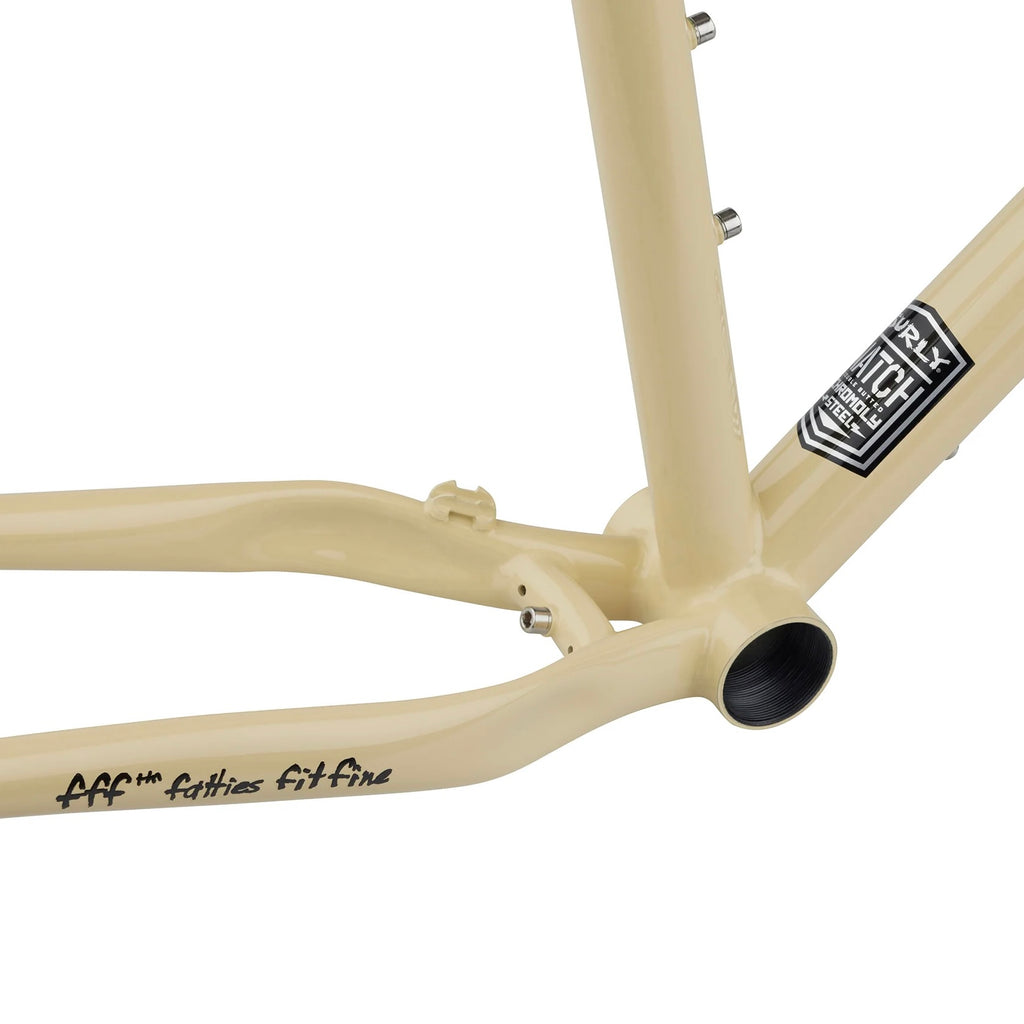

| Bottom Bracket | 73mm threaded (1.37″ x 24TPI) |
| Tire Clearance Frame [1]/[2] |
27.5 x 2.8″ (27.5 x 2.6″ with fenders) |
|
700c x 47 with or without fenders |
|
|
26 x 3.0″ (26 x 2.8″ with fenders) |
|
| Tire Clearance Fork [1] |
27.5 x 2.8″ (27.5 x 2.6″ with fenders) 700c x 47 with or without fenders |
| Rigid Fork Spec | 420 x 43mm |
| Bottle Mounts Frame |
2 Three-Pack (XS) 1 Standard + 2 Three-Pack (S - XL) |
| Bottle Mounts Fork | 2 Three-Pack |
| Rack Mounts Frame | Yes (upper and lower threaded) |
| Rack Mounts Fork | Yes (upper, lower, and mid-blade threaded) |
| Fender Mounts Frame | Yes (upper and lower threaded) |
| Fender Mounts Fork | Yes |
[GEOMETRY]
| Size | X-Small | Small |
|---|---|---|
| A. Effective Top Tube(mm) | 545 | 570 |
| B. Stand Over(mm) | 709 | 750 |
| C. Reach(mm) | 376 | 397 |
| D. Stack(mm) | 553 | 567 |
| E. Total Seat Tube Length(mm) | 335.6 | 406.4 |
| F. Headtube Length(mm) | 110 | 120 |
| G. Headtube Angle(°) |
70.0
|
71.0
|
| H. Seat Tube Angle(°) |
73.0
|
73.0
|
| I. BB Drop(mm) | 60 | 60 |
| K. Chainstay Length(mm) | 435 | 435 |
| L. Fork Length Axle to Crown(mm) | 420 | 420 |
| M. Fork Offset(mm) | 45 | 45 |
| N. Wheelbase(mm) | 1032.0 | 1047.5 |
| Recommended Rider Height(cm) | 145 - 160 | 155 - 170 |
