SIMWORKS Doppo MTB Fork

SIMWORKS DOPPOSKU: SWDP002-F-1

Color: ED Coat

Description

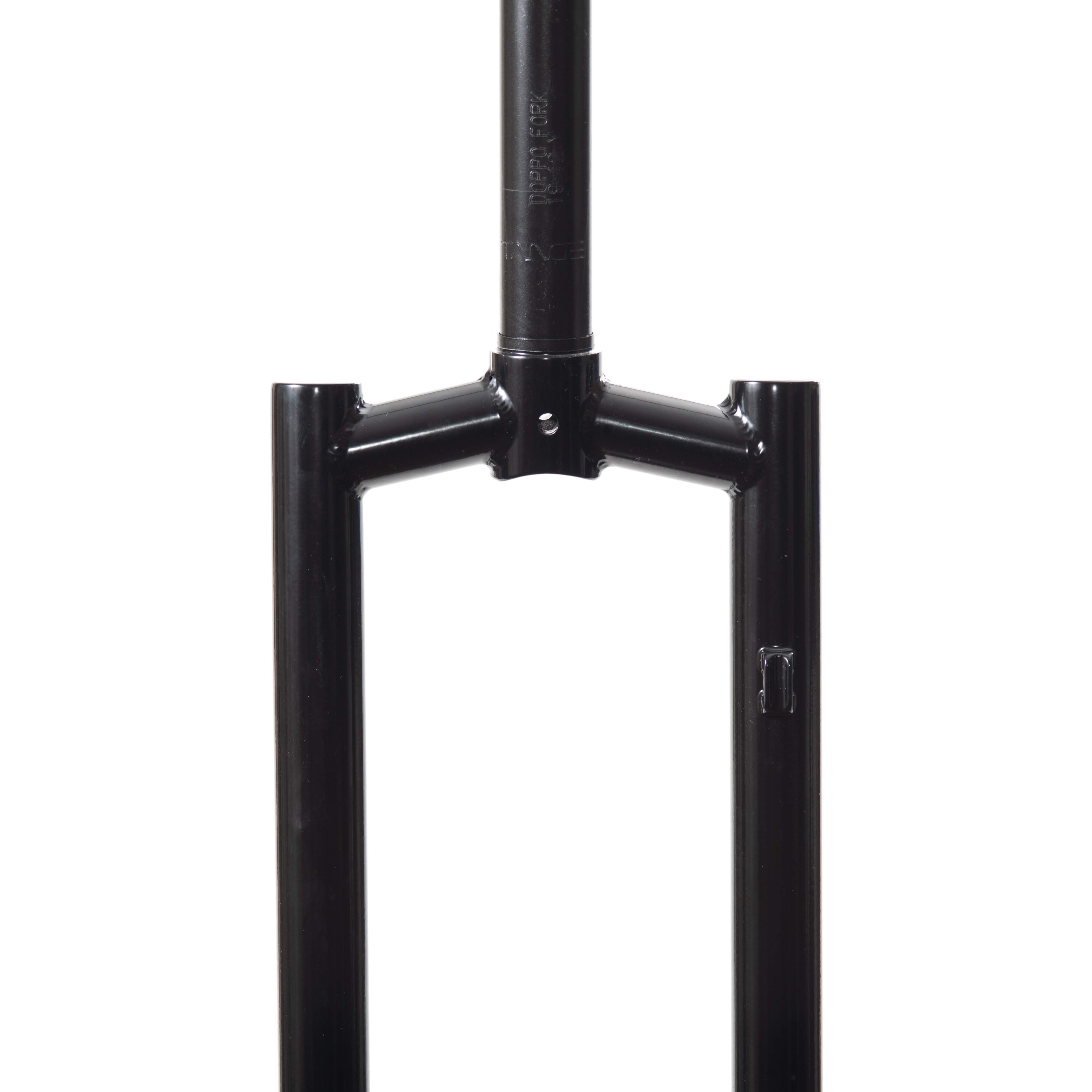

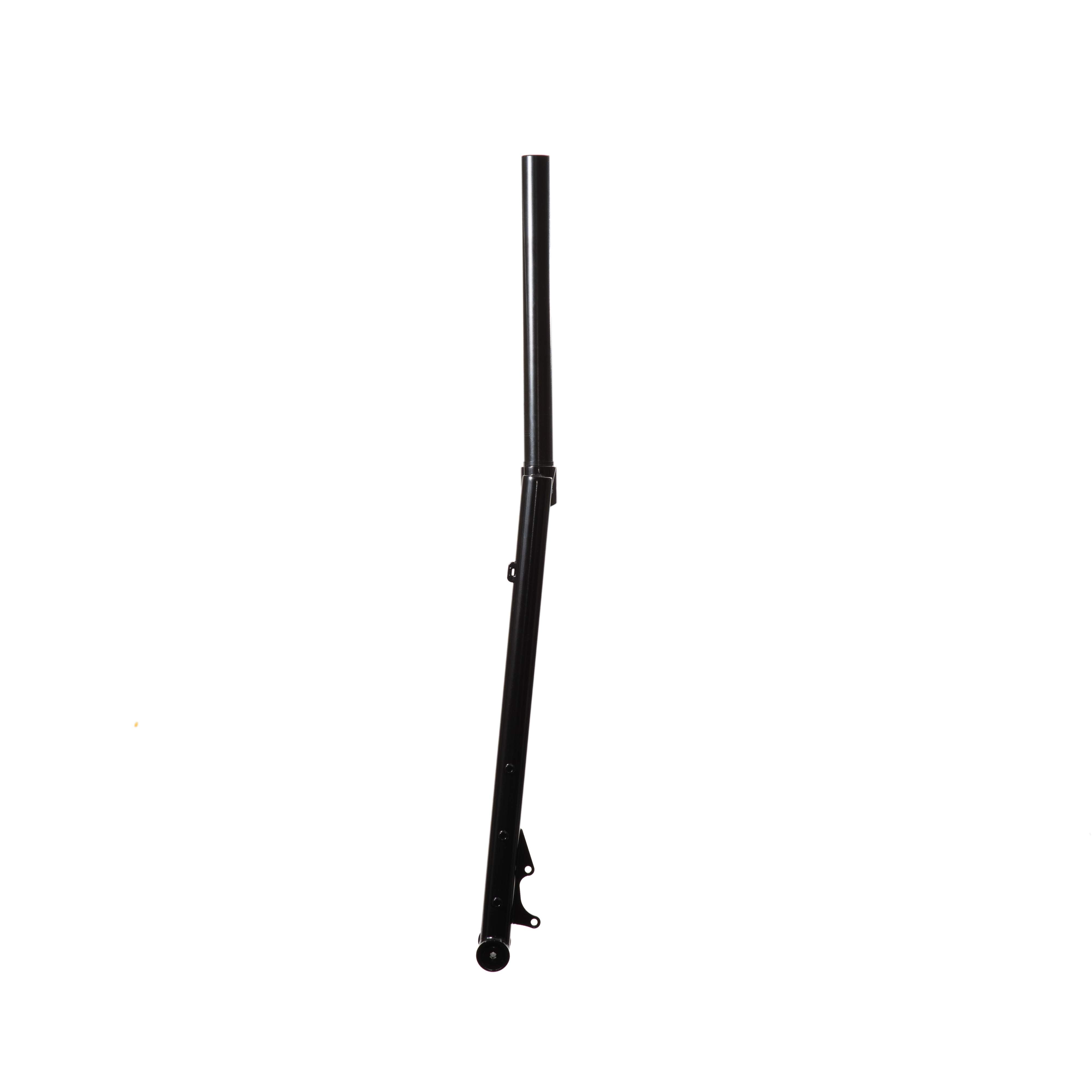

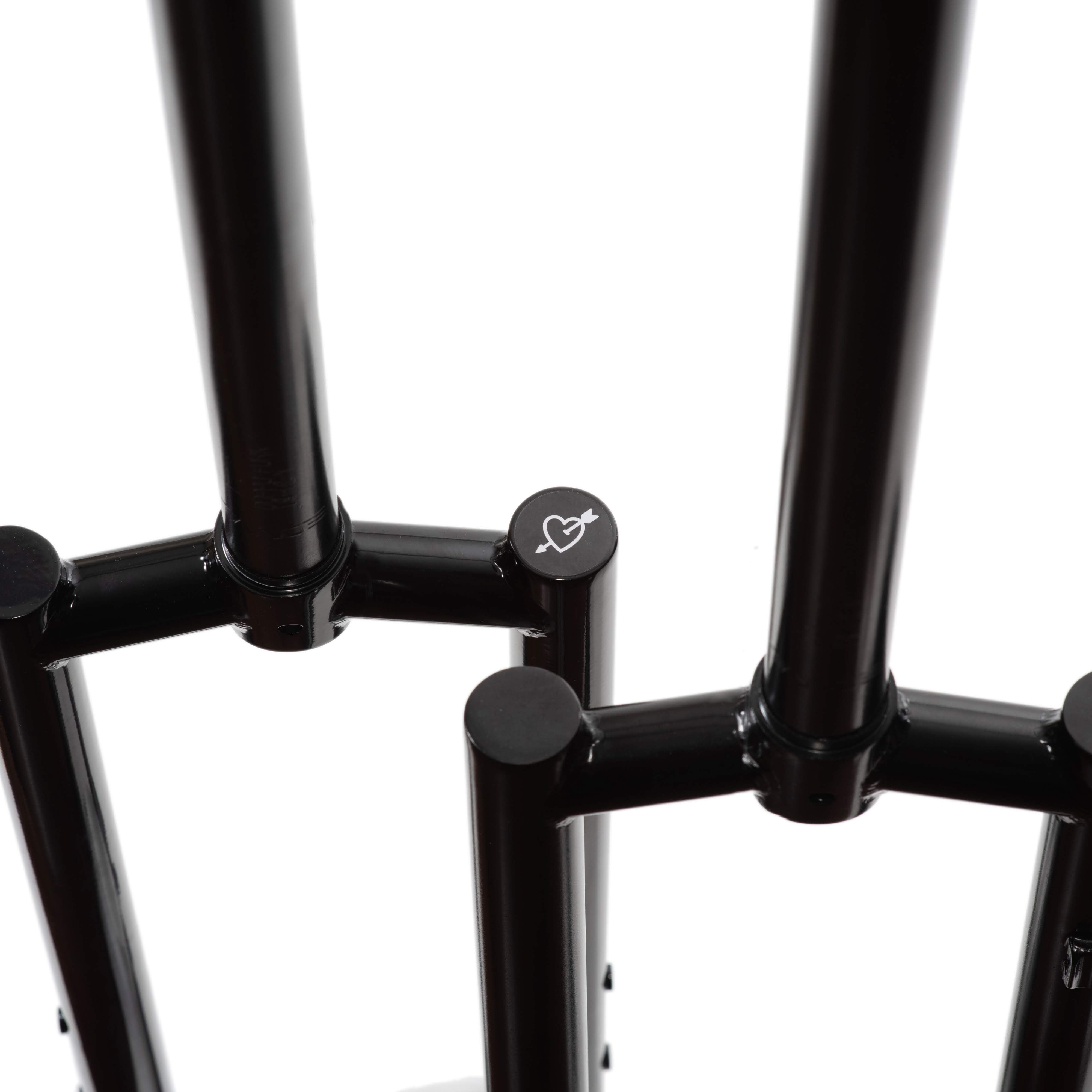

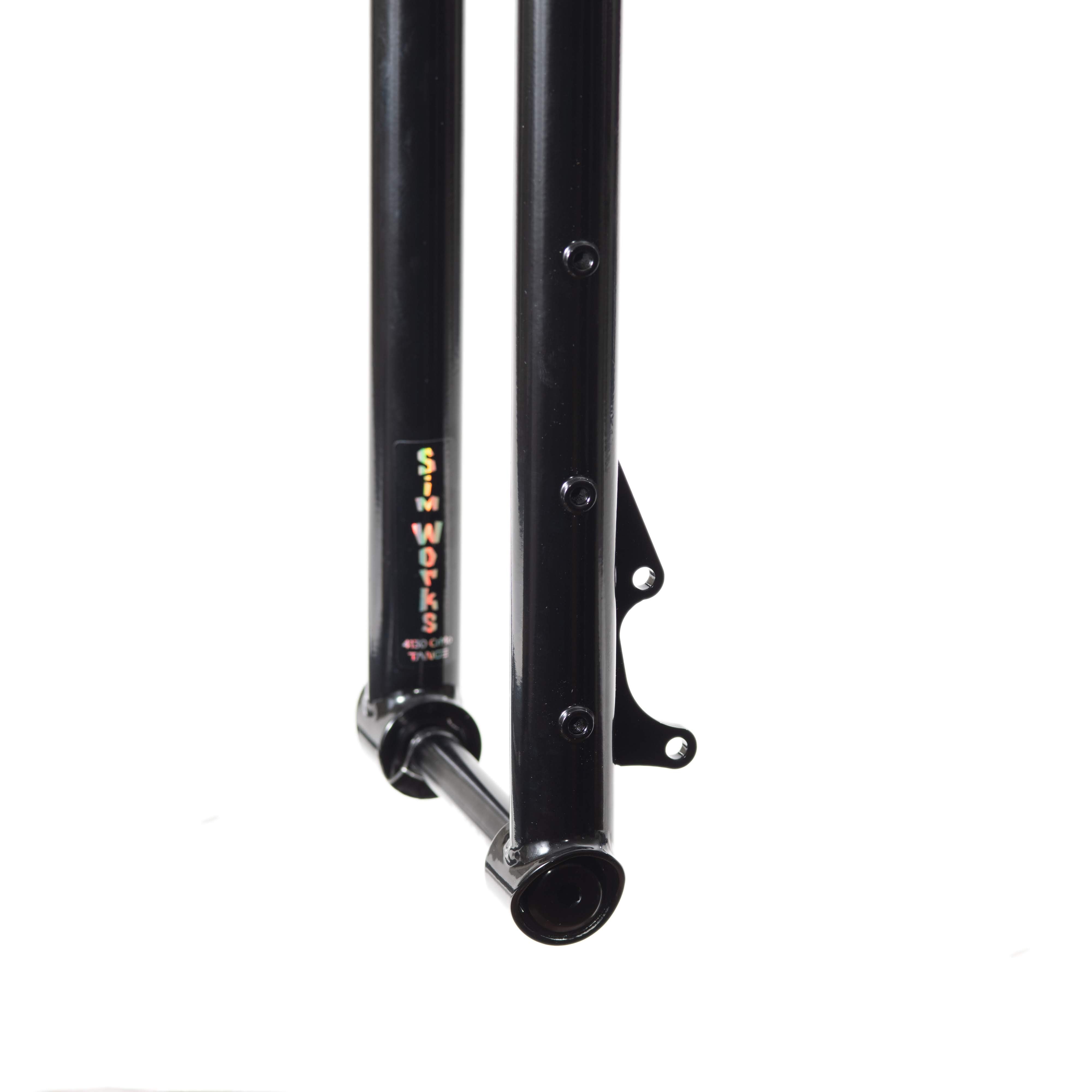

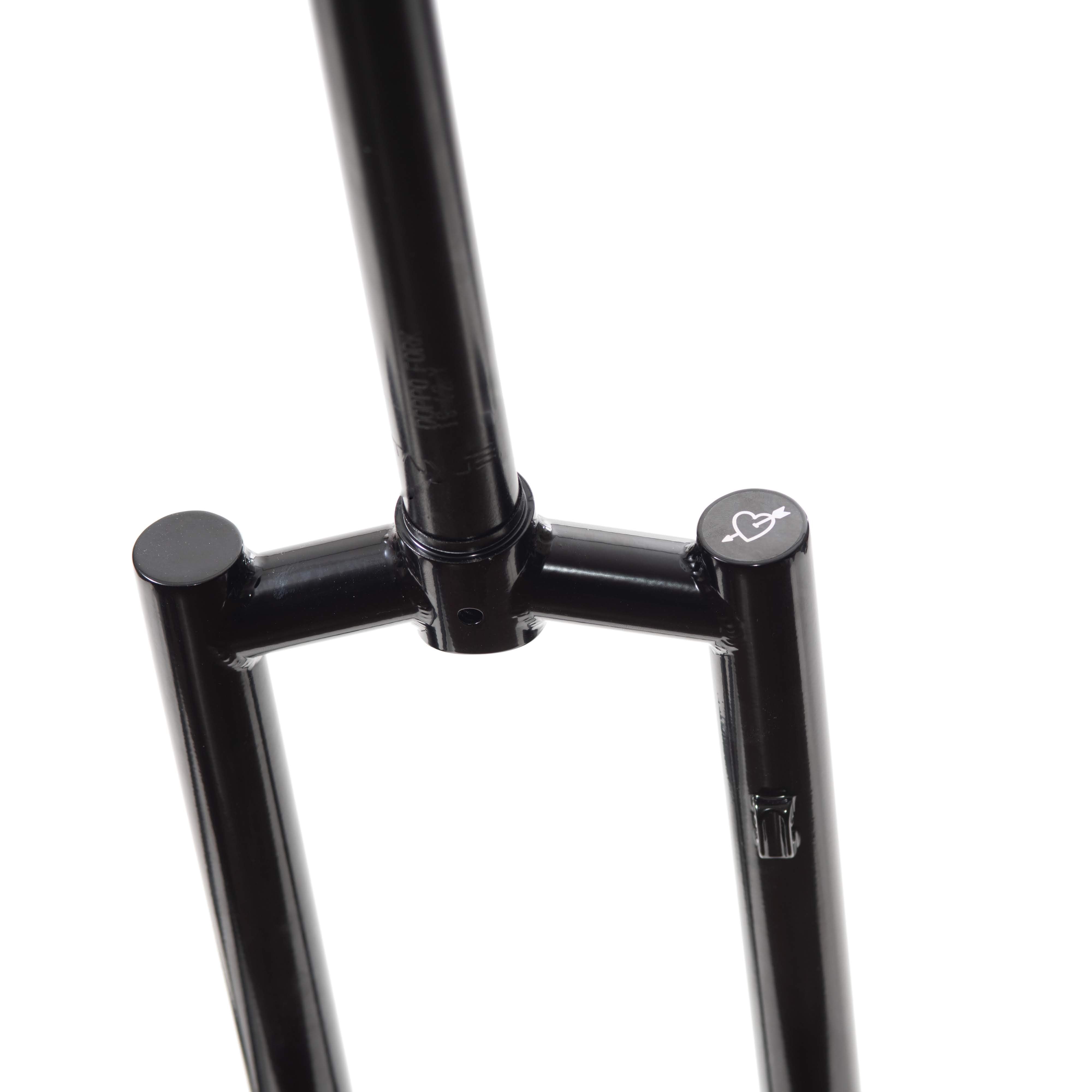

The stylish, segmental-style chromoly fork with full eyelets for bikepacking is a multi-purpose rigid fork with original machined 15mm through-axle ends, manufactured to a rigid, purpose-built design.

It can be used with 27.5" plus tires up to 2.8, allowing for trail riding on a full rigid bikE

The column size is standard oversize (1-1/8") to reduce weight and increase the options of bikes that can be fitted, both old and new.

We asked the world-renowned Tange Corporation to manufacture this product.

*This product comes with one layer of ED coating (black) to prevent rust.

*It is also possible to deliver the product with your choice of paint separately, so please feel free to ask us.

Fork Specifications

  • TANGE doppo original segment fork
  • Axle crown base: 465 mm
  • Rake value: 47 mm
  • MAX tire clearance: 27.5 x 2.8 / 29 x 2.4
  • Material: Tange chromoly tubing
  • Column length and crown size: 300 mm / 1-1/8" straight
  • End standard: 15mm x 110mm BOOST
  • Reference weight: 1880g
  • Eyelets for 3-hole cage on both fork legs
  • Through axle included
