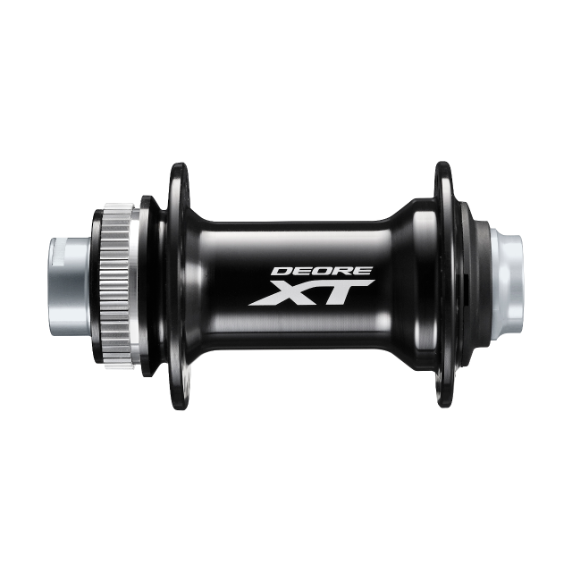

SHIMANO Front Hub HB-M8010 Thru

SHIMANO

SKU: EHBM8010AX

¥11,638

Taxes included. Shipping calculated at checkout.

GORILLA SPUN — HAND BUILT WHEELS

Gorilla Spun can build a wheel with this hub, and help you choose the parts to go with it. Build fee ¥5,000 per wheel, about 2 weeks with parts in stock.

Ask about building with this hub →About Gorilla Spun →See stock wheels →

The SHIMANO HB-M8010, from the DEORE XT (M8000 series), is a Center Lock disc brake front hub for 15x100mm thru axles (E-THRU).

With high-quality seals and angular contact (cup and cone) bearings, it offers all-weather durability and dependable, smooth rotation. It is also lighter than the quick release HB-M8000.

Cup-and-cone hubs can be adjusted and kept running for many years, which makes them a great match for hand-built wheels.

*The thru axle is not included. Please use the axle that comes with your fork.
*Not compatible with Boost (15x110mm) forks.

[SPEC]

Series: DEORE XT M8000
Axle: 15x100mm E-THRU (thru axle supplied with the fork)
O.L.D.: 100mm
Brake: Center Lock disc
Bearings: Angular contact (cup and cone)
Seal: Labyrinth + contact
Holes: 36H
Weight: 148g (manufacturer's figure)

Build this hub into a wheel.

Circles' wheel shop, Gorilla Spun, hand-builds wheels one at a time. Pick a rim with the same number of spoke holes, and we'll work out the spokes and build it.

This hub SHIMANO Front Hub HB-M8010 Thru ¥11,638

Rim Same hole count

Spokes and nipples One per hole Length calculated from your rim and hub

Build fee ¥5,000 per wheel

About 2 weeks when all parts are in stock. Shipping ¥2,000 within Japan (excluding remote islands). We also take orders from overseas.
