Description
RITCHEY Outback
Tom Ritchie welded his first bicycle in his parents' garage when he was only 15 years old. Since then, he has been riding, researching, designing, and building legendary bicycle frames.
Tom's creations have provided generations of cyclists with the best riding experience, have had a profound impact on the cycling industry, and have produced countless champions.
Along with his mentor Jobst Brandt and his ever-changing group of fellow riders, Tom set out on an adventure, riding all day long on endless paths, trails, and dirt roads.
There is no doubt that that riding experience from nearly 50 years ago has directly influenced the bikes we ride today, like this iconic Ritchey Outback from the world of gravel and adventure biking.

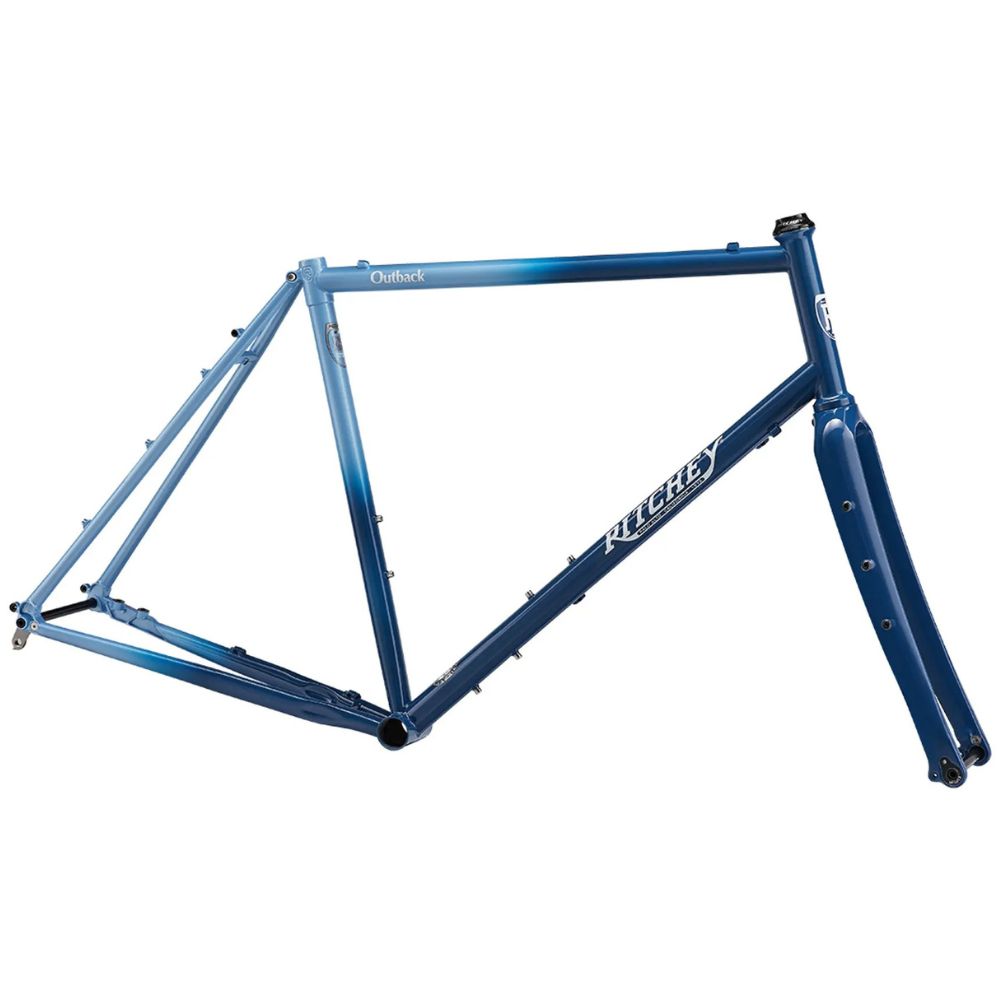

In honor of Ritchey's 50th anniversary and Tom's strong passion for off-road adventure, the 50th Anniversary Outback proudly sports a Half Moon Blue paint job, and the stunning light blue to deep blue fade is unintentionally inspiring. It is adorned with a special logo that represents the history of the Ritchie Company and the influence that Palo Alto, California has had on Tom.
As beautiful as this special Outback looks, it is loaded with practical and adaptable features that allow riders to pursue an epic riding experience beyond the endless road and the end of the day.
It also offers new riding possibilities by allowing clearance for both700cx48mm and 650bx2.0in tires.
Compatible with flat-mount disc calipers and featuring three dowel holes on each side, the all-carbon fiber Ritchie Adventure fork can be loaded without worrying about luggage.

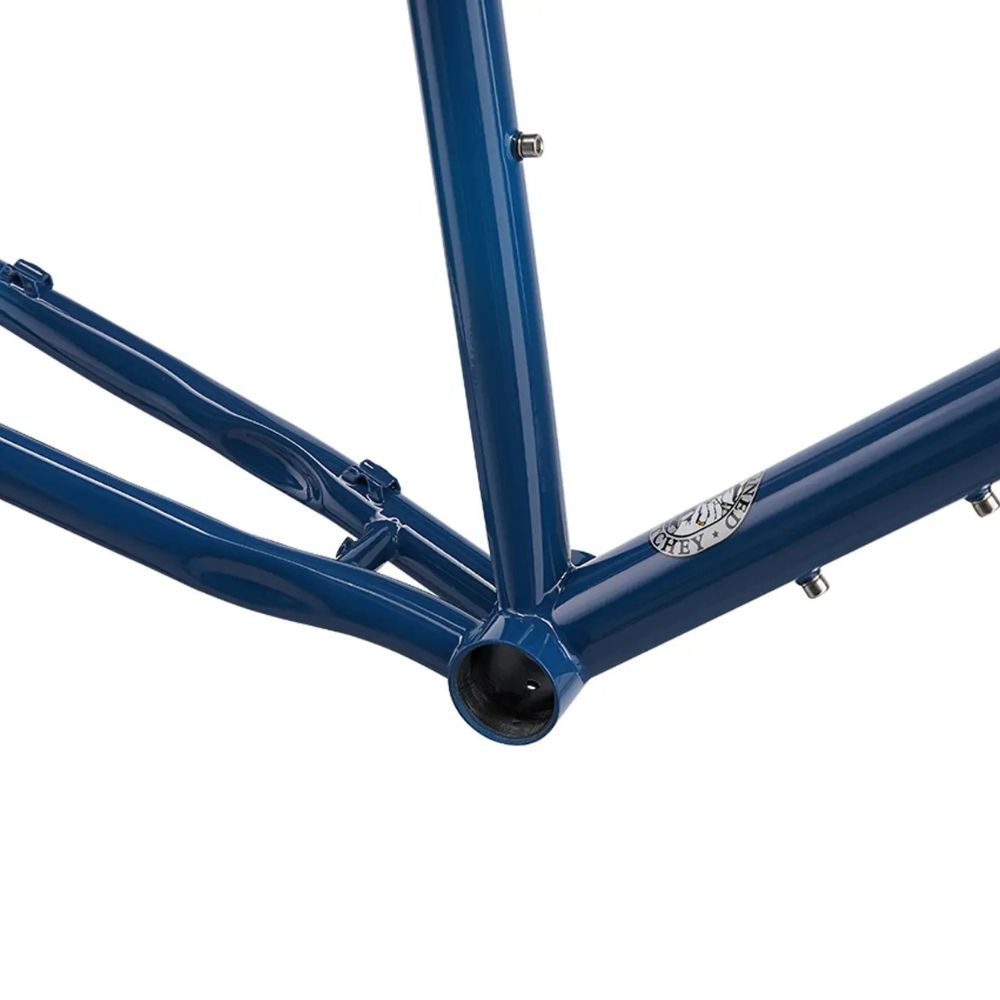

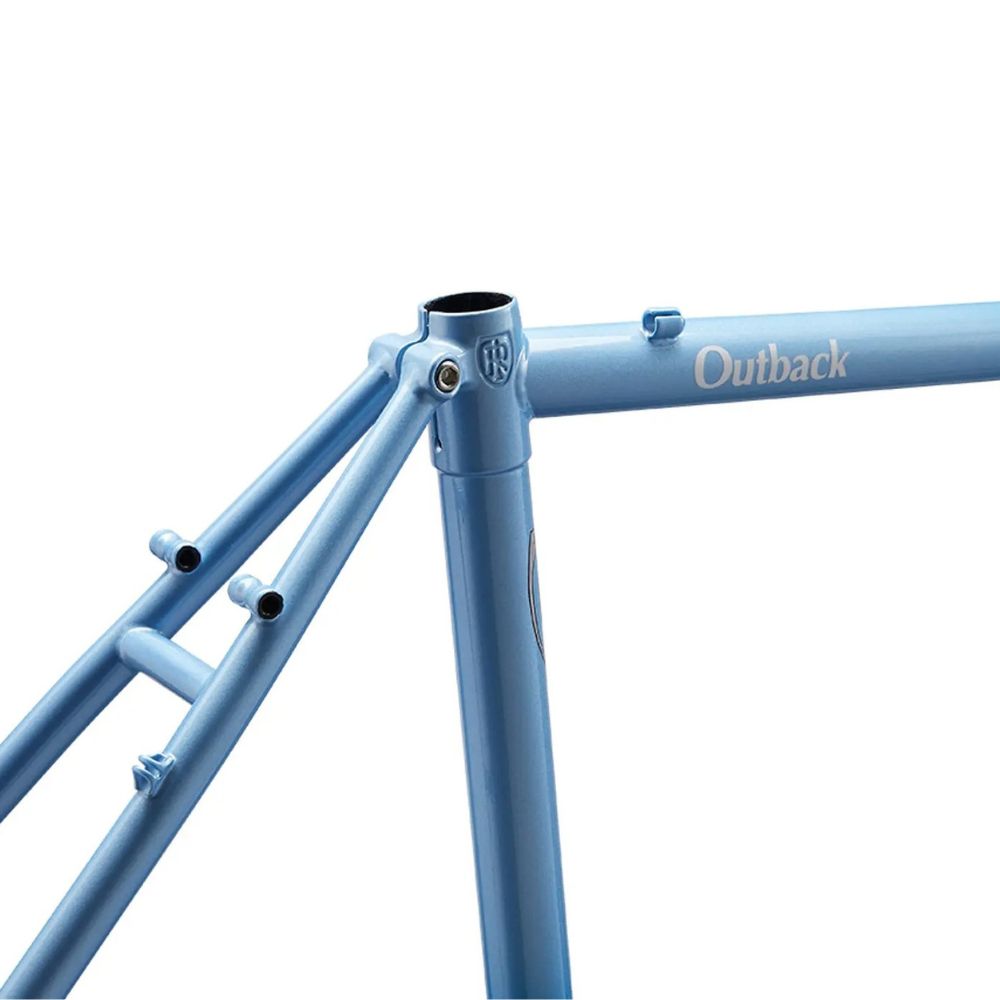

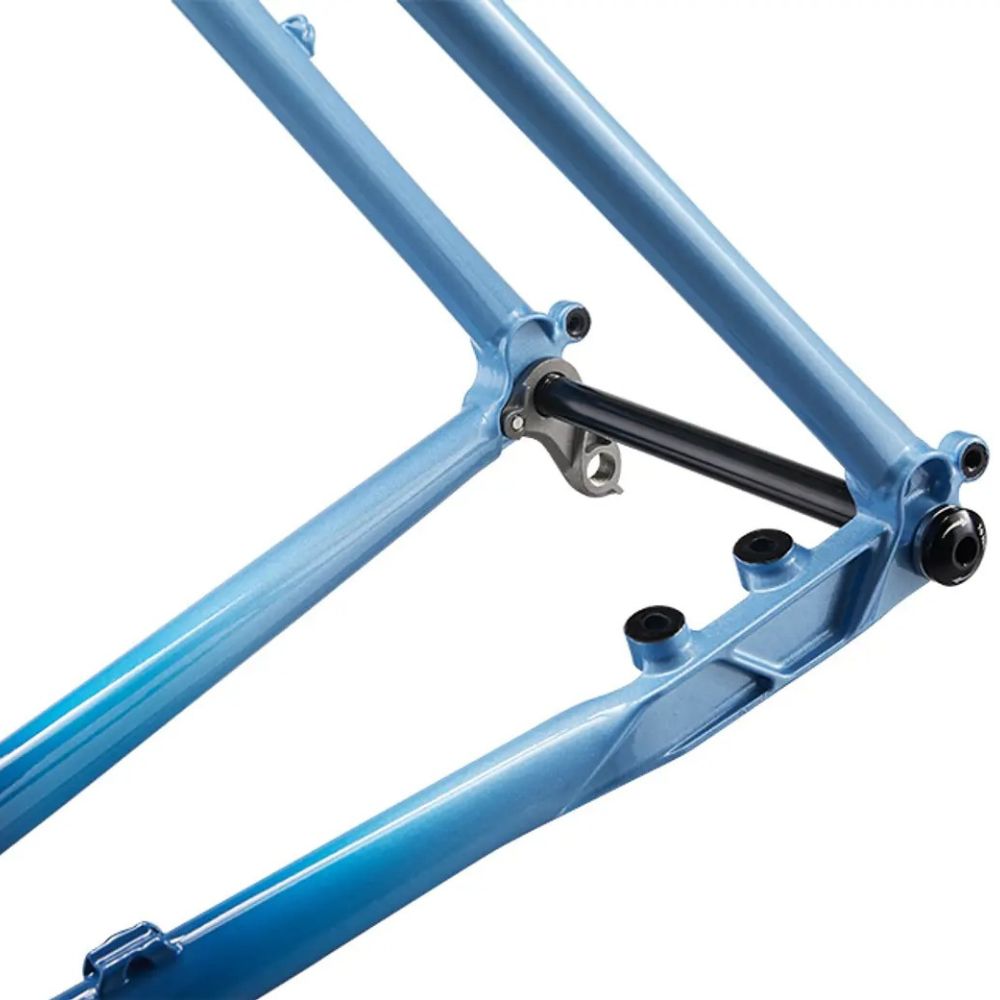

The Outback frame with TIG-welded triple-butted steel tubing brings back Ritchie's legendary ride.
Bikepacking, road, off-road, trail, expedition touring, etc. ...... The Outback, in Ritchie's 50th Anniversary colors, is designed to do just about anything.
Just thinking about how to put it together is enough to make you drool.
[SPEC
Frame : Triple butted steel frame
Front fork : Full carbon adventure fork
Frame weight : 2,175g (size L, without through axle)
Fork weight : 445g (column uncut, without through axle)

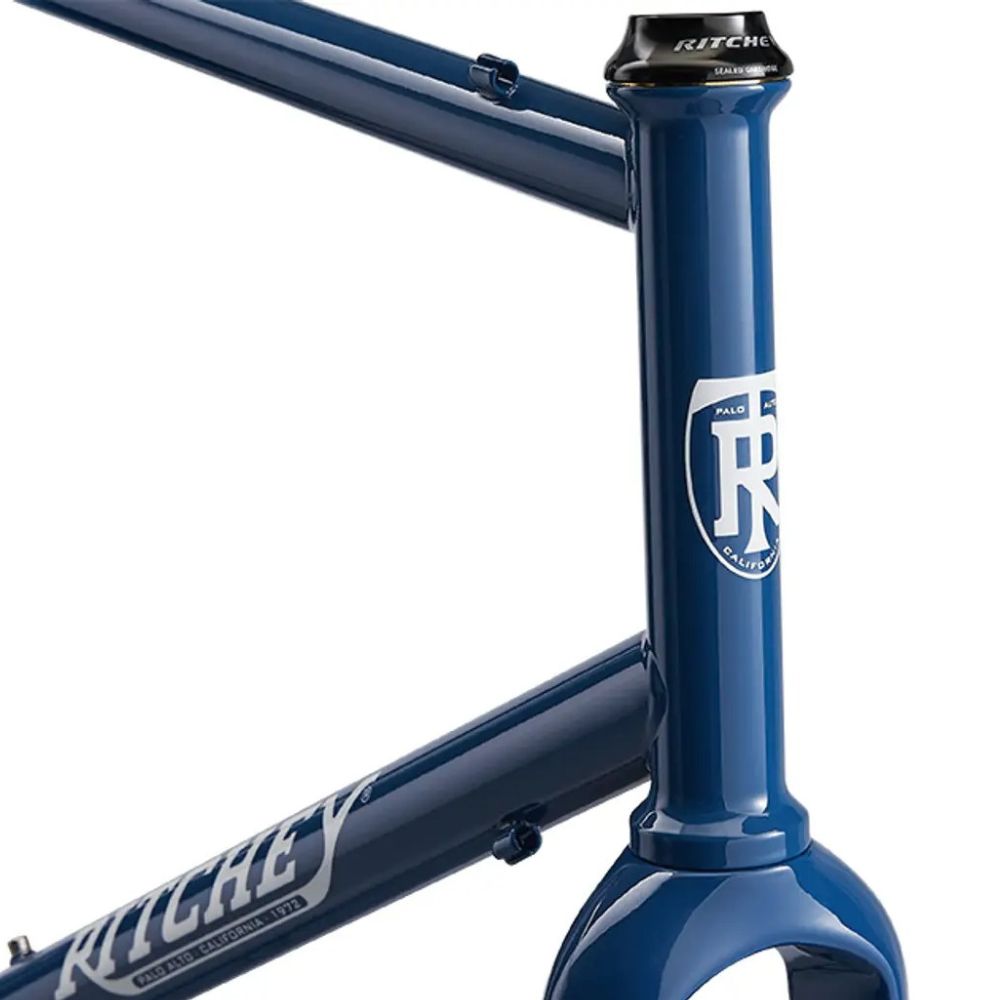

Head tube : 1-1/8"
Headset :WCS Headset included (upper IS42 / 28.6 - stack height 16mm | lower IS42 / 30)
Brake mount :Flat mount
BB : BSA68mm
Frame flat mount bracket height : 10mm

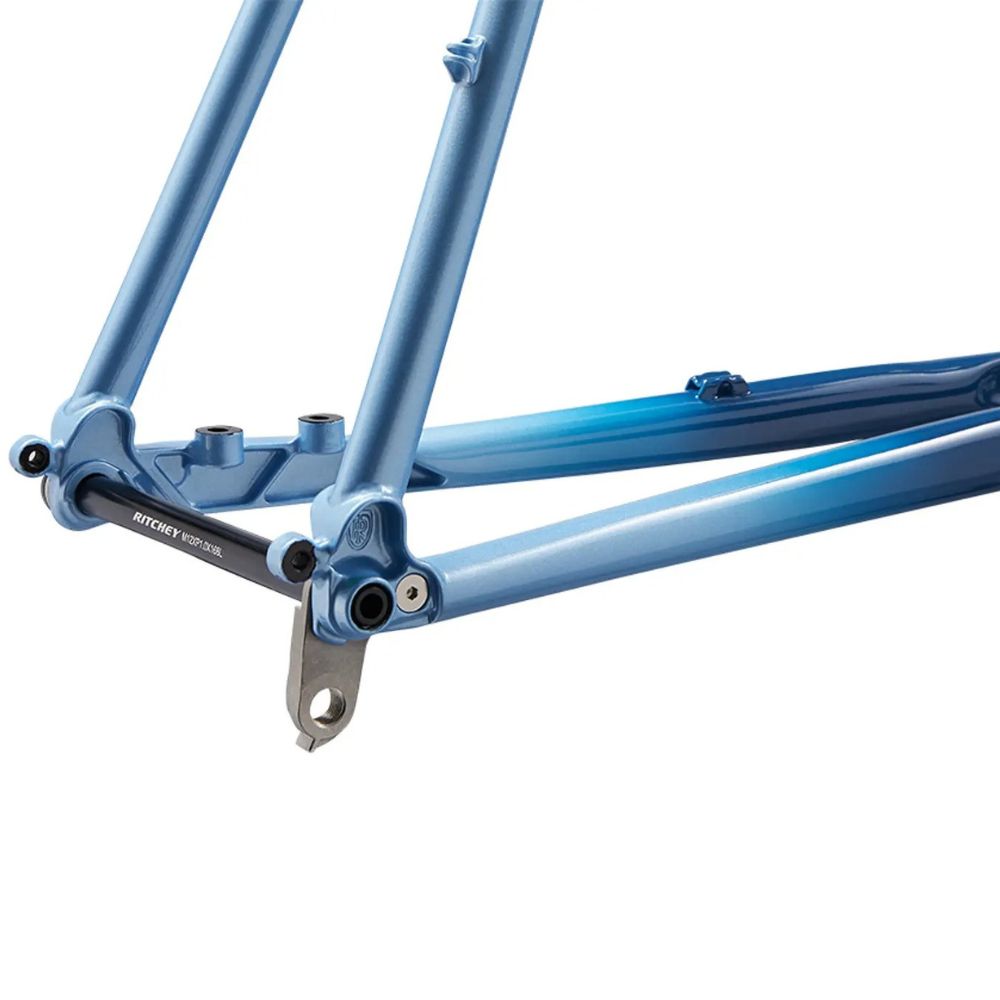

Through axle : front 12x100mm, rear 12x142mm
Compatible chain Ring : Single 36-46T, Double 46/30T - 50/34T
Rotor Diameter : Maximum 160mm compatible (adapter sold separately)
Seat Post Diameter : 27.2mm
Tire Clearance : 700C x 48mm / 650B x 2.0in
FORK SPEC
Fork Weight : 446g (uncut, no through axle)
New Richie Carbon Adventure Fork with rack and fender mount
1-1/8" straight column with integrated 45 degree crown race
100mm spacing (12mm alloy through axle included)
Column Length : 300mm
Axle crown: 393mm
Offset: 50mm
Maximum fork payload: 3kg per side
[GEOMETRY
| Size | XS | S | M | L | |
| Top Tube (effective) | A | 525.9 | 540.6 | 556.5 | 569.8 |
| Top Tube (ACTUAL) | B | 509.8 | 523.7 | 538.5 | 551.9 |
| Seat Tube (c-t) | C | 440 | 465 | 490 | 515 |
| Seat tube angle | D | 74° D | 73.5° D | 73° 73° | 73° 73° |
| Head tube length | E | 115 | 130 | 150 | 170 |
| Head tube angle | F | 69.5° F | 70° F | 70.5° F | 71° F |
| BB Drop | G | 70° 70 | 70 | 68 | 68 |
| Chainstay | H | 453 | H 453 | 453 | 453 |
| Wheelbase | I | 1046.5 | 1052.6 | 1060.4 | 1069.6 |
| Standover Height | J | 753.5 | 772.8 | 795.5 | 817.8 |
| Stack | K | 531.7 | 547.7 | 566.5 | 587.4 |
| Reach | L | 373 | 378 | 383 | 390 |
| Fork | M | 50 | 50 | 50 | 50 |
| Fork length | N | 390 | 390 | 390 | 390 |
| Axle to crown | -390 | 393 | 393 | 393 | 393 |
| Post Diameter | -27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
