RAL

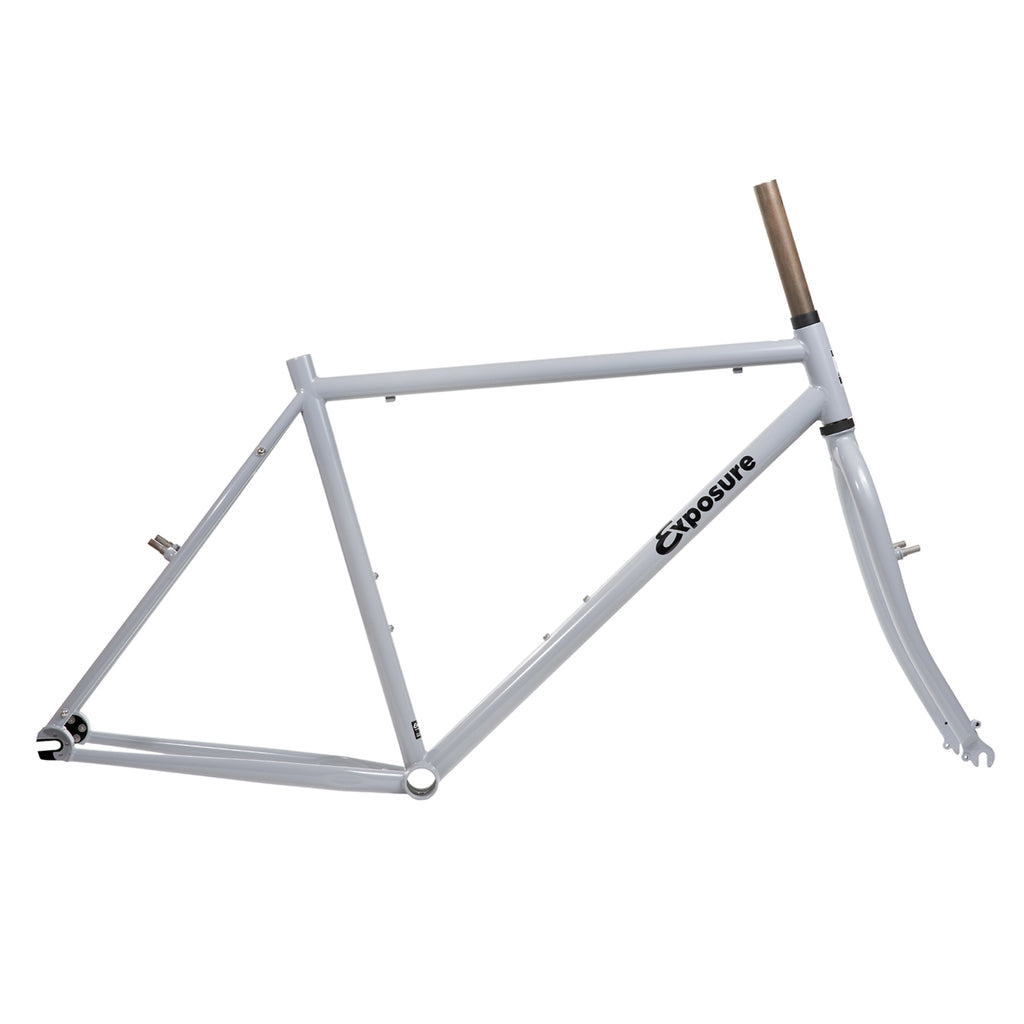

RAL Exposure - Trail Commuter Frameset
SKU:
EXP001-S
¥88,000
Taxes included.
Shipping calculated at checkout.
Check your size based on your height
Check your size based on your height
Shows size options that fit your height. Fit can vary with proportions, riding style, and position, so please use this as a general guide.
Size options
—
Sizing can change with riding style and position. If you are near a boundary, please contact Circles.
The Platform for Your Ideas.
RAL Exposure is the simplest, rule-free single-speed bike.

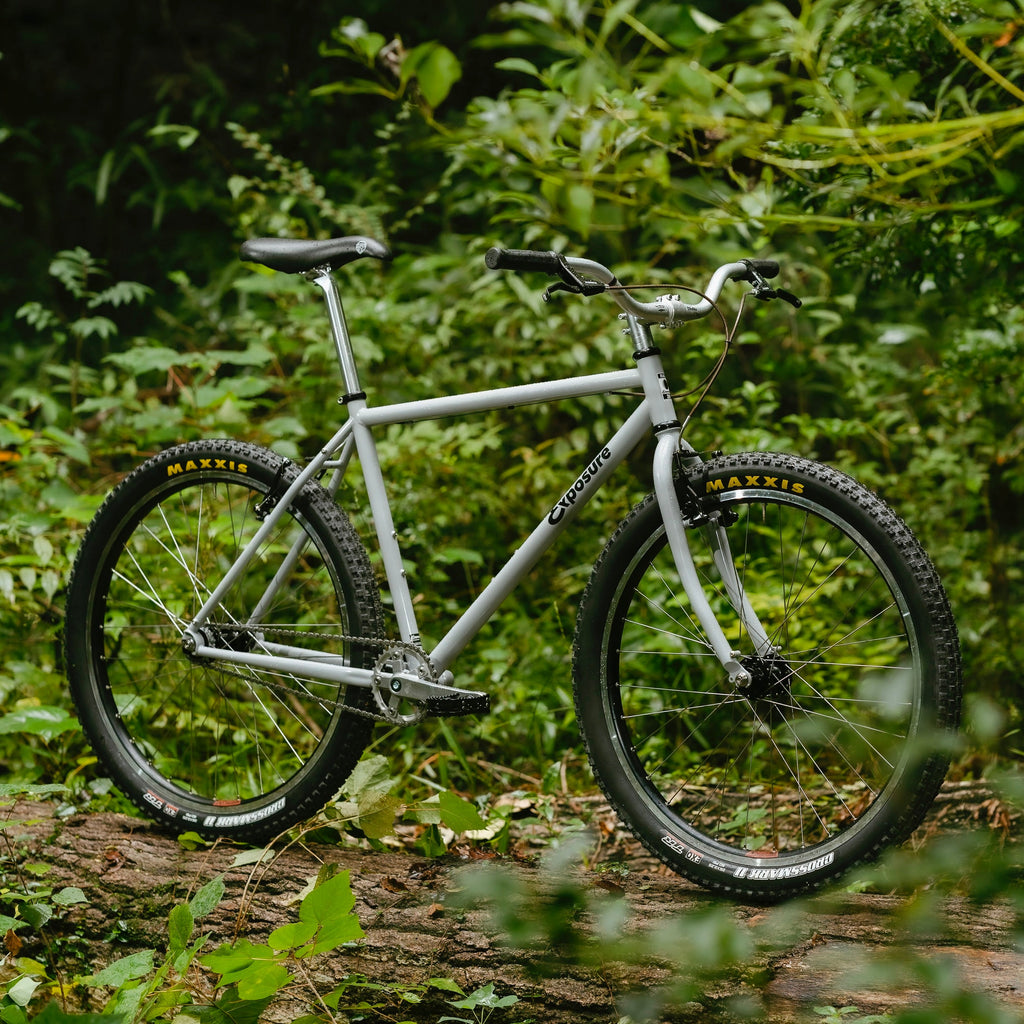

As for specs, it features durable, hard-to-break chromoly tubing and track ends. All this bike needs is your willingness to pedal and your boundless imagination. Ride through the city and onto the trails.From asphalt to dirt trails. The RAL Exposure is a trail commuter powered solely by your legs and your imagination. (Plus, it comes with a little something extra.)
Back to Analog. Capture the Moment.
Take a step back from the digitized world of efficiency and optimization—there are sights to be seen when you embrace simplicity. Analog has its limitations, its noise, and its quirks that don’t always go as planned. But it is precisely within that imperfection that you’ll find a unique kind of freedom. Just like film or vinyl, every moment is one-of-a-kind.Exposure is a vehicle designed to etch “this very moment” into your memory.
RAW: Ride Alternative Way
Things optimized for high efficiency are fine, but when it comes to hobbies and personal enjoyment, I don’t want them to be made too convenient or simple. Precisely because the world is becoming increasingly complex, we need simple choices. Simple functions, simple standards. Nothing superfluous. You decide what to add and how to ride. That’s where true freedom lies.

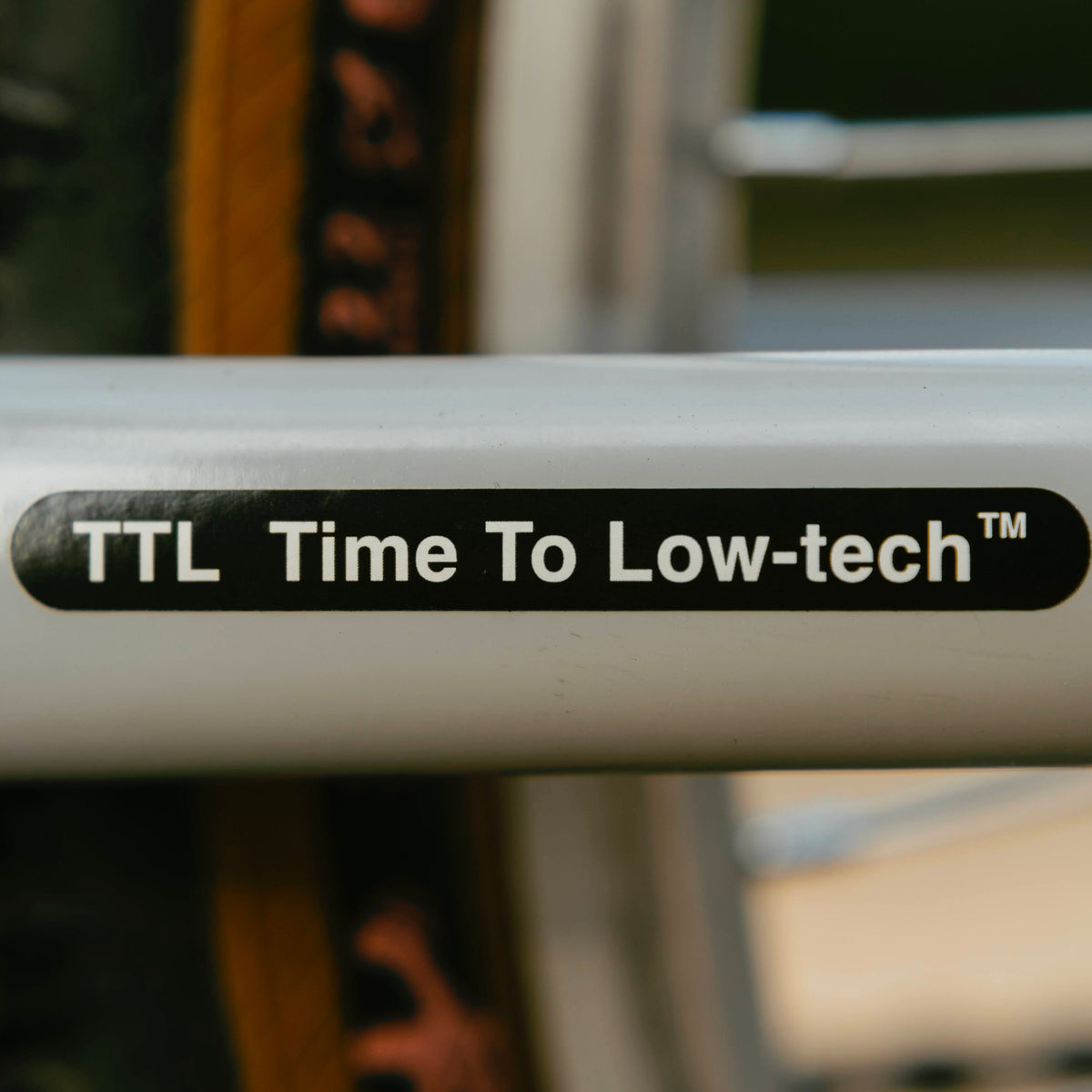

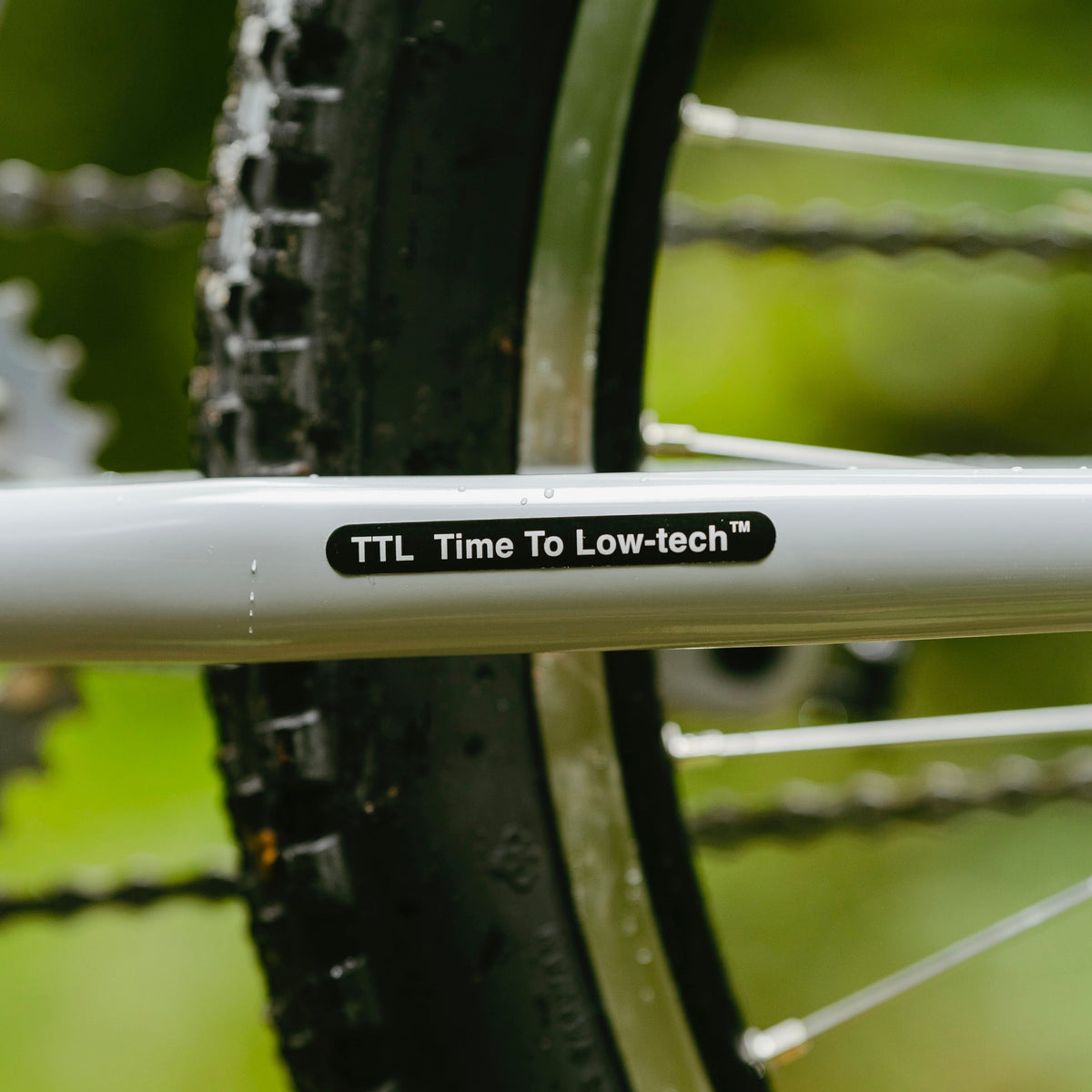

TTL: Time To Low-tech
Since our lives are surrounded by digital technology, low-tech things can feel refreshing. Even things considered outdated have their own charm. We know this. Using your own body and wits is far more fun than you might think.
ASA: Almost Satisfied Analog
The fact that you can fix it yourself with a little effort. The fact that there are little tricks to it. The fact that trial and error becomes a source of joy. It’s good because it’s a hassle. It’s fun because it takes time. I believe that is the essential joy of the analog bicycle as a mode of transportation.
[SPEC]

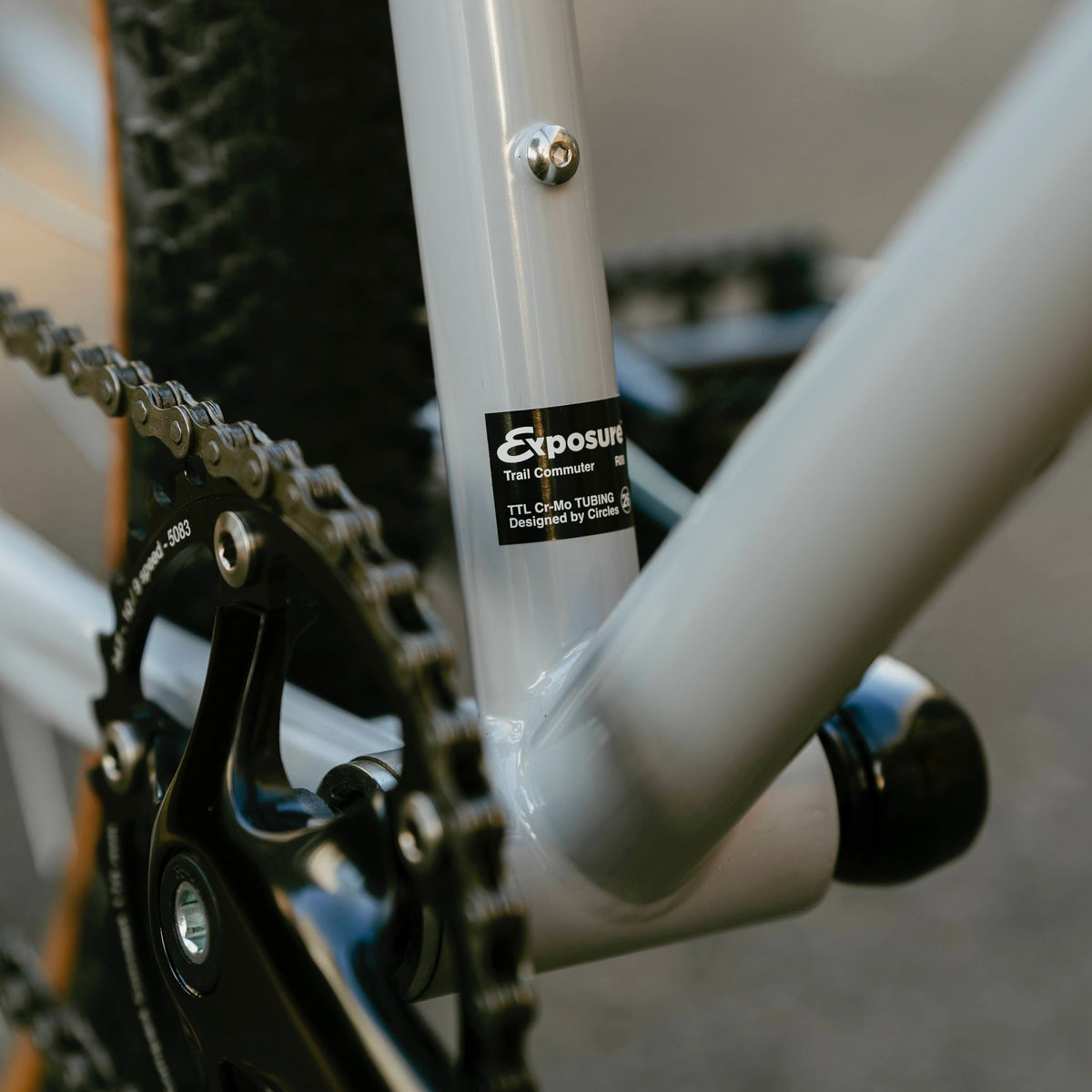

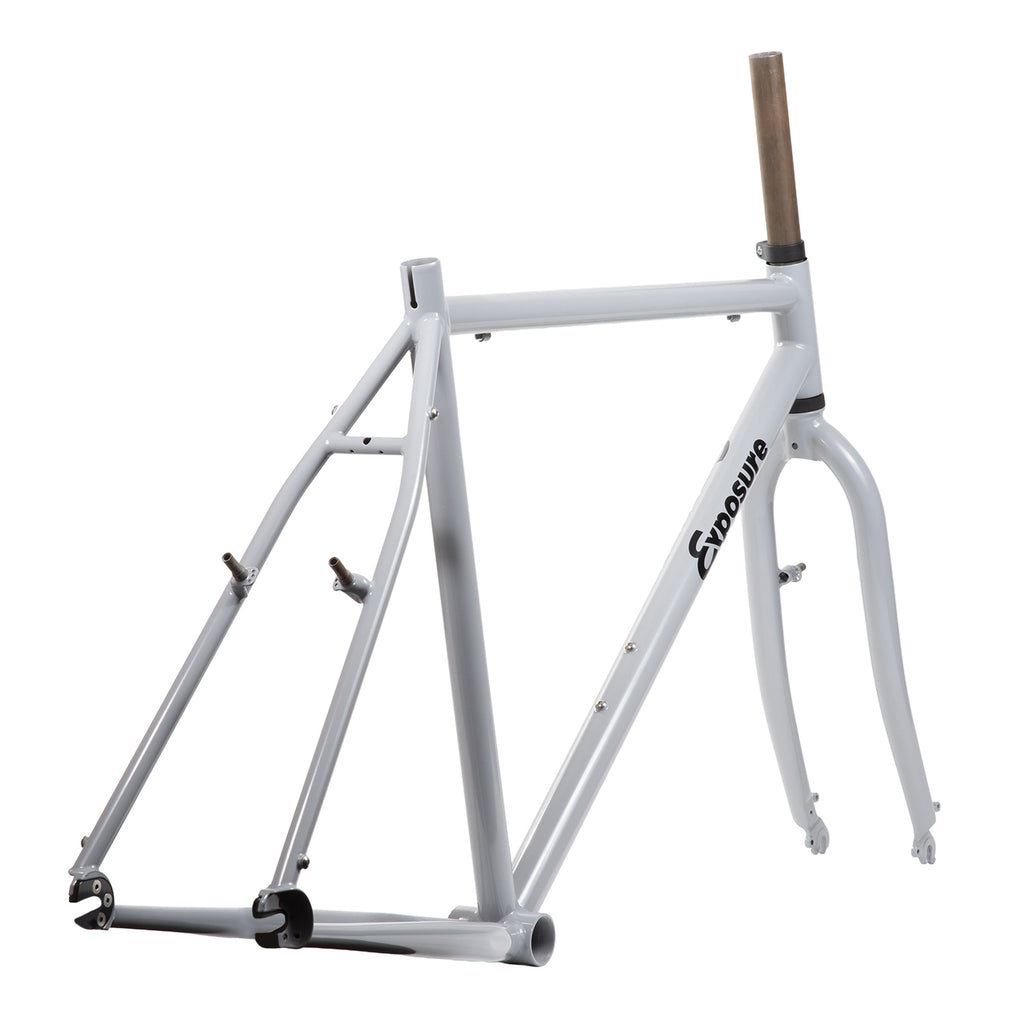

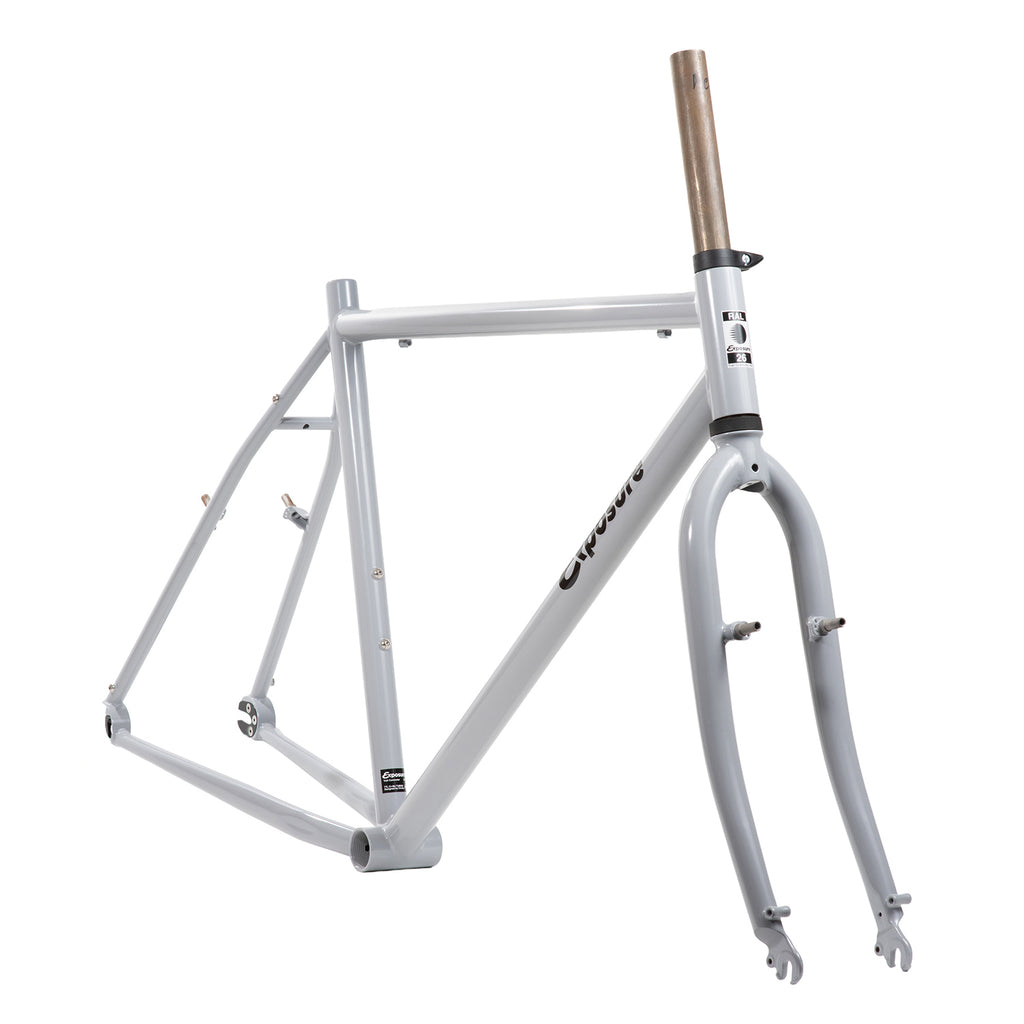

| Frame Material: | TTL CrMo Tubing |
| Frame Color: | Gray Card |
| Fork Color: | Gray Card |

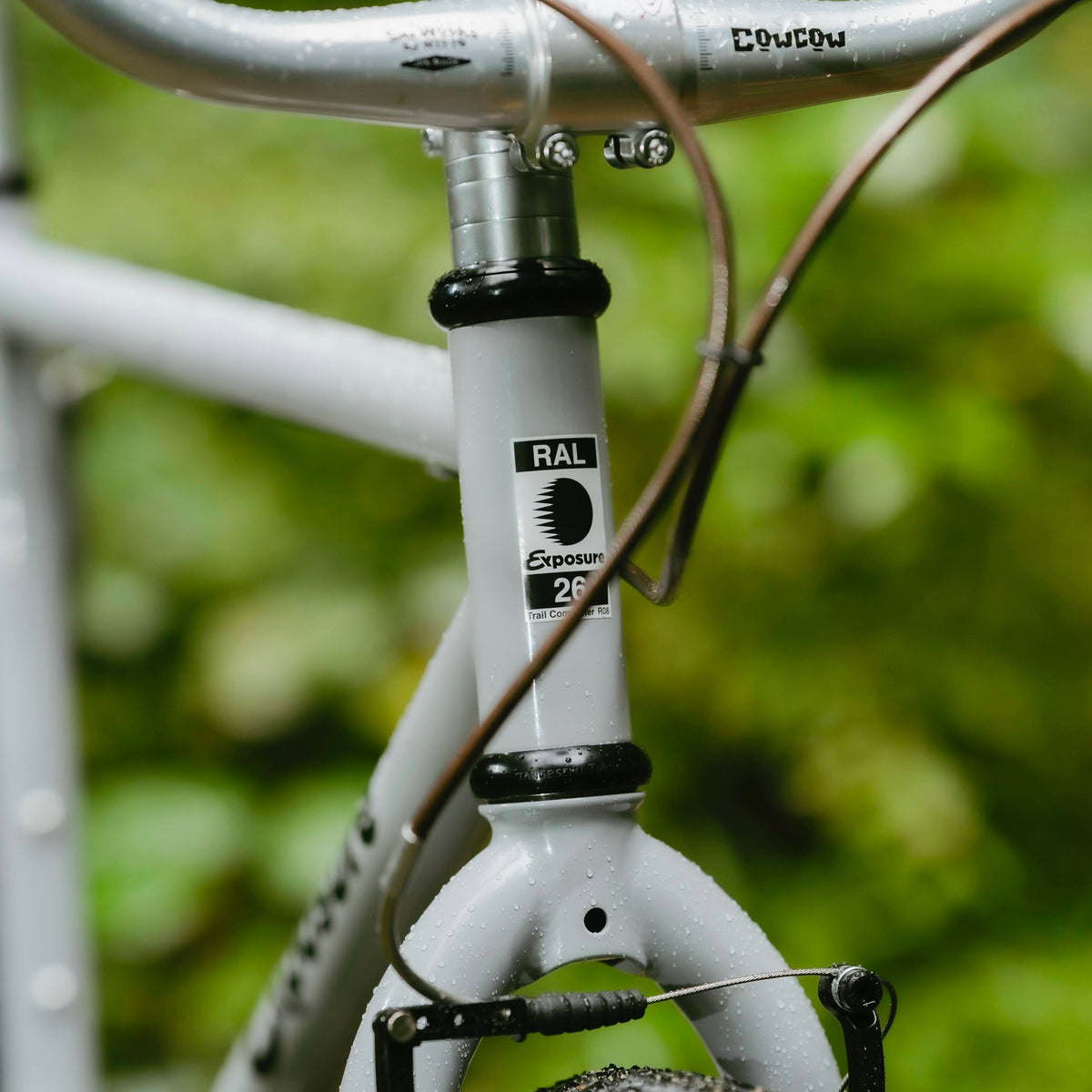

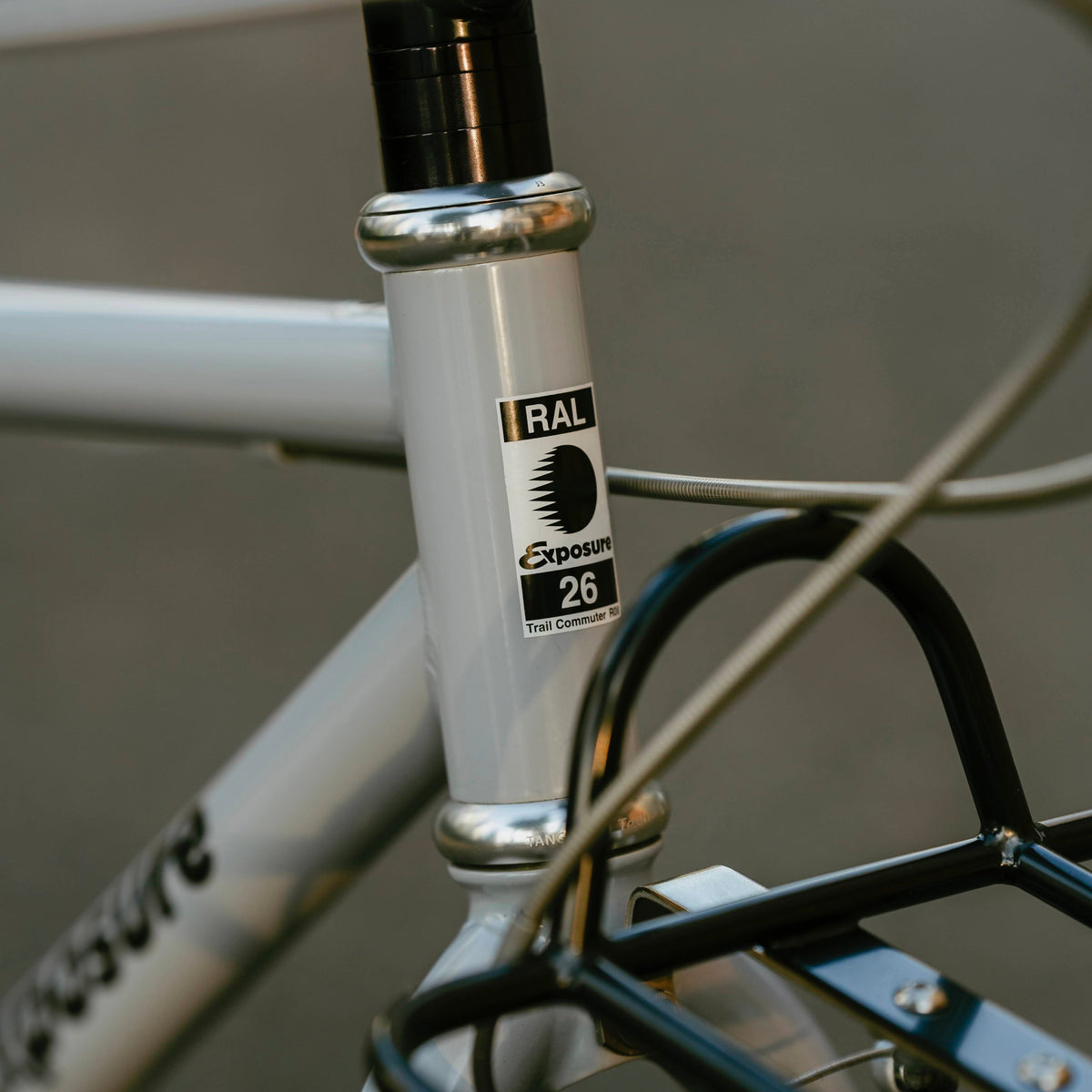

| Head Tube Size: | 1-1/8" |
| Headset Standard: | EC34/EC34 |

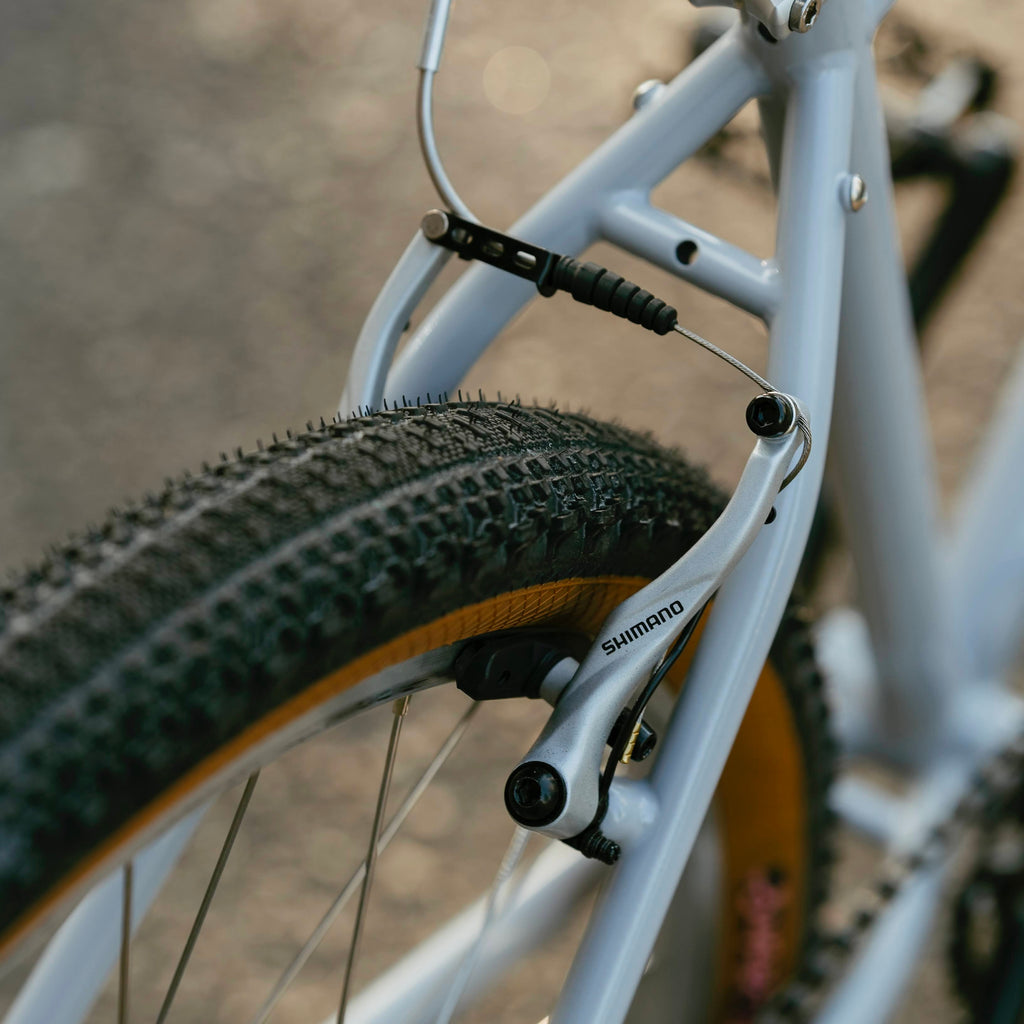

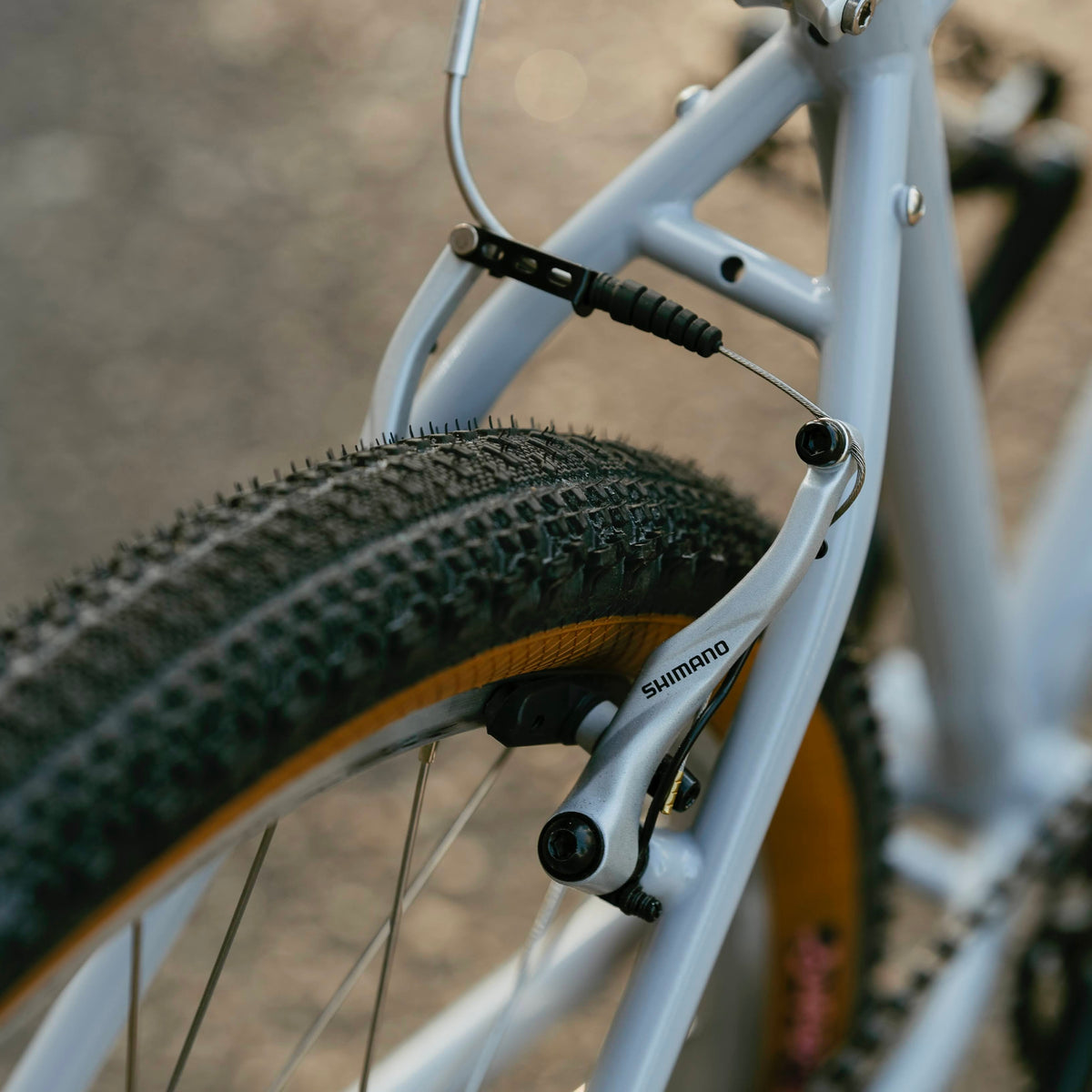

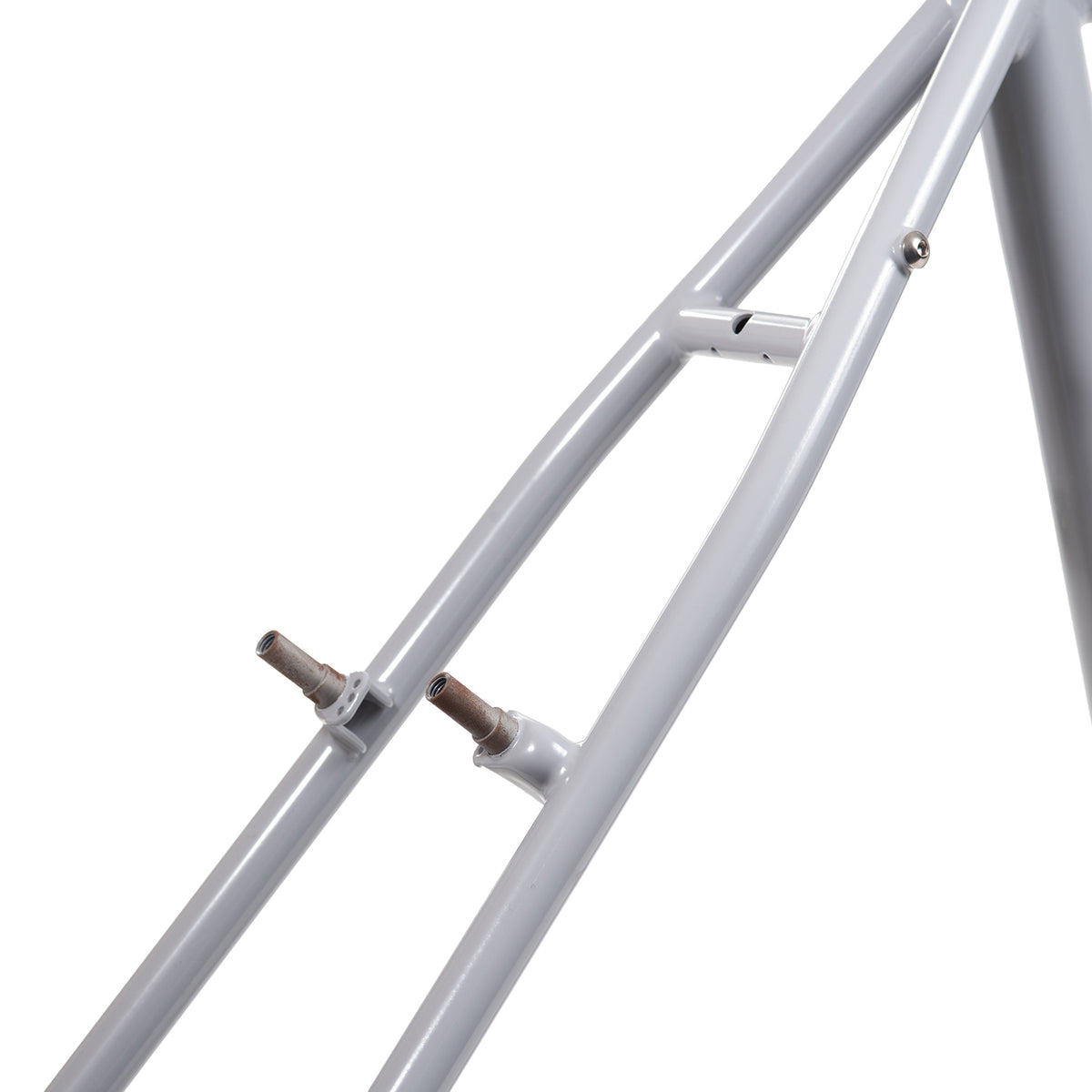

| Brake Mount: | V-brakes |

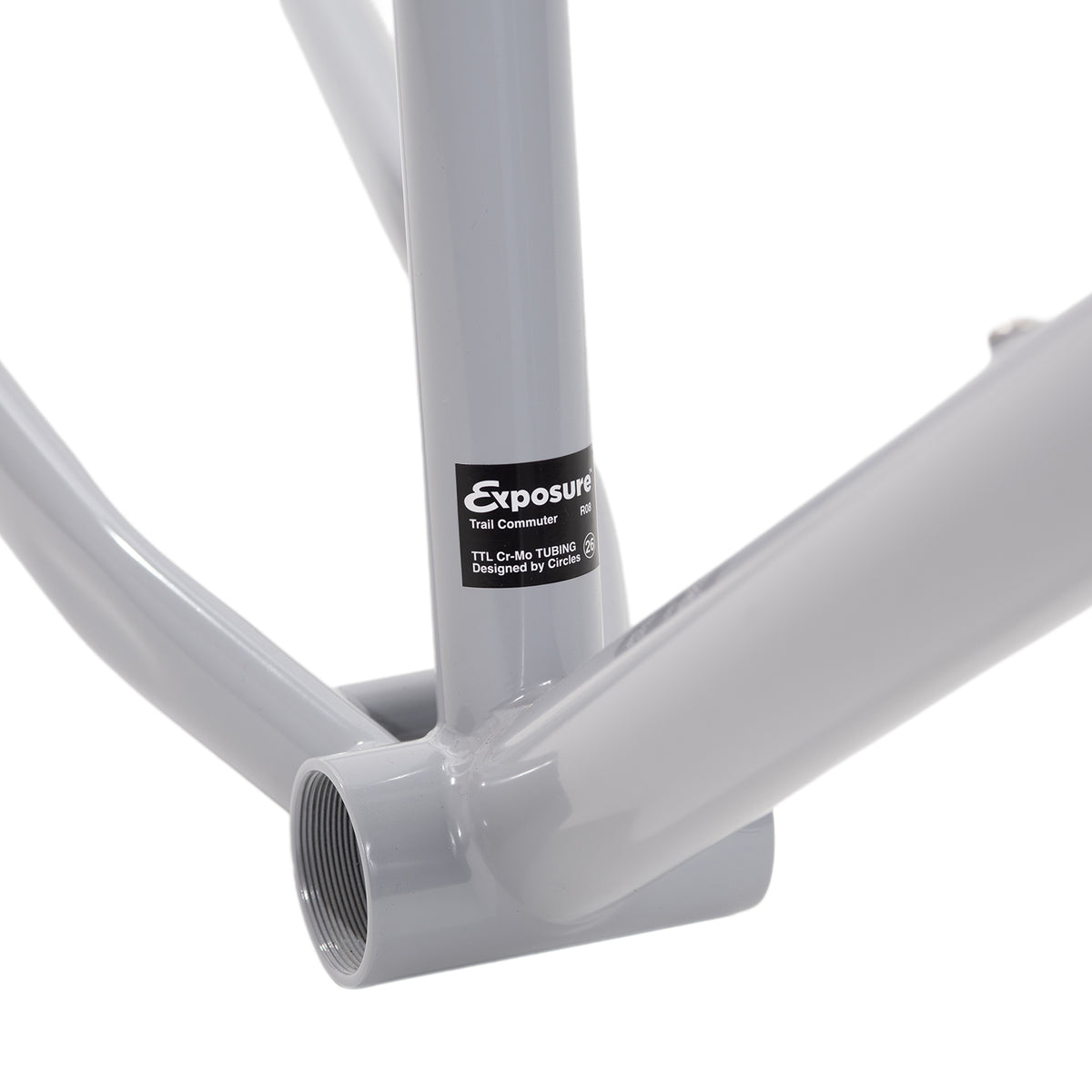

| BB: | 73mm BSA/JIS |

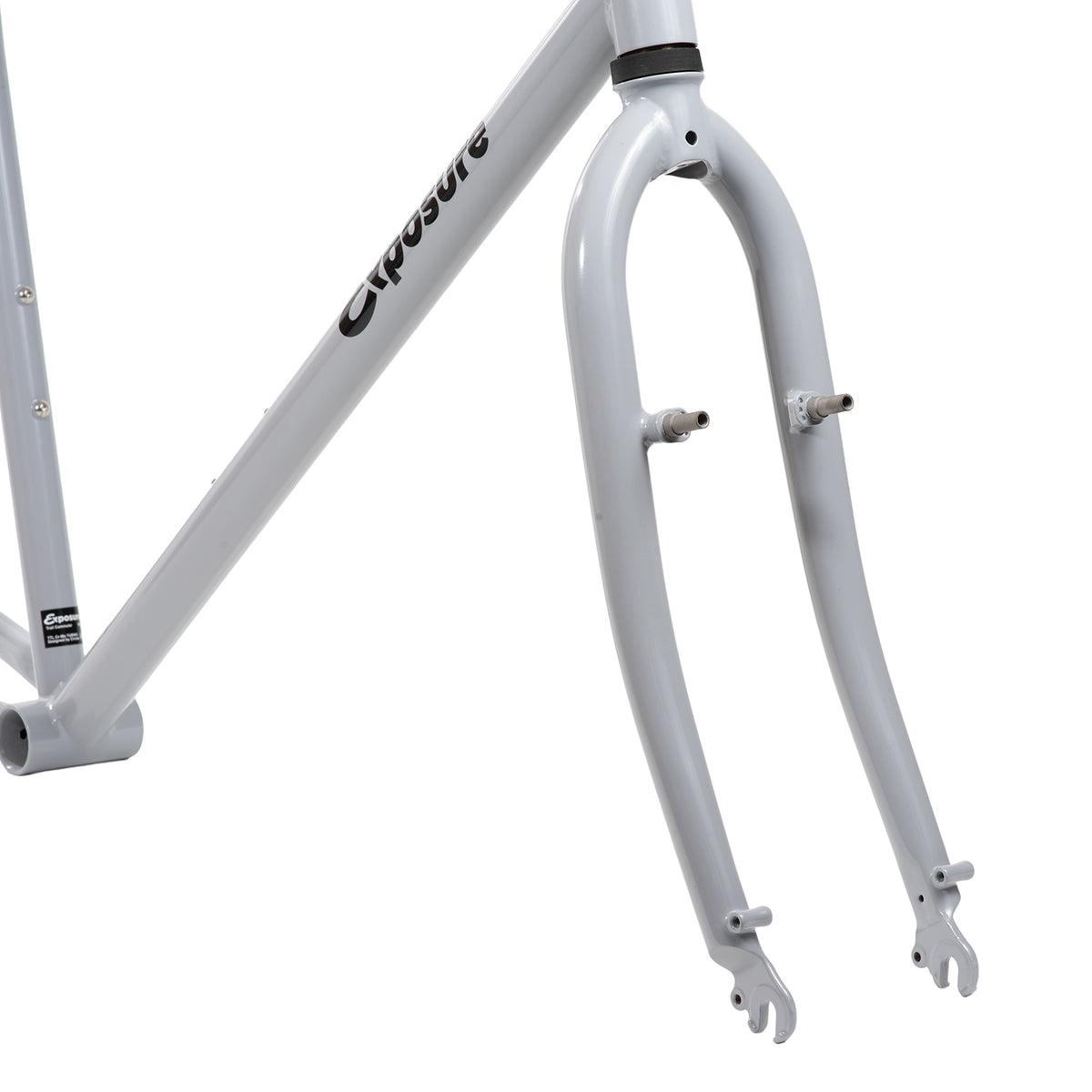

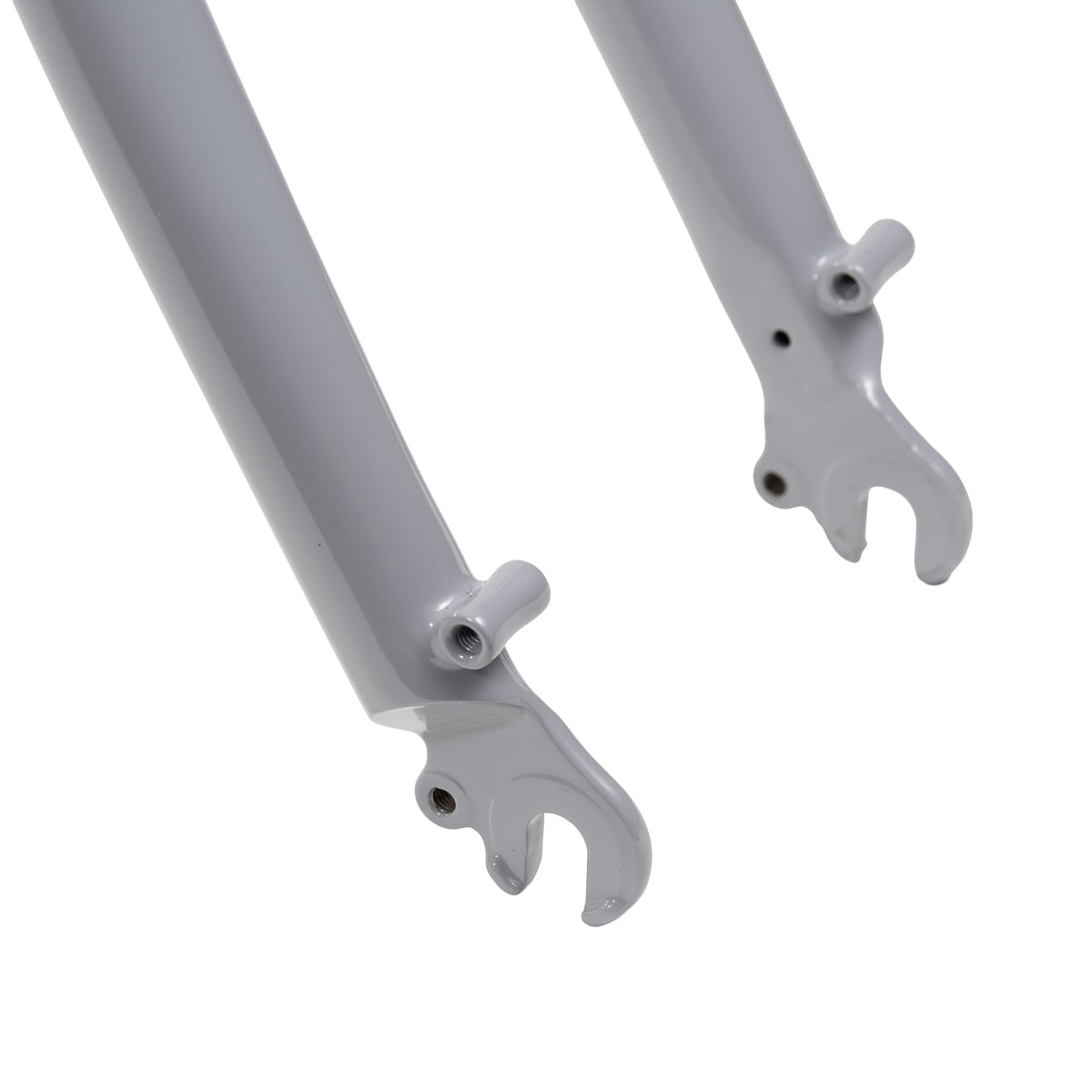

| Fork End: | 100mm / QR |

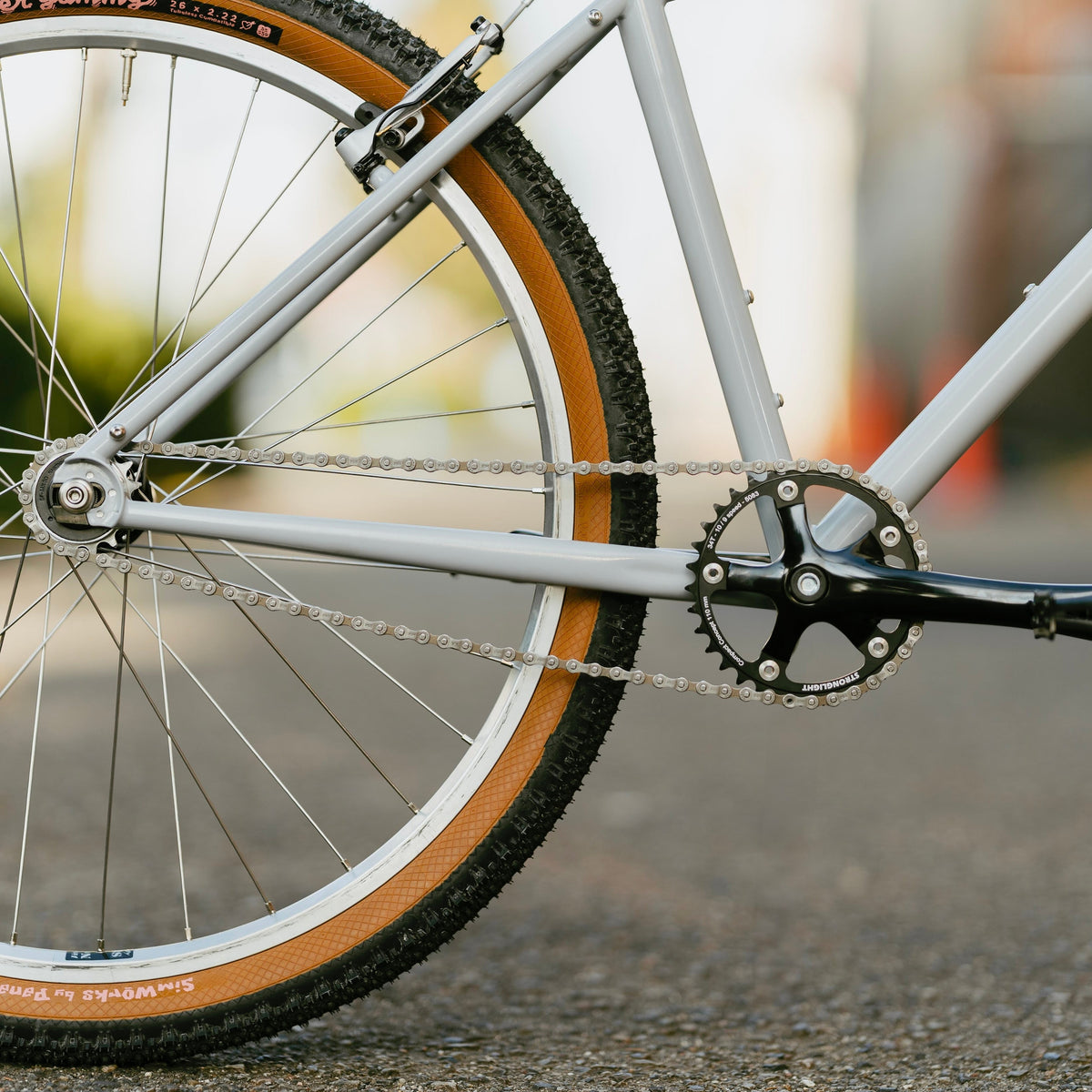

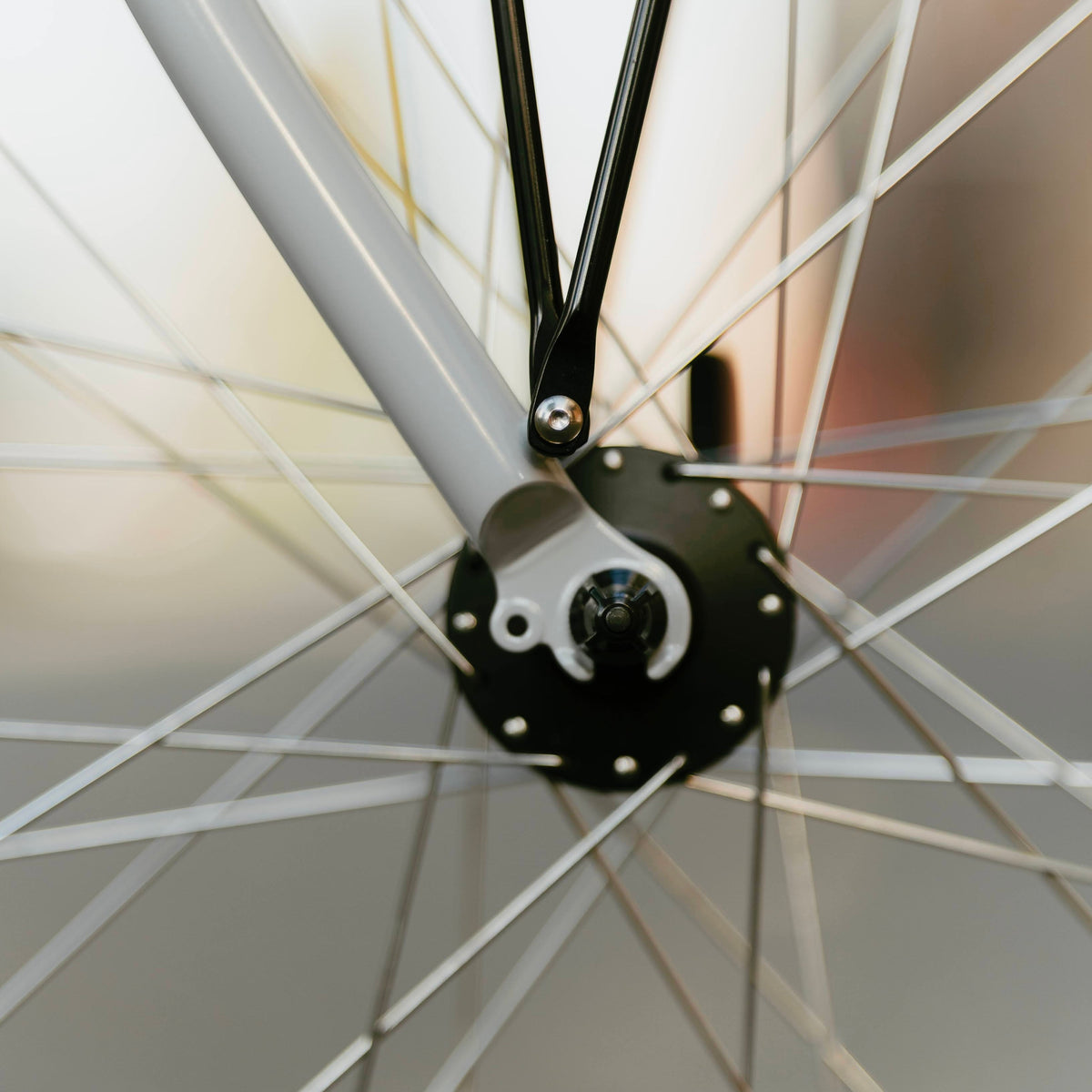

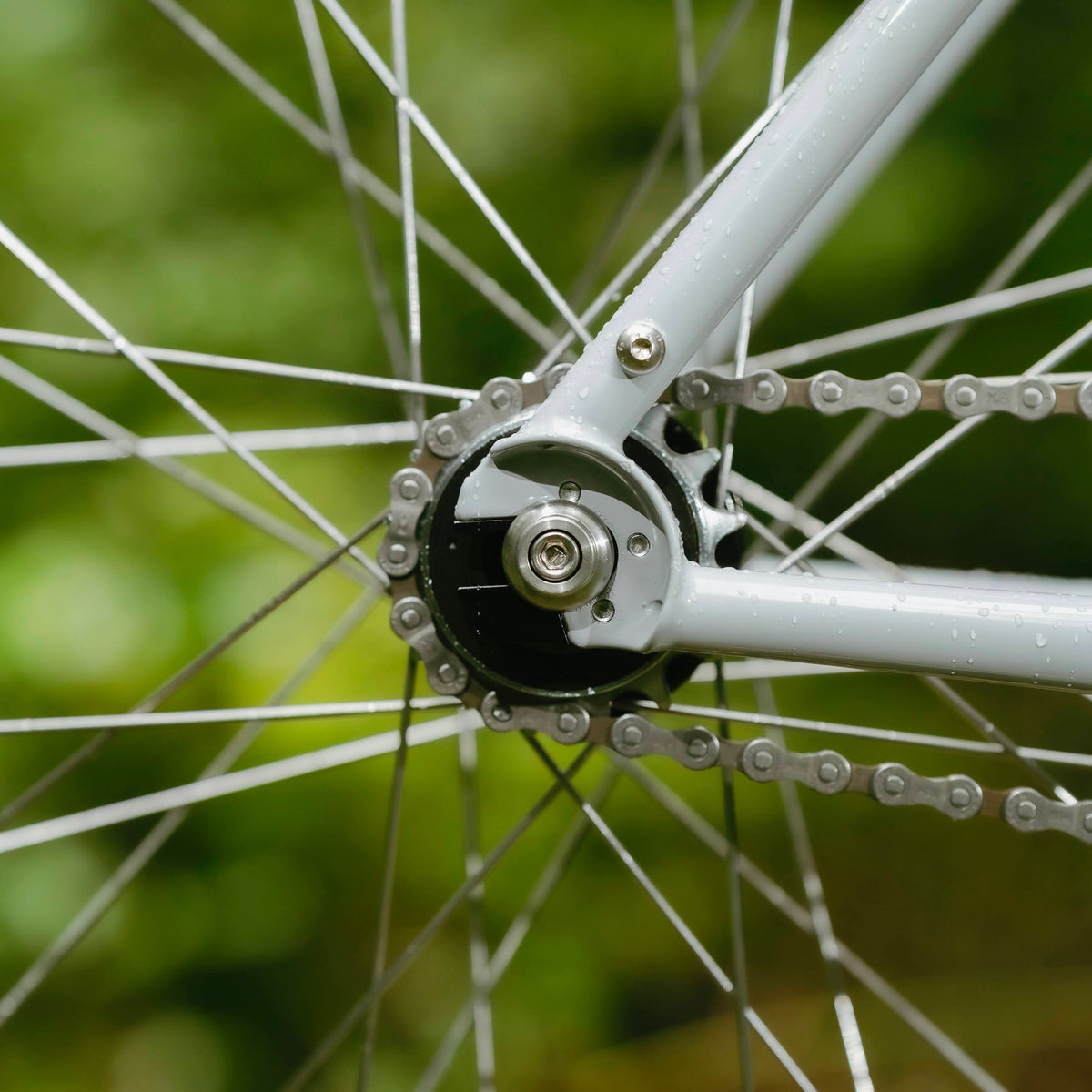

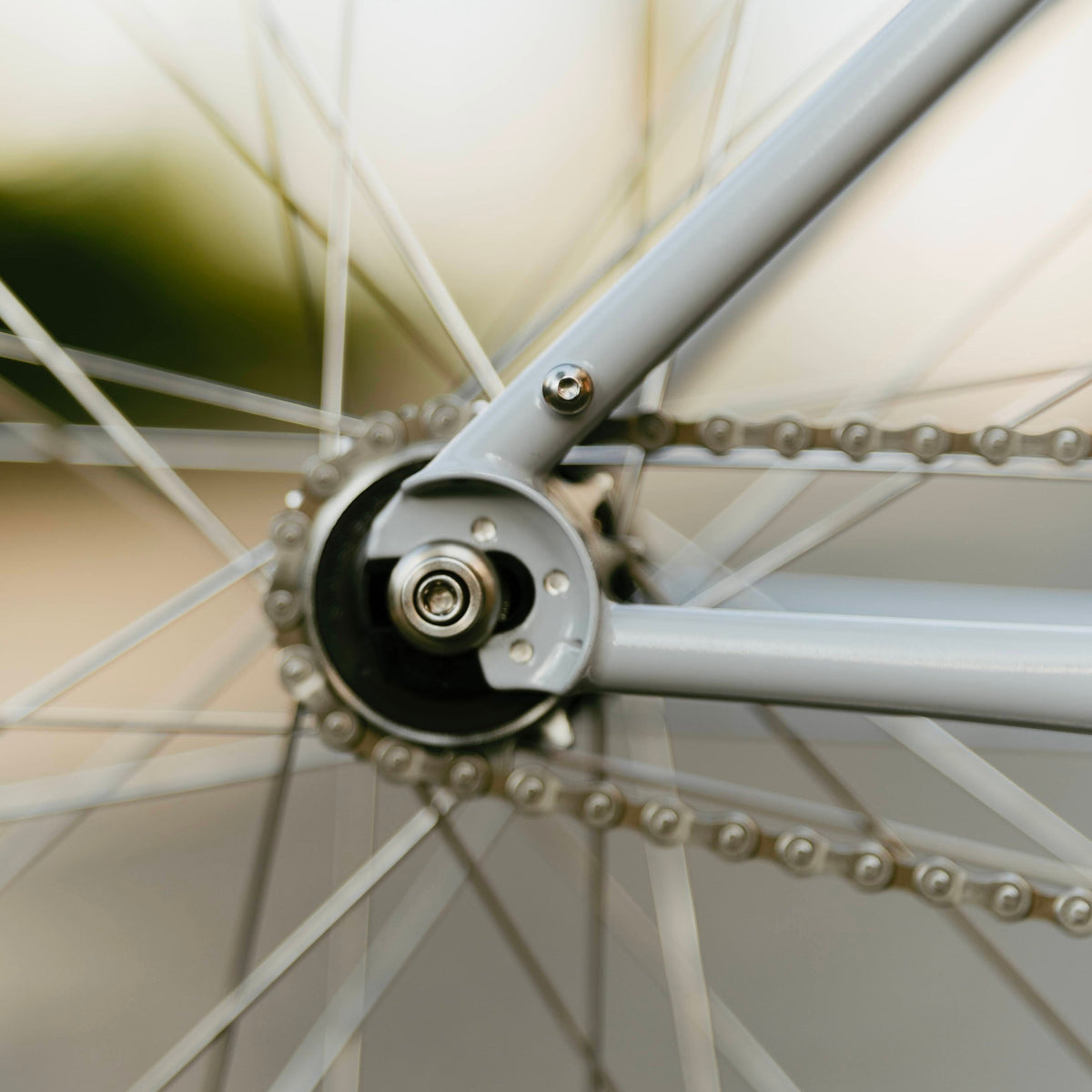

| Rear End: | 135mm / Track End |
| Seatpost Size: | 27.2 mm |

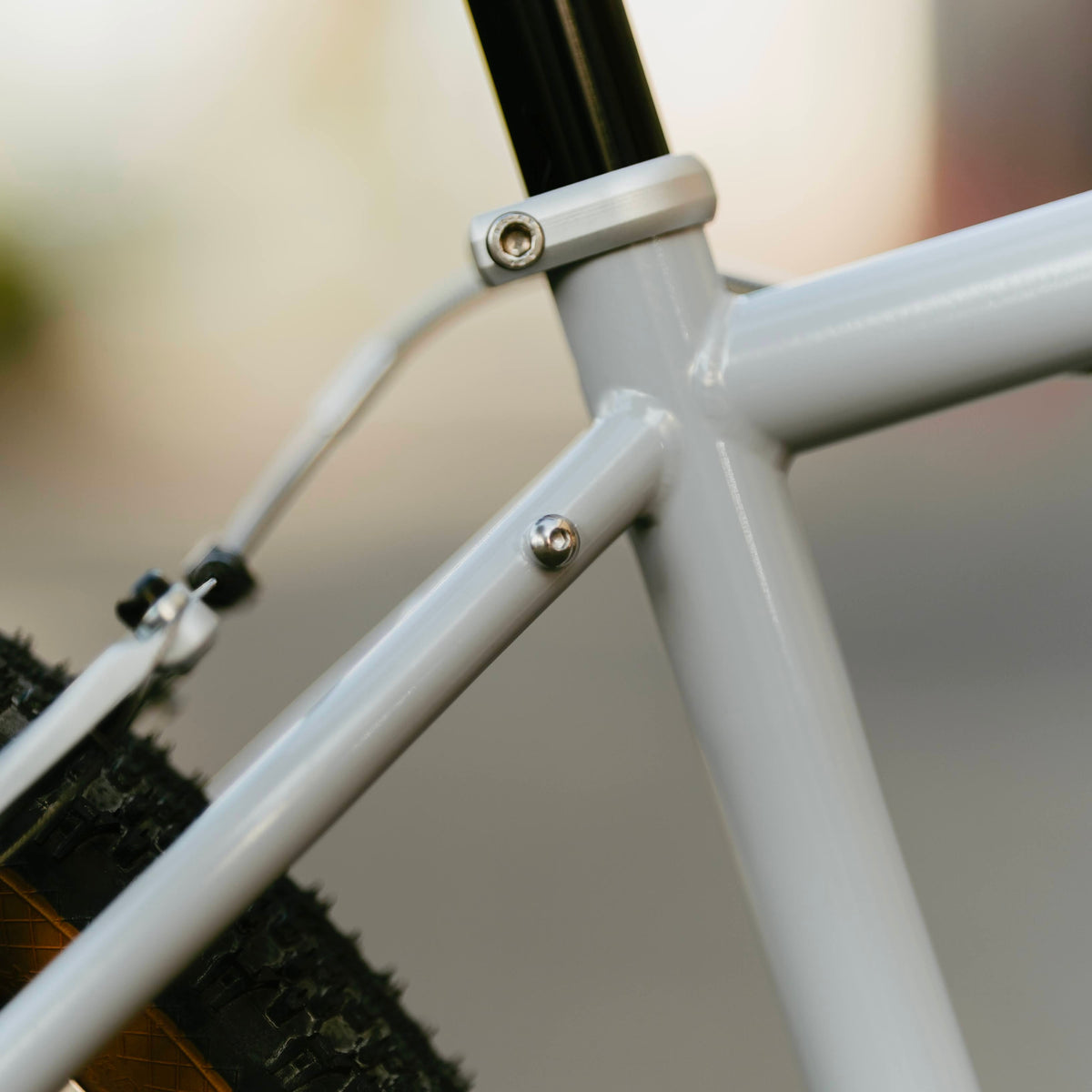

| Seat Clamp Size: | 30.0 mm |
| Tire Clearance: | 26x2.5" [1] |
| Chainring size: | Up to 36t (Chainline 53.5) [2] |
| Frame Weight: | 2,240 g (Size Large / avg) |
| Fork Weight: | 1,110 g (avg) |
| Accessories: | Replacement rear derailleur hanger |
*Bolts for the dropouts are not included.
[1] Clearance varies depending on the tire and rim combination.
[2] The listed chainring sizes are based on the most challenging scenarios. Clearance relative to the frame varies depending on the components and configuration.
[3] We recommend installing cranks with a clearance of 150 mm or more between the inner sides of the left and right crank arms.
Size / Recommended Rider Height

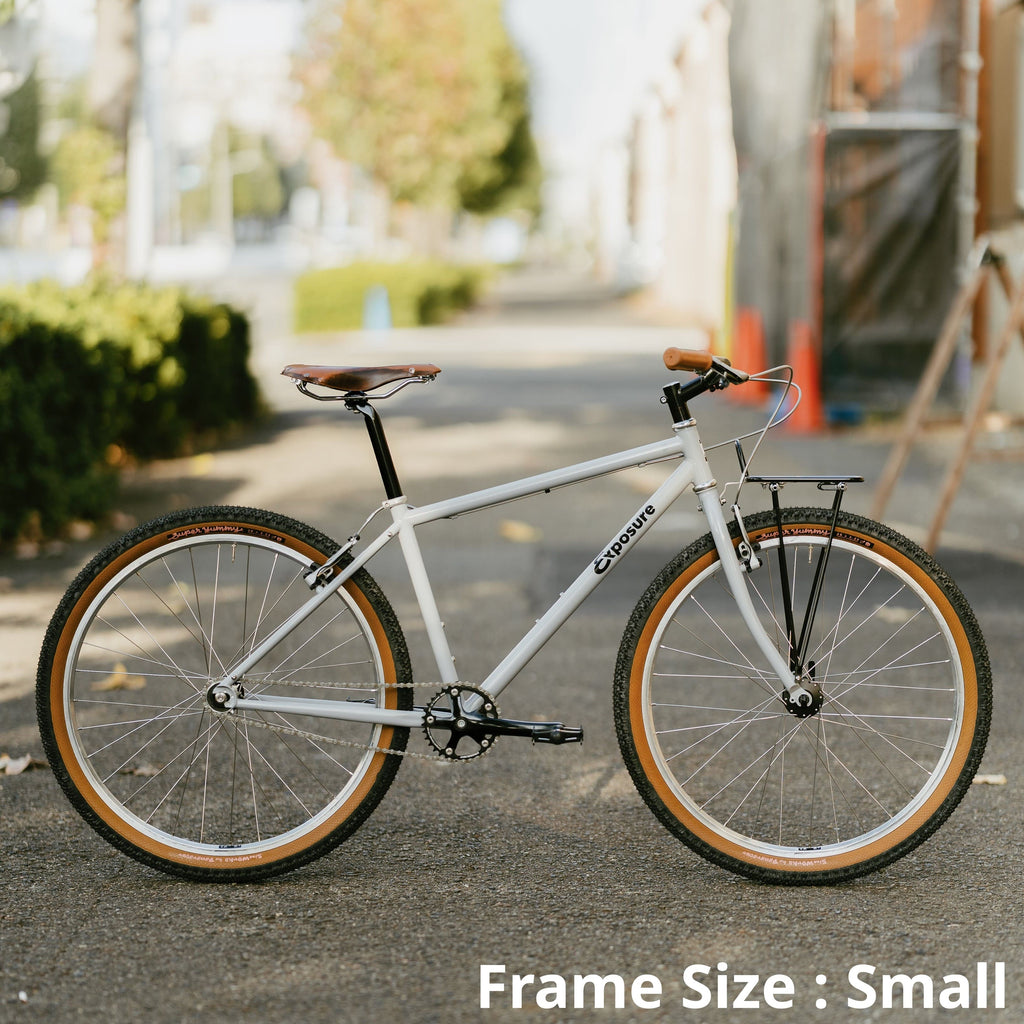

Small: 160–168 cm

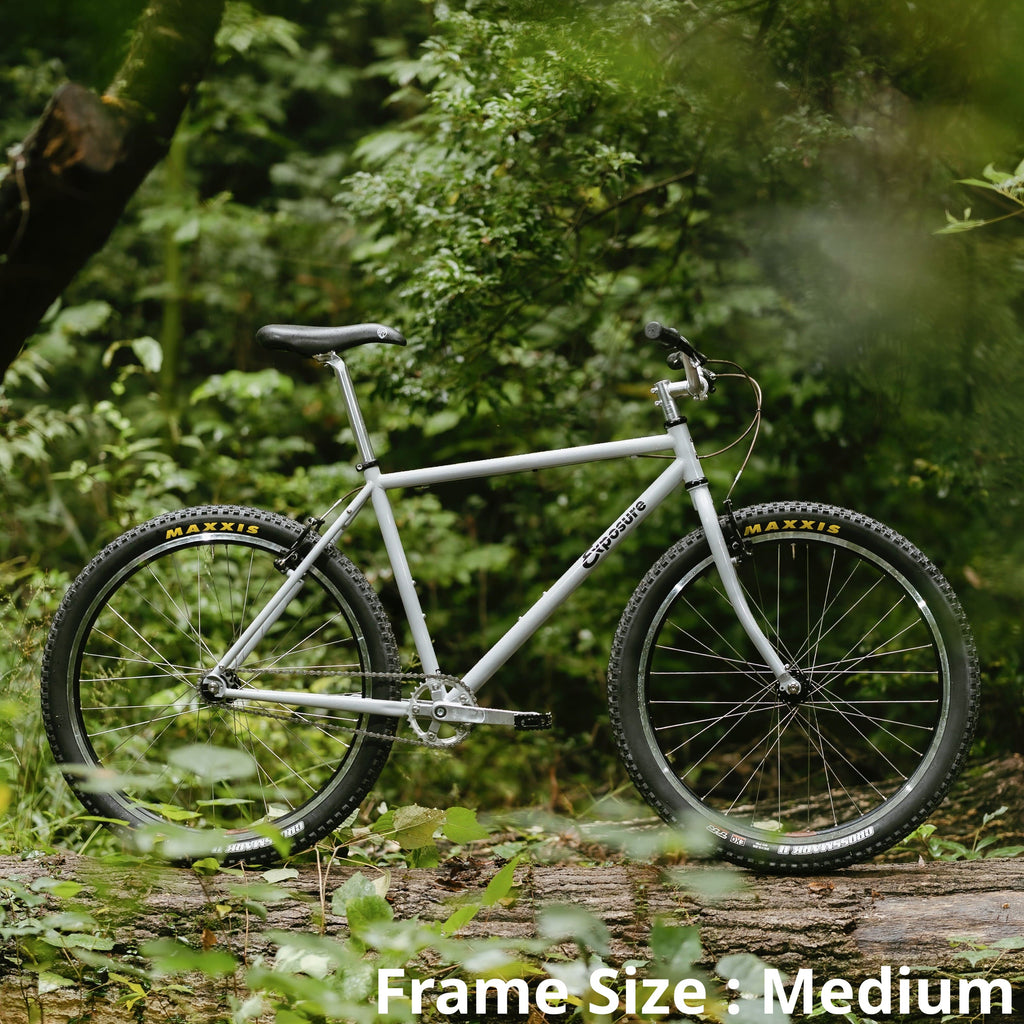

Medium: 165–175 cm

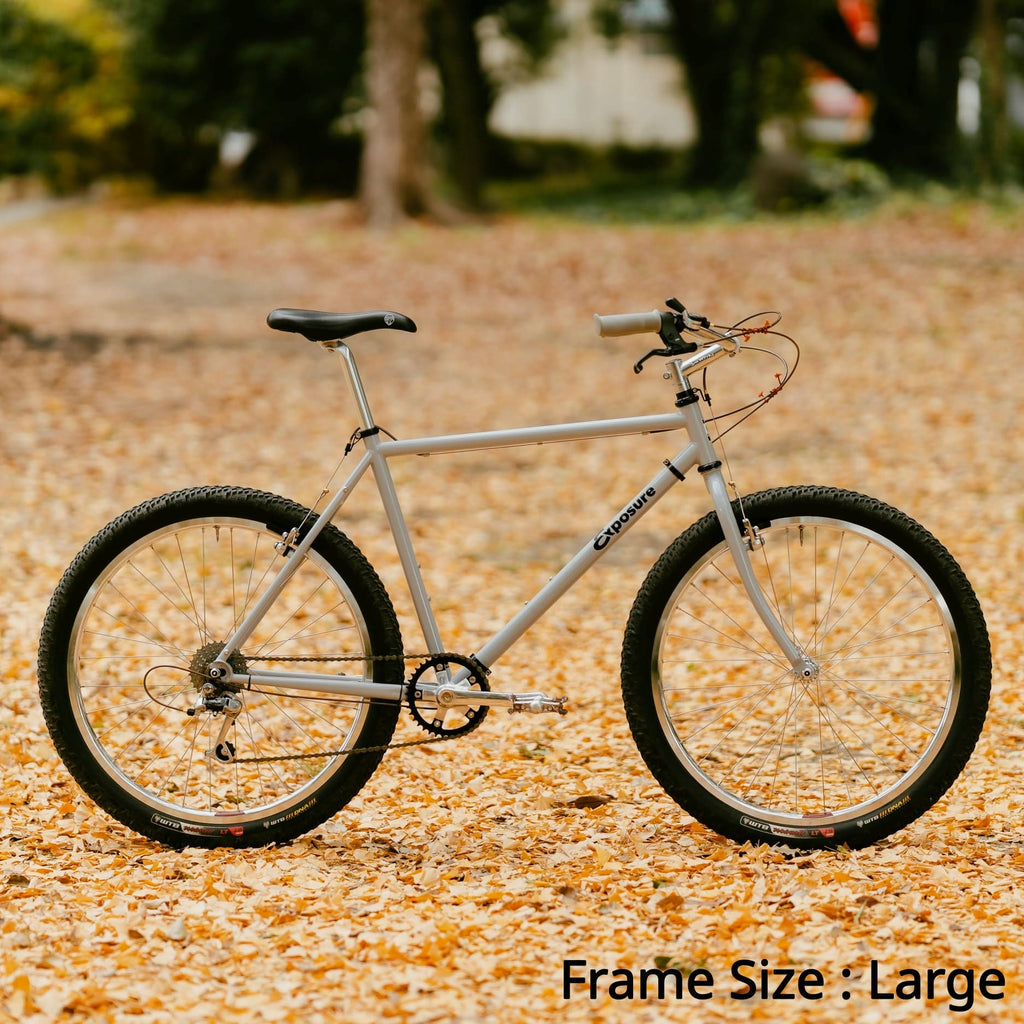

Large: 173–183 cm
*The recommended height ranges are for reference only. The appropriate size may vary depending on inseam and arm length, handlebar and stem settings, and your preferred riding position. If you are unsure about which size to choose, please feel free to contact us.
[SIZE / GEOMETRY]
| Frame Size | Small | Medium | Large |
| Head Tube Angle (deg.) | 71 | 71 | 71 |
| Seat Tube Angle (deg.) | 73 | 73 | 73 |
| Head Tube Length (mm) | 100 | 105 | 115 |
| Seat Tube Length (Center to Top) (mm) | 410 | 480 | 510 |
| Effective Top Tube Length (mm) | 550.0 | 587.7 | 604.1 |
| Standover Height (mm) | 738 | 765 | 797 |
| Stack Height (mm) | 519.9 | 524.6 | 534.0 |
| Reach (mm) | 391.2 | 427.3 | 440.8 |
| Chainstay Length (mm) | 415 | 415 | 415 |
| Fork (Axle to Crown) (mm) | 408 | 408 | 408 |
| Rake (mm) | 45 | 45 | 45 |
| Head Tube Extension (mm) | 8 | 8 | 8 |
| BB Drop (mm) | 44 | 44 | 44 |
| Recommended Height | Approx. 165 cm | Approximately 170 cm | Approx. 175 cm |
*Assumes tire size 26x2.5"
RAL Exposure FAQ's
RAL Exposure is a frame that serves as a canvas for you to paint your own "likes."
While there are some limitations, it is basically designed to allow you to combine parts from various eras. Thanks to its simple design and popular standards, you can assemble it yourself with a bit of knowledge, motivation, and the right tools. Here, we provide some supplementary tips to help you when customizing a complete bike or building one up from the frame.
▶ Handling Chromoly Frames
Moisture is the natural enemy of chromoly frames. Before assembly, be sure to apply rust preventative spray or grease to the inside of the frame to take preventative measures against rust so you can use it for a long time.
▶ Installing a Kickstand
A kickstand can be installed if there is enough space to ensure it does not interfere with the tires or crank. Please be careful when working, as overtightening the mounting bolts can cause the frame to deform or break.
It is also effective to sandwich cotton bar tape or a rubber tube between the kickstand and the frame to prevent wobbling, or to apply a thread-locking agent to the bolts. However, the most important thing is to regularly check for loose bolts or shifts in the stand.
▶ Installing Fenders
Fenders are recommended for comfortable riding in heavy rain or after the rain has stopped. Installation requires not only clearance between the tire and the fender, but also space on the frame side. The key is ensuring appropriate clearance for the fender you are installing at the three main points: the fork crown, seat stay bridge, and chain stay bridge.

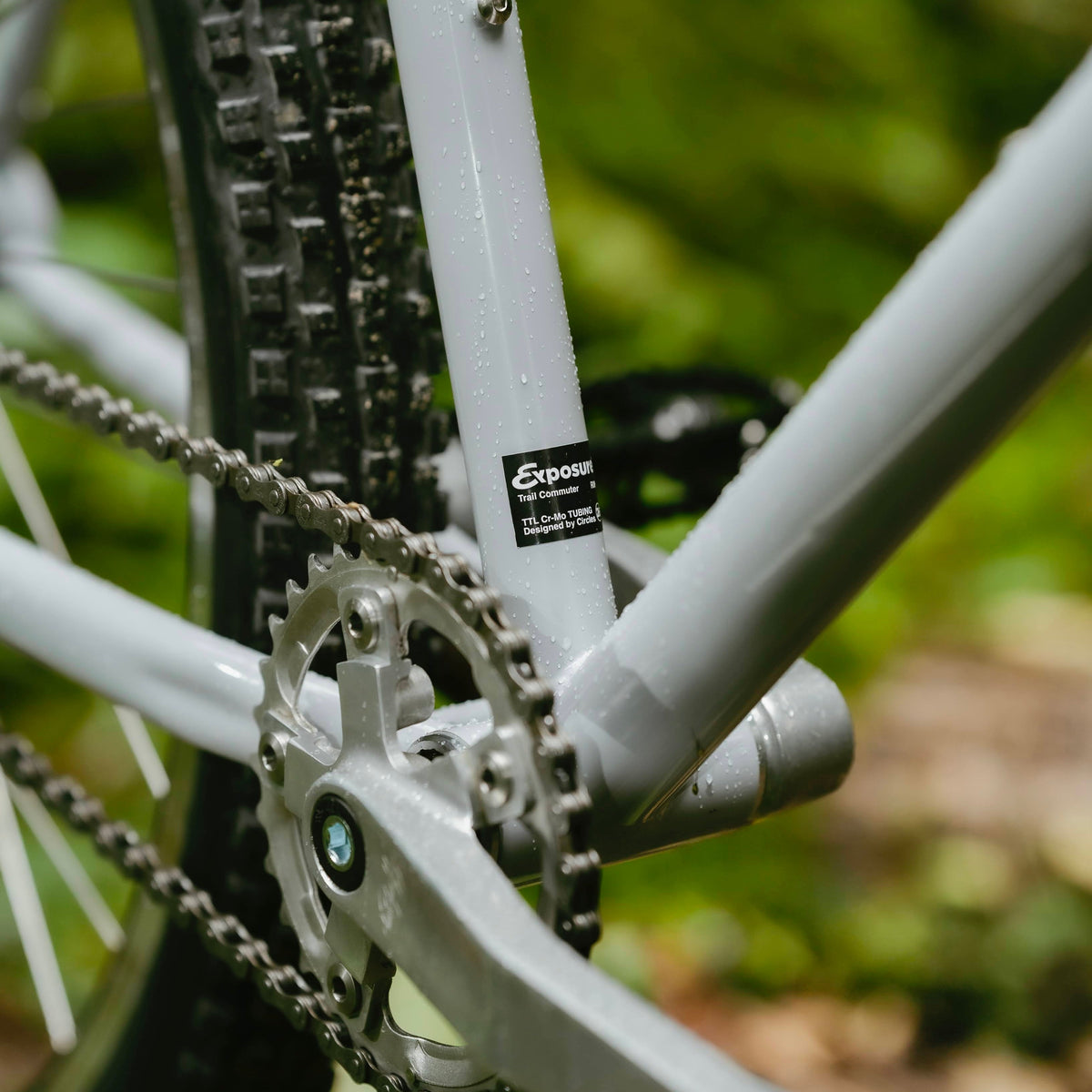

▶ Frame and Crank Combinations
The frame is designed to be compatible with cranks that have a clearance of approximately 150mm or more between the inside of the left crank arm and the inside of the right crank arm. Please ensure a clearance of approximately 5mm between the chain stay and the inside of the crank arm so they do not touch when the crank or chain stay flexes under riding forces.
The maximum chainring size is intended to be 36T.
▶ Single Speed and Rear Geared Compatibility
You can convert the rear to a geared setup by using the included "little extra" replacement end with a derailleur hanger.
However, since the frame features a simple design intended for single speed, it does not come with outer cable stops for shift cables. Please get creative by using aftermarket cable stoppers or similar solutions.
▶ Chainring Chainline
The frame's chainline varies depending on the rear hub used. Please check the specifications, such as 53.5mm for the SURLY Ultra New Hub, 51.6mm for the PAUL Word Hub, or 49mm for geared hubs. Adjust the position of the chainring to match the chainline of your rear hub.
