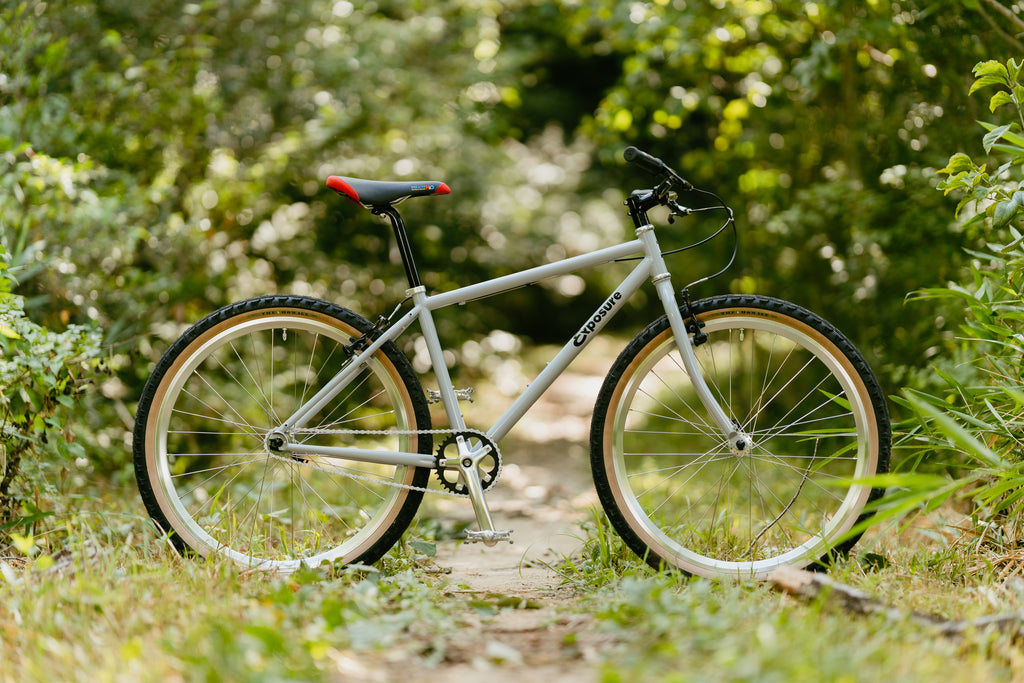

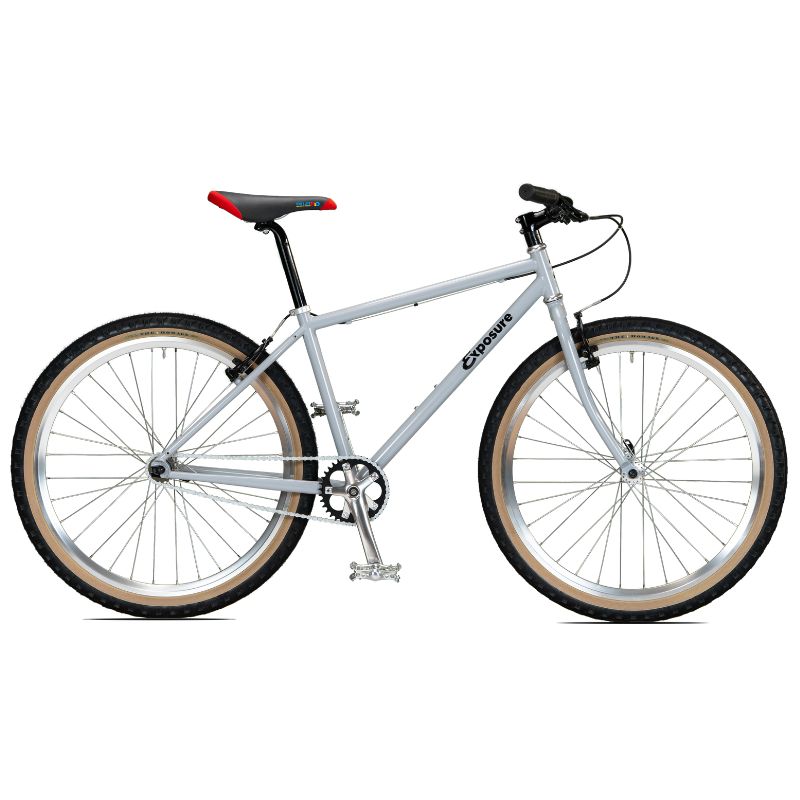

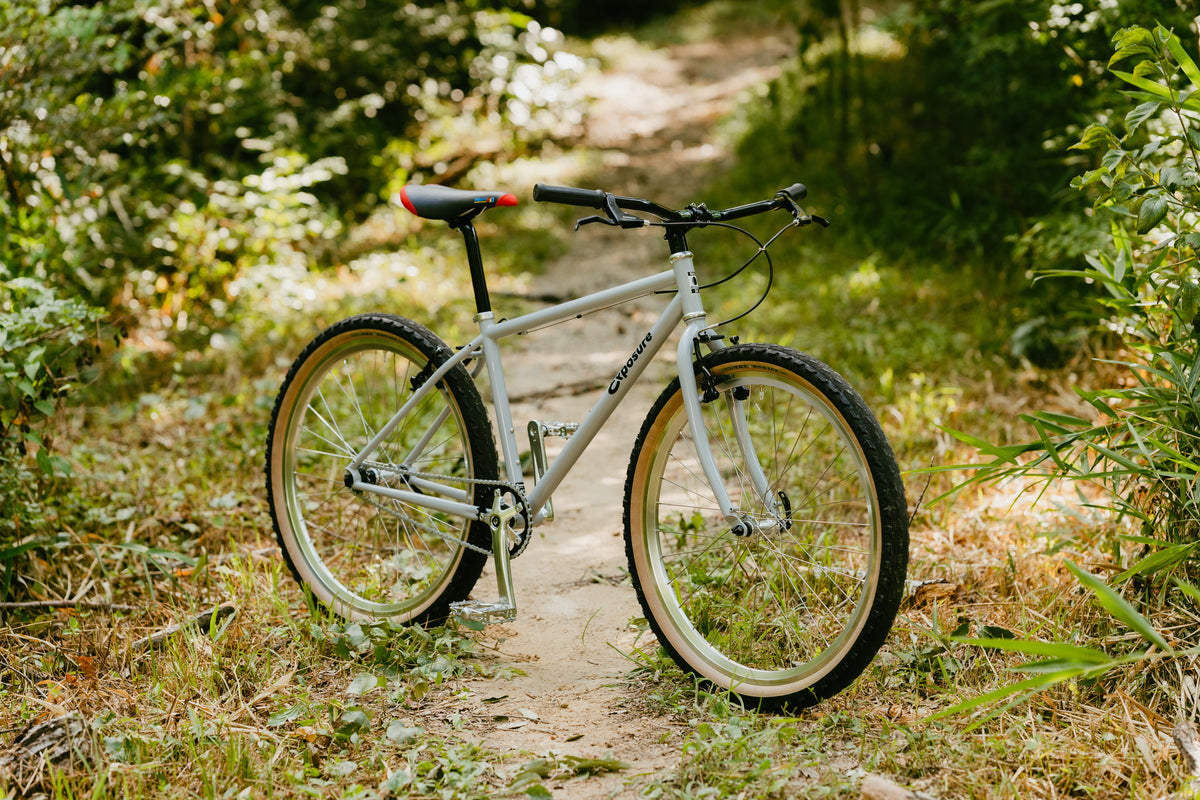

RAL Exposure Original Complete Bike - Single Speed
SKU:
CL_LGT_0001
¥187,000
Taxes included.
Shipping calculated at checkout.
Check your size based on your height
Check your size based on your height
Shows size options that fit your height. Fit can vary with proportions, riding style, and position, so please use this as a general guide.
Size options
—
Sizing can change with riding style and position. If you are near a boundary, please contact Circles.
Circles' original complete bikes are designed for simple, enjoyable riding—whether you're a first-time rider or a seasoned one.
There are no gears.
All you have are your own legs and your own will.

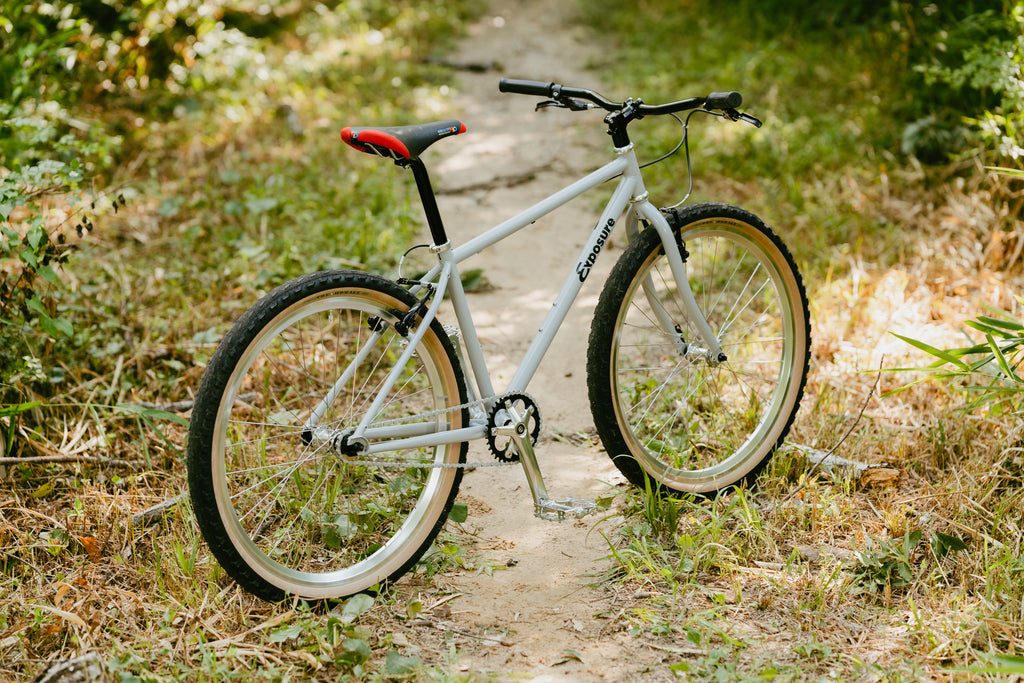

TheRAL Exposure Original CompleteBike is an original complete bike assembled by Circles as the bike they “want to ride right now,” staying true to the philosophy of “The Platform for your Ideas.”
To let you enjoy the direct riding feel unique to single-speed bikes,it featuresSIMWORKS Getaround CrMo BarsandSIMWORKS The Homage TLC tires,whichride comfortably on everything from paved roads to dirt trails. Built around highly reliable SHIMANO components, it’s designed to be a long-lasting, worry-free companion.
Although it comes fully assembled and ready to ride right out of the box, this bike is not the final version.
You can add a rack.
You can mount a bag.
Build it up little by little to suit your own style.
This is a bike that’s perfect for that kind of enjoyment.
It’s not about speed or efficiency—it’s about enjoying the ride itself.
Cruise through the city, turn down side streets that catch your eye, and enjoy taking the long way around.
Ride Alternative Way.
Your unique bike starts here.
[SPEC]

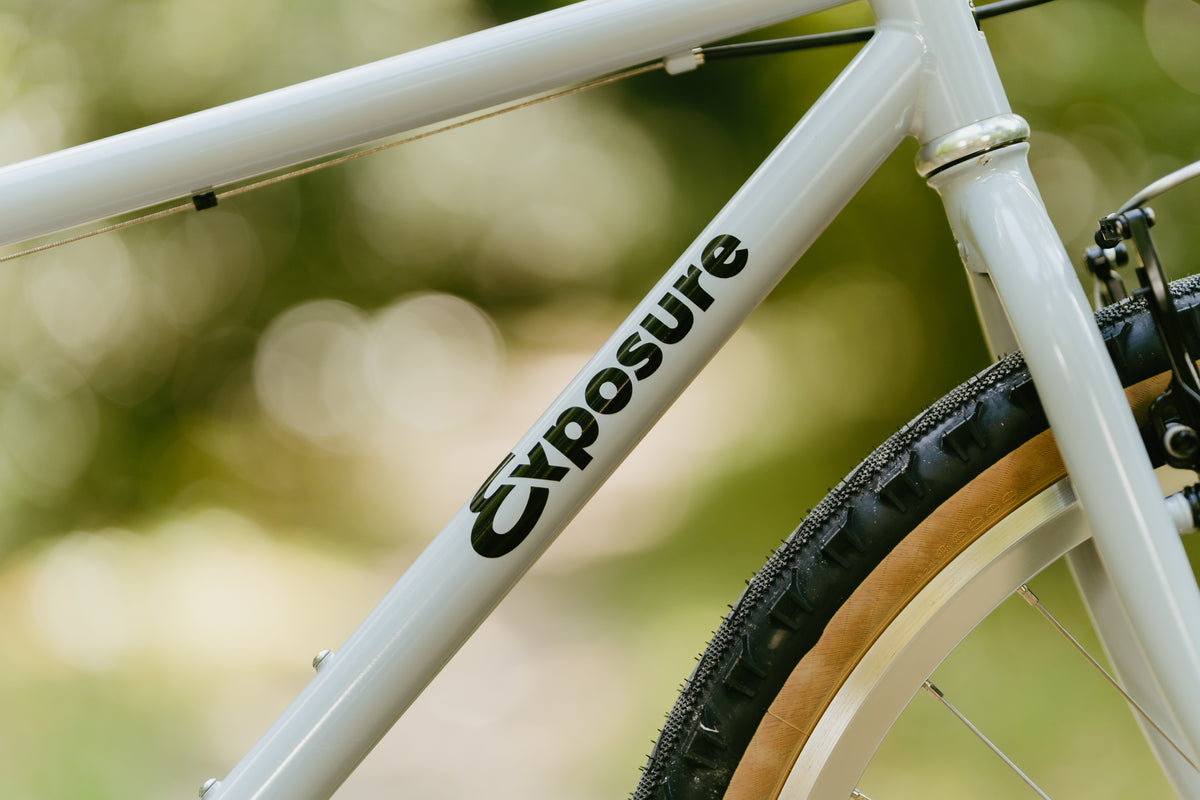

| Frame Material: | TTL CrMo Tubing |
| Color: | Gray Card |
| Head Tube Size: | 1-1/8" |
| Headset Standard: | EC34/EC34 |
| Brake Mount: | V-brakes |
| BB: | 73mm BSA/JIS |
| Fork End: | 100mm / QR |
| Rear End: | 135mm / Track End |
| Seatpost Size: | 27.2 mm |

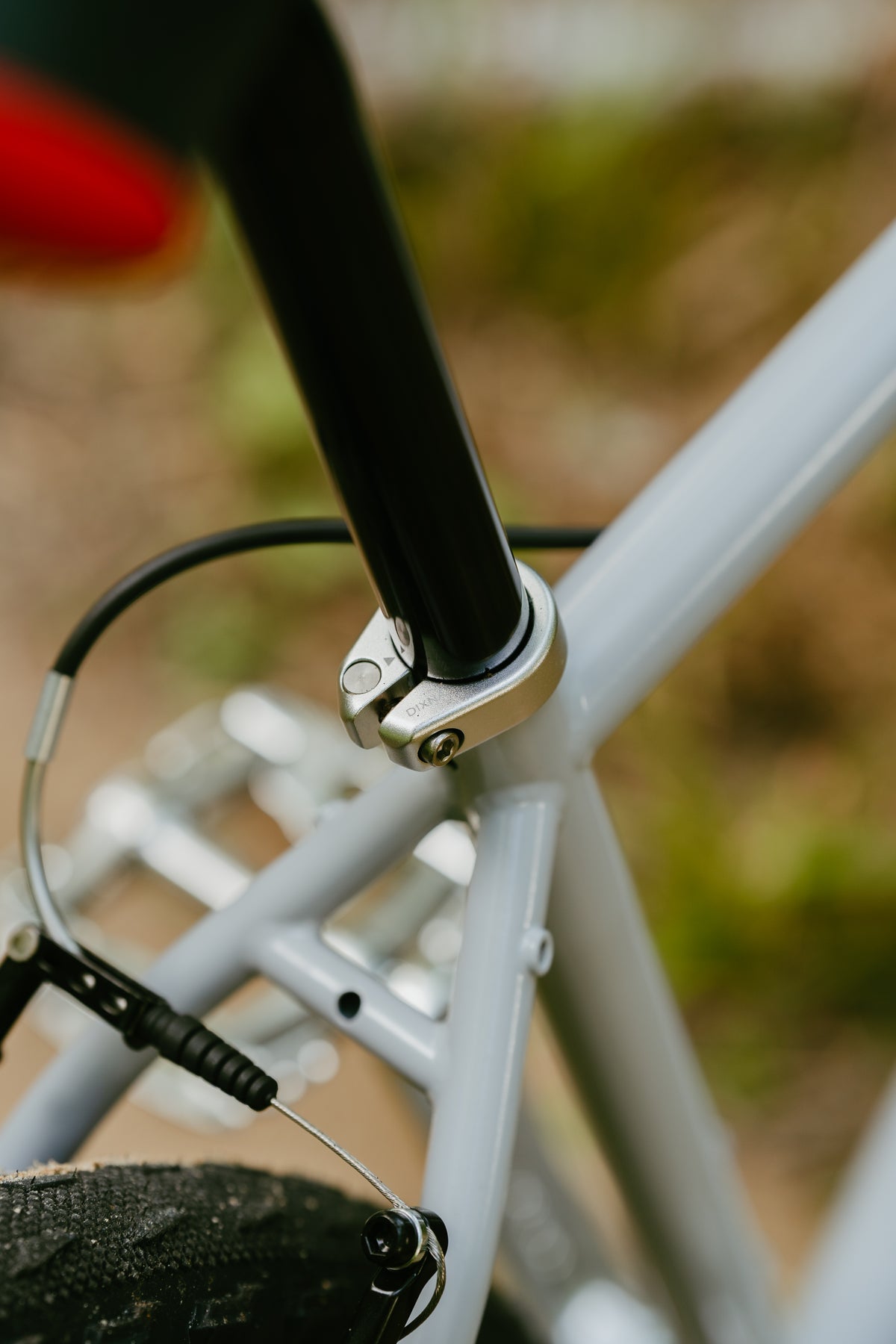

| Seat Clamp Size: | 30.0 mm |
| Tire Clearance: | 26x2.5" [1] |
| Chainring size: | Up to 36t [2] |
| Frame Weight: | 2,240 g (Size Large / avg) |
| Fork Weight: | 1,110 g (avg) |
| Included accessories: | Replacement rear derailleur hanger |
[1] Clearance varies depending on the tire and rim combination.
[2] The chainring sizes listed are based on the most challenging scenarios. Clearance relative to the frame varies depending on the components and configuration.
[PARTS ASSEMBLY]
| Frame | RAL Exposure |
| Headset | TANGESEIKI TG36J3S |

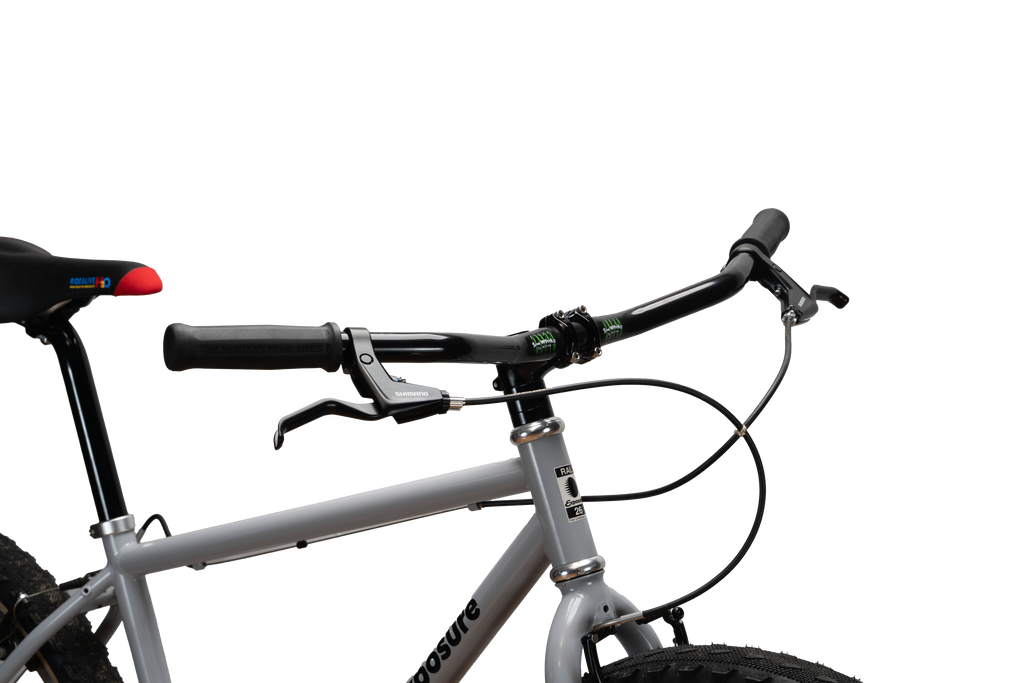

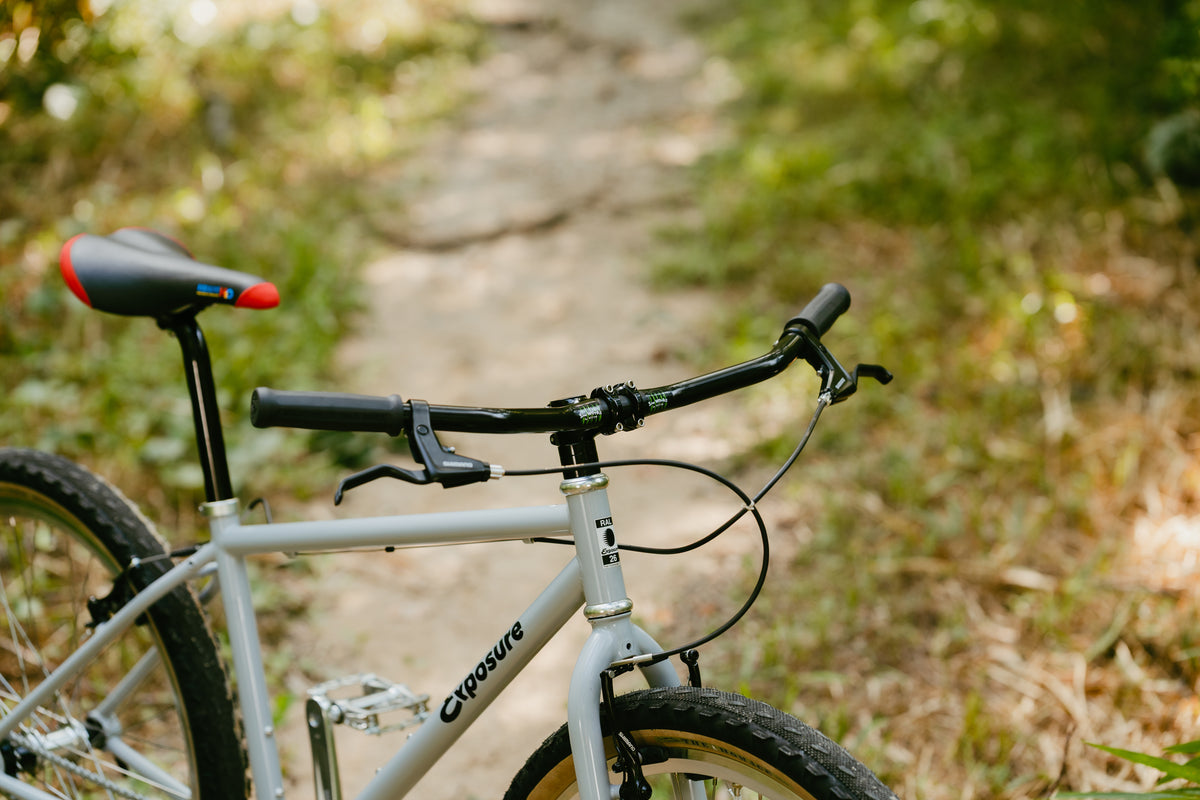

| Handlebar | SIMWORKS Getaround CrMo Bar |
| Stem | 60 mm / ±6° |
| Grips | WTB Original Trail Grip |

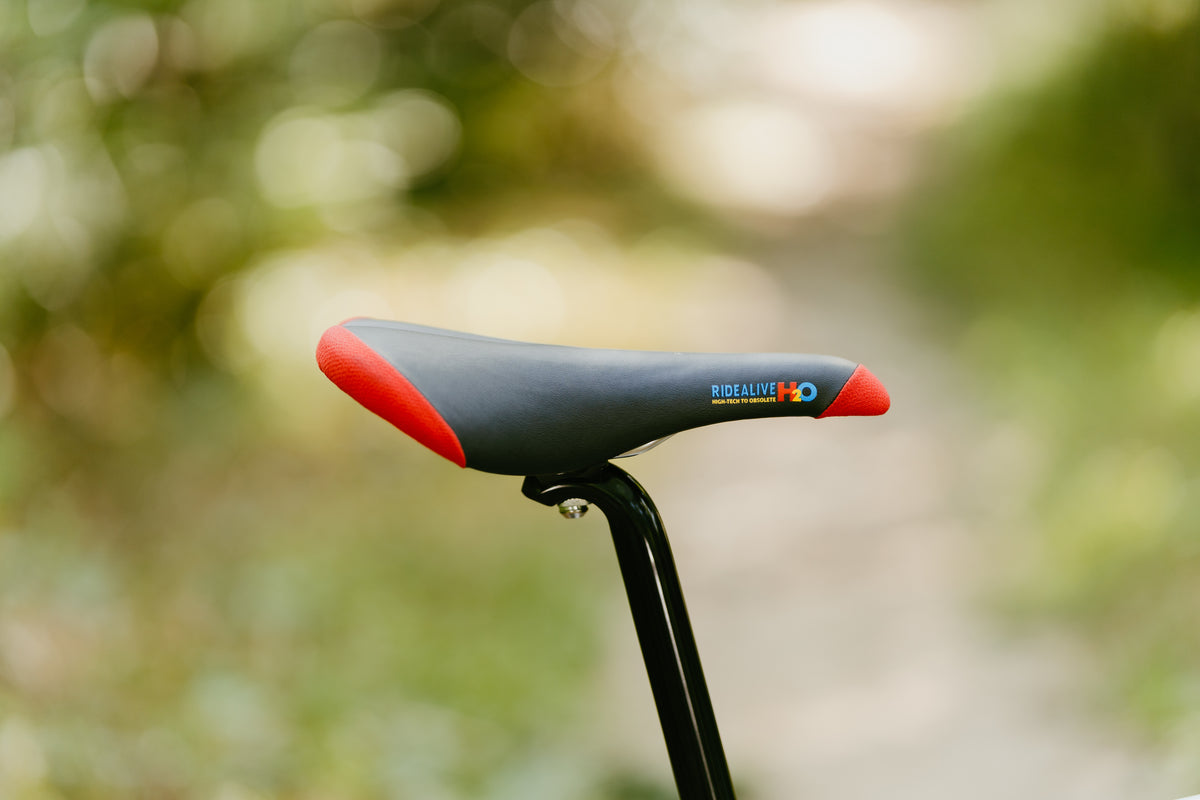

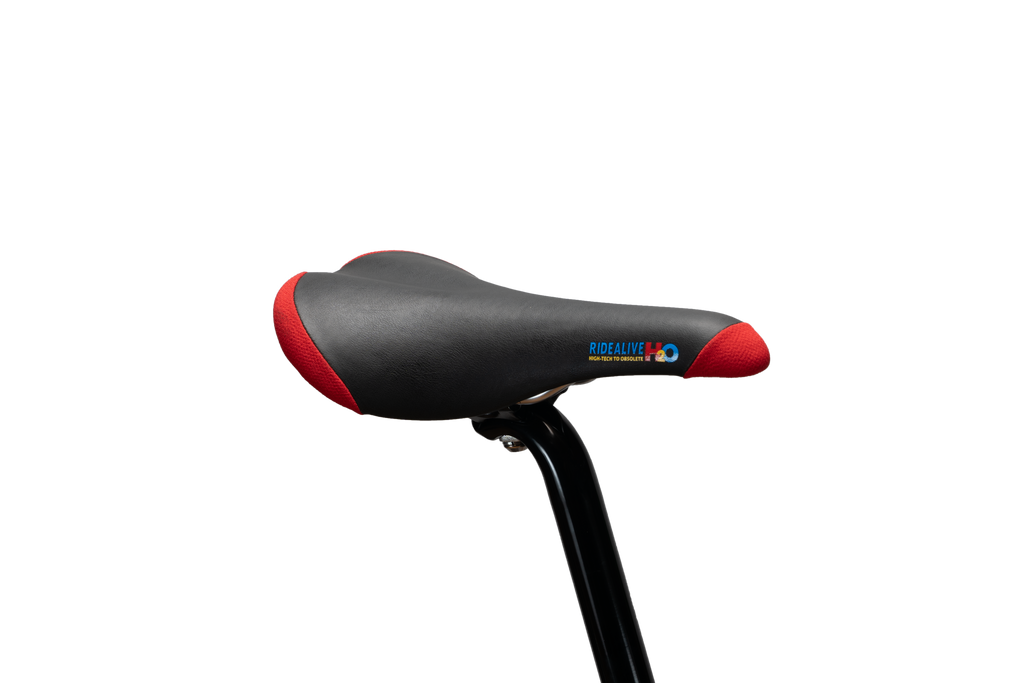

| Saddle | RAL H2O Saddle |

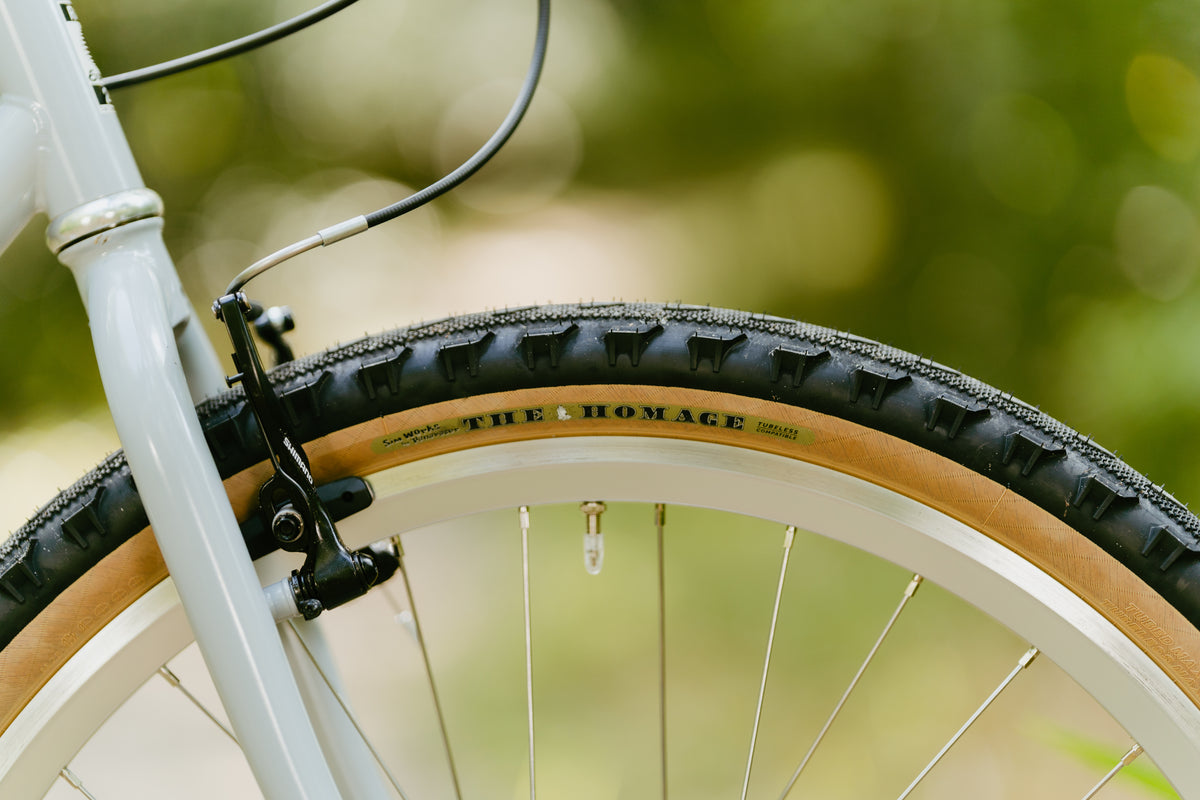

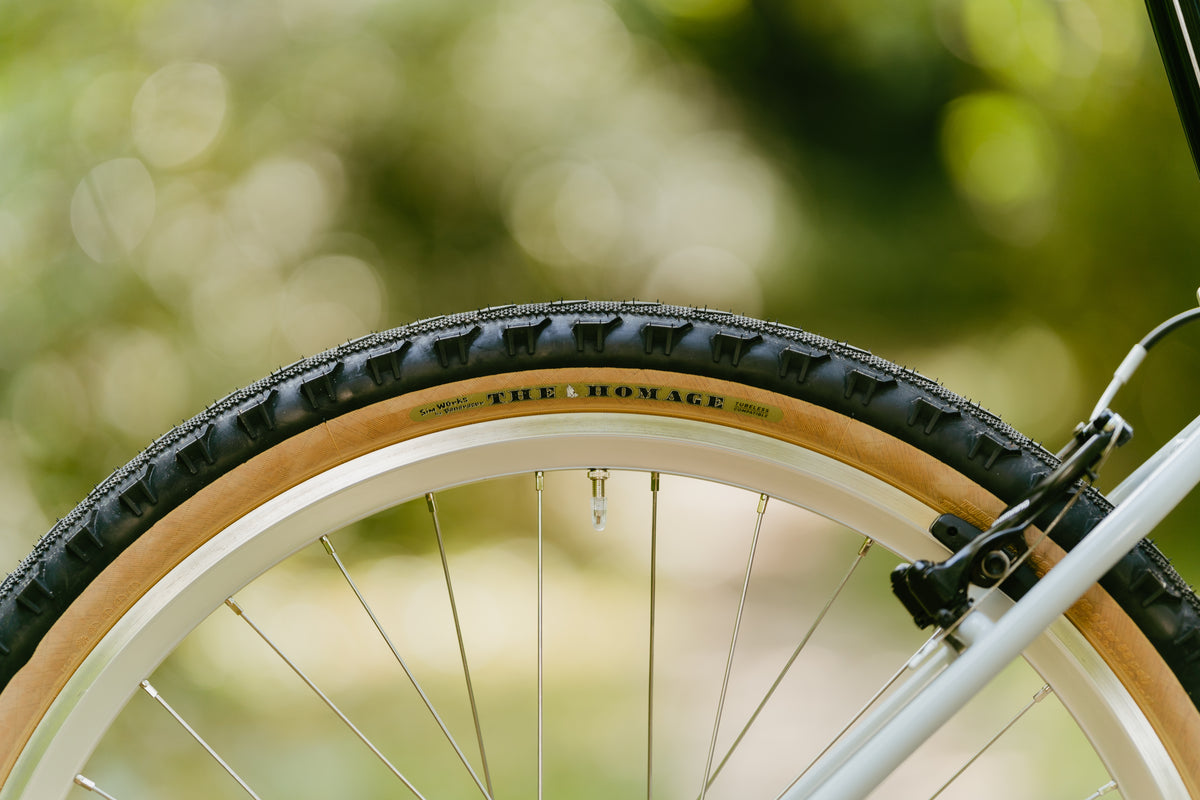

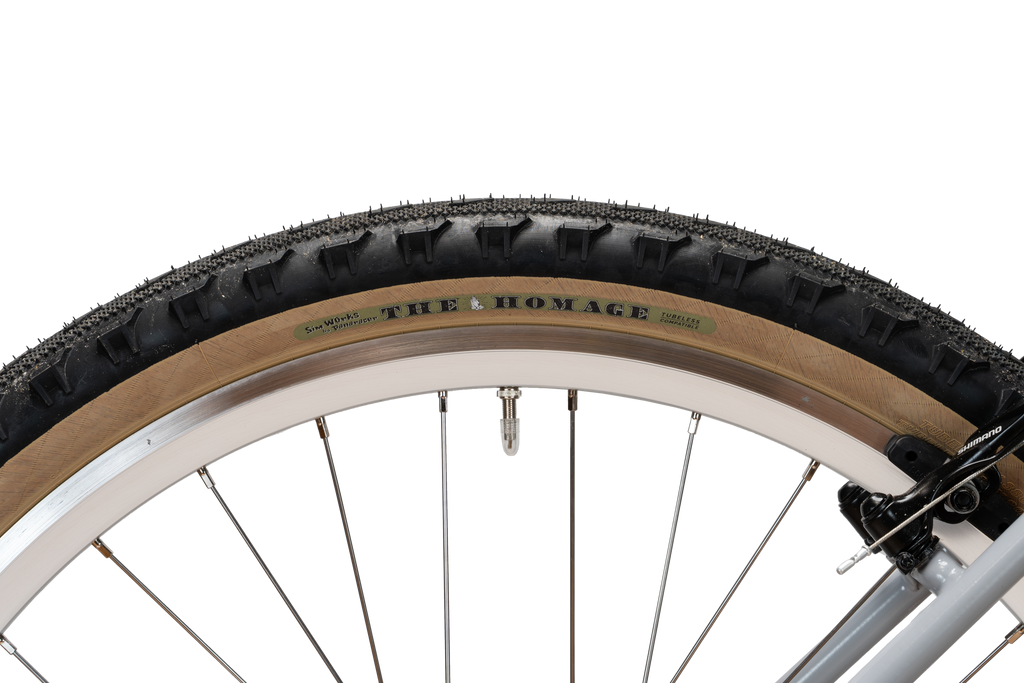

| Tire | SimWorks The Homage TLC 26x2.13" |

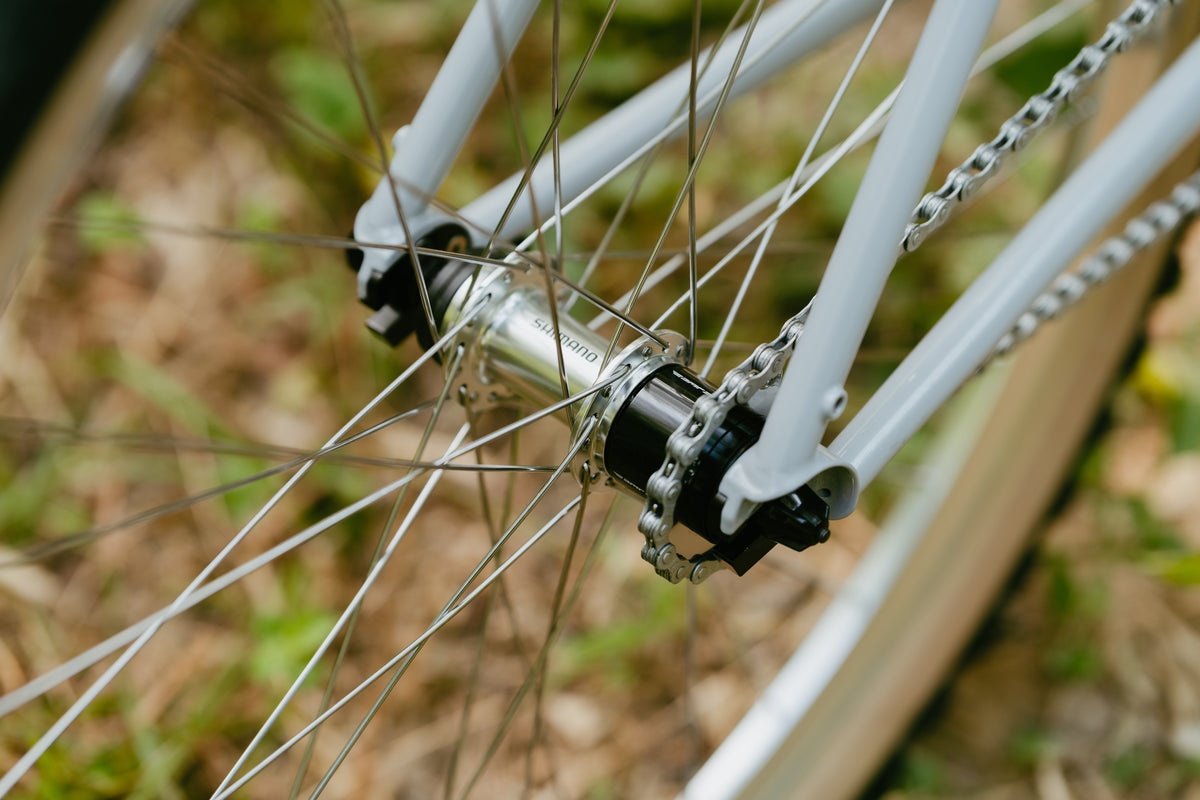

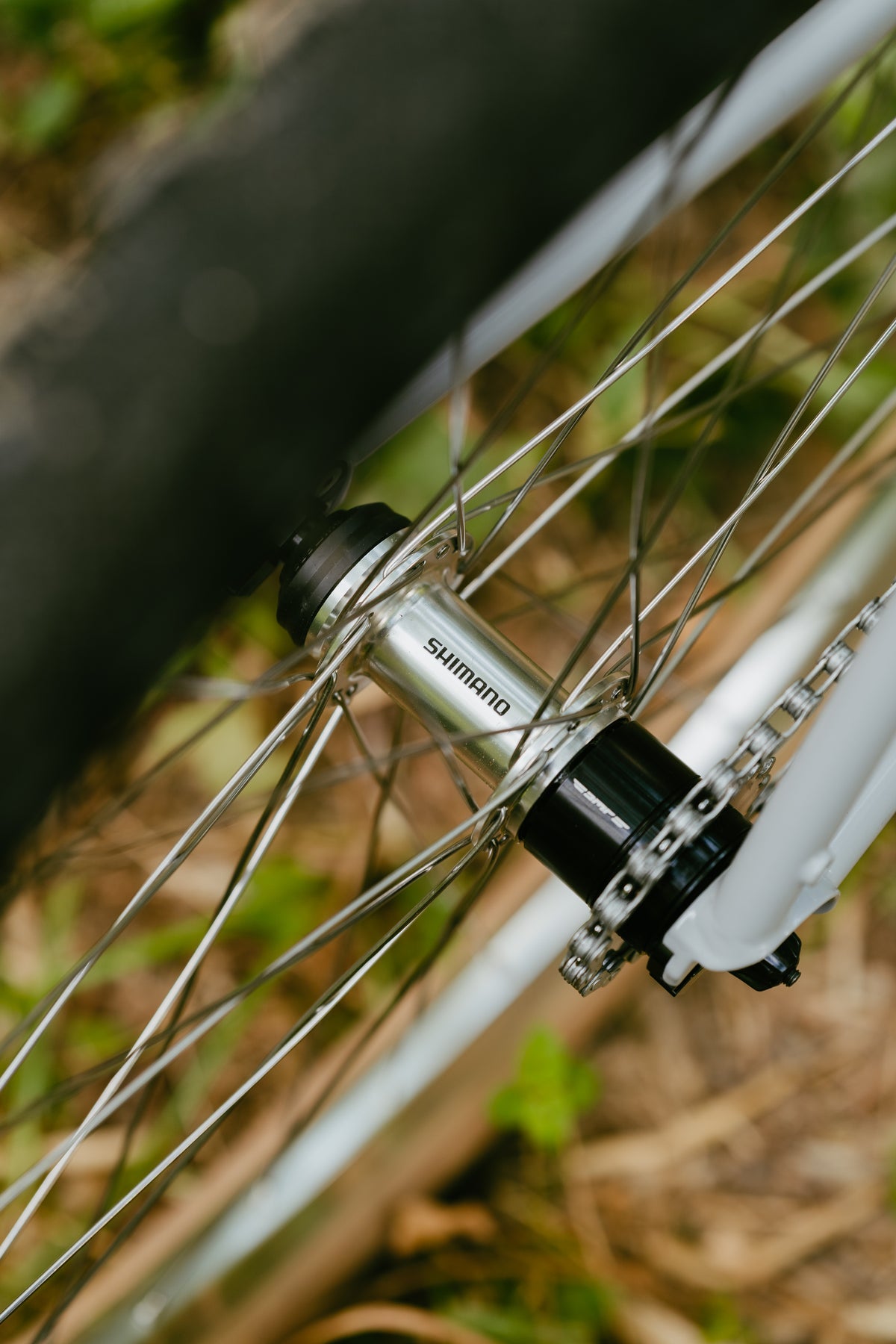

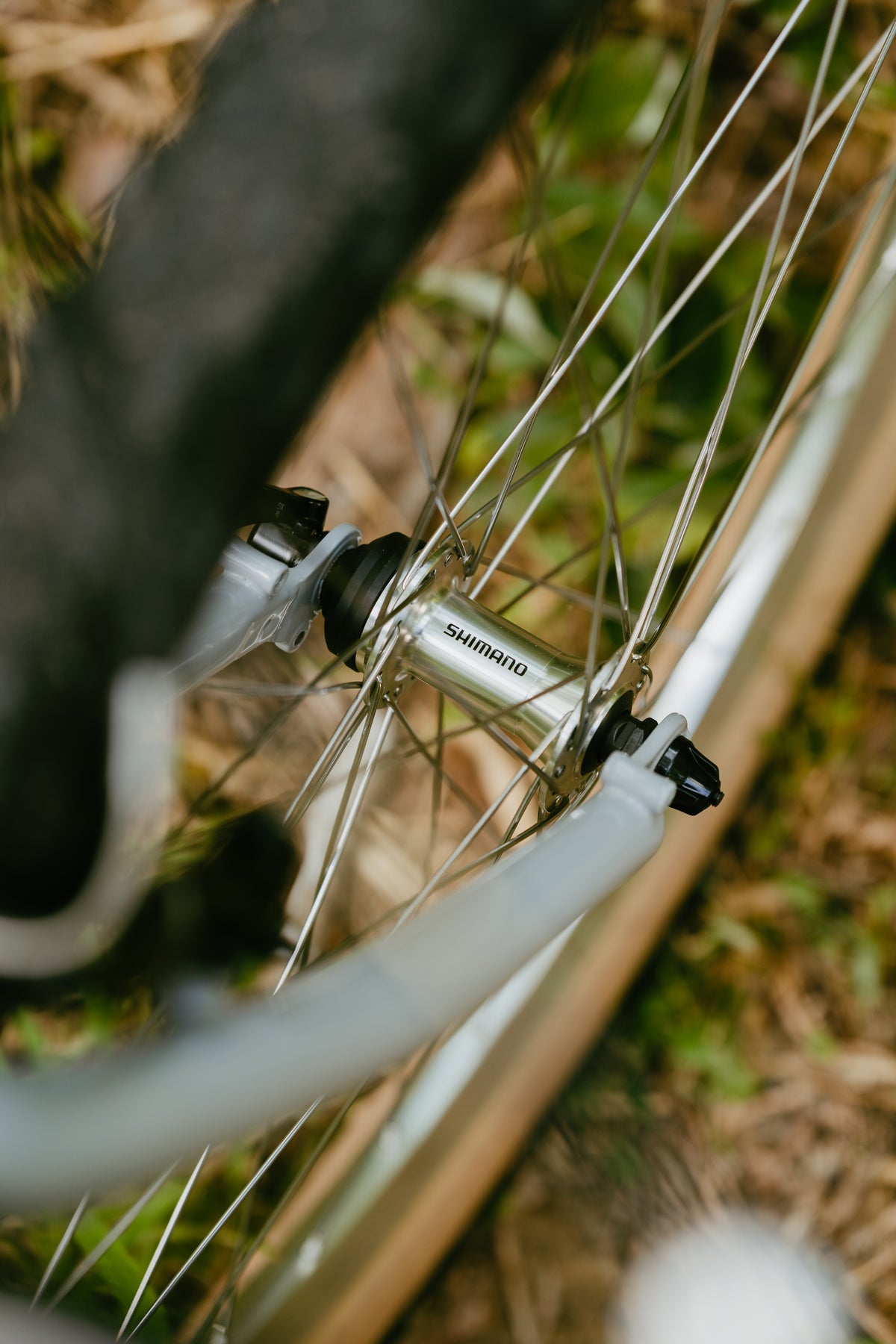

| Hub | SHIMANO QUES QC400 |
| Rim | GRUNGE Ranger Rim 26" |
| Spoke | SimWorks Condor Spoke |

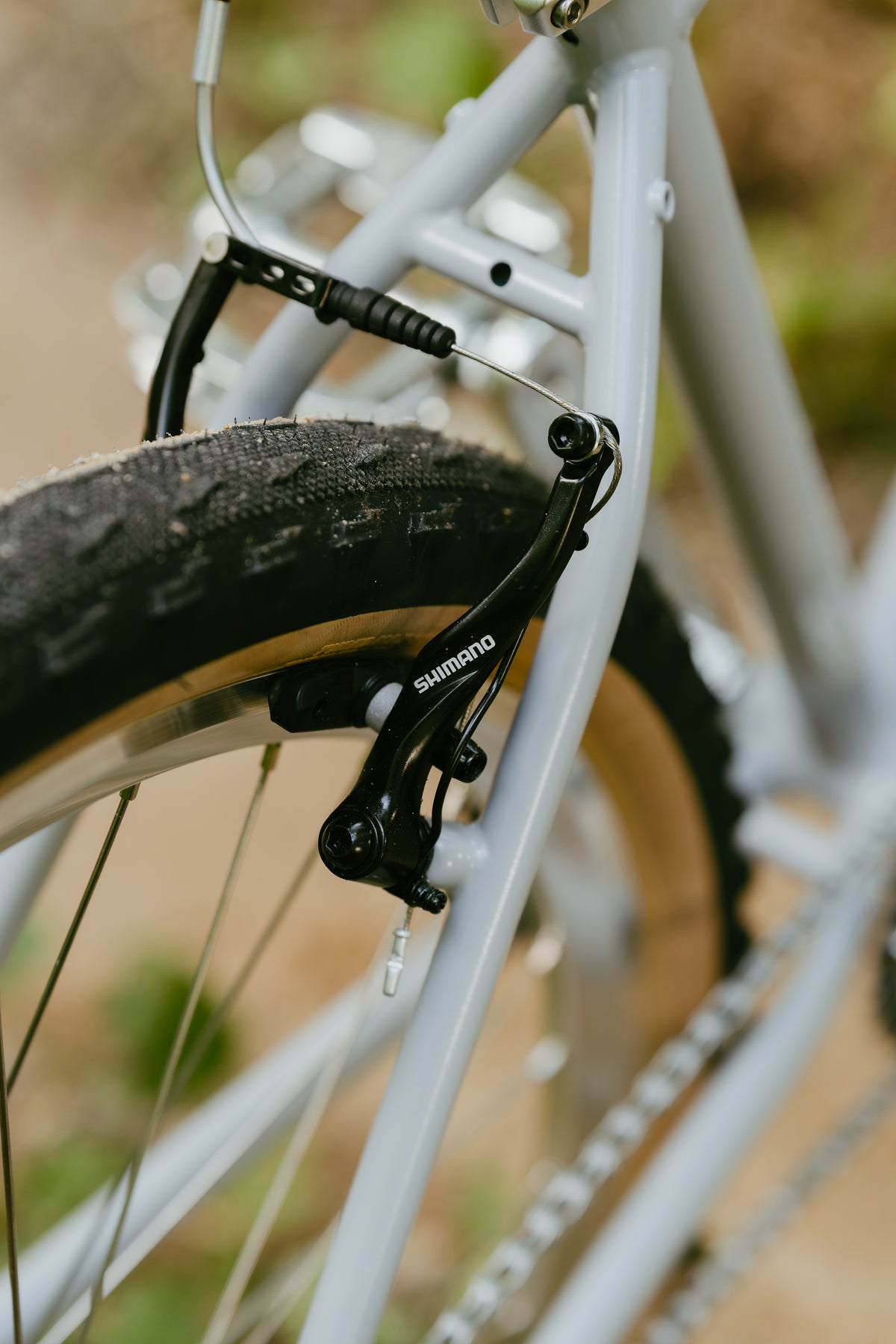

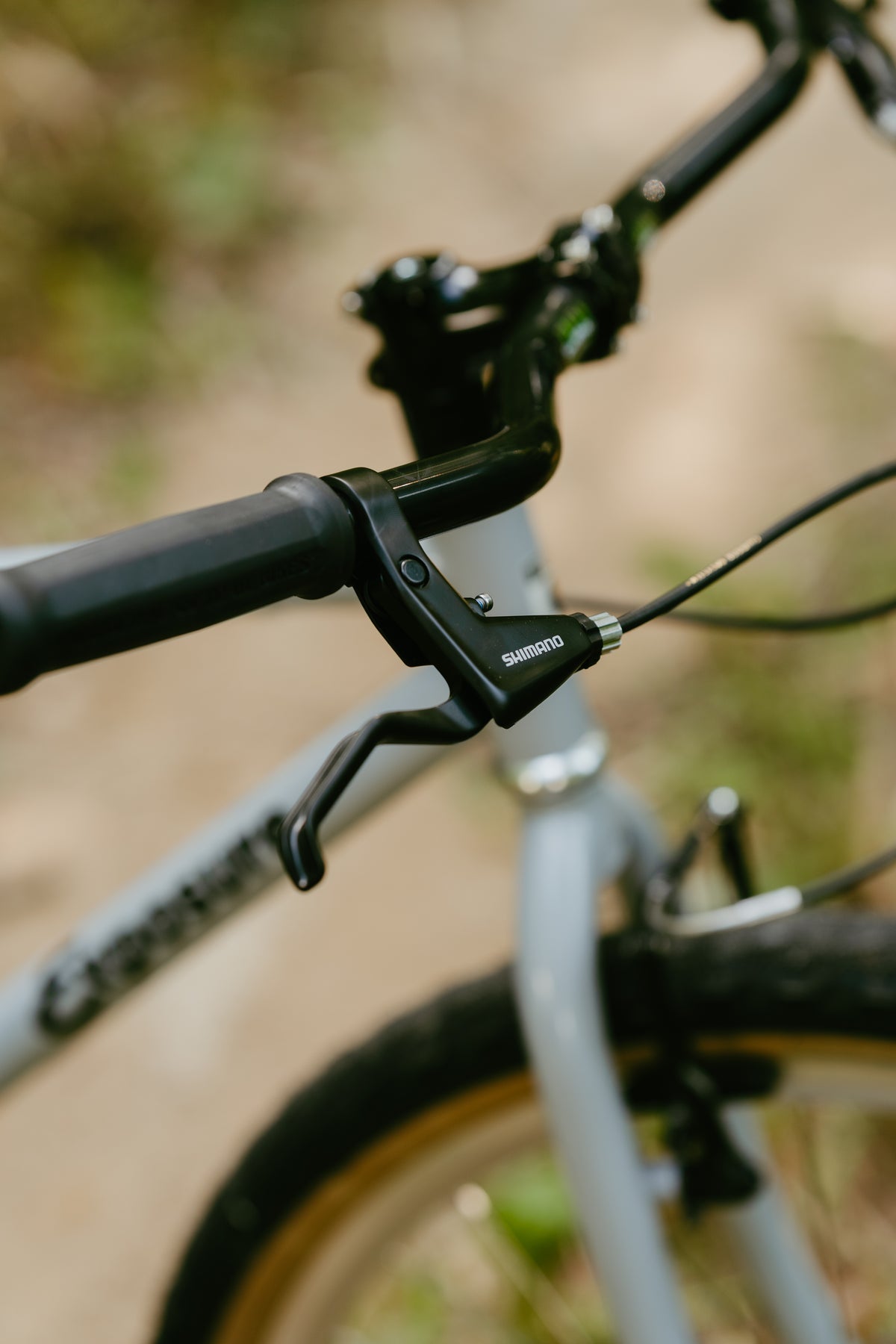

| Brake / Lever | SHIMANO Alivio T4000 |
| Crank | Arm 170mm / Square Taper PCD 110mm |

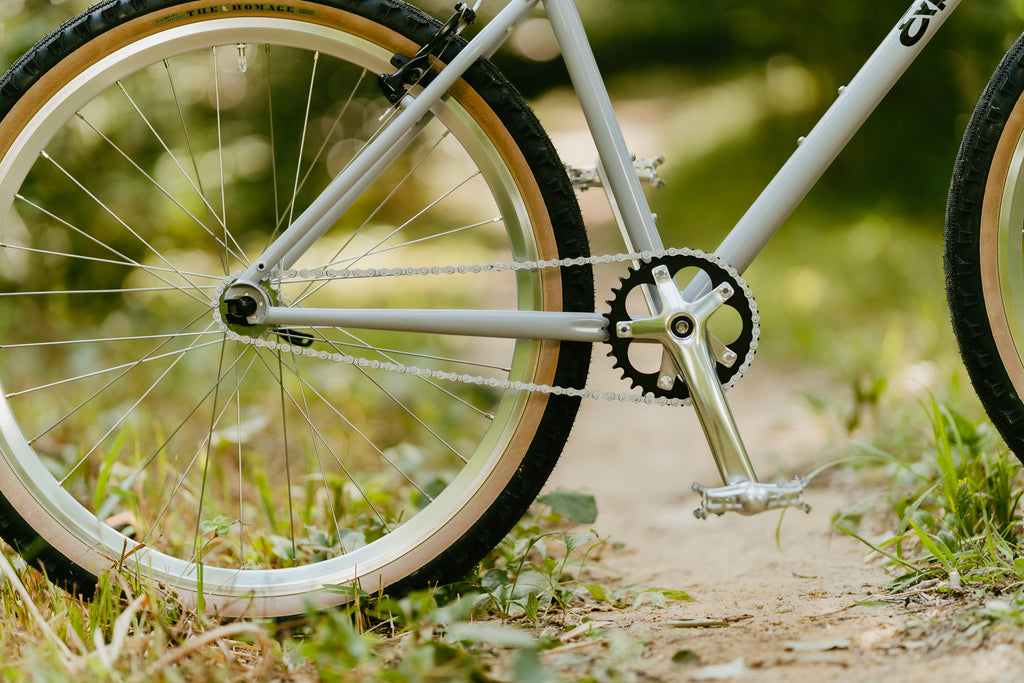

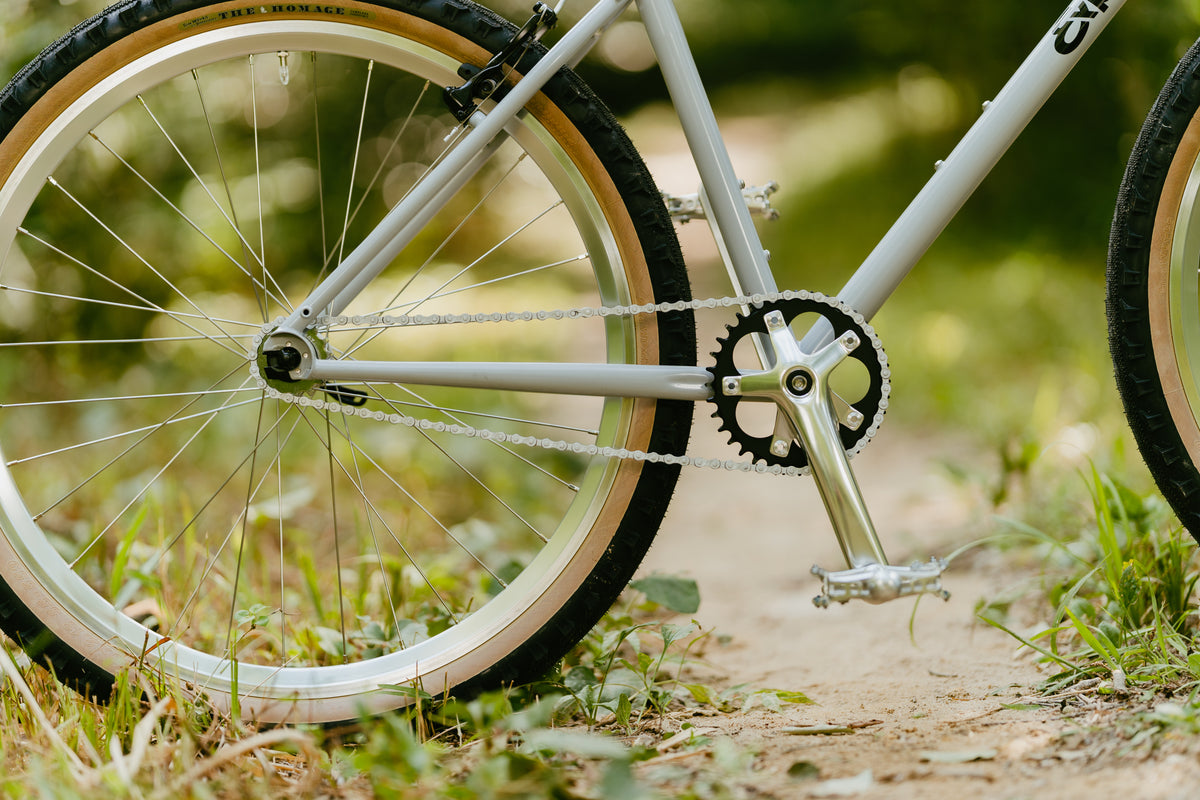

| Chainring | Narrow-Wide / 36t / PCD 110 |
| BB | SHIMANO BB-UN300 - 73/123mm |
| Sprocket | Single-Speed Spacer Kit - 16T |
*Pedals not included.
[SIZE / GEOMETRY]
| Frame Size | Small | Medium | Large |
| Head Tube Angle (deg.) | 71 | 71 | 71 |
| Seat Tube Angle (deg.) | 73 | 73 | 73 |
| Head Tube Length (mm) | 100 | 105 | 115 |
| Seat Tube Length (Center to Top) (mm) | 410 | 480 | 510 |
| Effective Top Tube Length (mm) | 550.0 | 587.7 | 604.1 |
| Standover Height (mm) | 738 | 765 | 797 |
| Stack Height (mm) | 519.9 | 524.6 | 534.0 |
| Reach (mm) | 391.2 | 427.3 | 440.8 |
| Chainstay Length (mm) | 415 | 415 | 415 |
| Fork (Axle to Crown) (mm) | 408 | 408 | 408 |
| Rake (mm) | 45 | 45 | 45 |
| Head Tube Extension (mm) | 8 | 8 | 8 |
| BB Drop (mm) | 44 | 44 | 44 |
| Recommended Height | Approx. 165 cm | Around 170 cm | Approx. 175 cm |
*Assumes tire size 26x2.5"
RAL Exposure FAQ's
RAL Exposure is a frame that serves as a canvas for you to paint your own "likes."
While there are some limitations, it is basically designed to allow you to combine parts from various eras. Thanks to its simple design and popular standards, you can assemble it yourself with a bit of knowledge, motivation, and the right tools. Here, we provide some supplementary tips to help you when customizing a complete bike or building one up from the frame.
▶ Handling Chromoly Frames
Moisture is the natural enemy of chromoly frames. Before assembly, be sure to apply rust preventative spray or grease to the inside of the frame to take preventative measures against rust so you can use it for a long time.
▶ Installing a Kickstand
A kickstand can be installed if there is enough space to ensure it does not interfere with the tires or crank. Please be careful when working, as overtightening the mounting bolts can cause the frame to deform or break.
It is also effective to sandwich cotton bar tape or a rubber tube between the kickstand and the frame to prevent wobbling, or to apply a thread-locking agent to the bolts. However, the most important thing is to regularly check for loose bolts or shifts in the stand.
▶ Installing Fenders
Fenders are recommended for comfortable riding in heavy rain or after the rain has stopped. Installation requires not only clearance between the tire and the fender, but also space on the frame side. The key is ensuring appropriate clearance for the fender you are installing at the three main points: the fork crown, seat stay bridge, and chain stay bridge.
▶ Frame and Crank Combinations
The frame is designed to be compatible with cranks that have a clearance of approximately 150mm or more between the inside of the left crank arm and the inside of the right crank arm. Please ensure a clearance of approximately 5mm between the chain stay and the inside of the crank arm so they do not touch when the crank or chain stay flexes under riding forces.
The maximum chainring size is intended to be 36T.
▶ Single Speed and Rear Geared Compatibility
You can convert the rear to a geared setup by using the included "little extra" replacement end with a derailleur hanger.
However, since the frame features a simple design intended for single speed, it does not come with outer cable stops for shift cables. Please get creative by using aftermarket cable stoppers or similar solutions.
▶ Chainring Chainline
The frame's chainline varies depending on the rear hub used. Please check the specifications, such as 53.5mm for the SURLY Ultra New Hub, 51.6mm for the PAUL Word Hub, or 49mm for geared hubs. Adjust the position of the chainring to match the chainline of your rear hub.
