Description
100% Pure PAUL Cranks
PAUL COMPONENT () was founded in 1989 in a former Texaco Oil distribution facility in Chico, California that was converted into a garage in 1926 and has been meticulously manufacturing bicycle parts in that garage ever since.
Paul believes that great products should be based on simple ideas, easy maintenance, and a high level of functionality.
Precision machined American aluminum, flexible design, and uncompromising craftsmanship. This is the latest version of PAUL Components' 100% Pure Cranks.
Product Story
When Paul suggested that we bring back the classic 100% Pure Cranks, updated to modern specifications, our engineers were thrilled. What's more, it would also feature a 3-bolt direct-mount chainring spline and a crank bolt with self-extractor.
However, the following words caused some consternation: "The bottom bracket is JIS square taper.
Let's go with a JIS square taper bottom bracket," he said.
...... What, square taper in 2025? Really? That was my honest reaction.
But after actually installing and testing the prototype, I quickly changed my mind.
I found that by changing the length of the BB spindle, the Q-factor (width between pedals) and clearance with the chainstay could be finely adjusted. Furthermore, by utilizing the chainring offsets (0mm / -3mm / -6mm), I could pull the ideal chainline even with a larger rear cog.
If you are a detail-oriented rider, this crank is for you.
Q-factor maniacs, rejoice! This crank is a product of that kind.
[FEATURE]
-
The material used is 2024 aluminum alloy made in the U.S.A.
While being super strong, the CNC machining has trimmed off unnecessary parts for a beautiful design. -
J.I.S. Square taper standard
By changing BB spindle length, Q-factor and clearance with chainstay can be finely adjusted. -
3-bolt direct-mount type
SRAM-compatible splines allow for flexible selection of chainrings and offsets (0mm / -3mm / -6mm). -
With self-extracting crank bolt
Smoothly attaches and removes with a single tool. Easy to maintain.
[SPEC].
Material: American made 2024 milled aluminum
Compatible chainrings: 3-bolt SRAM direct mount type
Length (mm): 155 / 160 / 165 / 170 / 175 / 180

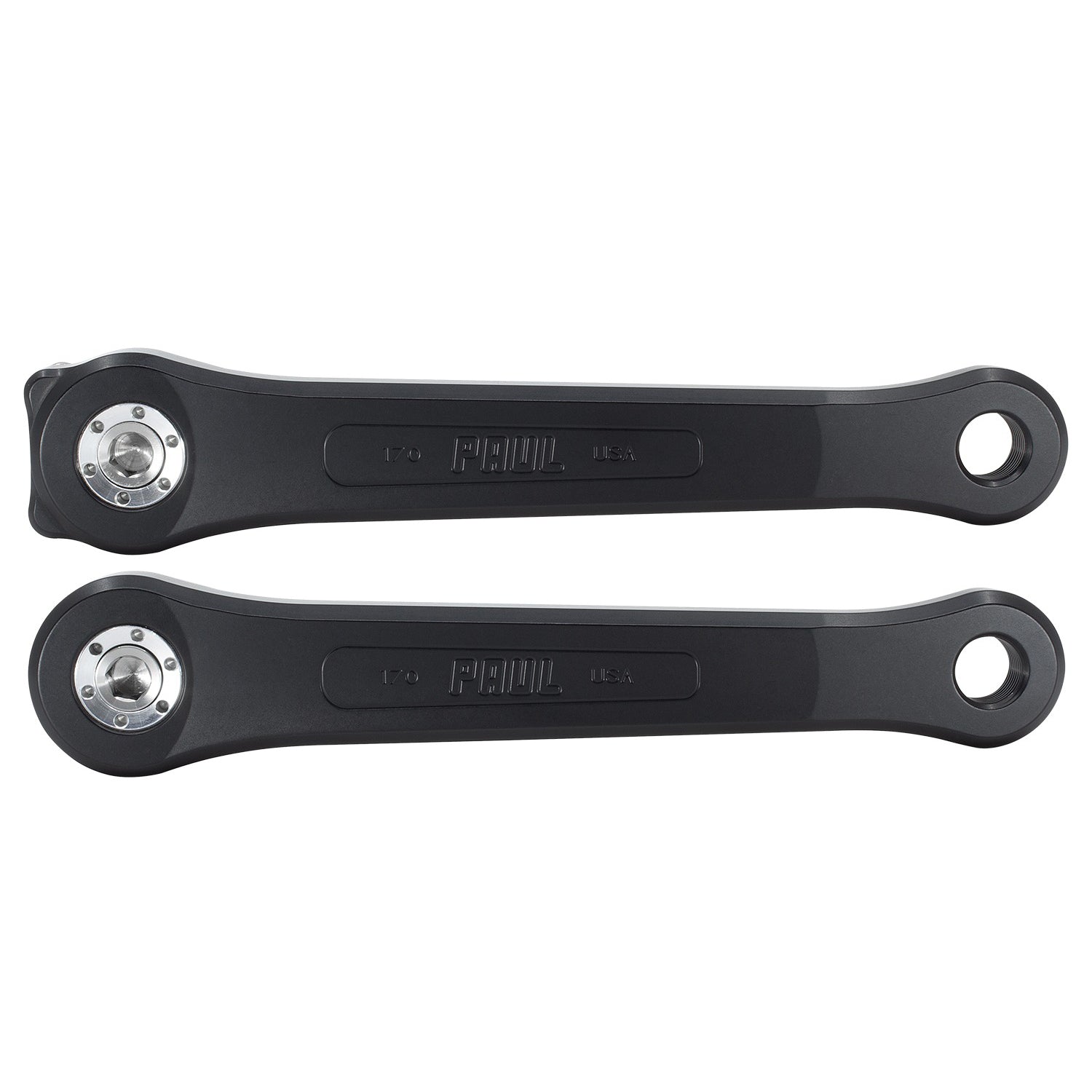

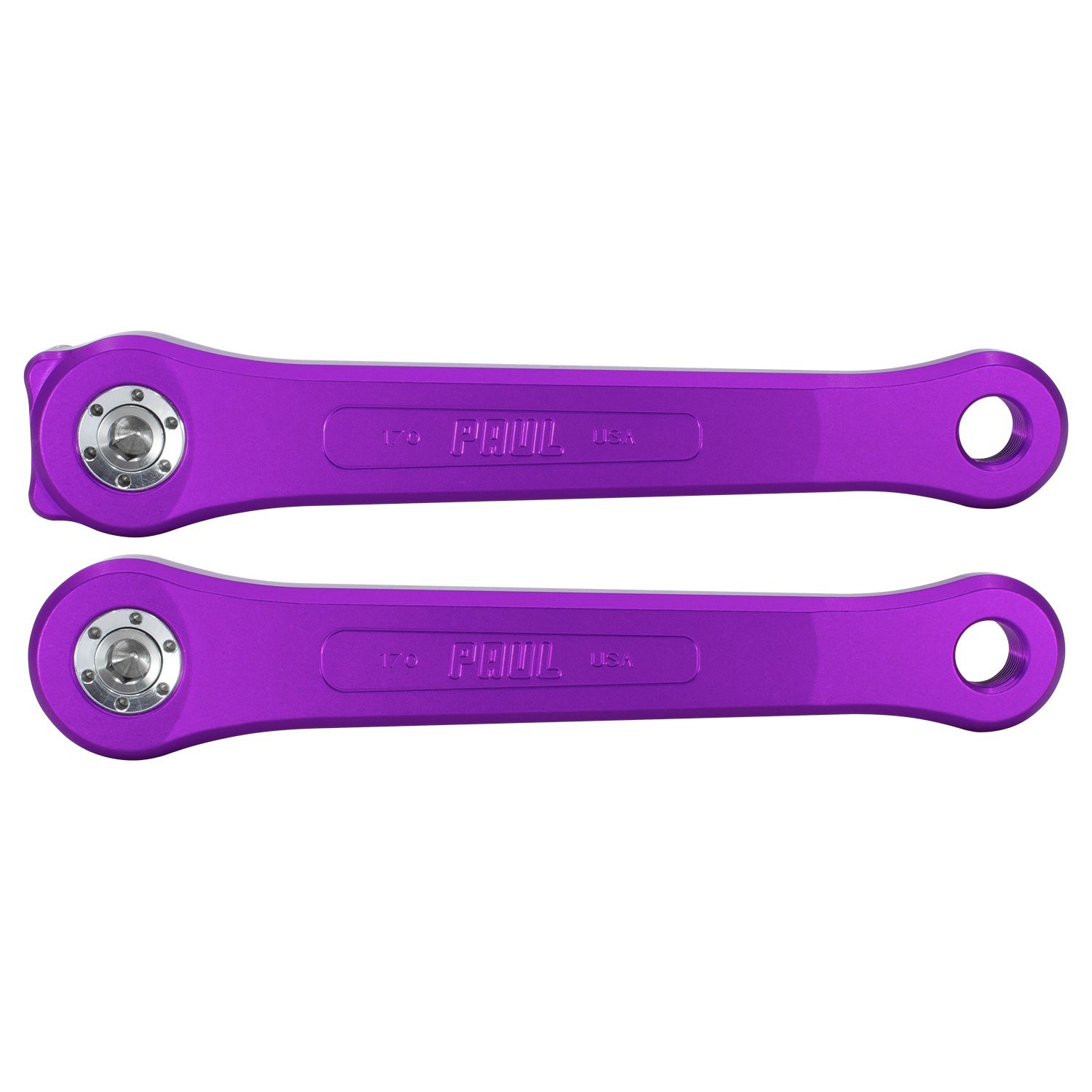

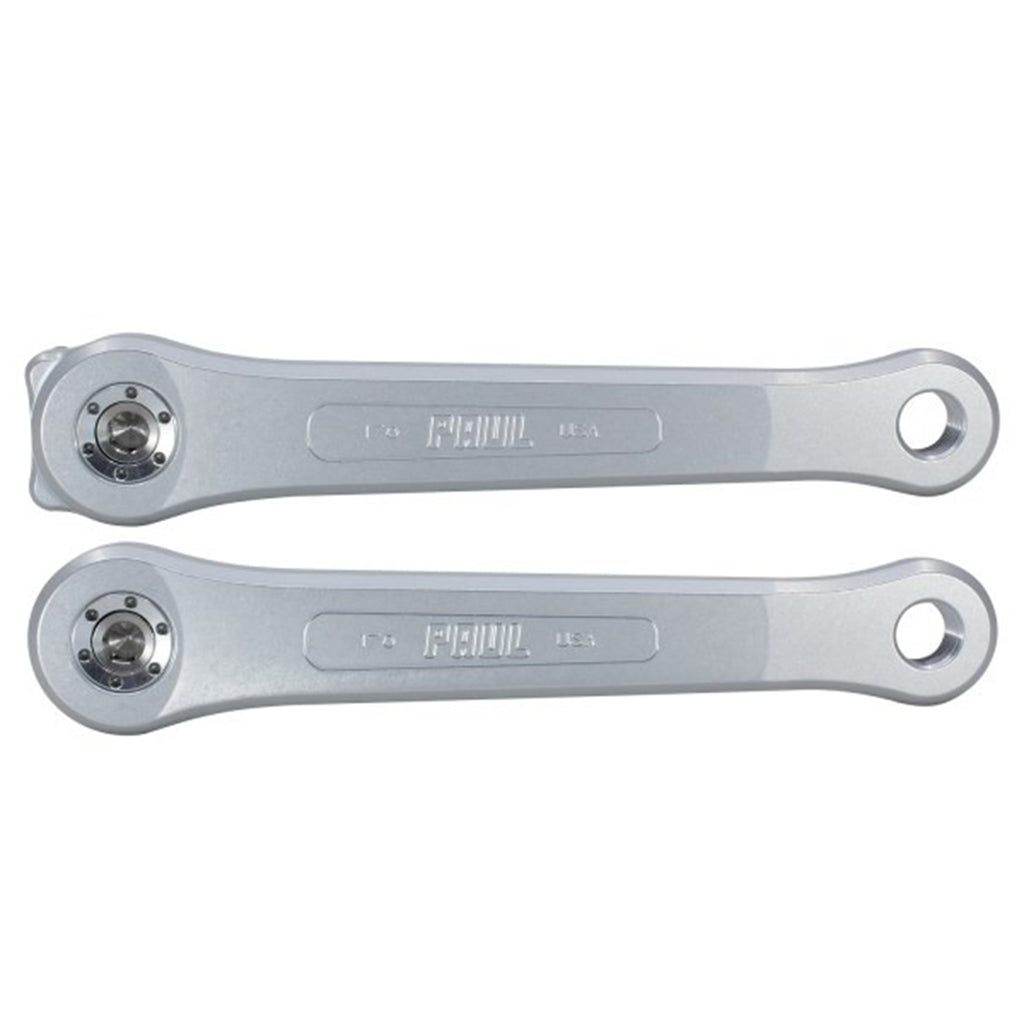

Color: Black / Silver / Purple / Pewter
Weight: 516g (180mm pair, including bolts)
[Set includes]
Crank arm left/right set
Crank bolt (self-extracting)
Chain ring bolt
Extractor cap
Bottom bracket and chainrings are sold separately.

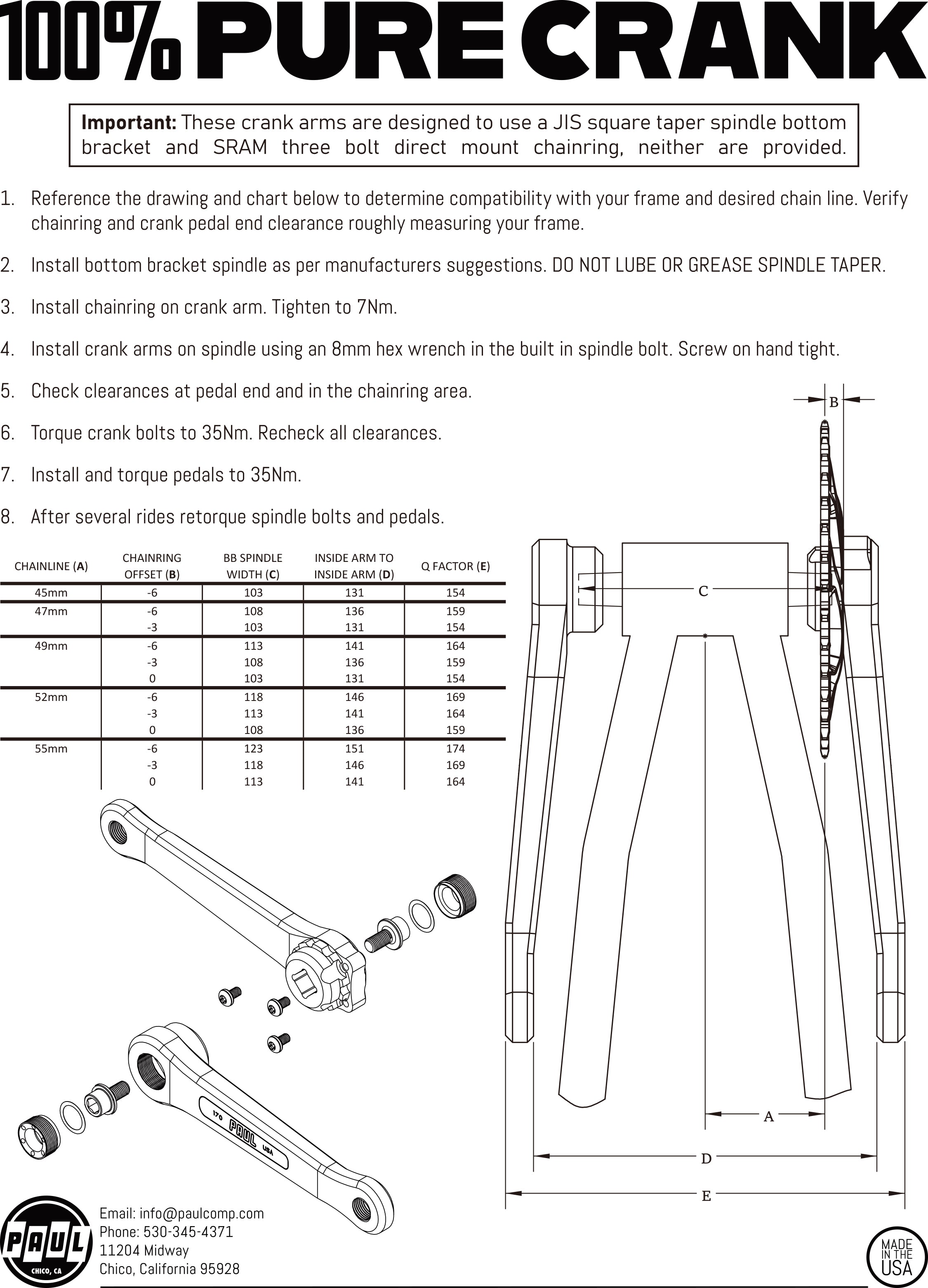

*Instruction manuals are included with the product or can be downloaded from here.
