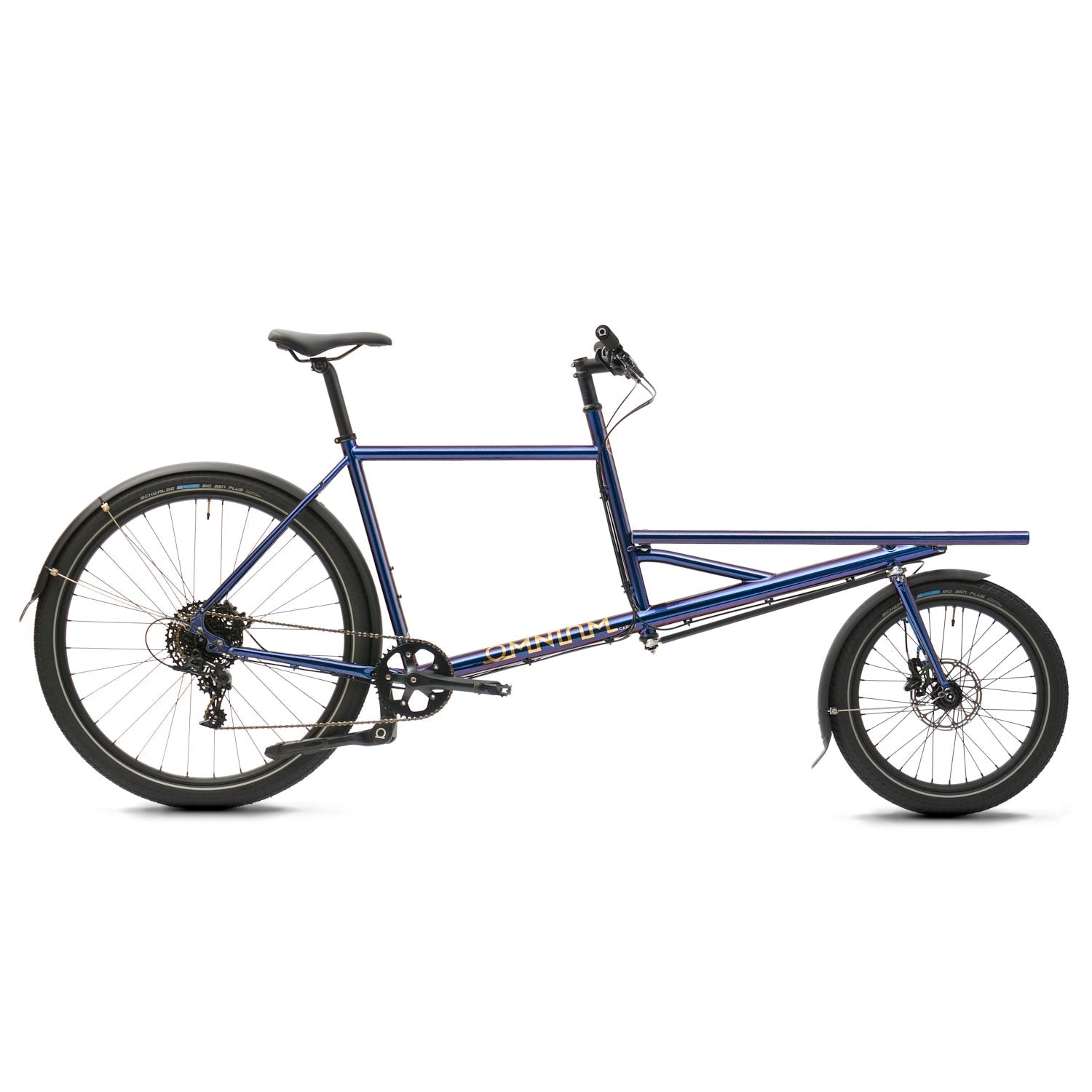

[Pre Order]OMNIUM Cargo V3 Complete Shimano 1x11

OMNIUMSKU: OM-CA-CO-XS-COMP

Color: Copperhead
Size: X-Small

Description

The Ultimate Cargo Bike Created by Messengers

Based in Copenhagen, Denmark, the OMNIUM brand manufactures lightweight, fast, and stable cargo bikes suitable for carrying, moving, and traveling.

Cargo has undergone multiple improvements based on feedback from messengers (bicycle messengers) in the field, and its mobility and load capacity are well documented. The Cargo V3 is the ultimate cargo bike that prioritizes versatility by maintaining the fast and nimble Cargo ride, but adding adjustable rocker dropouts, WiFi-designed wide tires, a reliable through-axle, and new functional dropouts. model.

The adjustable rocker dropout allows for a variety of drivetrains, from exterior gears with derailleurs to interior gears and belt drive (not at the same time, unfortunately...) can be selected. And of course, for fixed!
Interchangeable inserts allow you to choose between through-axle and quick-release, depending on your rear end width and choice of gear components. If needed, you can even carry a spare set for easy replacement of broken gear hangers.

Cargo is an incredibly versatile, lightweight, and fast cargo bike. Best of all, thanks to its clever construction and sophisticated geometry, it rides like a regular bicycle when not loaded with cargo.

Cargo has the longest wheelbase of all the models, yet it handles very stably. This wheelbase also provides added stability when loading the bike onto a rack by itself, although the weight is placed halfway between the front wheel and the kickstand.

Want to go shopping for a new couch with this cargo bike? Easy peasy! Taking the kids to daycare before work? No problem!
Pack your work computer and a change of clothes for the gym in the waterproof duffel and you're good to go all year long, rain or shine, and start a new life with the Cargo Bike!

[SPEC]

FRAME MATERIAL Double-Butted Chromoly Steel Frame
5 SIZES XS, S, M, L, XL
STANDARD RACK WEIGHT 1320g +/-
RACK DIMENSIONS 83cm x 50cm
SEAT POST DIAMETER 31.6 mm
SEAT POST CLAMP SIZE 34.0 mm
REAR WHEEL TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
FRONT WHEEL 406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT 55 mm with mudguards
TYRE CLEARANCE, REAR 55 mm with mudguards
THRU AXLE REAR 12×142, 172mm long, 19mm thread length, 1.75mm pitch
THRU AXLE FRONT 15×100, 125mm long, 17mm thread length, 1.5mm pitch
FORK HEADSET 1 1/8″ Threaded Integrated with locking cap
STEERER HEADSET 1 1/8″ Ahead
BOTTOM BRACKET BSA 68mm
Q-FACTOR/STANCE 145mm
GEARS For 1x rear derailleur gear system
STANDARD RACK WEIGHT 1320g +/-
RACK DIMENSIONS 83cm x 50cm
RACK BOLT SIZE M15 x 15mm
WEIGHT Complete medium bike weighs 20kg
MAXIMUM LOADING WEIGHT ON FRONT RACK MAXIMUM LOADING WEIGHT ON FRONT RACK
MAXIMUM TOTAL LOADING WEIGHT INCL. RIDER RIDER 175 kg

[COMPONENTS LIST SHIMANO 1X11]

BRAKES Shimano MT500, IS mount, 160mm rotor front and rear
GEARS Shimano Deore M5100 11 SPD, Shimano SLX 11-40T cassette, KMC 11 SPD chain EPT
STEM 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HANDLEBAR 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
SEATPOST 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GRIPS Omnium lock-on, black, foam
CRANKSET Driveline, 42t, CNC Narrow Wide Chainring
BOTTOM BRACKET FSA, Square Taper, 68mm BSA
HEADSET/S VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SADDLE Omnium Standard Saddle
TYRES Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WHEELS Omnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KICKSTAND Omnium, cast aluminium twin-leg
PEDALS Cast metal platform, black
MUDGUARDS WiFi 60mm wide matte black

[SIZE GUIDE]

height: 155 - 165cm - recommended frame s ize - size X-S mall
height: 165 - 175 cm - recommended frame size - size Medium height: 175 - 185cm - recommended frame size size Small
Height: 175 - 185cm - Recommended frame size - size Medium
Height: 185 - 195cm - Recommended frame size - size Large
Height: 195 - 205cm - recommended frame size - size X-Large

[GEOMETRY]

Cargo V3 XS (49.5) S (52) M (54.5) L (57) XL (60)
STL - seat tube length (c-t) 495 mm 520 mm 545 mm 570 mm 600 mm
TTL - top tube length (c-c / actual) 505 mm 520 mm 545 mm 570 mm 600 mm
Stack 533 mm 557 mm 581 mm 605.5 mm 634 mm
Reach 349 mm 357 mm 375 mm 394 mm 394 mm 394 mm 415 mm
SO - standover height 745 mm 769.5 mm 793.5 mm 818 mm 846 mm
BBH - bottom bracket height 288 mm 288 mm 288 mm 288 mm 288 mm 288 mm 288 mm 288 mm
BBD - bottom bracket drop 81 mm 81 mm 81 mm 81 mm 81 mm 81 mm 81 mm
STA - seat tube angle 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74
HTA1 - head tube angle rear 74.5° 74.7° 74 74.7° 75° 75° 75° 75 75° 75.4 75.4° 75.5° 75.5° 75.5° head tube angle rear
HTA2 - head tube angle front 74.5° 74.6° 74.7° 75° 75° 75.4° 75.5 74.6° head tube angle front 74.9° head tube angle front 75.4° 75.5° 75.5° 75.5° 75.5° 75.5° 75.5 75.5° head tube angle
WB - wheelbase 1578 mm 1590 mm 1612 mm 1632 mm 1657 mm
A-C - axle to crown 298.5 mm 298.5 mm 298.5 mm 298.5 mm R - rake
R - rake 45 mm 45 mm 45 mm 45 mm 45 mm 45 mm 45 mm 45 mm
T - trail 25.5 mm 25 mm 23.5 mm 24 mm 21 mm
CSL - chainstay length 462 mm 462 mm 462 mm 462 mm 462 mm 462 mm 462 mm 462 mm
FL - full bike length 2208 mm 2220 mm 2241 mm 2262 mm 2286 mm
