Description
SWORD is a mechanical/mechanical type component with a modern ergonomic design, a wide range of cassettes for higher hill climbs, and reliable operability, while maintaining robustness, simplicity, and ease of maintenance at its core. The result is a wide range of mechanical/mechanical components that are designed for gravel and climbing use.

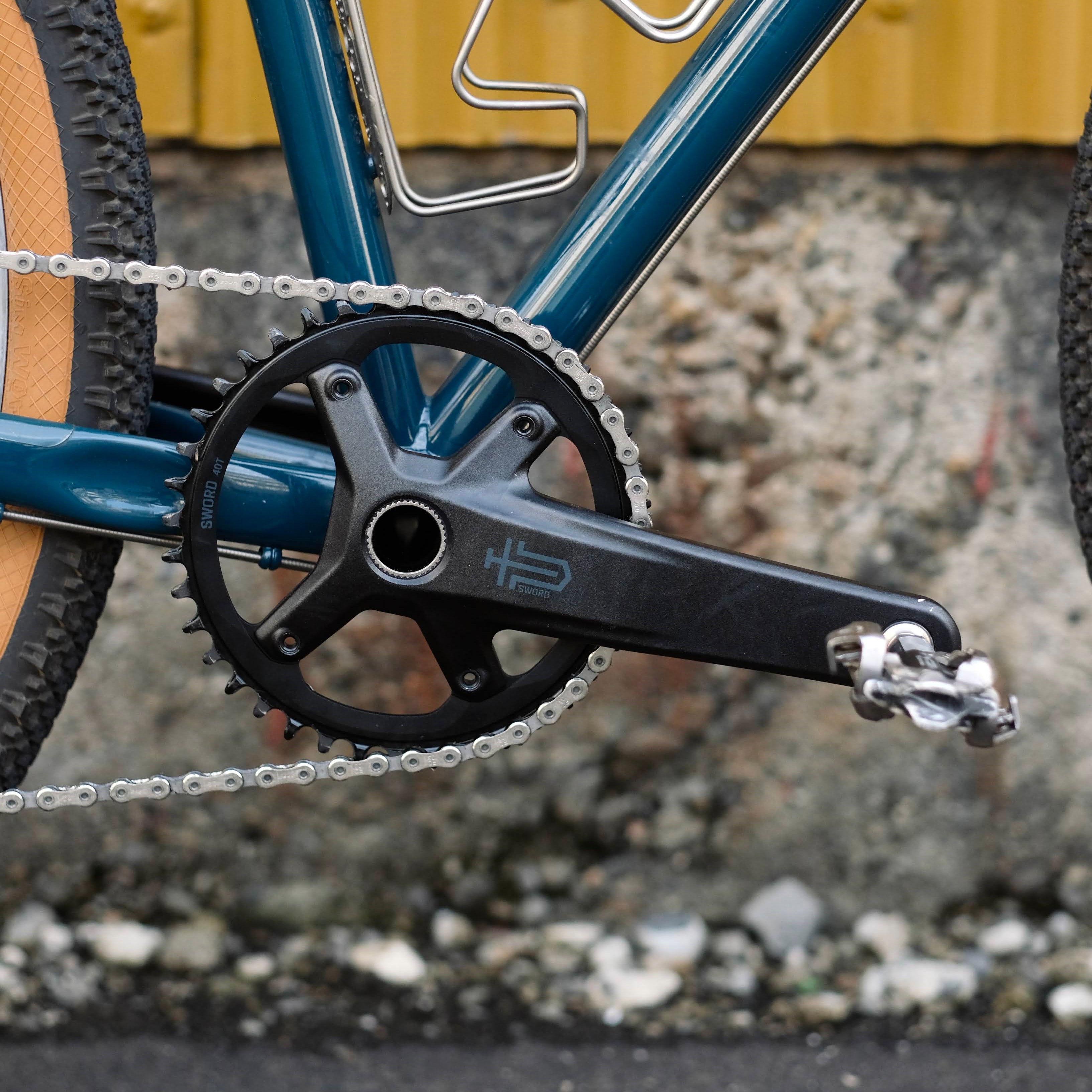

Designed for gravel and climbing, SWORD's front single crankset offers a choice of 40T and 42T chainrings, combined with a wide range of 11-48T rear sprockets for a wide range of high to low gears.
The 24mm spindle is compatible with many aftermarket bottom brackets and can be adapted from 1x to 2x cranks by simply installing a chainring for the front double.
[FEATURE]
- Wide design optimized for 50mm chainline
- 24mm spindle compatible with SHIMANO bottom bracket
- Front single chainring compatible with clutch derailleurs
- Equipped with both BCD110/80 standard bolt holes for both front single and double
- Compatible with standard 10-speed chains
[SPEC]
| Group : SWORD | SWORD |
| Speed : 10Speed | 10Speed |
| Chainring Count : 10 | 1x Single |
| Chainring Size : 40T, 42T | 40T, 42T |
| Arm Length : 165mm, 170mm, 172.5mm, 175mm | 165mm, 170mm, 172.5mm, 175mm |
| Chainline : 50mm | 50mm |
| Chainring BCD : 110 Asynmmetric | 110 Asynmmetric |
| Spindle Interface : Standard 24mm (SHIMANO compatible) | Standard 24mm (SHIMANO compatible) Bottom bracket width 68mm |
| Lever Material : Aluminum / Composite | Aluminum / Composite |
| Weight : 40T / 790g (172.5mm) | 40T / 790g (172.5mm) 42T / 810g (172.5mm) |
