Description
SWORD is a mechanical/mechanical type component with a modern ergonomic design, a wide range of cassettes for higher hill climbs, and reliable operability, while maintaining robustness, simplicity, and ease of maintenance at its core. The result is a wide range of mechanical/mechanical components that are designed for gravel and climbing use.

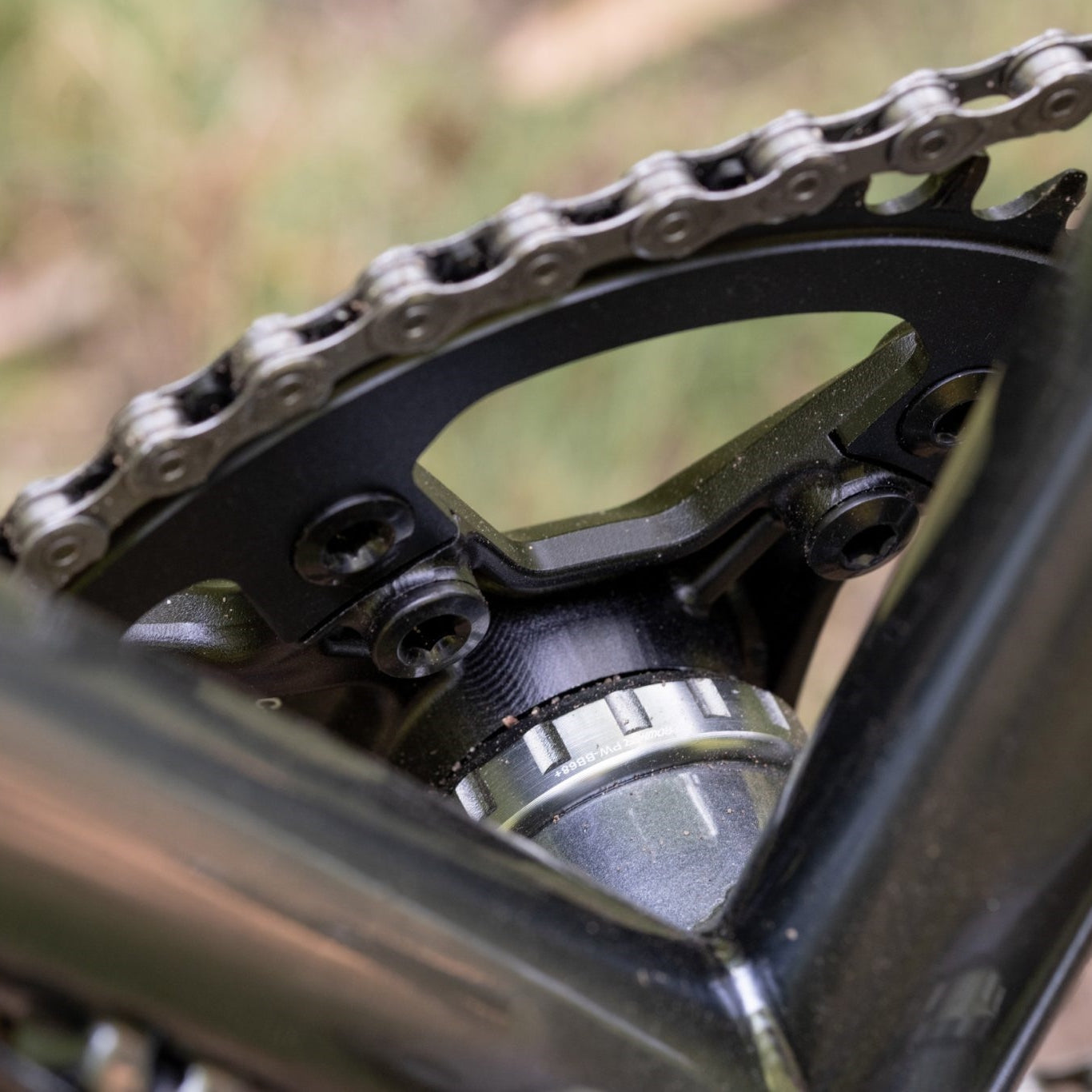

Designed for gravel and climbing, SWORD's front double crankset has a 17T tooth count difference between the outer and inner gears for a lower gear range while also providing a higher gear to pick up the pace on the downhills.
The 24mm spindle is compatible with many aftermarket bottom brackets and can be adapted from 2x to 1x cranks by installing a front single chainring in the outer gear position.
[FEATURE]
- Wide design optimized for 47mm chainline
- 24mm spindle compatible with SHIMANO bottom bracket
- Compatible with SWORD front derailleur and shifter
- Equipped with both BCD110/80 standard bolt holes for both single and double front derailleurs
- Compatible with standard 10-speed chain
[SPEC]
| Group : SWORD | SWORD |
| Speed : 10Speed | 10Speed |
| Chainring Count : 10 | 2x Double |
| Chainring Size : 46 / 29T | 46 / 29T 48 / 31T |
| Arm Length : 165mm, 170mm, 172.5mm, 175mm | 165mm, 170mm, 172.5mm, 175mm |
| Chainline : Wide 47mm | Wide 47mm |
| Chainring BCD : 110/80 Asynmmetric | 110/80 Asynmmetric |
| Spindle Interface : Standard 24mm (SHIMANO compatible) | Standard 24mm (SHIMANO compatible) Bottom bracket width 68mm |
| Lever Material : Steel small ring, Aluminum big ring | Steel small ring, Aluminum big ring |
| Weight : 1.5kg | 46-29T / 925g (172.5mm) |
