Description
Step-through frame for a wide range of city and travel use
Located in Montreal, Quebec, Canada, C&L CYCLES was founded in 2009 by BASSI BASSI was established in 2009 and has been producing track bikes and classic touring frames.
The Rachel, named after the street where the store is located, is back withimprovements, including reinforced tubing, extended tire clearance, longer wheelbase, front end height adjustment, and additional eyelets!
The step-through is great for carrying luggage, convenient for city use with lots of getting in and out, and a versatile frame that can be safely used for long tours with loads of luggage.
A bike that focuses mainly on comfort and toughness rather than speed

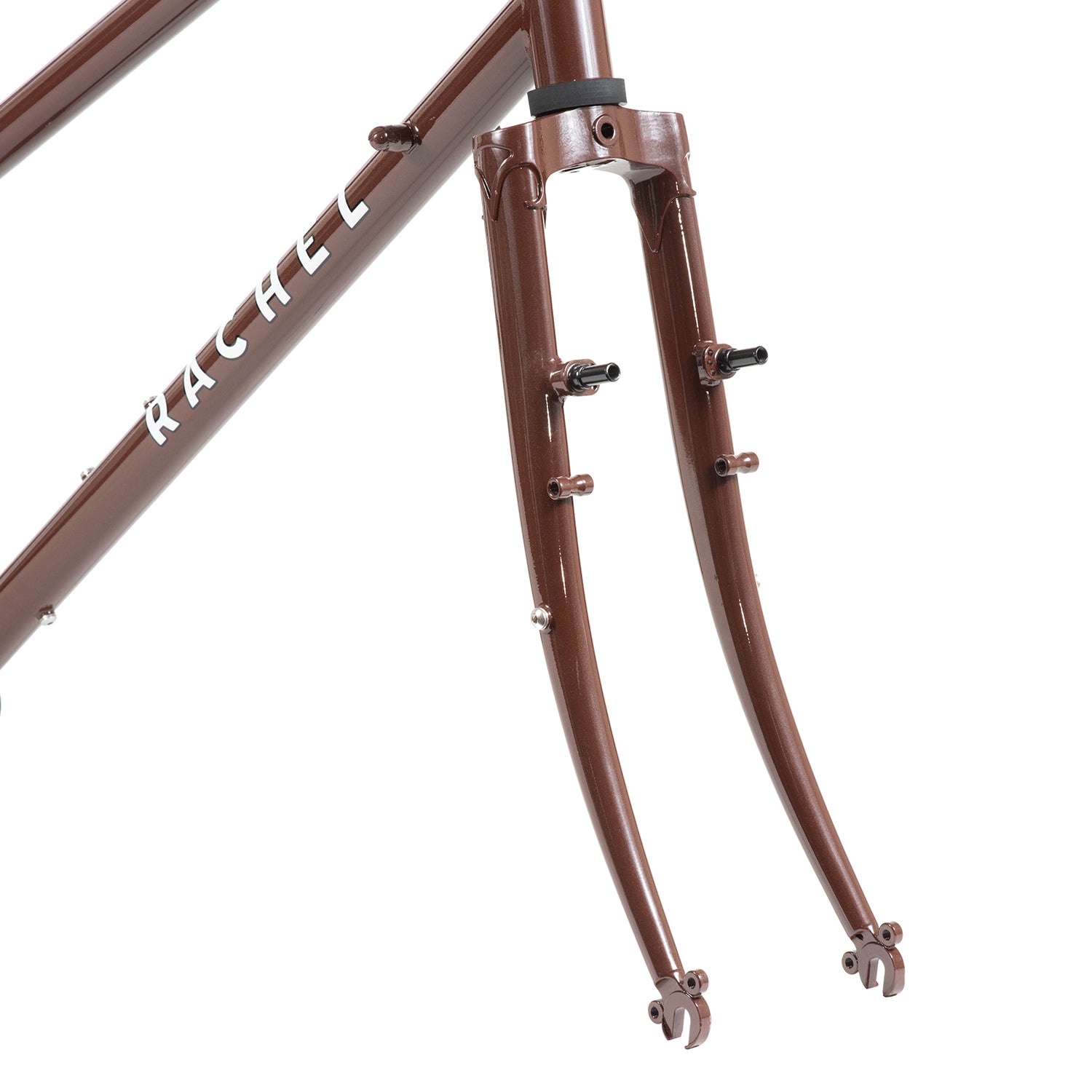

It has rack and fender eyelets on the seatstays and dropouts,5M eyelets for two bottle cages on the downtube, andeyelets on the fork for fenders, mini-platform rack, and low rider rack, respectively.
You can equip the bike with fenders and racks for street riding, or you can take advantage of the numerous eyelets to swing it to travel specifications.
Designed for road and 1 x cranks up to and including road triples (including Bassi Classic Triple), they also feature a wide range oftolerances. However, care must be taken when using MTB cranks. It may not work perfectly on all types of cranks. If you must use MTB cranks, we recommend this model for those who want to ride as leisurely as possible, but with a strong and secure feel.
Compatible tires for sizes S and M are 26inch, and size L is 700c.
[SPEC]
Size : S(47cm), M(51cm), L(55cm)
Frame Material : Chromoly Tube
(Double Butted Top & Down Tube / Triple Butted Seat Tube)

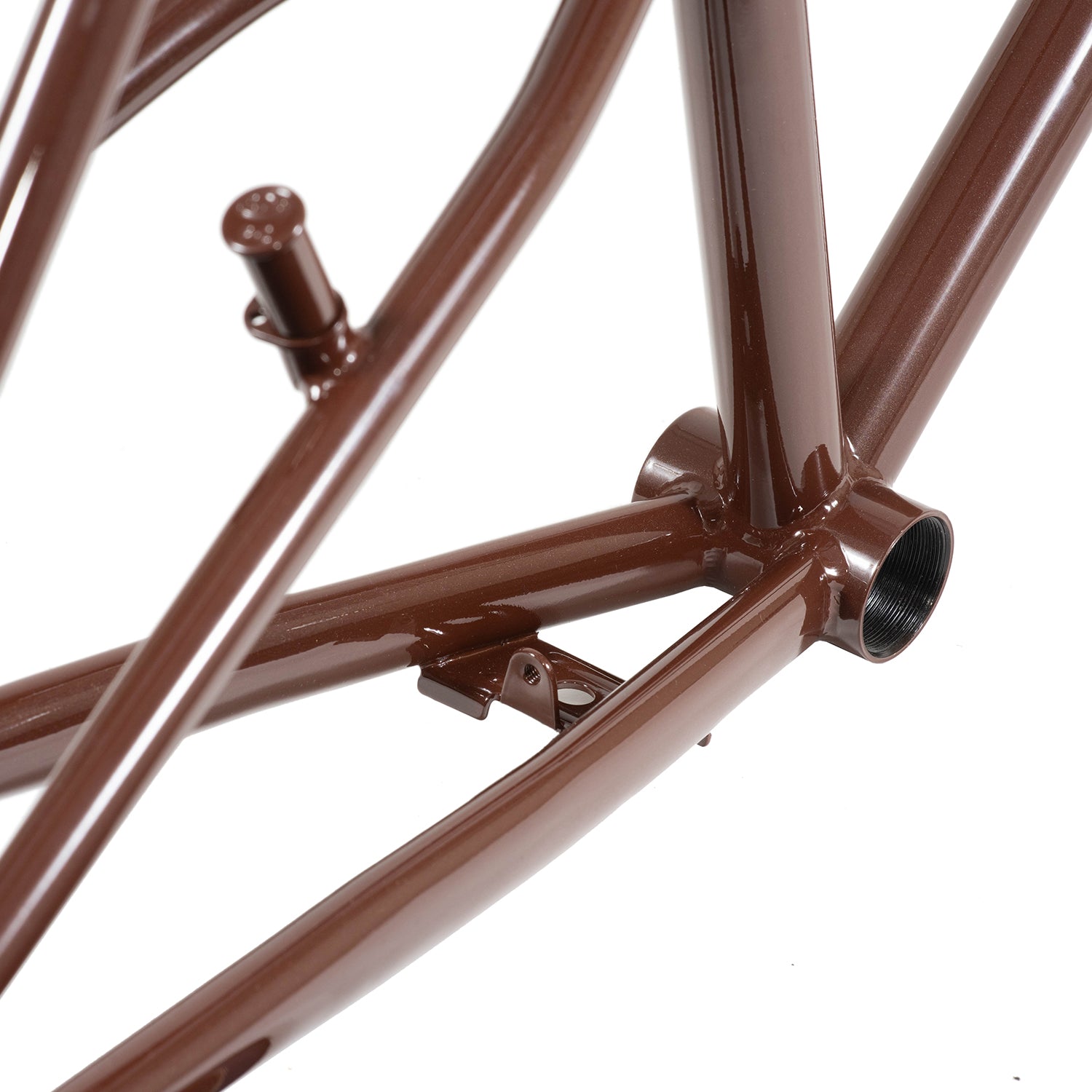

Bottom Bracket : 68mm wide, British Type
Seat Tube Inner Diameter :27.2mm
End Width : 132. 5mm(130mm, 135mm compatible)
BRAKES : V-brake (cantilever brakes are not recommended)
[FRAME GEOMETRY]
| Size | S(47cm) | M(51cm) | L(55cm) |
| Seat tube (c-t) | 470 | 510 | 550 |
| Effective top tube | 545 | 560 | 580 |
| Head tube angle | 71 | 71 | 71 |
| Seat tube angle | 73 | 73 | 73 |
| Chainstay | 460 | 460 | 490 |
| BB drop | 50 | 50 | 70 |
| Stack | 537 | 556 | 606 |
| Reach | 381 | 390 | 395 |
| Rake | 50 | 50 | 50 |
| Tire clearance | 26x2.0" | 26x2.0" | 700x45c |
| Minimum PBH | 69 | 74 | 77 |
- We ship within 1-2 business days after receiving your order (payment). (Basically, orders placed before 12:00 p.m. are shipped the same day.)
- Messenger delivery is available within Nagoya City only.
- We ship every day from Monday to Sunday, except on temporary holidays.
- Available delivery areas: All over Japan and the world.
- Please note that delivery may be delayed due to credit card processing status. If you would like to specify the delivery date and time, please fill in your request in the additional information in the shopping cart.
- The product will be shipped from Circles.
- Please contact the shipping company in case of damage or loss during shipping.
Regarding the delivery of complete bikes
- Please note that a separate shipping fee of 9,900 yen (tax included) will be charged for shipping complete bikes. (However, an additional fee will be charged for delivery to Okinawa and remote islands.)
- After receiving your order, we will do a final check and ship complete bikes, but it may take 1-2 weeks. Please understand.
- We will send the bike with some parts removed for packing. We strongly recommend that you have your bicycle assembled at your nearest bicycle store.
- We will inform you of the delivery date and other details by e-mail.
- We apologize for any sales discrepancies at the store.
Regarding the delivery of frame sets
- Nationwide flat-rate shipping: 5,500 yen (tax included) (However, an additional fee will be charged for delivery to Okinawa and remote islands.)
- We will inform you of the delivery date and other details by e-mail.
- We will provide the pre-treatment of facing and tapping for the frame sets purchased at our store as a service. We will inform you separately after purchase.
- We can also install a headset and BB for a fee, so please feel free to contact us.
