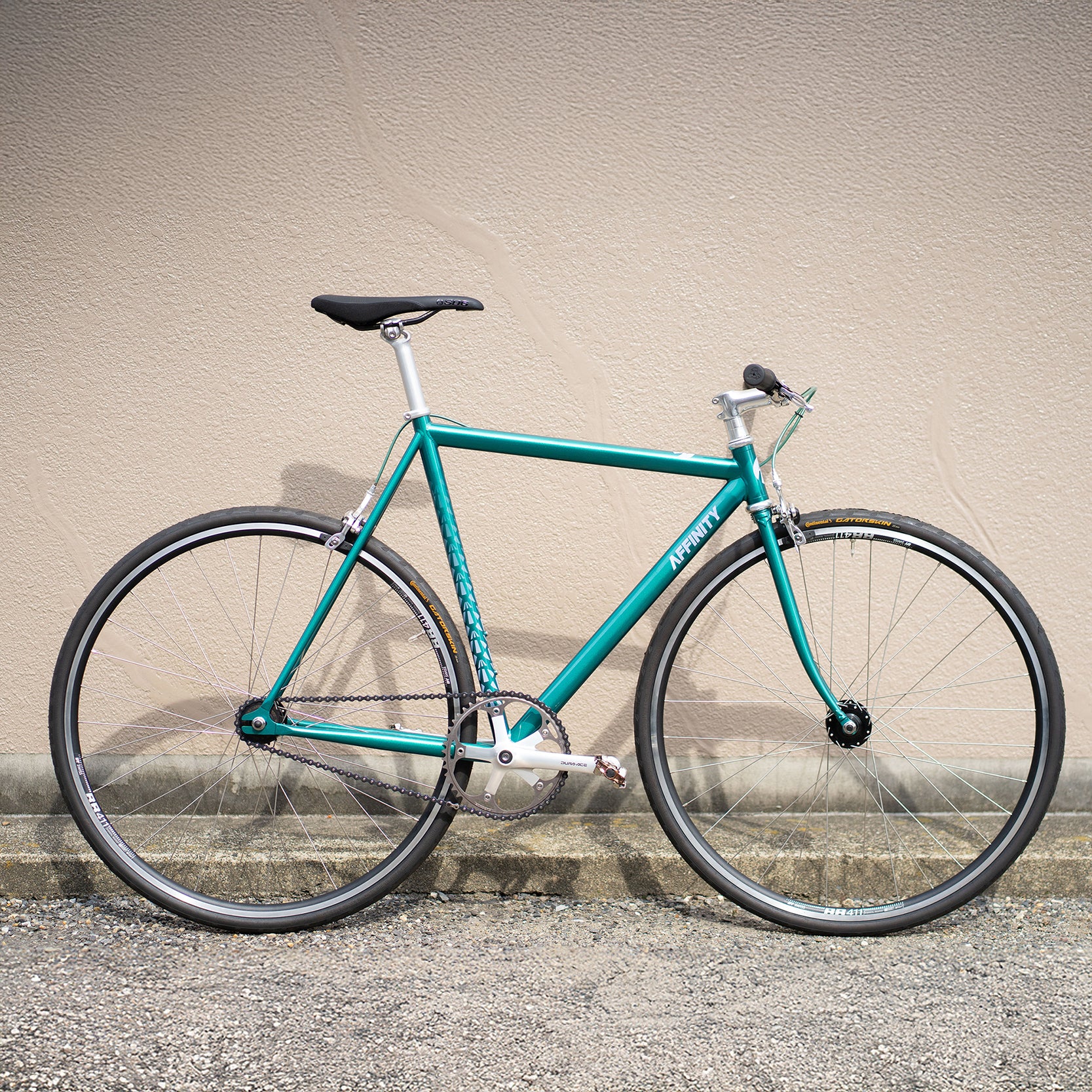

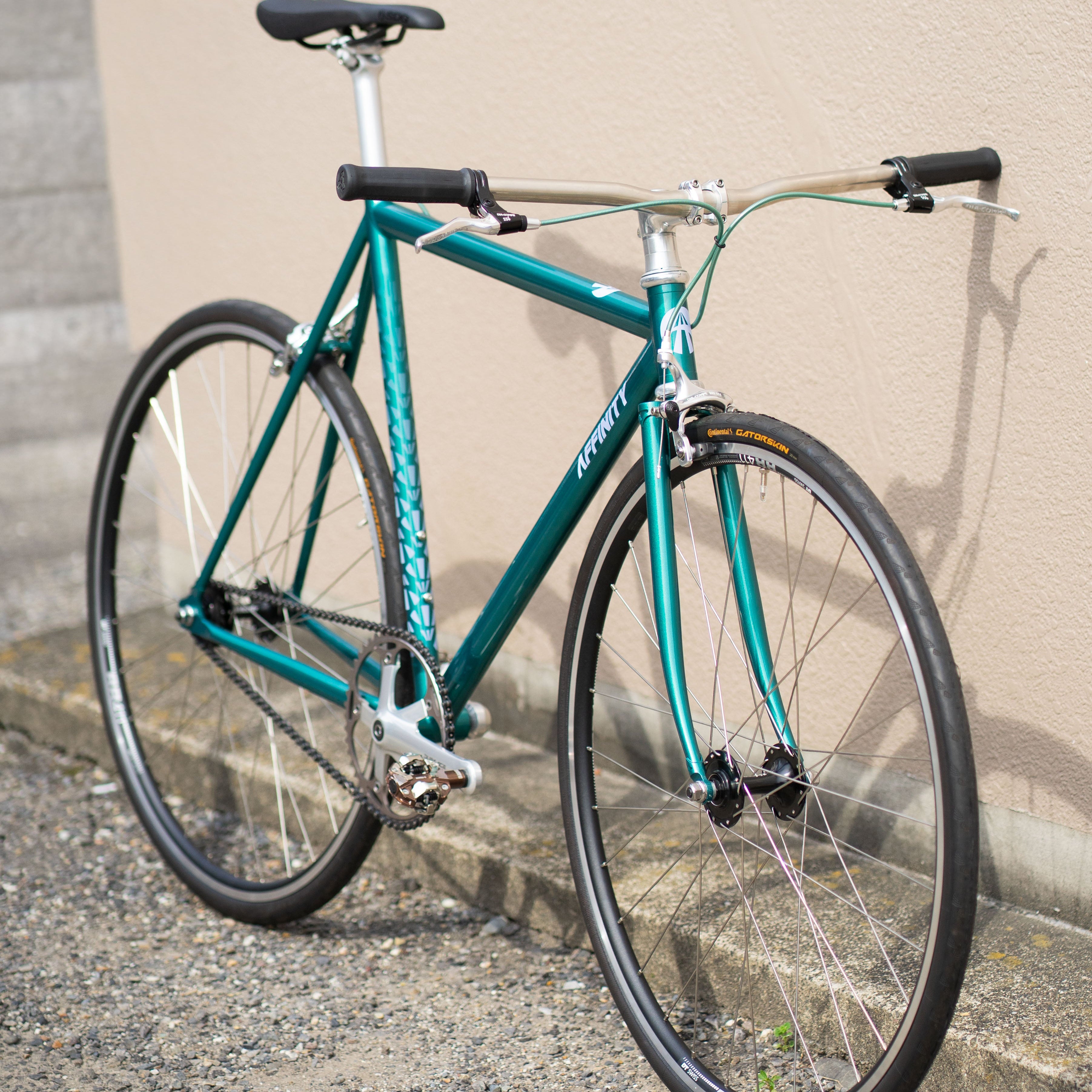

AFFINITY Lo Pro Circles Original Complete Bike
AFFINITY CYCLES' signature track bike, characterized by its aggressive sloping top tube
From Brooklyn, New York, the masterpiece from AFFINITY CYCLES: the Lo Pro.
The Lo Pro was born through repeated testing with messengers who ride daily through New York—arguably the world's harshest streets.
For this Circles Original Complete Bike, we have built it up with a parts selection that retains the sharp aesthetic typical of the Lo Pro while making it easy to handle for everyday transportation.
We focused on silver parts to accentuate the beauty of the frame color.
It has been finished as a bike that fits naturally into the city—not too classic, yet not overly race-oriented.
It’s perfect for riding stoically with a fixed gear, or for enjoying a casual ride with a freewheel.
This is the perfect bike for those who want to bring a little extra excitement into their daily commute or city riding.
[SPEC]
| Frame |

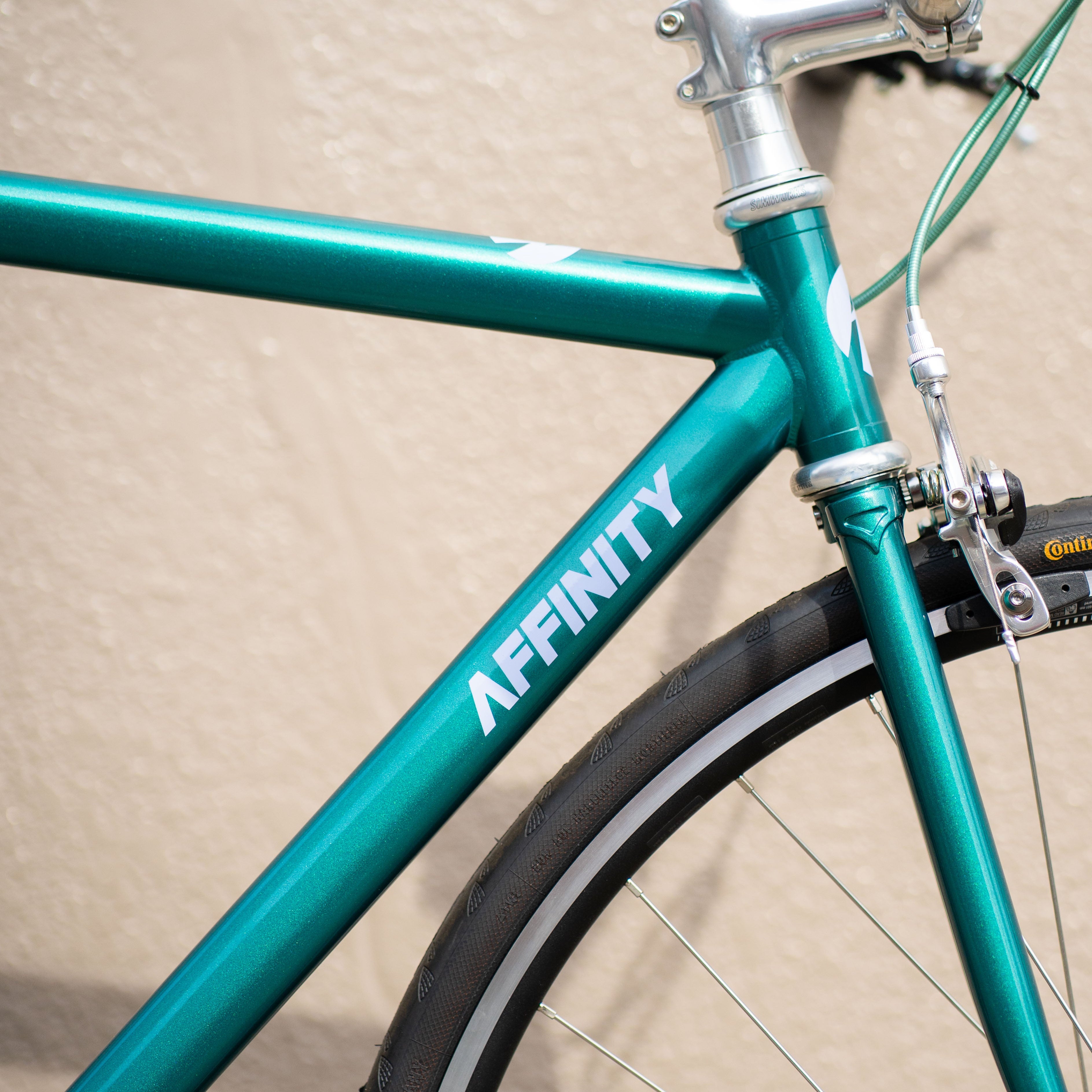

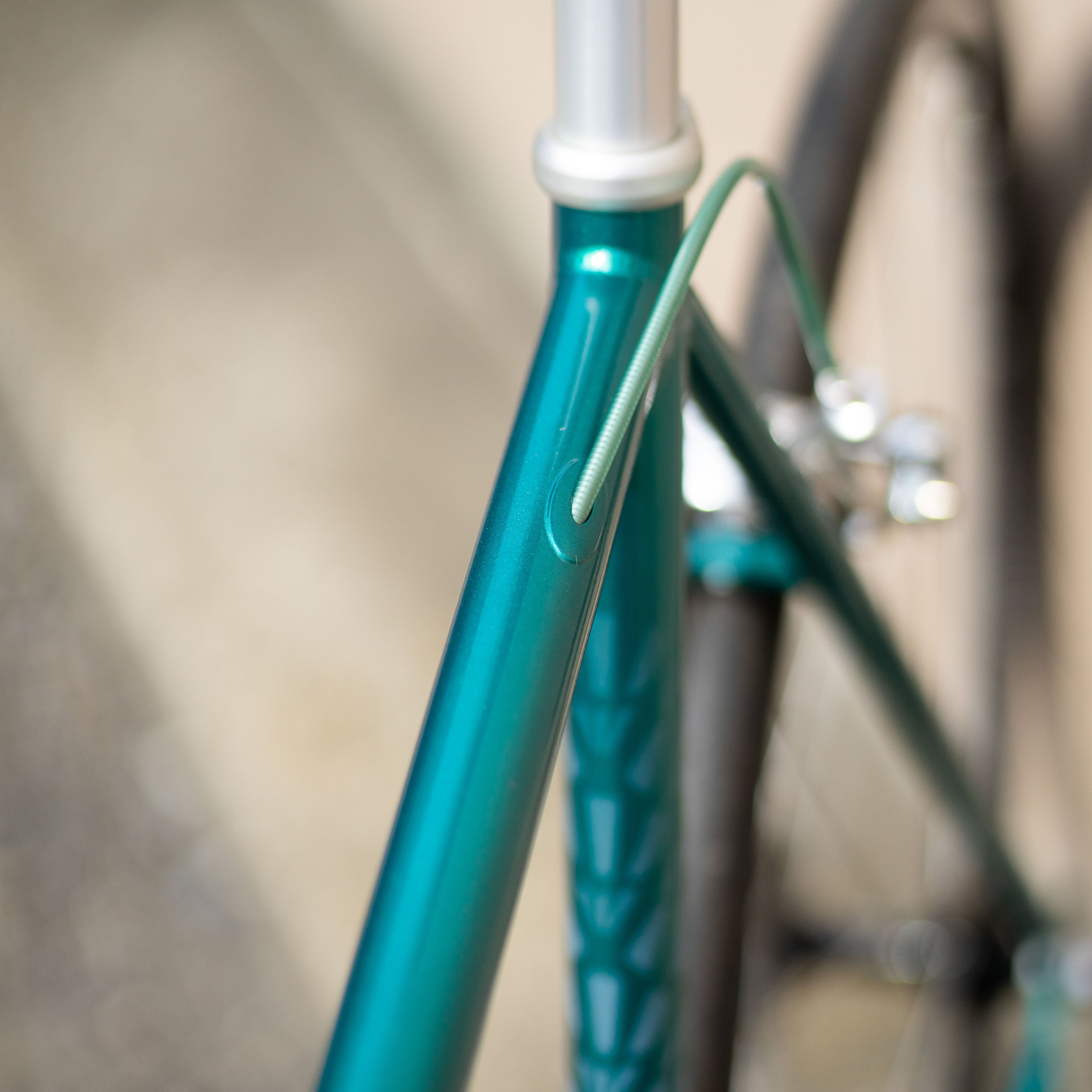

AFFINITY Lo Pro Track Frame Set S size |
| Headset |

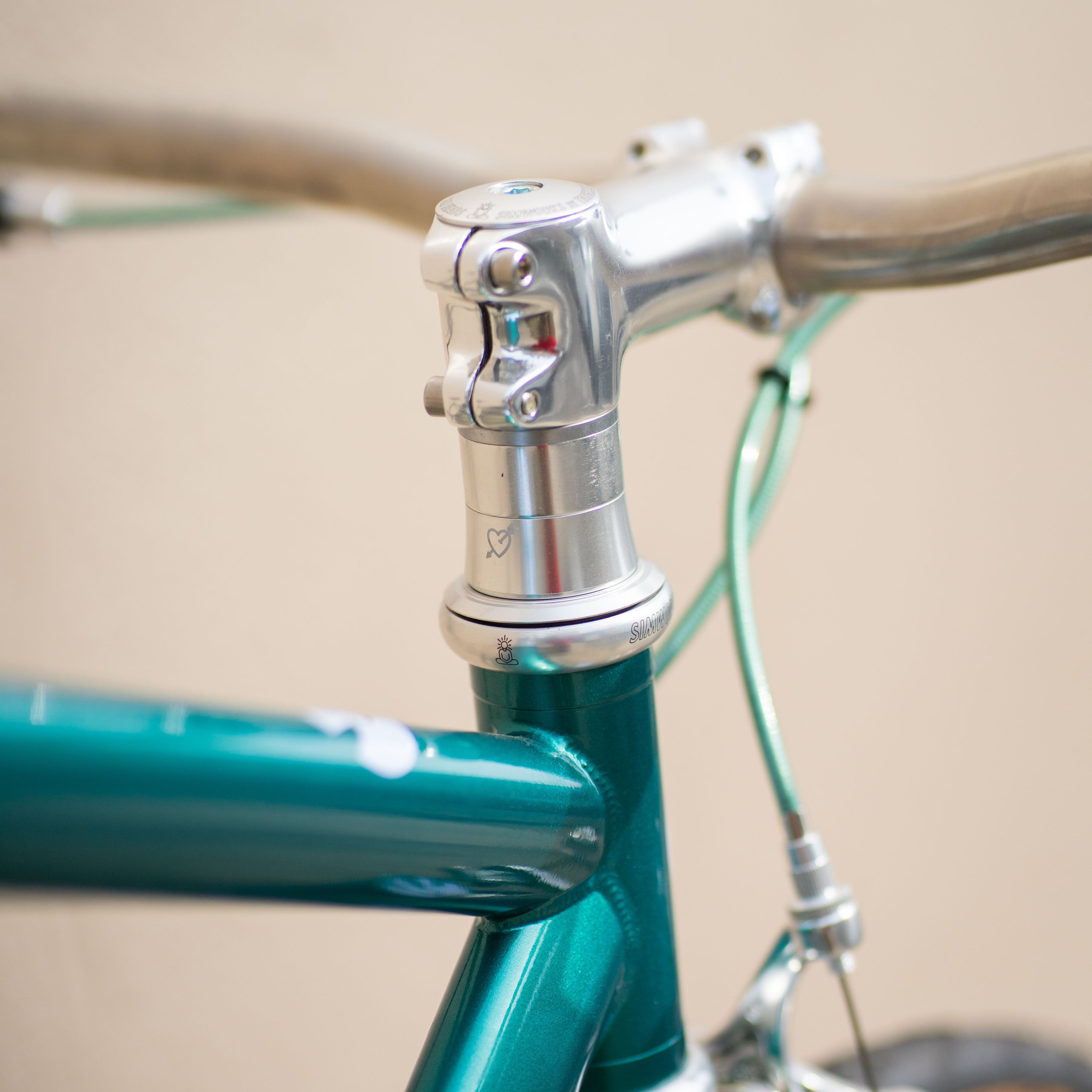

SIMWORKS Sim Heads Silver |
| Saddle | SDG Radar MTN Cro-Mo |

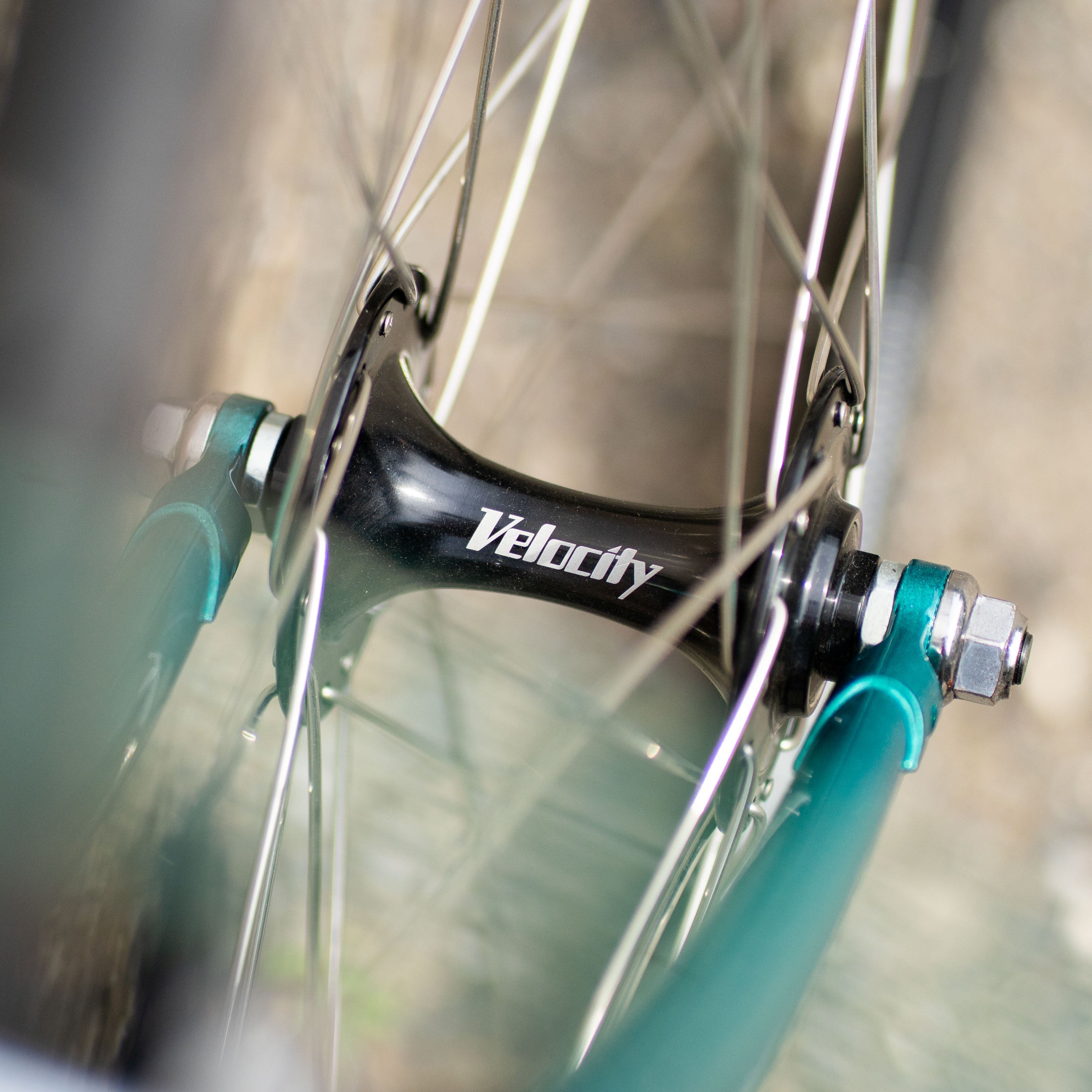

| Front Hub | VELOCITY Track Hub Front |

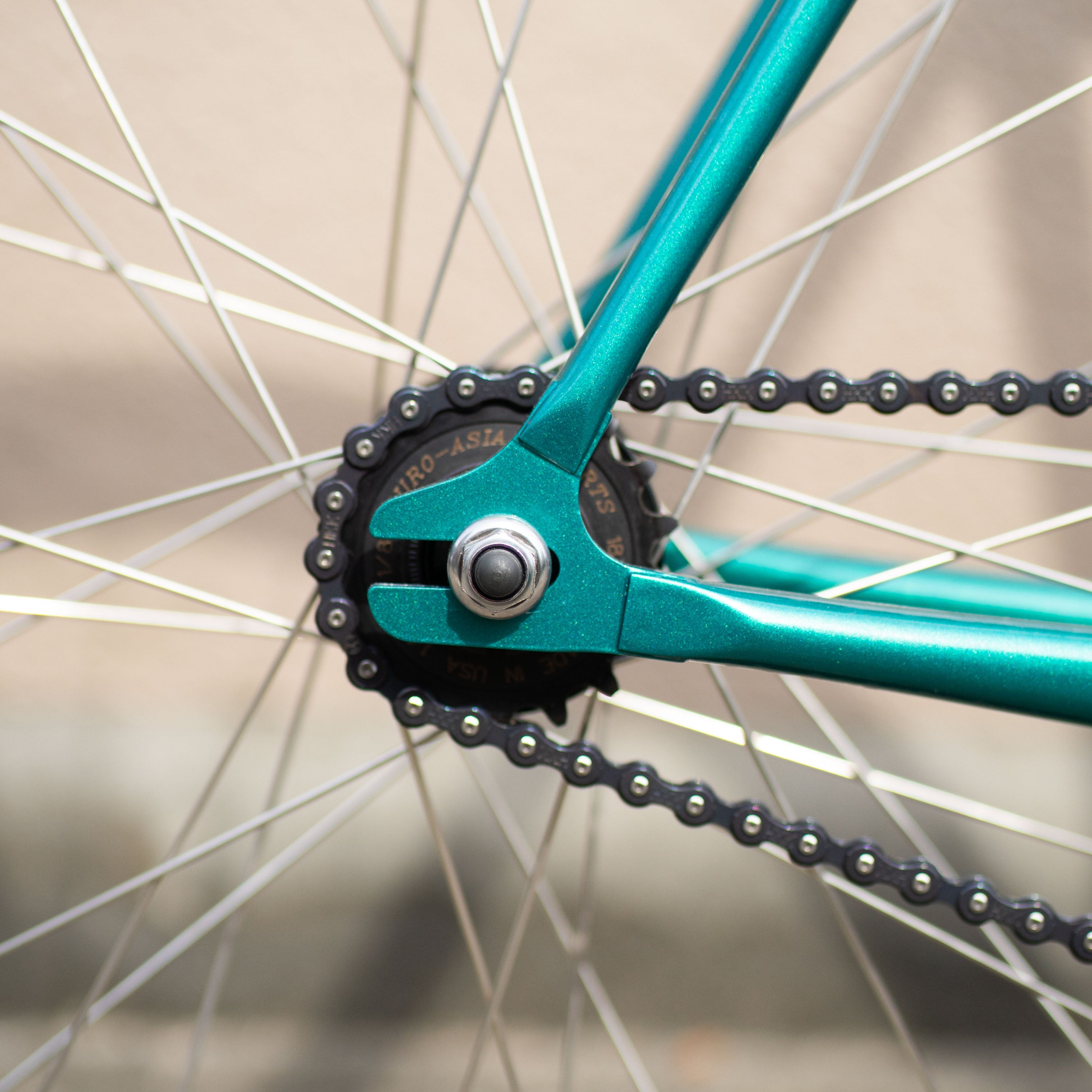

| Rear Hub | VELOCITY Track Hub Rear |
| Rim | DT-SWISS RR411 |
| Tire | CONTINENTAL Gatorskin Dura Skin Foldable |
| Brake | DIA COMPE BRS101 |

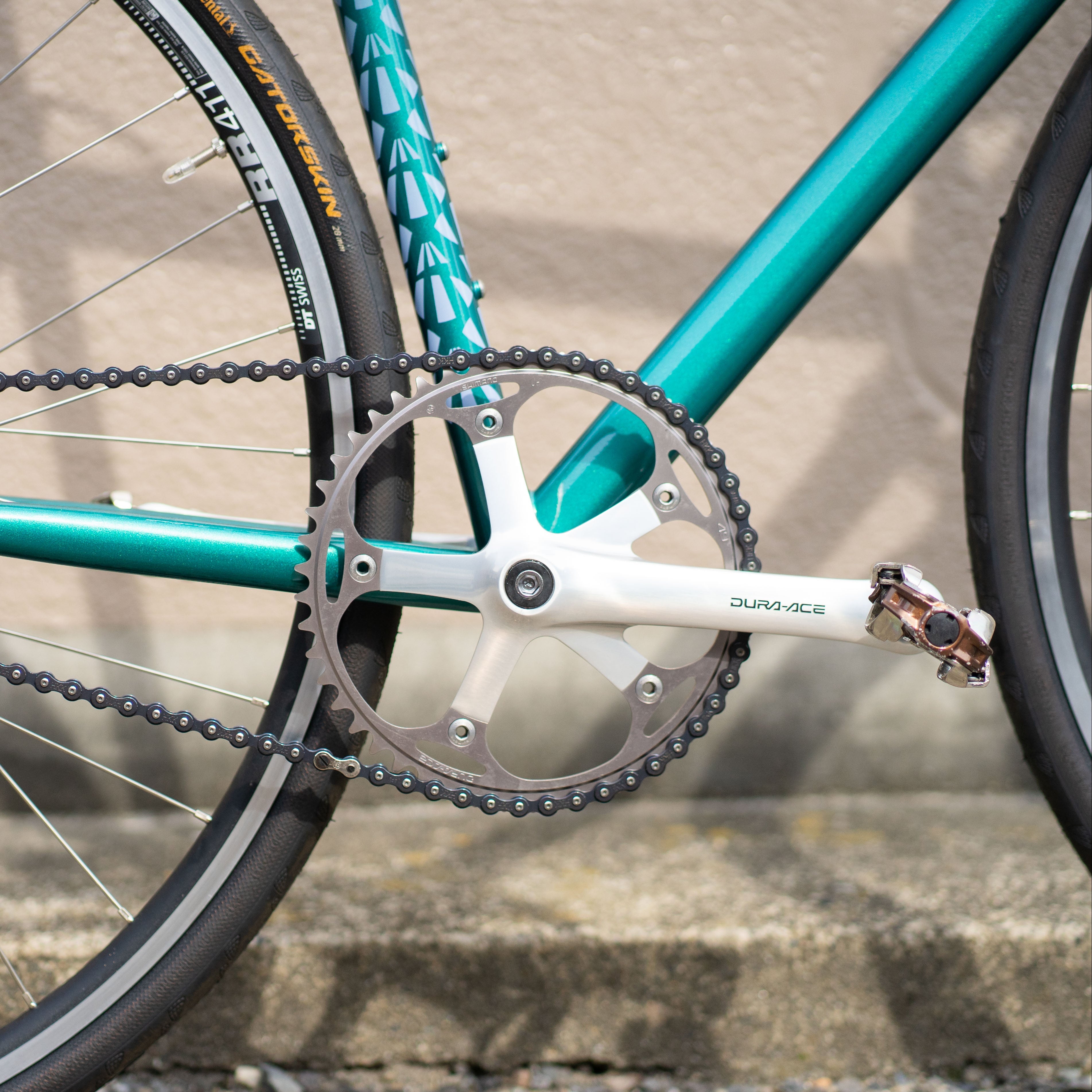

| Crank | SHIMANO Dura-Ace Track Crank FC-7600 |
※Pedals are not included; please purchase your preferred pedals separately.
S: 165–175cm
Material: 4130 Custom Butted Cr-Mo
Headset Standard: 1-1/8" Ahead
BB Standard: JIS 68mm
Seatpost Diameter: 27.2mm
Seat Clamp Diameter: 30.0mm
Front Hub Spacing: 100mm
Rear Hub Spacing: 120mm
Wheel Size: 700c front and rear
Tire Clearance: up to 35c
[GEOMETRY]
| Size | S | M | L |
|---|---|---|---|
| ST Length(c-c) | 565 | 605 | 635 |
| TT Length(c-c) | 521 | 541 | 571 |
| ST Angle | 75.5° | 75.5° | 75.5° |
| HT Length | 92 | 112 | 142 |
| HT Angle | 73° | 73.5° | 74° |
| CS Length | 385 | 385 | 385 |
| Fork Length | 368 | 368 | 368 |
| Fork Offset | 35 | 35 | 35 |
| Reach | 373 | 381 | 404 |
| Stack | 490 | 511 | 541 |
| Standover | 790 | 819 | 849 |
Recommended height range
S: 165–175cm
M: 170–180cm
