Choosing a frame meant to last 30 years
Hello, how are you doing?
Recently, my thirst for knowledge has been welling up again.
Between scouring various documents and materials related to bicycles, re-reading Saul Bellow once more, and expressing my candid thoughts on the current state of society while continuing this series, I am reminded once again of just how interesting people and life truly are.
For this installment, I’ve decided to change things up a bit and write about a specific bicycle.
Due to the nature of this piece, it will be a bit long, but I would appreciate it if you could read it through to the end.
Can you truly trust your titanium?
Titanium is said to be the dream material in the bicycle industry.
In recent years, we have increasingly seen many frame builders switch from steel to titanium.
It is only natural to feel excited when a light, rust-proof, strong metal—one also used in aircraft—is used for a bicycle.
But in reality, haven't you heard stories about "cracks appearing" or "chainstays breaking"?
The premise of this article is that it’s not the titanium’s fault.
In other words, if you handle it incorrectly, it is a material that will break, no matter how expensive it is.
Seven Cycles is a frame manufacturer that understands, earlier and more deeply than anyone else, that such troubles arise not from the "material," but from the "handling."
I think it would be difficult to find any other manufacturer in the world that goes beyond just relying on the material and has thoroughly perfected even "how to handle titanium."
Let’s delve into Seven Cycles, a company that Circles has been representing as its domestic distributor for many years.
What makes them different: Why Seven Cycles stands at the top
Among a crowd of luxury bicycle brands, why has Seven Cycles become such a unique and solitary presence?
And why do so many cyclists become fanatical followers once they own one?
The answer is simple:
Only Seven has already reached a "realm of technology" that other companies cannot step into.
Specifically, the method of processing titanium tubes—the difference between "internal butting" and "external butting"—is the decisive point that sets Seven far apart from the rest. Let’s start with that.
-
Seven's Titanium Technology & Manufacturing Methodology Part 1
(For those who want to know more, please follow the links at the end of each section.)
Why do other companies' titanium bikes crack?
Many titanium bike manufacturers use internally butted tubes (a method of processing the inside of the tube).
This may seem efficient and rational from the perspectives of supply and management.
However, this method has a fatal weakness.
- Shaving the inside = destroying the tube's grain structure (crystal orientation)
- Tiny nicks or scratches are created on the inner surface during processing with a mandrel (core rod)
- Stress concentration occurs at the processed area, from which fractures begin
Moreover, because these problems can hardly be confirmed from the outside, there are many cases where frames suddenly crack after several years.
Indeed, reports of titanium bikes using internal butting failing due to hairline cracks near the bottom bracket or the base of the chainstays are too numerous to count.
Seven creates strength from the "outside"
That is why Seven has long adopted external butting.
This is a method of precisely shaving down the outside of the tube to adjust its thickness. It is extremely labor-intensive and a process that standard factories cannot handle, but it comes with overwhelming advantages.
- Does not destroy the internal structure (crystal orientation) at all
- Suppresses stress concentration and significantly improves fatigue strength
- Optimizing wall thickness for each part balances weight and durability
- Easier to clean the inside of the tubes
For this manufacturing method, Seven maintains its own in-house butting machines, and processes tubes with profiles that differ for every frame model and rider.
In other words, you can only get a "titanium tube with ideal butting" from Seven.
On the differences in tube grades
Seven offers three types of tube grades. All are made of 3-2.5 titanium alloy, but their characteristics differ significantly depending on the processing method and finish.
XX Multi-Butted 3-2.5 Titanium
Seven's proprietary multi-butted titanium, which pursues weight reduction to the limit. By continuously varying the thickness of the tube, unnecessary weight is eliminated as much as possible. This is our lightest tube set to date.
SL Double-Butted 3-2.5 Titanium
A balanced tube set that serves as the heart of Seven's material lineup. An all-rounder with a great balance of weight, responsiveness, and durability, and it is used for the largest number of frames.
S-Type (Straight Gauge) 3-2.5 Titanium
A straight gauge (uniform thickness) tube set that boasts high durability. It is a performance tube focused on utility, combining the strength to withstand long-term use with a relatively reasonable price.
Why is the CSR value important?
The quality of a titanium tube is evaluated by its "CSR (Cold Strain Ratio) value." This is an index indicating the amount and directionality of the cold work applied to the tube.
- Ideal CSR value: 1.7–1.9 → High fatigue strength and supple responsiveness
- CSR value exceeding 2.0 → Fatigue durability drops significantly
To control this CSR to the limit, Seven performs:
- Multi-stage rolling using a pilger mill
- Vacuum annealing between stages
- Surface refining via acid treatment
- Straightness correction before cold working
By repeating these meticulous processes, the tubes are always finished within the optimal CSR range.
Finally, the tubes are finished as follows:
- Secondary acid treatment and ultrasonic inspection
- Final annealing: Slightly increases flexibility to give the end user the optimal balance
- Alpha case (surface oxidation layer) removal: Specifically, the inside and outside of the tubes are carefully cleaned with acid
※ The "Alpha case" is an oxygen-rich hardened layer that forms on the surface during high-temperature titanium processing; it must be removed because it is brittle and has poor workability.
There is almost no other bike manufacturer in the world that manages metallurgy like this.
- Seven's Titanium Technology & Manufacturing Methodology Part 2
- Seven's Titanium Technology & Manufacturing Methodology Part 3
It takes time and costs money. But we do it.
External butting requires high machine investment costs and takes time to manufacture.
- Internal is suited for mass production
- External requires painstaking work on every single piece
However, Seven continues to use this method. Why?
Because we know that "this is the only way to build a truly reliable machine."

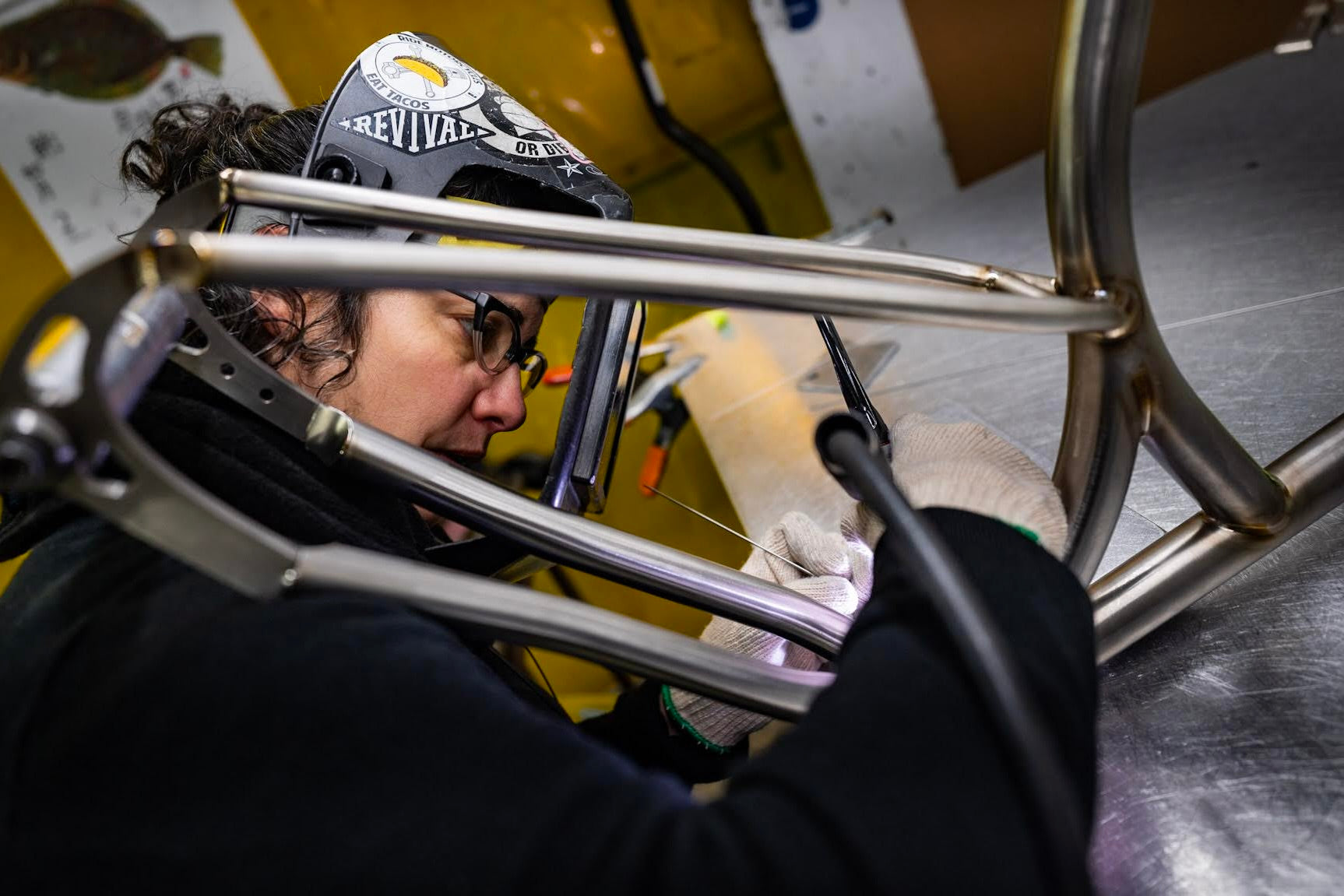

Seven's welding technique = Art
When titanium comes into contact with oxygen, nitrogen, or hydrocarbons during welding, it becomes extremely brittle.
At Seven:
- All tubes are thoroughly cleaned before welding (truly the most basic of basics)
- During welding, the inside and outside of the frame are filled with inert gas (argon)
- Proprietary dedicated TIG torch/purge systems are developed in-house
This achieves an ideal welding environment where neither oxidation nor nitridation occurs at all.
The technique of balancing the beauty of the weld bead with its strength is not something that can be imitated anywhere else in the world.
3 things Seven does not do
Polygonal tubes
→ They are unique and eye-catching, but simply have weaker torsional rigidity and a higher risk of fracture.
Anodizing
→ The surface becomes brittle, welding becomes extremely difficult, and it voids the warranty.
High-polish finish
→ It looks good, but shaving the surface = reducing strength.
Seven always chooses based on "whether it is strong and will last a long time."
Final finish and the "proof"
At Seven, after all welding is completed, the threads of the bottom bracket are machined using a CNC machine. This is done to achieve even higher precision than off-the-shelf bottom brackets, a unique Seven detail considering both durability and weight. Precisely because the BB area cannot tolerate even the slightest misalignment, we do not skimp on that "extra bit of effort in finishing" through machining.
The final finishing process uses a satin finish with nylon wheels and Scotch-Brite™. It is easy to maintain, and scratches can be dealt with yourself.
In the final step:
- A stainless steel laser head badge is installed
- A certificate card containing the frame geometry, serial number, and the builder’s signature is included
This card is the proof that your bike is one-of-a-kind in the world.
The one and only, just for you
Seven frames are built on the premise that you will ride them for a long time.
That’s why you can enjoy repainting, customization, and replacing parts time and again. We believe these frames will age along with their rider, 10 or 20 years from now.
- Not mass-produced, but just for you. Not a trend, but a piece that pursues the essence of technology and material.
- Custom-designed just for you, something impossible with mass-produced bicycles.
- Reliable materials, the highest machining precision, and craftsmanship built up over more than 30 years.
It is for the one bike in the world that fits your physique, your riding style, and your life.
Seven Cycles is a brand that builds bikes to accompany a cyclist through life.
Thank you so much to everyone who read this through to the end. And perhaps next time, it might be my turn to help build your Seven.
Take care, and see you next week.
