SIMWORKS Doppo Ronin Frame Set

Doppo Ronin

Doppo Ronin / Doppo Ronin is the model that best embodies the soul of the Doppo series.
Renamed Ronin after the model change from the previous ATB, it has continued to be updated with each model change to remain a tool that is easy to use, not a work of art, and has reached its current form. The adoption of the original drop end and other minor details are all updates to make it the best tool for the rider.

The true meaning of the name "Ronin" is to roam the world without being bound by anything, and we have designed the bike to be as versatile as possible in terms of handlebar shape and tire size, even in the assembly of a bicycle with many promises of standards. We can't do everything, but we can do a lot. This is what Ronin is all about.

If you are reading this and are looking for a good bike for everyday use, one-day rides, or multi-day touring trips, choose Ronin. It will save you some of the stress of traveling. Ronin is a bike that adapts to your lifestyle, but is still a good tool for you.

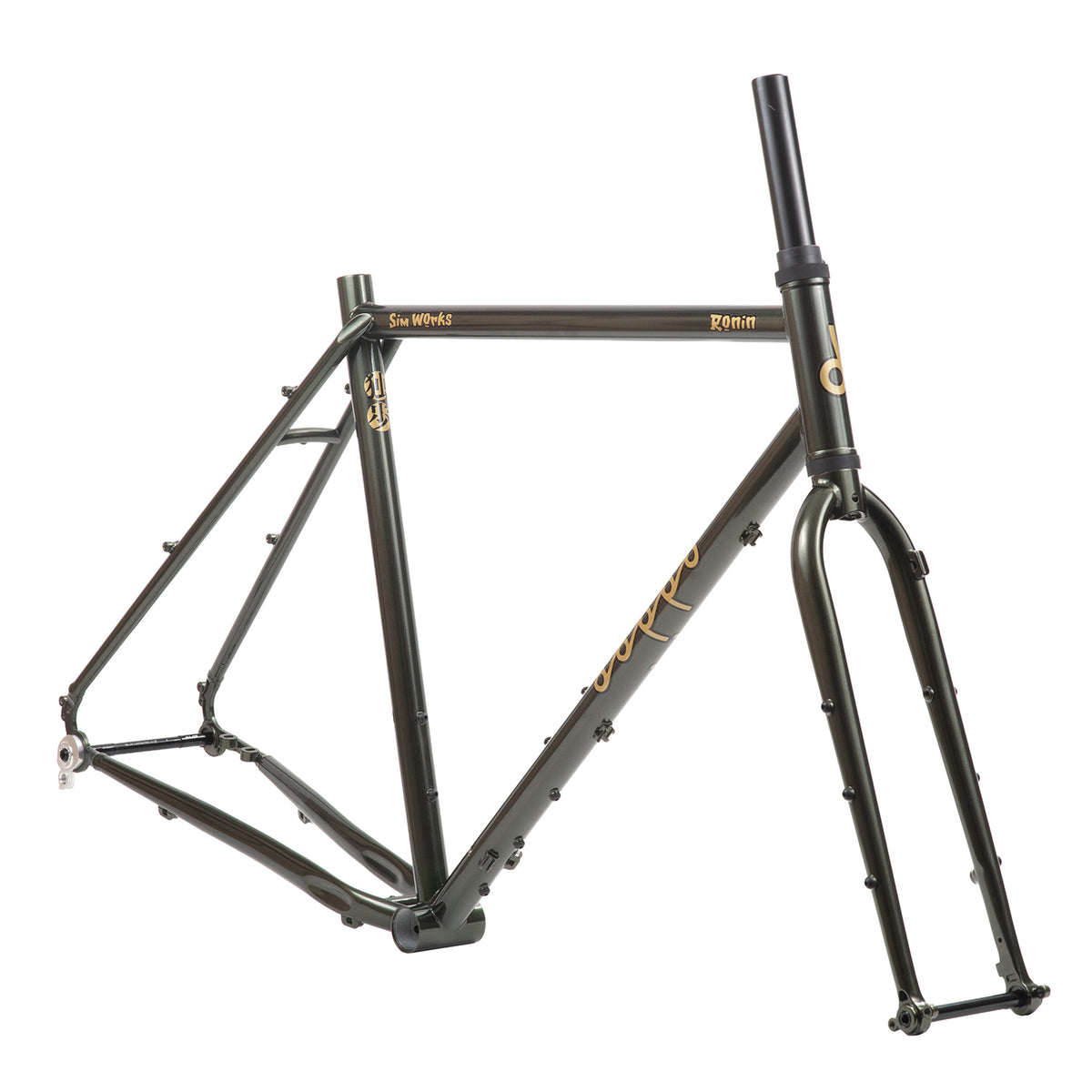

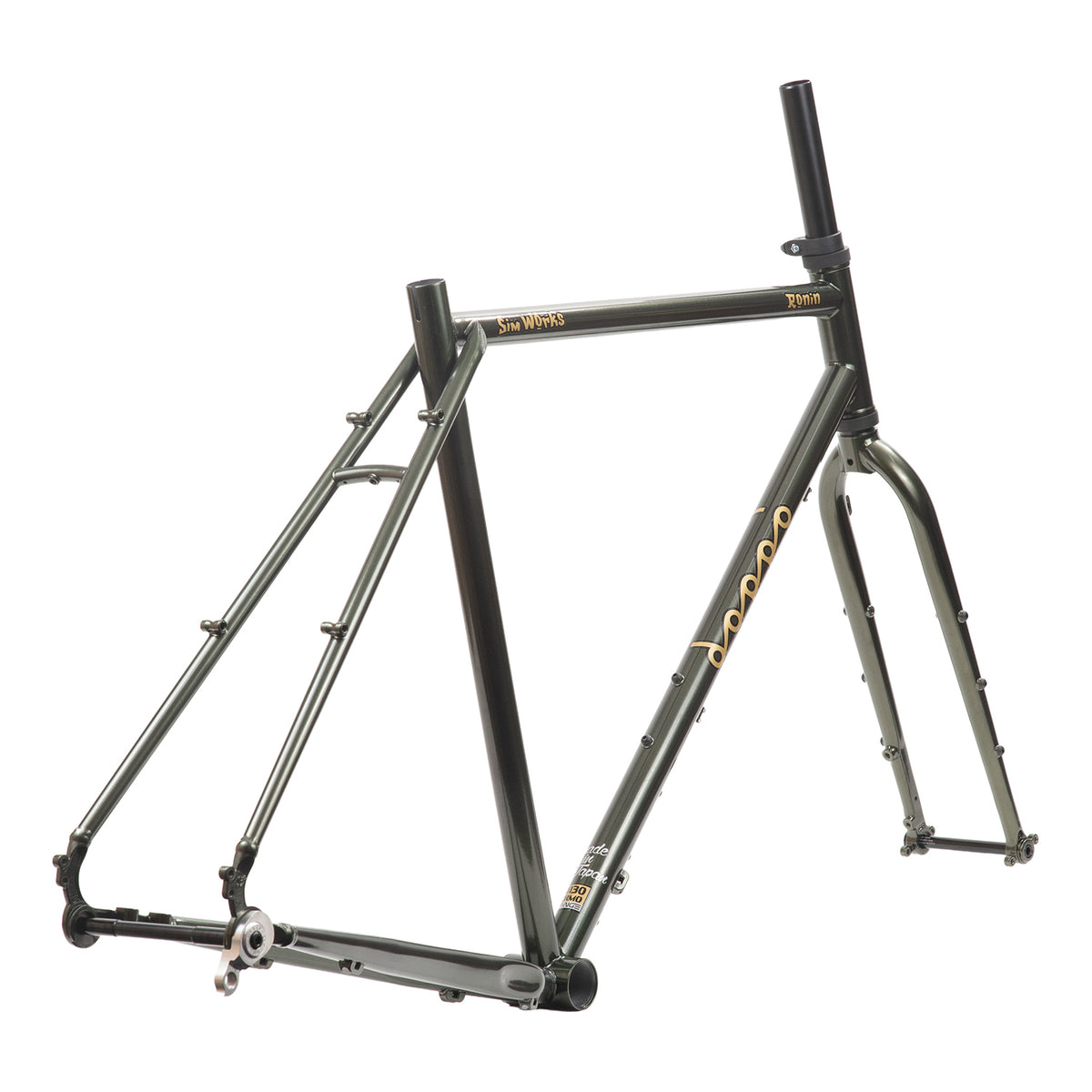

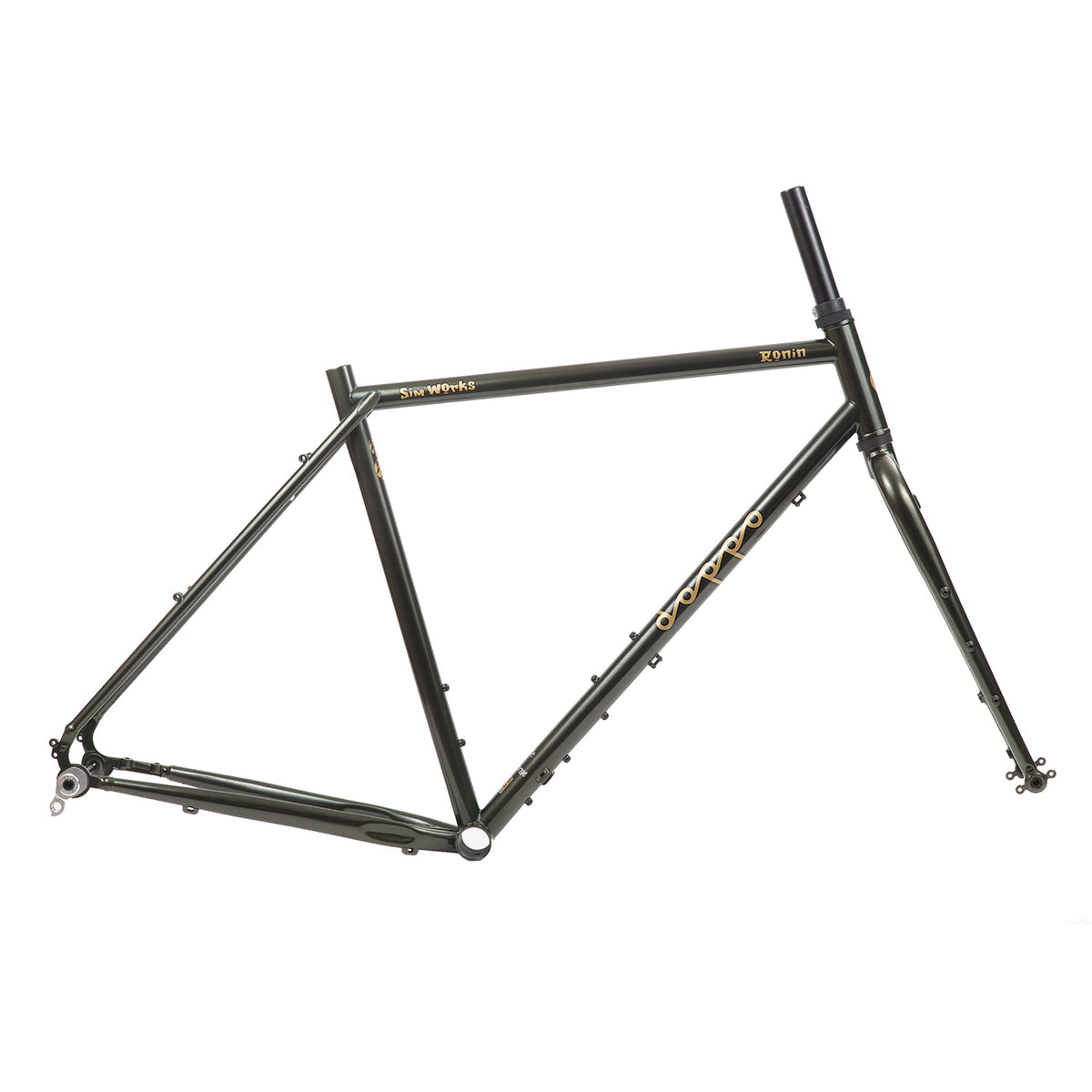

The multi-purpose fork and frame are designed to be compatible with 700c and 650b with a variety of eyelets, and will accept tires up to 43mm for 700c and up to 55mm / 2.1″ for 650b / 27.5″. The rack-mounting eyelets in the middle of the seatstays are a perfect match for the Burrito Rack and allow the use of a classic touring rear rack or taillight.

This all-terrain / all-terrain modern tourer is a bike that will take you to places you have never been before. It is a bike that will take you to places you have never been before. It is a bike that will be your best friend if you are a solo rider who loves to ride in search of pleasure.

[FRAME FEATURE]

• Hand-built frame by Shin Hattori, Aichi's proud bike frame builder

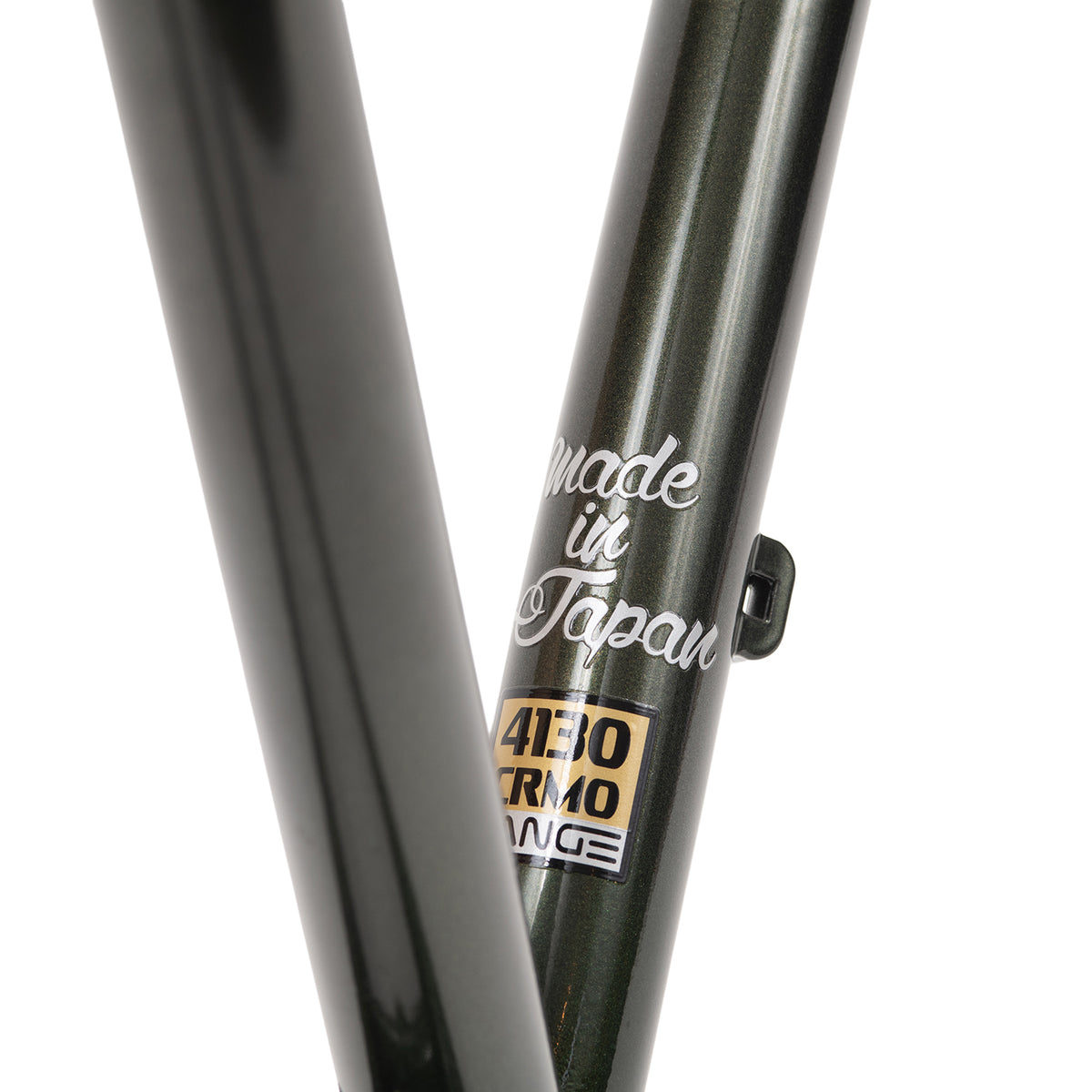

• TANGE chromoly steel tube set is used
• Lightweight and strong TIG welding

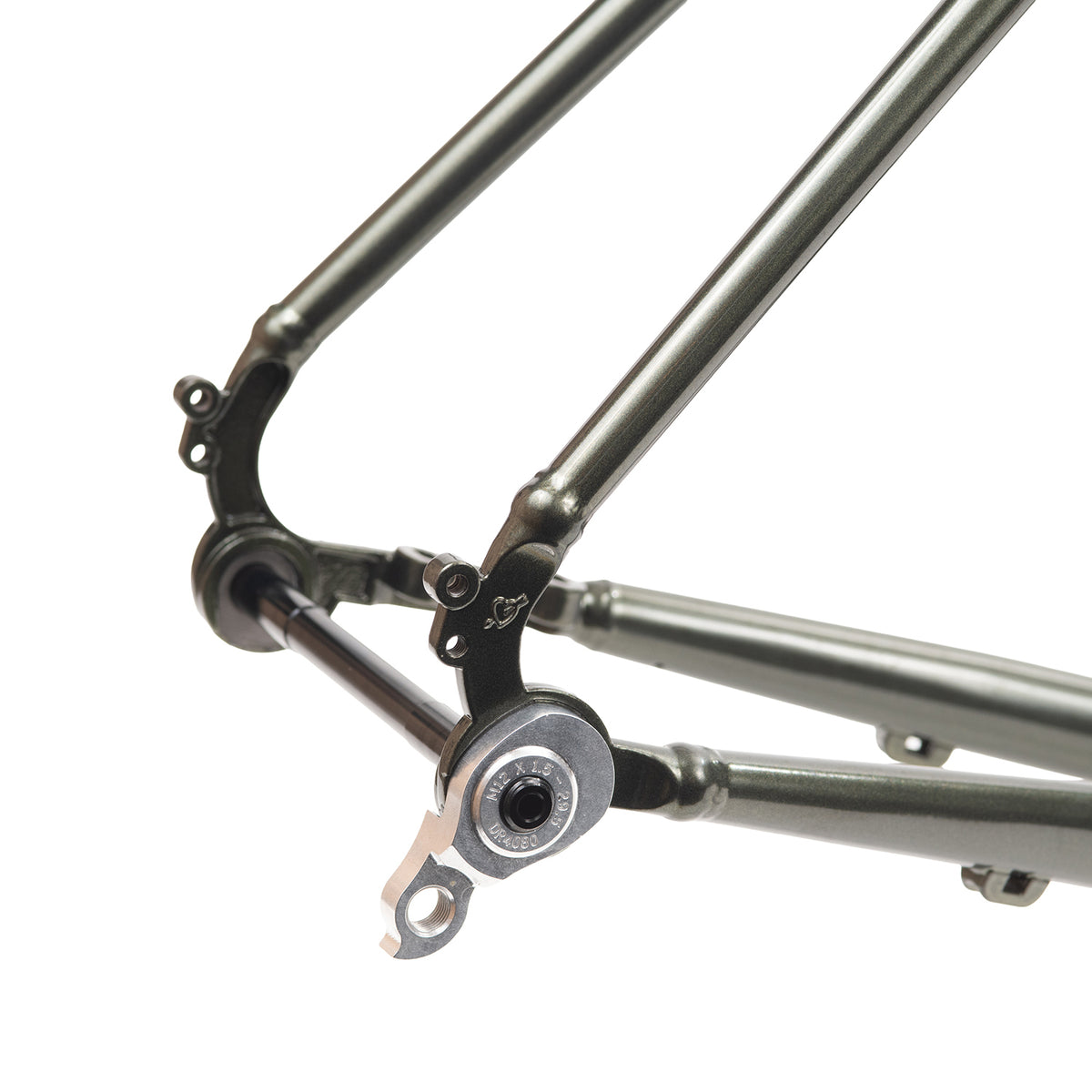

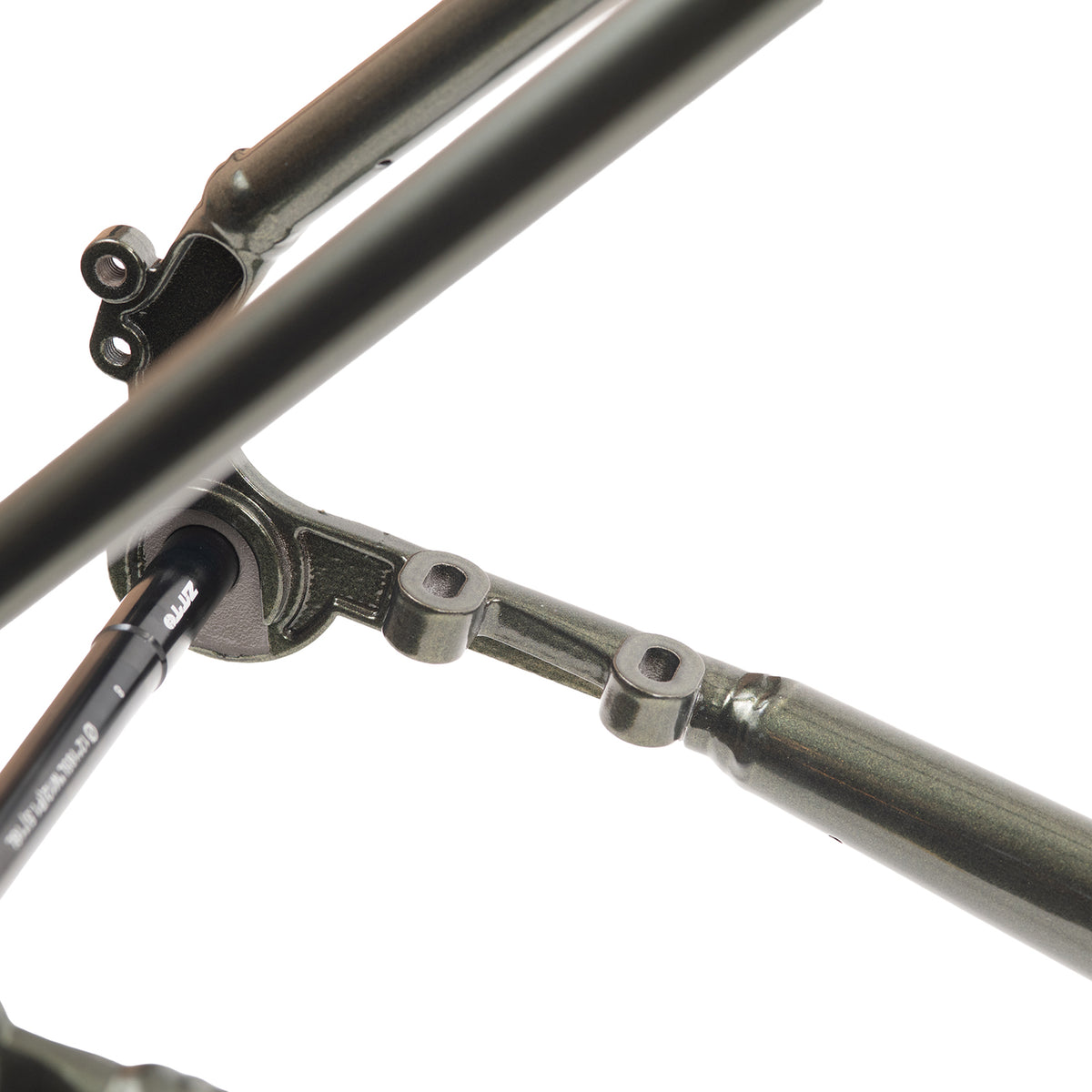

• SimWorks original drop end
• Maximum tire clearance is 700 x 43c, 650 x 55b, 27.5 x 2.22"
• 3-pack mounts on the back of the downtube for cargo cage compatibility
• Complete with fender mount and rack mount eyelets
• Compatible with either front double or single drivetrain



[FORK FEATURE]

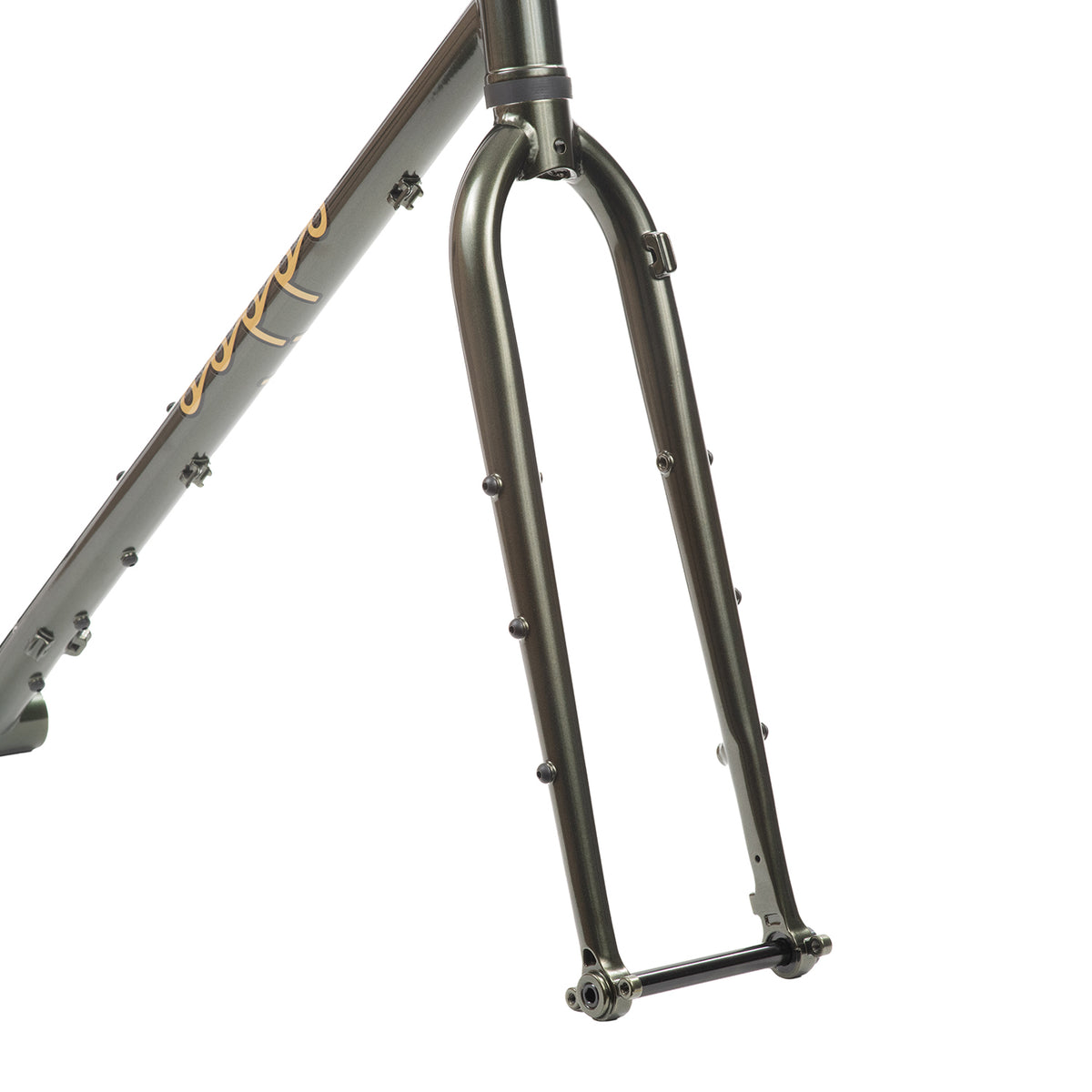

• High-stiffness, multipurpose front fork with frame-matching paint
• Wide clearance to swallow tires up to 700c x 45mm, 650b x 2.1″.
• Fork legs have 3-pack mounting eyelets on each side for cargo cage compatibility

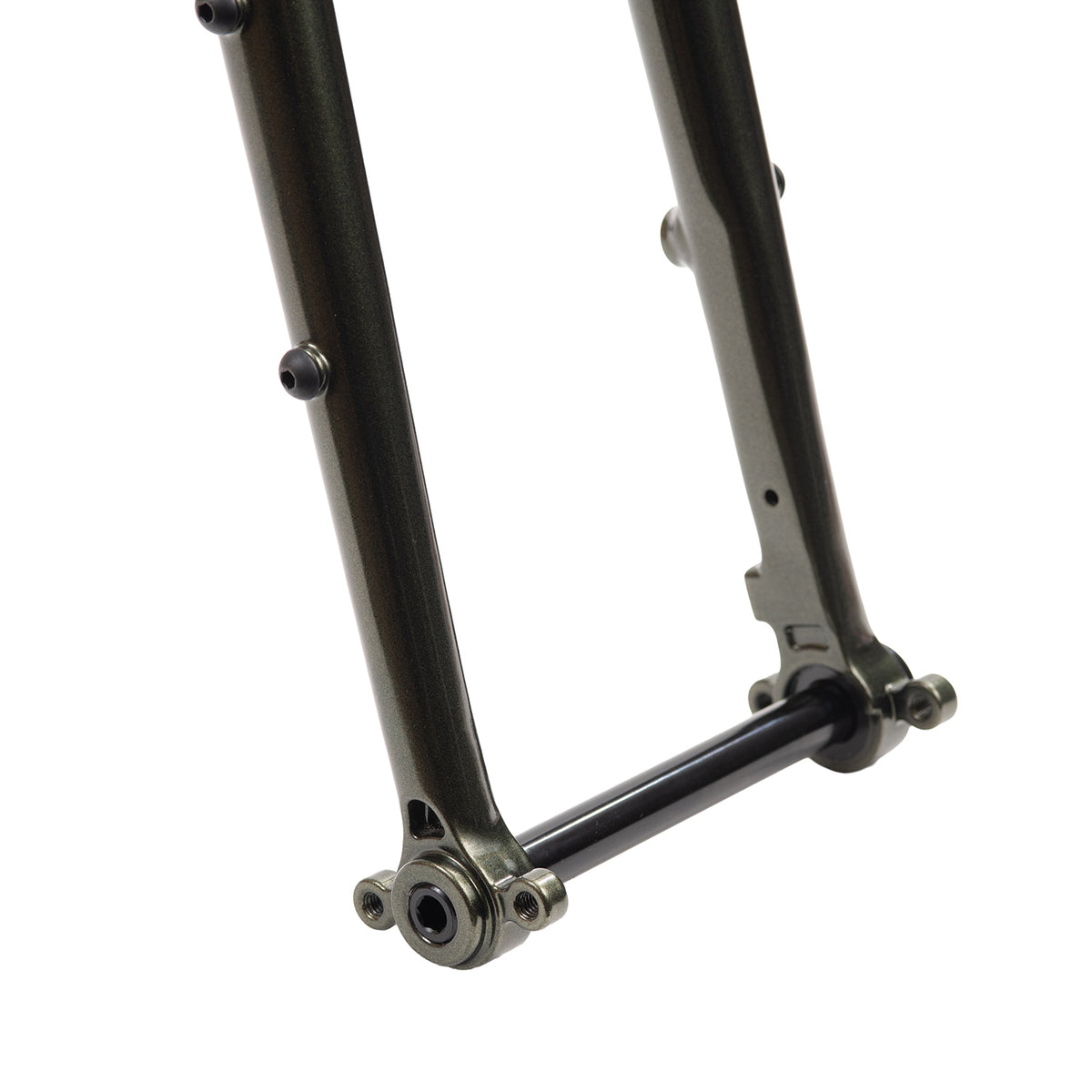

• Fender mount and rack mount eyelets on fork ends
• Made by a Taiwanese brand with expert craftsmanship, high reliability, and solid quality



[SPEC]

Size : S, M, L, XL	S, M, L, XL, XXL
Frame : Chromoly Tube (TANGE No.1 - No.3)	Chromoly Tube (TANGE No.1 - No.3)
Fork : Doppo Original (Chromoly)	Doppo Original (Chromoly) Offset 49mm, Lenght 395mm

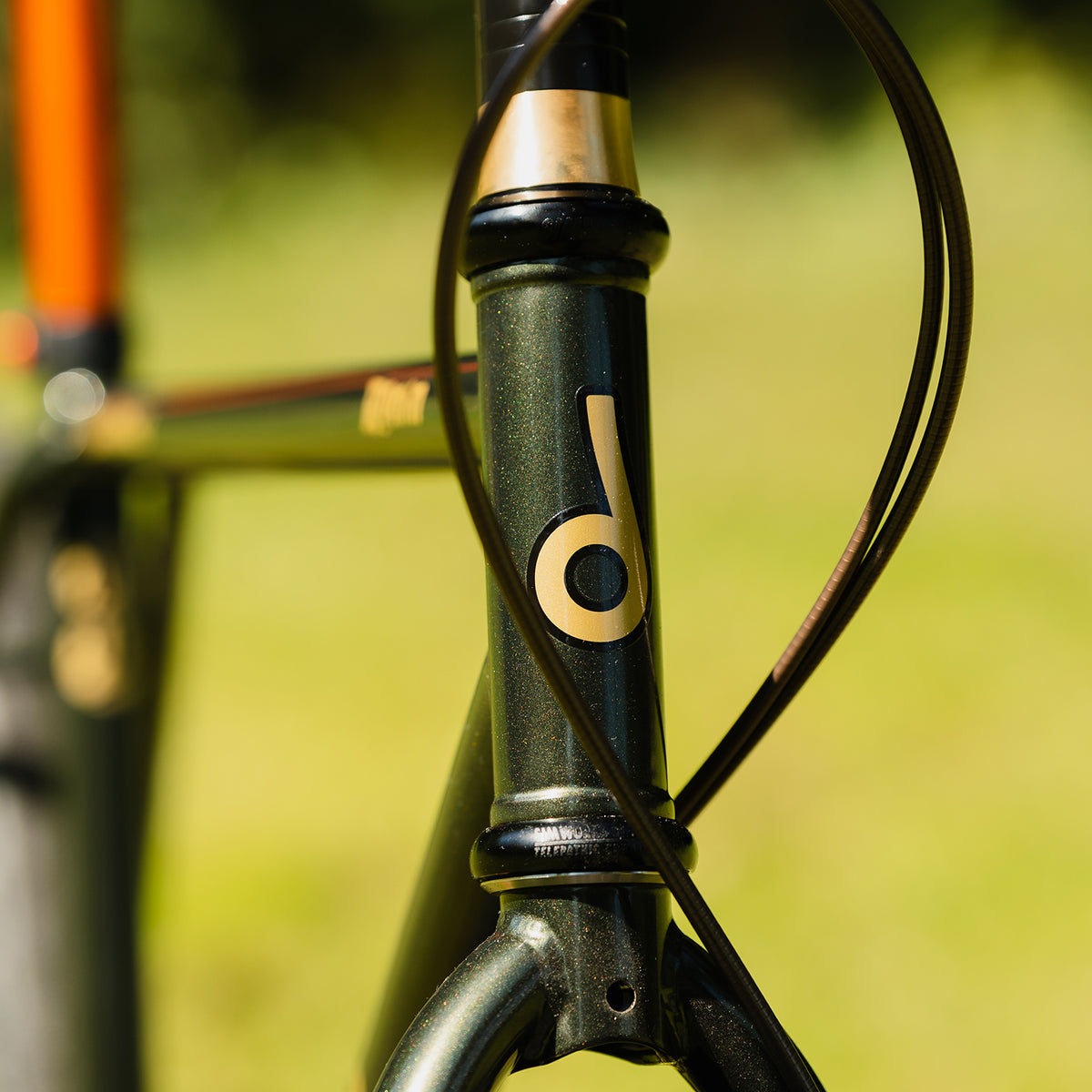

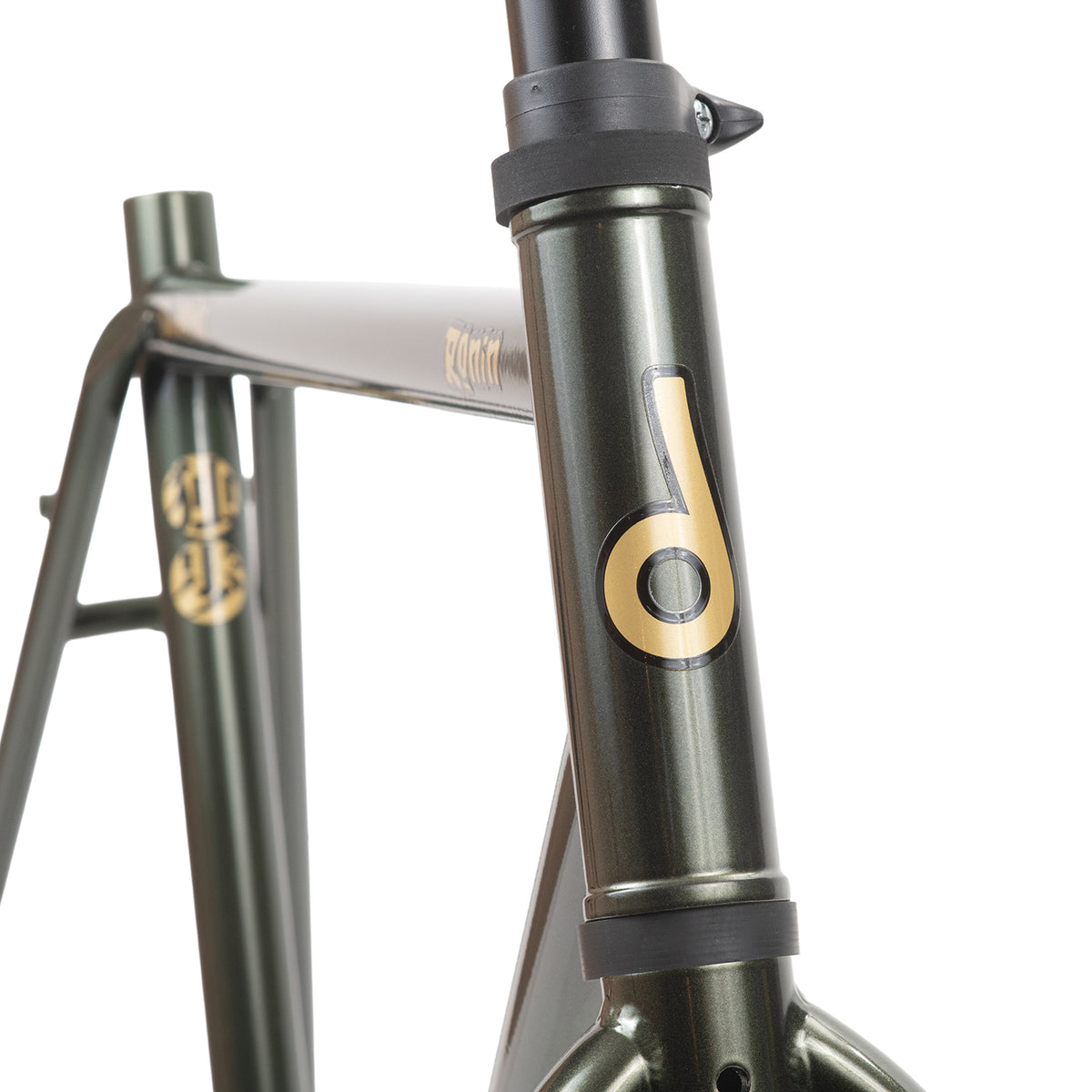

Head tube : Straight	Straight 1-1/8" EC34 headset compatible
Brake mounts: Flat Mount Disc Brake Front & Rear	Flat Mount Disc Brake Front & Rear
Rotor diameter : 140 - 160mm	140 - 160mm
BB : BSA (JIS) 68mm Threaded	BSA (JIS) 68mm Threaded
End width : Front	Front 100 x 12mm Thru Axle Rear 142 x 12mm Thru Axle
Seat Post Diameter : 272.mm	272.mm
Seat post collar diameter : 30.0mm	30.0mm
Tire Clearance : 700 x 43c, 650 x 55b, 27.5mm	700 x 43c, 650 x 55b, 27.5 x 2.22" (without Fender)
Assumed components : Gravel Front Single, Front Double	Gravel Front Single, Front Double
Eyelets : Rack mount & Fender mount	Rack mount & Fender mount
Bottle Cage Mounts : 2 (Seat Tube x 1)	2 (Seat Tube x 1, Down Tube x 1)
Cargo Cage Mount : 3 (Fork x 2, Under The Down Tube x 1)	3 (Fork x 2, Under The Down Tube x 1)

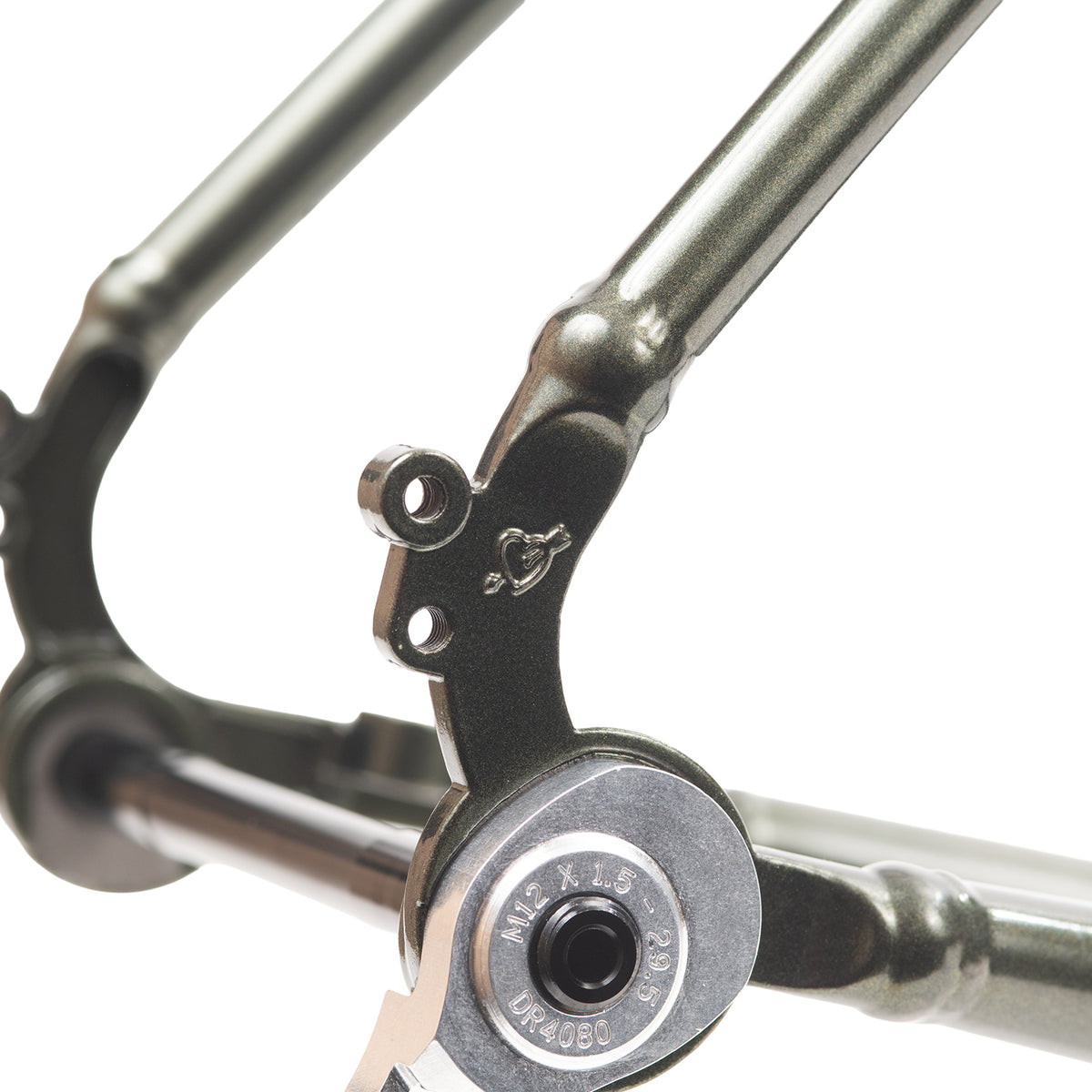

Accessories : Front 12mm Thru Axle - Front 12mm Thru Axle - Front 12mm Thru Axle	Front 12mm Thru Axle - 1.5 x 124mm Rear 12mm Thru Axle - 1.5 x 175mm PARAGON MASCHINE WORKS Dropouts / DR4080

Headset and seat clamp are not included.
