[Pre Order]OMNIUM MINI-MAX V3 Complete Shimano 1x11

OMNIUMSKU: OM-MX-CO-XS-COMP

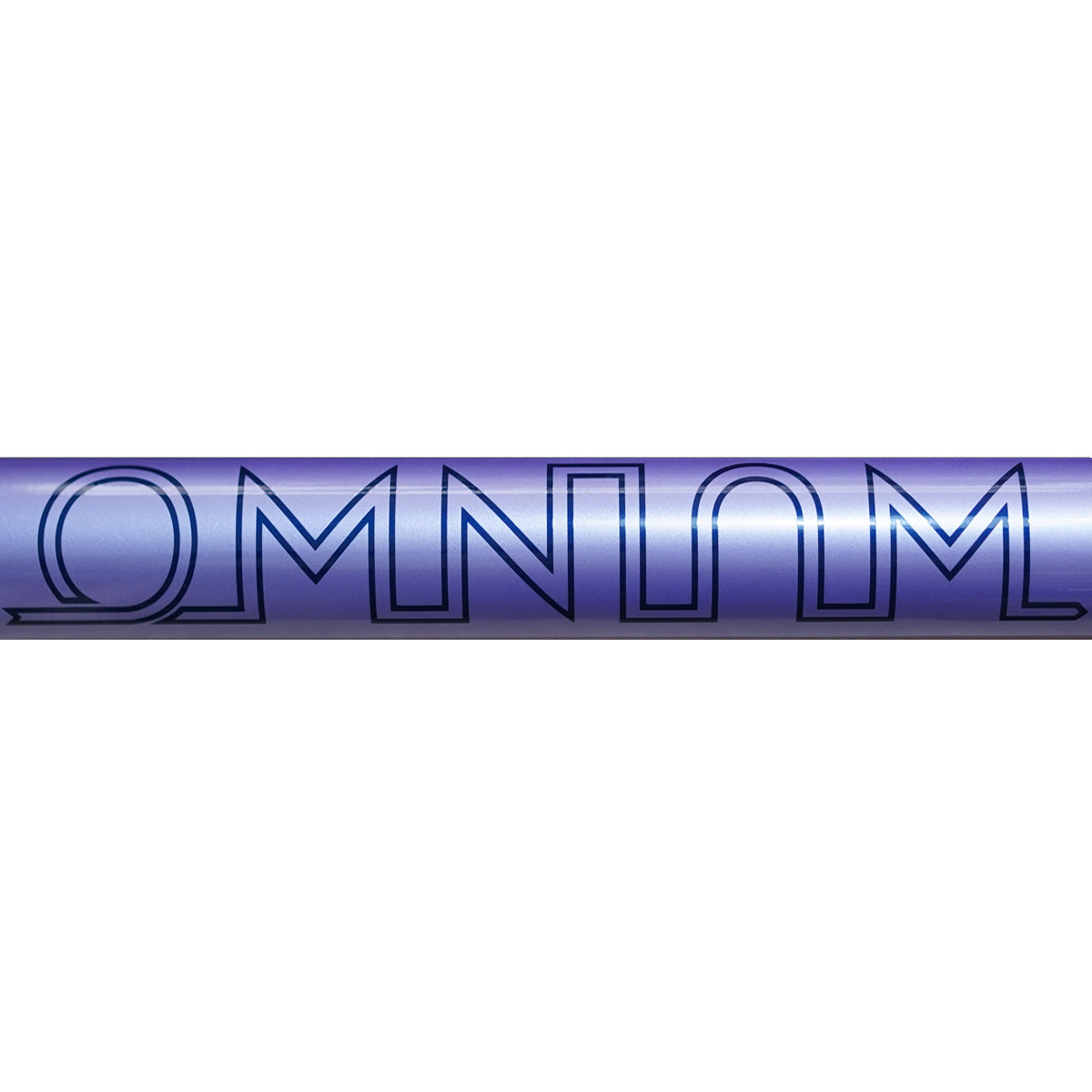

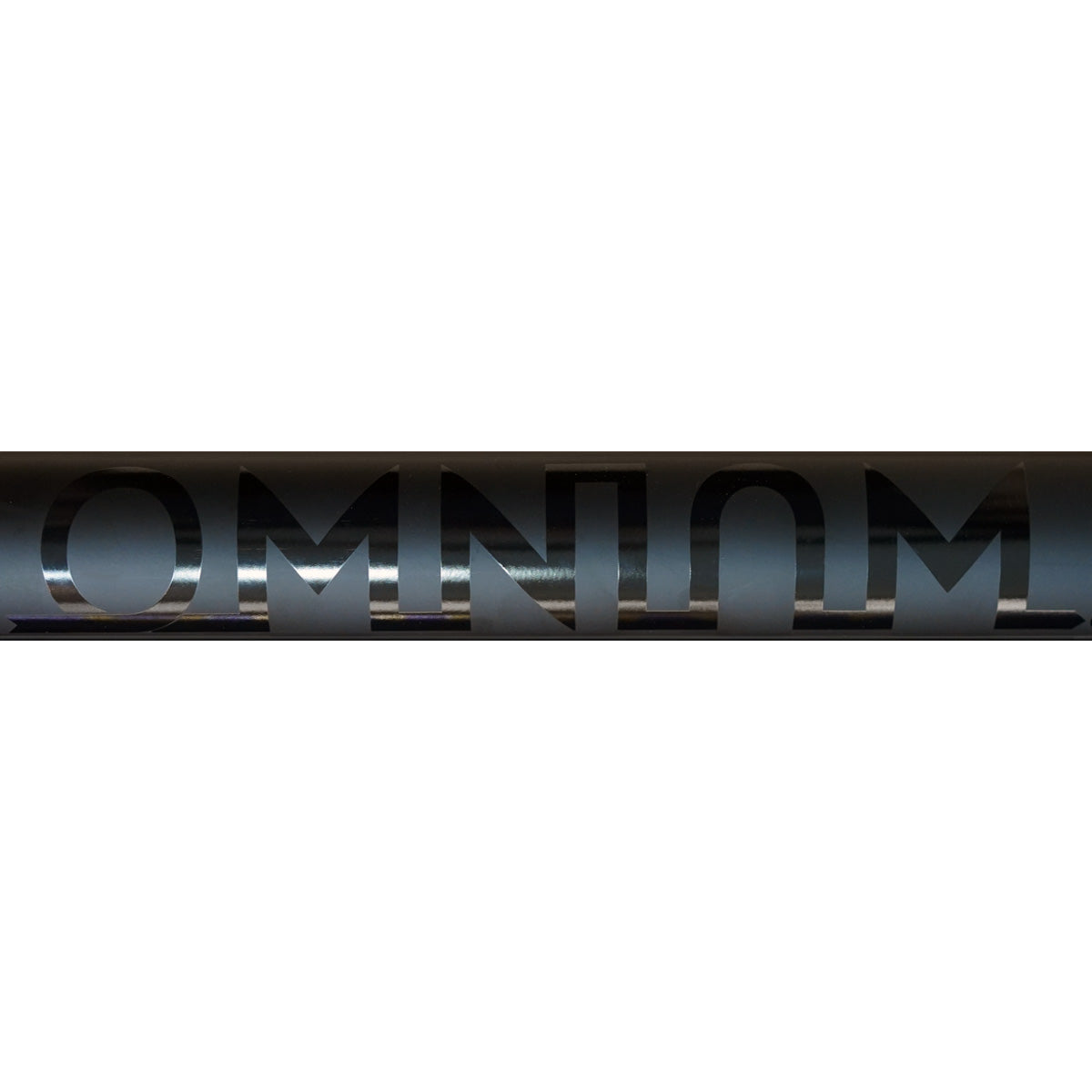

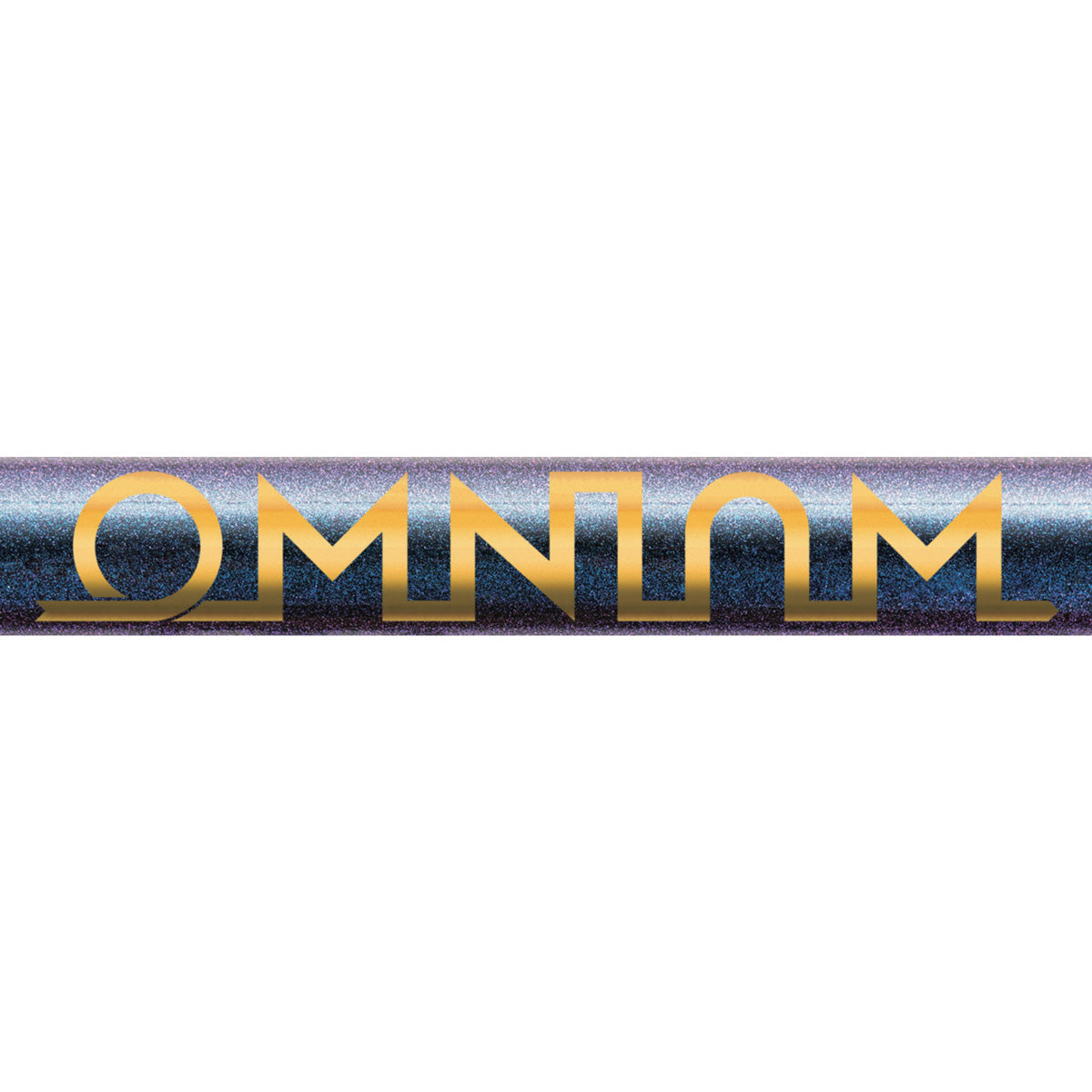

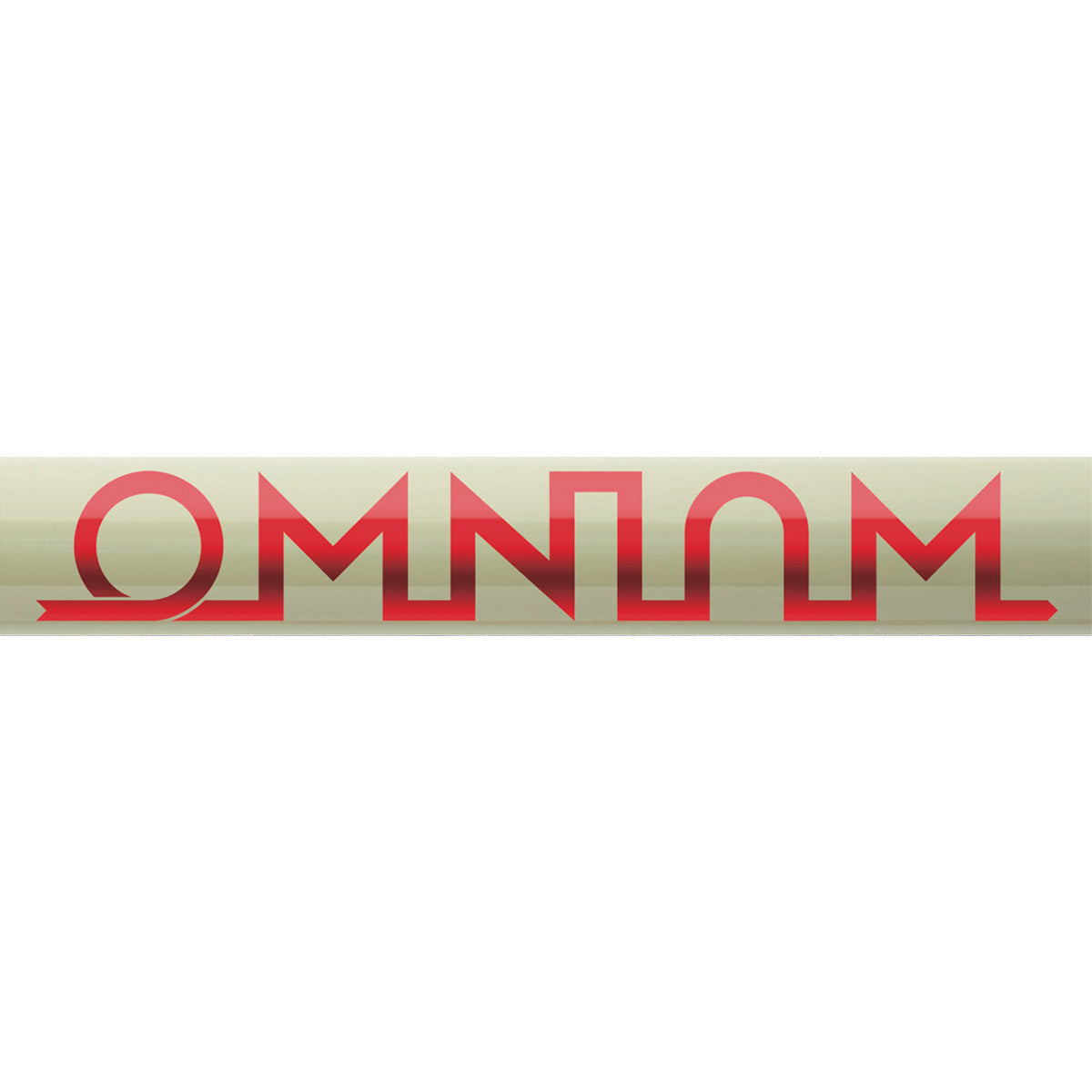

Color: Copperhead
Size: X-Small

Description

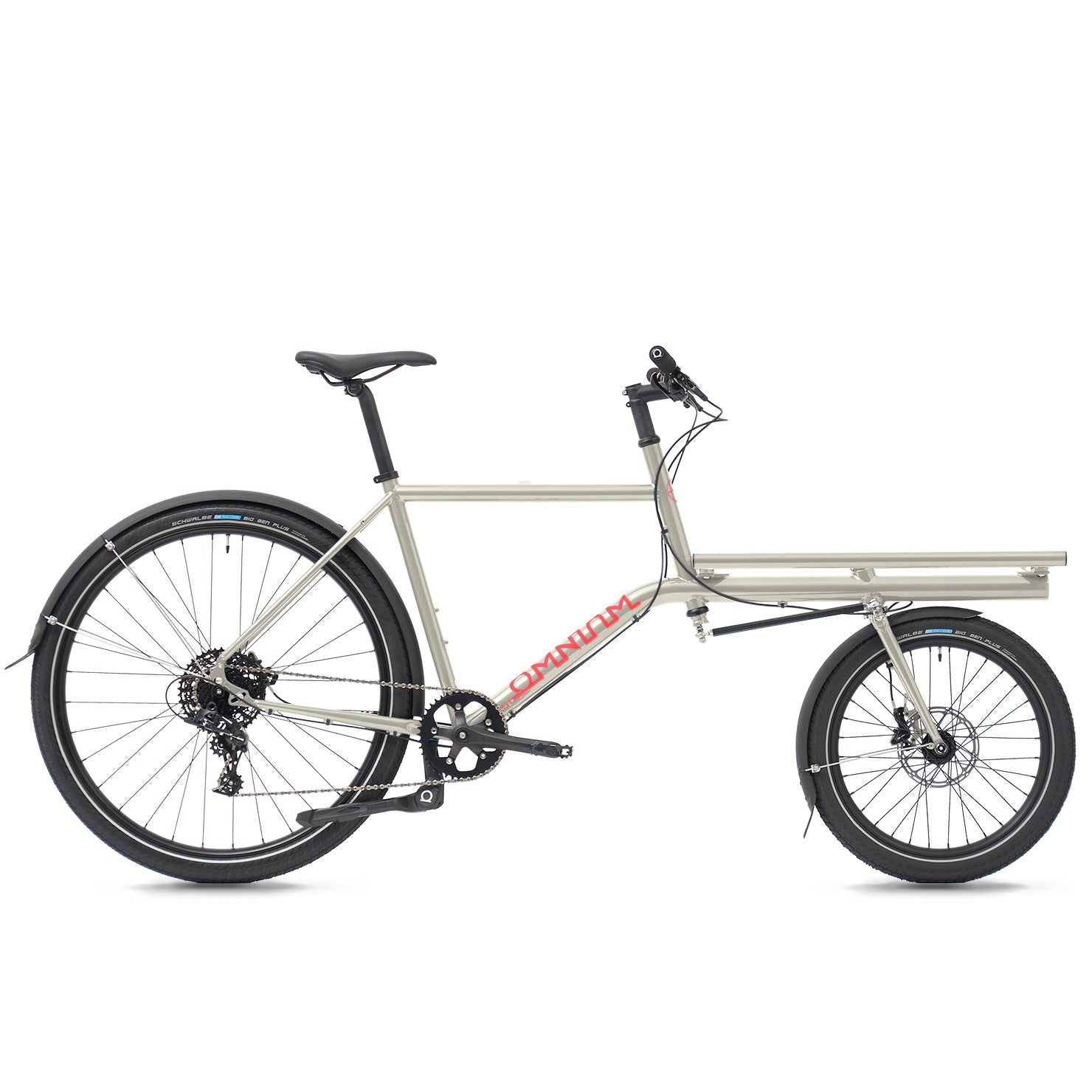

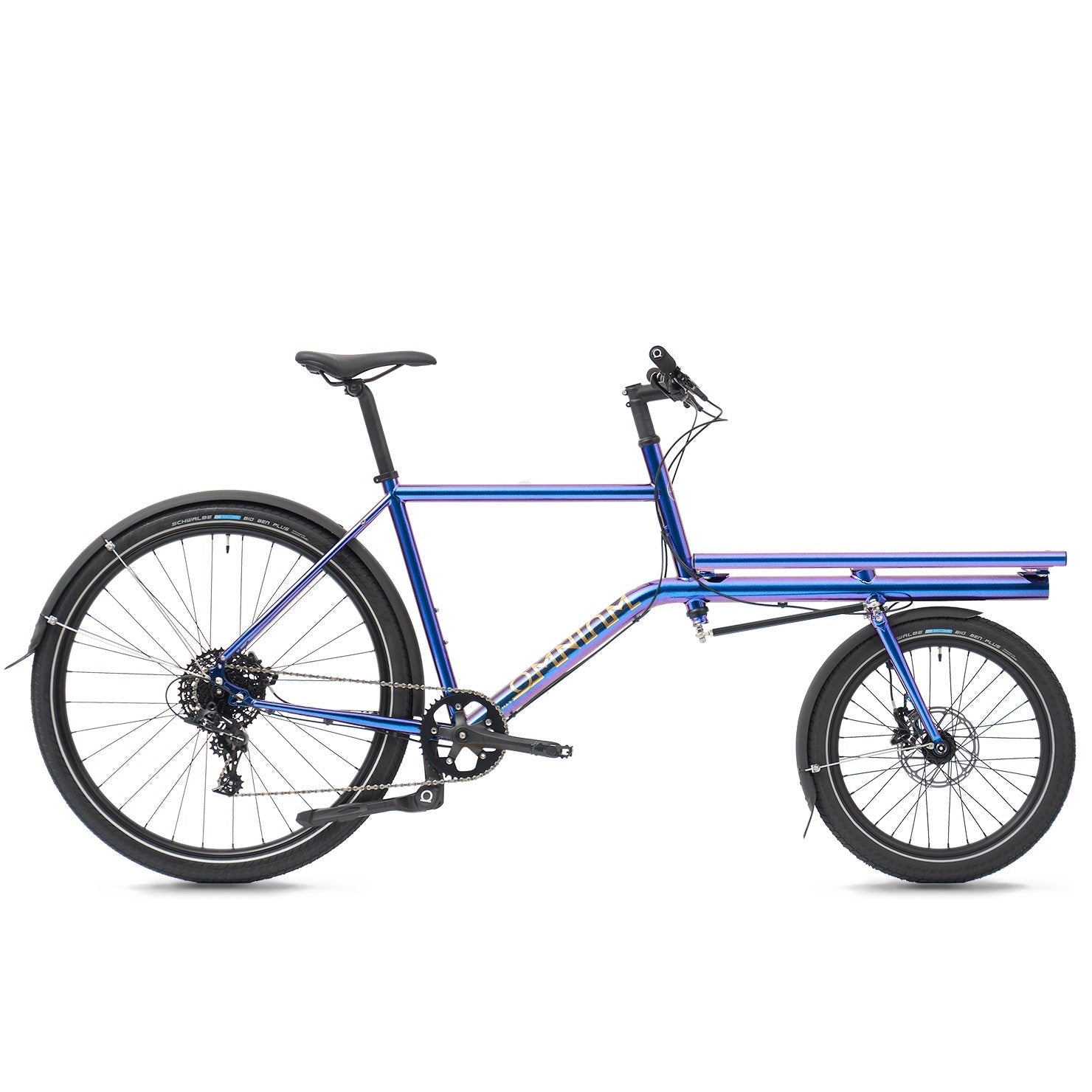

Versatile cargo bikes that shine in the city

Based in Copenhagen, Denmark, the OMNIUM brand manufactures lightweight, fast, and stable cargo bikes suitable for carrying, moving, and traveling.

The Minimax is designed on the premise that both front and rear tires are 55 mm (2.15″) front and rear, and the suspension effect of air volume improves comfort and control. Combined with a through-axle for large loads and new high-performance dropouts, this is the ultimate cargo bike with versatility as its top priority.

Adjustable rocker dropouts allow a variety of drivetrain choices (though not simultaneously), from exterior gears with derailleurs to interior gears or belt drive. They can also be configured with fixed gears. Interchangeable inserts allow you to choose between through-axle and quick-release, depending on the end width of your rear hub and choice of gear components. If needed, a spare set can be carried for easy replacement of broken rear hangers.

Replacement drop-out inserts can be ordered here.

The Mini Max is an in-between model that seems to combine the advantages of the Cargo and Mini models. Its shorter wheelbase makes it handle more like a regular bike, with improved maneuverability.

The front rack is one size smaller than that of the Cargo, but an extender bar can be added to provide ample carrying capacity.

The front wheels are positioned near the center of the front rack, which improves steering and handling performance, but may be slightly less stable than the Cargo when loaded with heavy loads.

The Minimax is best suited for those who value smoother handling and tight parking spaces and do not always need maximum hauling capacity.

[SPEC]

FRAME MATERIAL Double-Butted Chromoly Steel Frame
5 SIZES XS, S, M, L, XL
GEARS For 1x rear derailleur gear system
SEAT POST DIAMETER 31.6 mm
SEAT POST CLAMP SIZE 34.0 mm
REAR WHEEL TA Insert: 622, 12 x 142mm spacing, disc only
QR Insert: 622, 10 x 135mm spacing, disc only
FRONT WHEEL 406, 15 x 100 mm spacing, disc only
TYRE CLEARANCE, FRONT 55 mm with mudguards
TYRE CLEARANCE, REAR 55 mm with mudguards
THRU AXLE REAR 12×142, 172mm long, 19mm thread length, 1.75mm pitch
THRU AXLE FRONT 15×100, 125mm long, 17mm thread length, 1.5mm pitch
BOTTOM BRACKET BSA 68mm
FORK HEADSET 1 1/8″ Threaded Integrated with locking cap
STEERER HEADSET 1 1/8″ Ahead
Q-FACTOR/STANCE 145mm
RACK DIMENSIONS 70cm x 50cm, made of Aluminum
STANDARD RACK WEIGHT 1320g +/-
RACK BOLT SIZE M10 x 15mm
WEIGHT Complete medium bike weighs 19kg
MAXIMUM LOADING WEIGHT ON FRONT RACK MAXIMUM LOADING WEIGHT ON FRONT RACK
MAXIMUM TOTAL LOADING WEIGHT INCL. RIDER RIDER 150 kg

[COMPONENTS LIST SHIMANO 1X11]

BRAKES Shimano MT500, IS mount, 160mm rotor front and rear
GEARS Shimano Deore M5100 11 SPD, Shimano SLX 11-40T cassette, KMC 11 SPD chain EPT
STEM 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
HANDLEBAR 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
SEATPOST 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
GRIPS Omnium lock-on, black, foam
CRANKSET Driveline, 42t, CNC Narrow Wide Chainring
BOTTOM BRACKET FSA, Square Taper, 68mm BSA
HEADSET/S VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
SADDLE Omnium Standard Saddle
TYRES Schwalbe Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
WHEELS Omnium WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rims
KICKSTAND Omnium, cast aluminium twin-leg
PEDALS Cast metal platform, black
MUDGUARDS WiFi 60mm wide matte black

[SIZE GUIDE]

height: 155 - 165cm - recommended frame s ize - size X-S mall
height: 165 - 175 cm - recommended frame size - size Medium height: 175 - 185cm - recommended frame size size Small
Height: 175 - 185cm - Recommended frame size - size Medium
Height: 185 - 195cm - Recommended frame size - size Large
Height: 195 - 205cm - recommended frame size - size X-Large

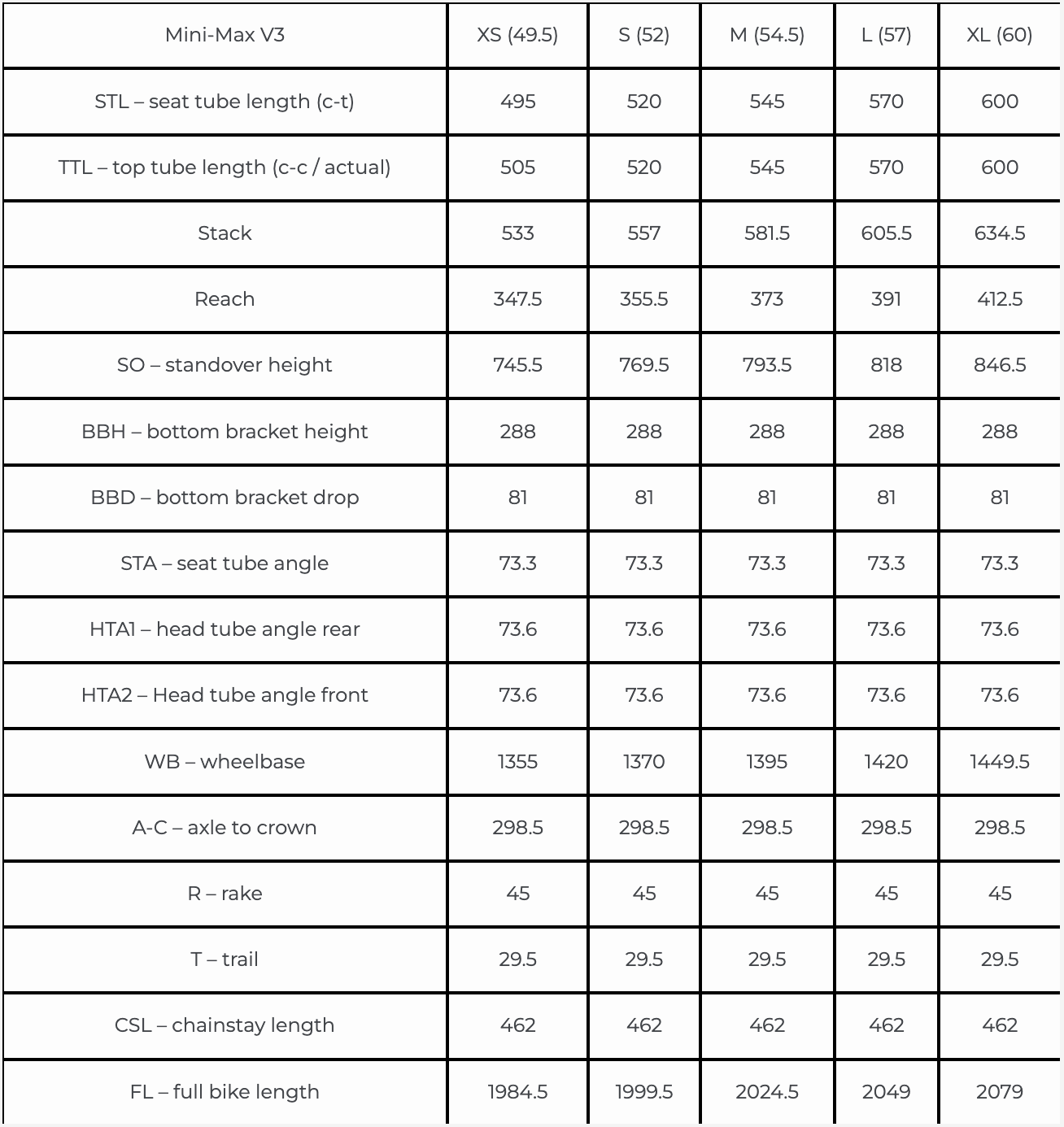

[GEOMETRY]

  1. We ship within 1-2 business days after receiving your order (payment). (Basically, orders placed before 12:00 p.m. are shipped the same day.)
  2. Messenger delivery is available within Nagoya City only.
  3. We ship every day from Monday to Sunday, except on temporary holidays.
  4. Available delivery areas: All over Japan and the world.
  5. Please note that delivery may be delayed due to credit card processing status. If you would like to specify the delivery date and time, please fill in your request in the additional information in the shopping cart.
  6. The product will be shipped from Circles.
  7. Please contact the shipping company in case of damage or loss during shipping.

Regarding the delivery of complete bikes

  • Please note that a separate shipping fee of 9,900 yen (tax included) will be charged for shipping complete bikes. (However, an additional fee will be charged for delivery to Okinawa and remote islands.)
  • After receiving your order, we will do a final check and ship complete bikes, but it may take 1-2 weeks. Please understand.
  • We will send the bike with some parts removed for packing. We strongly recommend that you have your bicycle assembled at your nearest bicycle store.
  • We will inform you of the delivery date and other details by e-mail.
  • We apologize for any sales discrepancies at the store.

Regarding the delivery of frame sets

  • Nationwide flat-rate shipping: 5,500 yen (tax included) (However, an additional fee will be charged for delivery to Okinawa and remote islands.)
  • We will inform you of the delivery date and other details by e-mail.
  • We will provide the pre-treatment of facing and tapping for the frame sets purchased at our store as a service. We will inform you separately after purchase.
  • We can also install a headset and BB for a fee, so please feel free to contact us.
