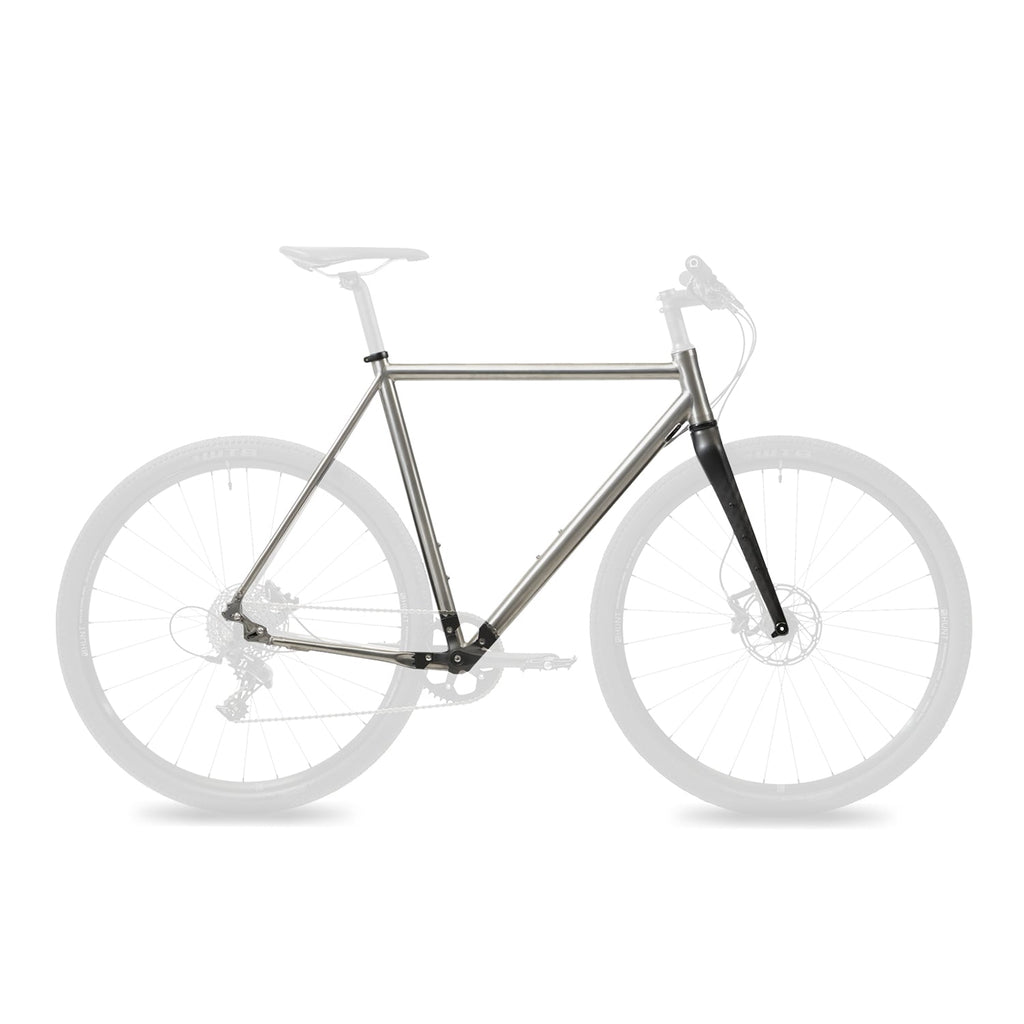

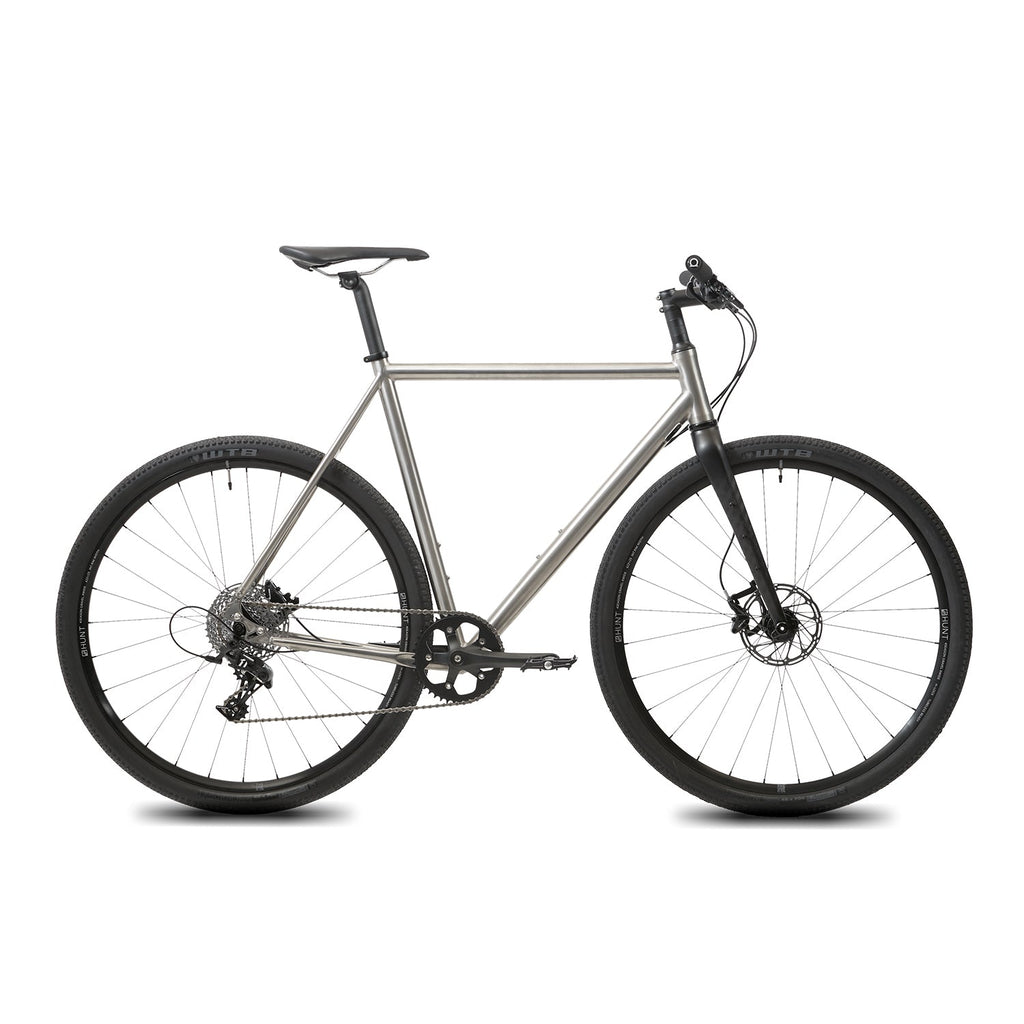

[In-Stock] OMNIUM Titanium CXC V3IR Frame Kit

OMNIUM

SKU: OM-TI-CXC-XS-IS-Stock

¥396,000

Taxes included. Shipping calculated at checkout.

Size XS Small Medium Large X-Large XX-Large

Dropout - Rear Brake Mount 142 x 12 TA - IS 142 x 12 TA - Flat Mount 135 x 10 QR - IS

This product is in stock and available for immediate delivery.

An all-around bike with a slender frame that catches the eye

Based in Copenhagen, Denmark, the OMNIUM brand produces lightweight, fast, and stable cargo bikes suitable for carrying, moving, and traveling.

CXC stands for Cyclocross City, and the bikes are as versatile as their name suggests. From commuting to gravel, cyclocross, world tour, and arleycat, the CXC will be your good buddy.

Wide 700c x 45mm tire clearance and triple cage fork mounts make it ready for adventure riding. Adjustable dropouts allow you to choose single speed, fixed, geared, or belt drive.

The CXC is a true Swiss Army knife! With such a versatile bike, anything seems possible.

[SPEC]

Size :.	xs (51), s (53), m (56), l (59), xl (62), xxl (64)
Material : Titanium	Titanium Grade 9
Gears : For 1x rear derailleur gear	For 1x rear derailleur gear system
Seat Post diam.	31.6mm
Seatpost clamp diameter:	34.9mm
Fork: Carbon triple cage fork with 12x100mm thru-axle flatmount	Carbon triple cage fork with 12x100mm thru-axle flatmount (post mount adapter included)
Front Wheel : 700c (etrto 622) / T	700c (etrto 622) / TA 12 x 100mm spacing Disc Brake only
Rear Wheel : TA Insert : 700c (etrto 622) / TA 12 x 100mm spacing	TA Insert : 700c (etrto 622) / 12 x 142mm spacing, Disc Brake only QR Insert : 700c (etrto 622) / 10 x 135mm spacing, Disc Brake only
Front Tyre Clearance : 45mm clearance with mudguards	45mm clearance with mudguards
Rear Tyre Clearance : 45mm clearance with mudguards	45mm clearance with mudguards (50mm chainstay clearance)
Front Thru Axle : 12×100, 132mm long	12×100, 132mm long, 1.5mm pitch
Rear Thru Axle : 12×142, 167mm long, 1.5mm pitch	12×142, 167mm long, 21mm thread length, 1.75mm pitch
Head Set : 44mm Headtube for headset	44mm Headtube for headset standard ZS44/28.6 - EC44/40
Bottom Bracket : 68mm BSA	68mm BSA
Rear Brake Mounts : 12mm Thru-Axle - 1.75mm pitch	12mm Thru-Axle - IS 12mm Thru-Axle - Flatmount 10mm QR - IS
Q-Factor : 145mm	145mm
Framekit weight(Large); Including Fork, Drop Outs & Axles	2.7kg
Recommended Maximum Loading Weight Including Rider : 100.0kg	100.0kg

Frame Kit Accessories : Including

Frame
Fork
Seat Clamp
Front thru-axle
QR dropout or 12mm TA dropout (through axle included)
*Headset not included.

[GEOMETRY]

CXC V3	XS(51)	S(53)	M(56)	L(59)	XL (62)	XXL (64)
Seat Tube (Center - Top) (mm)	510	530	560	590	620	640 Actual Top Tube (Center - Center) (mm)
Actual Top Tube (Center - Center) (mm)	520	535	555 575	575	575 575	Stack Height (mm)
Stack Height (mm)	497	512	543	573	573	617
Reach (mm)	395	402	409	422	434	Standover Height (mm)
Standover Height (mm)	782	797	828	828	888	Bottom Bracket Drop (mm)
Bottom Bracket Drop (mm)	58	58	58 58	58 58	58 58	Seat Tube Angle
Seat Tube Angle	76° Seat Tube Angle	75.5° Seat Tube Angle	75° Seat Tube Angle	75° Seat Tube Angle	74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74° 74°	74° 75° 75° 75° 75° 74°
Head Tube Angle	73.5° 75° 75° 74° Head Tube Angle	74° Head Tube Angle	74.5° Head Tube Angle	75° Head Tube Angle	75° 75° 75° 75° 75° 75° 75° 75° 75° 75° 75° 75	75° 75° 75° 75° 75° 75° 75° 75° 75° 75° 75° 75
Head Tube Length (mm)	66° 80° 80	80	110	140	170	185 Wheel Base (mm)
Wheel Base (mm)	977	985	996	1,012	1,032	1,036 Axle to Crown (mm)
Axle to Crown (mm)	396	396	396 396	396 396	396 396 396	396 396 396 396
Rake (mm)	45	45	45 45	45 45 45	45 45 45	45 45 45 45
Trail (mm)	58	55	52	49	49	49
Chainstay Length (mm)	410-427	410-427	410-427	410-427	410-427	410-427
