BASSI BIKES Le Montréal V3 Frame Set
Check your size based on your height
Check your size based on your height
BASSI uses PBH (pubic bone height) as a starting point for frame sizing. Measure from the floor to your pubic bone, not your trouser inseam.
Measure from the floor to your pubic bone, not your trouser inseam.
Sizing can change with riding style and position. If you are near a boundary, please contact Circles.
Commuter, Touring, Cyclocross: A well-balanced frameset that can be freely customized to suit your ideas
The Montréal has long been ridden as an unofficial bike only among a select group of friends, but due to growing demand from cyclists living in Montréal, it was officially adopted as a BASSI model.

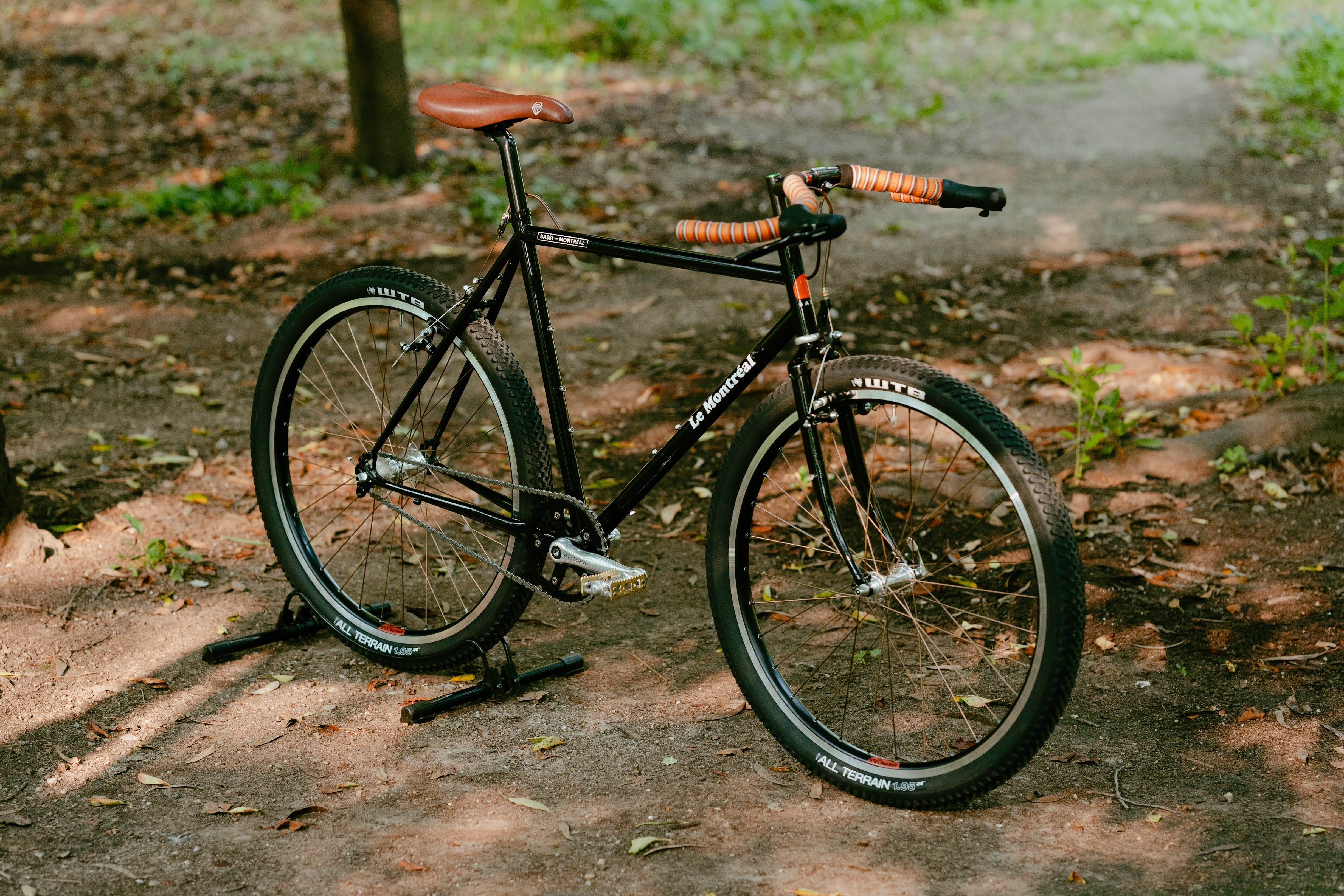

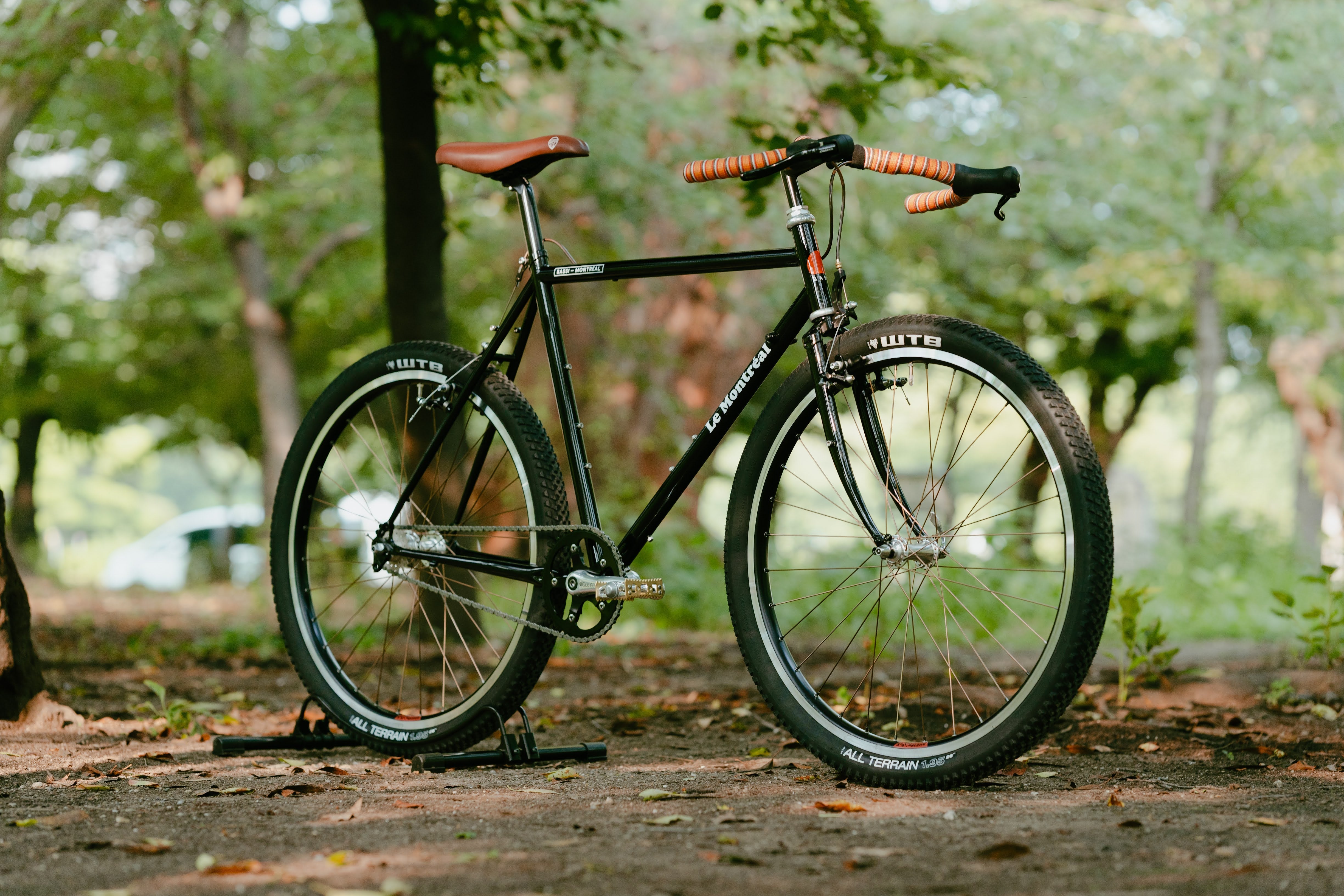

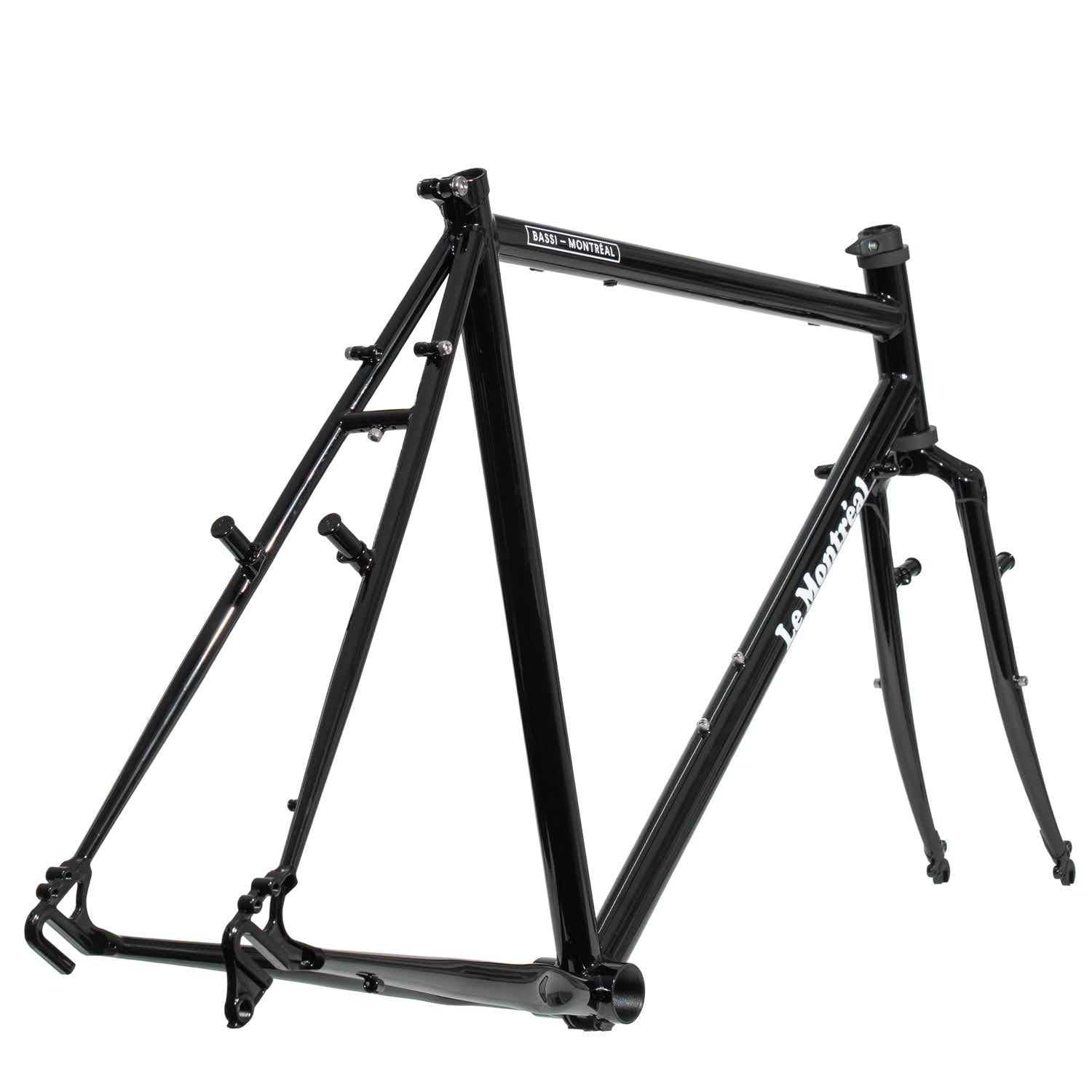

Since its release in 2013, the Montréal has been one of our most popular frames and is known for its versatility. Inspired by classic touring bikes from the 1980s, the Montréal features fender mounts, rack eyelets, three bottle cage mounts, and a shoulder strap.The wheel size is proportional to the frame size, and the bike is designed to be easy to control and tailored to the rider’s physique. Additionally, by increasing the stiffness of the seat stays and top tube, the frame not only enhances load-carrying capacity but also creates flex, delivering a smooth ride and robust durability.
It’s ideal as a geared bike for weekend rides and commuting, and—true to Bassi’s love of single-speed bikes—it’s also an interesting frame that can be built as a single-speed.
[FEATURE]

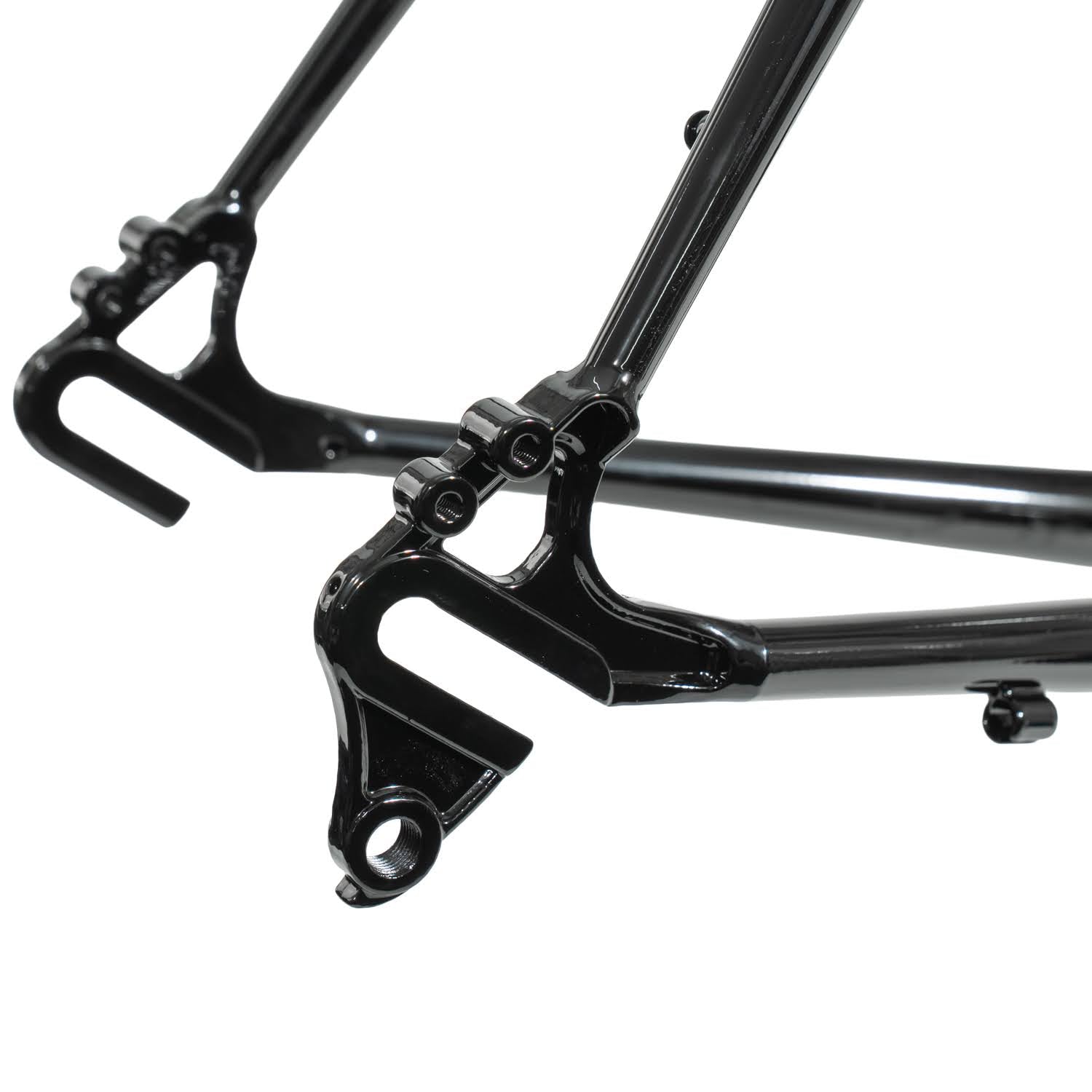

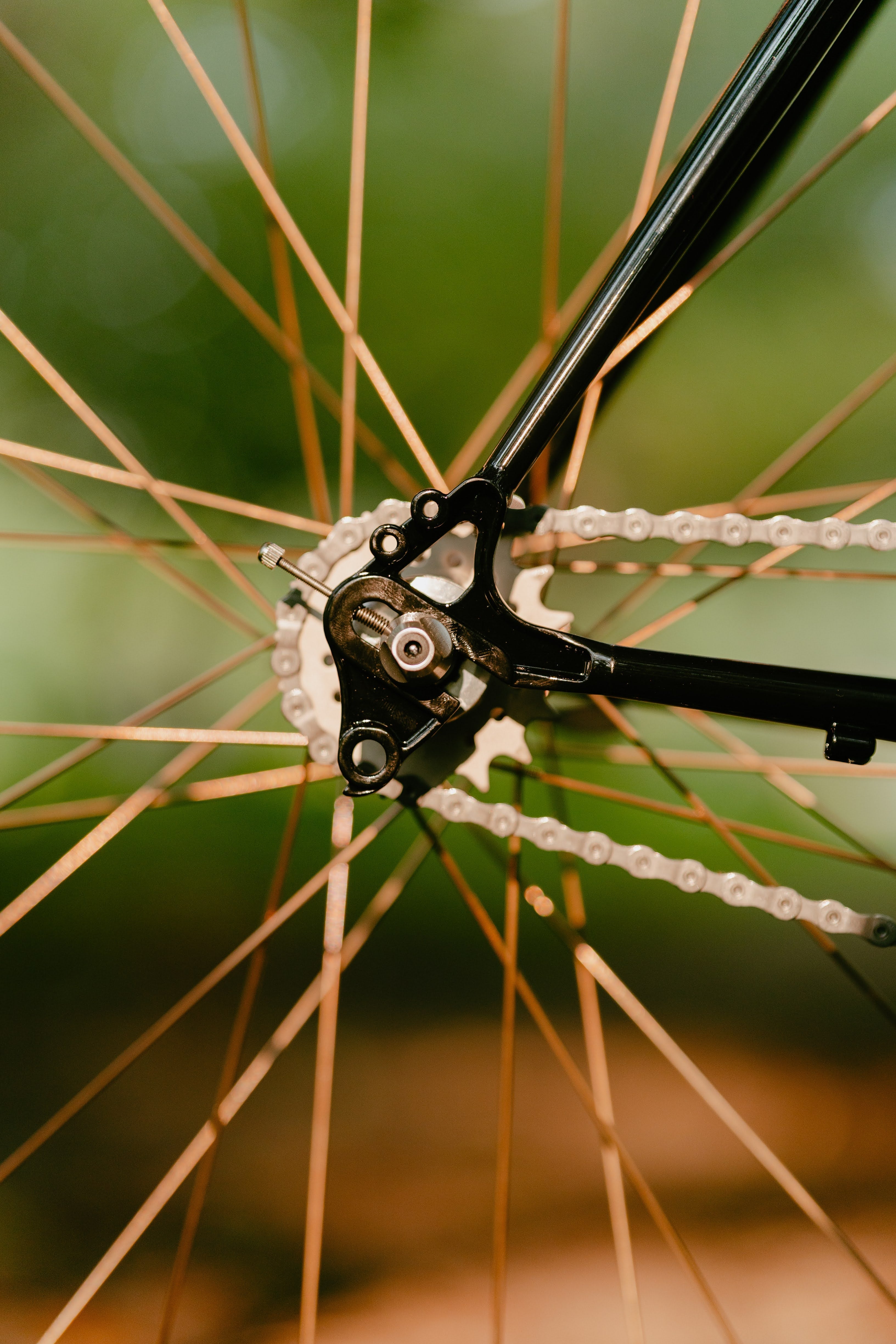

- Equipped with semi-horizontal dropouts, allowing for conversion to a single-speed setup

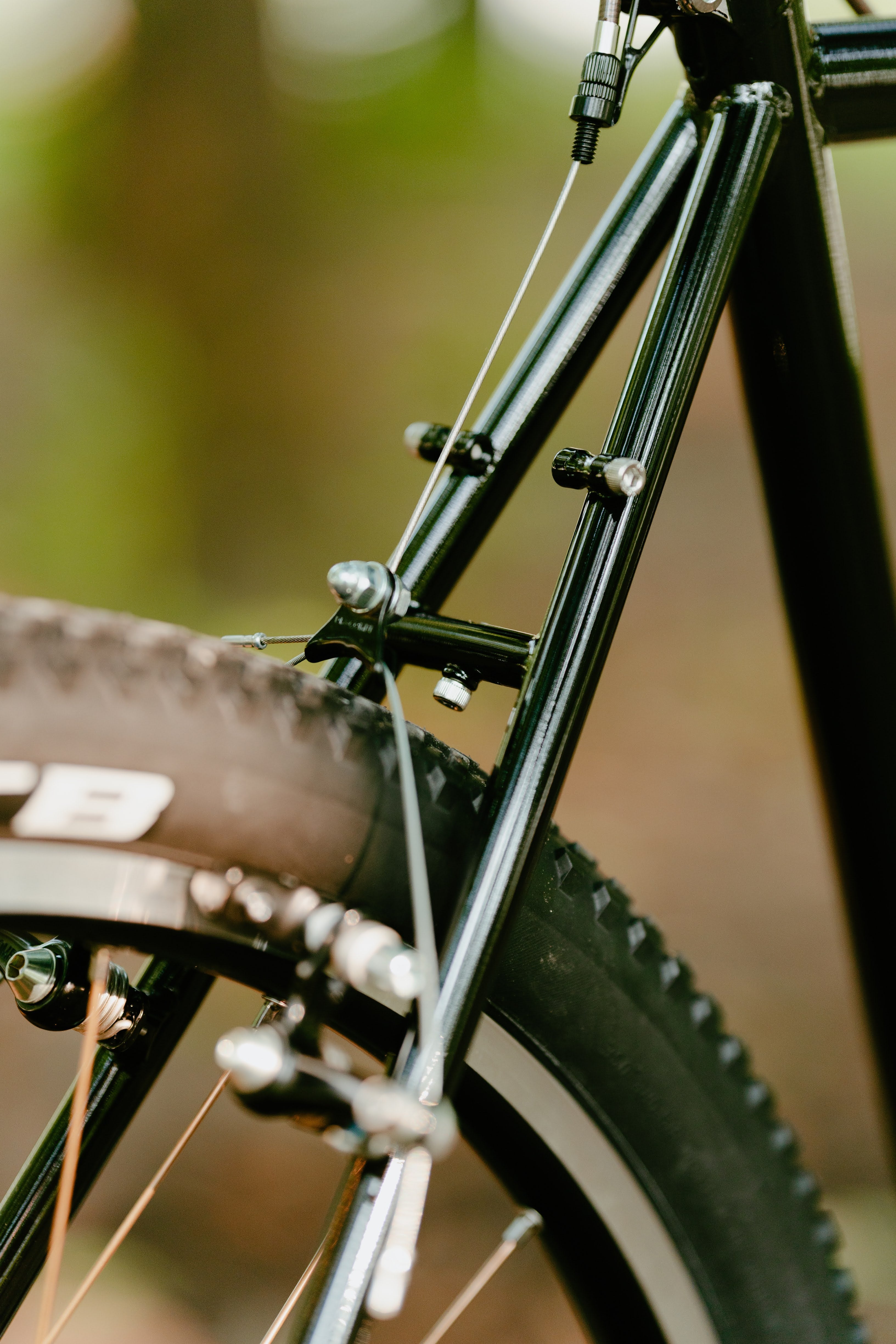

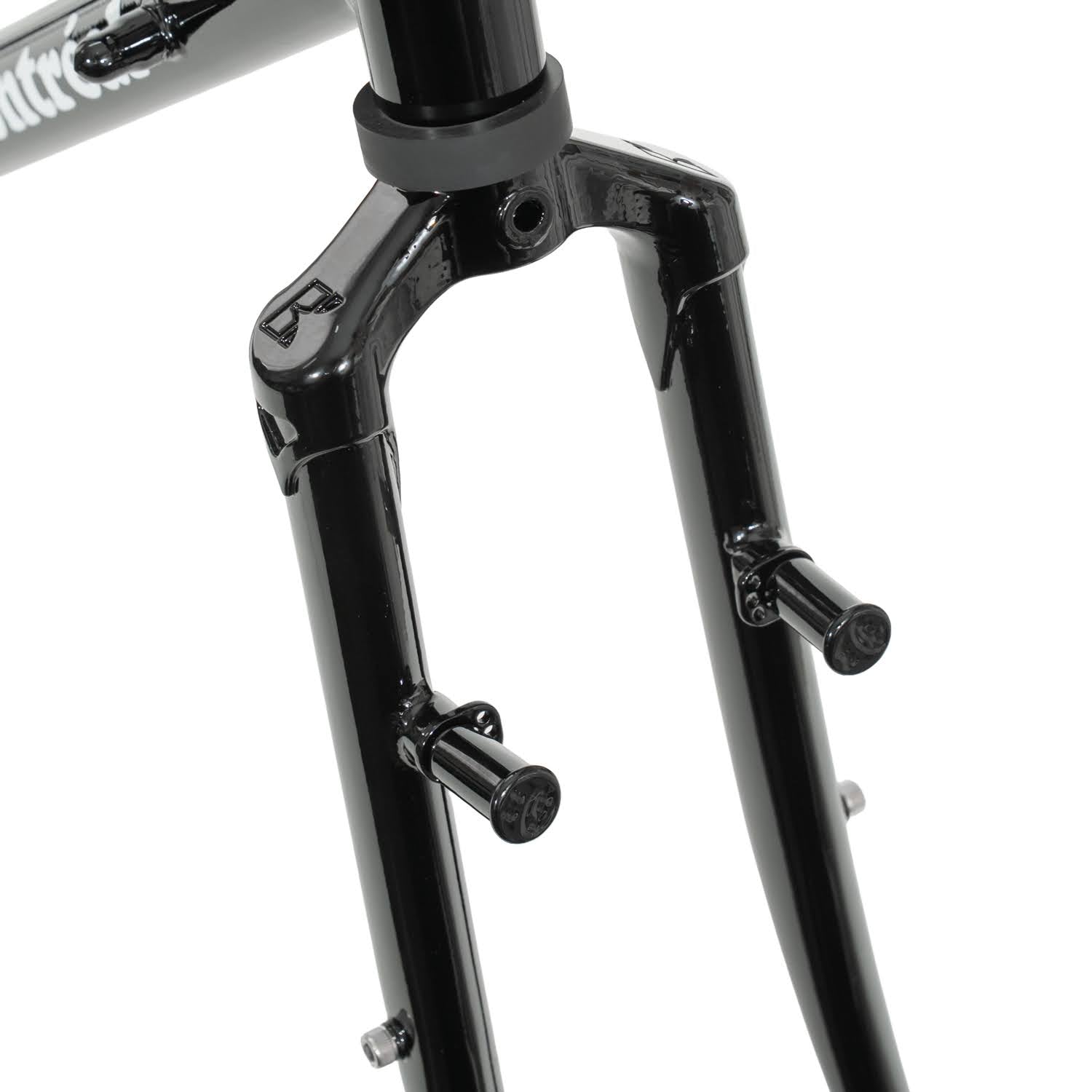

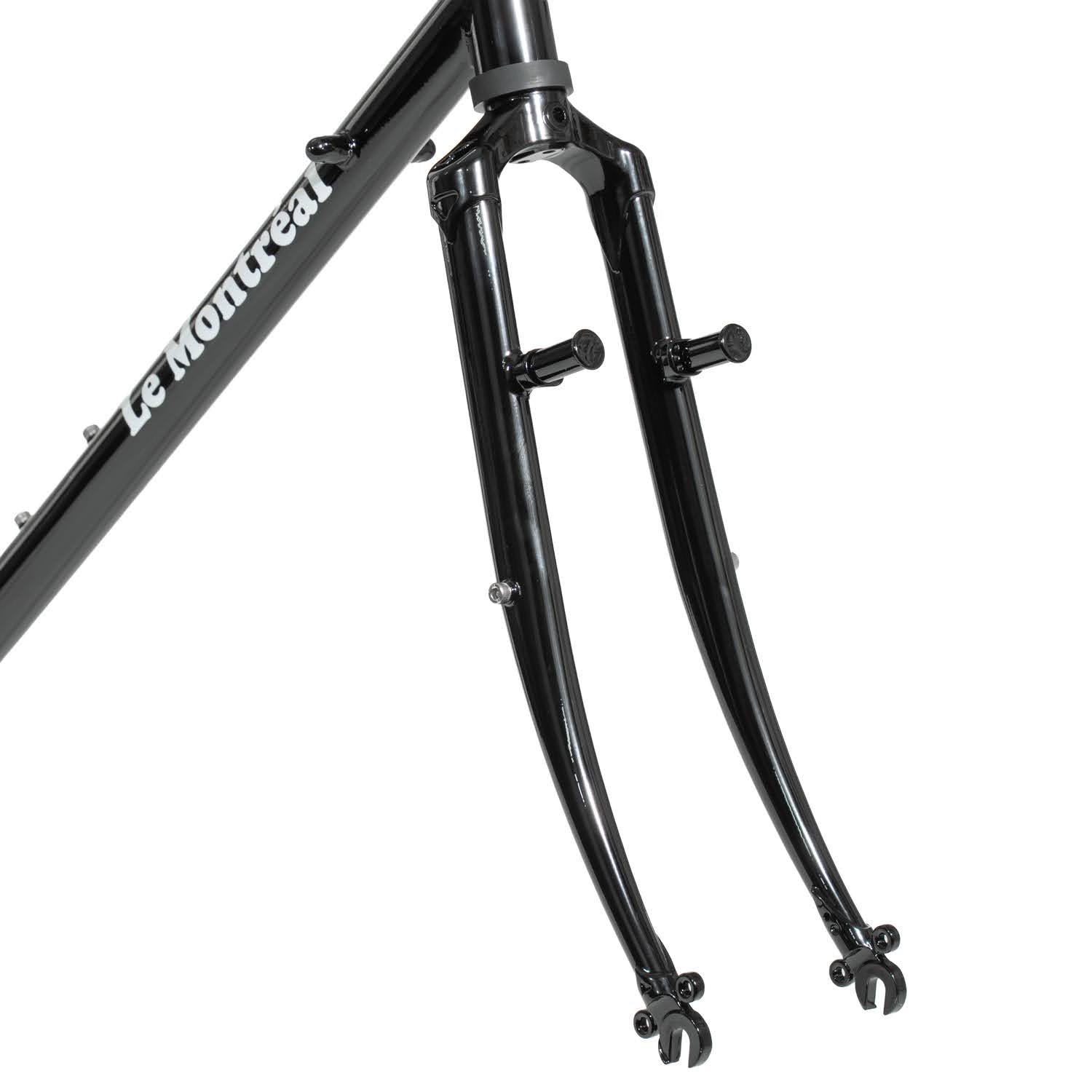

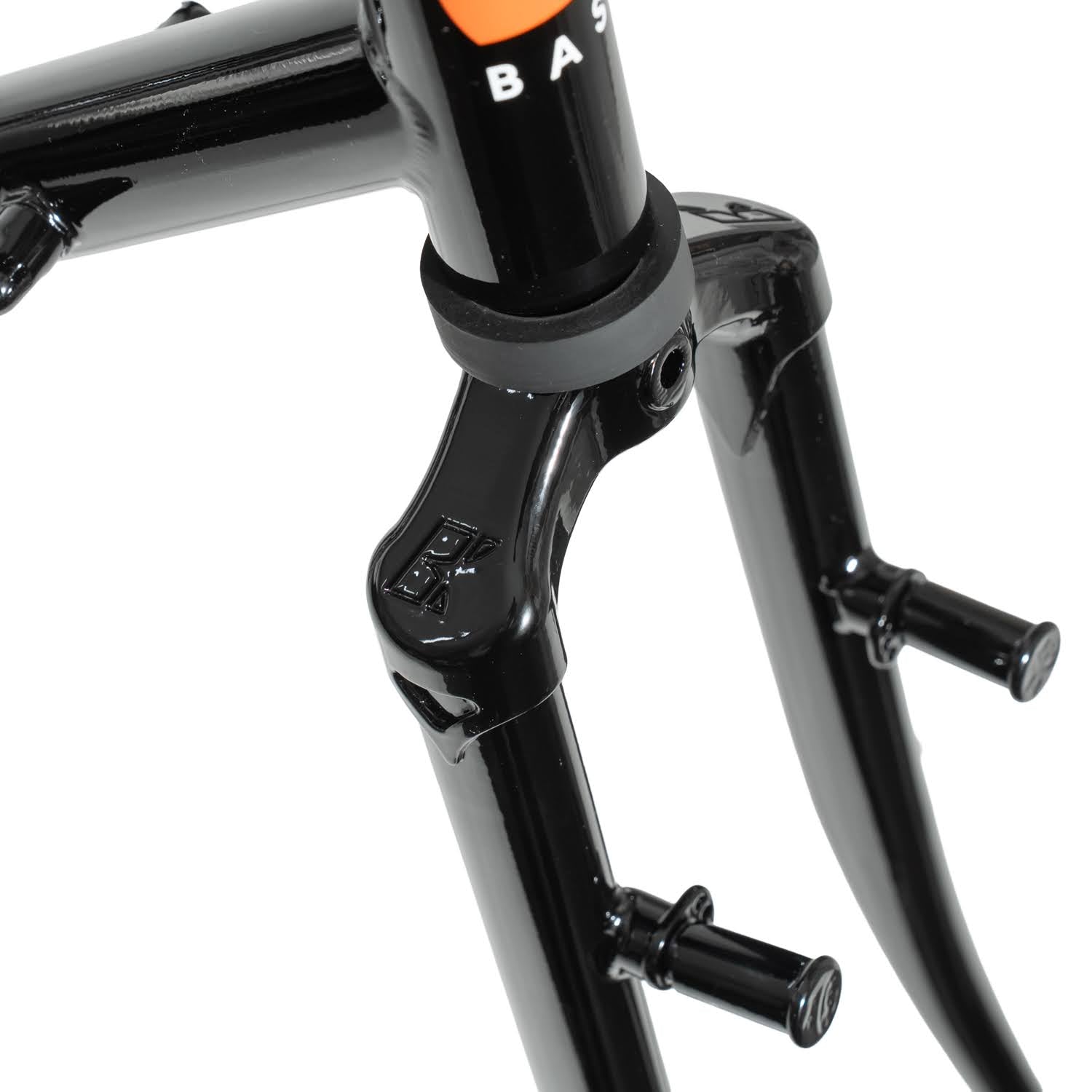

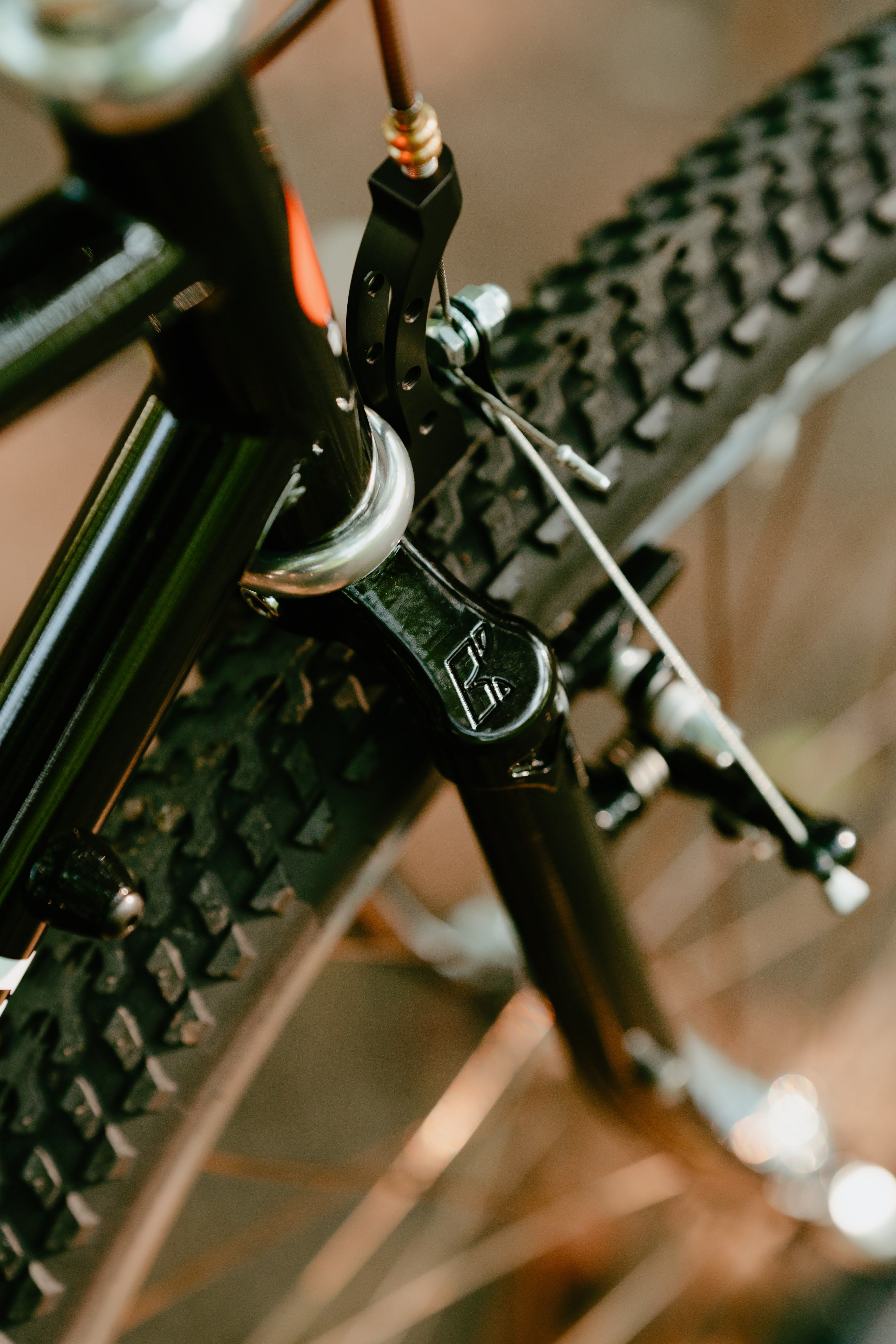

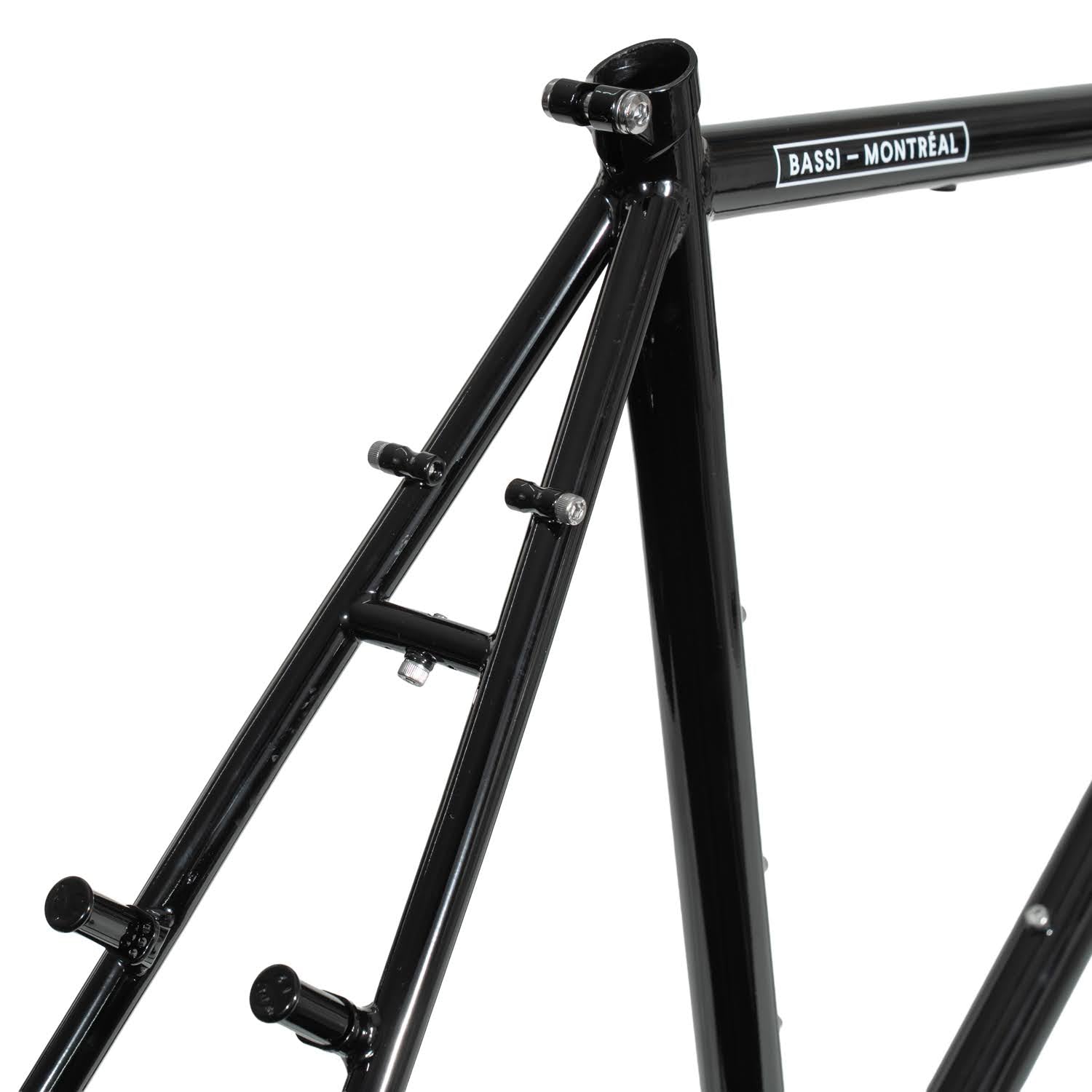

- Cantilever brake mounts on the fork and seat stays

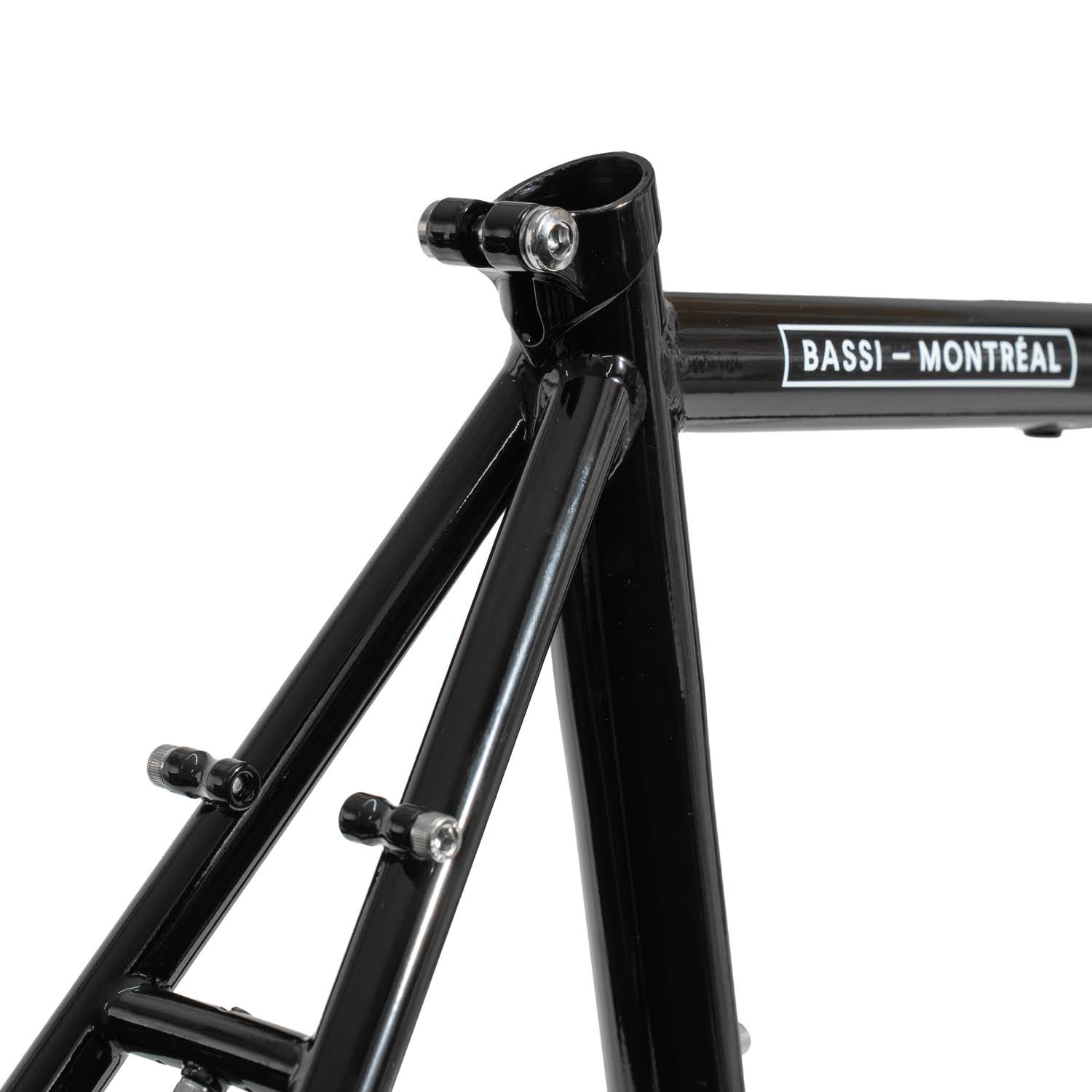

- Classic seat pin-style frame with integrated seat clamp
- Provides 47mm tire clearance for both 26" and 650B tires
- Fender mounting is also possible
- M5 eyelets for fenders on the fork sides, seat stays, and dropouts
- Three bottle cage mounts

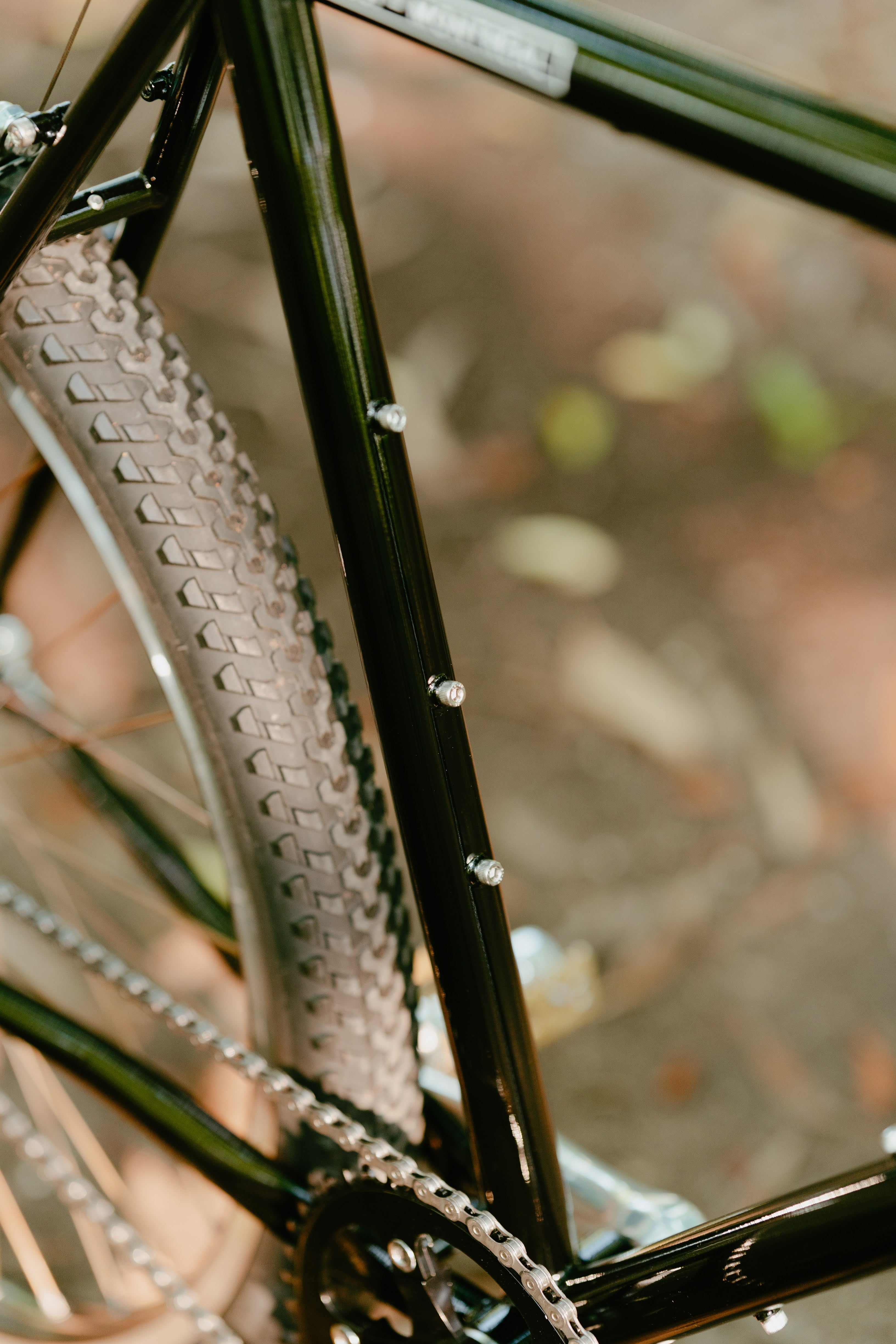

- Bottle cage eyelets on the down tube and seat tube

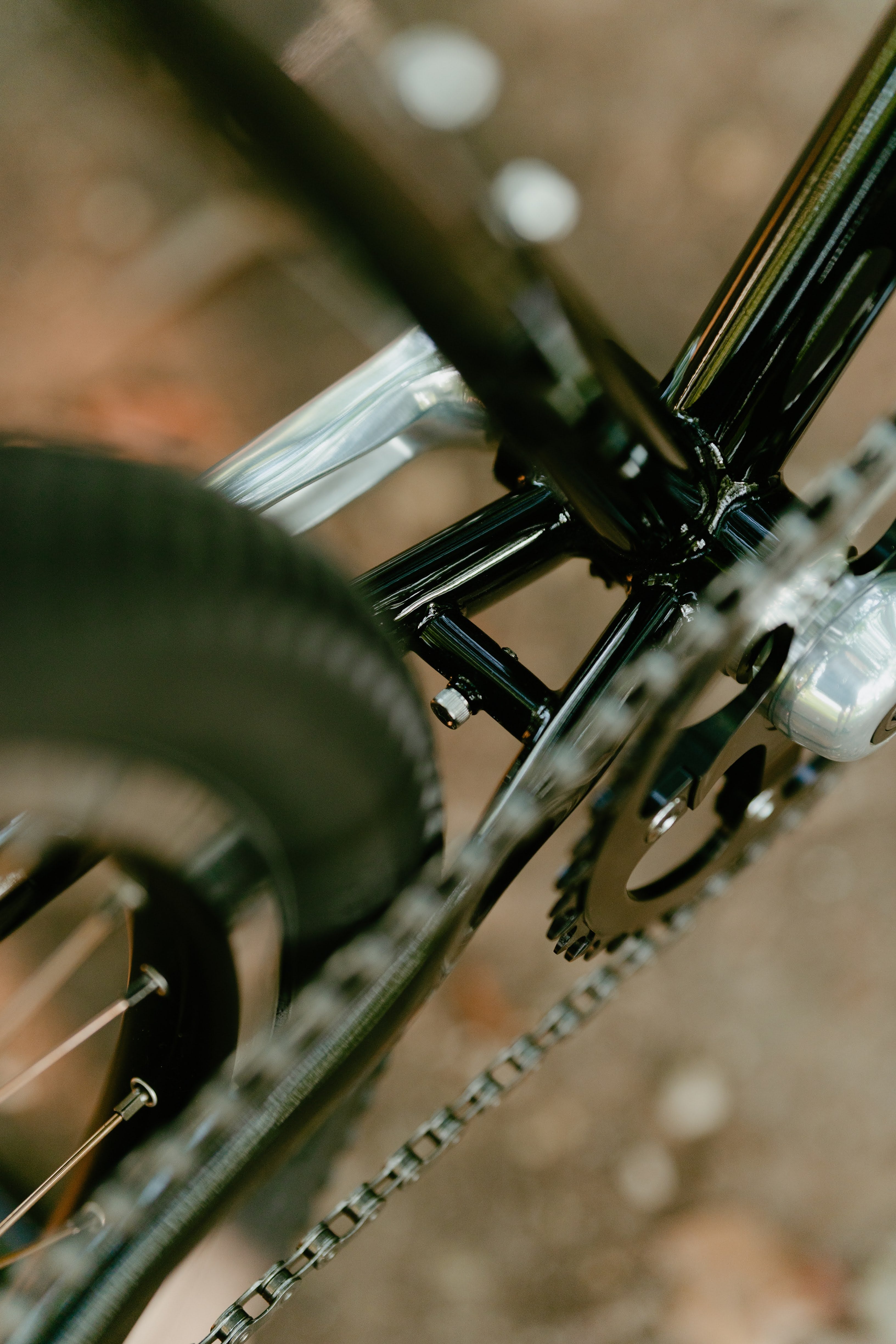

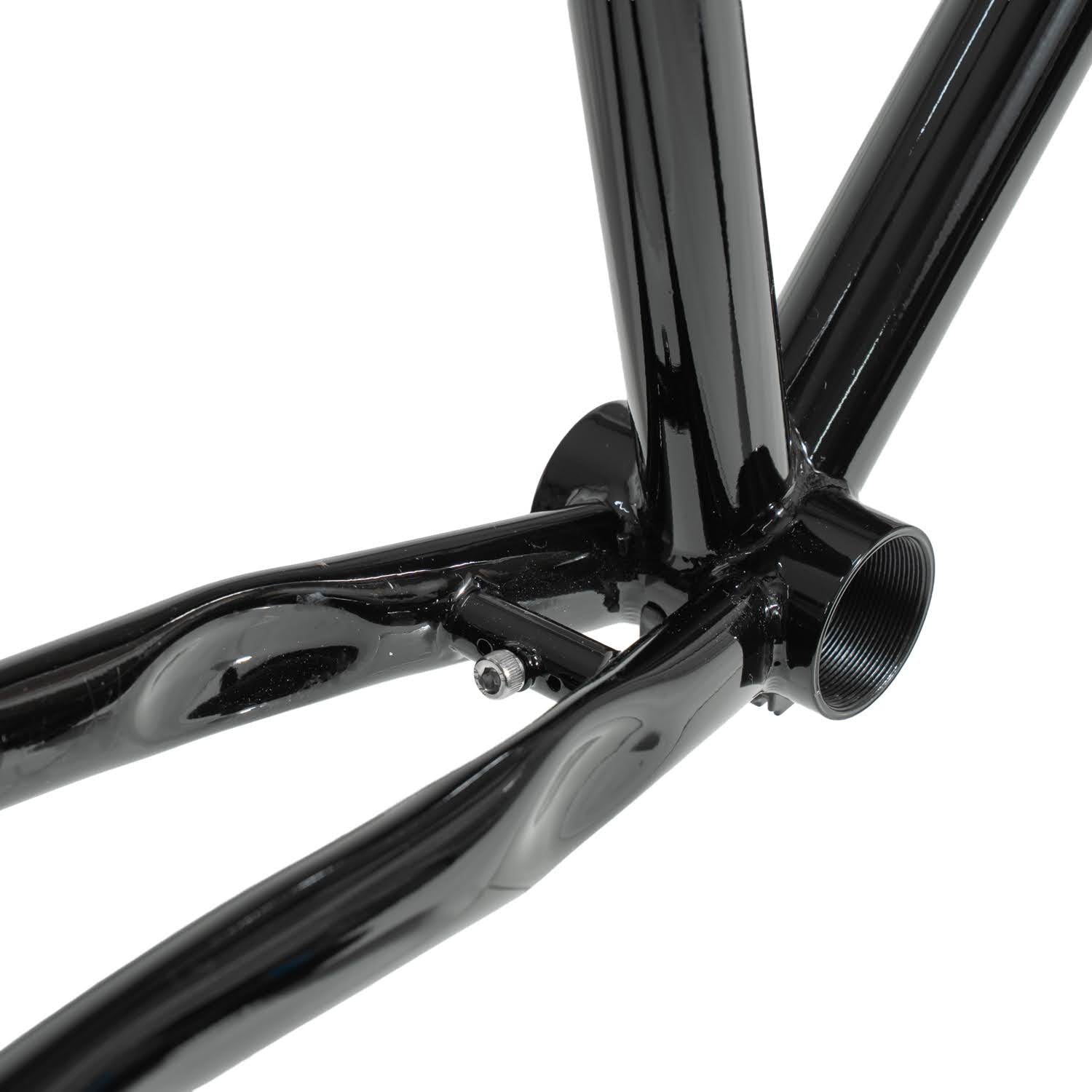

- Includes a bottom bracket shift cable guide
- Frame sizes 46–49 cm are for 26" wheels; sizes 52 cm and larger are for 650B (27.5") wheels
- The rear end is designed for 132.5 mm, making it compatible with 130 mm and 135 mm hubs
[SPEC]

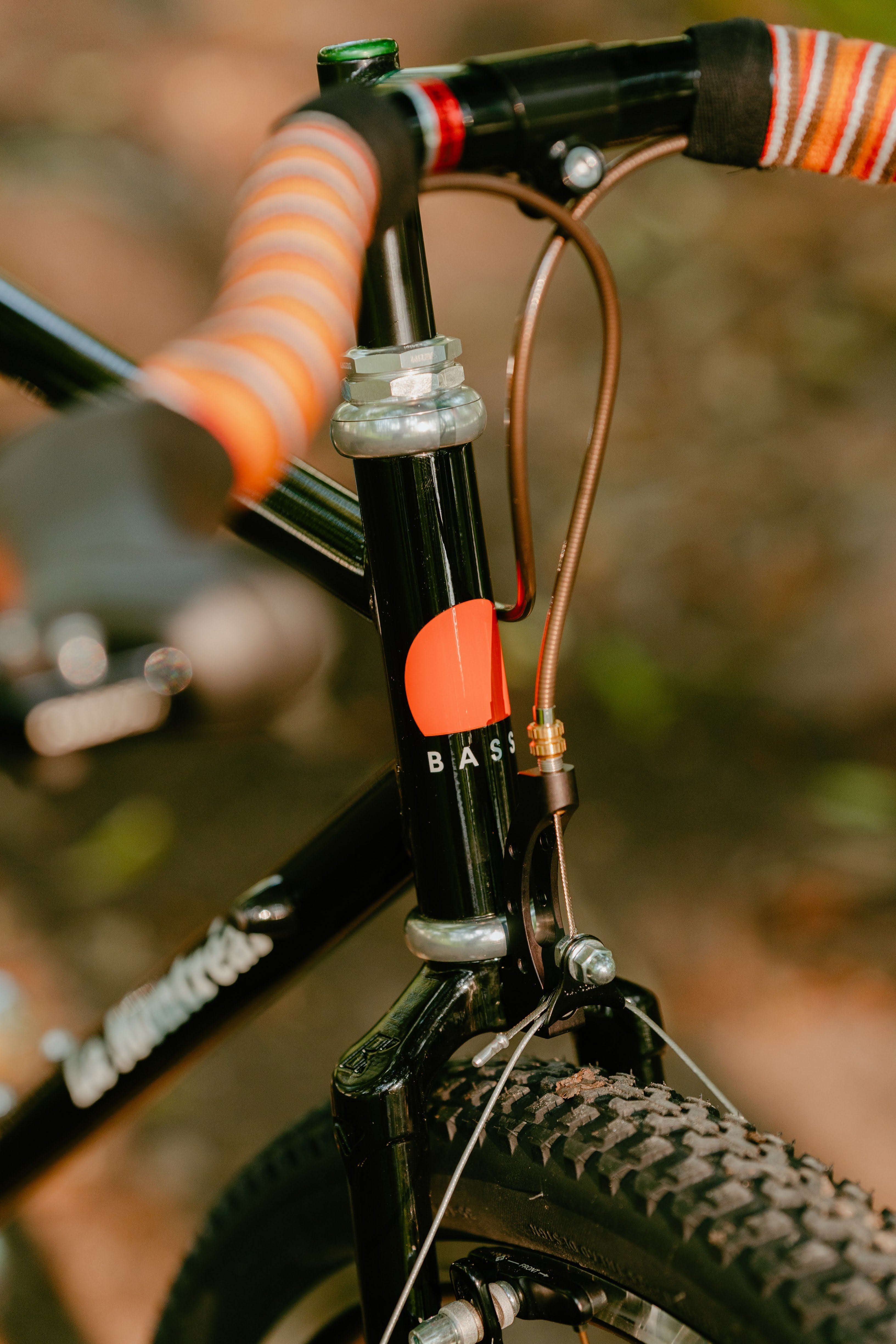

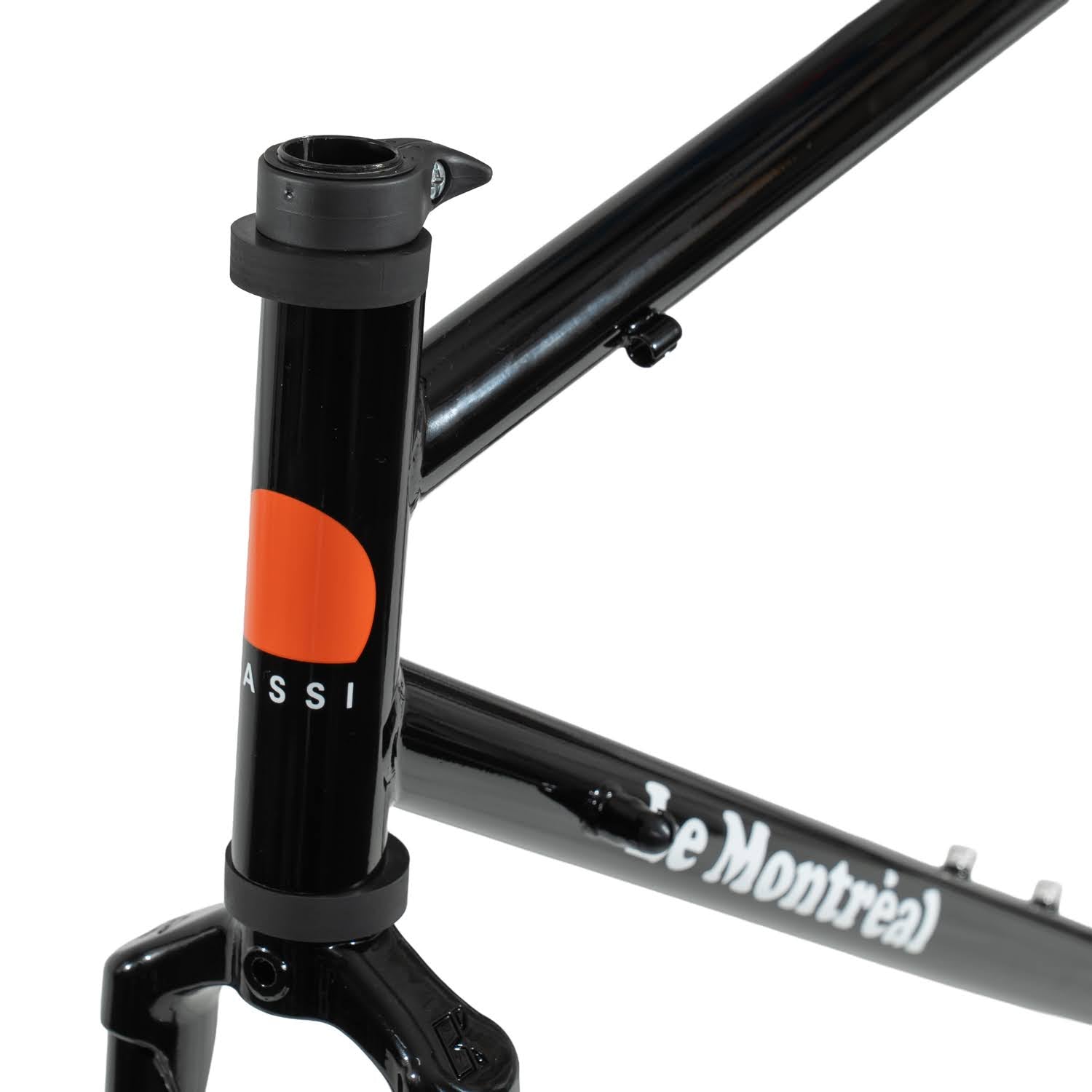

| Head Tube: | 1" threaded fork (ITA) |
| Tube Type: | Oversized 4130 CrMo steel |
| Tubing Used: | Top Tube & Down Tube / Double-butted Seat Tube / Triple-butted |
| Seatpost Diameter: | 27.2 mm |
| Bottom Bracket: | 68 mm, JIS/BSA |
| Rear End Spacing: | 132.5 mm rear dropout |
| Included Parts: | 1x BB cable guide 1x seat post |
[FRAME GEOMETRY]
| Size: | XS / 46 cm | S / 49 cm | M / 52 cm | L / 55 cm |
| Seat Tube (c-c): | 460 | 495 | 520 | 550 |
| Top Tube (c-c): | 520 | 535 | 550 | 575 |
| Head Tube Angle: | 72° | 72° | 72° | 72° |
| Seat Tube Angle: | 74° | 74° | 74° | 73° |
| Chainstay: | 410 | 410 | 425 | 425 |
| BB Drop: | 50 | 50 | 60 | 60 |
| Stack Height: | 488 | 517 | 546 | 572 |
| Reach: | 380 | 386 | 393 | 400 |
| Wheelbase: | 977 | 992 | 1,019 | 1,034 |
| Fork Lake: | 45 | 45 | 45 | 45 |
| Fork Length (Axle to Crown): | 365 | 365 | 380 | 380 |
| Tire Clearance: | 26" x 47mm | 26" x 47mm | 650B x 47mm | 650B x 47 mm |
| Minimum PBH (cm): | 75 | 78 | 81 | 84 |
*Unless otherwise noted, all measurements are in millimeters (mm).
*PBH = Inseam
