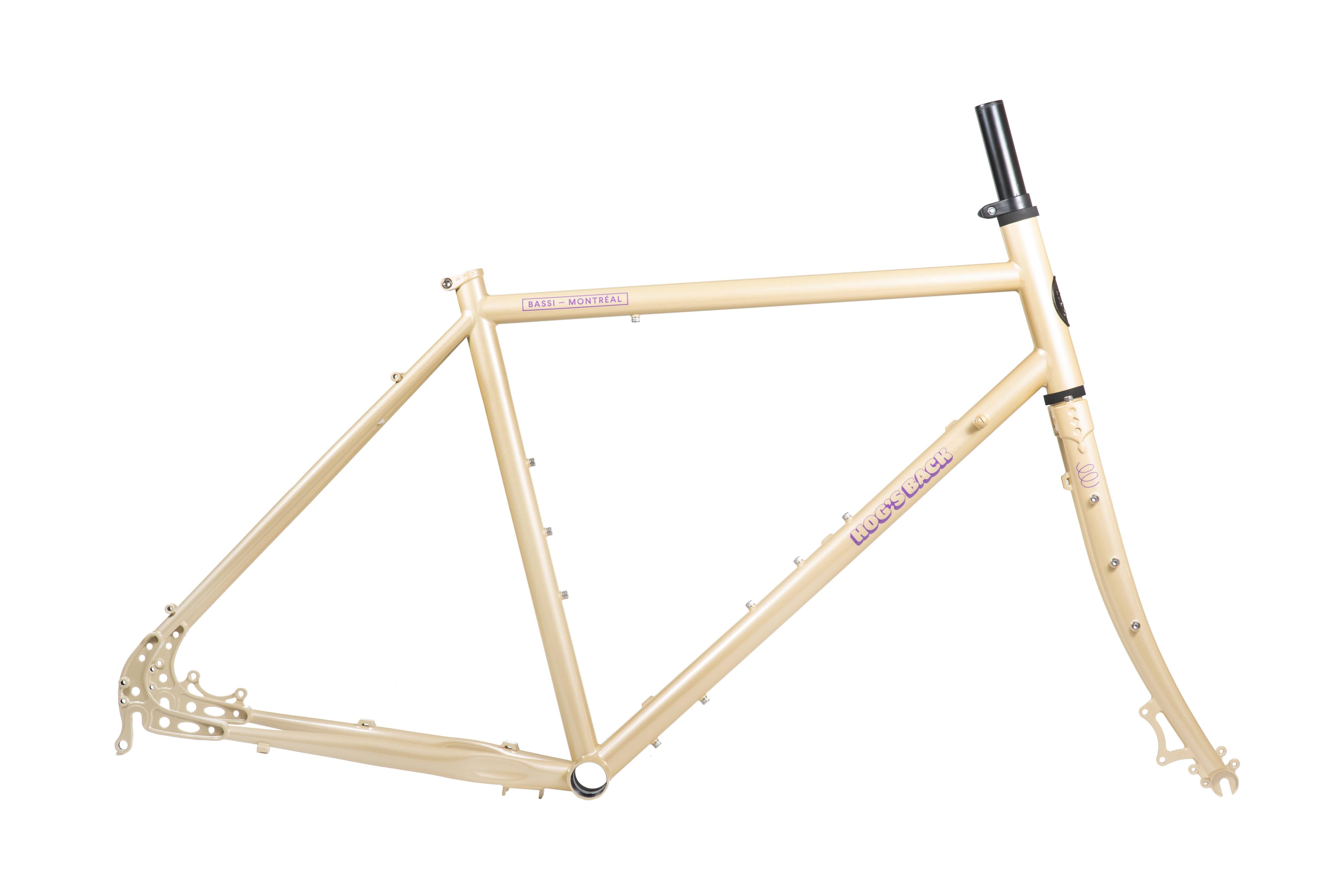

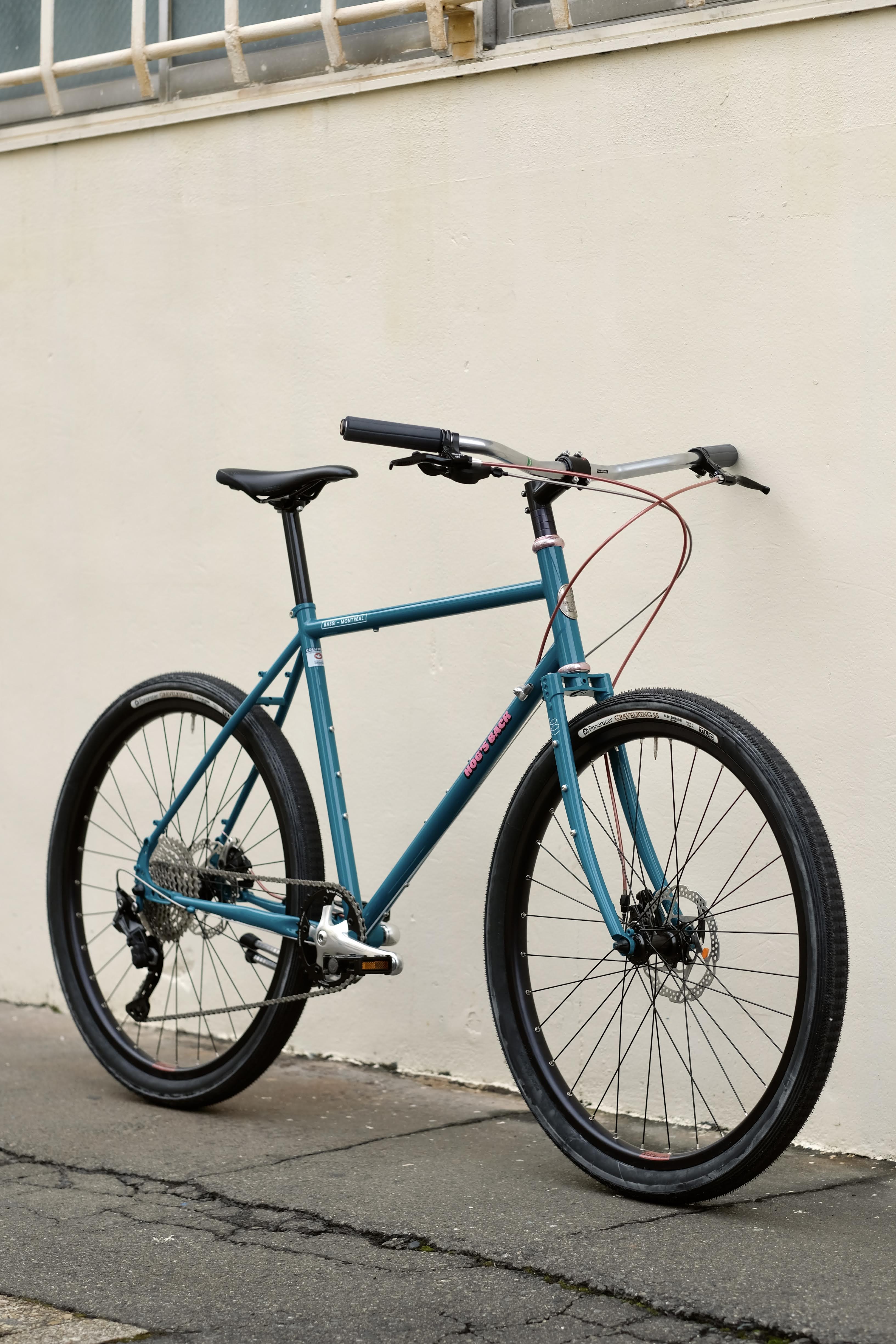

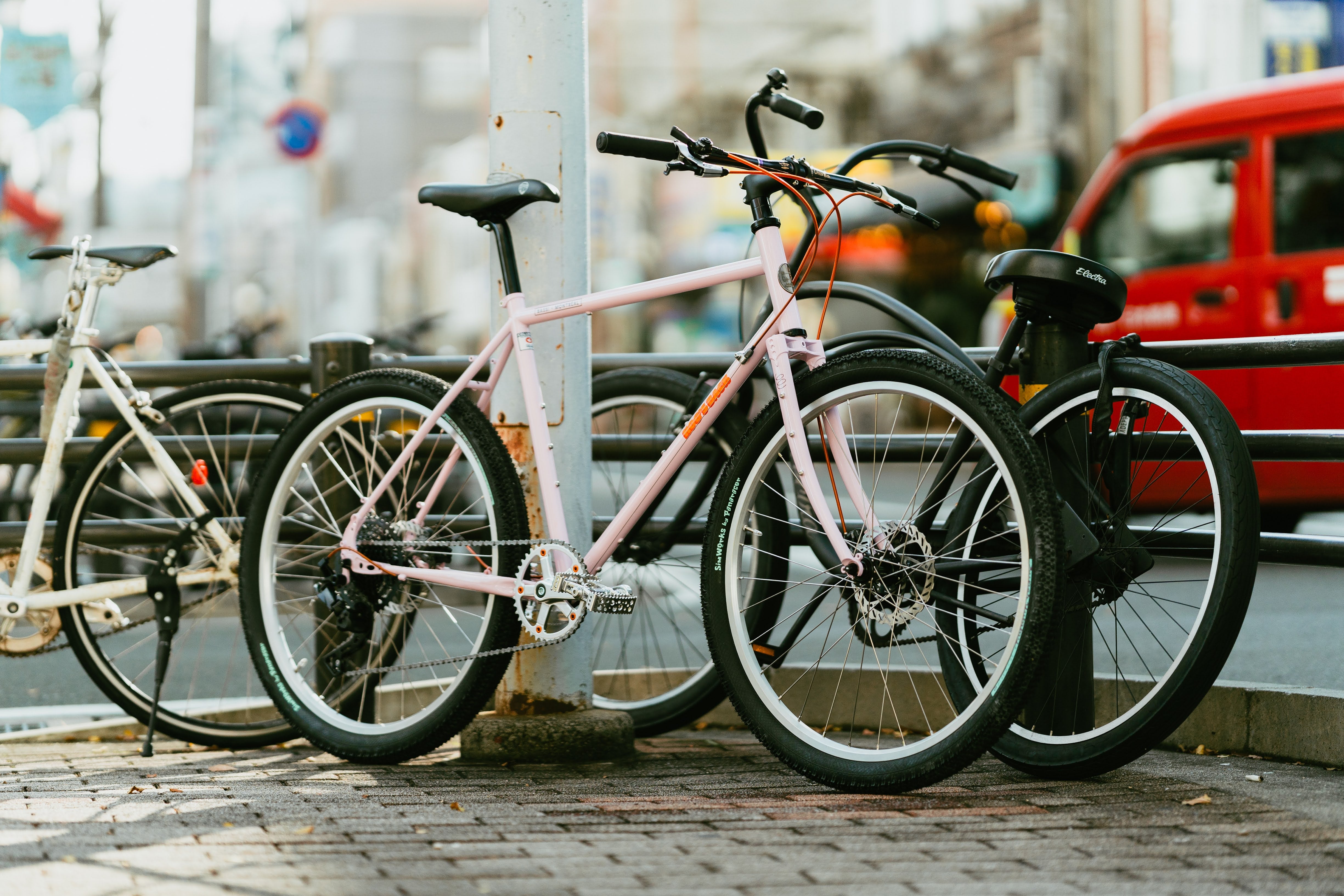

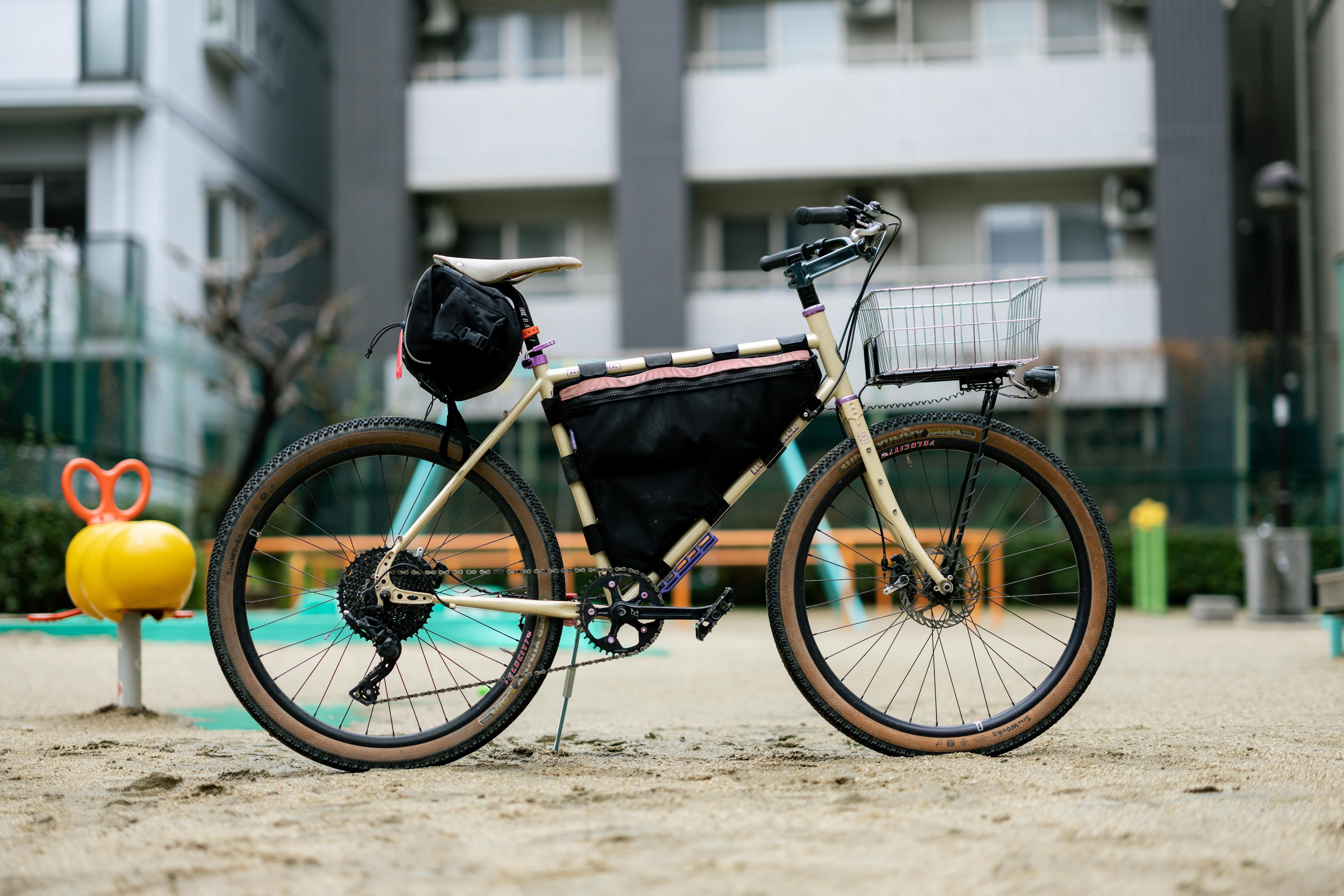

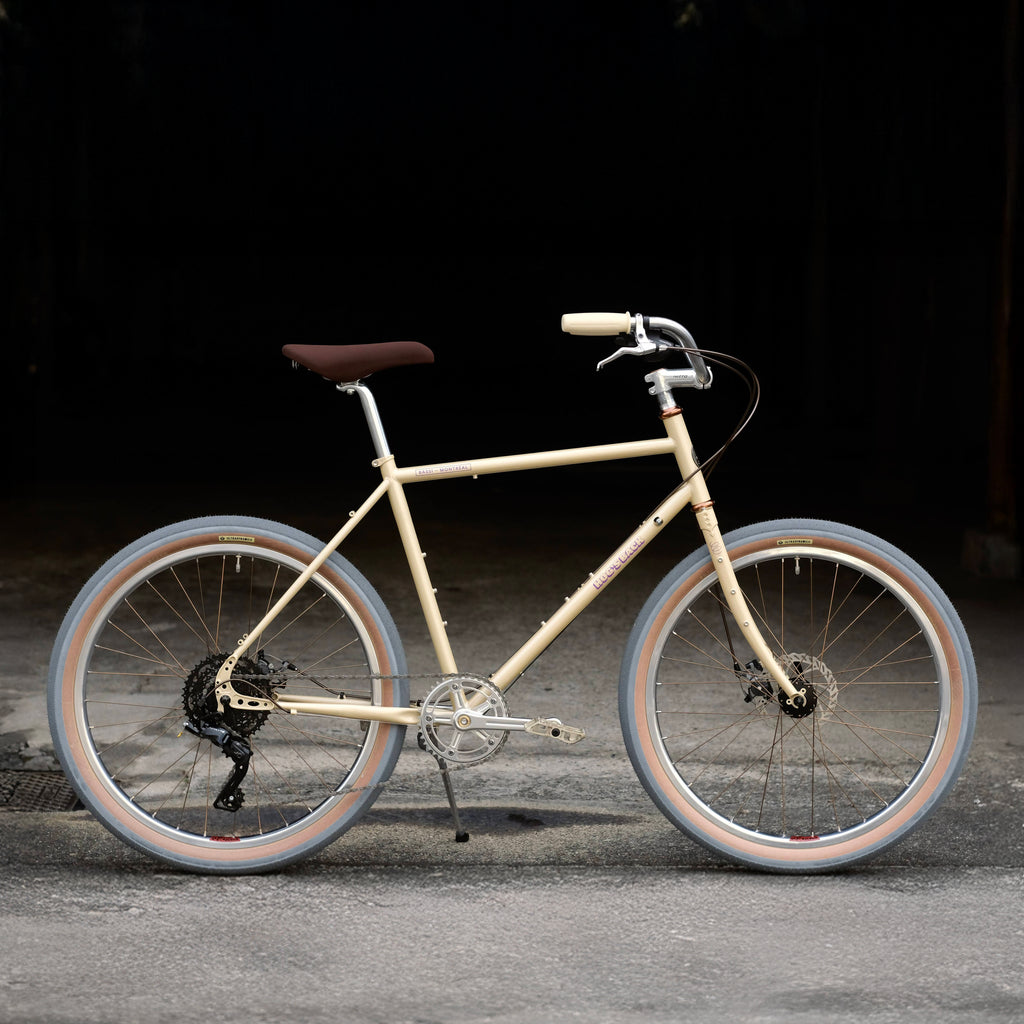

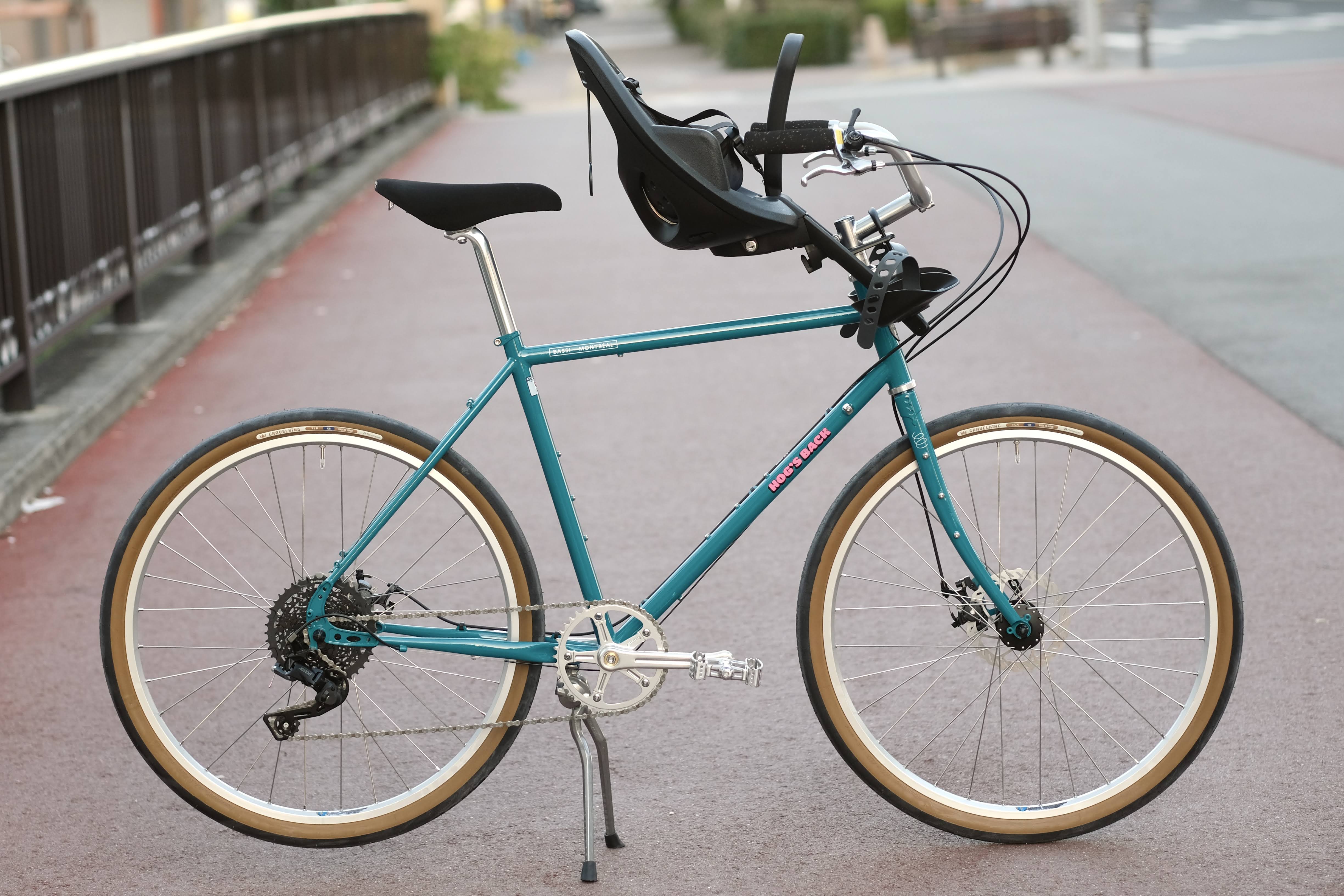

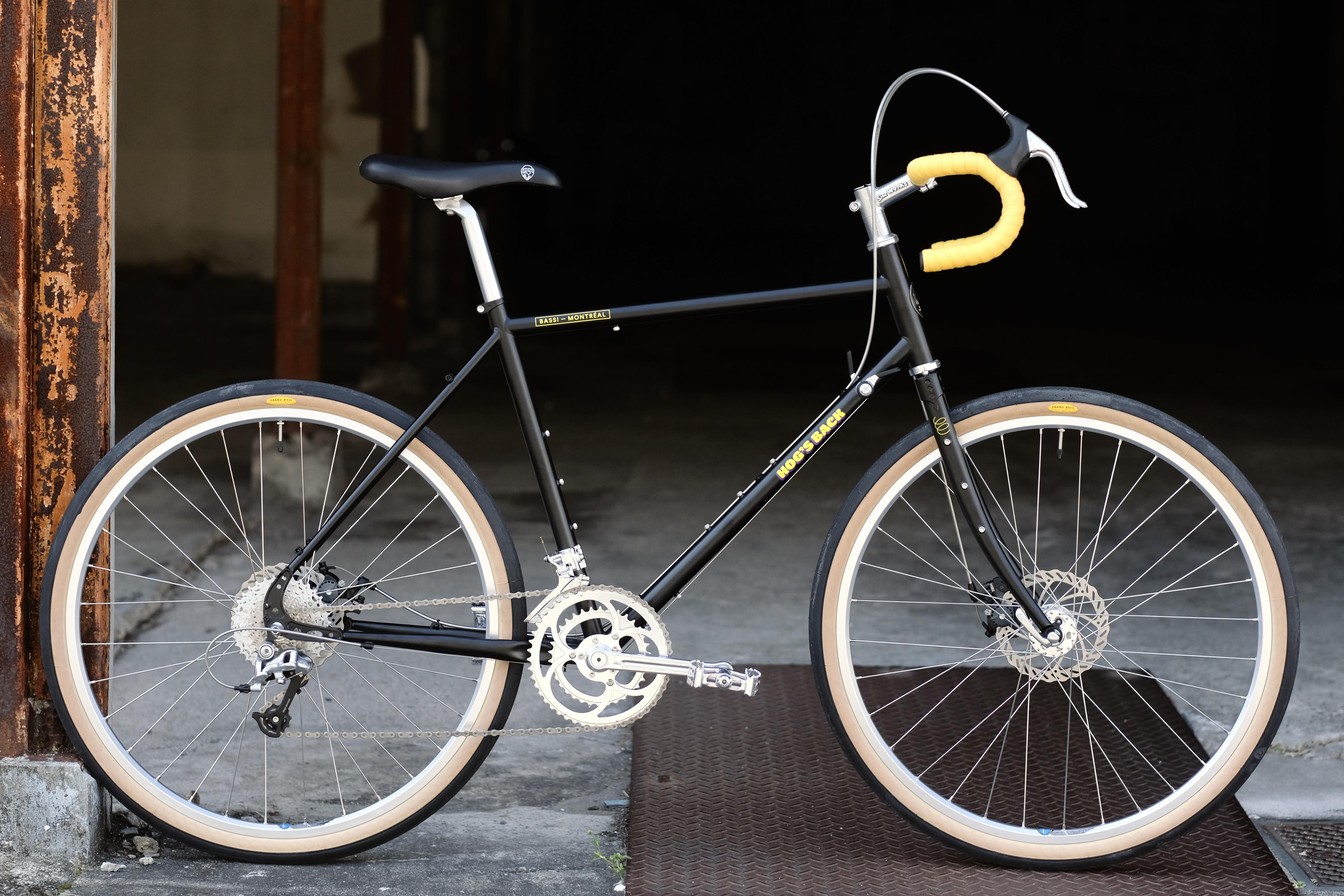

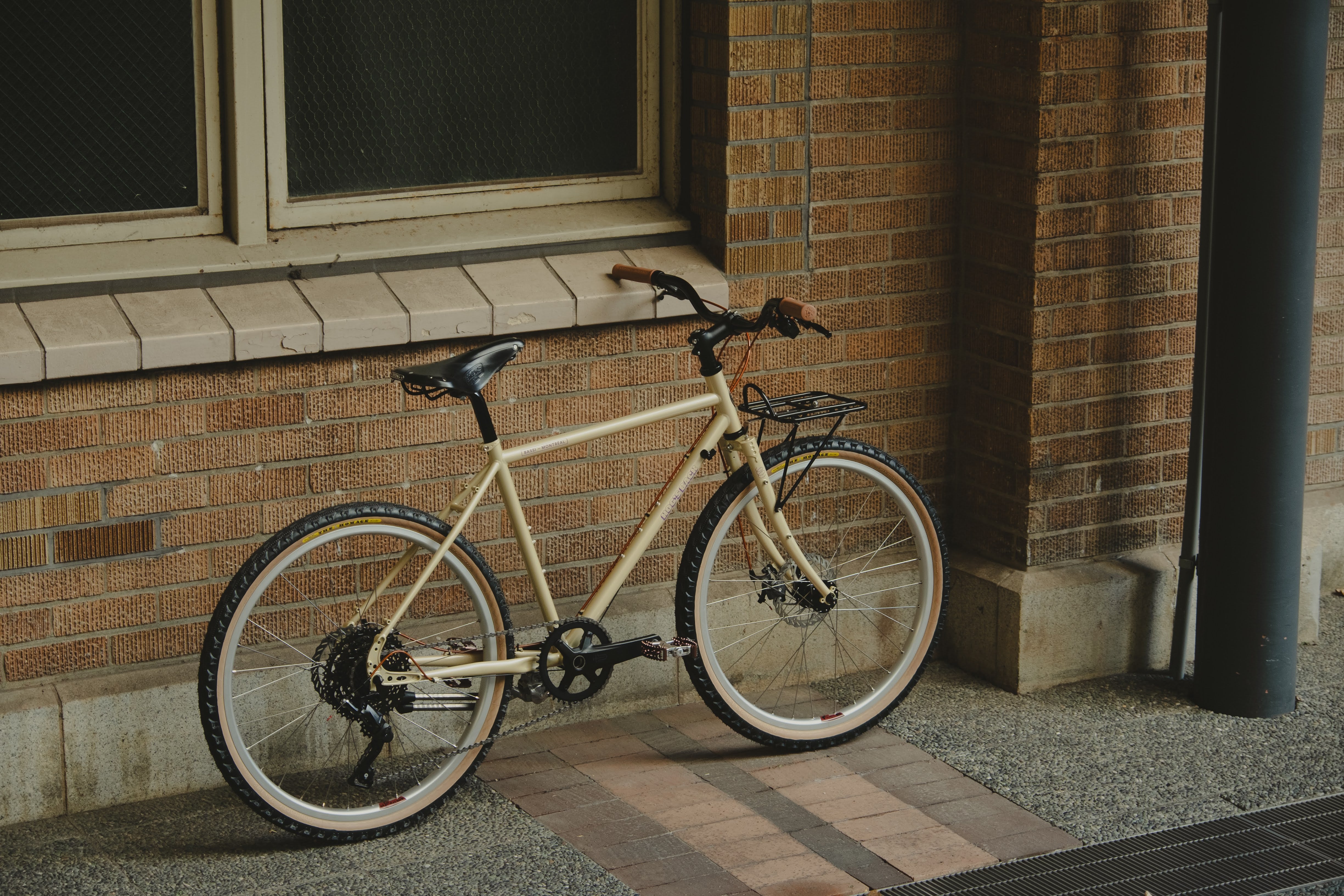

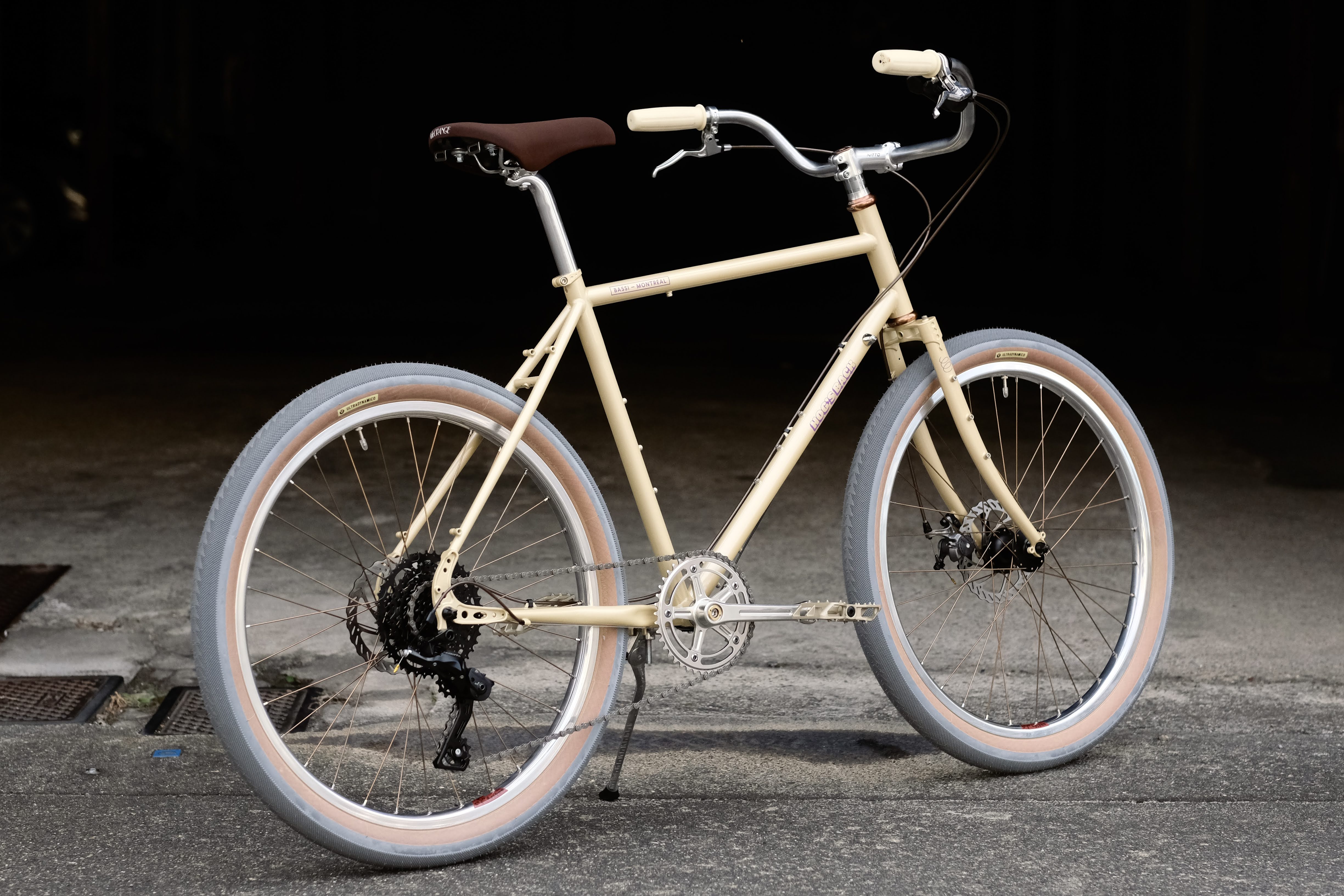

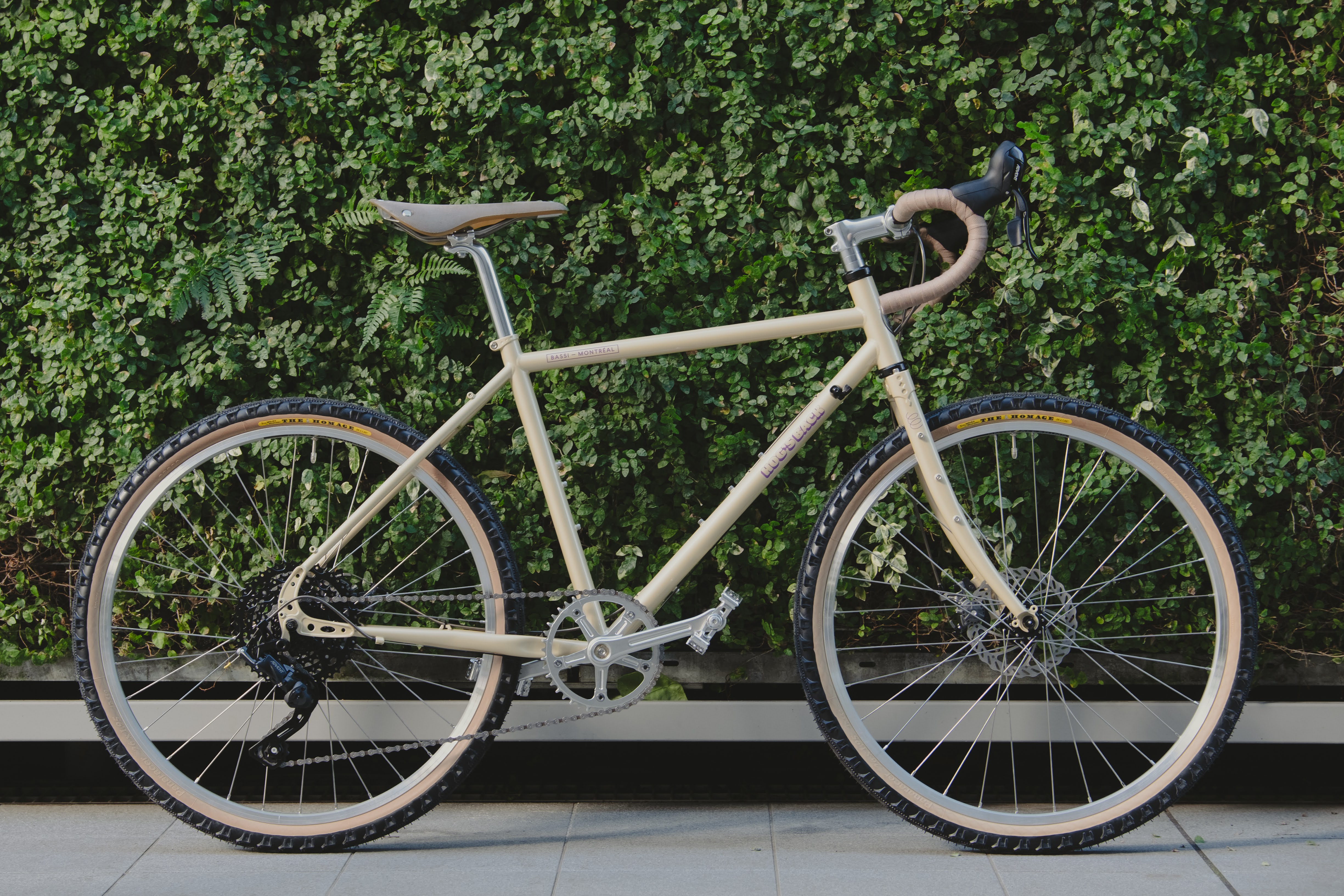

Hog's Back
The BASSI flagship model is a highly versatile and capable off-road bike.
It can be used with either 26" or 650b wheels, making it both classic and sturdy.
It is very versatile and has specs that show respect for vintage bikes, yet it is cute and beautiful without being too serious.
GEOMETORY
SIZE | 47cm | 51cm | 54cm | 58cm |
---|---|---|---|---|
Seat Tube Length | 470cm | 510 | 540 | 580 |
Effective Top Tube Length | 530 | 560 | 590 | 630 |
Head Tube Angle | 70.5 | 71 | 72 | 72 |
Seat Tube Angle | 73 | 73 | 73 | 73 73 |
Chainstay length | 440 | 440 | 440 440 | 440 440 |
Head tube length | 130 | 150 | 170 | 190 |
BB Drop | 40 | 40 | 60 | 60 |
Chainline | 45.5 | 45.5 | 45.5 | 45.5 |
Stack | 519 | 559 | 583 | 621 |
Stack Height | 519 | 559 | 583 | 621 |
Reach | 371 | 389 | 412 | 440 |
Wheelbase | 1032 | 1059 | 1070 | 1111 |
Fork Lake | 50 | 50 | 50 | 50 50 |
Fork Axle to Crown | Axle to Crown | Axle to Crown 395 | 415 | 415 |
Tire Clearance | 26x2.2" or 650Bx47 | 26x2.2" or 650Bx47 | 27.5x2.2" or 700Cx45 | 27.5x2.2" or 700Cx45 |
Minimum PBH | 76 | 80 | 83 | 87 |
