SHIMANO FC-M7000-11-1

SHIMANO

Title: 170mm

Description

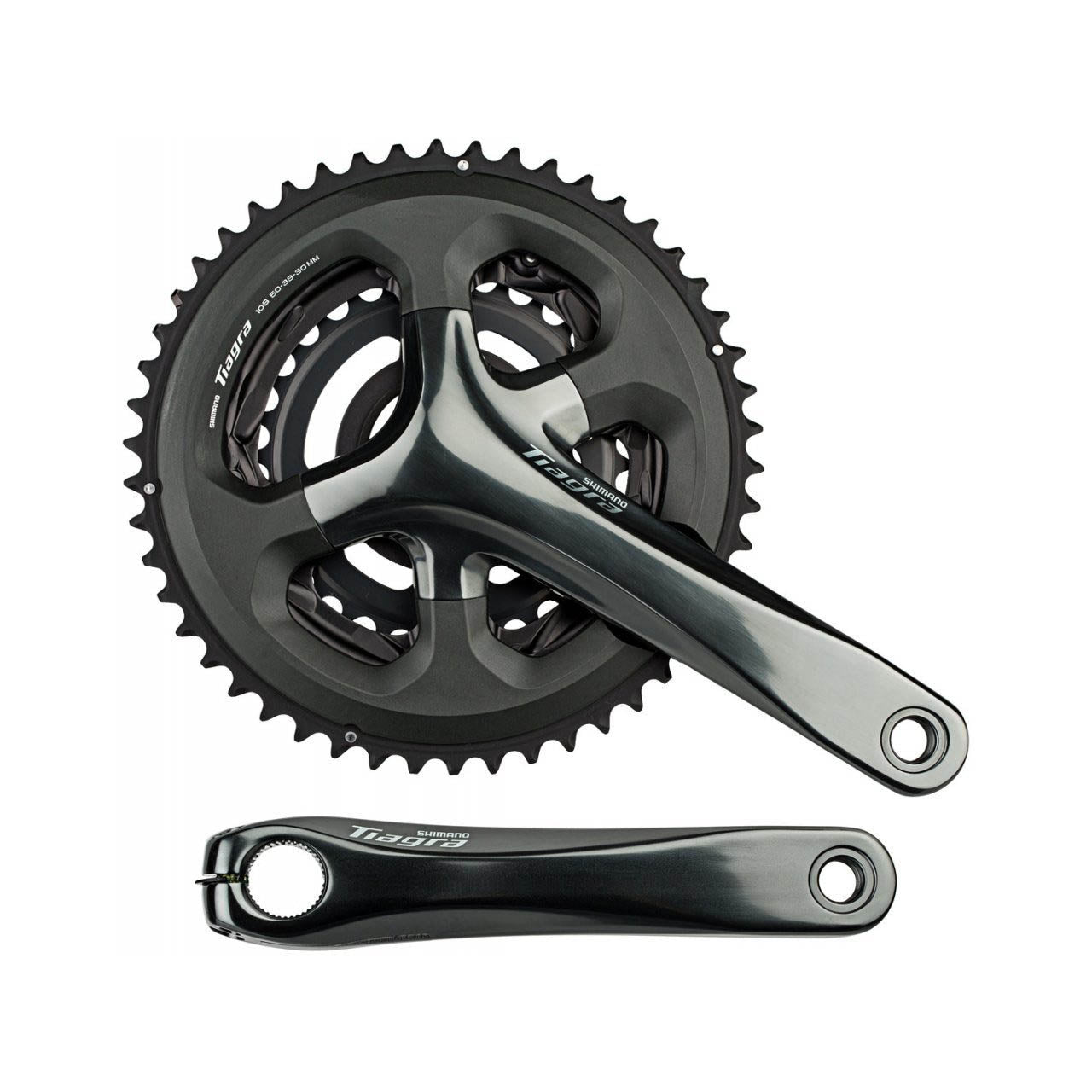

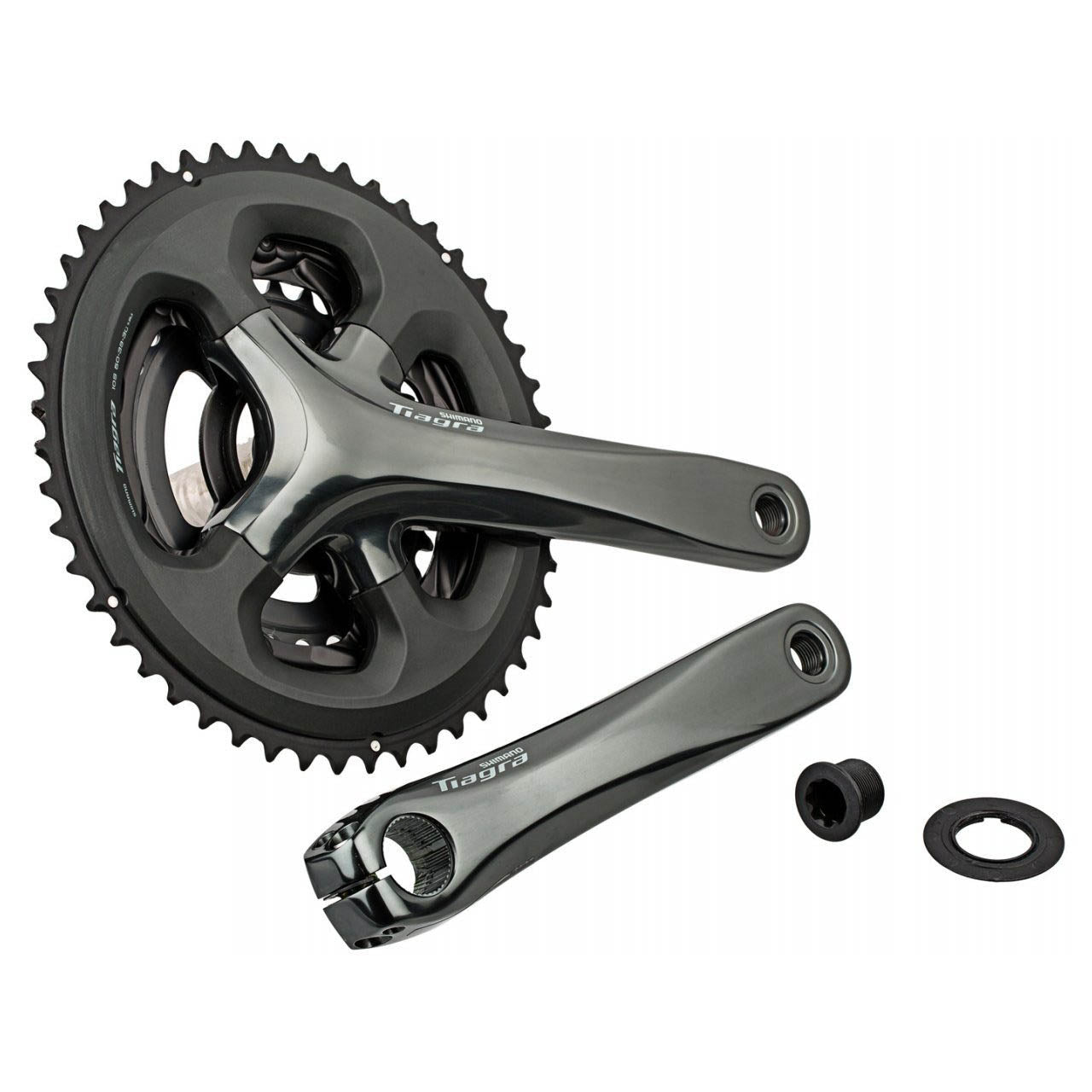

SHIMANO's Tiagra series FC-4703 is a 10-speed crankset with three sizes of chainrings for road, touring, and commuter bikes.

It features asymmetrical 4-arm spiders (110/74 mm bolt circles), first used on the Dura Ace, Ultegra, and 105 series 11-speed cranks, which is a great design that reduces weight while maintaining rigidity. In addition, the integration of the crank arm and bottom bracket (2-piece design) also contributes to improved stability performancE

The well balanced FC-4703 cranks deliver stable, smooth, and low-resistance gear changes for a great fun-riding experiencE

SPEC

Series:Tiagra 4700
Compatibility: SHIMANO 3x10 speed
Chainring mount: 110 / 74mm pitch, 4-arm asymmetrical
Crank arm material: aluminum
Chainring material: aluminum, composite (GFRP) / aluminum / steel
Axle material. Steel
Chainring size: 50-39-30
Crank arm length: 170.0mm
Chainline: 45mm
Q-factor: 158.8mm
Axle diameter: 24mm
Compatible BSA shell width: 68mm
Recommended bottom bracket: BB-RS500 or BB-RS500-PB Pressfit Hollowtech II
Compatible chain: HG-X10 speed (Eg. CN-HG54)
