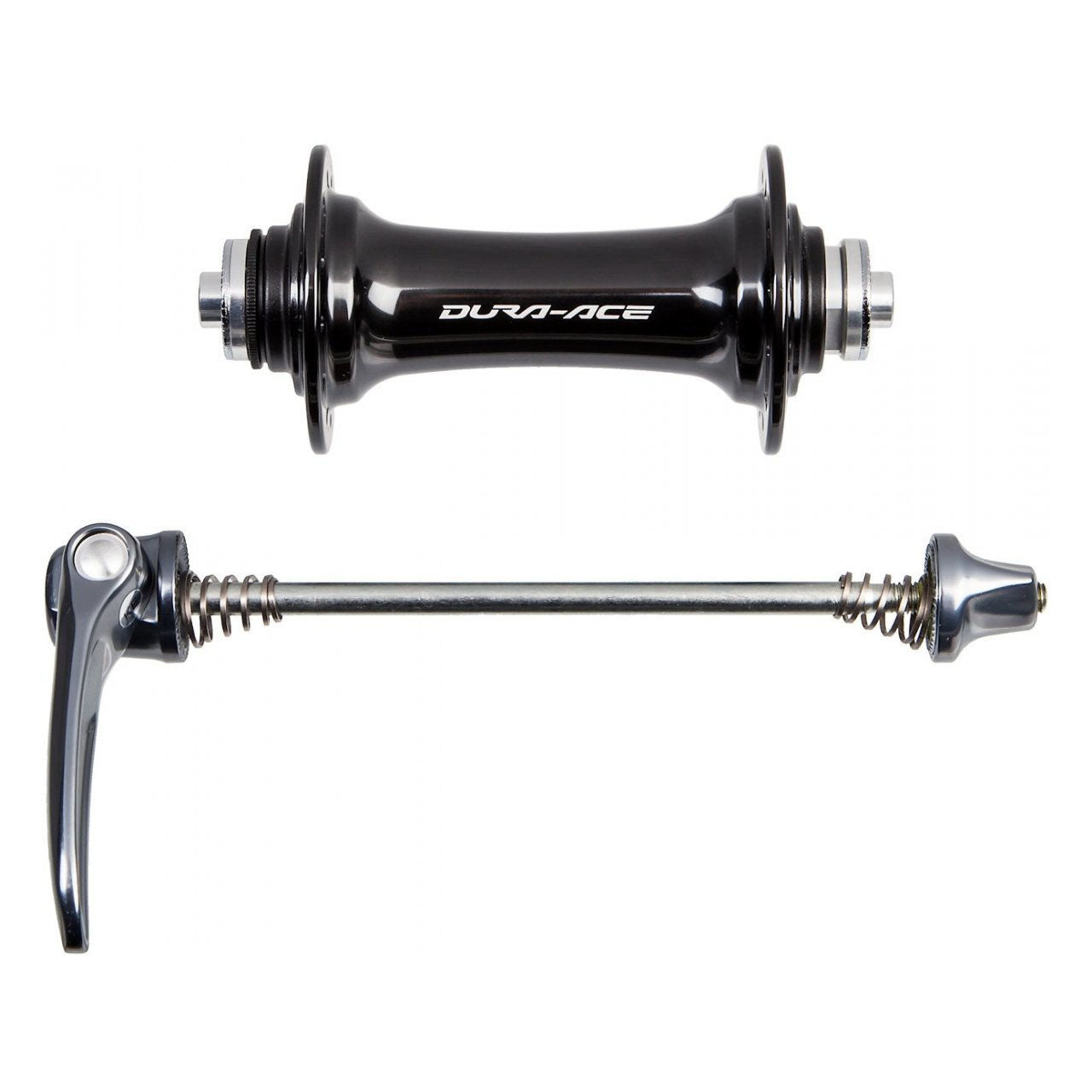

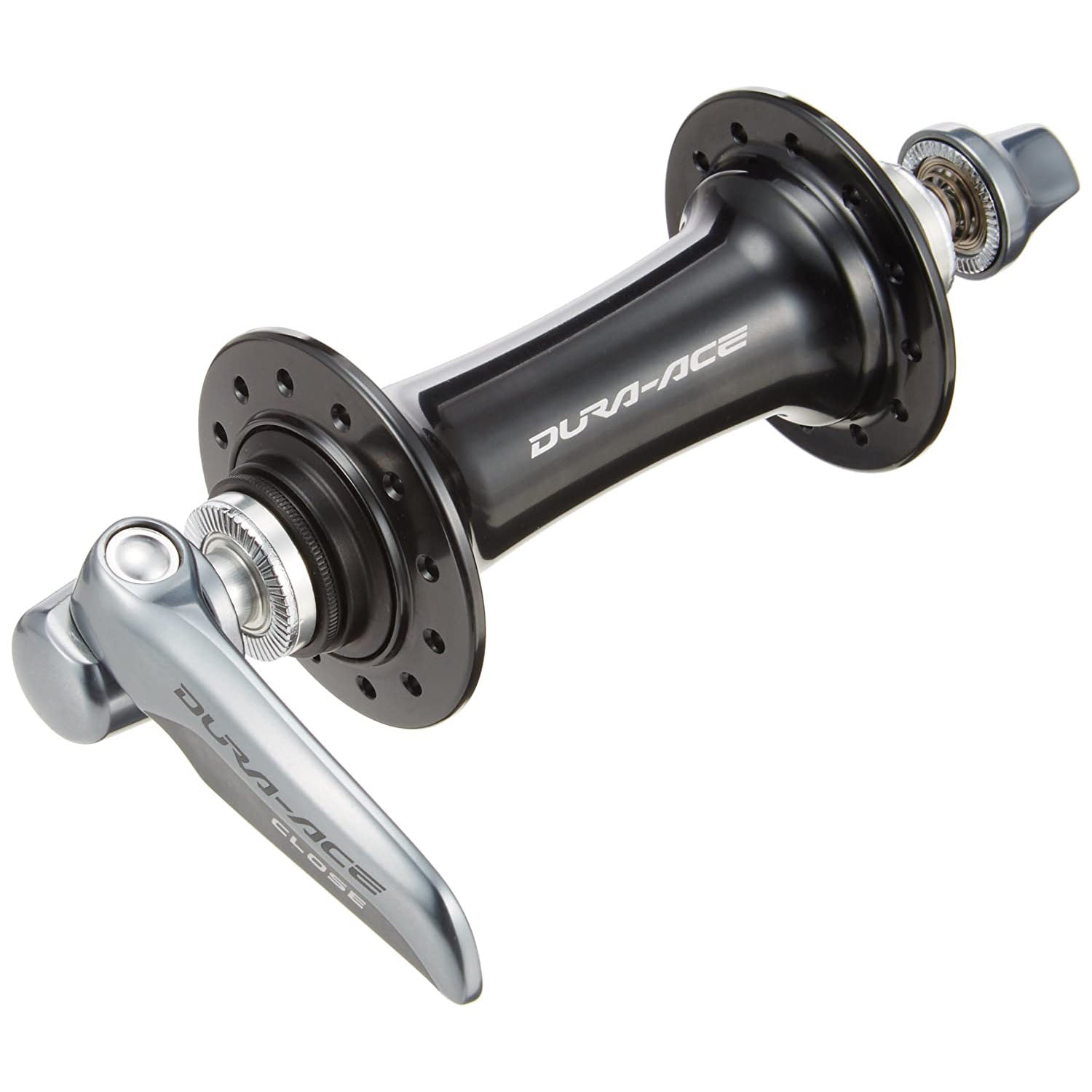

SHIMANO Dura-Ace HB-9000 100mm QR

SHIMANO

size: 28H

Description

Shimano's top-grade road component series, Dura Ace's HB-9000 front hub is manufactured with a high-quality aluminum body and lightweight aluminum axlE

The cone ball bearings are made of stainless steel and have Shimano's exclusive top-quality finish, and with the latest technology digital cone bearing adjustment system, hub bearing play can be easily adjusted using a 5mm Allen key.

This is the last Dura-Ace grade hub available today.

Limited quantities available, so be quick!

Cup-and-cone bearings

Cup-and-cone type angular contact bearings are stronger than sealed cartridge bearings because they more effectively displace lateral and longitudinal loads for extremely smooth rotation and longer durability. Angular contact bearings also make maintenance, adjustment, and servicing easier.

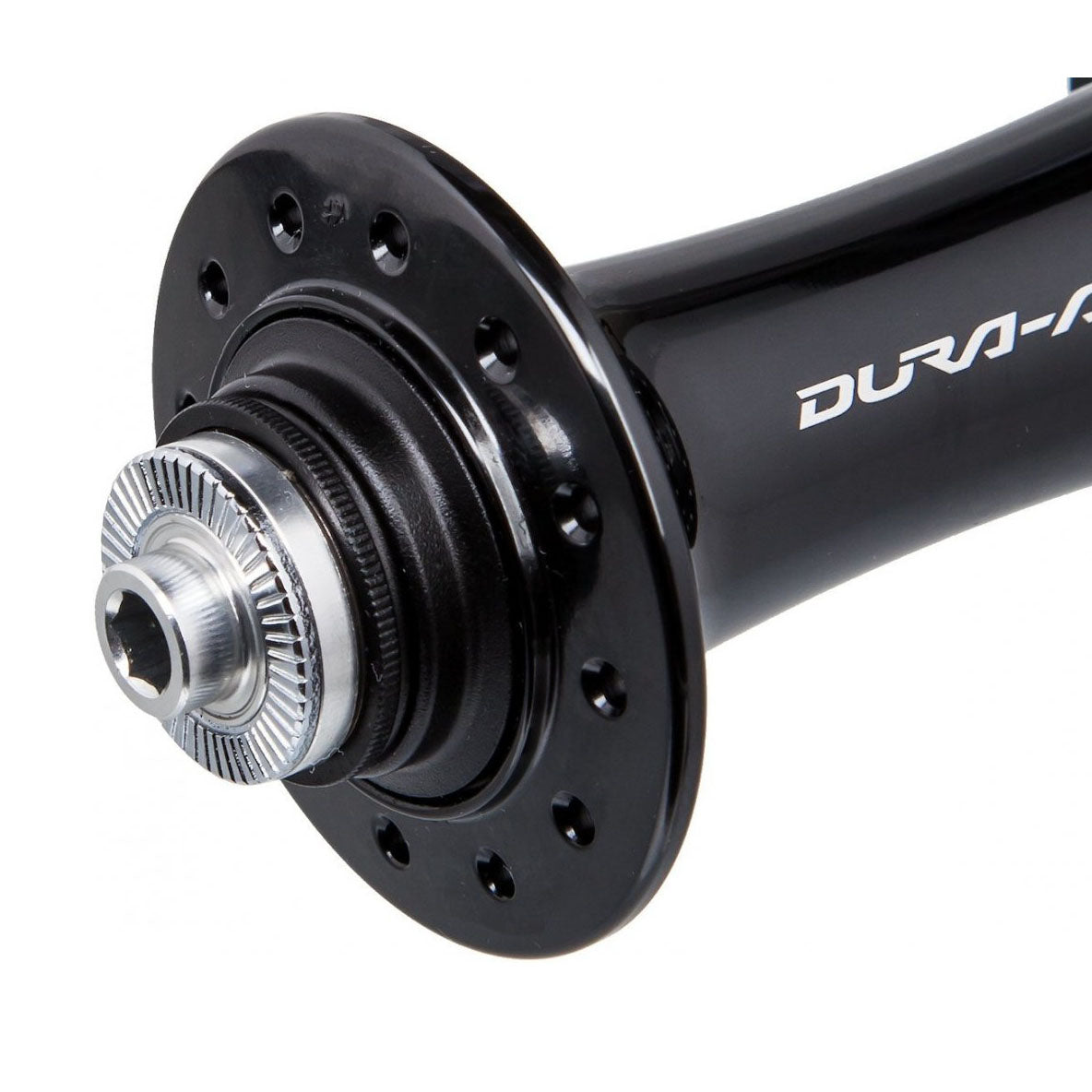

Digital Cone Bearing Adjustment System

The digital bearing adjustment system facilitates maintenance and provides for easy adjustment and maintenancE Digital adjustment without double-locking allows precise bearing adjustment with only a 5 mm Allen wrench.

FEATURE

Digital adjustment system
Radial assembly
Aero spoke holes available (18H/24H only)

SPEC

Model: HB-9000
Series: DURA-ACE 9000 Series
Average weight: 120
P.CD. left (mm): 38
P.CD. right (mm): 38
Flange diameter_left (mm): 484
Flange diameter_right (mm): 484
Shaft fixing method: Quick release type
Bearings: Stainless ball
Brake type: Rim brake
Flange diameter (mm): 48.4
Dimension between flanges (mm): 74
O.L.D. (mm): 100
Offset (mm): 0
P.CD. (mm): 38
Seal: Labyrinth structure and contact seal
Flange diameter front (mm): 48.4
Flange diameter rear (mm) ): 48.4
P.CD._Front (mm): 38
P.CD _Rear (mm): 38
