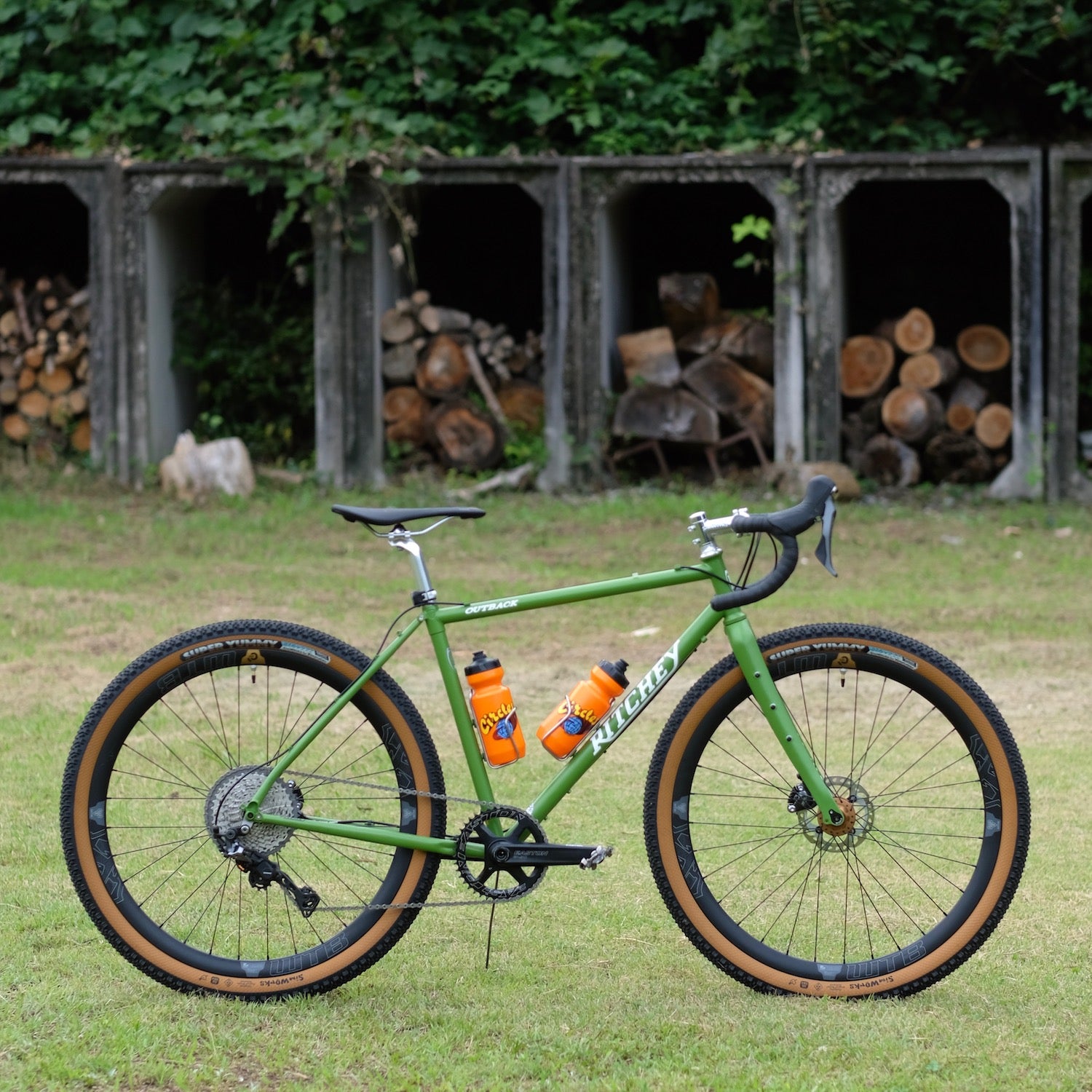

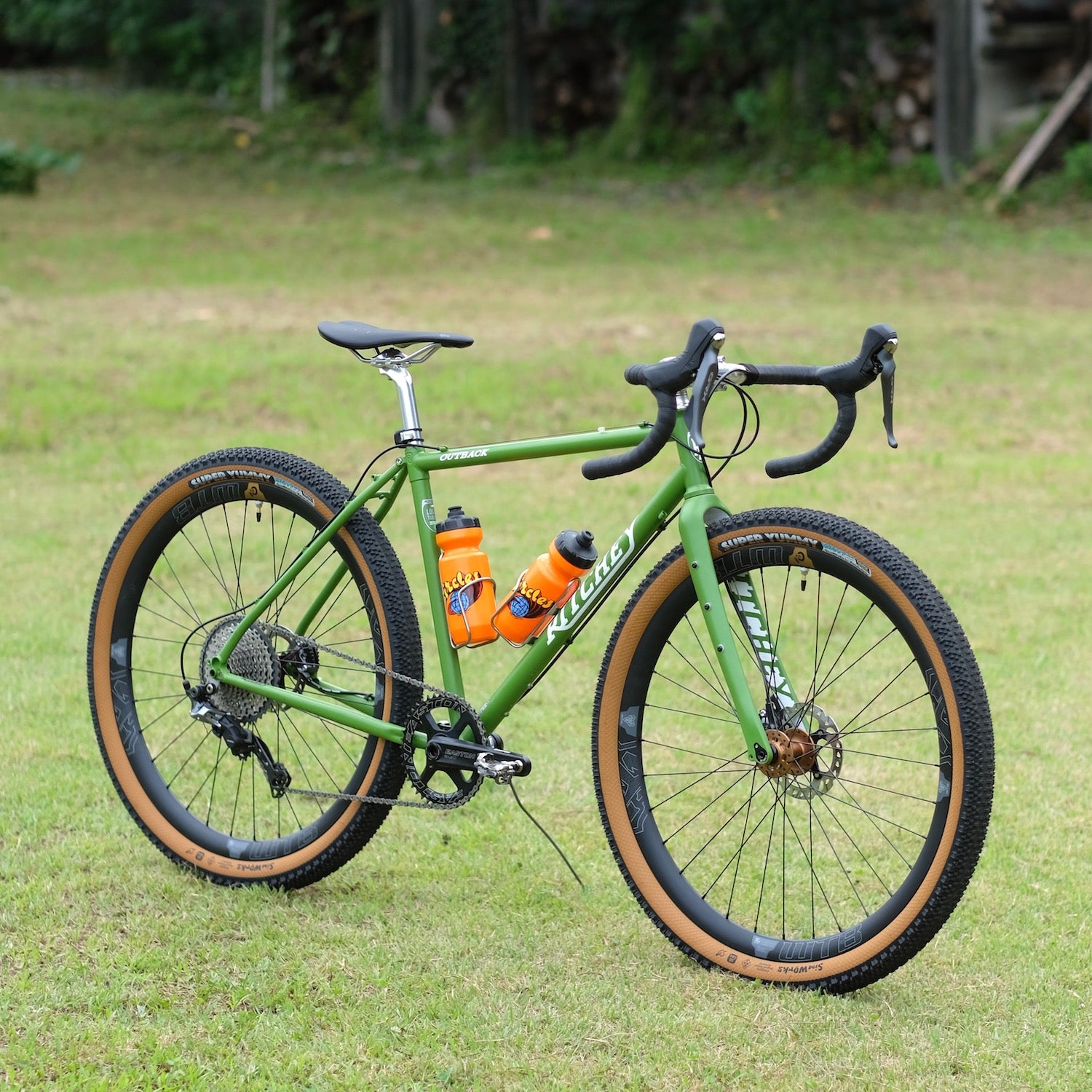

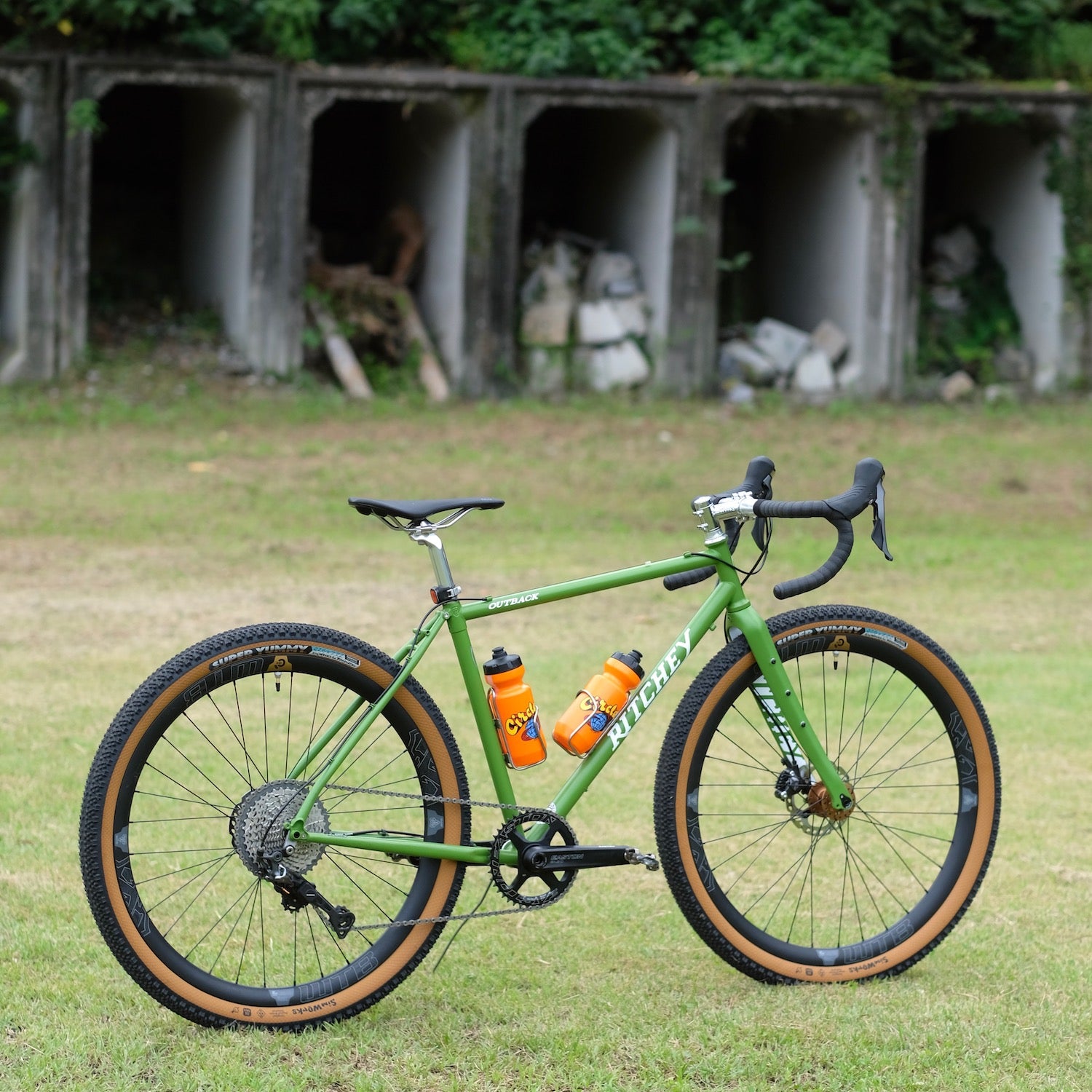

RITCHEY Outback Frame Set

RITCHEYSKU: FM-RIT4GRE-XS

SIZE: XS

Description

Founder Tom Ritchie rides about 10,000 miles (16,000 km) a year, most of it off-road. With over 40 years of experience in bicycle design and manufacturing crossed with experience from real-world riding, it is no wonder that Outback is an upcoming icon in the gravel world.

Updated for 2020, the new Outback is a proprietary triple-butted Ritchie Logicsteel tubing and is solidly and carefully TIG welded, with many practical and adaptable features to provide riders with the best ride possible, so much so that by the end of the ride you may find yourself intoxicated by the day's epic adventurE

Rack mounts and fender mounts keep rider and bike dry at all times, and also serve solidly to extend load-bearing capacity for longer bikepacking adventures. On the other hand, the bike offers new riding possibilities by providing clearance for both 700cx48mm and 650bx2.0in tires.

The frame is compatible with flat-mount disc calipers, and the new carbon fiber Ritchey Adventure fork with multi-purpose mounts on the legs will provide a place to store the last groceries and beer you bought at the café.

Bikepacking, road, off-road, trail, expedition touring, etC. The new Outback makes all your rides possiblE

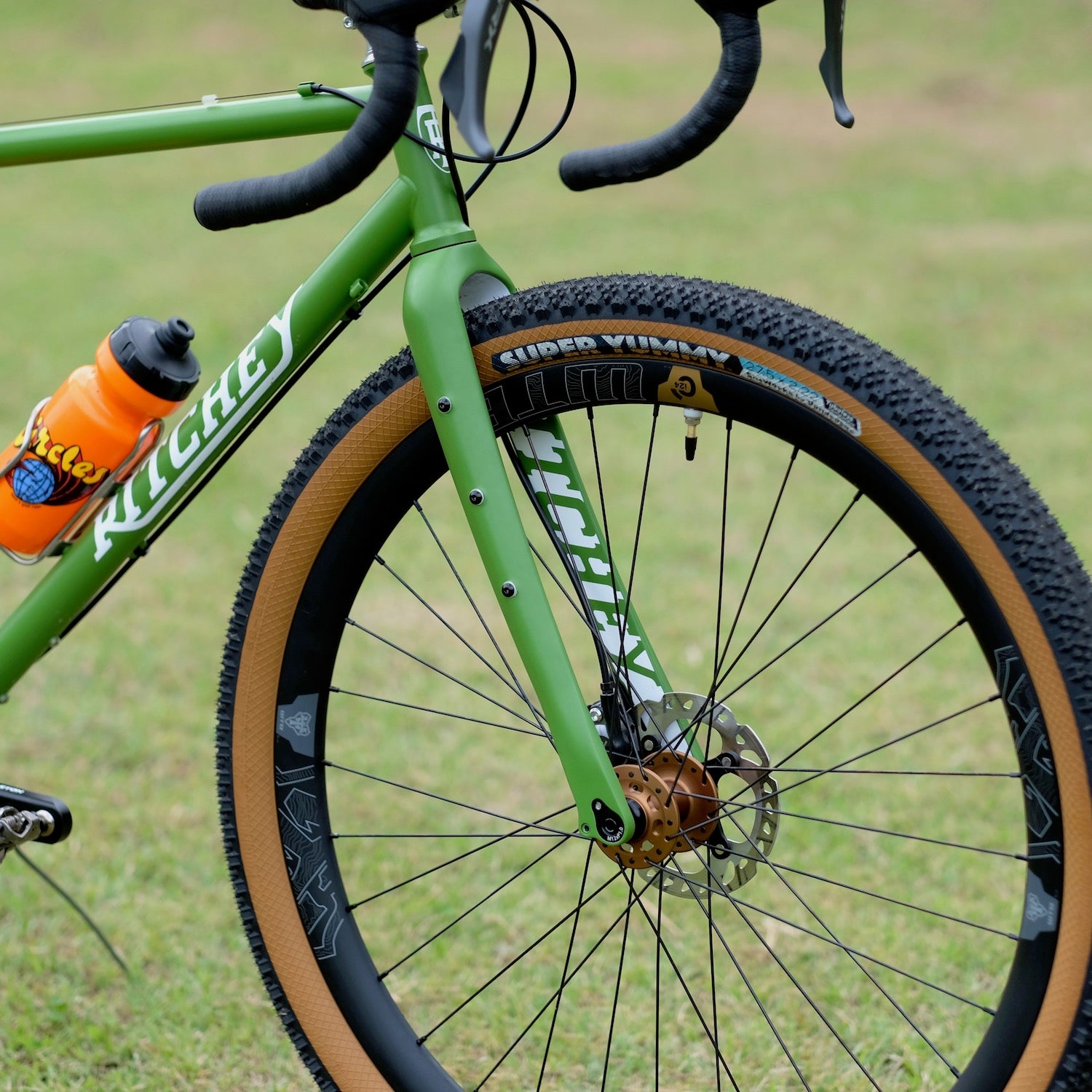

  • Includes new Ritchey Adventure Fork with multi-purpose mount
  • Fits 700c x 48mm or 650b x 2.0" tires
  • Includes rack mount and fender mount

FRAME SPEC

-Sizes: XS / S / M / L / XL
-Frame weight: 2,175g (size L - no through axle)

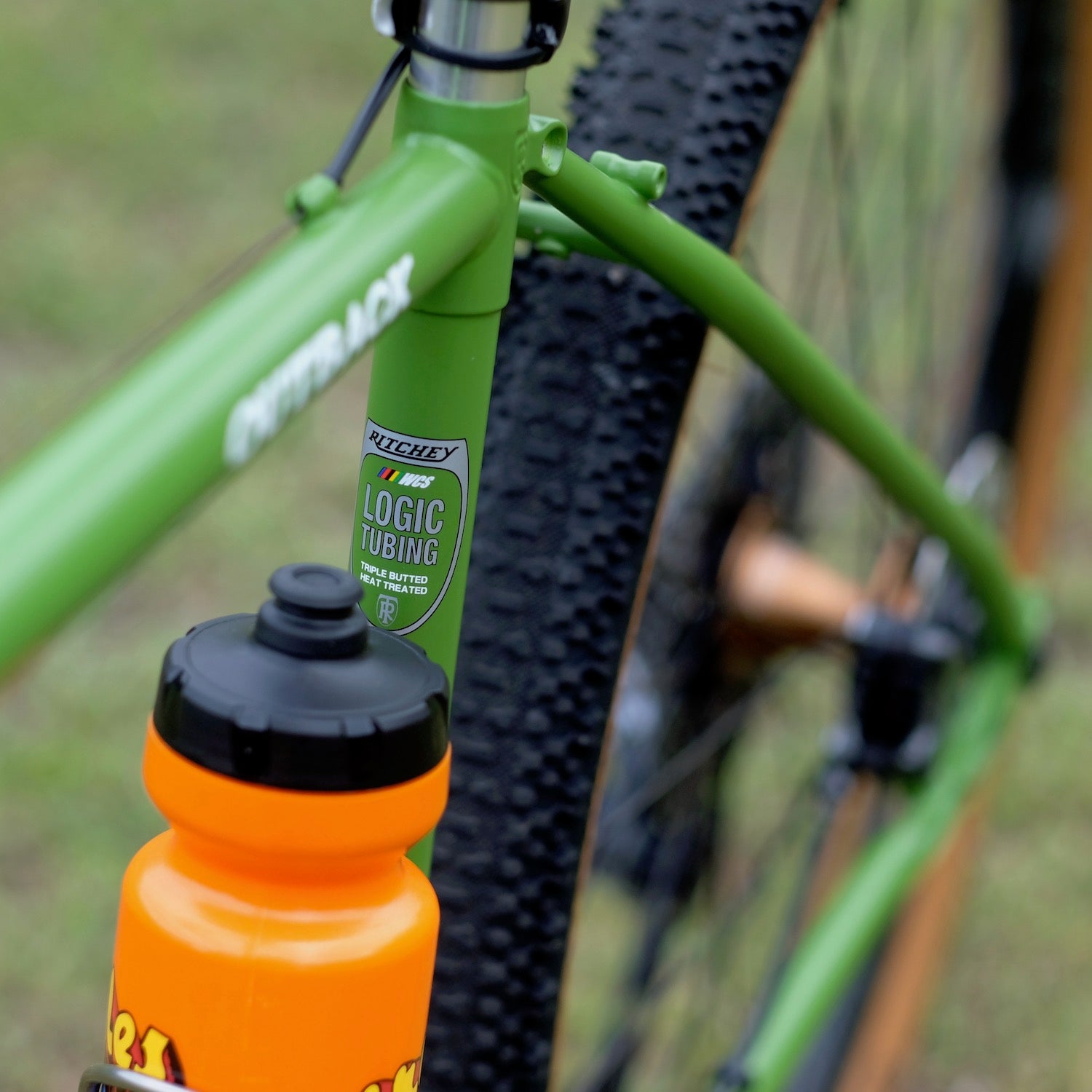

-Heat-treated triple-butted Ritchey Logic steel tubing carefully TIG welded
-Rack mount and fender mounts

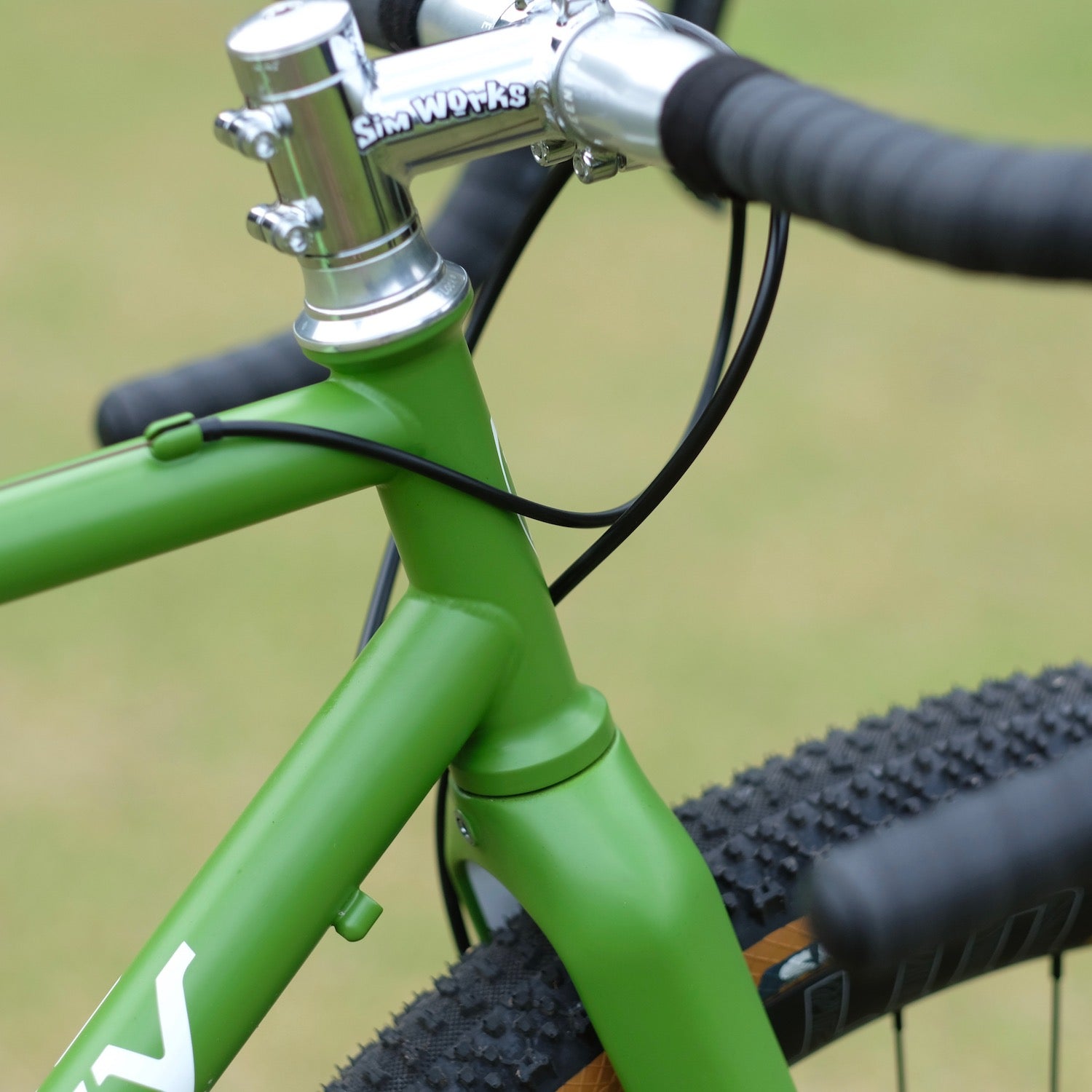

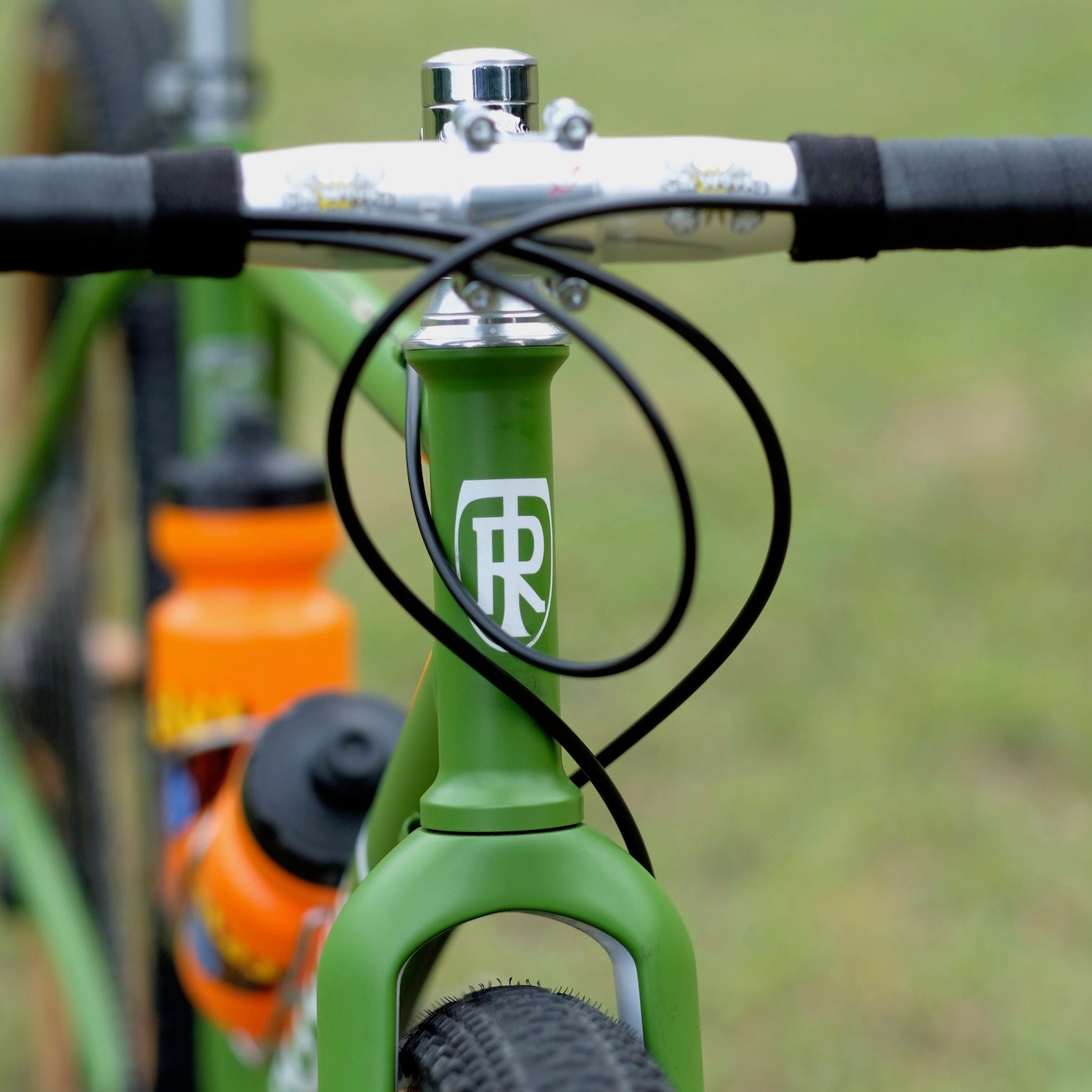

-Ultralight forged and machined Straight 1-1/8" headtube
- WCS headset included (upper IS42 / 28.6 - 16mm stack height | lower IS42 / 30)

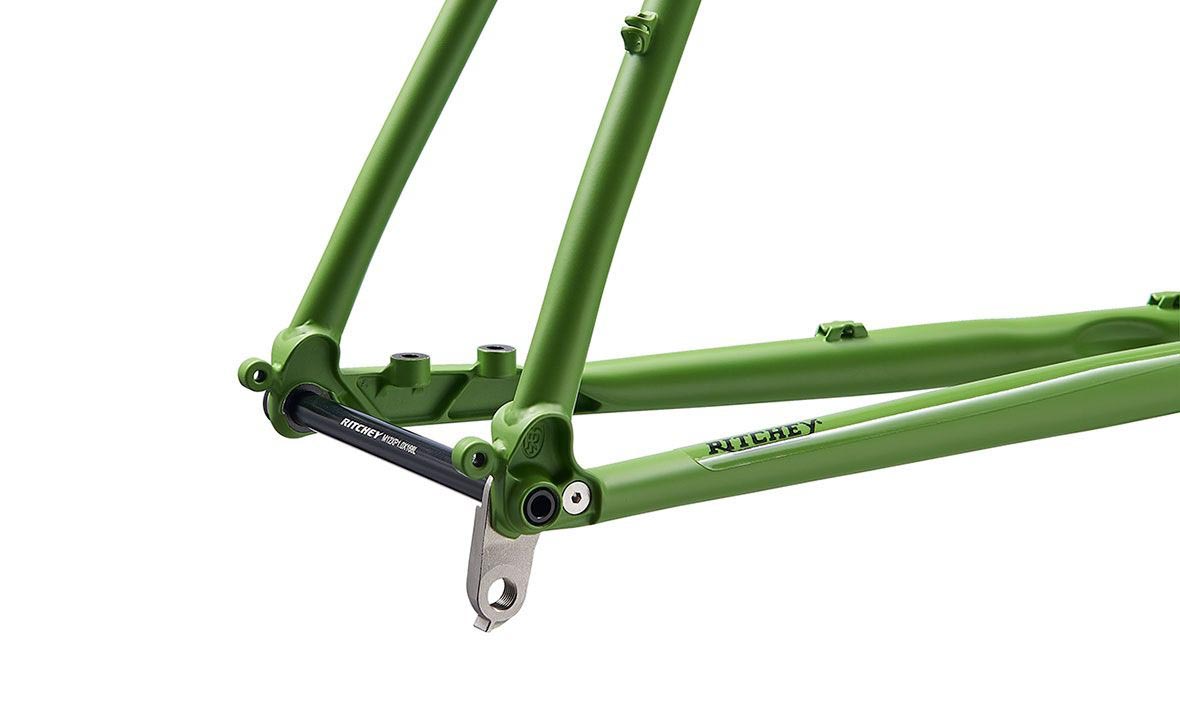

- 142mm spacing (12mm alloy through axle included)

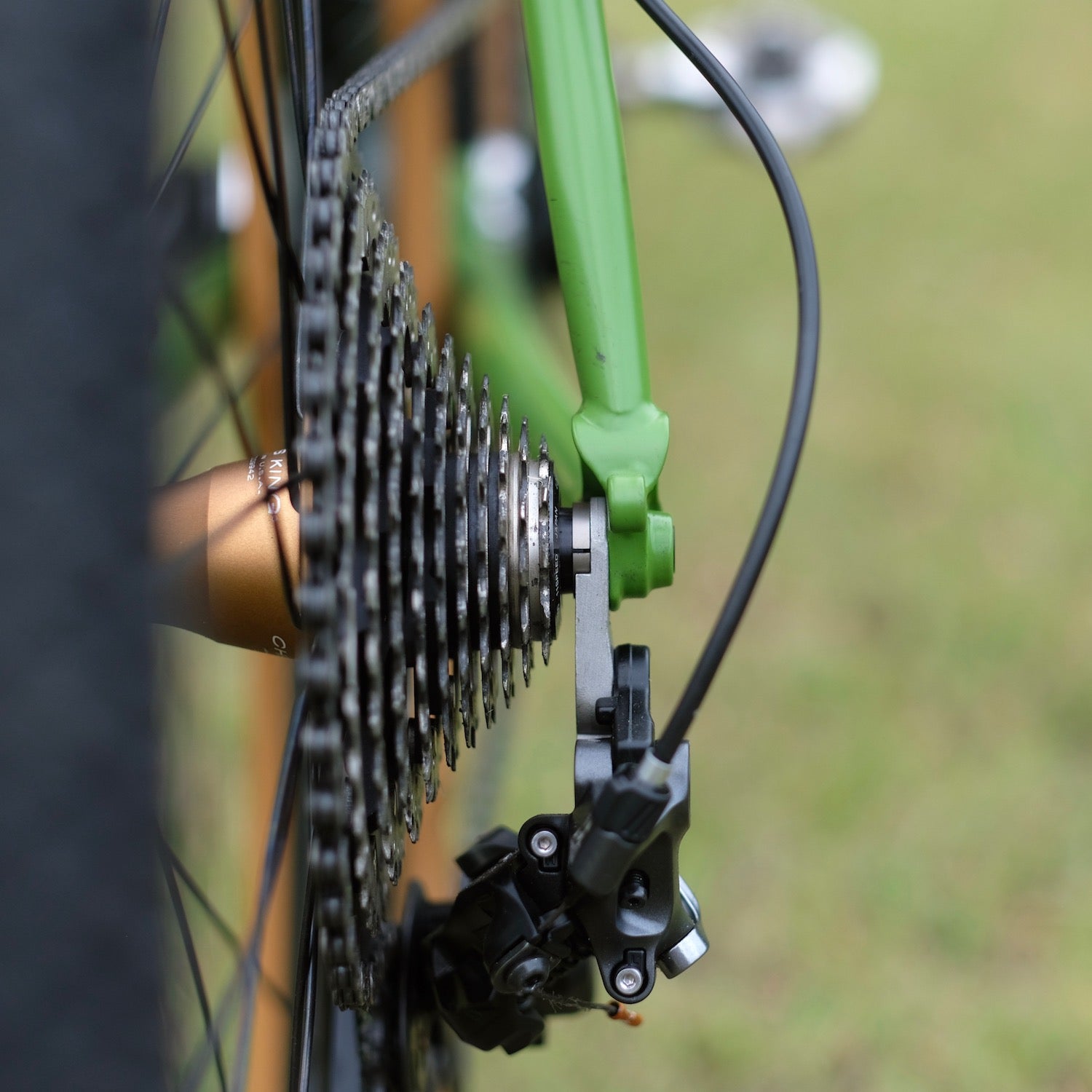

- Interchangeable stainless derailleur hangers

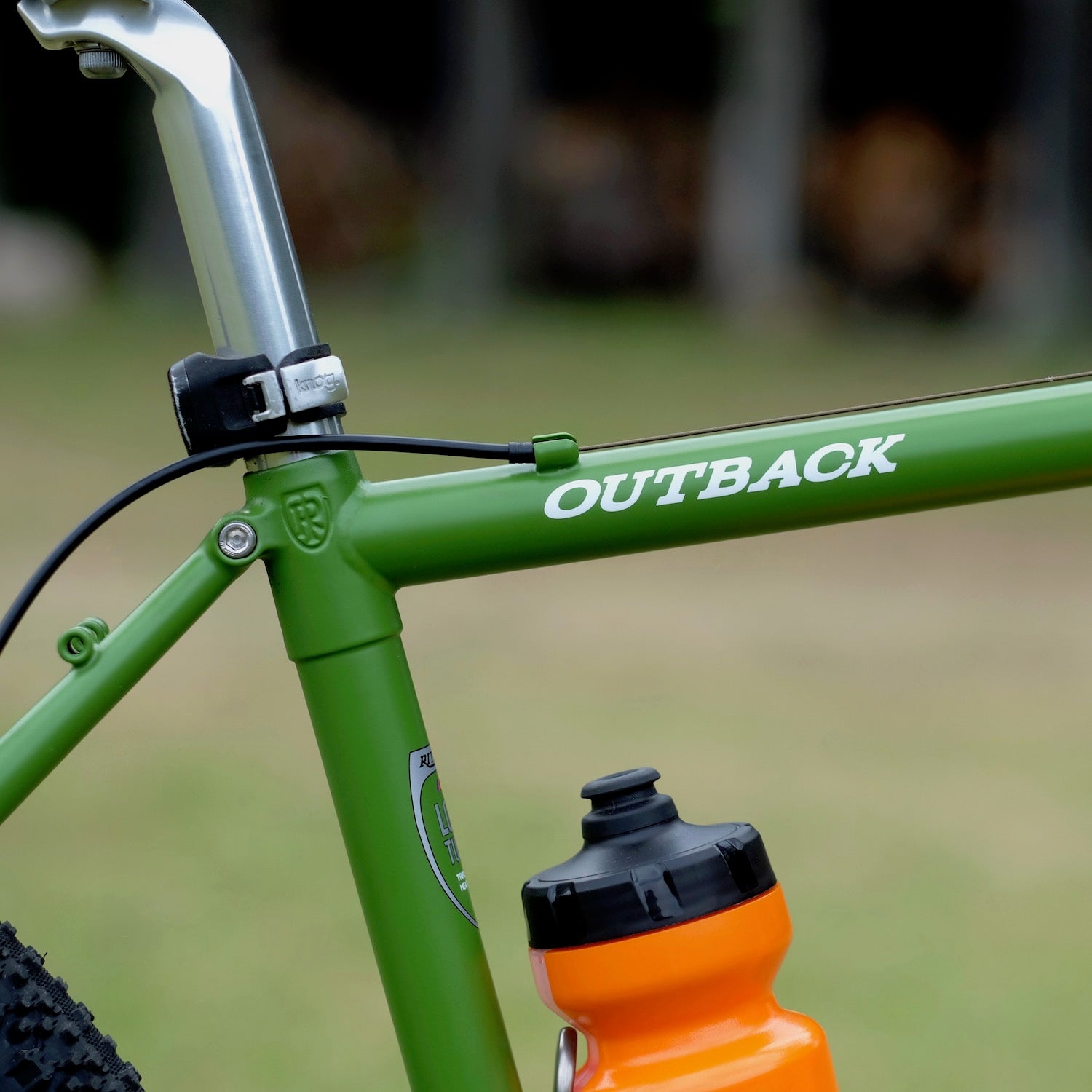

- Integrated seat collar 27.2mm seat tube with
- FD clamp size: 28.6mm (max torque setting: 2.5Nm)
- Bottom bracket: 68mm-ENGLISH
- Compatible with 1x or 2x chainrings
- Crankset min/max ring sizes
- Single: 36t to 46t
- Double 46t/30t to 50t/34t
-External cable routing

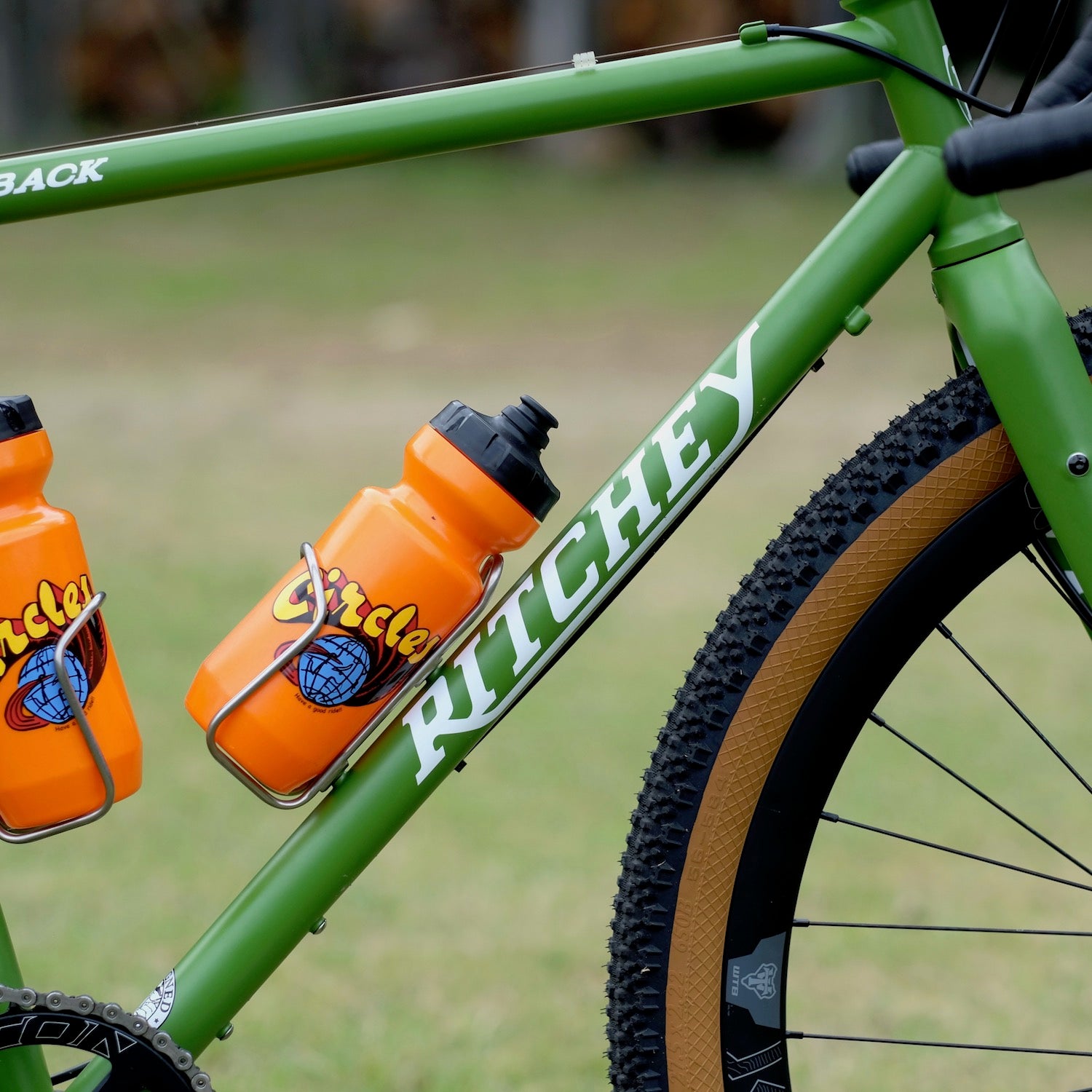

-Bottle mount: 2

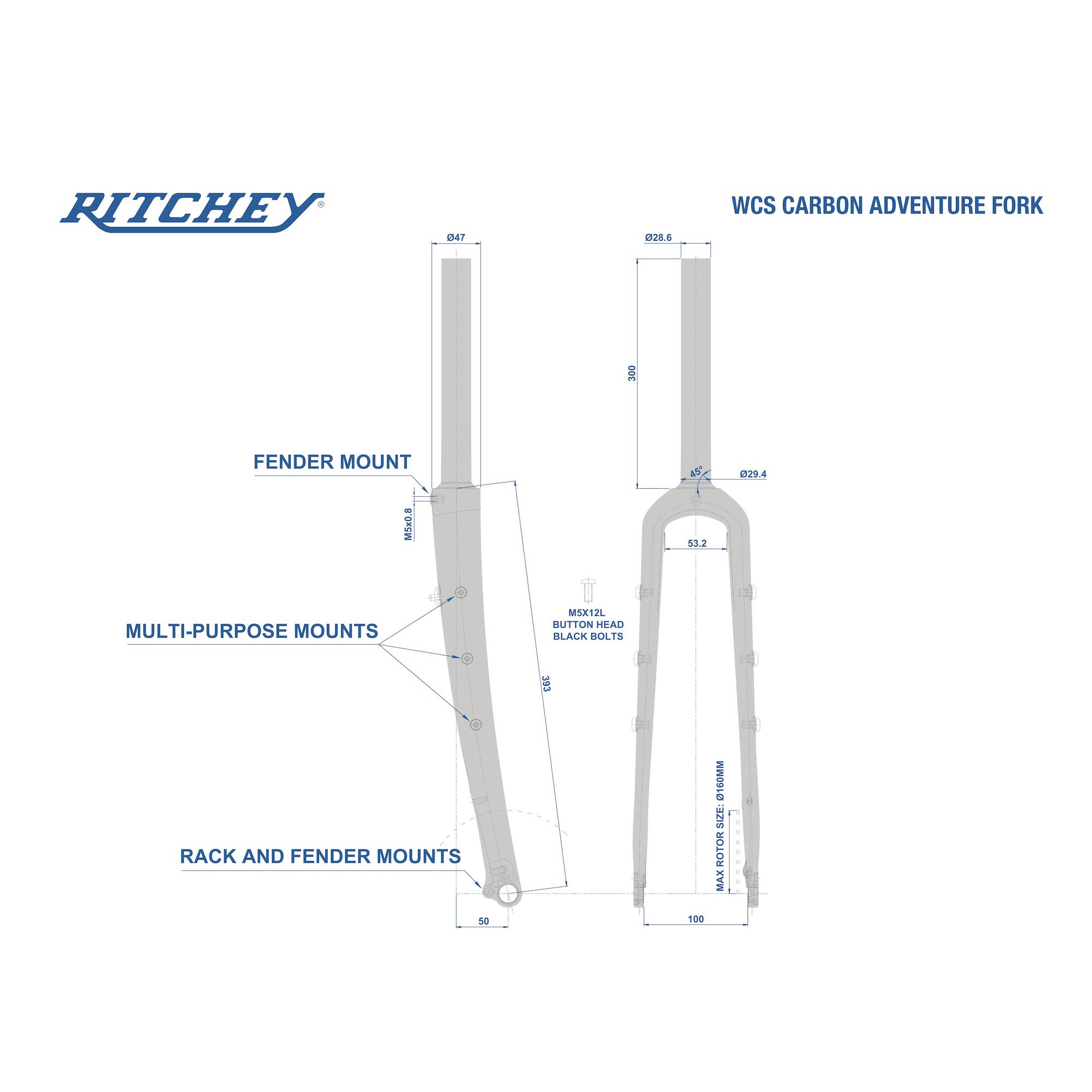

FORK SPEC

-Fork weight: 446g (uncut, no through axle)

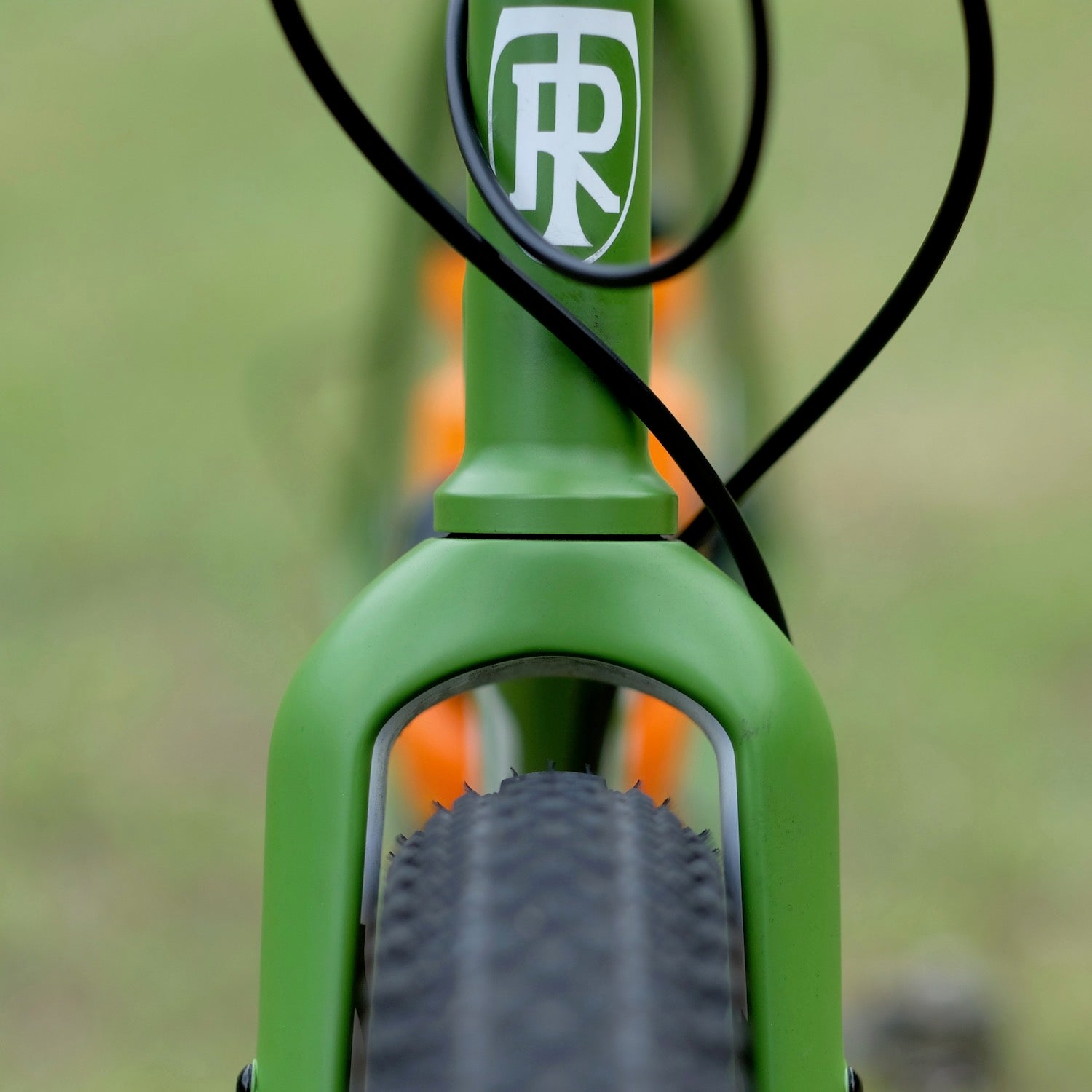

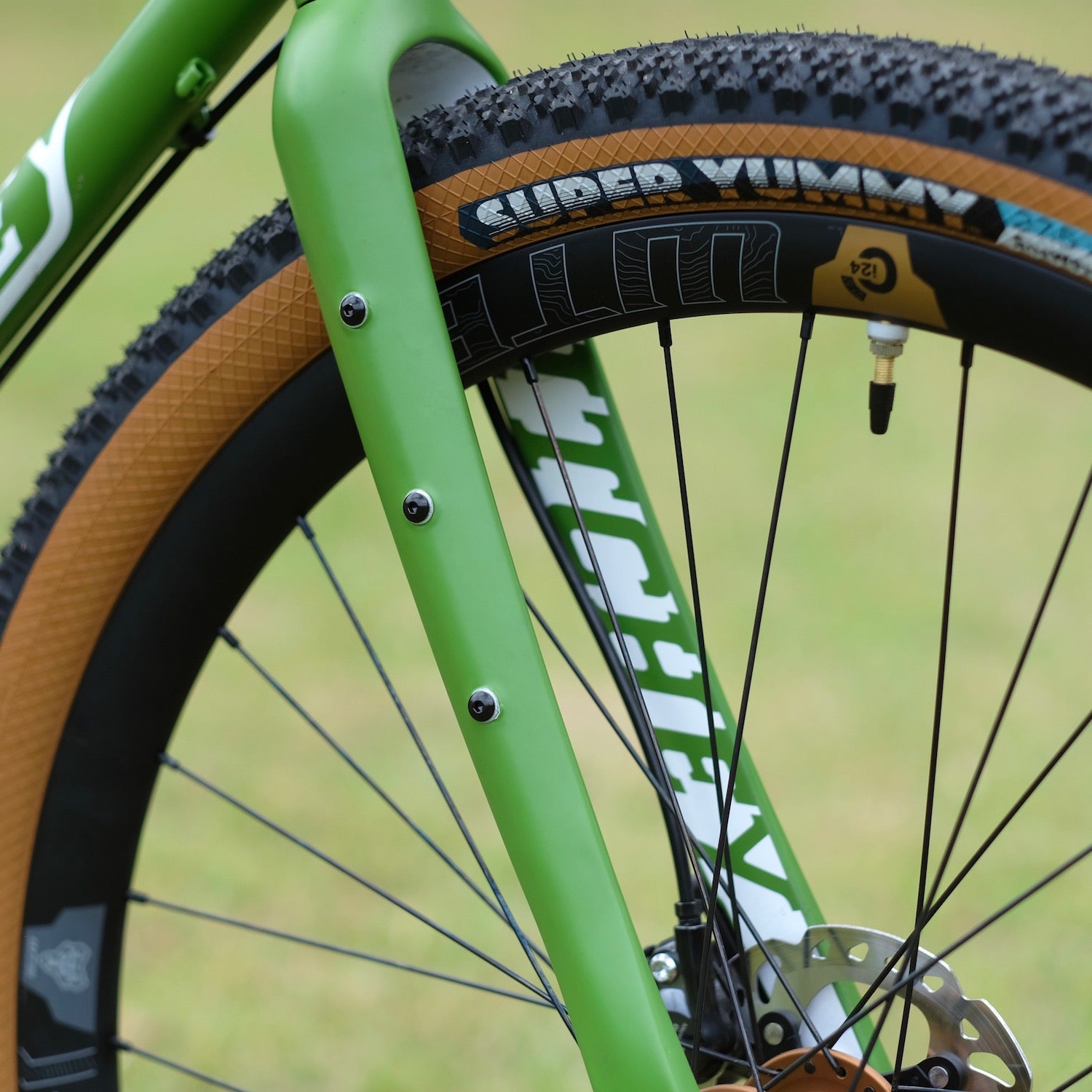

-New Richie Carbon Adventure Fork with multi-purpose, rack and fender mounts
-1-1/8" straight column with integral 45 degree crown race
-100mm spacing (12mm alloy through axle included)
・Column length: 300mm
・Axle crown: 393mm
・Offset: 50mm
・Max payload of fork: 3kg per side


Tire compatibility

Wheel and tire compatibility: 700 x 48mm or 650 x 2.0"
(depending on tire/rim manufacturer)
Max frame spacing: 58mm
Maximum fork spacing: 60mm

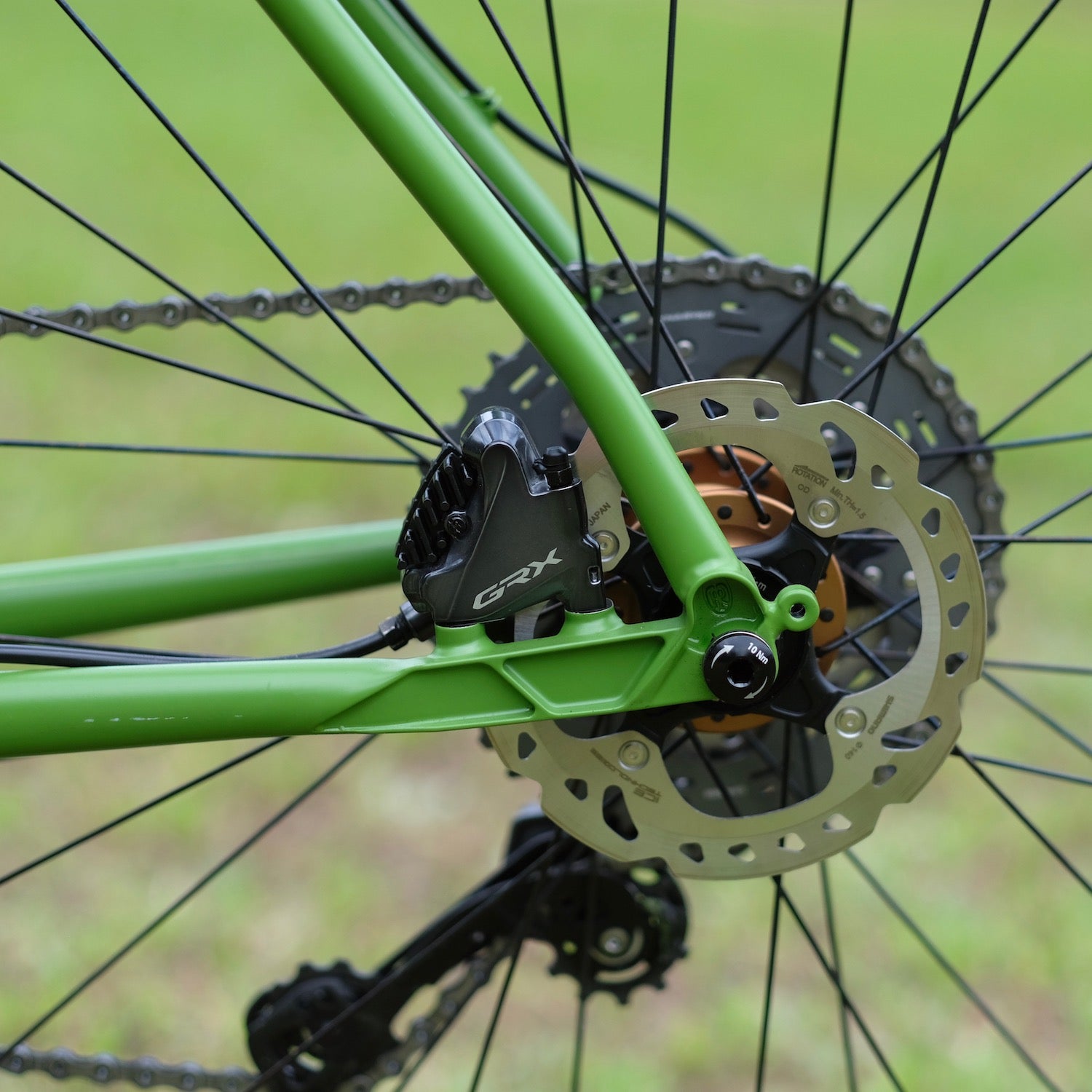

Brake compatibility

Front and rear flat mount brakes: 140mm
(160mm max - adapters sold separately)
Frame flat mount bracket height: 10mm
