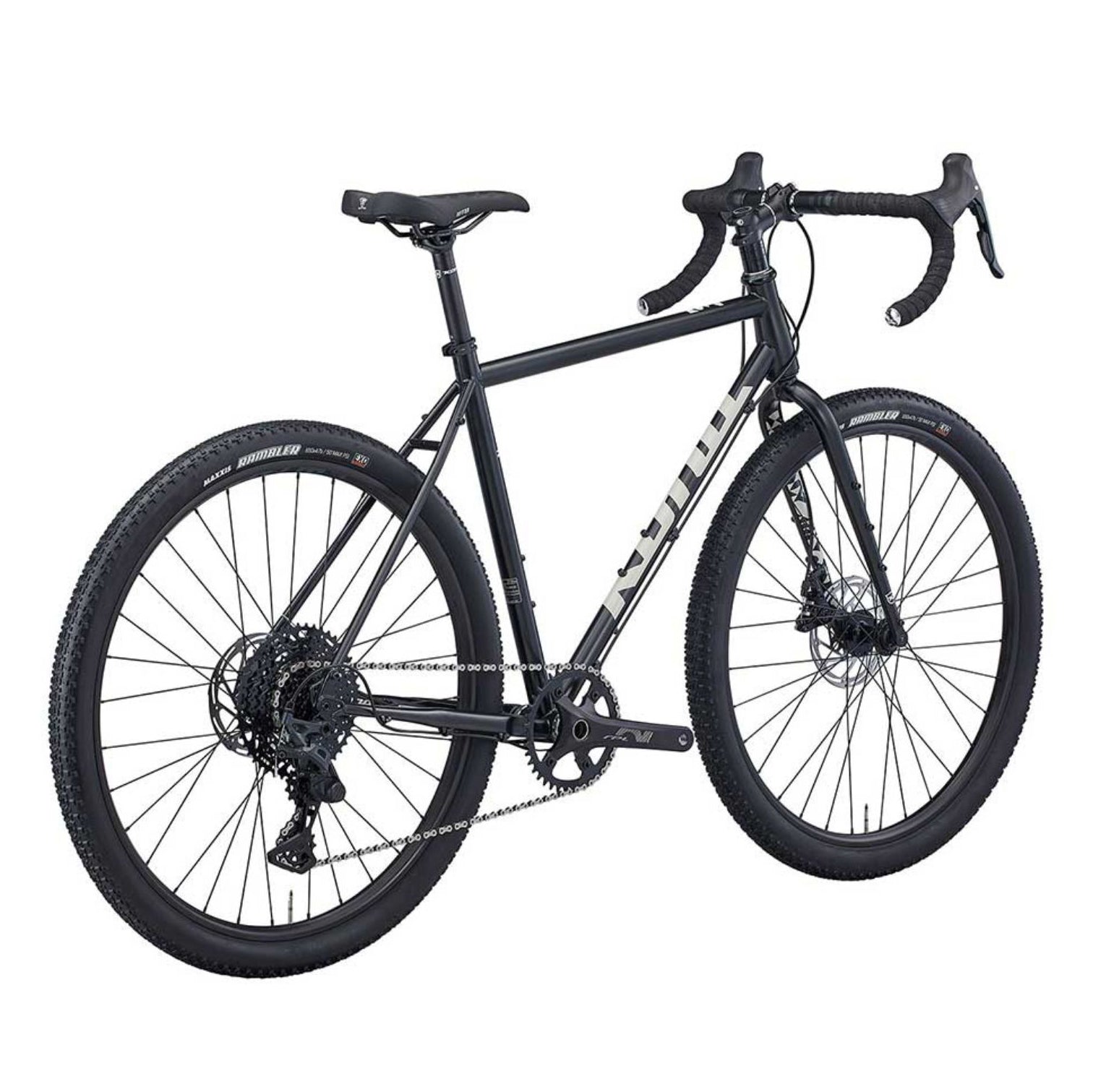

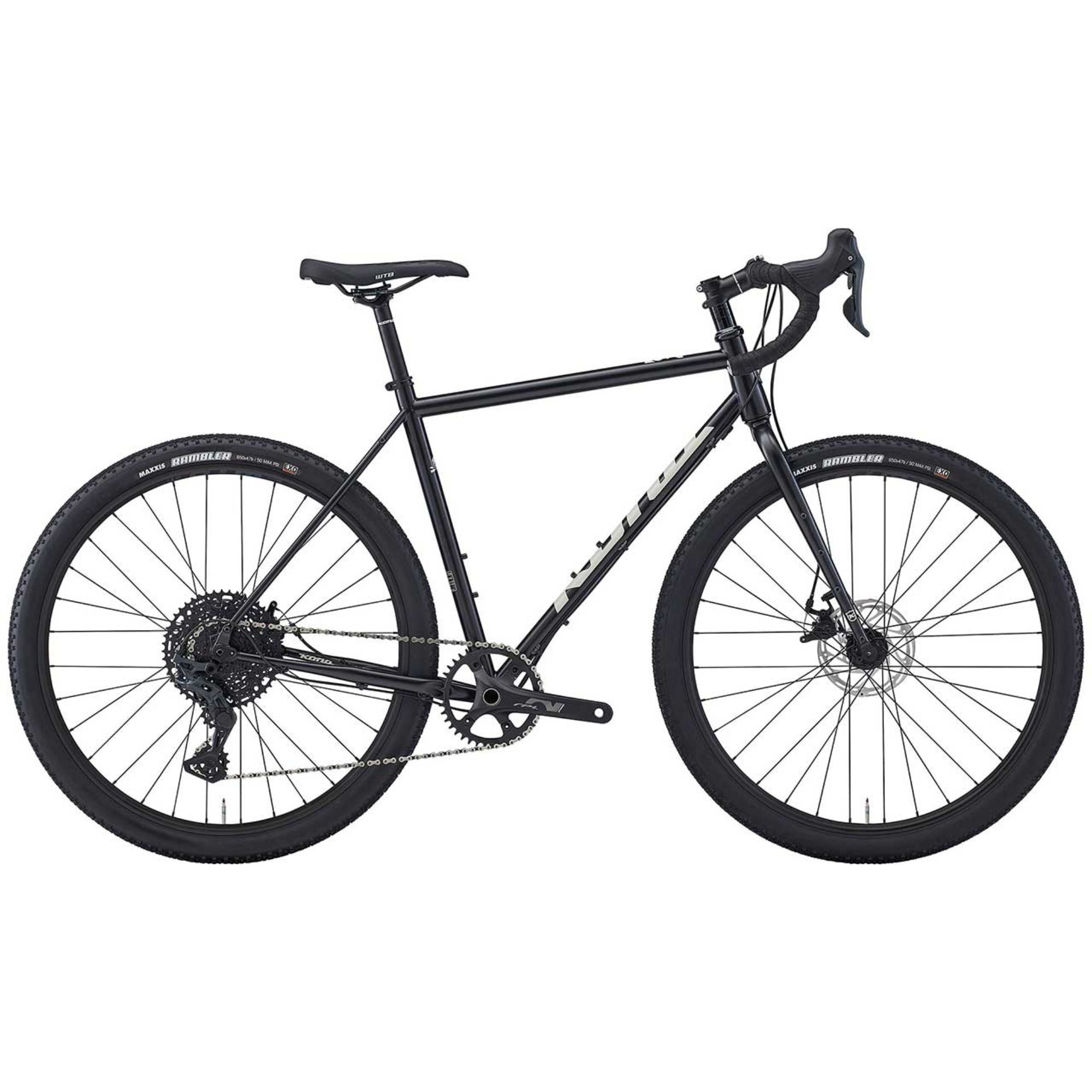

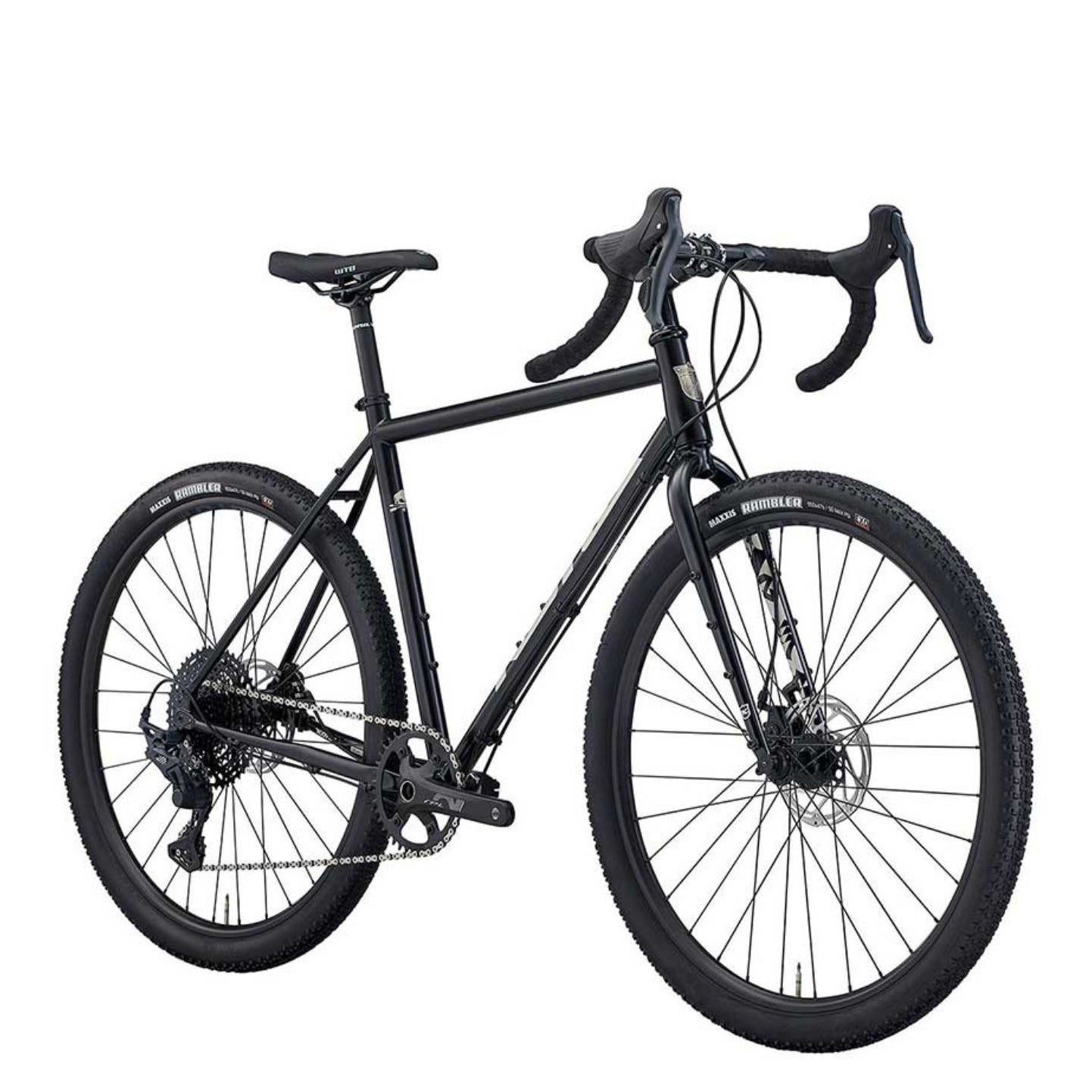

KONA Rove ST 2025

A chromoly gravel bike for touring and gravel in one

The Kona Rove ST is an all-round model suitable for a wide range of riding situations, including pavement, gravel, and long tours. The suppleness and durability of the chromoly frame provide a comfortable ride. It is also compatible with carriers and fenders, making it useful for everything from commuting to camping rides.

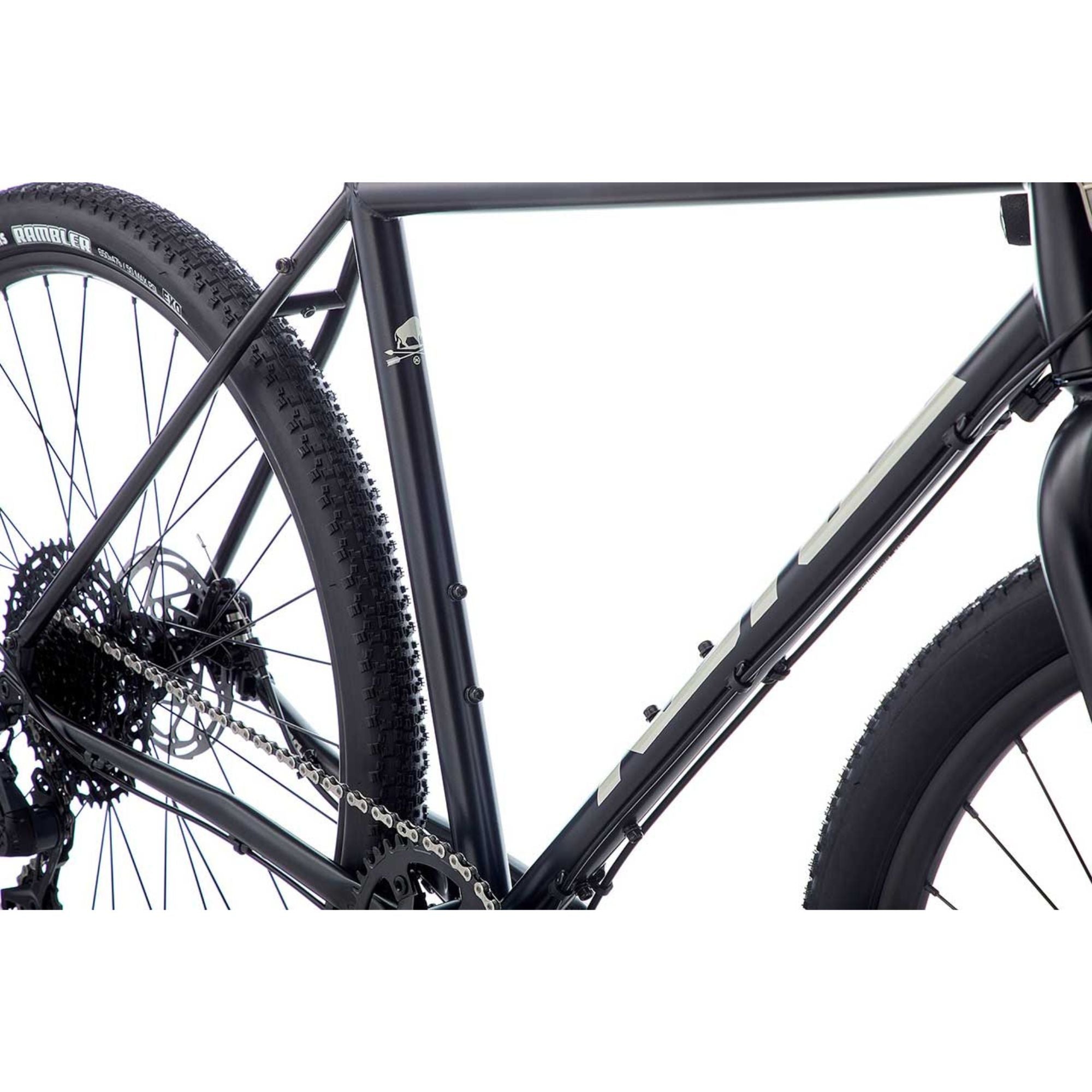

Multiple eyelets on the frame and fork allow for the attachment of bottle gauges and carriers. The through-axle design provides high rigidity and handling stability even on rough roads or when loaded with luggage. Flat-mounted disc brakes are used to ensure braking power and ease of maintenance.

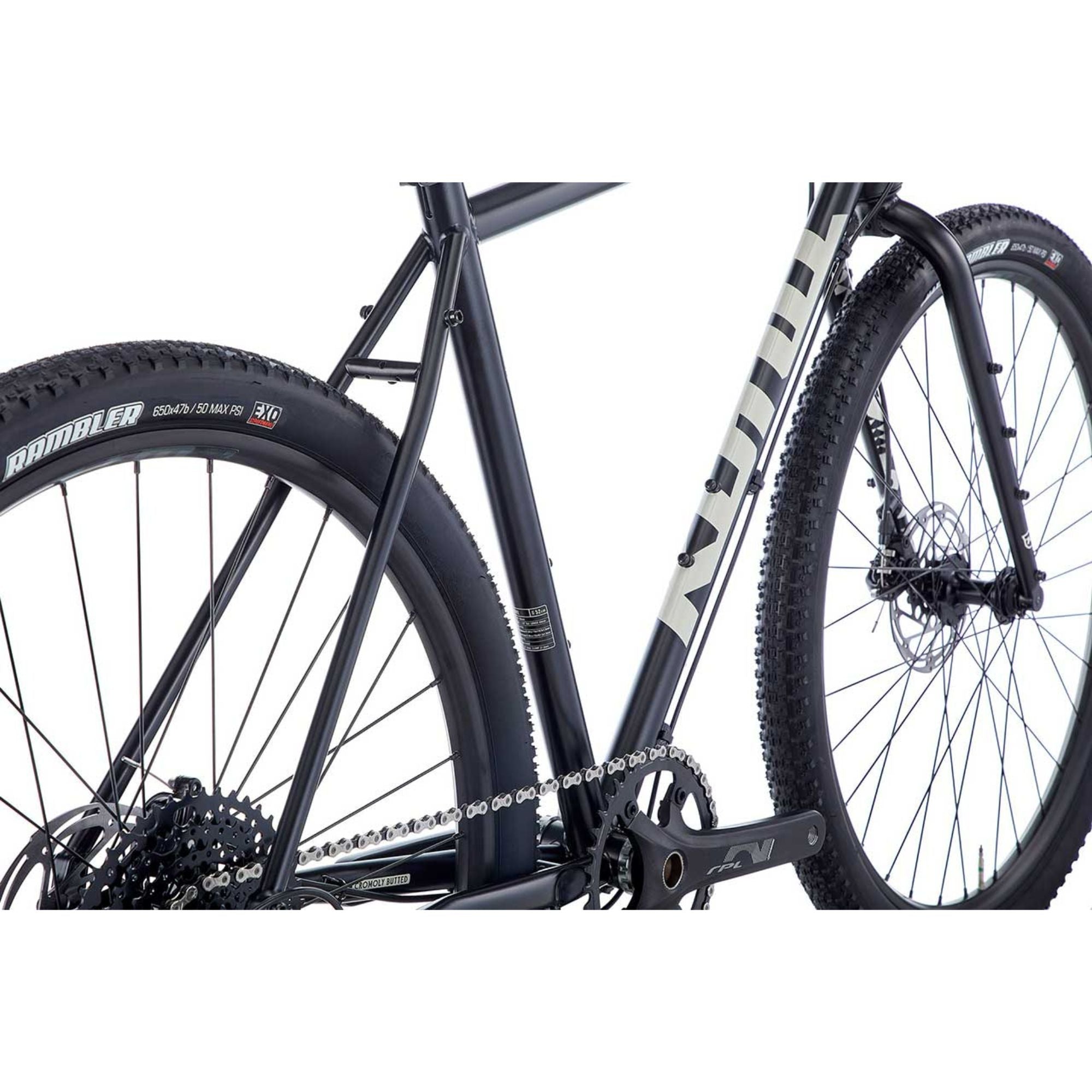

A ROAD PLUS-spec 650 x 47B Maxxis Rambler is standard, providing both on-road comfort and off-road stability. The drivetrain is a Microshift Sword 1×10 speed with an 11-48T cassette for a wide gear range. This practical configuration can handle everything from paved roads to long climbs and rough terrain.

WTB ST i23 TCS 2.0 rims make tubeless conversion easy. Mechanical disc brakes Tektro MDC550 + 160mm rotors combine ease of maintenance with stable braking power. While keeping up with the latest trends, the parts configuration is not excessive, making this a bike that will be with you for a long time.

[SPEC]

FRAME MATERIAL	Kona Butted Cromoly
SIZES	48, 50, 52, 54, 56
Rear Shock	n/a
Fork	Kona Project Two Cromoly Disc
Crankarms	Prowheel
Chainrings	40t
B/B	Prowheel BB68+
Pedals	Pedals
Chain	KMC X10
Freewheel	Microshift Advent X 11-48t 10spd
Chainguide	F/D
F/D	n/a
R/D	Microshift Sword
Shifters	Microshift Sword
Brake Calipers	Tektro MDC550 Mechanical
Front Brake Rotor	Tektro TR160mm
Rear Brake Rotor	Tektro TR160mm
Brake Levers	Microshift Sword
Headset	FSA No.1/No.10
Handlebar	Kona Road
Stem	Kona Road
Seatpost	Kona Thumb w/Offset 27.2mm
Seat Clamp	Kona Clamp
Grips	Kona Cork Tape
Saddle	WTB Volt
Front Hub	Formula 100x12mm
Rear Hub	Formula 142x12mm
Spokes	Stainless Black 14g
Rims	WTB ST i23 TCS 2.0
Front Tire	Maxxis Rambler EXO 650x47c
Rear Tire	Maxxis Rambler EXO 650x47c
Paint Color	Satin Metallic Black w/ Gloss Bone Decals

[GEOMETRY]

	Size	Size 48	Size 48	Size 48 50	Size 48	Size 48 50 52 54
1	ST Length	ST Length	500	520	520	560
2	TT Length	515	531	546	562	578
3	Reach	372	378	383	388	392
Stack	Stack	532	551	570	588	607
5	Standover	735	754	775	775	794
6	HT Angle	70.5	70.5	71.0	71.0	71.0 71.5
7	HT Length	90	110	130	150	170
8	ST Angle	75.0	74.5	74.0	73.5	73.0
9	CS Length	435	435	435 435	435 435	435 435 435
10	BB Drop	74	74	72	72	70
11	BB Height	268	Height 268	Height 268 268	270	Height 268 268 270 270
12	Wheelbase	1016	1029	1036	1054	1054
Front Center	Front Center	Front Center	604	612	623	623
Fork Length	Fork Length	400	400	400	400 400	Fork Length 400 400
Fork Offset	Fork Offset	50	Fork Offset 50	50 50	50 50	50 50 50

[Height]

Height	Inseam Length	Size
158-163cm	70-73cm	48 cm
163-168cm	73-76cm	50 cm
168-173cm	76-79cm	52 cm
173-178cm	79-82cm	54 cm
178-183cm	82-85cm	56 cm
