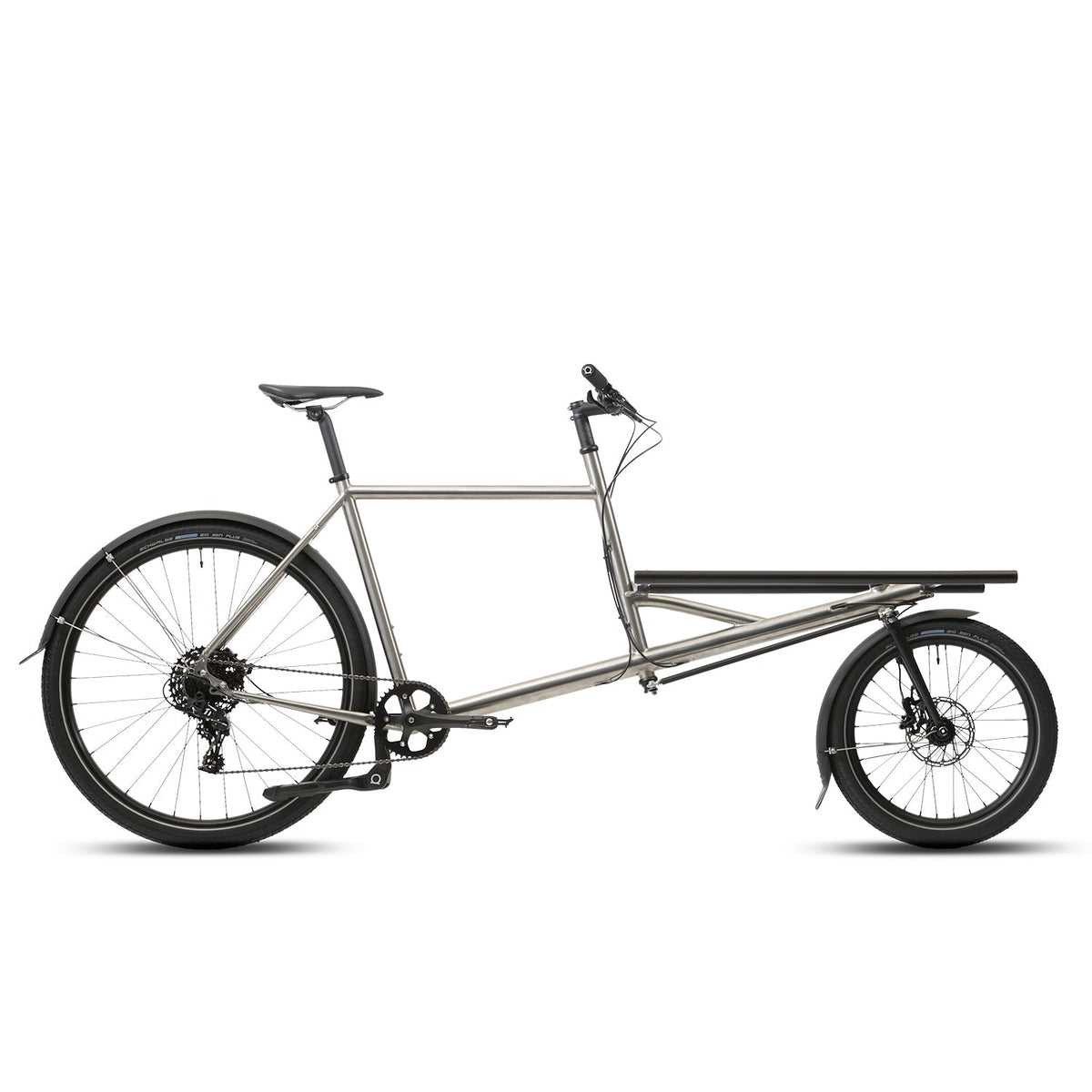

[予約商品] OMNIUM Titanium Cargo V3IR Complete SHIMANO 1x11speed

[予約商品] OMNIUM Titanium Cargo V3IR Complete SHIMANO 1x11speed

OMNIUM
SKU: OM-TI-CA-XS-TA-COMP
¥867,900
税込。 配送料はチェックアウト時に計算されます。
Size
Dropout
在庫・納期のお問い合わせ

こちらは受注生産となります。注文後のキャンセル、変更はお受けできません。
2026年2月14日19時までにオーダーをお願い致します。
商品の入荷は2026年8月以降となります

メッセンジャーが創り上げた究極のカーゴバイク

デンマークはコペンハーゲンを拠点とする荷物の運搬や移動や旅行に適した、軽量で高速かつ安定したカーゴバイクを製造しているブランド OMNIUM / オムニウム。

Cargo は、メッセンジャー/ 自転車便の現場でのフィードバックをもとに幾重にも改良を重ね、その機動力と積載力は折り紙付きです。 そして、これまでの速くて軽快なカーゴの走りはそのままに、調整可能なロッカードロップアウトを装備し、WiFi設計によるワイドタイヤと信頼できるスルーアクスルに、新しい機能的なドロップアウトを組み合わせ、多用途性を最優先した究極のカーゴバイク、それがこの Cargo V3モデルです。

調整可能なロッカードロップアウトは、ディレイラー付きの外装ギアから内装ギア、ベルトドライブまで、様々なドライブトレイン(同時には使えないのが残念ですが...)を選択することができます。 もちろんフィックスドにも!
交換可能なインサートにより、リアエンド幅やギアコンポーネントの選択に応じて、スルーアクスルとクイックリリースのどちらかを選ぶことができます。  必要であれば、壊れたギアハンガーを簡単に交換するためにスペアセットを携帯することもできます。 交換用のドロップアウトインサートはこちらから。

Cargo は信じられないほど多用途で、軽量かつ高速なカーゴバイクです。最も優れている点は、その巧みな構造と洗練されたジオメトリーにより、荷物を積んでいない時は普通の自転車のように乗れることです。

ホイールベースが最も長いモデルですが、非常に安定したハンドリングを実現しています。また、前輪とキックスタンドの中間に重量がかかりますが、自分でラックに積み込む際にもこのホイールベースが安定性を高めてくれます。

[SPEC]

Size : XS, S, M, L, XL
Material : Double-Butted Chromoly Steel Frame & Fork
Seat Post diam. : 31.6mm
Seat Clamp Size : 34.9 mm
Front Wheel : 20" (etrto 406) / TA 15 x 100 mm spacing, Disc Brake only
Rear Wheel : TA Insert : 700c (etrto 622) / 12 x 142mm spacing, Disc Brake only
QR Insert : 700c (etrto 622) / 10 x 135mm spacing, Disc Brake only
Front Tyre Clearance : 55mm with mudguards
Rear Tyre Clearance : 55mm with mudguards
Front Thru Axle : 15×100, 125mm long, 17mm thread length, 1.5mm pitch
Rear Thru Axle : 12×142, 172mm long, 19mm thread length, 1.75mm pitch
Fork Headset : 1-1/8″ Threaded Integrated with locking cap
Steerer Headset : 1-1/8″ Ahead
Bottom Bracket : 68mm BSA
Brake Mounts : IS brake mount front and rear, for minimum 160mm and max 180 rotors
Q-Factor : 145mm
Gears : For 1x rear derailleur gear system
Standard Rack Weight : 1,320g +/-
Rack Dimensions : 83cm x 50cm
Rack Bolt Size : M15 x 15mm
Frame kit Weight : 7.2kg (Including Rack, Steerer Tube & Rod, Fork, Drop Outs, Head Sets & Axles)
Maximum Loading Weight On Front Rack 85.0kg
Maximum Total Loading Weight Including Rider : 175.0kg





[COMPONENTS LIST SHIMANO 1x11speed]

Brakes : SHIMANO MT500, IS mount, 160mm rotor front and rear
Gears : SHIMANO Deore M5100 11speed
SHIMANO SLX 11-40T cassette, KMC 11speed chain EPT
Stem : 3D forged 6061 aluminium, 80mm standard, oversize 31.8mm, matte black
Handle Bar : 6061 aluminium, 700mm wide, 15mm rise, oversize, matte black
Seat Post : 31.6mm forged alloy 6061 aluminium, T6, 15mm setback, matte black
Grips : OMNIUM lock-on, black, foam
Crank set : Driveline, 42t, CNC Narrow Wide Chainring
Bottom Bracket : FSA, Square Taper, 68mm BSA
Head set : VP Components, sealed bearings, 1-1/8″ for the rear headtube, Integrated System (IS) (angular contact without cups) 1-1/8″ front
Saddle : OMNIUM Standard Saddle
Tyres : SCHWALBE Big Ben Plus 55-622 (700x55mm) & 55-406 (20×2.15″).
Size and model may vary based on availability.
Wheels : OMNIUM WiFi Wheelset: 12 x 142mm thru axle 622 (700c) rear & 15 x 100mm thru axle 406 (20″) front, 38mm outer width rim
Kick Stand : OMNIUM cast aluminium twin-leg
Pedals : Cast metal platform, black
Mudgurds : WiFi 60mm wide matte black





[SIZE GUIDE]

身長 推奨フレームサイズ
155 - 165cm X-Small
165 - 175cm  Small
175 - 185cm Medium
185 - 195cm Large
195 - 205cm X-Large



[GEOMETRY]

Cargo V3 XS (49.5) S (52) M (54.5) L (57) XL (60)
Seat Tube (Center - Top) (mm) 495 520 545 570 600
Actual Top Tube (Center - Center) (mm) 505 520 545 570 600
Stack Height (mm) 532 557 581 605.5 634
Reach (mm) 349 357 375 394 415
Standover Height (mm) 745 769 793.5 818 846
Bottom Bracket Height (mm) 288 288 288 288 288
Bottom Bracket Drop (mm) 81 81 81 81 81
Seat Tube Angle 73.5° 73.5° 73.5° 73.5° 73.5°
Head Tube Angle Rear 74.5° 74.5° 75° 75° 75.5°
Head Rube Angle Front 74.5° 74.5° 75° 75° 75.5°
Wheel Base (mm) 1,578 1,590 1,611 1,632 1,657
Axle to Crown (mm) 298 298.5 298 298 298
Rake (mm) 45 45 45 45 45
Trail (mm) 26 26 24 24 21
Chain Stay Length (mm) 462 462 462 462 462
Full Bike Length (mm) 2,208 2,220 2,241 2,262 2,286
